Australia 01 January 1965
AIRCRAFT CARRIERS

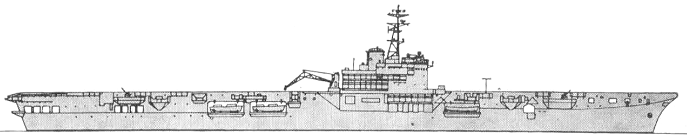

| CVL | Magnificent mod. | 1 | R21 | Melbourne | 1955 | |
19966t, 213.8x38.4x7.8m, 4b,2gst, 42000hp, 24kts, 1417p; (7x2+11x1)-40/60, 24aircraft(Sea Venom fighters, Gannet ASW planes, Wessex helicopters); type 3x 277Q, 293Q, 978 radars |
PRINCIPAL SURFACE COMBATANTS

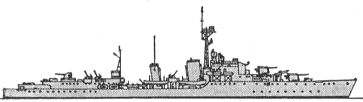

| DD | Tribal | 1 | D130 | Arunta | 1942 |  |
2710t, 114.9x11.1x4.2m, 3b,2gst, 44000hp, 36.2kts, 250p; 2x2-120/45, 1x2-102/45, 1x2-40/60, 1x4-533TT, 1x3-305 Squid ASWRL, 2dct, 2dcr; type 272, 275, 291 radars, type 127 sonar |
| Battle batch 3 | 2 | D37 | Tobruk | 1950 |  |
3450t, 115.5x12.5x4.7m, 2b,2gst, 50000hp, 35.7kts, 332p; 2x2-114/45(37), 1x2-114/45(59), (3x2+6x1)-40/60(37), 2x1-40/60(59), 2x5-533TT(37), 1x3-305 Squid ASWRL; type 262, 275, 277, 291, 293 radars, type 170, 174 sonars | |
| D59 | Anzac | 1951 | |||||

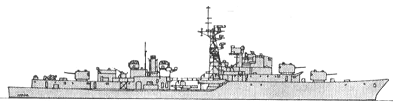

| Daring | 3 | D08 | Vendetta | 1958 |  |
3600t, 118.9x13.1x4.1m, 2b,2gst, 54000hp, 34.7kts, 320p; 3x2-120/45, (2x2+2x1)-40/60(08,11), (1x2+2x1)-40/60(154), 1x5-533TT(08), 1x3-305 Squid ASWRL; type 275(08,11), 262, 293, 277(154), 291(154), 903(1954) radars, type 170, 174/177 sonars | |
| D11 | Vampire | 1959 | |||||
| D154 | Duchess | 1952 | |||||

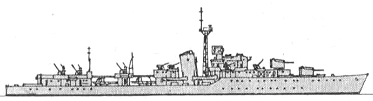

| FF | Q | 3 | F02 | Queenborough | 1942 |  |
2850t, 109.2x10.9x4.3m, 2b,2gst, 40000hp, 36.7kts, 195p; 1x2-102/45, (1x2+3x1)-40/60, 2x3-305 Squid ASWRL(01), 2x3-305 Limbo ASWRL(02-04); type 262, 278, 293 radars, type 170, 174 sonars |
| F03 | Quiberon | 1942 | |||||
| F04 | Quickmatch | 1942 | |||||
| Parramatta | 1 | F312 | Warrego | 1940 |  |
1510t, 81.2x11.0x3.1m, 2b,2gst, 2200hp, 16.8kts, 100p; 1x2-102/45, 1x1-40/60; sonar | |

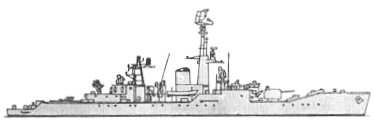

| River | 3 | F174 | Barcoo | 1944 |  |
2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 1x2-102/45, 1x1-40/60(174,363), 2x3-305 Squid ASWRL, 8dct, 2dcr; type 272, 275(174,363), 291 radars, sonars | |
| F363 | Hawkesbury | 1944 | |||||
| F532 | Macquarie | 1945 | |||||
| River modified | 1 | F408 | Culgoa | 1947 |  |
2187t, 91.7x11.1x3.9m, 2b,2vte, 5500hp, 19kts, 177p; 2x2-102/45, 3x1-40/60, 2x2-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; type 275, 277, 291 radars, sonars | |

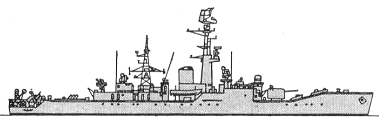

| Yarrra | 2 | F05 | Parramatta | 1961 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 231p; 1x4 SeaCat GWS22 SAM(24)(05), 1x1 Ikara ASuM(30)(05), 1x2-120/45, 1x2-40/60(07), 1x3-305 Limbo ASWRL(05), 2x3-305 Limbo ASWRL(05); type 275, 262(07), 293, 277, 904(05), 978, LW-02 radars, type 162, 170, 177M, 185 sonars | |
| F07 | Yarra | 1961 | |||||
| Stuart | 2 | D22 | Derwent | 1964 |  |
2560t, 112.7x12.5x3.9m, 2b,2gst, 30000hp, 29kts, 235p; 1x4 SeaCat GWS22 SAM(24)(22), 1x1 Ikara ASuM(30)(48), 1x2-120/45, 1x2-40/60(48), 2x3-305 Limbo ASWRL(22), 1x3-305 Limbo ASWRL(48), type 975, 974, 977, 293, 978, 903(48), 904(22), 994 radars, type 162, 170, 177M, 185 sonars | |
| D48 | Stuart | 1963 |
PATROL AND COASTAL COMBATANTS
| PB | HDML | 3 | P1321, 1324, 1325 | SDML1321,1324,1325 | 1943 - 1944 |  |
54t, 22.0x4.8x1.4m, 2d, 300hp, 11.5kts, 10p; 2x1-20/70, 8dc; type 291 radar |
AMPHIBIOUS SHIPS AND CRAFT

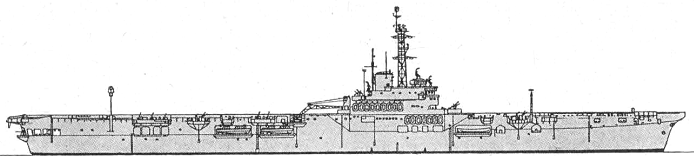

| CVL-AP-AK | Magnificent | 1 | R17 | Sydney | 1949 |  |
17780t, 211.8x24.4x7.0m, 4b,2gst, 40000hp, 25kts, 1300p; 4x1-40/60; vehicles, troops, helicopters; 2x type 277Q, 293M, 960/281BQ, 961 radars |
MINE WARFARE SHIPS
| MSO | Bathurst | 1 | M207 | Mildura | 1941 |  |
790t, 56.7x9.5x3.0m, 2b,2vte, 1550-2000hp, 15-16kts, 90p; 1x1-102/45, 1x1-40/60, 2x1-20/70, 4dct, 2dcr, sweeps; radar, sonar |
| MSC | Ton | 6 | M1102 | Snipe | 1954 |  |
425t, 46.3x8.8x2.5m, 2d, 3000hp, 15kts, 29p; 2x1-40/60, mechanical sweeps; type 978 radar |
| M1121 | Curlew | 1954 | |||||
| M1139 | Hawk | 1955 | |||||
| M1152 | Teal | 1955 | |||||
| M1183 | Ibis | 1956 | |||||
| M1185 | Gull | 1955 |
