Spain 01 January 1960
SUBMARINES
| SS | D1 | 3 | S11 | D1 | 1947 | |
1065/1399t, 84.3x6.7x4.3m, 2d/em, 5000/1350hp, 20.5/9.5kts, 56p, 60m; 1x1-88/45, 1x1-20/65, 6-533TT |
| S21 | D2 | 1951 | |||||
| S22 | D3 | 1954 | |||||
| G1 | 1 | S01 | G7 | 1941 | |
769/1070t, 67.1x6.2x4.7m, 2d/em, 2800/750hp, 17/7.6kts, 54p, 100m; 1x1-88/45, 5-533TT | |
| Balao | 1 | S31 | Almirante García de los Reyes | 1944 | |
1830/2440t, 95.0x8.3x5.2m, 4dg,4em(2), 4610/2700hp, 20/10kts, 82p, 120m; 10-533TT; SS, ST, SV radars, BQR-2, BQS-2, SQR-3 sonars | |
| SSX | Foca | 2 | F1, 2 | Foca I, Foca II | 1957 | No picture | 16/20t, 13.9x1.8x1.5m, 1d/em, 160/110hp, 9.2/12kts, 3p, 120m; 2-533TT |
| Tiburón | 2 | T1, 2 | Tiburón I, Tiburón II | 1958 | No picture | 78/81t, 21.5x2.7x2.7m, 2d/2em(1), 400/400hp, 10/14.5kts, 8p, 120m; 2-533TT |
PRINCIPAL SURFACE COMBATANTS
| CA | Canarias | 1 | C21 | Canarias | 1936 |  |
13750t, 193.6x19.5x5.3m, 8b,4gst, 90000hp, 33kts, 1200p; 51belt, 37deck, 25turrets, 25CT; 4x2-203/50, 8x1-120/45, 4x1-40/70, 4x2-37/83, 4x1-20/70, 2dct, 1dcr; SG-6B, MLA-1B, Marconi, Decca 12 radars |
| CL | Méndez Núñes | 1 | C01 | Méndez Núñes | 1924 |  |
6045t, 142.9x14.1x4.4m, 12b,4gst, 45000hp, 29kts, 343p; 76belt, 25deck, 150CT; 8x1-120/45, 4x2-37/83, 7x1-20/70, 4x4-20/65, 2x3-533TT, 2dct, 1dcr |
| Príncipe Alfonso | 3 | C11 | Galicia | 1925 |  |
9748(11,13)-9660(12)t, 176.6x16.5x5.0m, 8b,4gst, 80000hp, 31.5(11,13)-33(12)kts, 781(11,13)-564(12)p; 76belt, 50deck, 13shields, 150CT; 4x2-152/50(11,13), (3x2+2x1)-152/50(12), 8x2-37/83, 5x4-20/65(11,13), 4x1-20/65(12), 4dct(11,13), 1seaplane(He114)(13) | |
| C12 | Almirante Cervera | 1927 | |||||
| C13 | Miguel de Cervantes | 1930 | |||||
| DD | Alsedo | 1 | 1 | Lazaga | 1925 |  |
1337t, 86.8x8.2x4.5m, 4b,2gst, 33000hp, 34kts, 86p; 3x1-102/50, 3x1-20/65, 2x2-450TT, 2dct, 1dcr, 60mines |
| Churucca | 3 | D11 | Sánchez Barcáiztegui | 1928 |  |
2087t, 102.0x9.7x3.2m, 4b,2gst, 42000hp, 36kts, 190p; 4x1-120/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 2dcr | |
| D12 | José Luis Díez | 1929 | |||||
| D13 | Churucca | 1931 | |||||
| Almirante Antequera | 5 | D14 | Almirante Antequera | 1935 | |
2175t, 101.2x9.7x3.2m, 4b,2gst, 42000hp, 36kts, 190p; 4x1-120/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 2dct, 2dcr | |
| D15 | Almirante Miranda | 1936 | |||||
| D16 | Gravina | 1936 | |||||
| D17 | Escaño | 1936 | |||||
| D18 | Ulloa | 1937 | |||||
| Álava | 2 | D21 | Liniers | 1951 |  |
2225t, 101.1x9.7x3.7m, 4b,2gst, 42000hp, 36kts, 204p; 4x1-120/45, 2x1-37/83, 3x1-20/65, 2x3-533TT, 2dct, 1dcr | |
| D23 | Álava | 1951 | |||||
| Audaz | 4 | D31 | Audaz | 1953 |  |
1548t, 93.9x9.5x3.4m, 3b,2gst, 30800hp, 31.6kts, 199p; 2x1-76/50, 2x1-40/70, 2-324TR, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B, MLA-1B, Mk63 radars, QHBa sonar | |
| D32 | Osado | 1955 | |||||
| D33 | Meteoro | 1955 | |||||
| D35 | Rayo | 1956 | |||||

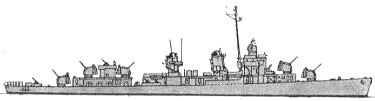

| Fletcher | 3 | D21 | Lepanto | 1943 |  |
3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 290p; 5x1-127/38(21,22), 4x1-127/38(23), 3x2-76/50(23), 3x2-40/60(21,22), 6x1-20/70(21,22), 1x3-533TT(23), 2x3-324TT, 2x24-178 Hedgehog ASWRL, 6dct(21,22), 4dct(23), 2dcr(21,22), 1dcr(23); SPS-6C, SPS-10, Mk25, 2x SPG-34(23), Mk35(23) radars, SQS-4 or SQS-29 sonar | |
| D22 | Almirante Ferrándiz | 1943 | |||||
| D23 | Almirante Valdéz | 1942 | |||||
| FF | Pizarro | 8 | F31 | Pizarro | 1946 |  |
2246t, 95.2x12.2x3.4m, 2b,2gst, 6000hp, 18.5kts, 251p; 3x2-120/50, 4x2-37/83, 6x1-20/65, 4dct, 1dcr, 30mines |
| F32 | Hernán Cortés | 1947 | |||||
| F33 | Vasco Núñez de Balboa | 1947 | |||||
| F34 | Martín Alonso Pinzón | 1948 | |||||
| F35 | Magallanes | 1948 | |||||
| F36 | Sarmiento de Gamboa | 1950 | |||||
| F41 | Vicente Yáñez Pinzón | 1949 | |||||
| F42 | Legazpi | 1951 | |||||
| Júpiter | 4 | F01 | Marte | 1938 |  |
2600t, 96.0x12.7x3.5m, 4b,2gst, 10000hp, 18.5kts, 180p; 4x1-120/45, 2x1-76/40(01,03,04), 3x1-37/83(01), 2x2-37/83(02), 2x1-20/65(01), 3x1-20/65(02-04), 264mines, 2dct(01,02), 2dcr(03,04); MLA-1B(01), SG-6B(01) radars | |
| F02 | Neptuno | 1939 | |||||
| F03 | Júpiter | 1937 | |||||
| F04 | Vulcano | 1937 | |||||
| Eolo | 2 | F21 | Eolo | 1941 |  |
1925t, 88.9x11.8x3.7m, 2b,2gst, 5000hp, 19.5kts, 220p; 4x1-105/44, 2x2-37/83, 4x1-20/65, 2dct, 70mines | |
| F22 | Tritón | 1943 | |||||
| FS | Atrevida | 4 | F51 | Descubierta | 1955 |  |
1135t, 75.5x10.2x2.7m, 2d, 3000hp, 18.5kts, 132p; 1x1-76/50, 3x1-40/70, 2x24-178 Hedgehog ASWRL, 8dct, 2dcr; SPS-5B radar, QHBa sonar |
| F61 | Atrevida | 1954 | |||||
| F62 | Princesa | 1959 | |||||
| F64 | Nautilus | 1959 |
PATROL AND COASTAL COMBATANTS
| PC | Mersey | 3 | 1 | Uad Kert | 1917 |  |
665t, 45.1x7.2x2.8m, 1b,1vte, 600hp, 11kts, 45p; 1x1-76/50(1,3), 2x1-76/50(2), 1x1-47/50(3) |
| 2 | Arcíla | 1918 | |||||
| 3 | Xauen | 1918 | |||||
| Lanzón | 2 | V17 | 1935 | No picture | 111t, 26.5x5.4x3.1m, 1pe, 285hp, 12kts | ||
| V18 | 1935 | ||||||
| Pegaso | 2 | W21 | Pegaso | 1951 |  |
498t, 42.0x8.2x2.9m, 1vte, 532hp, 12kts, 39p; 1x1-76/50, 2x1-20/70 | |
| W22 | Procyon | 1951 | |||||
| Cíes | 2 | W31 | Cíes | 1948 | No picture | 275t, 31.0x6.1x2.5m, 1d, 400hp, 12kts, 31p; 1x1-20/70; RM914 radar | |
| W32 | Sálvora | 1948 | |||||
| Centinela | 2 | W33 | Centinela | 1953 | No picture | 282t, 35.8x6.9x3.0m, 1d, 430hp, 12kts; 2x1-37/83; radar | |
| W34 | Serviola | 1953 | |||||
| PC | 1 | 1 | Javier Quiroga | 1943 |  |
463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-76/50, 1x1-40/60; SO radar | |
| PR | Cabo Fradera | 1 | 1 | Cabo Fradera | 1928 |  |
45t, 22.8x4.4x1.2m, 2pe, 121hp, 10.7kts, 16p; 1x1-42/42 |
| PT | LT27 | 6 | LT27 | 1953 |  |
116t, 34.8x5.1x1.5m, 3d, 7500hp, 40kts, 22p; 2x1-20/65, 2-533TT, 2dcr; RM914 radar | |
| LT28 | 1953 | ||||||
| LT29 | 1953 | ||||||
| LT30 | 1953 | ||||||
| LT31 | 1956 | ||||||
| LT32 | 1959 | ||||||
| PB | V20 | 2 | V20, 21 | 1942 - 1944 |  |
60t, 26.2x4.7x1.4m, 2d, 700hp, 18kts, 14p; 2x1-20/65 | |
| C.I | 18 | 1-18 | C1, 3, 4, 6-16, 18-21 | 1922 - 1925 | No picture | 36t, 22.8x4.0x1.4m, 2d, 180hp, 12kts, 6p | |
| SC | 1 | W11 | Cándido Pérez | 1942 |  |
138t, 33.8x5.5x2.0m, 2d, 1000hp, 15.6kts, 27p; 1x1-40/60, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SCR-517A radar, QC sonar |
AMPHIBIOUS
| LCU | LCT(4) | 2 | K1 | BDK1 | 1944 |  |
640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70, 9tanks or 200troops |
| K2 | BDK2 | 1945 | |||||
| BDK3 | 3 | K3 | BDK3 | 1959 |  |
902t, 56.6x11.6x1.7m, 2d, 1000hp, 8.5kts, 20p; 2x1-20/70; 400troops | |
| K4 | BDK4 | 1959 | |||||
| K5 | BDK5 | 1959 |
MINE WARFARE
| MSO | Bidasoa | 6 | M01 | Bidasoa | 1946 |  |
748t, 61.9x8.5x2.6m, 2b,2vte, 2400hp, 16.5kts, 90p; 1x1-88/45 or 1x1-102/45, 1x1-37/83, 2x1-20/65, 2dcr, sweeps |
| M02 | Nervión | 1946 | |||||
| M03 | Lérez | 1947 | |||||
| M04 | Tambre | 1946 | |||||
| M05 | Segura | 1949 | |||||
| M06 | Ter | 1948 | |||||
| Guadiaro | 7 | M11 | Guadiaro | 1953 | |
770t, 74.3x10.2x3.7m, 2b,2vte, 2400hp, 16kts, 79p; 1x1-88/45(13-17), 1x1-37/83(13-17), 2x1-20/65, 2dcr, sweeps; RM914 radar, UQS-1 sonar | |
| M12 | Tinto | 1953 | |||||
| M13 | Eume | 1953 | |||||
| M14 | Almanzora | 1954 | |||||
| M15 | Navia | 1955 | |||||
| M16 | Guadalhorce | 1953 | |||||
| M17 | Eo | 1955 | |||||
| MSC | Nalón | 12 | M21 | Nalón | 1954 |  |
400t, 44.3x8.1x2.1m, 2d, 880(21-25,27-29)-1000(26,30-32)hp, 12(21-25,27-29)-12.5(26,30-32)kts, 39p; 1x2-20/70, mechanical, acoustic, magnetic sweeps; RM914 radar, UQS-1 sonar |
| M22 | Llobregat | 1954 | |||||
| M23 | Júcar | 1956 | |||||
| M24 | Ulla | 1956 | |||||
| M25 | Miño | 1956 | |||||
| M26 | Ebro | 1958 | |||||
| M27 | Turia | 1955 | |||||
| M28 | Duero | 1955 | |||||
| M29 | Sil | 1955 | |||||
| M30 | Tajo | 1959 | |||||
| M31 | Genil | 1959 | |||||
| M32 | Odiel | 1959 |
