Australia 01 January 1955
AIRCRAFT CARRIERS

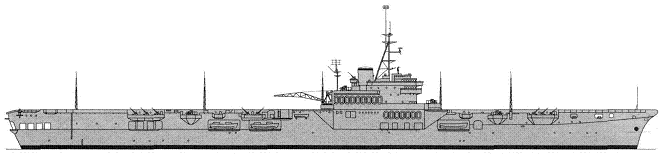

| CVL | Magnificent | 1 | R17 | Sydney | 1949 | |
17780t, 211.8x24.4x7.0m, 4b,2gst, 40000hp, 25kts, 1300p; (6x2+18x1)-40/60, 26aircraft (Sea Fury, Firefly fighters, Sycamore helicopters); 2x type 277Q, 293M, 960/281BQ, 961 radars |
| Colossus | 1 | R71 | Vengeance | 1945 | |
18040t, 211.8x24.4x7.1m, 4b,2gst, 40000hp, 25kts, 1300p; 12x1-40/60, 6x4-40/39, 37aircraft(Sea Fury, Firefly fighters, Sycamore helicopters); type 79B, 281B radars, type 144 sonar |
PRINCIPAL SURFACE COMBATANTS
| CA | Australia | 1 | C01 | Australia | 1928 |  |
14910t, 192.9x20.8x6.9m, 8b,4gst, 80000hp, 31.5kts, 710p; 114belt, 38deck, 25turrets; 3x2-203/50, 4x2-102/45, 4x1-47/40, (2x4+2x2+2x1)-40/60, 4x8-40/39; type 273, 281, 284, 285 radars |
| CL | Amphion | 1 | C02 | Hobart | 1936 |  |
9420t, 171.4x17.3x6.0m, 4b,4gst, 72000hp, 32.5kts, 570p; 76belt, 51deck, 25turrets; 3x2-152/50, 4x2-102/45, (2x4+3x2+5x1)-40/60, 2x4-40/39, (1x2+2x1)-20/70, 2x4-533TT; type 276, 277, 281B, 282, 283, 285, SG-1, Mk3 radars |
| DD | Tribal | 3 | D123 | Warramunga | 1942 |  |
2710t, 114.9x11.1x4.2m, 3b,2gst, 44000hp, 36.2kts, 250p; 2x2-120/45(123,130), 3x2-120/45(191), 1x2-102/45, 1x2-40/60(123,130), 6x1-40/60(191), 1x4-40/39(191), 1x4-533TT, 1x3-305 Squid ASWRL(123,130), 2dct, 2dcr; type 272, 275, 291 radars, type 127 sonar |
| D130 | Arunta | 1942 | |||||
| D191 | Bataan | 1945 | |||||
| Q | 3 | D81 | Quiberon | 1942 |  |
2480t, 109.2x10.9x4.3m, 2b,2gst, 40000hp, 36.7kts, 225p; 4x1-120/45, 1x4-40/39, (2x2+4x1)-20/70, 2x4-533TT, 4dct, 3dcr; type 272, 282, 285, 291 radars, type 123A, 127 sonars | |
| D92 | Quickmatch | 1942 | |||||
| D262 | Quality | 1942 | |||||
| Battle batch 3 | 2 | D37 | Tobruk | 1950 |  |
3450t, 115.5x12.5x4.7m, 2b,2gst, 50000hp, 35.7kts, 332p; 2x2-120/45, (3x2+6x1)-40/60, 2x5-533TT, 1x3-305 Squid ASWRL; type 262, 275, 277, 291, 293 radars, type 170, 174 sonars | |
| D59 | Anzac | 1951 | |||||
| FF | Q | 2 | F01 | Quadrant | 1942 |  |
2850t, 109.2x10.9x4.3m, 2b,2gst, 40000hp, 36.7kts, 195p; 1x2-102/45, (1x2+3x1)-40/60, 2x1-533TT(01), 2x3-305 Squid ASWRL(01), 2x3-305 Limbo ASWRL(04); type 262, 278, 293 radars, type 170, 174 sonars |
| F02 | Queenborough | 1942 | |||||
| Swan | 1 | F74 | Swan | 1937 |  |
1510t, 81.2x11.0x3.1m, 2b,2gst, 2000hp, 16.5kts, 100p; 2x2-102/45, 2x1-20/70, 4dct, 2dcr; sonar | |
| Parramatta | 1 | F312 | Warrego | 1940 | |
1510t, 81.2x11.0x3.1m, 2b,2gst, 2200hp, 16.8kts, 100p; 2x2-102/45, 2x1-20/70, 4dct, 2dcr; sonar | |
| River | 7 | F174 | Barcoo | 1944 |  |
2180t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-102/45(354,377,402,403), 1x2-102/45(174,363,532), 3x1-40/60(377,402), 1x1-40/60(174,363), (2x2+4x1)-20/70(354,403), 1x24-178 Hedgehog ASWRL(354,377,402,403), 2x3-305 Squid ASWRL(174,363,532), 8dct, 2dcr; type 272, 275(174,363), 291 radars, sonars | |
| F354 | Gascoyne | 1943 | |||||
| F363 | Hawkesbury | 1944 | |||||
| F377 | Diamantina | 1945 | |||||
| F402 | Barwon | 1946 | |||||
| F403 | Burdekin | 1944 | |||||
| F532 | Macquarie | 1945 | |||||
| River modified | 4 | F408 | Culgoa | 1947 |  |
2187t, 91.7x11.1x3.9m, 2b,2vte, 5500hp, 19kts, 177p; 2x2-102/45, 3x1-40/60, 2x2-20/70, 1x24-178 Hedgehog ASWRL, 4dct, 2dcr; type 275, 277, 291 radars, sonars | |
| F442 | Murchison | 1945 | |||||
| F535 | Shoalhaven | 1946 | |||||
| F698 | Condamine | 1946 |
PATROL AND COASTAL COMBATANTS
| PB | HDML | 9 | 1-9 | ML1321-1329 | 1943 - 1945 |  |
54t, 22.0x4.8x1.4m, 2d, 300hp, 11.5kts, 10p; 2x1-20/70, 8dc; type 291 radar |
AMPHIBIOUS
| LST | LST(3) | 2 | L3035 | Lae | 1945 |  |
4980t, 105.9x16.8x3.8m, 2b,2vte, 5500hp, 13.5kts, 111p; 2x2-40/60, (2x2+2x1)-20/70; 5 LCA, 1 LCT(6), 15 tanks, 170 troops |
| L3501 | Labuan | 1945 |
MINE WARFARE SHIPS
| MSO | Bathurst | 28 | M05 | Colac | 1942 |  |
790t, 56.7x9.5x3.0m, 2b,2vte, 1550-2000hp, 15-16kts, 90p; 1x1-102/45, 1x1-40/60, 2x1-20/70, 4dct, 2dcr, sweeps; radar, sonar |
| M34 | Ararat | 1943 | |||||
| M183 | Wagga | 1942 | |||||
| M186 | Cootamundra | 1943 | |||||
| M203 | Rockhampton | 1942 | |||||
| M204 | Katoomba | 1941 | |||||
| M205 | Townsville | 1941 | |||||
| M206 | Lithgow | 1941 | |||||
| M207 | Mildura | 1941 | |||||
| M218 | Kapunda | 1942 | |||||
| M231 | Bundaberg | 1942 | |||||
| M234 | Latrobe | 1942 | |||||
| M235 | Horsham | 1942 | |||||
| M236 | Glenelg | 1942 | |||||
| M238 | Gympie | 1942 | |||||
| M241 | Bunbury | 1943 | |||||
| M244 | Castlemaine | 1942 | |||||
| M246 | Fremantle | 1943 | |||||
| M248 | Shepparton | 1943 | |||||
| M251 | Dubbo | 1942 | |||||
| M252 | Deloraine | 1941 | |||||
| M285 | Bowen | 1942 | |||||
| M323 | Benalla | 1943 | |||||
| M324 | Gladstone | 1943 | |||||
| M351 | Cowra | 1943 | |||||
| M361 | Parkes | 1944 | |||||
| M362 | Junee | 1944 | |||||
| M363 | Strahan | 1944 |
