World navies yesterday

1950

United States of America 01 January 1950

SUBMARINES

SSG Balao SSG 2 AGSS337 Carbonero 1945 1525/2400t, 95.1x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20/8.7kts, 84p, 120m; 2 Loon CruM launchers (2 LTV-N-2), 10-533TT(24); SS, ST, SV-4 radars, BQR-2, BQS-2, JT sonars
SSG348 Cusk 1946
SS Porpoise 2 SS172 Porpoise 1935 1316/1934t, 91.8x7.6x4.3m, 4dg,2em, 4300/2085hp, 19/10kts, 54p, 75m; 1x1-76/50, 2x1-20/70, 8-533TT(18), SD radar, sonar
SS173 Pike 1935
Shark 1 SS175 Tarpon 1936 1315/1968t, 90.8x7.6x4.6m, 4dg,2em, 4300/2085hp, 19.5/8kts, 54p, 75m; 1x1-76/50, 2x1-20/70, 8-533T(18), SD radar, sonar
Perch 2 SS178 Permit 1937 1330/1997t, 91.6x7.7x4.6m, 4dg,2em, 4300/2366hp, 19.2/8kts, 54p, 75m; 1x1-76/50, 2x1-20/70, 8-533TT(18)(SS178), 6-533TT(16)(SS179), SD radar, sonar
SS179 Plunger 1936
Salmon 1 SS183 Seal 1938 1449/2210t, 93.9x8.0x4.7m, 4d/4em(2), 5500/2660hp, 21/9kts, 59p, 75m; 1x1-127/25, 2x1-20/70, 8-533TT(24), SD radar, sonar
Tambor 3 SS198 Tambor 1940 1475/2370t, 93.6x8.3x4.6m, 4d/4em(2), 5400/2740hp, 20/8.7kts, 60p, 75m; 1x1-127/25, 1x1-40/60, 1x1-20/70, 10-533TT(24), SD radar, sonar
SS199 Tautog 1940
SS206 Gar 1941
Gato 56 SS212 Gato 1941 1810/2410t, 95.0x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 90m; 1x1-127/25, 1x1-40/60, 1x1-20/70, 10-533TT(24), SS, ST, SV radars, sonar
SS213 Greenling 1942
SS214 Grouper 1942
SS217 Guardfish 1942
SS220 Barb 1942
SS221 Blackfish 1942
SS222 Bluefish 1943
SS224 Cod 1943
SS225 Cero 1943
SS228 Drum 1941
SS229 Flying Fish 1941
SS230 Finback 1942
SS231 Haddock 1942
SS234 Kingfish 1942
SS235 Shad 1942
SS236 Silversides 1941
SS239 Whale 1942
SS240 Angler 1943
SS241 Bashaw 1943
SS242 Bluegill 1943
SS243 Bream 1944
SS244 Cavalla 1944
SS245 Cobia 1944
SS246 Croaker 1944
SS247 Dace 1943
SS249 Flasher 1943
SS251 Flounder 1943
SS252 Gabilan 1943
SS253 Gunnel 1942
SS254 Gurnard 1942
SS255 Haddo 1942
SS256 Hake 1942
SS258 Hoe 1942
SS259 Jack 1943
SS260 Lapon 1943
SS261 Mingo 1943
SS262 Muskallunge 1943
SS263 Paddle 1943
SS264 Pargo 1943
SS265 Peto 1942
SS266 Pogy 1943
SS267 Pompon 1943
SS268 Puffer 1943
SS269 Rasher 1943
SS270 Raton 1943
SS271 Ray 1943
SS272 Redfin 1943
SS274 Rock 1943
SS276 Sawfish 1942
SS280 Steelhead 1942
SS281 Sunfish 1942
SS282 Tunny 1942
SS283 Tinosa 1943
SS362 Guavina 1943
SS363 Guitarro 1944
SS364 Hammerhead 1944
Balao 83 SS285 Balao 1943 1845/2415t, 95.0x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 120m; 1x1-127/25, 1x1-40/60, 1x1-20/70, 10-533TT(24); SS, ST, SV radars, sonar
SS286 Billfish 1943
SS287 Bowfin 1943
SS288 Cabrilla 1943
SS291 Crevalle 1943
SS292 Devilfish 1944
SS293 Dragonet 1944
SS295 Hackleback 1944
SS297 Ling 1945
SS298 Lionfish 1944
SS300 Moray 1945
SS301 Roncador 1945
SS302 Sabalo 1945
SS303 Sablefish 1945
SS304 Seahorse 1943
SS307 Tilefish 1943
SS309 Aspro 1943
SS310 Batfish 1943
SS311 Archerfish 1943
SS319 Becuna 1944
SS320 Bergall 1944
SS321 Besugo 1944
SS322 Blackfin 1944
SS323 Caiman 1944
SS324 Blenny 1944
SS325 Blower 1944
SS328 Charr 1944
SS331 Bugara 1944
SS333 Bumper 1944
SS334 Cabezon 1944
SS335 Dentuda 1944
SS336 Capitaine 1945
SS338 Carp 1945
SS339 Catfish 1945
SS340 Entemedor 1945
SS341 Chivo 1945
SS342 Chopper 1945
SS365 Hardhead 1944
SS366 Hawkbill 1944
SS367 Icefish 1944
SS368 Jallao 1944
SS370 Kraken 1944
SS372 Lambrey 1944
SS373 Lizardfish 1944
SS374 Loggerhead 1945
SS375 Macabi 1945
SS376 Mapiro 1945
SS377 Menhaden 1945
SS378 Mero 1945
SS381 Sand Lance 1943
SS382 Picuda 1943
SS383 Pampanito 1943
SS384 Parche 1943
SS385 Bang 1943
SS387 Pintado 1944
SS388 Pipefish 1944
SS389 Piranha 1944
SS390 Plaice 1944
SS391 Pomfret 1944
SS392 Sterlet 1944
SS393 Queenfish 1944
SS394 Razorback 1944
SS395 Redfish 1944
SS396 Ronquil 1944
SS397 Scabbardfish 1944
SS398 Segundo 1944
AGSS399 Sea Cat 1944
SS400 Sea Devil 1944
SS401 Sea Dog 1944
SS402 Sea Fox 1944
SS403 Atule 1944
SS404 Spikefish 1944
SS405 Sea Owl 1944
SS406 Sea Poacher 1944
SS407 Sea Robin 1944
SS408 Sennet 1944
SS409 Piper 1944
SS410 Threadfin 1944
SS411 Spadefish 1944
SS412 Trepang 1944
SS413 Spot 1944
SS414 Springer 1944
SS415 Stickleback 1945
Balao GUPPY II 9 SS343 Clamagore 1945 1870/2440t, 93.6x8.2x5.2m, 4dg/4em(2), 4610/5400hp, 18/16kts, 82p, 120m; 10-533TT(24); SS, ST, SV radars, BQR-2, BQS-2, JT or SQR-3 sonars
SS344 Cobbler 1945
SS346 Corporal 1945
SS347 Cubera 1945
SS349 Diodon 1946
SS350 Dogfish 1946
SS351 Greenfish 1946
SS352 Halfbeak 1946
SS416 Tiru 1948
Tench 16 SS417 Tench 1944 1845/2415t, 95.0x8.3x4.7m, 4dg/4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 120m(SS417-437)-135m(SS475-529); 1x1-127/25(SS417-437), 2x1-127/25(SS475-529), 1x1-40/60, 1x1-20/70, 10-533TT(24)(SS417-437), 10-533TT(28)(SS475-529); SS, ST, SV radars, sonars
SS418 Thornback 1944
SS420 Tirante 1944
SS421 Trutta 1944
SS422 Toro 1944
SS423 Torsk 1944
SS424 Quillback 1944
SS435 Corsair 1946
SS436 Unicorn 1946
SS437 Walrus 1946
SS475 Argonaut 1945
SS476 Runner 1945
SS477 Conger 1945
SS479 Diablo 1945
SS480 Medregal 1945
SS488 Sarda 1946
Tench GUPPY I 2 SS484 Odax 1945 1830/2440t, 93.6x8.2x5.2m, 4dg/4em(2), 4610/5400hp, 18/18kts, 82p, 135m; 10-533TT(24), SS, ST, SV radars, BQR-2, BQS-2, JT sonars
SS486 Pomodon 1945
Tench GUPPY II 10 SS425 Trumpetfish 1946 1870/2440t, 93.6x8.2x5.2m, 4dg/4em(2), 4610/5400hp, 18/16kts, 82p, 135m; 10-533TT(24); SS, ST, SV radars, BQR-2, BQS-2, JT or SQR-3 sonars
SS426 Tusk 1946
SS478 Cutlass 1945
SS483 Sea Leopard 1945
SS485 Sirago 1945
SS487 Remora 1946
SS490 Volador 1948
SS522 Amberjack 1946
SS523 Grampus 1947
SS524 Pickerel 1949
Tench Fleet Snorkel 1 SS482 Irex 1945 1830/2440t, 95.0x8.3x5.2m, 4dg/4em(2), 4610/2700hp, 20/10kts, 82p, 135m; 10-533TT(24); SS, ST, SV radars, BQR-2, BQS-2, SQR-3 sonars
SSR Balao Migraine I 1 SSR312 Burrfish 1943 1525/2410t, 95.1x8.3x4.7m, 4dg/2em(2), 4610/1750hp, 17/8kts, 120p, 120m; 1x1-40/60, 4-533TT(12); SS, SV-1, SV-2, BPS-2 radars, sonar
Tench Migraine 2 SSR481 Requin 1945 1525/2410t, 95.1x8.3x4.7m, 4dg/2em(2), 4610/1750hp, 17/8kts, 60p, 135m; 1x1-40/60, 4-533TT(12); SS, SV-1, SV-2 radars, sonars
SSR489 Spinax 1946
Tench Migraine I 1 SSR419 Tigrone 1944 1525/2410t, 95.1x8.3x4.7m, 4dg/2em(2), 4610/1750hp, 17/8kts, 60p, 120m; 1x1-40/60, 4-533TT(12); SS, SV-1, SV-2, BPS-2 radars, sonars
SSL Balao 3 SSP313 Perch 1944 1845/2415t, 95.0x8.3x4.7m, 2dg/4em(2), 2700/2740hp, 20.2/8.7kts, 60p, 120m; 6-533TT(18), helicopter deck(SSP315); marines and vehicles; SS, ST, SV radars, sonar
SSP315 Sealion 1944
SSA317 Barbero 1944

AIRCRAFT CARRIERS

CV Yorktown 1 CV6 Enterprise 1938 29882t, 251.4x33.4x7.9m, 9b,4gst, 120000hp, 32.5kts, 2175p; 102belt, 38deck, 102CT; 8x1-127/38, 10x4-40/60, 48x1-20/70, 3catapults, 96aircraft (F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SC-2, SK, SM, 2x MK 12/22 radars

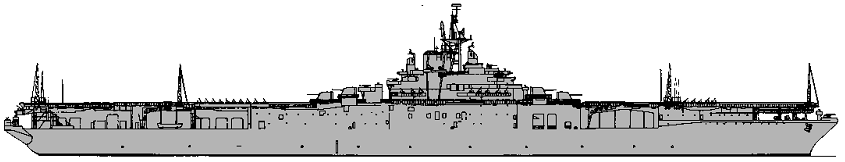

Essex 23 CV9 Essex 1942 34881t, 265.8(CV9-13,16-18,20,31)-270.7(CV14,15,17-19,21,32-40,45-47)x45.0x8.4m, 8b,4gst, 150000hp, 32.7kts, 2682p; 102belt, 102decks; (4x2+4x1)-127/38, 11x4-40/60(CV9, 38), 17x4-40/60(CV10,11, 16-18, 31), 10x4-40/60(CV12), 8x4-40/60(CV13), 18x4-40/60(CV14, 15, 19-21, 32, 33, 36, 37, 39, 40, 45, 47), 61x1-20/70(CV9-11), 35x1-20/70(CV12), 46x1-20/70(CV13), 35x2-20/70(CV14, 17, 21, 32, 33), 56x1-20/70(CV15, 31), 30x2-20/70(CV16), 29x2-20/70(CV18), 59x1-20/70(CV19), 60x1-20/70(CV20), (16x2+23x1)-20/70(CV36,37,39,40, 45, 47), (53x2+7x1)-20/70(CV38), 5x4-12.7/90(CV16), 6x4-12.7/90(CV18), 2catapults, 91aircraft (F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SG, SK-2, SR, SP, 2x Mk 12/22 radars
CV10 Yorktown 1943
CV11 Intrepid 1943
CV12 Hornet 1943
CV13 Franklin 1944
CV14 Ticonderoga 1944
CV15 Randolph 1944
CV16 Lexington 1943
CV17 Bunker Hill 1943
CV18 Wasp 1943
CV19 Hancock 1944
CV20 Bennington 1944
CV21 Boxer 1945
CV31 Bon Homme Richard 1944
CV32 Leyte 1946
CV33 Kearsarge 1946
CV36 Antietam 1945
CV37 Princeton 1945
CV38 Shangri La 1944
CV39 Lake Champlain 1945
CV40 Tarawa 1945
CV45 Valley Forge 1946
CV47 Philippine Sea 1946
Midway 3 CVB41 Midway 1945 59901t, 295.0x41.5x10.5m, 12b,4gst, 212000hp, 33kts, 4104p; 193/178belt, 191deck; 18x1-127/54(CVB41,42), 14x1-127/54(CVB43), 10x2-76/50, 137aircraft (F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SK-2(CVB41), SR-2, SR-3(CVB42,43), SX, 2x SG, 4x Mk 25 radars
CVB42 Franklin D. Roosevelt 1945
CVB43 Coral Sea 1947
CVL Independence 7 CVL24 Belleau Wood 1943 14751t, 189.7x33.3x7.4m, 4b,4gst, 100000hp, 31.6kts, 1569p; 127belt, 51deck; (2x4+10x2)-40/60(CVL24,29), 9x2-40/60(CVL25-28,30), 4x1-20/70(CVL24,29), 5x2-20/70(CVL25,27,28), 8x2-20/70(CVL26), 22x1-20/70(CVL30), 1catapult, 30aircraft(F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SK, SP, SG radars
CVL25 Cowpens 1943
CVL26 Monterey 1943
CVL27 Langley 1943
CVL28 Cabot 1943
CVL29 Bataan 1943
CVL30 San Jacinto 1943
Saipan 2 CVL48 Saipan 1946 18750t, 208.4x32.9x8.2m, 4b,4gst, 120000hp, 33kts, 1821p; 102belt, 64deck; (5x4+10x2)-40/60, 16x2-20/70, 1 catapult, 48aircraft (F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SK-2, SP radars
CVL49 Wright 1947
CVE Bogue 10 CVE9 Bogue 1942 13891t, 151.1x34.0x7.1m, 2b,1gst, 8500hp, 16.5kts, 890p; 2x1-127/38, 10x2-40/60, 27x1-20/70(CVE9-25), (10x2+7x1)-20/70(CVE31), 1catapult, 28aircraft(F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SC, SG radars
CVE11 Card 1942
CVE12 Copahee 1942
CVE13 Core 1942
CVE16 Nassau 1942
CVE18 Altamaha 1942
CVE20 Barnes 1943
CVE23 Breton 1943
CVE25 Croatan 1943
CVE31 Prince William 1943
Sangamon 3 CVE27 Suwanee 1940 23875t, 168.6x32.1x9.3m, 4b,2gst, 13500hp, 18kts, 1080p; 2x1-127/51, (2x4+10x2)-40/60, 21x1-20/70(CVE27,28), 19x1-20/70(CVE29), 2catapults, 31aircraft (F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SC-2, SG radars
CVE28 Chenango 1939
CVE29 Santee 1939
Casablanca 34 CVE57 Anzio 1943 10902t, 156.1x32.9x6.3m, 4b,2vqe, 9000hp, 19kts, 860p; 1x1-127/38, 8x2-40/60, 20x1-20/70, 1catapult, 27aircraft(F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SG, SK radars
CVE58 Corregidor 1943
CVE59 Mission Bay 1943
CVE60 Guadalcanal 1943
CVE61 Manila Bay 1943
CVE62 Natoma Bay 1943
CVE64 Tripoli 1943
CVE66 White Plains 1943
CVE69 Kasaan Bay 1943
CVE70 Fanshaw Bay 1943
CVE74 Nehenta Bay 1944
CVE75 Hoggatt Bay 1944
CVE76 Kadashan Bay 1944
CVE77 Marcus Island 1944
CVE78 Savo Island 1944
CVE80 Petrof Bay 1944
CVE81 Rudyerd Bay 1944
CVE82 Saginaw Bay 1944
CVE83 Sargent Bay 1944
CVE84 Shamrock Bay 1944
CVE85 Shipley Bay 1944
CVE86 Sitkoh Bay 1944
CVE87 Steamer Bay 1944
CVE88 Cape Esperance 1944
CVE89 Takanis Bay 1944
CVE90 Thetis Bay 1944
CVE91 Makassar Strait 1944
CVE92 Windham Bay 1944
CVE94 Lunga Point 1944
CVE97 Hollandia 1944
CVE98 Kwajalein 1944
CVE100 Bougainville 1944
CVE101 Matanikau 1944
CVE104 Munda 1944
Commencement Bay 19 CVE105 Commencement Bay 1944 21397t, 169.9x32.1x8.5m, 4b,2gst, 16000hp, 19kts, 1066p; 2x1-127/38, (3x4+12x2)-40/60, 20x1-20/70, 2catapults, 33aircraft(F4U, FG, F3A, F6F, F7F, F8F, FH, FJ, F2H, F9F, F6U fighters, AD, AM, AJ attackers, TBF, TBM bombers, TBM-S, TBM-W ASW, TBF-P, F4U-P, F6F-P, F7F-P, F8F-P recon, TBM-Q, AD-Q, AM-Q ECM, AD-W EW, HO3S, HRP helicopters); SG, SK-2, SP radars
CVE106 Block Island 1944
CVE107 Gilbert Islands 1945
CVE108 Kula Gulf 1945
CVE109 Cape Gloucester 1945
CVE110 Salerno Bay 1945
CVE111 Vella Gulf 1945
CVE112 Siboney 1945
CVE113 Puget Sound 1945
CVE114 Rendova 1945
CVE115 Bairoko 1945
CVE116 Badoeng Strait 1945
CVE117 Saidor 1945
CVE118 Sicily 1946
CVE119 Point Cruz 1945
CVE120 Mindoro 1945
CVE121 Rabaul 1946
CVE122 Palau 1946
CVE123 Tinian 1946
AV Curtiss 2 AV4 Curtiss 1940 14900t, 160.7x21.1x6.5m, 4b,2gst, 12000hp, 18kts, 1195p; 4x1-127/38, 4x4-40/60, 12x1-20/70, 30seaplanes (J2F), radars
AV5 Albermarle 1940
Tangier 2 AV8 Tangier 1940 13500t, 150.0x21.2x7.2m, 2b,1gst, 8500hp, 16.5kts, 1075p; 4x1-127/38, 4x1-76/50, 4x2-40/60, 15x1-20/70, 24seaplanes(J2F), radars
AV9 Pocomoke 1941
Chandeleur 1 AV10 Chandeleur 1942 13700t, 150.0x21.2x7.2m, 2b,1gst, 9350hp, 17kts, 1077p; 1x1-127/38, 4x1-76/50 4x2-40/60, 15x1-20/70, 24seaplanes(J2F), radars
Currituck 4 AV7 Currituck 1944 15092t, 164.7x21.1x6.8m, 4b,2gst, 12000hp, 19.2kts, 1247p; 4x1-127/38, 4x4-40/60, 30seaplanes(J2F), SK radar
AV11 Norton Sound 1945
AV12 Pine Island 1945
AV13 Salisbury Island 1945
Kenneth Whiting 4 AV14 Kenneth Whiting 1944 12610t, 150.0x21.2x7.2m, 2b,1gst, 8500hp, 16.5kts, 1077p; 2x1-127/38, (2x4+2x2)-40/60, 16x1-20/70, 24seaplanes(J2F), SK radar
AV15 Hamlin 1944
AV16 St. George 1944
AV17 Cumberland Sound 1944

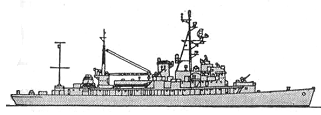

Barnegat 13 AVP10 Barnegat 1941 2620t, 94.7x12.5x3.8m, 4dg,2em, 6080hp, 20kts, 367p; 1x1-127/38, 1x4-40/60(AVP10,48-55), (1x4+2x2)-40/60(AVP37-41), 4x2-20/70(AVP10,48-55), 6x1-20/70(AVP37-41), 2DCT, 2DCR, 12seaplanes(J2F); SA, SU radars, sonar
AVP37 Corson 1944
AVP38 Duxbury Bay 1944
AVP39 Gardiners Bay 1945
AVP40 Floyds Bay 1945
AVP41 Greenwich Bay 1945
AVP48 Onslow 1943
AVP49 Orca 1944
AVP51 San Carlos 1944
AVP52 Shelikof 1944
AVP53 Suisun 1944
AVP54 Timbalier 1946
AVP55 Valcour 1946

PRINCIPAL SURFACE COMBATANTS

BB Tennessee 2 BB43 Tennessee 1920 40345t, 190.2x34.8x10.1m, 8b,2stg,4em, 29500hp, 20.5kts, 2375p; 343belt, 203decks, 457turrets, 127CT; 4x3-356/50, 8x2-127/38, 10x4-40/60(BB43), 14x4-40/60(BB44), 43x1-20/70(BB43), 40x2-20/70(BB44); SC-2, SG, Mk8, Mk13, 4x Mk4 radars
BB44 California 1921
Colorado 2 BB45 Colorado 1923 40396t, 190.2x32.9x10.8m, 8b,2stg,4em, 28900hp, 20.5kts, 2375p; 343belt, 165deck, 457turrets, 406CT; 4x2-406/45, 8x1-127/51(BB45), 8x1-127/25(BB45), 8x2-127/38(BB46), (8x4+2x2)-40/60(BB45), (12x4+2x2)-40/60(BB46), (1x4+8x2+39x1)-20/70(BB45), (1x4+19x2+2x1)-20/70(BB46); SC, Mk3(BB45), Mk13 radars
BB46 Maryland 1921
West Virginia 1 BB48 West Virginia 1923 40396t, 190.2x34.8x10.8m, 8b,2stg,4em, 28900hp, 20.5kts, 2375p; 343belt, 203deck, 457turrets, 127CT; 4x2-406/45, 8x2-127/38, 10x4-40/60, (1x4+1x2+58x1)-20/70; SC-2, SG, Mk8, 4x Mk4, Mk13 radars
Noth Carolina 2 BB55 North Carolina 1941 46700-46796t, 222.1x33.0x10.0m, 8b,4gst, 121000hp, 28kts, 1880p; 305belt, 193deck, 406turrets, 406CT; 3x3-406/45, 10x2-127/38, 24x4-40/60(BB55), 15x4-40/60(BB56), (8x2+20x1)-20/70(BB55), (1x4+8x2+63x1)-20/70(BB56); 2x SG, SK-2(BB55), SK(BB56), SR, SCR-720, Mk3, Mk4, 2x Mk8, 3x Mk12/22, Mk27 radars
BB56 Washington 1941
South Dakota 4 BB57 South Dakota 1942 44519t, 207.3x33.0x10.7m, 8b,4gst, 130000hp, 27.5kts, 1793p; 310belt, 203decks, 457turrets, 406CT; 3x3-406/45, 8x2-127/38(BB57), 10x2-127/38(BB58-60), 17x4-40/60(BB57), 12x4-40/60(BB58,60), 18x4-40/60(BB59), 77x1-20/70(BB57), (4x2+44x1)-20/70(BB58), (1x4+1x2+31x1)-20/70(BB59), 56x1-20/70(BB60); 2x SG, SK-2, SU, 2x Mk13, 4x Mk12/22, Mk27 radars
BB58 Indiana 1942
BB59 Massachusetts 1942
BB60 Alabama 1942
Iowa 4 BB61 Iowa 1943 57540t, 270.4x33.0x11.0m, 8b,4gst, 212000hp, 32.5kts, 1921p; 307belt, 229decks, 495turrets, 440CT; 3x3-406/50, 10x2-127/38, 19x4-40/60(BB61), 20x4-40/60(BB62,64), 14x4-40/60(BB63), (8x2+52x1)-20/70(BB61), (8x2+49x1)-20/70(BB62,64), 3helicopters(HO3S)(BB63); 2x SG, SK(BB61,64), SK-2(BB62,63), SP(BB62), SR(BB61,64), SU(BB61,62), SPS-6(BB63), Mk3(BB61,62), 2x Mk8(BB63), 2x Mk13(BB61,62,64), 4x Mk12/22, Mk27(BB63,64) radars
BB62 New Jersey 1943
BB63 Missouri 1944
BB64 Wisconsin 1944
CB Alaska 2 CB1 Alaska 1944 34253t, 246.4x27.8x9.7m, 4b,4gst, 150000hp, 33kts, 1517p; 229belt, 154decks, 325turrets, 269CT; 3x3-305/50, 6x2-127/38, 14x4-40/60, 34x1-20/70; SK, 2x SG-1, 2x Mk8, 2x Mk12/22 radars
CB2 Guam 1944
CA Northampton 3 CA27 Chester 1930 14000t, 183.0x20.1x5.9m, 8b,4gst, 107000hp, 32.5kts, 617-748p; 95belt, 51deck, 64turrets, 32CT; 3x3-203/55, 8x1-127/25, (5x4+2x2)-40/60(CA27), (4x4+4x2)-40/60(CA28,31), 13x2-20/70(CA27), 20x1-20/70(CA28,31); SG, SK, SP, Mk3, Mk4 radars
CA28 Louisville 1931
CA31 Augusta 1931
Portland 1 CA33 Portland 1933 15000t, 185.9x20.1x6.4m, 8b,4gst, 107000hp, 32.5kts, 807p; 146belt, 64deck, 64turrets, 32CT; 3x3-203/55, 8x1-127/25, (4x4+4x2)-40/60, 17x1-20/70, SG, SK, Mk8, Mk18 radars
New Orleans 4 CA32 New Orleans 1934 14000t, 179.2x18.8x6.9m, 8b,4gst, 107000hp, 32.7kts, 868p; 127belt, 57deck, 203turrets, 127CT; 3x3-203/55, 8x1-127/25, 6x4-40/60, 14x2-20/70(CA32), 8x2-20/70(CA36), 28x1-20/70(CA37), 26x1-20/70(CA38), 2x SG, SK, SP(CA36), Mk3, Mk4 radars
CA36 Minneapolis 1934
CA37 Tuscaloosa 1934
CA38 San Francisco 1934
Wichita 1 CA45 Wichita 1939 14611t, 185.4x18.8x7.2m, 8b,4gst, 100000hp, 33kts, 929p; 152belt, 57deck, 203turrets, 152CT; 3x3-203/55, 8x1-127/38, (4x4+4x2)-40/60, 18x1-20/70; SG, SK-1, 2x Mk25, Mk13 radars
Baltimore 14 CA68 Baltimore 1943 17031t, 205.3x21.6x7.3m, 4b,4gst, 120000hp, 33kts, 2039p; 152belt, 64deck, 203turrets, 152CT(CA74-136); 3x3-203/55, 6x2-127/38, 12x4-40/60(CA68-71), (11x4+2x2)-40/60(CA72-136), 24x1-20/70(CA68-71), 22x1-20/70(CA72-75), 14x2-20/70(CA130-136); SG-3, SK-2, SP, Mk13, 2x Mk12/22 radars
CA69 Boston 1943
CA70 Canberra 1943
CA71 Quincy 1943
CA72 Pittsburgh 1944
CA73 St. Paul 1945
CA74 Columbus 1945
CA75 Helena 1945
CA130 Bremerton 1945
CA131 Fall River 1945
CA132 Macon 1945
CA133 Toledo 1946
CA135 Los Angeles 1945
CA136 Chicago 1945
Oregon City 3 CA122 Oregon City 1946 17031t, 205.3x21.6x7.3m, 4b,4gst, 120000hp, 33kts, 2039p; 152belt, 64deck, 203turrets, 152CT; 3x3-203/55, 6x2-127/38, (11x4+2x2)-40/60, 10x2-20/70; SG-3, SK-2, SP, Mk13, 2x Mk12/22 radars
CA123 Albany 1946
CA124 Rochester 1946
Des Moines 3 CA134 Des Moines 1948 20934t, 218.4x23.0x7.9m, 4b,4gst, 120000hp, 33kts, 1799p; 152belt, 120decks, 203turrets, 165bridge; 3x3-203/55, 6x2-127/38, 12x2-76/50, 12x2-20/70; SG-6, SK-3, SP, SPS-6, 2x Mk13, 4x Mk25, 3x Mk27 radars
CA139 Salem 1949
CA148 Newport News 1949
CL Brooklyn 8 CL40 Brooklyn 1938 12700(CL40-48)-13327(CL49)t, 185.4x21.2(CL40-42,48)-18.8(CL43,46,47,49)x7.3m, 8b,4gst, 100000hp, 32.5kts, 868p; 127belt, 51deck, 165turrets; 5x3-152/47, 4x2-127/38(CL42,49), 8x1-127/25(CL40,41,43,46-48), (4x4+6x2)-40/60, 10x2-20/70(CL40-42,48), 9x2-20/70(CL43), 19x1-20/70(CL46), 18x1-20/70(CL47), 8x1-20/70(CL49); SK(CL40-43,46-48), SK-2(CL49), SG, Mk3(CL40,46), Mk8(CL42,48,49), Mk13(CL41,43,47), 2x Mk4(CL40,41,46,48), 2x Mk12/22(CL42), 2x Mk28 (CL43,47,49) radars
CL41 Philadelphia 1938
CL42 Savannah 1938
CL43 Nashville 1938
CL46 Phoenix 1939
CL47 Boise 1939
CL48 Honolulu 1938
CL49 St. Louis 1939
Cleveland 26 CL55 Cleveland 1942 14144t, 186.0x20.2x7.5m, 4b,4gst, 100000hp, 32.5kts, 1285p; 127belt, 51deck, 165turrets, 127CT(CL55-63); 4x3-152/47, 6x2-127/38, 6x2-40/60(CL55,56), (4x4+4x2)-40/60(CL57,58,60,64-66,80,81), (4x4+6x2)-40/60(CL62,63,67,82,83,86,87,89-92,101-105), 13x1-20/70(CL55,56), 17x1-20/70(CL57,58), 21x1-20/70(CL60,62-66,80,81), 10x1-20/70(CL67,82,83,86,87,89-92,101-105); SC(CL55-58,60,65,66), SG(CL55-58,60,62-67,80-83,86,87,89-92,101-105), SK(CL62,63,89), SK-2(CL64,67,80-83,86,87,90-92,101-105), Mk8 (CL55-58,60,65,66), Mk13(CL62-64,67,80-83,86,87,89-92,101-105), 2x Mk12/22(CL55-58,60,62,63,65,66,89), 2x Mk25(CL64,67,80-83,86,87,90-92,101-105) radars
CL56 Columbia 1942
CL57 Montpelier 1942
CL58 Denver 1942
CL60 Santa Fe 1942
CL62 Birmingham 1943
CL63 Mobile 1943
CL64 Vincennes 1944
CL65 Pasadena 1944
CL66 Springfield 1944
CL67 Topeka 1944
CL80 Biloxi 1943
CL81 Houston 1943
CL82 Providence 1945
CL83 Manchester 1946
CL86 Vicksburg 1944
CL87 Duluth 1944
CL89 Miami 1943
CL90 Astoria 1944
CL91 Oklahoma City 1944
CL92 Little Rock 1945
CL101 Amsterdam 1945
CL102 Portsmouth 1945
CL103 Wilkes-Barre 1944
CL104 Atlanta 1944
CL105 Dayton 1945
Fargo 2 CL106 Fargo 1945 14464t, 186.0x20.2x7.5m, 4b,4gst, 100000hp, 32.5kts, 1285p; 127belt, 51deck, 165turrets; 4x3-152/47, 6x2-127/38, (6x4+2x2)-40/60, 14x2-20/70; SG, SK-2, Mk13, 2x Mk25 radars
CL107 Huntington 1946
Worcester 2 CL144 Worcester 1948 17997t, 207.1x21.5x7.5m, 4b,4gst, 120000hp, 33kts, 1401p; 127belt, 124deck, 165turrets, 127CT; 6x2-152/47, (11x2+2x1)-76/50, 6x2-20/70; SR-2, SR-6, SPS-8, 2x Mk13, 4x Mk28, 4x Mk35 radars
CL145 Roanoke 1949
CLAA Atlanta 6 CLAA53 San Diego 1942 8100t, 165.1x16.2x6.2m, 4b,2gst, 75000hp, 32.5kts, 623p; 95belt, 32deck, 32turrets, 63CT(CLAA53,54); 8x2-127/38(CLAA53, 54), 6x2-127/38(CLAA95-98), (1x4+3x2)-40/60(CLAA53), (1x4+5x2)-40/60(CLAA54), (4x4+2x2)-40/60(CLAA95), 8x2-40/60(CLAA96-98), 15x1-20/70(CLAA53,54), 8x2-20/70(CLAA95), 16x1-20/70(CLAA96-98), 2x4-533TT(CLAA53,54,96,97); SC, SG, 2x Mk12/22 radars
CLAA54 San Juan 1942
CLAA95 Oakland 1943
CLAA96 Reno 1943
CLAA97 Flint 1944
CLAA98 Tucson 1945
Juneau 3 CLAA119 Juneau 1946 8450t, 165.1x16.2x6.2m, 4b,2gst, 75000hp, 32.5kts, 623p; 95belt, 32deck, 32turrets, 63CT; 6x2-127/38, (6x4+4x2)-40/60, 8x2-20/70; SC, SG, 2x Mk12/22 radars
CLAA120 Spokane 1946
CLAA121 Fresno 1946
DD Benson 5 DD421 Benson 1940 2572t, 106.2x11.0x4.0m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, 2x2-40/60, 4x1-20/70, 2x5-533TT, 6DCT, 2DCR, radars, sonar
DD422 Mayo 1940
DD425 Madison 1940
DD427 Hilary p. Jones 1940
DD428 Charles F. Hughes 1940
Gleaves 14 DD423 Gleaves 1940 2591t, 106.2x11.0x4.0m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, (2x4+2x2)-40/60(DD423,424,429-432,435,437-440,443), 2x2-40/60(DD441,442), 2x2-20/70(DD423,424,429-432,435,437-440,443), 4x1-20/70(DD441,442), 2x5-533TT(DD441,442), 6DCT, 2DCR, radars, sonar
DD424 Niblack 1940
DD429 Livermore 1940
DD430 Eberle 1940
DD431 Plunkett 1940
DD432 Kearny 1940
DD435 Grayson 1941
DD437 Woolsey 1941
DD438 Ludlow 1941
DD439 Edison 1941
DD440 Ericsson 1941
DD441 Wilkes 1941
DD442 Nicholson 1941
DD443 Swanson 1941
Bristol 11 DD497 Frankford 1943 2600t, 106.2x11.0x4.9m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, (2x4+2x2)-40/60(DD497,623,624,628), 2x2-40/60(DD619,626,638,641,645-647), (2x2+2x1)-20/70(DD497,623,624,628), 7x1-20/70(DD619,626,638,641,645-647), 1x5-533TT(DD619,626,638,641,645-647), 6DCT, 2DCR; radars, sonar
DD619 Edwards 1942
DD623 Nelson 1942
DD624 Baldwin 1943
DD626 Satterlee 1943
DD628 Welles 1943
DD638 Herndon 1942
DD641 Tillman 1942
DD645 Stevenson 1942
DD646 Stockton 1943
DD647 Thorn 1943
Laffey 22 DD460 Woodworth 1942 2600t, 106.2x11.0x4.9m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, 2x2-40/60(DD460,491,492,598,602,605-607,609,611), (2x4+2x2)-40/60(DD600,601,603,604,608,610,612-614,616,617), 4x2-40/60(DD615), 7x1-20/70(DD460,491,492,598,602,605-607,609,611), (2x2+2x1)-20/70(DD600,601,603,604,608,610,612-617), 1x5-533TT(DD460,491,492,598,602,605-607,609,611), 6DCT, 2DCR; radars, sonar
DD491 Farenholt 1942
DD492 Bailey 1942
DD598 Bancroft 1942
DD600 Boyle 1942
DD601 Champlin 1942
DD602 Meade 1942
DD603 Murphy 1942
DD604 Parker 1942
DD605 Caldwell 1942
DD606 Coghlan 1942
DD607 Frazier 1942
DD608 Gansevoort 1942
DD609 Gillespie 1942
DD610 Hobby 1942
DD611 Kalk 1942
DD612 Kendrick 1942
DD613 Laub 1942
DD614 Mackenzie 1942
DD615 McLanahan 1942
DD616 Nields 1943
DD617 Ordronaux 1943
Fletcher 139 DD447 Jenkins 1942 3005t, 114.7x12.1x4.2m, 4b,2gst, 60000hp, 38kts, 273p; 5x1-127/38, (2x4+3x2)-40/60(DD447,448, 473, 478, 520, 521, 528, 530, 531, 534-540, 550, 554, 556, 563, 578, 580, 589, 592, 643, 657, 661, 665, 668, 669, 671-676, 681, 682, 685, 686, 800, 802, 804), 5x2-40/60(DD468, 470, 471, 472, 474, 475, 479, 480, 500, 501, 509-511, 513, 515, 516, 517, 519, 527, 532, 541, 544-547, 551, 553, 558, 561, 562, 564-576, 581-583, 585, 587, 588, 590, 593-597, 629-631, 642, 644, 649-656, 658-660, 662-664, 666, 667, 670, 677-680, 683, 684, 687-691, 793-799), (4x2+3x1)-20/70(DD447,448, 473, 478, 520, 521, 528, 530, 531, 534-540, 550, 554, 556, 563, 578, 580, 589, 592, 643, 657, 661, 665, 668, 669, 671-676, 681, 682, 685, 686, 800, 802, 804), 7x1-20/70(DD468, 470, 471, 472, 474, 475, 479, 480, 500, 501, 509-511, 513, 515, 516, 517, 519, 527, 532, 541, 544-547, 551, 553, 558, 561, 562, 564-576, 581-583, 585, 587, 588, 590, 593-597, 629-631, 642, 644, 649-656, 658-660, 662-664, 666, 667, 670, 677-680, 683, 684, 687-691, 793-799), 1x5-533TT(DD447,448, 473, 478, 520, 521, 528, 530, 531, 534-540, 550, 554, 556, 563, 578, 580, 589, 592, 643, 657, 661, 665, 668, 669, 671-676, 681, 682, 685, 686, 800, 802, 804), 2x5-533TT(DD468, 470, 471, 472, 474, 475, 479, 480, 500, 501, 509-511, 513, 515, 516, 517, 519, 527, 532, 541, 544-547, 551, 553, 558, 561, 562, 564-576, 581-583, 585, 587, 588, 590, 593-597, 629-631, 642, 644, 649-656, 658-660, 662-664, 666, 667, 670, 677-680, 683, 684, 687-691, 793-799), 6DCT, 2DCR; SC, SG, Mk12/22 radars, QGA sonar
DD448 La Vallette 1942
DD468 Taylor 1942
DD470 Bache 1942
DD471 Beale 1942
DD472 Guest 1942
DD473 Bennett 1943
DD474 Fullam 1943
DD475 Hudson 1943
DD478 Stanly 1942
DD479 Stevens 1943
DD480 Halford 1943
DD500 Ringgold 1942
DD501 Schroeder 1943
DD502 Sigsbee 1943
DD509 Converse 1942
DD510 Eaton 1942
DD511 Foote 1942
DD513 Terry 1943
DD515 Anthony 1943
DD516 Wadsworth 1943
DD517 Walker 1943
DD519 Daly 1943
DD520 Isherwood 1943
DD521 Kimberly 1943
DD527 Ammen 1943
DD528 Mullany 1943
DD530 Trathen 1943
DD531 Hazelwood 1943
DD532 Heermann 1943
DD534 McCord 1943
DD535 Miller 1943
DD536 Owen 1943
DD537 The Sullivans 1943
DD538 Stephen Potter 1943
DD539 Tingey 1943
DD540 Twining 1943
DD541 Yarnall 1943
DD544 Boyd 1943
DD545 Bradford 1943
DD546 Brown 1943
DD547 Cowell 1943
DD550 Capps 1943
DD551 David W. Taylor 1943
DD553 John D. Henley 1943
DD554 Franks 1943
DD556 Hailey 1943
DD558 Laws 1943
DD561 Prichett 1944
DD562 Robinson 1944
DD563 Ross 1944
DD564 Rowe 1944
DD565 Smalley 1944
DD566 Stoddard 1944
DD567 Watts 1944
DD568 Wren 1944
DD569 Aulick 1942
DD570 Charles Ausburne 1942
DD571 Claxton 1942
DD572 Dyson 1942
DD573 Harrison 1943
DD574 John Rodgers 1943
DD575 McKee 1943
DD576 Murray 1943
DD578 Wickes 1943
DD580 Young 1943
DD581 Charrette 1943
DD582 Conner 1943
DD583 Hall 1943
DD585 Haraden 1943
DD587 Bell 1943
DD588 Burns 1943
DD589 Izard 1943
DD590 Paul Hamilton 1943
DD592 Howorth 1944
DD593 Killen 1944
DD594 Hart 1944
DD595 Metcalfe 1944
DD596 Shields 1945
DD597 Wiley 1945
DD629 Abbot 1943
DD630 Braine 1943
DD631 Erben 1943
DD642 Hale 1943
DD643 Sigourney 1943
DD644 Stembel 1943
DD649 Albert W. Grant 1943
DD650 Caperton 1943
DD651 Cogswell 1943
DD652 Ingersoll 1943
DD653 Knapp 1943
DD654 Bearss 1944
DD655 John Hood 1944
DD656 Van Valkenburgh 1944
DD657 Charles J. Badger 1943
DD658 Colahan 1943
DD659 Dashiell 1943
DD660 Bullard 1943
DD661 Kidd 1943
DD662 Bennion 1943
DD663 Heywood L. Edwards 1944
DD664 Richard P. Leary 1944
DD665 Bryant 1943
DD666 Black 1943
DD667 Chauncey 1943
DD668 Clarence K. Bronson 1943
DD669 Cotten 1943
DD670 Dortch 1943
DD671 Gatling 1943
DD672 Healy 1943
DD673 Hickox 1943
DD674 Hunt 1943
DD675 Lewis Hancock 1943
DD676 Marshall 1943
DD677 McDermut 1943
DD678 McGowan 1943
DD679 McNair 1944
DD680 Melvin 1943
DD681 Hopewell 1943
DD682 Porterfield 1943
DD683 Stockham 1944
DD684 Wedderburn 1944
DD685 Picking 1943
DD686 Halsey Powell 1943
DD687 Uhlmann 1943
DD688 Remey 1943
DD689 Wadleigh 1943
DD690 Norman Scott 1943
DD691 Mertz 1943
DD793 Cassin 1943
DD794 Irwin 1944
DD795 Preston 1944
DD796 Benham 1943
DD797 Cushing 1944
DD798 Monssen 1944
DD799 Jarvis 1944
DD800 Porter 1944
DD802 Gregory 1944
DD804 Rooks 1944
Allen M. Sumner 53 DD692 Allen M. Sumner 1944 3218t, 114.8x12.5x4.3m, 4b,2gst, 60000hp, 36.5kts, 336p; 3x2-127/38, (3x4+2x2)-40/60, 10x2-20/70, 1x5-533TT, 6DCT, 2DCR; SG, SR, Mk12/22 radars, QGA sonar
DD693 Moale 1944
DD694 Ingraham 1944
DD696 English 1944
DD697 Charles S. Sperry 1944
DD698 Ault 1944
DD699 Waldron 1944
DD700 Haynsworth 1944
DD701 John W. Weeks 1944
DD702 Hank 1944
DD703 Wallace L. Lind 1944
DD704 Borie 1944
DD705 Compton 1944
DD706 Gainard 1944
DD707 Soley 1944
DD708 Harlan R. Dickson 1945
DD709 Hugh Purvis 1945
DD722 Barton 1943
DD723 Walke 1944
DD724 Laffey 1944
DD725 O'Brien 1944
DD727 De Haven 1944
DD728 Mansfield 1944
DD729 Lyman K. Swenson 1944
DD730 Collett 1944
DD731 Maddox 1944
DD732 Hyman 1944
DD734 Purdy 1944
DD744 Blue 1944
DD745 Brush 1944
DD746 Taussig 1944
DD747 Samuel N. Moore 1944
DD748 Harry E. Hubbard 1944
DD752 Alfred A. Cunningham 1944
DD753 John R. Pierce 1944
DD754 Frank E. Evans 1945
DD755 John A. Bole 1945
DD756 Beatty 1945
DD757 Putnam 1944
DD758 Strong 1945
DD759 Lofberg 1945
DD760 John W. Thomason 1945
DD761 Buck 1946
DD762 Henley 1946
DD770 Lowry 1944
DD775 Willard Keith 1944
DD776 James C. Owens 1945
DD777 Zellars 1944
DD778 Massey 1944
DD779 Douglas H. Fox 1944
DD780 Stormes 1945
DD781 Robert K. Huntington 1945
DD857 Bristol 1945
Gearing 70 DD710 Gearing 1945 3460t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 36.8kts, 336p; 3x2-127/38, (3x4+2x2)-40/60, 11x1-20/70, 1x5-533TT, 6DCT, 2DCR; SG, SR, Mk12/22 radars, QGA sonar
DD711 Eugene A. Greene 1945
DD712 Gyatt 1945
DD713 Kenneth D. Bailey 1945
DD714 William R. Rush 1945
DD715 William M. Wood 1945
DD716 Wiltsie 1946
DD717 Theodore E. Chandler 1946
DD718 Hamner 1946
DD763 William C. Lawe 1946
DD764 Lloyd Thomas 1947
DD765 Keppler 1947
DD782 Rowan 1945
DD783 Gurke 1945
DD784 McKean 1945
DD785 Henderson 1945
DD786 Richard B. Anderson 1945
DD787 James E. Kyes 1946
DD788 Hollister 1946
DD789 Eversole 1946
DD790 Shelton 1946
DD808 Dennis J. Buckley 1945
DD817 Corry 1946
DD818 New 1946
DD819 Holder 1946
DD820 Rich 1946
DD821 Johnston 1946
DD822 Robert H. McCard 1946
DD823 Samuel B. Roberts 1946
DD826 Agerholm 1946
DD836 George K. Mackenzie 1945
DD837 Sarsfield 1945
DD838 Ernest G. Small 1945
DD839 Power 1945
DD840 Glennon 1945
DD841 Noa 1945
DD842 Fiske 1945
DD843 Warrington 1945
DD844 Perry 1946
DD845 Baussell 1946
DD846 Ozbourn 1946
DD847 Robert L. Wilson 1946
DD848 Witek 1946
DD849 Richard E. Kraus 1946
DD850 Joseph P. Kennnedy, Jr. 1945
DD851 Rupertus 1946
DD852 Leonard F. Mason 1946
DD853 Charles H. Roan 1946
DD858 Fred T. Berry 1945
DD859 Norris 1945
DD860 McCaffery 1945
DD861 Harwood 1945
DD862 Vogelgesang 1945
DD863 Steinaker 1945
DD864 Harold J. Ellison 1945
DD865 Charles R. Ware 1945
DD866 Cone 1945
DD867 Stribling 1945
DD868 Brownson 1945
DD869 Arnold J. Isbell 1946
DD870 Fechteler 1946
DD871 Damato 1946
DD872 Forrest Royal 1946
DD884 Floyd B. Parks 1945
DD885 John R. Craig 1945
DD886 Orleck 1945
DD887 Brinkley Bass 1945
DD888 Stickell 1945
DD889 O'Hare 1945
DD890 Meredith 1945
DDE Fletcher 11 DDE445 Fletcher 1942 2950t, 114.8x12.1x5.5m, 4b,2gst, 60000hp, 35kts; 2x1-127/38, 2x2-76/50, 4x2-20/70, 4-533TT, 1x1-324Weapon Alfa, 2x24-178Hedgehog; SPS-6 radar, QHB sonar
DDE446 Radford 1942
DDE449 Nicholas 1942
DDE450 O'Bannon 1942
DDE465 Saufley 1942
DDE466 Waller 1942
DDE498 Philip 1942
DDE499 Renshaw 1942
DDE507 Conway 1942
DDE508 Cony 1942
DDE577 Sproston 1943
Gearing 4 DDE719 Epperson 1949 3460t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 36.8kts, 336p; 2x2-127/38(DDE719,824), 2x2-76/70(DDK825,827), 4x2-20/70, 4-533TT, 1x1-324Weapon Alfa(DDE719,824), 2x1-324Weapon Alfa(DDK825,827), 2x24-178Hedgehog(DDE719,824), 1x24-178Hedgehog(DDK825,827), 1DCR; SPS-6 radar, QHB sonar
DDE824 Basilone 1949
DDK825 Carpenter 1949
DDK827 Robert A. Owens 1949
DDR Gearing 23 DDR742 Frank Knox 1944 3460t, 119.0x12.5x4.4m, 4b,2gst, 60000hp, 36.8kts, 336p; 3x2-127/38, (3x4+2x2)-40/60, 11x1-20/70, 1x5-533TT, 6DCT, 2DCR; SG, SP, SR, Mk12/22 radars, QGA sonar
DDR743 Southerland 1944
DDR805 Chevalier 1945
DDR806 Higbee 1945
DDR807 Benner 1945
DDR829 Myles C. Fox 1945
DDR830 Everett F. Larson 1945
DDR831 Goodrich 1945
DDR832 Hanson 1945
DDR833 Herbert J. Thomas 1945
DDR834 Turner 1945
DDR835 Charles P. Cecil 1945
DDR873 Hawkins 1945
DDR874 Duncan 1945
DDR875 Henry W. Tucker 1945
DDR876 Rogers 1945
DDR877 Perkins 1945
DDR878 Vesole 1945
DDR879 Leary 1945
DDR880 Dyess 1945
DDR881 Bordelon 1945
DDR882 Furse 1945
DDR883 Newman K. Perry
FF Buckley 49 DE59 Foss 1943 1823t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 186p; 2x1-127/38(DE217-219,678-680,696-698,700,701), 3x1-76/50(DE59,198-203,210,214,220-222,575,577,578,633,634,638-644,665-667,681,683,695,699,702-705,790,791,795-800), 1x2-40/60(DE59,198-203,210,214,220-222,633,634,638-644,665-667,681,683,695,699,702-705,790,791,795-800), (1x4+3x2)-40/60(DE217-219,678-680,696-698,700,701), 3x2-40/60(DE575,577,578), 8x1-20/70(DE59,198-203,210,214,220-222,633,634,638-644,665-667,681,683,695,699,702-705,790,791,795-800), 1x3-533TT(DE59,198-203,210,214,220-222,633,634,638-644,665-667,681,683,695,699,702-705,790,791,795-800), 1x24-178Hedgehog, 8DCT, 2DCR; SA, SU radars, sonar
DE198 Lovelace 1943
DE199 Manning 1943
DE200 Neundorf 1943
DE201 James E. Craig 1943
DE202 Eichenberger 1943
DE203 Thomason 1943
DE210 Otter 1944
DE214 Scott 1943
DE217 Coolbaugh 1943
DE218 Darby 1943
DE219 J. Douglas Blackwood 1943
DE220 Francis M. Robinson 1944
DE222 Fowler 1944
DE575 Ahrens 1944
DE633 Foreman 1943
DE634 Whitehurst 1943
DE638 Willmarth 1944
DE639 Gendreau 1944
DE640 Fieberling 1944
DE641 William C. Cole 1944
DE642 Paul G. Baker 1944
DE643 Damon M. Cummings 1944
DE644 Vammen 1944
DE665 Jenks 1944
DE666 Durik 1944
DE667 Wiseman 1944
DE678 Harmon 1943
DE679 Greenwood 1943
DE680 Loeser 1943
DE681 Gillette 1943
DE683 Henry R. Kenyon 1943
DE696 Spangler 1943
DE697 George 1943
DE699 Marsh 1944
DE700 Currier 1944
DE701 Osmus 1944
DE702 Earl V. Johnson 1944
DE703 Holton 1944
DE704 Cronin 1944
DE705 Frybarger 1944
DE790 Borum 1943
EDE791 Maloy 1943
DE795 Gunason 1944
DE796 Major 1944
DE797 Weeden 1944
DE798 Varian 1944
DE799 Scroggins 1944
DE800 Jack W. Wilke 1944
Cannon 53 DE105 Burrows 1943 1602t, 93.3x11.2x3.2m, 4dg,2em, 6000hp, 21kts, 186p; 3x1-76/50, 1x2-40/60, 8x1-20/70(DE15,113,162-173,176,180-196739,763,764), 10x1-20/70(DE740-750,765-771), 1x3-533TT, 1x24-178Hedgehog, 8DCT,2DCR, SA, SU radars, sonar
DE113 Clarence L. Evans 1944
DE162 Levy 1943
DE163 McConnell 1943
DE164 Osterhaus 1943
DE165 Parks 1943
DE166 Baron 1943
DE167 Acree 1943
DE168 Amick 1943
DE169 Atherton 1943
DE170 Booth 1943
DE171 Carroll 1943
DE172 Cooner 1943
DE173 Eldridge 1943
DE176 Micka 1943
DE180 Trumpeter 1943
DE181 Straub 1943
DE182 Gustafson 1943
DE183 Samuel S. Miles 1943
DE184 Wesson 1943
DE185 Riddle 1943
DE186 Swearer 1943
DE187 Stern 1943
DE188 O'Neill 1943
DE189 Bronstein 1943
DE190 Baker 1943
DE191 Coffman 1943
DE192 Eisner 1944
DE193 Garfield Thomas 1944
DE194 Wingfield 1944
DE195 Thornhill 1944
DE196 Rinehart 1944
DE739 Bangust 1943
DE740 Waterman 1943
DE741 Weaver 1943
DE742 Hilbert 1944
DE743 Lamons 1944
DE744 Kyne 1944
DE745 Snyder 1944
DE746 Hemminger 1944
DE747 Bright 1944
DE748 Tills 1944
DE749 Roberts 1944
DE750 McClelland 1944
DE763 Cates 1943
DE764 Gandy 1944
DE765 Earl K. Olsen 1944
DE766 Slater 1944
DE767 Oswald 1944
DE768 Ebert 1944
DE769 Neal A. Scott 1944
DE770 Muir 1944
DE771 Sutton 1944
Edsall 82 DE129 Edsall 1943 1602t, 93.3x11.2x3.2m, 4d(2), 6000hp, 21kts, 186p; 2x1-127/38(DE251), 3x1-76/50( DE129-135, 137-142, 144-152, 238-250, 252-255, 316-318, 320-338, 382-400), 1x2-40/60( DE129-135, 137-142, 144-152, 238-250, 252-255, 316-318, 320-338, 382-400), (1x4+3x2+2x1)-40/60(DE251), 8x1-20/70( DE129-135, 137-142, 144-152, 238-250, 252-255, 316-318, 320-338, 382-400), 6x1-20/70(DE251), 1x3-533TT( DE129-135, 137-142, 144-152, 238-250, 252-255, 316-318, 320-338, 382-400), 1x24-178Hedgehog, 8DCT, 2DCR; SA, SU radars, sonar
DE130 Jacob Jones 1943
DE131 Hammann 1943
DE132 Robert E. Peary 1943
DE133 Pillsbury 1943
DE134 Pope 1943
DE135 Flaherty 1943
DE137 Herbert C. Jones 1943
DE138 Douglas L. Howard 1943
DE139 Farquhar 1943
DE140 J. R. Y. Blakely 1943
DE141 Hill 1943
DE142 Fessenden 1943
DE144 Frost 1943
DE145 Huse 1943
DE146 Inch 1943
DE147 Blair 1943
DE148 Brough 1943
DE149 Chatelaine 1943
DE150 Neunzer 1943
DE151 Poole 1943
DE152 Peterson 1943
DE238 Stewart 1943
DE239 Sturtevant 1943
DE240 Moore 1943
DE241 Keith 1943
DE242 Tomich 1943
DE243 J. Richard Ward 1943
DE244 Otterstetter 1943
DE245 Sloat 1943
DE246 Snowden 1943
DE247 Stanton 1943
DE248 Swasey 1943
DE249 Marchand 1943
DE250 Hurst 1943
DE251 Camp 1943
DE252 Howard D. Crow 1943
DE253 Pettit 1943
DE254 Picketts 1943
DE255 Sellstrom 1943
DE316 Harveston 1943
DE317 Joyce 1943
DE318 Kirkpatrick 1943
DE320 Menges 1943
DE321 Mosley 1943
DE322 Newell 1943
DE323 Pride 1943
DE324 Falgout 1943
DE325 Lowe 1943
DE326 Thomas J. Gary 1943
DE327 Brister 1943
DE328 Finch 1943
DE329 Kretchmer 1943
DE330 O'Reilly 1943
DE331 Koiner 1943
DE332 Price 1944
DE333 Strickland 1944
DE334 Forster 1944
DE335 Daniel 1944
DE336 Roy O. Hale 1944
DE337 Dale W. Peterson 1944
DE338 Martin H. Ray 1944
DE382 Ramsden 1943
DE383 Mills 1943
DE384 Rhodes 1943
DE385 Richey 1943
DE386 Savage 1943
DE387 Vance 1943
DE388 Lansing 1943
DE389 Durant 1943
DE390 Calcaterra 1943
DE391 Chambers 1943
DE392 Merrill 1943
DE393 Haverfield 1943
DE394 Swenning 1943
DE395 Willis 1943
DE396 Jahnssen 1943
DE397 Wilhoite 1943
DE398 Cockrill 1943
DE399 Stockdale 1943
DE400 Hissem 1944
Tacoma 24 PF2 Tacoma 1943 2238t, 92.6x11.4x3.9m, 3b,2vte, 5500hp, 20kts, 190p; 3x1-76/50, 2x2-40/60, 9x1-20/70, 1x24-178Hedgehog, 8DCT, 2DCR; SA, SU, Mk26 radars, sonar
PF4 Sausalito 1944
PF5 Hoquiam 1944
PF7 Albuquerque 1943
PF8 Everett 1944
PF21 Bayonne 1945
PF22 Gloucester 1943
PF25 Charlottesville 1944
PF27 Newport 1944
PF34 Long Beach 1943
PF36 Glendale 1943
PF37 San Pedro 1943
PF38 Coronado 1943
PF39 Ogden 1943
PF47 Gallup 1944
PF48 Rockford 1944
PF49 Muskogee 1944
PF50 Carson City 1944
PF51 Burlington 1944
PF52 Allentown 1944
PF53 Machias 1944
PF54 Sandusky 1944
PF55 Bath 1944
PF70 Evansville 1944
Rudderow 20 DE224 Rudderow 1944 1811t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 156p; 2x1-127/38, 2x2-40/60, 10x1-20/70(DE224,225,231,579-589,706-708), 8x1-20/70(DE684-686), 1x3-533TT, 1x24-178Hedgehog, 8DCT, 2DCR
DE225 Day 1944
DE231 Hodges 1944
DE579 Riley 1944
DE580 Leslie L. B. Knox 1944
DE581 McNulty 1944
DE582 Metivier 1944
DE583 George A. Johnson 1944
DE584 Charles J. Kimmel 1944
DE585 Daniel A. Joy 1944
DE586 Lough 1944
DE587 Thomas F. Nickel 1944
DE588 Peiffer 1944
DE589 Tinsman 1944
DE684 DeLong 1943
DE685 Coates 1944
DE686 Eugene E. Elmore 1944
DE706 Holt 1944
DE707 Jobb 1944
DE708 Parle 1944
John C. Butler 78 DE339 John C. Butler 1944 1811t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 156p; 2x1-127/38, 2x2-40/60(DE339-343,345-372,402,403,405,406,408-412,414-424,438-450,508-510,531-536), (1x4+3x2)-40/60(DE537,538), 10x1-20/70(DE339-343,345-372,402,403,405,406,408-412,414-424,438-447,508,509,531-538), (3x2+10x1)-20/70(DE448-450,510), 1x3-533TT(DE339-343,345-372,402,403,405,406,408-412,414-424,438-447,508,509,531-536), 1x24-178Hedgehog, 8DCT, 2DCR; SA, SU radars, sonar
DE340 O'Flaherty 1944
DE341 Raymond 1944
DE342 Richard W. Suesens 1944
DE343 Abercrombie 1944
DE344 Oberrender 1944
DE345 Robert Brazier 1944
DE346 Edwin A. Howard 1944
DE347 Jesse Rutherford 1944
DE348 Key 1944
DE349 Gentry 1944
DE350 Traw 1944
DE351 Maurice J. Manuel 1944
DE352 Naifeh 1944
DE353 Doyle C. Barnes 1944
DE354 Kenneth M. Willett 1944
DE355 Jaccard 1944
DE356 Lloyd E. Acree 1944
DE357 George E. Davis 1944
DE358 Mack 1944
DE359 Woodson 1944
DE360 Johnie Hutchins 1944
DE361 Walton 1944
DE362 Rolf 1944
DE363 Pratt 1944
DE364 Rombach 1944
DE365 McGinty 1944
DE366 Alvin C. Cockrell 1944
DE367 French 1944
DE368 Cecil J. Doyle 1944
DE369 Thaddeus Parker 1944
DE370 John L. Williamson 1944
DE371 Presley 1944
DE372 Williams 1944
DE402 Richard S. Bull 1944
DE403 Richard M. Rowell 1944
DE405 Dennis 1944
DE406 Edmonds 1944
DE408 Straus 1944
DE409 La Prade 1944
DE410 Jack Miller 1944
DE411 Stafford 1944
DE412 Walter C. Wann 1944
DE414 Le Ray Wilson 1944
DE415 Lawrence C. Taylor 1944
DE416 Melvin R. Nawman 1944
DE417 Oliver Mitchell 1944
DE418 Tabberer 1944
DE419 Robert F. Keller 1944
DE420 Leland E. Thomas 1944
DE421 Chester T. O'Brien 1944
DE422 Douglas A. Munro 1944
DE423 Dufilho 1944
DE424 Haas 1944
DE438 Corbesier 1944
DE439 Conklin 1944
DE440 McCoy Reynolds 1944
DE441 William Seiverling 1944
DE442 Ulvert M. Moore 1944
DE443 Kendall C. Campbell 1944
DE444 Goss 1944
DE445 Grady 1944
DE446 Charles E. Brannon 1944
DE447 Albert T. Harris 1944
DE448 Cross 1945
DE449 Hanna 1945
DE450 Joseph E. Connolly 1945
DE508 Gilligan 1944
DE509 Formoe 1944
DE510 Heyliger 1945
DE531 Edward H. Allen 1943
DE532 Tweedy 1944
DE533 Howard F. Clark 1944
DE534 Silverstein 1944
DE535 Lewis 1944
DE536 Bivin 1944
DE537 Rizzi 1945
DE538 Osberg 1945
FFC Buckley 1 DEC698 Raby 1943 1823t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 186p; 2x1-127/38, (1x4+3x2)-40/60, 6x1-20/70, 2x24-278Hedgehog, 8DCT, 2DCR; SA, SU, SPS-6 radars, sonar
FFR Buckley 7 DER51 Buckley 1943 1823t, 93.3x11.3x3.4m, 2b,2stg,2em, 12000hp, 23kts, 186p; 2x1-127/38, (1x4+3x2)-40/60, 6x1-20/70, 1x24-178Hedgehog, 8DCT, 2DCR; SA, SU, SPS-6 radars, sonar
DER57 Fogg 1943
DER153 Reuben James 1943
DER213 William T. Powell 1944
DER223 Spangenberg 1944
DER577 Alexander J. Luke 1944
DER578 Robert I. Paine 1944

PATROL AND COASTAL COMBATANTS

PC PC461 124 PC461   1942 463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-76/50, 1x1-40/60, 4x1-20/70, 2x4-178Mousetrap, 2DCT, 2DCR; SU radar, sonar
PC465   1942
PC466   1942
PC470   1942
PC483   1942
PC484   1942
PC485   1942
PC486   1942
PC487   1942
PC495   1942
PC553   1942
PC560   1942
PC564   1942
PC565   1942
PC566   1942
PC567   1942
PC568   1942
PC569   1942
PC570   1942
PC571   1942
PC572   1942
PC579   1942
PC580   1942
PC581   1942
PC586   1942
PC592   1942
PC597   1943
PC600   1942
PC601   1942
PC602   1942
PC603   1942
PC606   1943
PC610   1942
PC616   1942
PC617   1942
EPC618   1942
PC619   1942
PC620   1943
PC776   1943
PC777   1943
PC778   1943
PC779   1943
PC780   1943
PC781   1943
PC782   1943
PC785   1943
PC786   1943
PC787   1943
PC790   1944
PC797   1944
PC799   1944
PC808   1945
PC817   1943
PC819   1943
PC820   1943
PC822   1944
PC1077   1942
PC1078   1943
PC1079   1943
PC1081   1943
PC1086   1944
PC1087   1944
PC1119   1942
PC1120   1943
PC1125   1943
PC1130   1943
PC1135   1943
PC1138   1943
PC1140   1944
PC1141   1943
PC1142   1944
PC1143   1944
PC1144   1944
PC1145   1944
PC1146   1944
PC1149   1944
PC1167   1943
PC1168   1943
PC1170   1944
PC1171   1943
PC1172   1943
PC1173   1943
PC1174   1943
PC1175   1943
PC1176   1943
PC1179   1944
PC1180   1944
PC1181   1943
PC1182   1943
PC1185   1944
PC1186   1944
PC1191   1942
PC1193   1943
PC1196   1943
PC1198   1943
PC1201   1943
PC1208   1943
PC1209   1944
PC1210   1944
PC1211   1943
PC1212   1943
PC1213   1943
PC1216   1943
PC1225   1943
PC1228   1943
PC1229   1943
PC1230   1943
PC1231   1943
PC1232   1943
PC1233   1943
PC1237   1943
PC1240   1943
PC1242   1943
PC1246   1943
PC1252   1943
PC1253   1943
PC1254   1943
PC1260   1943
PC1262   1943
PC1263   1943
PC1546   1944
PC1547   1944
PC1569   1945
PC1590   1942
PC(C)461 12 PC(C)463   1942 463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 1x1-76/50, 2x4-178Mousetrap, 2DCT, 2DCR; SU radar, sonar
PC(C)582   1942
PC(C)588   1942
PC(C)589   1942
PC(C)802   1945
PC(C)1136   1943
PC(C)1137   1943
PC(C)1169   1944
PC(C)1177   1943
PC(C)1178   1944
PC(C)1244   1943
PC(C)1251   1943
PGM10 2 PGM10   1944 463t, 52.9x7.1x3.3m, 2d, 2880hp, 19kts, 65p; 2x2-40/60, 6x1-20/70, 1x2-60/12mortar, 2x1-12.7/90, 2DCT, 2DCR; SU radar, sonar
PGM31   1945
PCE842 15 PCE842   1944 903t, 56.2x10.1x2.9m, 2d, 2000hp, 15.1kts, 96p; 1x1-76/50, 2x2-40/60, 5x1-20/70, 1x24-178Hedgehog, 4DCT, 2DCR; SU radar, sonar
PCE843   1944
PCE845   1944
PCE846   1944
PCE870   1943
PCE874   1943
PCE880   1944
PCE892   1944
PCE894   1944
PCE895   1944
PCE899   1945
PCE900   1945
PCE902   1945
PCE903   1945
PCE904   1945
PCE(R) 8 PCE(R)849   1944 903t, 56.2x10.1x2.9m, 2d, 2000hp, 15.1kts, 96p; 1x1-76/50, 1x2-40/60, 4x1-20/70, 1x24-178Hedgehog, 4DCT, 2DCR; SU radar, sonar
PCE(R)850   1944
PCE(R)851   1944
PCE(R)852   1944
PCE(R)853   1944
EPCE(R)855   1944
PCE(R)856   1944
EPCE(R)857   1945
PCE(C) 6 PCE(C)873   1943 903t, 56.2x10.1x2.9m, 2d, 2000hp, 15.1kts, 96p; 1x1-76/50, 1x2-40/60, 4x1-20/70, 1x24-178Hedgehog, 4DCT, 2DCR; SU radar, sonar
PCE(C)877   1944
PCE(C)882   1945
PCE(C)886   1945
PCE(C)896   1944
PCE(C)898   1945
PCS 19 PCS1376   1943 278t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 57p; 1x1-76/50, 1x1-40/60, 2x1-20/70, 2x4-178Mousetrap, 4DCT, 2DCR; SU radar, sonar
PCS1378   1944
PCS1380   1944
PCS1383   1944
PCS1384   1944
PCS1385   1944
PCS1386   1944
PCS1387   1944
PCS1392   1944
PCS1401   1945
PCS1413   1943
PCS1414   1943
PCS1423   1943
PCS1426   1944
PCS1431   1944
PCS1444   1944
PCS1445   1944
PCS1446   1944
PCS1448   1944
SC SC497 3 SC665   1942 136t, 33.8x5.5x2.0m, 2d, 2400hp, 21kts, 27p; 1x1-40/60, 3x1-20/70, 2x4-178Mousetrap, 2DCT, 2DCR; SU radar, QC sonar
SC679   1942
SC716   1943
YP YP78 8 YP584-591   1943 No picture 51t, 22.9x4.9m, 2d, 400hp

MINE WARFARE AND MINE COUNTERMEASURES

CM Terror 1 CM5 Terror 1942 8640t, 138.6x18.3x6.0m, 4b,2gst, 11000hp, 18kts, 481p; 4x1-127/38, 4x4-40/60, 14x1-20/70, 900mines; SC, SG, Mk4 radars
DM Robert H. Smith 10 DM23 Robert H. Smith 1944 3218t, 114.8x12.5x4.3m, 4b,2gst, 60000hp, 36.5kts, 336p; 3x2-127/38, (2x4+2x2)-40/60, 8x1-20/70, 4DCT, 2DCR, 120mines; SG, SR, Mk12/22 radars, QGA sonar
DM24 Thomas E. Fraser 1944
DM25 Shannon 1944
DM26 Harry F. Bauer 1944
DM27 Adams 1944
DM28 Tolman 1944
DM29 Henry A. Wiley 1944
DM30 Shea 1944
DM32 Lindsey 1944
DM33 Gwin 1944
DMS Bristol 20 DMS19 Ellyson 1941 2600t, 106.2x11.0(DMS19-40)-11.3(DMS41,42)x4.9m, 4b,2gst, 50000hp, 35kts, 208p; 3x1-127/38, 2x2-40/60(DMS19-21,23,25-27,30), (2x4+2x2)-40/60(DMS31-42), 7x1-20/70(DMS19-21,23,25-27,30), (2x2+2x1)-20/70(DMS31-42), 2DCT, 2DCR, sweeping gear; radars, sonar
DMS20 Hambleton 1941
DMS21 Rodman 1942
DMS23 Macomb 1942
DMS25 Fitch 1942
DMS26 Hobson 1942
DMS27 Jeffers 1942
DMS30 Gherardi 1942
DMS31 Mervine 1942
DMS32 Quick 1942
DMS33 Carmick 1942
DMS34 Doyle 1943
DMS35 Endicott 1943
DMS36 McCook 1943
DMS37 Davison 1942
DMS38 Thompson 1943
DMS39 Cowie 1942
DMS40 Knight 1942
DMS41 Doran 1942
DMS42 Earle 1942
MSO Raven 1 AM55 Raven 1940 1040t, 67.1x9.8x2.8m, 2d, 2880hp, 18kts, 105p; 1x1-76/50, 2x1-40/60, 8x1-20/70, 1x24-178Hedgehog, 4DCT, 2DCR, 80mines, sweeps
Auk 63 AM57 Auk 1942 1250t, 67.4x9.8x3.3m, 2d, 2880hp, 18kts, 105p; 1x1-76/50, 2x1-40/60, 8x1-20/70, 1x24-178Hedgehog, 4DCT, 2DCR, 80mines, sweeps
AM58 Broadbill 1942
AM59 Chickadee 1942
AM60 Nuthatch 1942
AM61 Pheasant 1942
AM62 Sheldrake 1942
AM64 Starling 1942
AM100 Heed 1943
AM101 Herald 1943
AM102 Motive 1943
AM103 Oracle 1943
AM104 Pilot 1943
AM105 Pioneer 1943
AM107 Prevail 1943
AM108 Pursuit 1943
AM109 Requisite 1943
AM110 Revenge 1943
AM111 Sage 1943
AM112 Seer 1942
AM114 Staff 1942
AM116 Speed 1942
AM117 Strive 1942
AM118 Steady 1942
AM119 Sustain 1942
AM120 Sway 1943
AM122 Swift 1943
AM123 Symbol 1942
AM124 Threat 1943
AM126 Token 1942
AM127 Tumult 1943
AM128 Velocity 1943
AM131 Zeal 1943
AM314 Champion 1943
AM315 Chief 1943
AM316 Competent 1943
AM317 Defense 1944
AM318 Devastator 1944
AM319 Gladiator 1944
AM320 Impeccable 1944
AM322 Spear 1943
AM323 Triumph 1944
AM324 Vigilance 1944
AM340 Ardent 1944
AM341 Dextrous 1943
AM372 Murrelet 1945
AM373 Peregrine 1945
AM374 Pigeon 1945
AM375 Pochard 1944
AM376 Ptarmigan 1945
AM377 Quail 1945
AM378 Redstart 1945
AM379 Roselle 1945
AM380 Ruddy 1945
AM381 Scoter 1945
AM382 Shoveller 1945
AM383 Surfbird 1944
AM384 Sprig 1945
AM385 Tanager 1945
AM386 Tercel 1945
AM387 Toucan 1944
AM388 Towhee 1945
AM389 Waxwing 1945
AM390 Wheatear 1945
Admirable 59 AM159 Change 1944 945t, 56.2x10.1x3.0m, 2d, 2000hp, 15.1kts, 96p; 1x1-76/50, 2x1-40/60, 4x1-20/70, sweeps; SU radar, sonar
AM160 Clamour 1944
AM161 Climax 1944
AM162 Compel 1944
AM163 Concise 1944
AM164 Control 1944
AM165 Counsel 1944
AM214 Crag 1944
AM215 Cruise 1944
AM218 Density 1944
AM219 Design 1944
AM220 Device 1944
AM221 Diploma 1944
AM223 Dour 1944
AM224 Eager
AM232 Execute 1944
AM233 Facility 1944
AM238 Garland 1944
AM239 Gayety 1944
AM240 Hazard 1944
AM241 Hilarity 1944
AM242 Inaugural 1944
AM249 Incredible 1944
AM252 Instill 1944
AM253 Intrigue 1944
AM254 Invade 1944
AM255 Jubilant 1943
AM256 Knave 1943
AM261 Mainstay 1944
AM269 Opponent 1944
AM275 Pirate 1944
AM277 Pledge 1944
AM280 Prowess 1944
AM283 Ransom 1944
AM284 Rebel 1944
AM285 Recruit 1944
AM288 Reign 1946
AM289 Report 1946
AM296 Scout 1944
AM297 Scrimmage 1944
AM298 Scuffle 1944
AM299 Sentry 1944
AM300 Serene 1944
AM301 Shelter 1944
AM302 Signet 1944
AM303 Skirmish 1944
AM304 Scurry 1944
AM306 Specter 1944
AM307 Staunch 1944
AM308 Strategy 1944
AM309 Strength 1944
AM310 Success 1944
AM311 Superior 1944
AM356 Creddock 1945
AM357 Dipper 1945
AM362 Gadwall 1945
AM364 Graylag 1945
AM365 Harlequin 1945
AM366 Harrier 1945
MSC YMS 58 AMS1 Albatross 1942 278t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 57p; 1x1-76/50, 1x1-40/60, 2x1-20/70, 2x4-178Mousetrap, 4DCT, 2DCR; SU radar, sonar
AMS2 Bobolink 1943
AMS3 Bunting 1943
AMS4 Cardinal 1943
AMS5 Condor 1943
AMS6 Courser 1943
AMS7 Crow 1943
AMS8 Curlew 1943
AMS9 Flicker 1943
AMS10 Firecrest 1943
AMS11 Flamingo 1942
AMS12 Goldfinch 1944
AMS13 Grackle 1943
AMS14 Grosbeak 1943
AMS15 Grouse 1943
AMS16 Gull 1944
AMS17 Hawk 1943
AMS18 Heron 1943
AMS19 Hornbill 1944
AMS20 Hummer 1944
AMS21 Jackdaw 1944
AMS22 Kite 1944
AMS23 Lark 1943
AMS24 Linnet 1943
AMS25 Magpie 1943
AMS26 Merganser 1944
AMS27 Mockingbird 1944
AMS28 Osprey 1944
AMS29 Ostrich 1944
AMS31 Partridge 1945
AMS32 Pelican 1945
AMS33 Plover 1944
AMS34 Redhead 1944
AMS35 Sanderling 1944
AMS36 Swallow 1944
AMS37 Swan 1944
AMS38 Verdin 1944
AMS39 Waxbill 1944
AMS40 Chatterer 1944
AMS41 Barbet 1942
AMS42 Brambling 1942
AMS43 Brant 1942
AMS44 Courlan 1942
AMS45 Crossbill 1942
AMS46 Egret 1943
AMS47 Fulmar 1943
AMS48 Lapwing 1943
AMS49 Lorikeet 1943
AMS50 Nightingale 1943
AMS51 Reedbird 1943
AMS52 Rhea 1943
AMS53 Robin 1943
AMS54 Ruff 1943
AMS55 Seagull 1943
AMS56 Turkey 1944
AMS57 Redpoll 1943
AMS58 Siskin 1944
AMS59   1945
MHC Minah 1 AMc204 Minah 1944 278t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 57p; 1x1-76/50, 1x1-20/70, diving equipment; SU radar, sonar
LCT(6) 6 AMCU1   1944 320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70, diving equipment; SO radar, sonar
AMCU2   1944
AMCU3   1944
AMCU4   1944
AMCU5   1944
AMCU6   1944
LCI(L) 1 AMCU11   1943 385t, 48.9x7.2x1.6m, 8d(2), 2320hp, 15.5kts, 29p; 5x1-20/70, diving equipment; SO radar, sonar
MSB MSB1 4 MSB1-4   1945 No picture 42t, 17.5x4.8x1.3m, 2d, 300hp, 12kts, 6p; sweeps
MSL1 4 MSL1-4   1946 No picture 10t, 11.0x3.5x1.1m, 1gt, 200hp, 10kts, 4p; sweep
MSL5 25 MSL5-29   1948 No picture 10t, 11.0x3.5x1.1m, 1gt, 200hp, 10kts, 4p; sweep
MSL30 1 MSL30   1948 No picture 10t, 11.0x3.5x1.1m, 1gt, 200hp, 10kts, 4p; sweep

COMMAND SHIPS

AGC Appalachian 4 AGC1 Appalachian 1943 13910t, 140.0x19.2x7.3m, 2b,1gst, 6600hp, 17kts, 875p; 2x1-127/38, 4x2-40/60, 14x1-20/70; 2LCVP, 4LCPL, 2LCPR, 2LCC, 165HQ persons; SR, SU, SK, SP radars
AGC2 Blue Ridge 1943
AGC3 Rocky Mount 1943
AGC5 Catoctin 1944
Mount McKinley 11 AGC7 Mount McKinley 1944 12560t, 139.9x19.2x7.6m, 2b,1gst, 6600hp, 17kts, 1063p; 2x1-127/38, 4x2-40/60, 14x1-20/70(AGC7-14), 12x1-20/70(AGC15-17); 2LCVP(AGC7-14), 4LCPL, 2LCC(AGC7-14), 1LCPR(AGC15-17), 336(AGC7-14)-317(AGC15-17)persons of HQ; SR, SU, SK, SP radars
AGC8 Mount Olympus 1944
AGC9 Wasatch 1944
AGC10 Auburn 1944
AGC11 Eldorado 1944
AGC12 Estes 1944
AGC13 Panamint 1944
AGC14 Teton 1944
AGC15 Adirondack 1945
AGC16 Pocono 1945
AGC17 Taconic 1946
Williamsburg 1 AGC369 Williamsburg 1930 No picture 1820t, 68.3x11.0x4.9m, 2d, 2200hp, 16kts; 2x1-76/50

AMPHIBIOUS

LSD Ashland 8 LSD1 Ashland 1943 9375t, 139.5x22.0x4.8m, 2b,2quipe, 7400hp, 15.4kts, 254p; 1x1-127/38, (2x4+2x2)-40/60, 16x1-20/70; 3LCT(6), 332troops; SU radar
LSD2 Belle Grove 1943
LSD3 Carter Hall 1943
LSD4 Epping Forest 1943
LSD5(A) Gunston Hall 1943
LSD6 Lindenwald 1943
LSD7 Oak Hill 1944
LSD8 White Marsh 1944
Casa Grande 13 LSD13 Casa Grande 1944 9375t, 139.5x22.0x4.8m, 2b,2gst, 7000(LSD13-21,25-27)-9000(LSD22)hp, 15.4(LSD13-21,25-27)-15.6(LSD22)kts, 254p; 1x1-127/38, (2x4+2x2)-40/60, 16x1-20/70; 3LCT(6), 332troops; SU radar
LSD14 Rushmore 1944
LSD15 Shadwell 1944
LSD16 Cabildo 1945
LSD17 Catamount 1945
LSD18 Colonial 1945
LSD19 Comstock 1945
LSD20 Donner 1945
LSD21 Fort Mandan 1945
LSD22 Fort Marion 1946
LSD25 San Marcos 1945
LSD26 Tortuga 1945
LSD27 Wheatstone 1946
LST LST1 187 LST17   1943 4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; (1x2+5x1)-40/60(LST1-541), (2x2+4x1)-40/60(LST542-1152), 12x1-20/70; 4LCVP, 20tanks, 163troops; SU radar
LST31   1943
LST32   1943
LST47   1943
LST50   1943
LST53   1943
LST57   1944
LST60   1944
LST(H)117   1943
LST176   1943
LST209   1943
LST218   1943
LST(H)222   1943
LST227   1943
LST230   1943
LST263   1943
LST266   1943
LST270   1943
LST(H)276   1943
LST277   1943
LST279   1943
LST281   1943
LST287   1943
LST288   1943
LST291   1943
LST306   1942
LST325   1943
LST344   1943
LST356   1942
LST389   1942
LST391   1942
LST399   1943
LST400   1943
LST456   1943
LST(H)482   1943
LST483   1943
LST(H)488   1943
LST491   1943
LST503   1943
LST504   1943
LST509   1944
LST510   1944
LST512   1944
LST515   1944
LST516   1944
LST519   1944
LST520   1944
LST521   1944
LST525   1944
LST527   1944
LST528   1944
LST529   1944
LST530   1944
LST532   1944
LST533   1944
LST535   1944
LST542   1944
LST546   1944
LST548   1944
LST550   1944
LST551   1944
LST561   1944
LST566   1944
LST572   1944
LST578   1944
LST579   1944
LST581   1944
LST583   1944
LST587   1944
LST590   1944
LST600   1944
LST601   1944
LST602   1944
LST603   1944
LST607   1944
LST611   1944
LST613   1944
LST616   1944
LST623   1944
LST625   1944
LST626   1944
LST629   1944
LST630   1944
LST643   1944
LST649   1944
LST(H)652   1944
LST657   1944
LST664   1944
LST685   1944
LST689   1944
LST692   1944
LST694   1944
LST715   1944
LST722   1944
LST(H)731   1944
LST735   1944
LST742   1944
LST758   1944
LST759   1944
LST761   1944
LST762   1944
LST772   1944
LST783   1944
LST784   1944
LST786   1944
LST794   1944
LST799   1944
LST802   1944
LST803   1944
LST819   1944
LST821   1944
LST822   1944
LST824   1944
LST825   1944
LST827   1944
LST835   1944
LST836   1944
LST838   1944
LST839   1944
LST840   1944
LST845   1945
LST846   1945
LST848   1945
LST849   1945
LST850   1944
LST853   1944
LST854   1944
LST855   1944
LST857   1944
LST859   1945
LST880   1945
LST883   1945
LST887   1944
LST888   1944
LST898   1944
LST900   1945
LST901   1945
LST902   1945
LST903   1945
LST904   1945
LST905   1945
LST912   1944
LST914   1944
LST928   1944
LST938   1944
LST953   1944
LST973   1945
LST975   1945
LST980   1944
LST983   1944
LST987   1944
LST988   1944
LST1010   1944
LST1032   1944
LST1038   1945
LST1041   1945
LST1048   1945
LST1064   1945
LST1066   1945
LST1067   1945
LST1068   1945
LST1069   1945
LST1071   1945
LST1072   1945
LST1073   1945
LST1074   1945
LST1076   1945
LST1077   1945
LST1079   1945
LST1080   1945
LST1081   1945
LST1082   1945
LST1083   1945
LST1084   1945
LST1086   1945
LST1088   1945
LST1089   1945
LST1090   1945
LST1091   1945
LST1096   1945
LST1101   1945
LST1110   1945
LST1122   1945
LST1123   1945
LST1126   1945
LST1128   1945
LST1129   1945
LST1134   1945
LST1138   1945
LST1141   1945
LST1142   1945
LST1144   1945
LST1146   1945
LST1148   1945
LST1150   1945
LST1152   1945
LST1153 2 LST1153   1947 6000t, 116.4x16.5x4.4m, 2b,2gst, 6000hp, 14kts, 181p; 2x1-127/38, 2x2-40/60, 2x1-20/70; 4LCVP, 20tanks, 175troops; SU radar
LST1154   1949
LSV Catskill 5 LSV1 Catskill 1944 9040t, 138.8(LSV1,2)-139.6(LSV3-5)x18.4x6.1m, 4b,2gst, 11000hp, 20.3kts, 564p; 4x1-127/38(LSV1,2), (1x2+2x1)-127/38(LSV3-5), 4x2-40/60, 20x1-20/70(LSV1,2), 6x2-20/70(LSV3-5); 14LCVP, 1LCPL(LSV1,2), 1LCPR(LCV1,2), 19-21LVT, 868troops; SU radar
LSV2 Ozark 1944
LSV3 Osage 1944
LSV4 Saugus 1945
LSV5 Monitor 1944
LSM LSM1 159 LSM17   1944 1095t, 62.0x10.5x2.1m, 2d, 2800hp, 13.2kts, 60p; 1x2-40/60, 4x1-20/70; 6LVT, 54troops; SU radar
LSM19   1944
LSM30   1944
LSM37   1944
LSM45   1944
LSM54   1944
LSM57   1944
LSM58   1944
LSM84   1944
LSM85   1944
LSM96   1944
LSM99   1944
LSM101   1944
LSM102   1944
LSM104   1944
LSM105   1944
LSM106   1944
LSM107   1944
LSM108   1944
LSM109   1944
LSM110   1944
LSM116   1944
LSM118   1944
LSM119   1944
LSM120   1944
LSM121   1944
LSM125   1944
LSM161   1944
LSM167   1944
LSM168   1944
LSM175   1944
LSM200   1944
LSM204   1944
LSM212   1944
LSM226   1944
LSM227   1944
LSM229   1944
LSM231   1944
LSM232   1944
LSM236   1944
LSM250   1944
LSM262   1944
LSM268   1944
LSM269   1944
LSM270   1944
LSM274   1944
LSM275   1944
LSM276   1944
LSM288   1945
LSM289   1945
LSM291   1945
LSM296   1944
LSM297   1944
LSM298   1944
LSM299   1944
LSM300   1945
LSM301   1945
LSM303   1945
LSM304   1945
LSM305   1945
LSM306   1945
LSM309   1945
LSM313   1944
LSM315   1944
LSM316   1944
LSM319   1944
LSM320   1944
LSM324   1944
LSM329   1944
LSM330   1944
LSM331   1944
LSM332   1944
LSM335   1944
LSM341   1945
LSM343   1945
LSM354   1944
LSM355   1944
LSM357   1944
LSM358   1945
LSM359   1945
LSM360   1945
LSM362   1945
LSM364   1945
LSM365   1945
LSM366   1945
LSM367   1945
LSM369   1945
LSM370   1945
LSM371   1945
LSM372   1945
LSM373   1945
LSM378   1945
LSM389   1945
LSM390   1945
LSM392   1945
LSM394   1945
LSM395   1945
LSM396   1945
LSM397   1945
LSM398   1945
LSM399   1945
LSM413   1945
LSM415   1944
LSM416   1944
LSM418   1944
LSM419   1944
LSM421   1944
LSM422   1944
LSM424   1945
LSM429   1945
LSM441   1945
LSM444   1945
E-LSM445   1945
E-LSM446   1945
LSM448   1945
LSM455   1945
LSM462   1945
LSM463   1945
LSM469   1945
LSM471   1945
LSM472   1945
LSM473   1945
LSM474   1945
LSM476   1945
LSM477   1945
LSM478   1945
LSM479   1945
LSM480   1945
LSM481   1945
LSM483   1945
LSM484   1945
LSM488   1945
LSM490   1945
LSM491   1945
LSM492   1945
LSM493   1945
LSM494   1945
LSM495   1945
LSM496   1945
LSM497   1945
LSM498   1945
LSM499   1945
LSM500   1945
LSM537   1945
LSM538   1945
LSM539   1945
LSM540   1945
LSM541   1945
LSM542   1945
LSM543   1945
LSM544   1946
LSM545   1946
LSM546   1946
LSM547   1946
LSM548   1946
LSM553   1945
LSM554   1945
LSM555   1945
LSM556   1945
LSM557   1945
LSM558   1945
LPA President Jackson 4 T-APA18 President Jackson 1940 16175t, 149.7x21.2x8.1m, 2b,1gst, 8500hp, 17kts, 512p; 4x1-76/50, (2x2+2x1)-40/60, 12x1-20/70; 4LCM(6), 23LCVP, 2LCPL, 1LCPR, 3500t cargo, 1379troops; SG radar
APA19 President Adams 1941
APA20 President Hayes 1941
T-APA30 Thomas Jefferson 1941
Arthur Middleton 3 APA25 Arthur Middleton 1942 18000t, 149.1x21.3x8.3m, 2b,1gst, 8500hp, 16.5kts, 578p; 1x1-127/38, 4x1-76/50, 2x2-40/60, 10x1-20/70; 4LCM(6), 18LCVP, 3LCPL, 2LCPR, 2700t cargo, 1240troops; SG radar
APA26 Samuel Chase 1942
APA27 George Clymer 1942
Crescent City 3 APA28 Charles Carroll 1942 14247t, 151.8x17.2x8.1m, 2b,1gst, 7800hp, 16kts, 534p; 1x1-127/38, 4x1-76/50, (1x2+1x1)-40/60, 11x2-20/70; 4LCM(6), 20LCVP, 3LCPL, 2LCPR, 2700t cargo, 1237troops; SG radar
APA31 Monrovia 1942
APA32 Calvert 1942
Bayfield 6 APA33 Bayfield 1943 16100t, 150.0x21.2x8.1m, 2b,1gst, 8500hp, 18kts, 575p; 2x1-127/38, 4x2-40/60, 18x1-20/70; 4LCM(6), 19LCVP, 3LCPL, 2LCPR, 4700t cargo, 1875troops; SU radar
APA36 Cambria 1943
APA37 Cavalier 1943
APA38 Chilton 1943
APA44 Fremont 1943
APA45 Henrico 1943
Gilliam 3 APA63 Bladen 1944 7080t, 129.9x17.7x4.7m, 2b,2stg,2em, 6000hp, 18kts, 283p; 1x1-127/38, 4x2-40/60, 10x1-20/70; 13LCVP, 1LCPL, 1LCPR, 600t cargo, 986troops; SU radar
APA67 Burleson 1944
APA87 Niagara 1945
Haskell 56 APA128 Arenac 1944 14880t, 138.7x18.9x7.3m, 2b,1gst, 8500hp, 16.5kts, 536p; 1x1-127/38, (1x4+4x2)-40/60, 10x1-20/70; 2LCM(6), 22LCVP, 1LCPL, 1LCPR, 1800t cargo, 1596troops; SU radar
APA132 Barnwell 1945
APA136 Botetourt 1945
APA140 Brookings 1944
APA144 Clinton 1945
APA148 Crockett 1945
APA152 Latimer 1944
APA156 Mellette 1944
APA160 Deuel 1944
APA164 Edgecombe 1944
APA168 Gage 1944
APA176 Kershaw 1944
APA180 Lavaca 1944
APA188 Olmsted 1944
APA192 Rutland 1944
APA193 Sanborn 1944
APA194 Sandoval 1944
APA195 Lenawee 1944
APA196 Logan 1944
APA197 Lubbock 1944
APA198 McCracken 1944
APA199 Magoffin 1944
APA201 Menard 1944
APA202 Menifee 1944
APA203 Meriwether 1944
APA204 Sarasota 1944
APA205 Sherburne 1944
APA206 Sibley 1944
APA207 Miffin 1944
APA208 Talladega 1944
APA209 Tazewell 1944
APA210 Telfair 1944
APA211 Missoula 1944
APA212 Montrose 1944
APA213 Mountrail 1944
APA214 Natrona 1944
APA215 Navarro 1944
APA216 Neshoba 1944
APA217 New Kent 1944
APA218 Noble 1944
APA219 Okaloosa 1944
APA220 Okanogan 1944
APA221 Oneida 1944
APA222 Pickaway 1944
APA224 Randall 1944
APA226 Rawlins 1944
APA227 Renville 1944
APA228 Rockbridge 1944
APA229 Rockingham 1944
APA230 Rockwell 1944
APA232 San Saba 1944
APA235 Bottineau 1944
APA236 Bronx 1945
APA237 Bexar 1945
APA238 Dane 1945
APA239 Glynn 1945
LPR Charles Lawrence 92 APD37 Charles Lawrence 1943 2114t, 93.3x11.3x3.8m, 2b,2stg,2em, 12000hp, 23.6kts, 203p; 1x1-127/38, 3x2-40/60, 6x1-20/70, 2DCR; 4LCVP, 162troops; SA, SU radars, sonar
APD38 Daniel T. Griffin 1943
APD39 Barr 1944
APD40 Bowers 1944
APD42 Gantner 1943
APD43 George W. Ingram 1943
APD44 Ira Jeffery 1943
APD45 Lee Fox 1943
APD46 Amesbury 1943
APD48 Blessman 1943
APD49 Joseph E. Campbell 1943
APD50 Sims 1943
APD51 Hopping 1943
APD52 Reeves 1943
APD53 Joseph C. Hubbard 1944
APD55 Laning 1943
APD56 Loy 1943
APD57 Barber 1943
APD59 Newman 1943
APD60 Liddle 1943
APD61 Kephart 1944
APD62 Cofer 1944
APD63 Lloyd 1944
APD65 Burke 1943
APD66 Enright 1943
APD69 Yokes 1944
APD70 Pavlic 1944
APD71 Odum 1945
APD72 Jack C. Robinson 1945
APD73 Bassett 1945
APD74 John P. Gray 1945
APD75 Weber 1944
APD76 Schmitt 1943
APD77 Frament 1943
APD78 Bull 1943
APD79 Bunch 1943
APD80 Hayter 1944
APD81 Tatum 1943
APD84 Haines 1943
APD85 Runels 1944
APD86 Hollis 1944
APD87 Crosley 1944
APD88 Cread 1944
APD89 Ruchamkin 1944
APD90 Kirwin 1944
APD91 Kinzer 1944
APD92 Register 1945
APD93 Brock 1945
APD94 John Q. Roberts 1945
APD95 William M. Hobby 1945
APD96 Ray K. Edwards 1945
APD97 Arthur L. Bristol 1945
APD98 Truxton 1945
APD99 Upham 1945
APD100 Ringness 1944
APD101 Knudson 1944
APD102 Rednour 1944
APD103 Tollberg 1945
APD104 William J. Pattison 1945
APD105 Myers 1945
APD106 Walter B. Cobb 1945
APD107 Earle B. Hall 1945
APD108 Harry L. Corl 1945
APD109 Belet 1945
APD110 Julius A. Raven 1945
APD111 Walsh 1945
APD112 Hunter Marshall 1945
APD113 Earhart 1945
APD114 Walter S. Gorka 1945
APD115 Rogers Blood 1945
APD116 Francovich 1945
APD117 Joseph M. Auman 1945
APD118 Don O. Woods 1945
APD119 Beverly W. Reid 1945
APD120 Kline 1944
APD121 Raymond W. Herndon 1944
APD122 Scribner 1944
APD123 Diachenko 1944
APD124 Horace A. Bass 1944
APD125 Wantuck 1944
APD126 Gosselin 1944
APD127 Begor 1945
APD128 Cavallaro 1945
APD129 Donald W. Wolf 1945
APD130 Cook 1945
APD131 Walter X. Young 1945
APD132 Balduck 1945
APD133 Burdo 1945
APD134 Kleinsmith 1945
APD135 Weiss 1945
APD136 Carpellotti 1945
APD139 Bray 1944
LKA Procyon 5 AKA3 Bellatrix 1942 13910t, 143.0x19.2x7.8m, 1d(AKA3,4)-2b,1gst(AKA12-14), 6000hp, 16.5kts, 412p; 1x1-127/38, 4x1-76/50(AKA3,4), 4x2-40/60(AKA12-14), 18x1-20/70; 6LCM(6), 2LCM(3)(AKA3,4), 3LCM(3)(AKA12-14), 10LCVP, 1LCPL, 4515(AKA3,4)-4605(AKA12-14)t cargo, 54(AKA3,4)-190(AKA12-14)troops; SU radar
AKA4 Electra 1942
AKA12 Libra 1942
T-AKA13 Titania 1942
T-AKA14 Oberon 1942
Andromeda 25 AKA15 Andromeda 1943 13910t, 139.9x19.2x7.9m, 2b,1gst, 6000hp, 16.5kts, 404p; 1x1-127/38, 4x2-40/60, 18x1-20/70; 6LCM(6), 2LCM(3), 13LCVP, 1LCPL, 4900t cargo, 78troops; SU radar
AKA19 Thuban 1943
AKA20 Virgo 1943
T-AKA53 Achernar 1944
AKA54 Algol 1943
T-AKA55 Alshain 1944
AKA56 Arneb 1943
AKA57 Capricornus 1943
T-AKA58 Chara 1944
AKA59 Diphda 1944
T-AKA60 Leo 1944
AKA61 Muliphen 1944
AKA88 Uvalde 1944
AKA89 Warrick 1944
AKA90 Whiteside 1944
AKA91 Whitley 1944
AKA92 Wyandot 1944
AKA93 Yancey 1944
AKA94 Winston 1945
AKA95 Marquette 1945
AKA96 Mathews 1945
AKA97 Merrick 1945
AKA98 Montague 1945
AKA99 Rolette 1945
T-AKA100 Oglethorpe 1945
Rankin 6 AKA103 Rankin 1945 13910t, 139.9x19.2x7.9m, 2b,1gst, 6000hp, 16.5kts, 404p; 1x1-127/38, 4x2-40/60, 16x1-20/70; 6LCM(6), 2LCM(3), 13LCVP, 1LCPL, 5275t cargo, 62troops; SU radar
AKA104 Seminole 1945
AKA105 Skagit 1945
AKA106 Union 1945
AKA107 Vermilion 1945
AKA108 Washburn 1945
Artemis 1 AKA28 Hydrus 1944 6740t, 129.9x17.7x4.7m, 2b,2stg,2em, 6000hp, 18kts, 303p; 1x1-127/38, 4x2-40/60, 10x1-20/70; 13LCVP, 2LCM(3), 1LCPL, 2900t cargo, 252troops; SU radar
LCI(L) LCI(L)1 103 LSIL76   1943 385t, 48.9x7.2x1.6m, 8d(2), 2320hp, 15.5kts, 29p; 5x1-20/70; 209troops; SO radar
LSIL367   1943
LSIL476   1943
LSIL485   1943
LSIL504   1943
LSIL544   1944
LSIL575   1944
LSIL627   1944
LSIL628   1944
LSIL633   1944
LSIL638   1944
LSIL652   1944
LSIL653   1944
LSIL654   1944
LSIL655   1944
LSIL656   1944
LSIL664   1944
LSIL674   1944
LSIL679   1944
LSIL691   1944
LSIL693   1944
LSIL694   1944
LSIL695   1944
LSIL696   1944
LSIL698   1944
LSIL699   1944
LSIL700   1944
LSIL701   1944
LSIL702   1944
LSIL703   1944
LSIL709   1944
LSIL710   1944
LSIL715   1944
LSIL768   1944
LSIL774   1944
LSIL775   1944
LSIL776   1944
LSIL777   1944
LSIL778   1944
LSIL782   1944
LSIL783   1944
LSIL786   1944
LSIL788   1944
LSIL789   1944
LSIL790   1944
LSIL791   1944
LSIL792   1944
LSIL793   1944
LSIL799   1944
LSIL818   1944
LSIL868   1944
LSIL869   1944
LSIL870   1944
LSIL871   1944
LSIL872   1944
LSIL873   1944
LSIL874   1944
LSIL875   1944
LSIL882   1944
LSIL883   1944
LSIL884   1944
LSIL944   1944
LSIL947   1944
LSIL952   1944
LSIL954   1944
LSIL962   1944
LSIL963   1944
LSIL966   1944
LSIL969   1944
LSIL970   1944
LSIL971   1944
LSIL973   1944
LSIL976   1944
LSIL978   1944
LSIL982   1944
LSIL985   1944
LSIL989   1944
LSIL994   1944
LSIL995   1944
LSIL996   1944
LSIL998   1944
LSIL1000   1944
LSIL1001   1944
LSIL1008   1944
LSIL1017   1944
LSIL1021   1944
LSIL1022   1944
LSIL1032   1944
LSIL1052   1944
LSIL1053   1944
LSIL1071   1944
LSIL1080   1944
LSIL1081   1944
LSIL1082   1944
LSIL1083   1944
LSIL1084   1944
LSIL1086   1944
LSIL1090   1944
LSIL1091   1944
LSIL1092   1944
LSIL1093   1944
LSIL1097   1944
LSIL1098   1944
LCU LCT(6) 87 LSU509   1943 320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70; 4tanks; SO radar
LSU520   1943
LSU524   1943
LSU529   1943
LSU550   1943
LSU562   1943
LSU592   1943
LSU600   1943
LSU629   1944
LSU637   1944
LSU638   1944
LSU644   1944
LSU646   1944
LSU653   1944
LSU666   1944
LSU677   1944
LSU686   1944
LSU709   1944
LSU716   1944
LSU742   1944
LSU743   1944
LSU763   1943
LSU764   1943
LSU776   1943
LSU778   1944
LSU783   1944
LSU788   1944
LSU827   1944
LSU840   1944
LSU851   1943
LSU852   1944
LSU869   1944
LSU877   1944
LSU917   1943
LSU960   1944
LSU971   1944
LSU973   1944
LSU979   1944
LSU980   1944
LSU989   1944
LSU990   1944
LSU1009   1944
LSU1056   1944
LSU1082   1944
LSU1085   1944
LSU1086   1944
LSU1124   1944
LSU1126   1944
LSU1136   1944
LSU1155   1944
LSU1156   1944
LSU1157   1944
LSU1158   1944
LSU1159   1944
LSU1160   1944
LSU1161   1944
LSU1162   1944
LSU1165   1944
LSU1195   1944
LSU1203   1944
LSU1224   1944
LSU1229   1944
LSU1232   1944
LSU1236   1944
LSU1250   1944
LSU1273   1944
LSU1283   1944
LSU1286   1944
LSU1317   1944
LSU1362   1944
LSU1363   1944
LSU1374   1944
LSU1376   1944
LSU1378   1944
LSU1379   1944
LSU1382   1944
LSU1384   1944
LSU1385   1944
LSU1386   1944
LSU1388   1944
LSU1398   1944
LSU1411   1944
LSU1430   1944
LSU1446   1944
LSU1451   1944
LSU1459   1944
LSU1462   1944
LFR LSM(R)401 48 LSM(R)401   1945 1175t, 62.0x10.5x2.1m, 2d, 2800hp, 13kts, 143p; 1x1-127/38, 2x2-40/60, 4x2-20/70, 4x1-107/10mortars, 5x2-127rockets; SU radar
LSM(R)402   1945
LSM(R)403   1945
LSM(R)404   1945
LSM(R)405   1945
LSM(R)406   1945
LSM(R)407   1945
LSM(R)408   1945
LSM(R)409   1945
LSM(R)410   1945
LSM(R)411   1945
LSM(R)412   1945
LSM(R)501   1945
LSM(R)502   1945
LSM(R)503   1945
LSM(R)504   1945
LSM(R)505   1945
LSM(R)506   1945
LSM(R)507   1945
LSM(R)508   1945
LSM(R)509   1945
LSM(R)510   1945
LSM(R)511   1945
LSM(R)512   1945
LSM(R)513   1945
LSM(R)514   1945
LSM(R)515   1945
LSM(R)516   1945
LSM(R)517   1945
LSM(R)518   1945
LSM(R)519   1945
LSM(R)520   1945
LSM(R)521   1945
LSM(R)522   1945
LSM(R)523   1945
LSM(R)524   1945
LSM(R)525   1945
LSM(R)526   1945
LSM(R)527   1945
LSM(R)528   1945
LSM(R)529   1945
LSM(R)530   1945
LSM(R)531   1945
LSM(R)532   1945
LSM(R)533   1945
LSM(R)534   1945
LSM(R)535   1945
LSM(R)536   1945
LCS(L)(3) 106 LSSL1   1944 387t, 48.2x7.2x1.7m, 8d(2), 2320hp, 15.5kts, 71p; 3x2-40/60, 4x1-20/70, 10x1-127rocket launchers; SU radar
LSSL2   1944
LSSL3   1944
LSSL4   1944
LSSL6   1944
LSSL9   1944
LSSL10   1944
LSSL11   1944
LSSL12   1944
LSSL13   1944
LSSL14   1944
LSSL16   1944
LSSL17   1944
LSSL18   1944
LSSL19   1944
LSSL20   1944
LSSL21   1944
LSSL22   1944
LSSL23   1944
LSSL24   1944
LSSL25   1944
LSSL27   1944
LSSL28   1944
LSSL29   1944
LSSL30   1944
LSSL32   1944
LSSL34   1944
LSSL35   1944
LSSL36   1944
LSSL38   1944
LSSL52   1944
LSSL53   1944
LSSL54   1944
LSSL55   1944
LSSL56   1944
LSSL57   1944
LSSL58   1944
LSSL59   1944
LSSL60   1944
LSSL61   1944
LSSL62   1944
LSSL63   1944
LSSL64   1944
LSSL65   1944
LSSL67   1945
LSSL68   1945
LSSL69   1945
LSSL70   1945
LSSL71   1945
LSSL72   1945
LSSL73   1945
LSSL74   1945
LSSL75   1945
LSSL76   1945
LSSL77   1945
LSSL78   1945
LSSL79   1944
LSSL80   1944
LSSL81   1944
LSSL82   1944
LSSL83   1944
LSSL84   1944
LSSL85   1944
LSSL86   1944
LSSL87   1944
LSSL88   1944
LSSL89   1944
LSSL90   1944
LSSL91   1945
LSSL92   1945
LSSL93   1945
LSSL94   1945
LSSL95   1945
LSSL96   1945
LSSL97   1945
LSSL98   1945
LSSL99   1945
LSSL100   1945
LSSL101   1945
LSSL102   1945
LSSL103   1945
LSSL104   1945
LSSL105   1945
LSSL106   1945
LSSL107   1945
LSSL108   1945
LSSL109   1944
LSSL110   1944
LSSL111   1944
LSSL112   1944
LSSL113   1944
LSSL114   1944
LSSL115   1944
LSSL116   1944
LSSL117   1944
LSSL118   1944
LSSL119   1944
LSSL120   1944
LSSL121   1944
LSSL122   1944
LSSL124   1944
LSSL125   1944
LSSL126   1944
LSSL128   1944
LSSL129   1944
LSSL130   1945
LCI(G) LCI(G) 1 LSIG543   1944 385t, 48.9x7.2x1.6m, 8d(2), 2320hp, 15.5kts, 70p; 2x1-40/60, 3x1-20/70, 6x1-12.7/90, 10x1-127rockets; SO radar
LCI(M) LCI(M) 1 LSIM596   1944 385t, 48.9x7.2x1.6m, 8d(2), 2320hp, 15.5kts, 53p; 1x1-40/60, 3x1-107/10mortars; SO radar
LCM LCM(3) 2000 ~2000   1942-1945 52t, 15.3x4.3x1.4m, 2d, 330hp, 8kts, 4p; 2x1-12.7/90; 1tank
LCM(6) 600 ~600   1943-1945 56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7/90; 1tank
LCVP LCVP 5800 ~5800   1942-1945 13t, 11.2x3.2x0.9m, 2d, 220hp, 8kts, 3p; 2x1-12.7/90; 36troops
LCPL LCPL 600 ~600   1941-1944 8t, 11.2x3.3x1.1m, 1d, 150hp, 8kts, 3p; 36troops
LCPR LCPR 600 ~600   1942-1945 8t, 11.2x3.3x1.1m, 1d, 250hp, 11kts, 3p; 36troops

COAST GUARD

PSO Treasury 6 WPG31 Bibb 1937 2660t, 99.7x12.5x3.8m, 2b,2gst, 5250hp, 19kts, 123p; 1x1-127/38, 1x2-40/60, 2x1-20/70(WPG31,36,37, 8x1-20/70(WPG32,33,35), 1x24-178Hedgehog, 2DCR(WPG37); radar, sonar
WPG32 Campbell 1936
WPG33 Duane 1936
WPG35 Ingham 1936
WPG36 Spencer 1937
WPG37 Taney 1936
Owasco 13 WPG39 Owasco 1945 2660t, 77.7x13.1x4.9m, 2b,1stg, 1em, 4000hp, 19kts, 276p; 2x2-127/38, 2x4-40/60, 4x1-20/70, 1x24-178Hedgehog, 6DCT, 2DCR; SU, Mk25 radars, sonar
WPG40 Winnebago 1945
WPG41 Chautauqua 1945
WPG42 Sebago 1945
WPG43 Iroquois 1946
WPG44 Wachusett 1946
WPG64 Escanaba 1946
WPG65 Winona 1946
WPG66 Klamath 1946
WPG67 Minnetonka 1946
WPG68 Androscoggin 1946
WPG69 Mendota 1945
WPG70 Pontchartrain 1945
Algonquin 2 WPG79 Onondaga 1934 1005t, 50.3x11.0x3.7m, 2b,1gst, 1500hp, 12.5kts, 61p; 2x1-76/50, 3x1-20/70, 2x4-178Mousetrap(WPG80), 4DCT, 2DCR; radar
WPG80 Tahoma 1934
Chelan 3 WPG163 Mocoma 1932 2075t, 76.2x12.8x3.9m, 2b,1stg,1em, 3350hp, 17kts, 97p; 1x1-127/51, 3x1-76/50, 4x1-20/70; radar
WPG164 Tampa 1930
WPG321 Itasca 1930
Barnegat 18 WAVP370 Casco 1941 2620t, 94.7x12.5x3.8m, 4dg,2em, 6080hp, 20kts, 367p; 1x1-127/38, 1x4-40/60(WAVP374), 2x2-40/60(WAVP370-373,375-384), 1x24-178Hedgehog, 4DCT; SA, SU radars, sonar
WAVP371 Mackinac 1942
WAVP372 Humboldt 1941
WAVP373 Matagorda 1941
WAVP374 Absecon 1943
WAVP375 Chincoteague 1943
WAVP376 Coos Bay 1943
WAVP377 Rockaway 1943
WAVP378 Half Moon 1943
WAVP379 Unimak 1943
WAVP380 Yakutat 1944
WAVP381 Barataria 1944
WAVP382 Bering Strait 1944
WAVP383 Castle Rock 1944
WAVP384 Cook Inlet 1944
WAVP385 Dexter 1941
WAVP386 McCulloch 1944
WAVP387 Gresham 1944
PC Active 21 WSC125 Active 1927 289t, 38.1x7.1x2.1m, 2d, 600hp, 13.3kts, 38p; 1x1-40/60, 2x1-20/70, 2x4-178Mousetrap, 2DCR; radar
WSC126 Agassiz 1927
WSC127 Alert 1927
WSC129 Bonham 1927
WSC130 Boutwell 1927
WSC131 Cahoone 1927
WSC132 Cartigan 1927
WSC133 Colfax 1927
WSC135 Diligence 1927
WSC137 Ewing 1927
WSC139 Frederick Lee 1927
WSC140 General Greene 1927
WSC143 Kimball 1927
WSC144 Legare 1927
WSC145 Marion 1927
WSC146 McLane 1927
WSC147 Morris 1927
WSC153 Travis 1927
WSC154 Vigilant 1927
WSC156 Yeaton 1927
Argo 14 WPC100 Argo 1933 370t, 50.3x7.2x2.3m, 2d, 1340hp, 16kts, 50p; 2x1-76/50, 2x1-20/70, 2x4-178Mousetrap, 2DCT, 2DCR; radar
WPC101 Ariadne 1934
WPC102 Atalanta 1934
WPC103 Aurora 1931
WPC104 Calypso 1932
WPC105 Cyane 1934
WPC106 Daphne 1932
WPC107 Dione 1934
WPC109 Hermes 1932
WPC111 Nemesis 1934
WPC112 Nike 1934
WPC113 Pandora 1934
WPC114 Perseus 1932
WPC116 Triton 1934
PB 83ft ~200     1941-1944 45t, 25.3x4.9x1.4m, 2pe, 1200hp, 20.5kts, 10p; 1x1-20/70, 2x4-178Mousetrap, 4DCR

© Ivan Gogin, 2015
