World navies yesterday

1950



Turkey 01 January 1950

SUBMARINES

SS Saldıray 2 1 Saldıray 1939 934/1210t, 80.0x6.4x4.3m, 2d/em, 3500/1000hp, 20/9kts, 44p, 100m; 1x1-105/45, 1x1-20/70, 6-533TT
2 Yıldıray 1946
Oruç Reis 3 1 Oruç Reis 1941 687/861t, 61.4x6.8x3.6m, 2d/em, 1200/780hp, 13.7/8.4kts, 35p, 100m; 1x1-102/40, 5-533TT
2 Murat Reis 1942
3 Burak Reis 1942
Balao 4 1 Birinçi İnönü 1944 1845/2415t, 95.0x8.3x4.7m, 4dg,4em(2), 5400/2740hp, 20.2/8.7kts, 60p, 120m; 2x1-127/25, 2x1-40/60, 10-533TT; SS, ST, SV radars, sonars
2 İkinçi İnönü 1944
3 Sakarya 1944
4 Gür 1944

PRINCIPAL SURFACE COMBATANTS

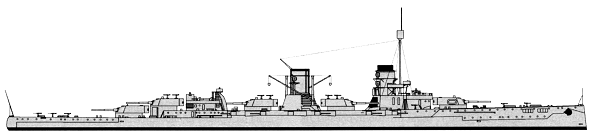

BB Moltke 1 1 Yavuz 1912 25300t, 186.6x29.5x8.7m, 24b,4st, 52000hp, 25.5kts, 1053p; 270belt, 75decks, 230turrets, 350CT; 5x2-283/50, 10x1-149/45, 6x1-88/45, 10x1-40/60, 2-500TT
CL Mecidiye 1 1 Mecidiye 1903 3967t, 102.4x12.8x5.3m, 16b,2vqe, 12500hp, 20kts, 312p; 102slopes, 38deck; 4x1-130/55, 4x1-76/50, 2-450TT
DD Kocatepe 2 1 Kocatepe 1931 1650t, 100.2x9.4x2.9m, 3b,2gst, 40000hp, 36kts, 149p; 4x1-120/50, 3x1-40/39, 2x1-20/70, 2x3-533TT
2 Adatepe 1931
Zafer 2 1 Zafer 1932 1610t, 96.0x9.3x3.3m, 3b,2gst, 35000hp, 36kts, 149p; 2x2-120/50, 2x1-40/39, 2x1-20/70, 2x3-533TT, 4dct
2 Tinaztepe 1932
Demirhisar 3 1 Demirhisar 1942 2080t, 98.5x10.2x4.0m, 3b,2gst, 34000hp, 35.5kts, 145p; 4x1-120/45, 4x1-20/70, 2x4-533TT(1,2), 1x4-533TT(3), 2dct, 1dcr, type 271, 291 radars, sonar
2 Sultanhisar 1942
3 Muavenet 1942
O 1 1 Gayret 1941 2430t, 105.2x10.7x4.3m, 2b,2gst, 40000hp, 37kts, 212p; 4x1-120/45, 1x4-40/39, 4x1-20/70, 2x4-533TT, 4dct, 2dcr; type 272, 282, 285, 291 radars, type 123A, 127 sonars

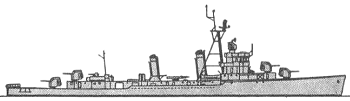

Bristol 4 1 Gaziantep 1942 2600t, 106.2x11.0x4.9m, 4b,2gst, 50000hp, 35kts, 208p; 4x1-127/38, 2x2-40/60, 7x1-20/70, 1x5-533TT, 6dct, 2dcr; SC, SG, Mk12/22 radars, sonar
2 Giresun 1942
3 Gelibolu 1942
4 Gemlik 1942
FS Peyk 2 1 Peyk 1907 775t, 80.1ppx8.4x4.6m, 4b,2vte, 5100hp, 18kts, 105p; 2x1-88/45, 6x1-57/45, 2x1-450TT, 25mines(2)
2 Berk 1907

PATROL AND COASTAL COMBATANTS

PT Bora 5 1-5 Bora, Kasırga, Yıldırım, Şimsek, Tayfun 1942 30t, 21.8x4.9x0.8m, 4pe, 3000hp, 33kts; 1x1-20/70, 2-450TR
YP MTB1 10 1-10 MTB1-10 1942 No picture 70t, 21.8x4.2x2.6m, 2d, 2000hp, 20kts, 8p; 1x1-20/70
HDML 8 1-8 LSB1-8 1942-1943 54t, 22.0x4.8x1.4m, 2d, 260-320hp, 11-11.8kts, 10p; 1x1-47/40, 1x1-20/70, 2dcr, sonar
Fairmile B 8 1-8 AB1-8 1943-1944 86t, 34.8x5.6x1.5m, 2pe, 1200hp, 18kts, 16p; 1x1-47/40, (1x2+1x1)-20/70, 2dct, 2dcr; type 286 radar, sonar

MINE WARFARE

ML İntibah 1 1 İntibah 1886 616t; 1x1-75/35, 50mines
Atak 1 1 Atak 1938 No picture 500t, 44.0x8.0x3.6m, 1d, 1025hp, 13kts; 40mines
Sivrihisar 2 1 Sivrihisar 1940 375t, 52.5x7.9x1.8m, 2d, 1200hp, 15kts, 60p; 1x1-75/55, 1x1-40/39, 40mines, 2dcr
2 Torgud Reis 1940
MSO Bathurst 5 1 Ayvalık 1942 790t, 56.7x9.5x3.0m, 2b,2vte, 1550-2000hp, 15-16kts, 80-90p; 1x1-102/45, 1x1-40/60, 2x1-20/70, 4dct, 2dcr, sweeps; radar, sonar
2 Antalya 1942
3 Alanya 1942
4 Amasra 1942
5 Hamit Nacı 1942
Auk 8 1 Çeşme 1943 1250t, 67.4x9.8x3.3m, 2dg,2em, 2880hp, 18kts, 105p; 1x1-76/50, 6x1-20/70, 4dct, 2dcr, 80mines, sweeps; radar, sonar
2 Çarşamba 1943
3 Çardak 1943
4 Çandarlı 1944
5 Edincik 1943
6 Erdemli 1943
7 Ereğli 1943
8 Erdemit 1943
MSC MMS1 3 1 Bafra 1942 295t, 36.4x7.1x2.7m, 1d, 375-500hp, 10-11kts, 20p; 2x2-12.7, sweeps
2 Bandırma 1942
3 Bartın 1942
YMS 8 1 Kozlu 1943 320t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 60p; 1x1-76/50, 2x1-20/70, 2dct, 2dcr, sweeps; radar
2 Kuşadası 1944
3 Küllük 1943
4 Kas 1942
5 Kilimli 1943
6 Kerempe 1943
7 Kemer 1943
8 Kirte 1944
MSI MMS1 (first) 2 1, 2 Kavak, Çanak 1937 No picture 52t, 22.9x4.4x1.5m, 3pe, 1500hp, 15kts, 11p; sweeps
