Netherlands 01 January 1950
SUBMARINES
| SS | O21 | 3 | S801 | O21 | 1940 | |
990/1205t, 77.7x6.8x4.0m, 2d/em, 5000/1000hp, 19.5/9kts, 39p, 100m; 1x1-88/45(801,804), 1x1-37/69(807), 1x1-20/70(801,804), 2x2-20/65(807), (6+1x2)-533TT(801,804), 6-533TT(807) |
| S804 | O24 | 1940 | |||||
| S807 | O27 | 1942 | |||||
| T batch 3 riveted | 1 | S814 | Zwaardvis | 1943 | |
1327/1571t, 83.4x8.1x4.5m, 2d/em, 2500/1450hp, 15.2/9kts, 61p, 95m; 1x1-102/40, 1x1-20/70, 11-533TT; type 267W radar, sonars | |
| T batch 3 welded | 2 | S812 | Tijgerhaai | 1945 | |
1319/1571t, 83.4x8.1x4.5m, 2d/em, 2500/1450hp, 15.2/9kts, 61p, 110m; 1x1-102/40, 1x1-20/70, 11-533TT; type 267W radar, sonars | |
| S813 | Zeehond | 1944 | |||||
| T batch 2 | 1 | S811 | Dolfijn | 1942 | |
1327/1575t, 83.8x8.1x4.5m, 2d/em, 2500/1450hp, 15.2/9kts, 61p, 95m; 1x1-102/40, 1x1-20/70, 11-533TT; type 291W radar, sonars |
AIRCRAFT CARRIERS

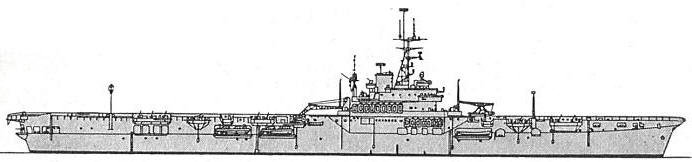

| CVL | Colossus | 1 | R81 | Karel Doorman | 1945 |  |
19896t, 211.2x24.4x7.6m, 4b,2gst, 40000hp, 25kts, 1300p; 21x1-40/60, 6x4-40/39, 37aircraft (Sea Fury fighters, Firefly ASW planes); type 79B, 281B radars, type 144 sonar |
PRINCIPAL SURFACE COMBATANTS
| CL | Tromp | 2 | C803 | Jacob van Heemskerck | 1941 |  |
4860(803)-4817(804)t, 132.0x12.4x4.6m, 4b,2gst, 56000hp, 33.5kts, 480p; 16belt, 25deck, 25turrets, 12CT; 3x2-149/50(804), 5x2-102/45(803), 2x1-76/50, 2x1-76/40(804), 4x2-40/60(803), (2x2+4x1)-40/60(804), 4x2-20/70(803), 2x1-20/70(804), 2dcr(803); type 271(803), type281(803), 2x type285(803), type277(803), 2x type282(803), type293(803), SC-3(804), SG(804), Mk3(804) radars |
| C804 | Tromp | 1938 | |||||

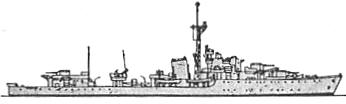

| DD | N | 2 | D803 | Van Galen | 1942 |  |
2384t, 108.7x10.9x4.2m, 2b,2gst, 40000hp, 36kts, 218p; 3x2-120/45, 1x4-40/39, 6x1-20/70(803), 4x1-20/70(806), 2x5-533TT, 4dct, 2dcr; type 271, 285, 290 radars, sonar |
| D806 | Tjerk Hiddes | 1942 | |||||
| Q | 1 | D801 | Banckert | 1942 |  |
2425t, 109.2x10.9x4.2m, 2b,2gst, 40000hp, 36.7kts, 225p; 4x1-120/45, 1x4-40/39, (2x2+4x1)-20/70, 2x4-533TT, 4dct, 3dcr; type 272, 282, 285, 291 radars, type 123A, 127 sonars | |
| S | 3 | D802 | Evertsen | 1943 |  |
2545t, 110.6x10.9x4.4m, 2b,2gst, 40000hp, 36.7kts, 225p; 4x1-120/45, 1x2-40/60(802,805), 1x4-40/39(804), 4x2-20/70, 2x4-533TT, 4dct, 2dcr; type 275, 277, 282, 291 radars, type 123A, 127 sonars | |
| D804 | Kortenaer | 1943 | |||||
| D805 | Piet Hein | 1943 | |||||
| FF | G | 1 | F801 | Marnix | 1936 |  |
1900t, 98.5x10.1x3.8m, 3b,2gst, 34000hp, 36kts, 145p; 2x1-105/45, (2x2+2x1)-20/70, 1x24-178 Hedgehog ASWRL, 2dct; type 275, 277, 282, 291 radars, type 121 sonar |
| Van Kinsbergen | 1 | F804 | Van Kinsbergen | 1939 |  |
2843t, 103.2x11.6x3.1m, 2b,2gst, 17000hp, 25.5kts, 213p; 13belt, 20deck, 20CT; 2x1-105/45, (1x2+2x1)-40/60, 2x1-20/70, 2dct; radars, sonar | |
| River | 1 | F802 | Johan Maurits van Nassau | 1943 |  |
1994t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-105/45, (4x2+2x1)-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; type 272, 291 radars, sonar | |
| Flores | 1 | F803 | Flores | 1926 |  |
1793t, 76.4x11.5x3.6m, 4b,2vte, 2000hp, 15kts, 132p; 50slopes, 25deck,, 80shields, 50CT; 3x1-149/50, 1x2-40/60, 1x1-40/39, 4x1-20/70, 2x2-12.7 | |
| A | 1 | F805 | Van Speijk | 1942 |  |
1470t, 77.9x10.2x2.9m, 2d, 1760hp, 14.5kts, 161p; 60belt, 35deck, 60turrets, 20CT; 2x2-120/45, 2x2-37/83, 2x2-20/65, 8dct, 80mines |
PATROL AND COASTAL COMBATANTS
| PSO | Jan van Brakel | 1 | P5 | Jan van Brakel | 1936 |  |
955t, 58.7x10.0x3.3m, 2b,2vte, 1600hp, 15kts, 65p; 2x1-76/50, 6x1-20/70, 2dcr, 60mines; type271 radar, sonar |
| PC | PC | 1 | P801 | Queen Wilhelmina | 1942 |  |
335t, 52.9x7.1x2.4m, 2d, 2880hp, 20kts, 59p; 1x1-40/60, 5x1-20/70, 2x4-178 Hedgehog ASWRL, 2dct, 2dcr; sonar |
| PT | BPB 70ft | 1 | P884 | RJ2 | 1943 |  |
46t, 21.9x6.3x1.3m, 3pe, 3600hp, 38kts, 17p; 1x1-57/43, 1x2-20/70, 2-450TT, 2dc; type291 radar |
| YP | P1 | 2 | P1, 4 | 1939 |  |
23t, 18.9ppx5.6x1.2m, 1d, 165hp, 12.5kts | |
| P9 | 4 | P11, 12, 15, 16 | 1940-1941 |  |
26t, 18.9ppx5.6x1.2m, 1d, 300hp, 14.5kts | ||
| Fairmile B | 3 | RI1, 2, MV42 | 1940-1941 |  |
86t, 34.8x5.6x1.5m, 2pe, 1200hp, 18kts, 16p; 1x1-47/40, (1x2+1x1)-20/70, 2dct, 2dcr; type 286 radar, sonar | ||
| HDML | 16 | P821-825, RP103-105, 109, 111, 112, 114-118 | 1943-1945 |  |
54t, 22.0x4.8x1.4m, 2d, 260-480hp, 11-13.5kts, 10p; 2x1-20/70, 2dcr; type291 radar, sonar |
AMPHIBIOUS
| LST | LST(1) | 1 | LST2 | Pelikaan | 1943 |  |
5970t, 122.4x15.4x5.6m, 2b,2gst, 7000hp, 16.2kts, 127p; 2x1-40/60, (2x2+5x1)-20/70; 1 LCM/LCS, 13tanks, 27trucks, 193troops |
| LCU | MFP-A | 3 | LT110 | 1941 |  |
220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-75/36, 2x1-20/65; 3tanks | |
| LT111 | 1941 | ||||||
| LT112 | 1941 | ||||||
| LCT(4) | 6 | L9607 | LT101 | 1944 |  |
640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70; 6tanks or 200troops | |
| L9608 | LT102 | 1944 | |||||
| L9609 | LT103 | 1944 | |||||
| L9610 | LT104 | 1943 | |||||
| L9611 | LT105 | 1944 | |||||
| L9612 | LT106 | 1944 | |||||
| LCT(3) | 6 | L9601 | LT5 | 1944 |  |
640t, 58.1x9.5x1.7m, 2pe, 1000hp, 11.5kts, 12p; 2x1-20/70; 5tanks | |
| L9602 | LT6 | 1944 | |||||
| L9603 | LT7 | 1944 | |||||
| L9604 | LT8 | 1945 | |||||
| L9605 | LT9 | 1945 | |||||
| L9606 | LT10 | 1945 | |||||
| LCF | LCI(G) | 5 | 1 | Zeearend | 1944 |  |
385t, 48.9x7.2x1.8m, 8d(2), 2320hp, 15.5kts, 70p; 1x1-40/60, 3x1-20/70, 24x1 Mk7 RL; SCR-517A radar |
| 2 | Tropenvogel | 1943 | |||||
| 3 | Zeemeeuw | 1944 | |||||
| 4 | Stormvogel | 1944 | |||||
| 5 | Ijsvogel | 1944 | |||||
| LC | LCM(3) | 22 | L9661-9665, LU111-114, A-O | 1942-1944 |  |
52t, 15.2x4.3x1.4m, 2d, 220-450hp, 8.5-11kts, 3p; 1x2-12.7; 1tank | |
| LCA | 4 | L9501-9504 | 1942-1944 |  |
12t, 12.6x3.1x0.7m, 2pe, 130hp, 8kts, 4p; 2x1-51/11; 40troops |
MINE WARFARE
| ML | Willem van der Zaan | 1 | ML2 | Willem van der Zaan | 1939 |  |
1407t, 75.2x11.2x3.3m, 2b,2vte, 2200hp, 15.5kts, 92p; 2x1-120/50, 1x4-40/39, 2x2-12.7, 2dcr, 90mines, 1seaplane(C.XIW); sonar |
| MSO | Jan van Amstel | 4 | M801 | Abraham Crijnssen | 1937 |  |
585t, 56.8x7.8x2.0m, 2b,2vte, 1600hp, 15kts, 45p; 1x1-75/55, 4x1-20/70, 40mines, mechanical sweeps |
| M802 | Abraham van der Hulst | 1940 | |||||
| M803 | Jan van Gelder | 1937 | |||||
| M804 | Pieter Florisz | 1937 | |||||
| Bathurst | 6 | MV21 | Ambon | 1942 |  |
790t, 56.7x9.5x3.0m, 2b,2vte, 1550-2000hp, 15-16kts, 90p; 1x1-102/40, 1x1-40/60, 4x1-20/70, 4dct, 2dcr, sweeps; radar, sonar | |
| MV22 | Banda | 1941 | |||||
| MV23 | Batjan | 1941 | |||||
| MV24 | Boeroe | 1941 | |||||
| MV25 | Ceram | 1941 | |||||
| MV27 | Ternate | 1942 | |||||
| MSC | MMS1 | 8 | M861 | Ameland | 1942 |  |
295t, 36.4x7.1x2.7m, 1d, 480hp, 10.5kts, 20p; 1x1-20/70, 1x2-12.7; acoustic, magnetic, mechanical sweeps |
| M862 | Beveland | 1943 | |||||
| M863 | Marken | 1941 | |||||
| M864 | Putten | 1943 | |||||
| M865 | Rozenburg | 1943 | |||||
| M866 | Terschelling | 1943 | |||||
| M867 | Texel | 1942 | |||||
| M868 | Vlieland | 1942 | |||||
| MMS1001 | 5 | M821 | Duiveland | 1944 |  |
430t, 42.7x8.5x3.2m, 1d, 500hp, 10kts, 21p; 2x1-20/70, acoustic, magnetic, mechanical sweeps | |
| M822 | Overflakkee | 1944 | |||||
| M823 | Tholen | 1943 | |||||
| M824 | Voorne | 1943 | |||||
| M825 | Ijsselmonde | 1943 | |||||
| BYMS | 10 | M831 | Borndiep | 1943 |  |
250t, 41.5x7.5x2.4m, 2d, 800hp, 15kts, 60p; 1x1-76/50, 2x1-20/70, mechanical, acoustic, magnetic sweeps | |
| M832 | Deurloo | 1943 | |||||
| M833 | Hollandsch Diep | 1943 | |||||
| M834 | Marsdiep | 1943 | |||||
| M835 | Oosterschelde | 1943 | |||||
| M836 | Texelstroom | 1943 | |||||
| M837 | Vliestroom | 1943 | |||||
| M838 | Volkerak | 1943 | |||||
| M839 | Westerschelde | 1943 | |||||
| M840 | Zuiderdiep | 1943 | |||||
| MSI | DEFG | 6 | HMV20 | Djombang | 1941 |  |
175t, 34.7x5.7x1.9m, 1d, 360hp, 12.5kts, 14p; mechanical sweeps |
| Djampea | 1941 | ||||||
| HMV21 | Enggano | 1941 | |||||
| Flores | 1943 | ||||||
| Fakfak | 1943 | ||||||
| Garoet | 1943 | ||||||
| R218 | 9 | M869 | Goeree | 1944 |  |
148t, 39.4x5.7x1.5m, 2d, 2500hp, 21kts, 40p; 1x1-37/83, 3x2-20/65, 2dcr, sweeps | |
| M870 | Malzwin | 1944 | |||||
| M872 | Schiermonnikoog | 1944 | |||||
| M873 | Schouwen | 1944 | |||||
| M874 | Schulpengat | 1944 | |||||
| M875 | Stortemelk | 1944 | |||||
| M876 | Urk | 1944 | |||||
| M877 | Vlieter | 1945 | |||||
| M878 | Walcheren | 1943 | |||||
| R401 | 1 | M871 | Roompot | 1946 |  |
150t, 39.4x5.7x1.5m, 2d, 2800hp, 25kts, 37p; 1x1-37/69, 3x2-20/65, 2dcr, sweeps |
