World navies yesterday

1950



Italy 01 January 1950

SUBMARINES

SS Acciaio 1 1 PV2 1941 697/850t, 60.2x6.4x4.8m, 2d/em, 1400/800hp, 14/7.7kts, 45p, 80m; 1x1-100/47, 2x1-20/70, 6-533TT
Flutto 1 1 PV1 1943 930/1093t, 63.2x7.0x4.9m, 2d/em, 2400/800hp, 16/8kts, 50p, 120m; 1x1-100/47, 2x1-20/70, 6-533TT

PRINCIPAL SURFACE COMBATANTS

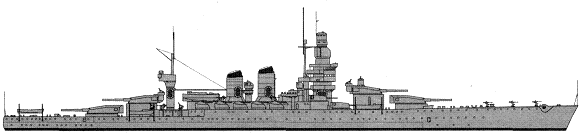

BB Duilio 2 1 Andrea Doria 1916 28882(1)-29391(2)t, 186.9x28.6x9.1m, 8b,2gst, 87000hp, 28kts, 1485p; 250belt, 144decks, 280turrets, 260CT; (2x3+2x2)-320/44, 4x3-135/45, 10x1-90/50, 8x2-37/54, 6x2-20/65; EC.3/ter radar
2 Caio Duilio 1915
CL Condottieri batch 2 1 1 Luigi Cadorna 1933 7001t, 169.3x15.5x5.5m, 6b,2gst, 95000hp, 36.5kts, 544p; 42belt, 20decks, 40turrets, 70CT; 4x2-152/53, 3x2-100/47, 4x1-20/70, 4x2-20/65, 2dct, 138mines
Condottieri batch 3 1 1 Raimondo Montecuccoli 1935 8994t, 182.2x16.6x5.4m, 4b,2gst, 75000hp, 37kts, 650p, 85belt, 30decks, 70turrets, 100CT; 3x2-152/53, 2x2-100/47, 4x2-40/60, 4x1-20/70, 2dct, 146mines; SPS-6, SPS-12 radars
Condottieri batch 4 1 1 Eugenio di Savoia 1936 10672t, 186.9x17.5x6.5m, 6b,2gst, 110000hp, 36.5kts, 694p; 105belt, 35decks, 90turrets, 100CT; 4x2-152/53, 3x2-100/47, 4x2-37/54, 12x1-20/70, 2dct, 146mines; EC.3/ter radar
Condottieri batch 5 2 1 Luigi di Savoia Duca degli Abruzzi 1937 11575(1)-11117(2)t, 187.0x18.9x6.8m, 8b,2gst, 100000hp, 34kts, 692p; 130belt, 55decks, 135turrets, 140CT; (2x3+2x2)-152/55, (4x2+2x1)-100/47, 4x2-37/54, (4x2+2x1)-20/65, 120mines; type 281(1), type 286 radars
2 Giuseppe Garibaldi 1937
DD Rosolino Pilo 3 1 Rosolino Pilo 1915 912t, 73.0x7.3x2.3m, 4b,2st, 16000(1,2)-14800(3)hp, 30(1,2)-29(3)kts, 79p; 2x1-102/35, 6x1-20/65, 2x1-450TT, 2dct, 10mines
2 Giuseppe Cesare Abba 1915
3 Antonio Mosto 1915
Carlo Mirabello 1 1 Augusto Riboty 1917 1972t, 103.4x9.7x3.3m, 4b,2st, 44000hp, 35kts, 169p; 4x1-102/45, 6x1-20/70, 2dct, 120mines
Giuseppe La Masa 2 1 Giacinto Carini 1917 851t, 73.5x7.3x2.8m, 4b,2st, 15500hp, 30kts, 78p; 1x1-102/45(1), 2x1-102/45(2), 4x2-20/65(1), 6x1-20/65(2), 1x3-533TT(1), 1x2-450TT, 2dct(2), 10mines
2 Nicola Fabrizi 1918
Curtatone 1 1 Monzambano 1924 1214t, 84.7x8.0x2.9m, 4b,2st, 22000hp, 32kts, 117p; 1x2-102/45, 3x2-20/70, 1x2-533TT, 16mines
Navigatori 1 1 Nicoloso da Recco 1930 2580t, 107.3x10.2x3.4m, 4b,2gst, 50000hp, 38kts, 224p; 3x2-120/50, 2x1-37/54, 2x1-20/70, 7x1-20/65, 1x2-533TT, 4dct
Maestrale 1 1 Grecale 1934 2207t, 106.7x10.2x3.3m, 3b,2gst, 44000hp, 38kts, 190p; 2x2-120/50, 3x1-37/54, 2x1-20/65, 1x3-533TT, 4dct, 52mines
Soldati group 1 3 1 Carabiniere 1938 2460t, 106.7x10.2x3.5m, 3b,2gst, 48000hp, 38kts, 206p; (2x2+1x1)-120/50(1), 2x2-120/50(2,3), 1x1-120/15(3), 2x1-37/54, (4x2+4x1)-20/65, 1x3-533TT, 4dct, 48mines
2 Fuciliere 1939
3 Granatiere 1939
FF Spica/Climene 1 1 Cassiopea 1937 995t, 80.4x8.2x3.1m, 2b,2gst, 19000hp, 34kts, 99p; 3x1-100/47, 4x1-20/70, 3x2-20/65, 2x2-450TT, 4dct, 28mines
Spica/Perseo 2 1 Sagittario 1936 1005t, 80.4x8.2x3.1m, 2b,2gst, 19000hp, 34kts, 99p; 3x1-100/47, 4x1-20/70, 3x2-20/65, 2x2-450TT, 4dct, 28mines
2 Sirio 1936
Spica/Alcione 4 1 Aretusa 1938 1035t, 80.4x7.9x3.1m, 2b,2gst, 19000hp, 34kts, 99p; 3x1-100/47, 4x1-20/70, 3x2-20/65, 2x2-450TT, 4dct, 28mines
2 Calliope 1938
3 Clio 1938
4 Libra 1938
Pegaso 2 1 Orione 1938 1575t, 89.3x9.7x3.7m, 2b,2gst, 16000hp, 28kts, 168p; 2x1-100/47, 3x1-20/70, 4x2-20/65, 2x2-450TT, 6dct
2 Orsa 1938
FS Gabbiano 19 1 Ape 1943 728t, 64.4x8.7x2.5m, 2d/em, 3500/300hp, 18/6kts, 110p; 1x1-100/47, 3x1-20/70, 2x2-20/65, sweeps
2 Baionetta 1943
3 Chimera 1943
4 Cormorano 1943
5 Danaide 1943
6 Driade 1943
7 Fenice 1943
8 Flora 1943
9 Folaga 1943
10 Gabbiano 1942
11 Gru 1943
12 Ibis 1943
13 Minerva 1943
14 Pellicano 1943
15 Pomona 1943
16 Scimitarra 1943
17 Sfinge 1943
18 Sibilla 1943
19 Urania 1943
Algerine 1 1 Eritrea 1943 1258t, 68.6x10.8x3.1m, 2b,2vte, 2400hp, 16.5kts, 138p; 1x1-100/47, 4x1-37/54, 4dct, 2dcr
Flower 1 1 Elbano 1943 1375t, 63.5x10.1x4.5m, 2b,1vte, 2800hp, 16kts, 90p; 2x1-76/50, 4x1-20/70, 1x24-178 HedgehogASWRL, 4dct, 2dcr
Andrea Bafile 1 1 Ernesto Giovannini 1922 284t, 52.1ppx5.7x1.8m, 2b,2vte, 2400hp, 24kts, 53p; 2x1-102/35, 1x1-13.2, 1x2-450TT, 2dcr

PATROL AND COASTAL COMBATANTS

PT MAS501 5   MAS1-3, 9, NE109 1937 21-24t, 17.0x4.4-4.7x1.3m, 2pe, 2000hp, 41-42kts, 9p; 1x1-13.2
MAS526 3   MAS5-7 1939 26t, 18.7x4.7x1.5m, 2pe/em, 200/140hp, 42/6kts, 10p; 1x1-13.2, 2-450TT
MAS555 1   MAS8 1941 28t, 18.7x4.7x1.5m, 2pe/em, 2300/140hp, 43/6kts, 13p; 1x1-20/65, 2-450TT
MS11 3   MV611-613 1942 63-64t, 28.0x4.3x1.6m, 3pe, 3450hp, 32kts, 19p; 2x1-20/65
MS51 6   MV614-619 1943 66t, 28.0x4.3x1.6m, 3pe, 3450hp, 31kts, 19p; 3x2-20/65
Higgins 6   GIS0021-0023, 0025-0027 1942 - 1943 48t, 24.0x6.1x1.6m, 3pe, 4500hp, 41kts, 17p; 1x1-40/60, 3x1-20/70, 2-450TT; SCR-517A radar
Vosper 12   GIS0001-0008, 0011, 0013, 0017, 0028 1943 - 1944 45t, 22.1x5.9x1.7m, 3pe, 3375hp, 39kts, 12p; 5x1-20/65, 2-450TT; SCR-517A radar
PB MAS438 2   ME38, 41 1934 - 1935 No picture 41t, 22.5x4.3x1.4m, 2pe, 2000hp, 32kts, 19p; 1x1-13.2, dc

MINE WARFARE SHIPS

ML Fasana 1 1 Fasana 1925 590t, 66.3x9.8x1.7m, 2d, 700hp, 10kts, 66p; 1x1-76/40, 54mines, mechanical sweeps
Ostia 1 1 Azio 1928 850t, 62.2x8.7x2.6m, 2b,2vte, 1500hp, 15kts, 66p; 2x1-102/35, 1x1-76/40, 80mines
MSO Dance 4 1 DR307 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-102/45, 3x1-20/70, 2dct, 2dcr, mechanical sweeps
2 DR308 1941
3 DR312 1940
4 DR316 1940
Shakespearian 1 1 DR310 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-76/40, 3x1-20/70, 4dct, 2dcr, mechanical sweeps
Isles 11 1 DR301 1941 770t, 50.0x8.4x3.4m, 1b,1vte, 850hp, 12.2kts, 40p; 1x1-76/40, 3x1-20/70, 4dct, 2dcr, mechanical sweeps
2 DR302 1941
3 DR303 1942
4 DR304 1942
5 DR305 1942
6 DR306 1942
7 DR309 1943
8 DR311 1942
9 DR313 1942
10 DR314 1942
11 DR315 1942
type 1940 1 1 B1 1944 775t, 62.3x8.9x2.3m, 2b,2vte, 2615hp, 17.2kts, 75p; 1x1-105/45, (1x2+2x1)-37/83, (1x4+2x1)-20/65, 4dct, 2dcr, 12mines, mechanical, acoustic, magnetic sweeps
type 1943 2 1 B2 1945 821t, 67.8x9.0x2.3m, 2b,2vte, 2700hp, 17kts, 96p; 2x1-105/45, 2x1-37/57, (1x4+2x1)-20/65, 2-533TT, 4dct, 24mines, mechanical, acoustic, magnetic sweeps
2 B3 1944
MSB YMS 17 1 Anemone 1942 250t, 41.5x7.5x2.4m, 2d, 800hp, 15kts, 60p; 1x1-76/50, 2x1-20/70, mechanical, acoustic, magnetic sweeps
2 Azalea 1943
3 Begonia 1943
4 Biancospino 1942
5 Dalia 1943
6 Fiordaliso 1943
7 Gardenia 1943
8 Geranio 1942
9 Magnolia 1943
10 Mughetto 1942
11 Narciso 1942
12 Oleandro 1942
13 Orchidea 1943
14 Primula 1943
15 Tulipano 1943
16 Verbena 1943
17 Gladiolo 1943
MCI RD 4 1 RD32 1919 203-207t, 36.5x5.8x2.2m, 750-860hp, 13-14kts, 1x1-76/40, mechanical sweeps
2 RD34 1919
3 RD40 1920
4 RD41 1920
MSB VAS201 7   VAS492-494, 711, 712, 715, 716 1942 68-69t, 28.0x4.3x1.4m, 3pe, 1800hp, 20kts, 26p; 2x1-20/65, 2-450TT, mechanical sweeps
VAS231 5   VAS495, 496, 723, 725, 726 1942 - 1943 69t, 28.0x4.7x1.3m, 3pe, 1750hp, 21.5kts, 26p; 2x1-20/65, 2-450TT, mechanical sweeps
Vedetta 2   Vedetta, Vigilante 1937 No picture 70t, 26.1x4.3x1.3m, 2d, 400hp, 12kts, 21p; 1x1-76/40, 3x1-13.2, mechanical sweeps
RDV 16 1 DV111 1949 No picture 110t, 34.0x5.8x1.4m, 2pe(1-5,7-16)-2d(6) 2300(1-5,7-16)-2000(6)hp, 17kts, 24p; 1x1-20/65, mechanical sweeps
2 DV112 1949
3 DV113 1945
4 DV114 1949
5 DV115 1949
6 DV116 1945
7 DV121 1949
8 DV122 1949
9 DV123 1949
10 DV124 1949
11 DV125 1946
12 DV131 1949
13 DV132 1949
14 DV133 1949
15 DV134 1949
16 DV135 1949

AMPHIBIOUS

LCU MZ-A 6 1 MZ722 1942 239t, 47.0x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 200men
2 MZ726 1942
3 MZ728 1942
4 MZ729 1942
5 MZ737 1942
6 MZ758 1942
MZ-B 3 1 MZ776 1943 279t, 46.5x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 200men
2 MZ784 1943
3 MZ800 1943
MFP-A,C 4 1 MZ360 1942 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
2 GLS435 1942
3 GLS436 1943
4 GLS437 1942
MFP-D 3 1 MZ831 1943 239t, 49.8x6.6x1.4m, 3d, 375hp, 10.3kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
2 MZ1155 1944
3 MZ1191 1944
MFP-DM 3 1 MZ943 1944 256t, 49.8x8.6x1.4m, 3d, 390hp, 8kts, 21p; 1x1-37/83, 2x1-20/65; 3tanks
2 MZ1045 1944
3 MZ1046 1945
LCT(2) 1 1 MZ34 1942 460t, 48.8x9.5x1.6m, 3d, 1380hp, 11kts, 12p; 2x1-20/70; 3tanks
LCT(3) 1 1 GLS438 1942 640t, 58.5x9.5x1.7m, 2d, 1000hp, 10.5kts, 12p; 4x1-20/70; 5tanks
