France 01 January 1950
SUBMARINES
SS | Redoutable 1 series | 1 | S01 | Archimède | 1932 | 1570/2084t, 92.3x8.2x4.7m, 2d/em, 6000/2000hp, 17/10kts, 61p, 80m; 1x1-100/45, 2x1-20/70, (4+1x3)-550TT | |
Redoutable 2 series | 2 | S02 | Le Glorieux | 1934 | 1570/2084t, 92.3x8.2x4.7m, 2d/em, 7200/2000hp, 19/10kts, 61p, 80m; 1x1-100/45, 2x1-20/70, (4+1x3)-550TT | ||
S04 | Le Centaure | 1935 | |||||
Redoutable 3 series | 1 | S03 | Casabianca | 1937 | 1570/2084t, 92.3x8.2x4.7m, 2d/em, 8000/2000hp, 20/10kts, 61p, 80m; 1x1-100/45, 2x1-20/70, (4+1x3)-550TT | ||
Minerve | 2 | S05 | Junon | 1937 | 662/856t, 68.1ppx5.6x4.0m, 2d/em, 1800/1230hp, 14.5/9kts, 42p, 80m; 1x1-75/35, 1x1-20/70, 6-550TT, 1x3-400TT | ||
S06 | Iris | 1937 | |||||
Aurore | 3 | 1 | La Créole | 1949 | 970/1250t, 73.5x6.5x4.2m, 2d/em, 3000/1400hp, 15.5/9.3kts, 62p, 100m; 1x1-88/45, 2x1-20/65, 10-550TT | ||
2 | L'Africaine | 1949 | |||||
3 | L'Astrée | 1949 | |||||
IXC | 1 | 1 | Bouan | 1941 | 1120/1232t, 76.8x6.8x4.7m, 2d/em, 4400/1000hp, 18.2/7.3kts, 48p, 100m; 1x1-37/69, 2x2-20/65, 6-533TT; radar, sonar | ||
VIIC | 2 | S08 | Millé | 1943 | 769/1070t, 67.1x6.2x4.7m, 2d/em, 3200hp, 17.7/7.6kts, 56p, 100m; 1x1-37/69, 2x2-20/65, 5-533TT; FuMO65 radar, sonar | ||
S09 | Laubie | 1943 | |||||
XXI | 1 | S12 | Roland Morillot | 1944 | 1621/1819t, 76.7x8.0x6.3m, 2d/em, 4000/4400hp, 15.6/17.2kts, 57p, 135m; 2x2-20/65, 6-533TT; FuMO65 radar, sonar | ||
IXB | 1 | S10 | Blaison | 1940 | 1051/1178t, 76.5x6.8x4.7m, 2d/em, 4400/1000hp, 18.2/7.3kts, 48p, 100m; 1x1-37/83, 2x2-20/65, 6-533TT; radar, sonar | ||
SSX | XXVIIB | 4 | S621 - 624 | - | 1945 | 15/17t, 11.9x1.7x1.5m, 1d/em, 60/25hp, 7.7/6kts, 2p, 50m; 2-533TT |
AIRCRAFT CARRIERS

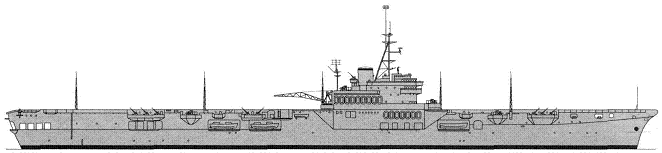

CVL | Colossus | 1 | 1 | Arromanches | 1944 | 17900t, 211.3x34.2x7.1m, 4b,2gst, 40000hp, 25kts, 1400p; 19x1-40/60, 6x4-40/39, 37aircraft(Seafire); type 79B, 281B radars, type 144 sonar |
PRINCIPAL SURFACE COMBATANTS

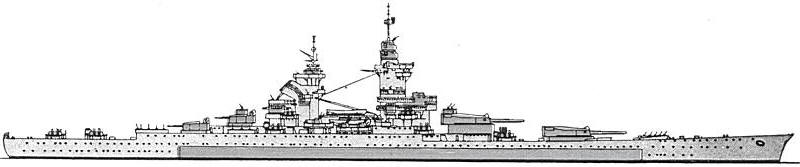

BB | Richelieu | 2 | 1 | Richelieu | 1940 | 48500(1)-49850(2)t, 247.9x33.0(1)-35.4(2)x9.9(1)-9.2(2)m, 6b,4gst, 150000(1)-162000(2)hp, 30(1)-32(2)kts, 1550(1)-2134(2)p; 330belt, 210decks, 430turrets, 340CT; 2x4-381/45, 3x3-152/55, 12x2-100/55(2), 6x2-100/45(1), 4x1-90/50(1), 14x2-57/60(2), (14x4+11x1)-40/60(1), 41x1-20/70(1), 20x1-20/70(2); Sadir ME.140/126(1), SA-2(1), SF(1), type 284(1), 281B(1), 285(1), SG-1(1), ABM(2), DRBV-10(2), DRBV-20(2), DRBV-30(2) radars | |
2 | Jean Bart | 1949 | |||||
CA | Suffren | 1 | 1 | Suffren | 1930 | 12928t, 196.0x20.0x7.3m, 8b,3gst, 90000hp, 32kts, 602p; 50belt, 43decks, 30turrets, 30CT; 4x2-203/50, 8x1-75/50, 8x1-40/60, 20x1-20/70, 3x4-13.2 | |
CL | Duguay Trouin | 1 | 1 | Duguay Trouin | 1926 | 9350t, 181.6x17.2x5.2m, 8b,4gst, 100000hp, 33kts, 578p; 20deck, 25turrets, 25CT; 4x2-155/50, 4x1-75/50, 6x1-40/60, 18x1-20/70, 2x1-13.2; SF-1, SA radars | |
Jeanne d'Arc | 1 | 1 | Jeanne d'Arc | 1931 | 8950t, 170.0x17.7x6.4m, 4b,2gst, 32500hp, 25kts, 506+176p; 20magazines, 25turrets, 25CT; 4x2-155/50, 4x1-75/50, 10x1-40/60, 18x1-20/70; SF radar | ||
Émile Bertin | 1 | 1 | Émile Bertin | 1935 | 8480t, 177.0x16.0x6.6m, 6b,4gst, 102000hp, 34kts, 567p; 30magazines, 20deck, 25CT; 3x3-152/55, (3x2+2x1)-90/50, 4x4-40/60, 20x1-20/70, 200mines; SA, SF, type 284, 285 radars | ||
La Galissonnière | 3 | 1 | Gloire | 1937 | 10850t, 179.5x17.5x5.4m, 4b,2gst, 84000hp, 31kts, 540p; 105belt, 38deck, 100turrets, 95CT; 3x3-152/55, 4x2-90/50, 6x4-40/60, 16x1-20/70, 2x2-550TT; SF, type 281, 284, 285, 293 radars | ||
2 | Montcalm | 1937 | |||||
3 | Georges Leygues | 1937 | |||||
Capitani Romani | 2 | 1 | Châteaurenault | 1942 | 5334t, 142.9x14.4x4.9m, 4b,2gst, 110000hp, 40kts, 418p; 20turrets, 15CT; 4x2-135/45, 8x1-37/54, 4x2-20/65, 2x4-533TT, 2dct, 2dcr, 136mines; EC.3 radar | ||
2 | Guichen | 1943 | |||||
DD | Chacal | 1 | T05 | Tigre | 1925 | 3050t, 126.8x11.3x4.1m, 4b,2gst, 40000hp, 28.5kts, 195p; 4x1-130/40, 2x1-40/60, 10x1-20/70, 1x3-550TT, 8dct, 2dcr; radars | |
Bourrasque | 4 | 1 | Simoun | 1926 | 1900t, 105.8x9.6x4.3m, 3b,2gst, 33000hp, 33kts, 142p; 3x1-130/40(1,2), 4x1-130/40(4), 4x1-120/45(3), 1x1-76/40(3), 1x1-40/60(1,2), 2x1-37/50(4), 6x1-20/70(1), 8x1-20/70(2), 3x1-20/70(3), 2x2-13.2(4), 1x3-550TT(2,3), 2x3-550TT(4), 2dct, 2dcr; radar, sonar | ||
2 | Tempête | 1926 | |||||
3 | Mistral | 1927 | |||||
4 | Trombe | 1927 | |||||
L'Adroit | 4 | 1 | L'Alcyon | 1929 | 2000t, 107.2x9.8x4.3m, 3b,2gst, 34000hp, 33kts, 142p; 3x1-130/40, 1x1-40/60, 2x1-37/50, 6x1-20/70, 2x2-13.2, 1x3-550TT, 2dct, 2dcr; radar, sonar | ||
2 | Le Fortune | 1928 | |||||
3 | Forbin | 1930 | |||||
4 | Basque | 1931 | |||||
Aigle | 1 | T06 | Albatros | 1932 | 3410t, 128.5x11.8x5.0m, 4b,2gst, 64000hp, 36kts, 230p; 5x1-139/40, (1x2+4x1)-37/50, (2x2+2x1)-13.2, 2x3-550TT, 4dct, 2dcr; radar, sonar | ||
Le Fantasque | 4 | X01 | Le Terrible | 1935 | 3380t, 132.4x12.5x5.0m, 4b,2gst, 74000hp, 37kts, 210p; 5x1-139/50, (1x4+2x1)-40/60(01-03), 3x2-40/60(04), 8x1-20/70(01,03), 10x1-20/70(02,04), 7x1-20/70(04), 2x3-550TT, 2dcr, 50mines; radar, sonar | ||
X02 | Le Malin | 1936 | |||||
X03 | Le Fantasque | 1936 | |||||
X04 | Le Triomphant | 1936 | |||||
1934A | 2 | T03 | Kléber | 1937 | 3110t, 121.3(03)-119.3(04)x11.3x4.2m, 6b,2gst, 70000hp, 38.2kts, 315p; 5x1-128/45(03), 4x1-128/45(04), 2x2-37/83(03), 4x2-37/69(04), 2x1-37/57(04), (1x4+2x2+6x1)-20/65(03), (1x4+4x2+1x1)-20/65(04), 2x4-533TT, 4dct, 60mines; radar, sonar | ||
T04 | Desaix | 1937 | |||||
1936A | 1 | T02 | Hoche | 1940 | 3543t, 127.0x12.0x4.6m, 6b,2gst, 70000hp, 36kts, 332p; (1x2+2x1)-149/48, 2x2-37/83, 6x1-37/57, (2x4+2x2)-20/65, 2x4-533TT, 4dct, 60mines; FuMO21 radar, sonar | ||
1936A(Mob) | 1 | T01 | Marceau | 1942 | 3691t, 127.0x12.0x3.9m, 6b,2gst, 70000hp, 36kts, 332p; 3x1-149/48, 1x1-105/45, 6x2-37/69, 2x1-37/57, (1x4+2x2)-20/65, 2x4-533TT, 4dct, 60mines; FuMO21 radar, sonar | ||
Alfredo Oriani | 1 | T15 | D'Estaing | 1937 | 2254t, 106.7x10.2x3.4m, 3b,2gst, 48000hp, 38kts, 206p; 2x2-120/50, 1x1-120/15, 2x1-37/54, 2x2-20/70, 8x1-20/65, 1x3-533TT, 4dct, 52mines; sonar | ||
Soldati | 3 | T12 | Jurien de la Gravière | 1942 | 2460t, 106.7x10.2x3.5m, 3b,2gst, 48000hp, 38kts, 206p; (2x2+1x1)-120/50(12,14), 2x2-120/50(13), 3x1-37/54(13), 2x1-37/54(14), (4x2+5x1)-20/65, 2x3-533TT(12), 1x3-533TT(13,14), 4dct; EC.3/ter(13), FuMO21(14) radars, sonar | ||
T13 | Duperré | 1942 | |||||
T14 | Duchaffault | 1942 | |||||
1935 | 1 | T10 | Bir Hakeim | 1940 | 1082t, 87.1x8.6x2.3m, 4b,2gst, 31000hp, 35kts, 119p; 1x1-105/45, 1x1-40/60, 2x1-37/57, (2x4+4x1)-20/65, 1x3-533TT, 2dct, 30mines; sonar | ||
1937 | 2 | T09 | Dompaire | 1941 | 1098t, 85.2x8.9x2.5m, 4b,2gst, 31000hp, 35kts, 155p; 1x1-105/45, 2x1-37/57, (2x4+2x2)-20/65, 2x1-86 RAgM42/43 RL, 1x3-533TT(09), 2x3-533TT(11), 2dct, 30mines; FuMO28 radar, sonar | ||
T11 | Baccarat | 1942 | |||||
1939 | 2 | T07 | L'Alsacien | 1942 | 1754t, 102.5x10.0x2.7m, 4b,2gst, 29000hp, 32.5kts, 206p; 4x1-105/45, 2x2-37/83, (3x4+3x1)-20/65(07), (1x4+2x2)-20/65(08), 2x3-533TT, 2dct, 50mines; FuMO21 radar, sonar | ||
T08 | Le Lorrain | 1943 | |||||
FF | Sans Souci | 2 | A32 | La Pérouse | 1943 | 2100t, 95.0x11.8x3.2m, 2d, 4140hp, 16.7kts, 178p; 2x1-105/45(32), 3x1-105/45(33), 2x2-37/83, 6x2-20/65 | |
A33 | Beautemps Beaupré | 1942 | |||||
Bougainville | A01 | La Grandière | 1940 | 2600t, 103.7x12.7x4.5m, 2d, 3200hp, 15.5kts, 183p; 3x1-139/40, 1x4-40/60(01,02), (2x2+4x1)-37/50(03), 3x1-25/60(03), 11x1-20/70(01,02), 2x1-20/70(03), 2x2-13.2(03), 4dct, 2dcr, 50mines; radar, sonar | |||
A02 | Dumont D'Urville | 1932 | |||||
A03 | Savorgnan de Brazza | 1932 | |||||

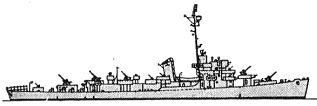

DET | 6 | F01 | Algérien | 1944 | 1602t, 93.3x11.2x3.2m, 4dg,2em, 6000hp, 21kts, 186p; 3x1-76/50, 3x1-40/60, 10x1-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SU radars, sonar | ||
F02 | Sénégalais | 1943 | |||||
F03 | Somali | 1944 | |||||
F04 | Hova | 1944 | |||||
F05 | Marocain | 1944 | |||||
F06 | Tunisien | 1944 | |||||
River | 6 | F07 | L'Aventure | 1944 | 2130t, 91.8x11.2x3.6m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-105/45, (2x2+7x1)-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; type 272, 291 radars, sonar | ||
F08 | La Surprise | 1944 | |||||
F09 | L'Escarmouche | 1944 | |||||
F10 | Croix de Lorraine | 1943 | |||||
F11 | Tonkinois | 1943 | |||||
F12 | La Découverte | 1943 | |||||
Eritrea | 1 | A04 | Francis Garnier | 1937 | 3068t, 96.9x13.3x3.5m, 2d/2dg,2em, 9100hp, 20kts, 234p; 2x2-120/45, 2x2-37/54, 2x2-20/65 | ||
FS | La Melpomène | 5 | 1 | La Melpomène | 1936 | 895t, 80.7x8.0x3.1m, 2b,2gst, 22000hp, 34.5kts, 105p; 1x1-100/45, 3x1-40/39, 2x1-20/70, 2x2-13.2, 1x2-550TT, 1dcr | |
2 | La Flore | 1936 | |||||
3 | L'Incomprise | 1938 | |||||
4 | La Cordelière | 1937 | |||||
5 | Bouclier | 1938 | |||||
Élan | 9 | A11 | Commandant Bory | 1939 | 895t, 78.3x8.7x3.3m, 2d, 4000hp, 20kts, 106p; 1x1-105/45(15), 1x2-102/45(13,17), 1x2-90/50(11,12,14,16,18,19), 1x1-76/40(13), 1x1-40/60(15), 1x1-40/39(13,17), 1x1-25/60(17), 4x1-20/70(15), 2x1-20/70(17), (1x4+2x2)-13.2(11,12,14,16,18,19), 3x2-13.2(13), 4x2-13.2(17), (4x2+2x1)-12.7(15), 2dct, 1dcr | ||
A12 | Commandant Delage | 1939 | |||||
A13 | La Moquese | 1940 | |||||
A14 | La Gracieuse | 1940 | |||||
A15 | Commandant Dominié | 1940 | |||||
A16 | La Capricieuse | 1940 | |||||
A17 | Commandant Duboc | 1939 | |||||
A18 | La Boudeuse | 1940 | |||||
A19 | Élan | 1939 | |||||
Chamois | 6 | A05 | Bisson | 1947 | 900t, 78.3x8.7x3.3m, 2d, 4000hp, 20kts, 106p; 2x1-105/45(05-07), 1x2-90/50(08-10), 1x1-40/60, 4x1-20/70(05-07), 6x1-20/70(08-10), 4dct, 2dcr | ||
A06 | Commandant de Pimodan | 1947 | |||||
A07 | Commandant Amyot d'Inville | 1947 | |||||
A08 | Gazelle | 1939 | |||||
A09 | Annamite | 1940 | |||||
A10 | Chevreuil | 1939 | |||||
Amiral Mouchez | 1 | 1 | Amiral Mouchez | 1937 | 970t, 62.0x10.3x3.4m, 1d, 800hp, 12kts, 81p; 2x1-100/45, 4x1-20/70, 2x1-13.2, 4dct, 2dcr; radar, sonar |
PATROL AND COASTAL COMBATANTS
PC | PC | 34 | W11 | Sabre | 1944 | 430t, 52.9x7.1x2.4m, 2d, 2880hp, 20kts, 65p; 1x1-76/50, 1x1-40/60, 5x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SU radar, sonar | |
W12 | Cimeterre | 1944 | |||||
W13 | Pique | 1944 | |||||
W21 | Dague | 1944 | |||||
W22 | Coutelas | 1944 | |||||
W23 | Javelot | 1944 | |||||
W31 | L'Eveillé | 1941 | |||||
W32 | L'Indiscret | 1942 | |||||
W33 | Le Résolu | 1941 | |||||
W34 | L'Effronté | 1942 | |||||
W41 | Le Rusé | 1941 | |||||
W43 | L'Emorté | 1942 | |||||
W61 | Le Volontaire | 1942 | |||||
W62 | Le Vigilant | 1942 | |||||
W63 | L'Attentif | 1942 | |||||
W81 | Hussard | 1943 | |||||
W82 | Légionnaire | 1943 | |||||
W83 | Dragon | 1942 | |||||
W91 | Goumier | 1942 | |||||
W92 | Carabinier | 1942 | |||||
W93 | Fantassin | 1942 | |||||
W101 | Grenadier | 1942 | |||||
W102 | Tirailleur | 1942 | |||||
W103 | Voltigeur | 1942 | |||||
W111 | Lancier | 1943 | |||||
W112 | Franc Tireur | 1942 | |||||
W113 | Mameluck | 1942 | |||||
W121 | Lansquenet | 1942 | |||||
W122 | Cavalier | 1942 | |||||
W123 | Spahi | 1942 | |||||
PT2 | Pnom-Penh | 1944 | |||||
PT3 | Luang-Prabang | 1944 | |||||
1 | L'Impétueux | 1944 | |||||
Hippopotame | 1 | 1 | Hippopotame | 1918 | No picture | 970t, 2b,1vte, 1800hp, 12kts; 2x1-75/35 | |
Navarin | 1 | 1 | Malakoff | 1918 | No picture | 640t, 1vte, 500hp, 11kts, 31p; 1x1-100/45 | |
Pluvier | 2 | 1 | Gelinotte | 1918 | No picture | 780t, 1vte, 750hp, 11kts | |
2 | Tourterelle | 1918 | |||||
L'Ajacienne | 3 | P136 | L'Ajacienne | 1936 | 466t, 48.8x8.1x3.7m, 1b,1vte, 800hp, 10kts, 20p; 1x1-102/40, 4x1-13.2 | ||
P138 | La Toulonnaise | 1934 | |||||
P139 | La Sétoise | 1934 | |||||
SC | Ch5 | 3 | Q012 | Bénodet | 1940 | 137t, 37.1x5.7x2.0m, 2d, 1130hp, 15.5kts, 23p; 1x1-75/35, 1x1-40/39, 1x2-12.7, 4dct, 1dcr, sweeps | |
Q014 | Diélette | 1940 | |||||
Q021 | Ch21 | 1946 | |||||
Ch41 | 2 | Q041 | Audierne | 1940 | 160t, 37.4x5.5x2.4m, 2d, 1130hp, 15.5kts, 23p; 1x1-75/35, 1x1-40/39, 4dct, 1dcr | ||
Q043 | Lavandou | 1940 | |||||
SC | 48 | 1 | Ch5 | 1943 | 138t, 33.8x5.2x1.9m, 2d, 2400-1000hp, 21-16kts, 27p; 1x1-40/60, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 2dcr; SCR-517A radar, QC sonar | ||
2 | Ch6 | 1943 | |||||
3 | Ch51 | 1943 | |||||
4 | Ch52 | 1943 | |||||
5 | Ch61 | 1943 | |||||
6 | Ch62 | 1943 | |||||
7 | Ch71 | 1943 | |||||
8 | Ch72 | 1943 | |||||
9 | Ch81 | 1942 | |||||
10 | Ch82 | 1942 | |||||
11 | Ch83 | 1942 | |||||
12 | Ch84 | 1942 | |||||
13 | Ch85 | 1942 | |||||
14 | Ch91 | 1942 | |||||
15 | Ch92 | 1942 | |||||
16 | Ch93 | 1942 | |||||
17 | Ch95 | 1942 | |||||
18 | Ch96 | 1942 | |||||
19 | Ch101 | 1942 | |||||
20 | Ch102 | 1942 | |||||
21 | Ch103 | 1942 | |||||
22 | Ch104 | 1942 | |||||
23 | Ch105 | 1942 | |||||
24 | Ch106 | 1942 | |||||
25 | Ch107 | 1943 | |||||
26 | Ch111 | 1942 | |||||
27 | Ch112 | 1942 | |||||
28 | Ch113 | 1942 | |||||
29 | Ch114 | 1942 | |||||
30 | Ch115 | 1942 | |||||
31 | Ch121 | 1942 | |||||
32 | Ch122 | 1942 | |||||
33 | Ch123 | 1942 | |||||
34 | Ch124 | 1943 | |||||
35 | Ch125 | 1942 | |||||
36 | Ch126 | 1943 | |||||
37 | Ch131 | 1942 | |||||
38 | Ch132 | 1942 | |||||
39 | Ch133 | 1942 | |||||
40 | Ch134 | 1942 | |||||
41 | Ch135 | 1942 | |||||
42 | Ch136 | 1942 | |||||
43 | Ch141 | 1942 | |||||
44 | Ch142 | 1942 | |||||
45 | Ch143 | 1942 | |||||
46 | Ch144 | 1942 | |||||
47 | Ch145 | 1942 | |||||
48 | Ch146 | 1943 | |||||
PT | VLT | 2 | 1, 2 | VLT1, 2 | 1945 | 94t, 30.4x5.9x1.8m, 6pe(3), 6200hp, 50kts, 18p; 2x1-40/60, 1x2-20/65, 2-550TT | |
YP | VLT | 2 | 1, 2 | V120, 121 | 1945 - 1946 | 94t, 30.4x5.9x1.8m, 6pe(3), 6200hp, 50kts, 18p; 2x3-15.0 | |
Fairmile B | 4 | Ved.101 | St-Ronan | 1941 | 86t, 34.8x5.6x1.5m, 2pe, 1200hp, 18kts, 16p; 1x1-47/40, 1x1-20/70, 1dcr; type 286 radar, sonar | ||
Ved.102 | St-Yves | 1941 | |||||
Ved.103 | St-Guénolé | 1941 | |||||
Ved.104 | St-Alain | 1941 | |||||
HDML | 21 | 1 - 21 | VP1, 3, 6, 8-16, 21-23, VP31 Palmyre, VP32 Baalbeck, VP41 Aventure, VP42 Revanche, VP71, 72, 81 | 1941 - 1945 | 54t, 22.0x4.8x1.4m, 2d, 260-300hp, 11-11.8kts, 10p; 2x1-20/70, 8dc | ||
VP51 | 2 | 1, 2 | VP51, 52 | 1943 | No picture | 48t, 15.9x4.4x1.6m, 2pe, 250hp, 12kts, 10p |
AMPHIBIOUS
LST | LST(2) | 8 | L9000 | Liamone | 1943 | 4080t, 100.0x15.2x4.3m, 2d, 1800hp, 11kts, 111p; (2x2+4x1)-40/60, 12x1-20/70; 4 LCVP, 20tanks, 163troops; radar | |
L9001 | Laïta | 1943 | |||||
L9002 | Orne | 1944 | |||||
L9003 | Vire | 1943 | |||||
L9004 | Rance | 1943 | |||||
L9005 | Odet | 1944 | |||||
L9006 | Chéliff | 1944 | |||||
L9007 | Adour | 1945 | |||||
LCU | MFP-D | 3 | 1 | MFP1 | 1945 | 239t, 49.8x6.6x1.4m, 3d, 375hp, 10.3kts, 21p; 1x1-88/45, 2x1-37/83, (1x4+2x1)-20/65; 3tanks | |
2 | MFP2 | 1945 | |||||
3 | MFP3 | 1946 | |||||
LCI(L) | 19 | 1 | L101 | 1942 | 385-387t, 48.5-48.9x7.2x1.5-1.6m, 2d, 2320hp, 15.5kts, 24-29p; (4-5)x1-20/70; 180-209troops; SO radar | ||
2 | L102 | 1942 | |||||
3 | L103 | 1943 | |||||
4 | L104 | 1943 | |||||
5 | L108 | 1942 | |||||
6 | L109 | 1942 | |||||
7 | L201 | 1942 | |||||
8 | L202 | 1943 | |||||
9 | L203 | 1942 | |||||
10 | L204 | 1942 | |||||
11 | L217 | 1942 | |||||
12 | L251 | 1942 | |||||
13 | L260 | 1942 | |||||
14 | L263 | 1942 | |||||
15 | LC1270 | 1943 | |||||
16 | LC1271 | 1943 | |||||
17 | LC1299 | 1943 | |||||
18 | L377 | 1943 | |||||
19 | L508 | 1943 | |||||
LCT(6) | 4 | 1 | LCT834 | 1944 | 320t, 36.3x10.0x1.2m, 3d, 675hp, 8kts, 13p; 2x1-20/70; 4tanks | ||
2 | LCT696 | 1944 | |||||
3 | LCT799 | 1944 | |||||
4 | LCT635 | 1944 | |||||
LCT(3) | 5 | 1 | LCT9083 | 1941/45 | 640t, 58.1x9.5x1.7m, 2pe or 2d, 920-1000hp, 10.5-11.5kts, 12p; 2x1-20/70; 5tanks | ||
2 | LCT9084 | 1941/45 | |||||
3 | LCT9085 | 1941/45 | |||||
4 | LCT9086 | 1941/45 | |||||
5 | LCT9091 | 1941/45 | |||||
LCT(4) | 15 | 1 | LCT9060 | 1941/45 | 640t, 57.1x11.8x1.4m, 2d, 920hp, 10kts, 12p; 2x1-20/70; 6tanks | ||
2 | LCT9061 | 1941/45 | |||||
3 | LCT9062 | 1941/45 | |||||
4 | LCT9063 | 1941/45 | |||||
5 | LCT9064 | 1941/45 | |||||
6 | LCT9065 | 1941/45 | |||||
7 | LCT9066 | 1941/45 | |||||
8 | LCT9067 | 1941/45 | |||||
9 | LCT9068 | 1941/45 | |||||
10 | LCT9069 | 1941/45 | |||||
11 | LCT9070 | 1941/45 | |||||
12 | LCT9071 | 1941/45 | |||||
13 | LCT9072 | 1941/45 | |||||
14 | LCT9080 | 1941/45 | |||||
15 | LCT9082 | 1941/45 | |||||
LCF | LCG(M) | 1 | 1 | LCG9059 | 1944/45 | 380t, 47.1x6.8x2.1m, 2d, 1000hp, 11.7kts, 31p; 25sides, 51deck, 25turrets, 25CT; 2x1-88/27, 2x1-20/70 |
MINE WARFARE SHIPS
ML | Ilya Muromets | 1 | 1 | Pollux | 1917 | 2463t, 64.2x15.5x6.0m, 6b,2vte, 4000hp, 14kts; 4x1-100/45, 2x1-37/50, 236mines | |
MSO | 1935 | 2 | A20 | Ailette | 1941 | 874t, 68.1x8.7x2.1m, 2b,2se, 3500hp, 18.3kts, 84p; 2x1-105/45, 1x2-37/83, 2x1-20/65, 2dct, 30mines, sweeps | |
A22 | Somme | 1939 | |||||
1938 | 2 | A23 | Meuse | 1941 | 908t, 71.0x8.7x2.1m, 2b,2se, 3200hp, 18.3kts, 97p; 2x1-105/45, 3x1-20/65, 2dct, 30mines, sweeps | ||
A29 | Bapaume | 1941 | |||||
1939(Mob) | 8 | A21 | Ancre | 1941 | 878t, 68.4x9.2x2.1m, 2b,2se, 3700hp, 18.3kts, 119p; 2x1-105/45, 1x2-37/83, 2x1-20/65, 2dct, 30mines, sweeps | ||
A24 | Oise | 1941 | |||||
A25 | Yser | 1942 | |||||
A26 | Belfort | 1941 | |||||
A27 | Péronne | 1940 | |||||
A28 | Vimy | 1941 | |||||
A30 | Laffaux | 1941 | |||||
A31 | Craonne | 1941 | |||||
1940 | 2 | 1 | Marne | 1942 | 775t, 62.3x8.9x2.3m, 2b,2vte, 2615hp, 17.2kts, 75p; 2x1-105/45, 4x1-37/69, 1x4-20/65, 2x1-15.0, 2x1-86 RAgM42/43 RL, 4dct, 2dcr, 12mines, sweeps | ||
2 | Suippe | 1942 | |||||
MSC | YMS | 28 | D301 | Amarante | 1943 | 320t, 41.5x7.5x2.4m, 2d, 800hp, 14kts, 60p; 1x1-76/50, 2x1-20/70, 2dct, 2dcr, mechanical, magnetic, acoustic sweeping gear; SO radar | |
D311 | Anémone | 1942 | |||||
D312 | Tiaré | 1942 | |||||
D313 | Armoise | 1942 | |||||
D314 | Asphodèle | 1943 | |||||
D315 | Aubépine | 1942 | |||||
D316 | Balsamine | 1942 | |||||
D317 | Basilic | 1942 | |||||
D318 | Belladone | 1942 | |||||
D321 | Campanule | 1942 | |||||
D322 | Capucine | 1943 | |||||
D323 | Clématite | 1942 | |||||
D324 | Lotus | 1942 | |||||
D325 | Dahlia | 1942 | |||||
D326 | Digitale | 1942 | |||||
D327 | Gentiane | 1942 | |||||
D331 | Géranium | 1942 | |||||
D333 | Hortensia | 1942 | |||||
D334 | Héliotrope | 1942 | |||||
D335 | Jasmin | 1942 | |||||
D336 | Jonquille | 1942 | |||||
D337 | Marjolaine | 1942 | |||||
D351 | Perce-Neige | 1942 | |||||
D352 | Pimpernelle | 1942 | |||||
D353 | Primevère | 1942 | |||||
D354 | Pétunia | 1943 | |||||
D355 | Genêt | 1943 | |||||
D356 | Zinnia | 1943 |
© Ivan Gogin, 2015
