Brazil 01 January 1950
SUBMARINES
| SS | Humaitá | 1 | 1 | Humaitá | 1929 | |
1450/1884t, 86.7x7.8x4.3m, 2d/em, 4000/1000hp, 18.5/10kts, 61p, 100m; 1x1-120/41, 2x1-13.2, 6-533TT, 16mines |
| Tupi | 3 | T1 | Tupi | 1937 | |
674/853t, 60.2x6.5x3.7m, 2d/em, 1400/800hp, 14/7.5kts, 33p, 80m; 1x1-100/47, 2x2-13.2, 6-533TT | |
| T2 | Timbira | 1937 | |||||
| T3 | Tamoio | 1937 |
PRINCIPAL SURFACE COMBATANTS

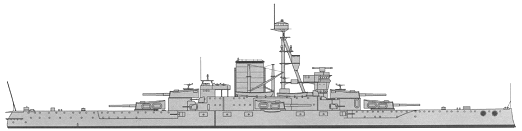

| BB | Minas Gerais | 1 | 1 | Minas Gerais | 1910 |  |
21200t, 165.5x25.3x7.6m, 6b,2vte, 30000hp, 22kts, 900p; 229belt, 51deck, 229turrets, 305CT; 6x2-305/45, 14x1-120/50, 4x1-102/45, 2x1-76/50, 8x1-37/27, 6x2-20/60 |

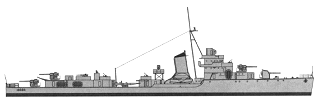

| DD | Mariz e Barros | 3 | M1 | Mariz e Barros | 1943 |  |
2200t, 108.8x10.6x3.0m, 4b,2gst, 42800hp, 36.5kts, 190p; 4x1-127/38, 2x2-40/60, 4x1-20/70, 1x4-533TT, 4dct, 2dcr; sonar |
| M2 | Marcílio Dias | 1943 | |||||
| M3 | Greenhalgh | 1943 | |||||
| Amazonas | 2 | A1 | Amazonas | 1949 |  |
1800t, 98.5x10.7x2.6m, 3b,2gst, 45000hp, 36kts, 150p; 4x1-127/38, 1x2-40/60, 4x1-20/70, 2x4-533TT, 2dct, 2dcr; sonar | |
| A5 | Araguaya | 1949 | |||||
| FF | Cannon | 8 | B1 | Bertioga | 1943 |  |
1602t, 93.3x11.2x3.2m, 4dg, 2em, 6000hp, 21kts, 186p; 3x1-76/50, 1x2-40/60, 8x1-20/70, 1x3-533TT, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SU radars, sonar |
| B2 | Beberibe | 1943 | |||||
| B3 | Bracuí | 1943 | |||||
| B4 | Bauru | 1943 | |||||
| B5 | Baependi | 1943 | |||||
| B6 | Benavente | 1943 | |||||
| B7 | Babitonga | 1943 | |||||
| B8 | Bocaina | 1943 |
PATROL AND COASTAL COMBATANTS
| PCO | Matias de Albuquerque | 6 | F1 | Matias de Albuquerque | 1943 |  |
920t, 53.8x8.5x4.9m, 1b,1vte, 1000hp, 12.5kts, 70p; 1x1-76/50, 4x1-20/70, 4dct |
| F2 | Felipe Camarão | 1943 | |||||
| F3 | Henrique Dias | 1943 | |||||
| F4 | Fernandes Vieira | 1943 | |||||
| F5 | Vidal de Negreiros | 1944 | |||||
| F6 | Barreto de Menezes | 1944 | |||||
| Sotoyomo | 3 | R1 | Tritão | 1945 |  |
835t, 43.6x10.3x4.0m, 2dg,2em, 1500hp, 13kts, 49p; 1x1-76/50, 2x1-20/70; radar | |
| R2 | Tridente | 1945 | |||||
| R3 | Triunfo | 1945 | |||||
| PC | PC | 8 | G1 | Guaporé | 1942 |  |
330t, 52.9x7.1x2.4m, 2d, 2880hp, 21kts, 65p; 2x1-76/50(1-4), 1x1-76/50(5-8), 1x1-40/60(5-8), 3x1-20/70, 2x4-178 Mousetrap ASWRL(5-8), 2dct, 2dcr; SCR-517A radar, sonar |
| G2 | Gurupi | 1942 | |||||
| G3 | Guaíba | 1943 | |||||
| G4 | Gurupá | 1943 | |||||
| G5 | Guajará | 1943 | |||||
| G6 | Goiana | 1942 | |||||
| G7 | Grajaú | 1943 | |||||
| G8 | Graúna | 1942 | |||||
| PS | SC | 8 | J51 | Jutaí | 1942 |  |
117t, 33.8x5.2x1.9m, 2d, 1000-2400hp, 16-21kts, 27p; 1x1-76/50, 3x1-20/70, 2x4-178 Mousetrap ASWRL, 2dct, 1dcr; SW-1C radar, QC sonar |
| J52 | Javari | 1942 | |||||
| J53 | Juruá | 1942 | |||||
| J54 | Jaguarão | 1942 | |||||
| J55 | Juruena | 1942 | |||||
| J56 | Jaguaribe | 1943 | |||||
| J57 | Jacuí | 1943 | |||||
| J58 | Jundiaí | 1943 | |||||
| Rio Pardo | 1 | Rio Pardo | 1945 | No picture | 132t, 39.0x6.4x1.8m, 3d, 1890hp, 20kts; 3x1-20/70, 2dct, 2dcr | ||
| RMON | Parnaíba | 1 | P2 | Parnaíba | 1938 |  |
720t, 55.0x10.2x1.5m, 2b,2vte, 1300hp, 12kts, 90p; 76belt, 38deck; 1x1-152/50, 2x1-87/13, 2x1-47/40, 4x1-20/70 |
| Paraguassú | 1 | P3 | Paraguassú | 1940 |  |
600t, 44.7x10.6x1.5m, 2b,2vte, 1100hp, 13kts, 71p; 19belt, 13deck; 1x1-120/50, 2x1-87/13, 2x1-47/40, 4x1-20/70 | |
| PGR | - | 1 | 1 | Oyapock | 1908 | 295t |
MINE WARFARE
| MSO | Carioca | 5 | C1 | Carioca | 1939 |  |
780t, 57.5ppx7.6x2.4m, 2b,2vte, 2200hp, 15kts, 70p; 1x1-102/45(1-3,5), 2x1-76/40(4), 4x1-20/70, 50mines or sweeps |
| C2 | Cananéia | 1939 | |||||
| C3 | Camocim | 1940 | |||||
| C4 | Cabedelo | 1940 | |||||
| C5 | Caravelas | 1940 | |||||
| MSC | - | 1 | I3 | Itacurussa | 1913 | 280t |
