Belgium 01 January 1950
PRINCIPAL SURFACE COMBATANTS

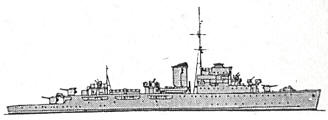

| FF | Artevelde | 1 | Artevelde | 1943 | |
2306t, 98.5x10.5x3.8m, 2b,2gst, 21700hp, 28.5kts, 180p; 3x1-105/45, 2x1-40/60, 1x2-37/83, 3x4-20/65, 120mines, mechanical sweeps | |

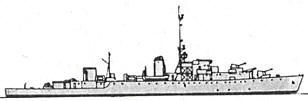

| Tacoma | 1 | F910 | Lieutenant ter zee Victor Billet | 1944 | |
2238t, 92.6x11.4x3.9m, 3b,2vte, 5500hp, 20kts, 180p; 2x1-76/50, 3x2-40/60, 2x1-20/70, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SF, Mk26 radars, sonar |
PATROL AND COASTAL COMBATANTS
| PS | Flower | 1 | 1 | Jan Breydel | 1915 |  |
1275t, 80.0x10.1x3.4m, 2b,1vte, 1400hp, 14kts, 90p; 3x1-105/45, 4x2-37/83, 3x4-20/65 |
MINE WARFARE
| MSO | Algerine | 1 | 1 | Adrien de Gerlache | 1945 |  |
1335t, 68.6x10.8x3.2m, 2b,2gst, 2000hp, 16kts, 101p; 1x1-102/45, 4x1-40/60, 4dct, 2dcr; minesweeping gear; radar, sonar |
| MSC | MMS1 | 7 | M182 | MMS182 | 1942 |  |
295t, 36.4x7.1x2.7m, 1d, 500hp, 11kts, 20p; 2x1-20/70, mechanical, acoustic, magnetic minesweeping gear |
| M187 | MMS187 | 1942 | |||||
| M188 | MMS188 | 1942 | |||||
| M189 | MMS189 | 1942 | |||||
| M191 | MMS191 | 1942 | |||||
| M193 | MMS193 | 1942 | |||||
| M226 | MMS226 | 1942 | |||||
| MMS1001 | 1 | M1020 | MMS1020 | 1944 |  |
430t, 42.7x8.5x3.2m, 1d, 500hp, 10kts, 21p; 2x2-20/70, mechanical, acoustic, magnetic minesweeping gear |
