Argentina 01 January 1950
SUBMARINES
| SS | Santa Fe | 3 | S1 | Santa Fe | 1933 | |
935/1155t, 69.2x6.7x5.1m, 2d/em, 3000/1400hp, 17.5/9kts, 40p, 80m; 1x1-102/40, 1x1-40/60, 8-533TT |
| S2 | Santiago del Estero | 1933 | |||||
| S3 | Salta | 1933 |
PRINCIPAL SURFACE COMBATANTS

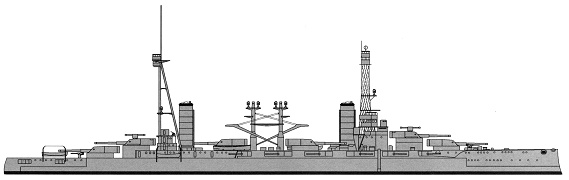

| BB | Rivadavia | 1 | 1 | Rivadavia | 1914 |  |
30600t, 181.3x30.0x8.5m, 18b,3gst, 45000hp, 20kts, 1130p; 280belt, 114deck, 305turrets, 305CT; 6x2-305/50, 12x1-152/50, 4x1-76/50, 4x1-40/60, 2-533TT |
| BC | 9 de Julio | 1 | 1 | Independencia | 1892 |  |
2595t, 70.1ppx13.1x4.0m, 4b,2vte, 2800hp, 14kts, 230p; steel- 203belt, 37deck, 203barbettes, 102CT; 2x1-238/35, 4x1-120/41, 4x1-40/39 |

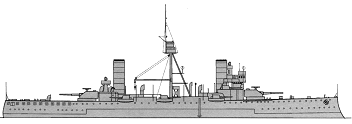

| CA | Garibaldi | 1 | 1 | Pueyrredon | 1898 |  |
6775t, 111.7x18.2x7.1m, 8b,2vte, 13000hp, 17kts, 500p; 150belt, 37deck, 150turrets, 150CT; 2x1-254/40, 8x1-152/40, 2x1-57/40 |

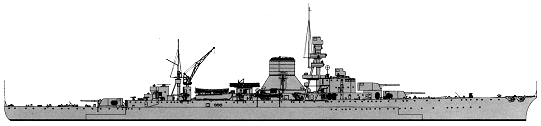

| Almirante Brown | 2 | C1 | Almirante Brown | 1931 |  |
9000t, 170.8x17.8x4.7m, 6b,2gst, 85000hp, 32kts, 780p; 70belt, 25deck, 50turrets, 65CT; 3x2-190/52, 6x1-102/45, 6x1-40/39, 6-533TT, 2seaplanes (Walrus); type 268 radar | |
| C2 | 25 de Mayo | 1931 | |||||

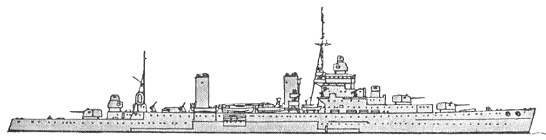

| CL | La Argentina | 1 | C3 | La Argentina | 1939 |  |
8500t, 164.9x17.2x5.0m, 4b,4gst, 54000hp, 30kts, 800p; 76belt, 51deck, 51turrets, 76CT; 3x3-152/50, (4x2+6x1)-40/60, 2x3-533TT; type 268, Mk8 radars |

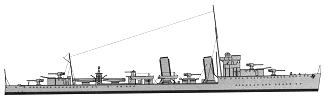

| DD | Catamarca | 2 | D1 | Catamarca | 1912 |  |
1357t, 88.1x8.3x2.6m, 5b,2st, 24000hp, 32kts, 150p; 3x1-102/50, 2x1-37/43, 2x2-533TT, 1dct |
| D2 | Jujuy | 1912 | |||||

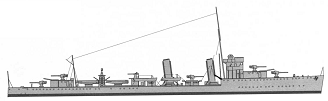

| Córdoba | 2 | D2 | Córdoba | 1912 | |
1368t, 90.0x9.0x2.8m, 5b,2st, 24000hp, 32kts, 150p; 3x1-102/50, 2x1-37/43, 2x2-533TT, 1dct | |
| D4 | La Plata | 1912 | |||||
| Cervantes | 2 | T1 | Cervantes | 1927 |  |
2087t, 101.5x9.7x3.7m, 4b,2gst, 42000hp, 36kts, 175p; 4x1-120/45, 3x2-40/60, 2x3-533TT, 2dcr | |
| T2 | Juan de Garay | 1927 | |||||
| Mendoza | 3 | T3 | Mendoza | 1929 |  |
2120t, 102.1x9.7x3.8m, 4b,2gst, 42000hp, 36kts, 160p; 4x1-120/45, 3x2-40/60, 2x1-40/39, 2x3-533TT | |
| T4 | La Rioja | 1929 | |||||
| T5 | Tucumán | 1929 | |||||
| Buenos Aires | 6 | T6 | Buenos Aires | 1938 |  |
2010t, 98.5x10.6x3.2m, 3b,2gst, 34000hp, 35.5kts, 130p; 4x1-120/45, 2x4-12.7, 2x4-533TT | |
| T7 | Entre Ríos | 1938 | |||||
| T9 | San Juan | 1938 | |||||
| T10 | San Luis | 1938 | |||||
| T11 | Misiones | 1938 | |||||
| T12 | Santa Cruz | 1938 | |||||
| FF | Ashville | 1 | P31 | Hércules | 1942 |  |
2150t, 91.9x11.1x4.0m, 2b,2vte, 5500hp, 20kts, 190p; 3x1-105/45, (2x2+2x1)-40/60, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SU, Mk26 radars, sonar |
| Tacoma | 3 | P32 | Heroína | 1944 | |
2238t, 92.6x11.4x3.9m, 3b,2vte, 5500hp, 20kts, 190p; 3x1-105/45(32,34), 2x1-105/45(33), (2x2+4x1)-40/60, 1x24-178 Hedgehog ASWRL, 8dct, 2dcr; SA, SU, Mk26 radars, sonar | |
| P33 | Sarandí | 1944 | |||||
| P34 | Trinidad | 1943 | |||||

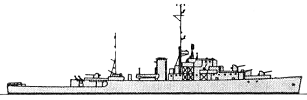

| FS | Murature | 2 | P20 | Murature | 1945 |  |
1032t, 76.8x8.8x2.3m, 2d, 2500hp, 18kts, 130p; 3x1-105/45, (1x2+2x1)-40/60, 2x1-12.7, 4dct |
| P21 | King | 1946 | |||||
| Flower | 1 | P10 | República | 1943 |  |
1370t, 63.5x10.1x4.4m, 2b,1vte, 2750hp, 16.5kts, 109p; 1x1-105/45, 4x1-20/70, 4dct, 2dcr; type 268, 276 radars, sonar |
PATROL AND COASTAL COMBATANTS
| PC | Sotoyomo | 2 | 1 | Yamana | 1943 |  |
835t, 43.6x10.3x4.0m, 2dg, 2em, 1500hp, 13kts, 49p; 1x1-40/60, 2x1-20/70; Decca 1226 radar |
| 2 | Sanaviron | 1947 | |||||
| PR | Rosario | 2 | 1 | Rosario | 1909 |  |
1055t, 76.4x9.8x2.1m, 2b,2vte, 1300hp, 14.5kts, 145p; 76belt, 25deck, 76CT; 2x1-152/13, 6x1-76/40, 4x1-40/39 |
| 2 | Paraná | 1909 | |||||
| PT | LT1 | 10 | P80 - 89 | LT1 - 10 | 1948 |  |
50t, 23.8x6.4x1.5m, 3pe, 4500hp, 42kts, 10p; 2x1-40/60, 4-533TC; SO radar |
| PB | Dorado | 1 | 1 | Dorado | 1939 | No picture | 43t, 21.2x4.3x1.5m, 2d, 360hp, 12kts, 7p |
AMPHIBIOUS
| LST | LST(2) | 13 | Q41 | BDT1 | 1945 |  |
4080t, 100.0x15.2x4.3m, 2d, 1800hp, 12.1kts, 125p; 20tanks, 163troops; radar |
| Q42 | BDT2 | 1944 | |||||
| Q43 | BDT3 | 1944 | |||||
| Q44 | BDT4 | 1945 | |||||
| Q45 | BDT5 | 1944 | |||||
| Q46 | BDT6 | 1944 | |||||
| Q47 | BDT7 | 1944 | |||||
| Q48 | BDT8 | 1945 | |||||
| Q49 | BDT9 | 1945 | |||||
| Q50 | BDT10 | 1945 | |||||
| Q51 | BDT11 | 1945 | |||||
| Q52 | BDT12 | 1945 | |||||
| Q54 | BDT14 | 1944 | |||||
| LSM | LSM1 | 2 | Q69 | BDM1 | 1944 |  |
1095t, 62.0x10.5x2.1m, 2d, 2800hp, 12.5kts, 60p; 1x2-40/60, 4x1-20/70; 5tanks, 54troops |
| Q70 | BDM2 | 1944 | |||||
| LCU | LCI(L) | 14 | Q54 | BDI1 | 1944 |  |
385t, 48.9x7.2x1.6m, 8d(2), 2320hp, 15.5kts, 29p; 5x1-20/70; 209troops; SCR-517A radar |
| Q55 | BDI2 | 1944 | |||||
| Q56 | BDI3 | 1944 | |||||
| Q57 | BDI4 | 1944 | |||||
| Q58 | BDI5 | 1944 | |||||
| Q59 | BDI6 | 1944 | |||||
| Q60 | BDI7 | 1944 | |||||
| Q62 | BDI9 | 1944 | |||||
| Q63 | BDI10 | 1944 | |||||
| Q64 | BDI11 | 1944 | |||||
| Q65 | BDI12 | 1944 | |||||
| Q66 | BDI13 | 1944 | |||||
| Q67 | BDI14 | 1944 | |||||
| Q68 | BDI15 | 1944 | |||||
| LC | LCVP | 22 | 1 - 22 | EDVP1 - 22 | 1943 - 1945 |  |
13t, 11.2x3.2x0.9m, 2d, 220-450hp, 8kts, 3p; 2x1-12.7; 36troops |
MINE WARFARE SHIPS
| MSO | 1916 | 2 | M6 | Pinedo | 1919 |  |
548-553t, 59.3x7.3-7.4x2.2m, 2b,2vte, 1850hp, 16.3kts, 40p; 3x1-76/46, 30mines, sweeps |
| M8 | Seguí | 1918 | |||||
| Bouchard | 8 | M2 | Drummond | 1937 |  |
520t, 59.0x7.3x2.3m, 2d, 2000hp, 15kts, 62p; 2x1-102/50, 2x1-40/39, sweeps | |
| M3 | Robinson | 1939 | |||||
| M4 | Granville | 1937 | |||||
| M7 | Bouchard | 1937 | |||||
| M10 | Py | 1939 | |||||
| M11 | Parker | 1938 | |||||
| M12 | Seaver | 1939 | |||||
| M13 | Spiro | 1938 |
