World navies yesterday

1945

Sweden 01 January 1945

CAPITAL SHIPS

BC
Äran 3 1 Äran 1902 3735t, 89.7(1,2)-90.2(3)x15.0x5.0m, 8b,2vte, 6500hp, 17kts, 275p; 175belt, 48deck, 190turrets, 200CT; 2x1-210/44, 6x1-152/44, 4x1-57/55, 2x1-40/56(1), 4x1-40/56(3), 2x1-25/58, 2-450TT(3)
2 Tapperheten 1903
3 Manligheten 1904

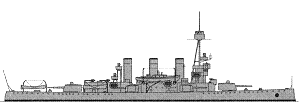

Oscar II 1 4 Oscar II 1907 4850t, 95.6x15.4x5.5m, 10b,2vte, 9400hp, 18kts, 331p; 150belt, 50deck, 190turrets, 157CT; 2x1-210/44, 4x2-152/50, 2x2-75/60, 1x2-25/58

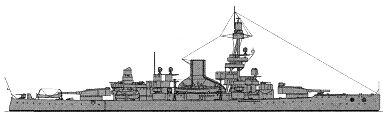

Sverige 3 5 Sverige 1917 7516(5)-7633(6,7)t, 120.0(5)-121.6(6,7)x18.6x6.5(5)-6.7(6,7)m, 4b(5)-8b(6,7),4gt(5)-2gt(6,7), 25400(5)-23910(6,7)hp, 22.5kts, 427p; 200belt, 45deck, 200turrets, 175CT; 2x2-283/45, (1x2+4x1)-152/50(5,6), 6x1-152/50(7), 2x2-75/60, 2x1-57/55, 3x2-40/56, 2x2-40/56(7), 4x1-25/58(5), 2x2-20/66(5), 7x1-20/66(6), (2x2+4x1)-20/66(7); radar: Swedish-built(6)
6 Drottning Victoria 1921
7 Gustaf V 1922

AIRCRAFT CARRYING SHIPS

AV Dristigheten 1 1 Dristigheten 1901 3600t, 89.0x14.8x5.2m, 8b,2vte, 5600hp, 16.8kts, 275p; h: 200belt, 50deck, 247CT; 4x1-75/50, 2x1-40/56, 3seaplanes (Osprey)

CRUISERS

CA Fylgia 1 1 Fylgia 1907 4980t, 117.3x14.8x6.1m, 4b,2vte, 13000hp, 23.5kts, 322p; 100belt, 35deck, 125turrets, 100CT; 4x2-152/50, 4x1-57/55, 2x2-40/56, 1x2-25/58, 1x1-20/66, 2x1-533TT, 2DCR

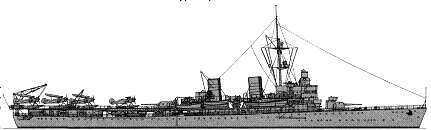

CL Gotland 1 1 Gotland 1934 5550t, 134.8x15.4x4.5m, 4b,2gt, 33000hp, 27.5kts, 480p; 24belt, 25deck, 25turrets, 19CT; (2x2+2x1)-152/55, (1x2+2x1)-75/60, 4x2-40/56, (1x2+4x1)-25/58, 2x2-20/66, 2x3-533TT, 100m
CM Clas Fleming 1 1 Clas Fleming 1914 1850t, 86.0x10.4x4.3m, 2b, 4dgg,2ggst, 7200hp, 20.3kts, 160p; 25deck, 75CT; 4x1-120/50, 3x1-40/56, 3x1-25/58, 200m, 2DCR

TORPEDO SHIPS

PGT Örnen 2 1 Örnen 1897 844(1)-835(2)-814(3)t, 67.7(1,2)-70.7(3)x8.2(1,2)-8.3(3)x3.0m, 8b,2vte, 4000(1,2)-4500(3)hp, 20kts, 113p; 19deck; 2x1-120/45, 2x2-25/58, 1-380TT
2 Jacob Bagge 1898
DD
Ragnar 3 1 Vidar 1910 460t, 66.1x6.3x2.5m, 4b,2vte, 7200hp, 30kts, 54p; 3x1-75/50, 2x1-25/58, 2x2-450TT, 2DCR
2 Ragnar 1909
3 Sigurd 1909
Hugin 1 4 Hugin 1911 500t, 66.3x6.5x2.1m, 4b,2t, 10000hp, 33kts, 72p; 3x1-75/50, 2x1-25/58, 2x2-450TT, 2DCR
Wrangel 2 5 Wrangel 1918 570t, 72.0x6.9x2.4m, 4b,2gt, 13000hp, 34kts, 81p; 4x1-75/50, 1x1-25/58, 2x2-450TT, 2DCR
6 Wachtmeister 1918
Ehrensköld 2 7 Ehrensköld 1927 1160t, 91.4x8.9x3.8m, 3b,2gt, 24000hp, 36kts, 120p; 3x1-120/45, 2x2-25/58, 2x3-533TT, 2DCT, 2DCR, 20m
8 Nordenskjöld 1927
Klas Horn 2 9 Klas Horn 1932 1190t, 92.4x8.9x3.7m, 3b,2gt, 26000hp, 37kts, 119p; 3x1-120/45, 2x2-25/58, 2x3-533TT, 2DCT, 2DCR, 20m
Göteborg 6 10 Göteborg 1936 1184t, 94.6x9.0x3.8m, 3b,2gt, 32000hp, 39kts, 155p; 3x1-120/45, 2x2-25/58(10,11), 3x2-25/58(12-15), 2x3-533TT, 2DCT, 2DCR, 20m
11 Stockholm 1937
12 Malmö 1939
13 Karlskrona 1940
14 Gävle 1941
15 Norrköping 1941
Psilander 2 16 Psilander 1927 1480t, 84.9x8.6x3.6m, 3b,2gt, 36000hp, 35kts, 125p; 2x2-120/45, 2x1-40/56, 2x2-13.2, 2x2-533TT, 2DCT, 32m
17 Puke 1926
Visby 4 18 Visby 1943 1320t, 98.0x9.0x3.8m, 3b,2gt, 32000hp, 39kts, 155p; 3x1-120/45, (1x2+2x1)-40/56, 4x1-20/66, 2x3-533TT, 2DCT, 2DCR, 46m
19 Sundsvall 1943
20 Hälsingborg 1943
21 Kalmar 1944

SUBMARINES

SS
Draken 2 1 Draken 1929 667/850t, 66.2x6.4x3.3m, 2d/em, 1920/1000hp, 13.8/8.3kts, 35p, 60m; 1x1-105/41, 1x1-25/58, 4-533TT
2 Gripen 1929
Delfinen 3 3 Delfinen 1936 540/720t, 63.1x6.4x3.4m, 2d/em, 1200/800hp, 15/9kts, 34p, 60m; 1x1-57/55, 1x1-25/58, 4-533TT, 20m
4 Nordkaparen 1936
5 Springaren 1937
Sjölejonet 9 6 Sjölejonet 1938 580/760t, 64.2x6.4x3.4m, 2d/em, 2100/1000hp, 16.2/10kts, 38p, 60m; 2x1-40/56, (4+1x2)-533TT
7 Sjöbjörnen 1939
8 Sjöhunden 1939
9 Svärdfisken 1941
10 Tumlaren 1941
11 Dykaren 1941
12 Sjöhästen 1941
13 Sjöormen 1941
14 Sjöborren 1942
U1 9 15 U1 1942 367/450t, 49.6x4.7x3.8m, 1dg,2em, 1350/1350hp, 13.8/7.5kts, 23p, 60m; 1x1-20/66, 4-533TT
16 U2 1943
17 U3 1943
18 U4 1944
19 U5 1944
20 U6 1944
21 U7 1944
22 U8 1944
23 U9 1944
Neptun 3 24 Neptun 1943 550/730t, 62.6x6.4x3.4m, 2d/em, 1800/1000hp, 15/10kts, 35p, 60m; 1x1-40/43, 1x1-20/66, 5-533TT, 20m
25 Najad 1943
26 Näcken 1943

ESCORTS

DE Romulus 2 1 Romulus 1935 995t, 80.4x8.2x3.1m, 2b,2gt, 19000hp, 34kts, 94p; 3x1-100/47, 3x2-20/65, 2x2-450TT, 2DCT, 20m
2 Remus 1935
Mode 4 3 Mode 1942 960t, 78.0x8.1x2.3m, 2b,2gt, 16000hp, 31kts, 100p; 3x1-105/50, 2x1-40/56, 2x1-20/66, 1x3-533TT, 2DCT, 42m
4 Magne 1942
5 Munin 1943
6 Mjölner 1942
PC Komet 4 1 V27 1898 120t, 39.8x4.8x2.5m, 1b,1vc, 1300hp, 23kts, 18p; 2x1-37/39, MS
2 V28 1899
3 V30 1900
4 V35 1903
Plejad 8 5 V39 1908 106t, 40.2x4.4x2.6m, 2b,1vte, 2000hp, 26kts, 25p; 2x1-57/55, MS
6 V40 1908
7 V41 1908
8 V42 1908
9 V43 1909
10 V45 1909
11 V47 1909
12 V48 1910
Jägaren 4 13 Jägaren 1934 310t, 51.9x6.0x2.8m, 2b,1gt, 3600hp, 23kts, 41p; 2x1-75/60, 2x1-25/58, 2DCT
14 Kaparen 1934
15 Snapphanen 1936
16 Väktaren 1935
APC - 6 1 Granat 1925   440t
2 Harpun 1925   440t
3 Kanon 1924   300t
4 Krut 1924   300t
5 Styrbjörn 1923   350t
6 Starkodder 1925   357t

COASTAL FORCES

PT T3 2 1, 2 T3, 4 1940 20t, 18.3x4.7x1.5m, 2pe, 2300hp, 40kts, 8p; 2-450TT
T11 4 3-6 T11-14 1937 22t, 17.0x4.4x1.3m, 2pe, 2000hp, 44kts, 10p; 1x1-13.2, 2-450TT, 6DC
T15 4 7-10 T15-18 1941 23t, 18.7x4.6x1.5m, 2pe, 2300hp, 45kts, 11p; 1x1-20/66, 2-450TT
T21 11 11-21 T21-31 1942-1943 27t, 20.0x5.0x1.5m, 2pe, 3000hp, 49kts, 11p; 1x1-20/66, 2-533TT
PS Asköfjärd 3 1-3 V71 Asköfjärd, V72 Baggensfjärd, V73 Nämdöfjärd 1931-1932 No picture 25t, 19.3x3.8x1.5m, 1d, 92hp, 11.5kts, 7p; 1x1-37/39
Kanholmsfjärd 3 4-6 V74 Kanholmsfjärd, V75 Lidöfjärd, V76 Edöfjärd 1933 No picture 28t, 21.2x3.8x1.5m, 1d, 92hp, 11.5kts, 7p; 1x1-37/39
SVK1 5 5-11 SVK1-5 1944 No picture 19t, 16.5x3.7x1.2m, 1d, 100hp, 10.5kts, 12p; 1x1-20/66
V51 2 12 V51 1944 No picture 145t, 32.0x5.3x2.2m, 1b,1vte, 400hp, 11kts, 12p; 1x1-20/66
13 V55 1944

AMPHIBIOUS SHIPS

LCU Ane 3 1 Ane 1943 No picture 135t, 28.0x8.0x1.8m, 2d, 8.5kts; 1x1-20/66; troops, vehicles
2 Balder 1943
3 Loke 1943

MINE WARFARE SHIPS

ML Mul 3 1 1 Mul 3 1879 No picture 190t, 6.5kts; 20m
Mul 5 4 2 Mul 5 1904 No picture 120t, 7.5kts; 20m
3 Mul 6 1904
4 Mul 7 1904
5 Mul 8 1905
Mul 9 1 6 Mul 9 1912 No picture 120t, 9.1kts; 20m
Mul 10 1 7 Mul 10 1939 No picture 166t, 27.4x5.6x2.3m, 9.5kts; 20m
Älvsnabben 1 8 Älvsnabben 1943 4250t, 102.0x13.6x4.9m, 1d, 3000hp, 14kts, 255p; 4x1-152/44, 4x2-40/56, 6x1-20/66, 4DCR, 380m
MS Arholma 14 1 Arholma 1939 442t, 56.7x7.6x2.1m, 2b,2gt, 3200hp, 17kts, 37p; 2x1-105/41, 2x1-40/56(3-14), 2x1-25/58(1,2), 2DCT, 20m
2 Landsort 1939
3 Bremön 1940
4 Holmön 1940
5 Sandön 1941
6 Ulvön 1941
7 Bredskär 1941
8 Grönskär 1941
9 Ramskär 1941
10 Örskär 1941
11 Koster 1940
12 Kullen 1941
13 Vinga 1940
14 Ven 1941
MSI M1 2 1, 2 M1, 2 1938 No picture 62t, 30.0(1)-29.8(2)x4.3(1)-4.0(2)x1.0m, 3be(1)-3d(2), 600(1)-630(2)hp, 16.5(1)-18(2)kts, 11p; 1x1-13.2, DC, MS
M3 12 3-14 M3-14 1940-1941 No picture 50t, 25.0x5.1x1.4m, 2d, 400hp, 13kts; 1x1-20/66, MS
M15 12 15-26 M15-26 1941-1942 No picture 70t, 27.7x5.0x1.5m, 2d, 410hp, 13kts; 1x1-20/66, MS
