World navies yesterday

1945

Spain 01 January 1945

CRUISERS

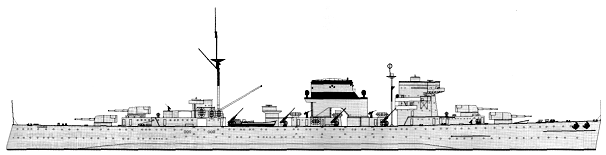

CA Canarias 1 1 Canarias 1936 13070t, 193.6x19.5x5.3m, 8b,4gt, 90000hp, 33kts, 1200p; 51belt, 102magazines, 37deck, 25turrets, 25CT; 4x2-203/50, 8x1-120/45, 6x2-37/83, 4x1-20/65, 2DCT, 1DCR

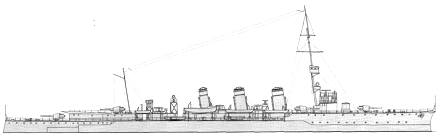

CL Reina Victoria Eugenia 1 1 Navarra 1923 6450t, 140.8x15.2x4.8m, 8b,2t, 25500hp, 25kts, 404p; 50belt, 38deck, 152shields, 152CT; 6x1-152/50, 4x1-88/45, 4x1-20/70
Méndez Núñes 1 2 Méndez Núñes 1924 6045t, 140.8x14.1x4.4m, 12b,4gt, 45000hp, 29kts, 343p; 76belt, 25deck, 150CT; 6x1-152/50, 1x1-76/19, 3x1-20/70, 4x3-533TT

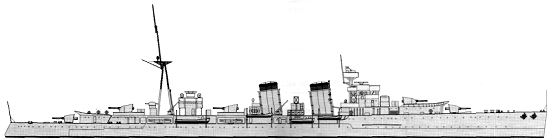

Príncipe Alfonso 3 3 Galicia 1925 9748(3)-9237(5)-9660(4)t, 176.6x16.5x5.0m, 8b,4gt, 80000hp, 31.5(3)-33(4,5)kts, 781(3)-564(4,5)p; 76belt, 50deck, 13shields, 150CT; 4x2-152/50(3), (3x2+2x1)-152/50(4,5), 4x1-105/45(4), 3x1-102/45(5), 2x1-76/35(5), 1x1-40/56(5), 8x2-37/83(3), 4x2-37/83(4), 2x1-20/70(5), 5x4-20/65(3), 4x1-20/65(4), 2x3-533TT(3), 4x3-533TT(4,5), 4DCT(3)
4 Almirante Cervera 1927
5 Miguel de Cervantes 1930

TORPEDO SHIPS

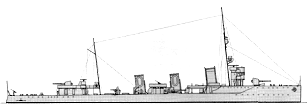

DD Alsedo 3 1 Alsedo 1924 1337t, 86.8x8.2x4.5m, 4b,2gt, 33000hp, 34kts, 86p; 3x1-102/50, 3x1-20/65, 2x2-450TT, 2DCT, 1DCR, 60m
2 Velasco 1924
3 Lazaga 1925
Churucca 6 4 Sánchez Barcáiztegui 1928 2087t, 102.0x9.7x3.2m, 4b,2gt, 42000hp, 36kts, 190p; 4x1-120/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 4DCT, 2DCR
5 José Luis Díez 1929
6 Lepanto 1930
7 Churucca 1931
8 Alcalá Galiano 1931
9 Almirante Valdés 1933
Almirante Antequera 7 10 Almirante Antequera 1935 2175t, 101.2x9.7x3.2m, 4b,2gt, 42000hp, 36kts, 190p; 4x1-120/45, 1x1-76/45, 2x2-37/83, 4x1-20/65, 2x3-533TT, 4DCT, 2DCR
11 Almirante Miranda 1936
12 Gravina 1936
13 Escaño 1936
14 Císcar 1936
15 Jorge Juan 1937
16 Ulloa 1937
Melilla 2 17 Melilla 1917 1820t, 94.7x9.5x3.4m, 5b,2t, 40000hp, 34kts, 160p; 2x2-120/45, 2x1-76/40, 4x1-20/65, 2x2-450TT, 50m, 1DCR
18 Ceuta 1920
Huesca 2 19 Huesca 1915 1216t, 85.0x8.0x2.8m, 3b,2t, 20000hp, 31.5kts, 137p; 5x1-102/45(19), 6x1-102/45(20), 1x1-40/39, 2x1-20/65, 2x1-13.2, 2x2-450TT, 42m
20 Teruel 1915
TB T-1 3 1 T-7 1915 190t, 52.3x5.0x1.5m, 2b,3(1)-2(2,3)t, 3750hp, 26kts, 31p; 3x1-47/50, (1x2+1x1)-450TT, 20m(2)
2 T-14 1916
3 T-17 1917

SUBMARINES

SS B1 1 1 B2 1922 556/740t, 64.2x5.6x3.4m, 2d/em, 1400/420hp, 16.2/10.5kts, 28p, 60m; 1x1-76/45, 4-450TT
C1 3 2 C1 Isaac Peral 1928 915/1143t, 75.3x6.3x4.1m, 2d/em, 2000/750hp, 16.5/8.5kts, 40p, 90m; 1x1-76/45(2,3), 1x1-76/50(4), 6-533TT
3 C2 1928
4 C4 1929
General Mola 2 5 General Mola 1934 970/1239t, 70.5x6.9x4.1m, 2d/em, 3000/1100hp, 17/8kts, 55p, 90m; 2x1-100/43, 2x1-13.2, 8-533TT
6 General Sanjurjo 1934

ESCORTS

PC Uad Lucus 1 1 Uad Martin 1917 547t, 40.8x7.2x2.8m, 1b,1vte, 480hp, 10.5kts, 39p; 1x1-76/50
2 Alhucemas 1918
Uad Kert 3 3 Uad Kert 1917 665t, 45.1x7.2x2.8m, 1b,1vte, 600hp, 11kts, 45p; 1x1-76/50(3,5), 2x1-76/50(4), 1x1-47/50(5)
4 Arcila 1918
5 Xauen 1918
Alcázar 3 6 Alcázar 1919 440t, 41.0x7.3x3.2m, 1b,1vte, 425hp, 11kts, 41p; 1x1-76/50, 1x1-57/42(9), 2x1-47/50(7)
7 Larache 1919
8 Tetuán 1919
APC - 1 1 Finisterre 1894   365t
FPV Condestable Zaragoza 1 1 Contramaestre Castelló 1919 No picture 150t, 24.5x6.0x2.7m, 1b,1vte, 300hp, 11kts, 11p; 1x1-76/50 or 1x1-57/42
Lanzón 2 2 V17 1935 No picture 111t, 26.5x5.4x3.1m, 1pe, 285hp, 12kts
3 V18 1935

OTHER FIGHTING SHIPS

PG Antonio Cánovas del Castillo 3 1 Cánovas del Castillo 1923 1335t, 77.3x10.2x3.4m, 2b,2vte, 1700hp, 15kts, 132p; 4x1-102/45, 2x1-47/50, 3x1-20/65
2 Canalejas 1924
3 Dato 1925
Calvo Sotelo 1 4 Calvo Sotelo 1938 2000t, 92.4x12.2x3.5m, 2b,2gt, 6500hp, 18.5kts, 160p; 2x1-102/45, 2x1-57/42, 3x1-20/65, 2DCR; 500troops
PR Cabo Fradera 1 1 Cabo Fradera 1928 45t, 22.8x4.4x1.2m, 2pe, 121hp, 10.7kts, 16p; 1x1-42/42

COASTAL FORCES

PT Falange 1 1 LT11 1932 58t, 27.9x4.5x1.5m, 3d/1pe, 3000/100hp, 33.8kts, 13p; 1x1-20/65, 2-533TT, 3m or 6DC
Núm11 2 2, 3 LT15, 16 1937 17t, 19.1x3.3x1.2m, 2pe, 2000hp, 50kts, 7p; 2-533TT
Núm21 6 4 LT21 1943 115t, 34.9x5.3x1.7m, 3d, 7500(4,5,8,9)-6000(6,7)hp, 41(4,5,8,9)-39(6,7)kts, 24p; 2x1-20/65, 2-533TT, 2DCR, 6m
5 LT22 1943
6 LT23 1942
7 LT24 1942
8 LT25 1943
9 LT26 1943
YP DAR11 12 1-12 LAS11-18, 23-26 1937 - 1938 No picture 20t, 13.0x2.9x0.8m, 1pe, 800hp, 30kts, 7p, 1DCR
YP(Ta) C.I 18 1-18 C1, 2-4, 6-16, 18-21 1922-1925 No picture 36t, 22.8x4.0x1.4m, 2d, 180hp, 12kts, 6p
I1 5 19 I1 1923 No picture 128t, 33.5x2.6x1.8m, 2d, 600hp, 13kts; 1x1-47/50 or 1x1-42/42
20 I2 1923
21 I3 1923
22 I4 1923
23 I6 1923

MINE WARFARE SHIPS AND CRAFTS

ML Júpiter 4 1 Júpiter 1937 2600t, 96.0x12.7x3.5m, 4b,2gt, 10000hp, 18.5kts, 180p; 4x1-120/45, 2x1-88/45(2), 2x1-76/40(1,3,4), 3x1-20/65, 264m, 2DCR
2 Vulcano 1937
3 Marte 1938
4 Neptuno 1939
Eolo 2 5 Eolo 1941 1925t, 88.9x11.8x3.7m, 2b,2gt, 5000hp, 19.5kts, 220p; 4x1-105/44, 2x2-37/83, 4x1-20/65, 70m, 2DCT
6 Tritón 1943
MS Virgen de la Caridad 1 1 Virgen de la Caridad (TS) 1919 1094t, 70.4x8.8x2.9m, 2b,2vte, 1600hp, 13.2kts, 97p; 3x1-102/45, 2x1-20/65
