World navies yesterday

1945

NETHERLANDS 01 January 1945

AIRCRAFT CARRYING SHIPS

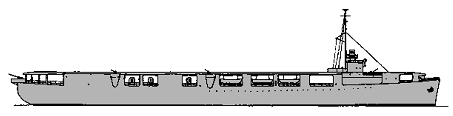

ACVE Gadila 2 1 Gadila 1935 16000t, 141.1x18.1x8.4m, 1d, 4400hp, 12.7kts, 118p; 1x1-102/40, 2x1-40/56, 6x1-20/70, 4aircraft (Swordfish II); radars: type 271, 279
2 Macoma 1936

CRUISERS

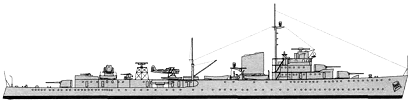

CL Tromp 2 1 Tromp 1938 4817(1)-4860(2)t, 132.0x12.4x4.6m, 4b,2gt, 56000hp, 33.5kts, 480p; (16+30)belt, 25deck, 25turrets, 12CT; 3x2-150/50(1), 5x2-102/45(2), 2x1-76/40(1), 2x2-40/56(1), 1x4-40/39(2), 4x1-20/70(1), 6x1-20/70(2), 2x1-12.7(1), 2x3-533TT(1), 2DCR(2); radar: SC-3(1), SG(1), Mk3(1), type 271(2), 281(2), 285(2)
2 Jacob van Heemskerck 1941

TORPEDO SHIPS

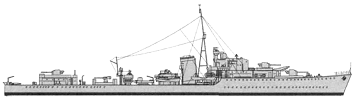

DD Van Galen 2 1 Van Galen 1942 2384t, 108.7x10.9x4.2m, 2b,2gt, 40000hp, 36kts, 218p; 3x2-120/45, 1x4-40/39, 6x1-20/70(1), 4x1-20/70(2), 2x5-533TT, 4DCT, 2DCR; radar: type 271, 285, 290, sonar
2 Tjerk Hiddes 1942

SUBMARINES

SS K XI 1 1 K XI 1925 688/828t, 66.7x6.2x3.8m, 2d/em, 2400/654hp, 17/8kts, 31p, 60m; 1x1-88/45, 1x1-12.7, 2-533TT, 4-450TT
O12 1 2 O15 1932 610/754t, 60.4x6.8x3.6m, 2d/em, 1800/620hp, 16/8kts, 31p, 60m; 1x1-12.7, 5-533TT
K XIV 2 3 K XIV 1933 865/1045t, 73.6x6.5x3.9m, 2d/em, 3200/960hp, 17/9kts, 38p, 80m; 1x1-88/45, 1x1-20/70, 6-533TT; radar: type 291W
4 K XV 1933
O19 1 5 O19 1939 1116/1561t, 80.9x7.4x3.9m, 2d/em, 5300/1000hp, 19.5/9kts, 40p, 100m; 1x1-88/45, 1x1-40/40, 1x1-20/70, 1x1-12.7, 8-533TT, 40m; radar: type 291
O21 3 6 O21 1940 990/1205t, 77.7x6.8x4.0m, 2d/em, 5000/1000hp, 19.5/9kts, 39p, 100m; 1x1-88/45, 1x1-20/70, 1x1-12.7, (6+1x2)-533TT
7 O23 1940
8 O24 1940
Dolfijn 1 9 Dolfijn 1942 646/732t, 60.0x4.9x3.9m, 2dg, 2em, 615/825hp, 11.2/10kts, 36p, 60m; 1x1-76/45, 4-533TT; radar: type 286PW
Zeehond 1 10 Zeehond 1933 730/927t, 61.7x7.3x3.6m, 2d/em, 1550/1440hp, 13.7/10kts, 38p, 60m; 1x1-76/45, 1x1-20/70, 6-533TT
Zwaardvis 1 11 Zwaardvis 1943 1327/1571t, 83.4x8.1x4.5m, 2d/em, 2500/1450hp, 15.2/9kts, 61p, 95m; 1x1-102/40, 1x1-20/70, 11-533TT; radar: type 267W

ESCORTS

SL Van Kinsbergen 1 1 Van Kinsbergen 1939 2388t, 103.2x11.6x3.1m, 2b,2gt, 17000hp, 25.5kts, 220p; 13belt, 20deck, 20CT; 4x1-120/50, 1x1-75/55, 1x2-40/56, (2x2+2x1)-20/70, 2x2-12.7, 2x4-178 Mousetrap, 8DCT, 2DCR
FF Johan Maurits van Nassau 1 1 Johan Maurits van Nassau 1943 1994t, 91.8x11.2x3.9m, 2b,2vte, 5500hp, 20kts, 140p; 2x1-102/40, (4x2+2x1)-20/70, 1x24-178 Hedgehog, 8DCT, 2DCR; radar: type 272, 291
PC Queen Wilhelmina 1 1 Queen Wilhelmina 1942 335t, 52.9x7.1x2.4m, 2d, 2880hp, 20kts, 59p; 1x1-76/50, 1x1-40/56, 5x1-20/70, 2x4-178 Mousetrap, 2DCT, 2DCR
Z5 1 2 Z5 1917 310t, 58.5ppx6.1x1.7m, 2b,2vte, 3000hp, 22kts, 34p; 2x1-75/30, 2x1-12.7

OTHER FIGHTING SHIPS

PG Flores 2 1 Flores 1926 1793t, 76.4x11.5x3.6m, 4b,2vte, 2000hp, 15kts, 132p; 50slopes, 25deck, 80shields, 50CT; 3x1-150/50, 1x1-75/55(2), 1x2-40/56(1), 1x1-40/39(1), 4x1-20/70(1), 6x1-20/70(2), 2x2-12.7
2 Soemba 1926

COASTAL FORCES

PT TM51 1 1 TM51 1939 37t, 21.3x6.1x1.4m, 3pe, 3300hp, 40kts, 10p; 2x1-20/80, 2-450TT, 2DCR
TM22 4 2 - 5 TM22, 28 - 30 1942 45t, 21.3x6.1x1.2m, 3pe, 4200hp, 48kts, 12p; 2x2-12.7, 4-450TT, 2DCR
MTB222 5 6 - 10 MTB229 Gier, MTB231 Stormvogel, MTB235 Sperwer, MTB236 Havik, MTB240 Buizerd 1942 47t, 22.1x5.8x1.3m, 3pe, 3750hp, 37kts, 13p; (1x2+1x1)-20/70, 2-533TT, 2DCR; radar: type 286
MTB418 5 11 - 15 MTB418, 432, 433, 436, 437 1942 - 1944 46t, 21.9x6.3x1.3m, 3pe, 3600hp, 38kts, 17p; 1x1-57/43, 1x2-20/70, 2-450TT, 2DCR; radar: type 291
PS OJR1 2 1, 2 H7, 8 1942 No picture 48t, 21.3x5.0x1.4m, 2pe, 2600hp, 24kts, 12p; 1x1-20/70, 2x1-12.7, 2DCT
YP TM22 2 1, 2 PMB26, 33 1942 - 1943 45t, 21.3x6.1x1.2m, 3pe, 4200hp, 48kts, 12p; 2x2-12.7, 2DCR

MINE WARFARE SHIPS

ML Hydra 1 1 Medusa 1911 670t, 49.7x9.0x2.8m, 2b,2vte, 900hp, 11kts, 59p; 3x1-75/55, 2x1-12.7, 70m
Van Meerlant 1 2 Douwe Aukes 1922 748t, 54.8ppx8.7x3.2m, 2b,2vte, 1000hp, 13kts, 60p; 1x1-75/55, 2x1-40/39, 2x1-20/70, 60m
Jan van Brakel 1 3 Jan van Brakel 1936 955t, 58.7x10.0x3.3m, 2b,2vte, 1600hp, 15kts, 65p; 2x1-76/50, 6x1-20/70, 2DCR, 60m; radar: type 271
Willem van der Zaan 1 4 Willem van der Zaan 1939 1407t, 75.2x11.2x3.3m, 2b,2vte, 2200hp, 15.5kts, 92p; 2x1-120/50, 1x4-40/39, 2x2-12.7, 2DCR, 90m, 1seaplane (C.XIW)
MS Jan van Amstel 2 1 Abraham Crijnssen 1937 585t, 56.8x7.8x2.0m, 2b,2vte, 1600hp, 15kts, 45p; 1x1-76/40, 2x1-20/70, 40m, MS
2 Jan van Gelder 1937
Texel 8 3 Marken 1941 295t, 36.4x7.1x2.7m, 1d, 480hp, 10.5kts, 20p; 1x1-20/70, 1x2-12.7, MS, MgS, AS
4 Putten 1943
5 Texel 1942
6 Vlieland 1942
7 Ameland 1942
8 Terschelling 1943
9 Beveland 1943
10 Rozenburg 1943
Tholen 8 11 Tholen 1943 430t, 42.7x8.5x3.2m, 1d, 500hp, 10kts, 21p; 2x1-20/70, MS, MgS, AS
12 Walcheren 1943
13 Wieringen 1943
14 Ijsselmonde 1943
15 Voorne 1943
16 Overflakkee 1944
17 Duiveland 1944
18 Schokland 1944
AMS - 12 1 Claesje 1933   229t
2 Dirkje 1934   233t
3 Goeree 1920   168t
4 En Avant 1911   264t
5 Ewald 1912   209t
6 Gerberdina Johanna 1912   255t
7 Maria Elizabeth 1914   310t
8 Noordsvaarder 1897   179t
9 Vikingbank 1927   335t
10 Enen 1929   257t; 1x1-76/40
11 Femern 1930   257t; 1x1-76/40
12 Toern 1932   257t; 1x1-76/40
MSB Smeroe 3 1 - 3 Smeroe, Merbaboe, Rindjani 1941 No picture 80t, 22.7x4.4x1.5m, 1d, 135hp, 10kts, 14p; MS

NAVAL AVIATION (approximately, maximal number of delivered planes signed)

Deck planes TB: 34 Swordfish II (delivery till 1945)





© Ivan Gogin, 2011-14
