World navies yesterday

1945

Germany 01 January 1945

IN SERVICE: 1 battleship-predreadnought, 1 monitor, 7 seaplane tenders, 4 catapult vessels, 4 heavy cruisers, 3 light cruisers, 17 destroyers, 36 torpedo boats, 430 submarines, 745 midget submarines, 2 frigates, 12 corvettes, 103 patrol ships, 440 auxiliary patrol vessels, 24 auxiliary submarine chasers, 1 dispatch vessel, 8 floating AA batteries, 4 gunboats, 1 river monitor, 1 river patrol ship, 2 command ships, 1 floating torpedo battery, 1 fighter direction ship, 2 auxiliary AA vessels, 2 auxiliary river AA vessels, 169 motor torpedo boats, 333 motor anti-submarine boats, 117 patrol launches, 5 patrol hydrofoils, 2 river patrol launches, 554 small tank landing ships, 1581 landing craft, 75 small landing support ships, 21 auxiliary small landing support vessels, 67 minelayers, 8 auxiliary minelayers, 1 auxiliary river minelayer, 146 minesweepers, 67 auxiliary minesweepers, 8 auxiliary river minesweepers, 312 minesweeping boats, 2 mine destruction vessels, 25 auxiliary mine destruction vessels, 1 auxiliary river mine destruction vessel

CAPITAL SHIPS

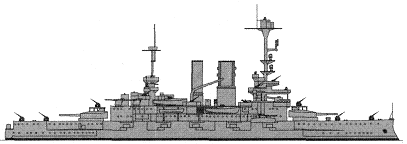

BB Deutschland 1 1 Schlesien 1908 13994t, 127.6x22.2x8.3m, 12b,3vte, 20540hp, 18.6kts, 743p; 240belt, 40deck, 280turrets, 300CT; 2x2-283/40, 6x1-105/45, 10x1-40/56, (4x4+3x2)-20/65
MON Biber 1 1 Biber 1917 2854t, 129.5x27.0x2.2m, 2vte, 465hp, 3.3kts, 743p; 2900concrete belt, 40deck, 110turret; 1x2-381/40, 4x1-76/40, 2x1-40/39

AIRCRAFT CARRYING SHIPS

AV Krischan II 1 1 Gunther Plüschow 1935 700t, 53.8x8.3x2.7m, 2d, 3200hp, 19kts, 30p; 1x1-37/83, 2seaplanes (Ar196)
Greif 1 2 Greif 1937 1000t, 72.0x10.6x2.7m, 2d, 4400hp, 16kts, 63p; 1x1-20/65, 3seaplanes (Ar196)
Karl Meyer 3 3 Max Stinsky 1941 1351t, 78.0x10.8x3.2m, 4d(2), 8800hp, 21.5kts, 66p; 1x1-105/45, 2x1-37/83, 2x1-20/65, 3seaplanes (Ar196)
4 Immelmann 1941
5 Boelcke 1942
Hans Albrecht Wedel 2 6 Hans Albrecht Wedel 1941 1375t, 83.8x11.0x3.1m, 4d(2), 8800hp, 21.5kts, 66p; 1x1-105/45, (2x4+2x1)-20/65(6), 2x4-20/65(7), 3seaplanes (Ar196)
7 Richthofen 1943
AVC Sperber 1 1 Sperber 1938 1086t, 70.3x14.6x1.6m, 2d, 640hp, 8kts, 34p; 2x1-20/65, 1seaplane (BV138)
Friesenland 1 2 Friesenland 1937 11500t, 140.5x16.6x6.0m, 2d, 5800hp, 16kts, 49p; 4x1-20/65, 1seaplane (BV138)
Bussard 2 3 Bussard 1942 2040t, 98.3x14.0x2.2m, 2d, 1800hp, 12kts, 54p; 2x1-20/65(3), 3x1-20/65(4), 1seaplane (BV138)
4 Falke 1942

CRUISERS

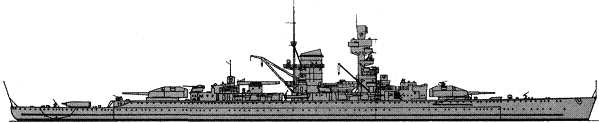

CA Deutschland 2 1 Lützow 1933 14290(1)-15180(2)t, 187.9x20.7(1)-21.3(2)x5.8m, 8d(2), 56800hp, 28kts, 1150p; 80belt, 64(1)-58(2)deck, 150turrets, 150CT; 2x3-283/52, 8x1-149/55, 3x2-105/65, 6x1-40/56(1), 4x1-40/56(2), 2x2-37/83(1), (1x4+6x2+7x1)-20/65(1), (4x4+10x1)-20/65(2), 2x4-533TT, 2seaplanes (Ar196); radar: FuMO22(1), FuMO26(2), FuMO27(2)
2 Admiral Scheer 1934
Admiral Hipper 1 3 Admiral Hipper 1939 18210t, 205.9x21.3x5.8m, 12b,3gt, 132000hp, 32kts, 1600p; 80belt, 80deck, 160turrets, 150CT; 4x2-203/60, 6x2-105/65, 6x1-40/56, 4x2-37/83, (8x2+2x1)-20/65, 4x3-533TT, 3seaplanes (Ar196); radar: FuMO22, FuMO25, FuMO40G
Prinz Eugen 1 4 Prinz Eugen 1940 19042t, 207.7x21.7x6.6m, 12b,3gt, 132000hp, 32kts, 1600p; 80belt, 80deck, 160turrets, 150CT; 4x2-203/60, 6x2-105/65, 6x1-40/56, 4x2-37/83, (3x4+10x1)-20/65, 4x3-533TT, 4seaplanes (Ar196); radar: FuMO25, FuMO26, FuMO27, FuMO81
CL Emden 1 1 Emden 1925 6990t, 155.1x14.3x5.8m, 10b,2gt, 45900hp, 29kts, 650p; 50belt, 40deck, 20shields, 100CT; 8x1-149/48, 3x1-105/45, 2x1-40/56, 2x1-37/83, (2x4+6x2)-20/65, 2x2-533TT, 120m; radar: FuMO22
Königsberg 1 2 Köln 1930 7700t, 174.0x15.2x5.6m, 6b,2gt/2d(2), 65000/1800hp, 32kts, 850p; 65belt, 40deck, 30turrets, 100CT; 3x3-149/60, 3x2-88/76, 2x2-37/83, (2x4+2x1)-20/65, 2x3-533TT, 120m; radar: FuMO22
Nürnberg 1 3 Nürnberg 1935 8900t, 181.3x16.4x4.9m, 8b,3gt+4d(3), 72400hp, 32kts, 896p; 50belt, 25deck, 80turrets, 100CT; 3x3-149/60, 4x2-88/76, 2x1-40/56, 6x2-37/83, (2x4+10x2)-20/65, 2x3-533TT, 120m; radar: FuMO21, FuMO22

TORPEDO SHIPS

DD 1934 1 1 Z4 Richard Beitzen 1937 3156t, 121.3x11.3x4.2m, 6b,2gt, 70000hp, 38.2kts, 315p; 5x1-128/45, 2x2-37/83, (1x4+4x1)-20/65, 2x4-533TT, 4DCT, 60m
1934A 5 2 Z5 Paul Jacobi 1937 3110(2,3)-3190(4)-3165(5,6)t, 121.3(2,4,6)-119.3(3)-121.0(5)x11.3x4.2m, 6b,2gt, 70000(2,3)-67000(4-6)hp, 38.2kts, 315p; 4x1-128/45(2,4,6), 5x1-128/45(3,5), 2x2-37/83(3,5), 4x2-37/69(2), 7x2-37/69(4,6), 2x1-37/57(2), (1x4+4x2+1x1)-20/65(2), (1x4+2x2+6x1)-20/65(3), (1x4+3x2)-20/65(4,6), (1x4+7x2)-20/65(5), 2x4-533TT, 4DCT, 60m
3 Z6 Theodor Riedel 1937
4 Z10 Hans Lody 1938
5 Z14 Friedrich Ihn 1938
6 Z15 Erich Steinbrinck 1938
1936 1 7 Z20 Karl Galster 1939 3415t, 125.1x11.8x4.5m, 6b,2gt, 70000hp, 38.5kts, 330p; 5x1-128/45, 2x2-37/83, 2x1-37/57, (1x4+2x2+5x1)-20/65, 2x4-533TT, 4DCT, 60m
1936A 4 8 Z25 1940 3543(8)-3519(9)-3691(10,11)t, 127.0x12.0x3.9m, 6b,2gt, 70000hp, 36kts, 332p; (1x2+3x1)-149/48(8), 4x1-149/48(9-11), 2x2-37/83, (2x4+5x1)-20/65(8,10,11), (1x4+7x1)-20/65(9), 2x4-533TT, 4DCT, 60m; radar: FuMO21
9 Z28 1941
10 Z29 1941
11 Z30 1941
1936A(Mob) 5 12 Z31 1942 3691t, 127.0x12.0x3.9m, 6b,2gt, 70000hp, 36kts, 332p; (1x2+3x1)-149/48, 2x2-37/83(12), (2x4+2x1)-20/65(12), (2x4+4x1)-20/65(13-16), 2x4-533TT, 4DCT, 60m; radar: FuMO21
13 Z33 1943
14 Z34 1943
15 Z38 1943
16 Z39 1943
1936B 1 17 Z43 1944 3542t, 127.0x12.0x3.5m, 6b,2gt, 70000hp, 36kts, 335p; 5x1-128/45, 2x2-37/69, (3x4+2x2)-20/65, 2x4-533TT, 4DCT, 60m; radar: FuMO25
TB V150 1 1 Eduard Jungmann (TS) 1908 691t, 72.5x7.8x3.0m, 4b,2vte, 10900hp, 30kts, 84p; 1x1-88/45, 2x1-20/65
G192 1 2 T196 1911 810t, 74.0x7.9x3.0m, 4b,2t, 18200hp, 32kts, 76p; 2x1-105/45, 2x1-20/65
G7 4 3 T107 (TS) 1912 884t, 76.1x7.6x3.1m, 3b,2t, 16000hp, 30kts, 74p; 1x1-105/45, 2x1-20/65, (1x2+1x1)-500TT, 18m
4 T108 (TS) 1912
5 T110 (TS) 1912
6 T111 (TS) 1912
T1 8 7 T1 1939 1088(7-11)-1082(12-14)t, 84.3(7,8,10,11)-87.1(9,12-14)x8.6x2.3m, 4b,2gt, 31000hp, 35kts, 119p; 1x1-105/45, 1x1-40/56(13), 2x2-37/69(9), 1x2-37/69(11,14), 1x1-37/57(7,12), 2x1-37/57(13), 3x1-20/65(7,8,10,12), (2x4+4x1)-20/65(9,11,13,14), 1x3-533TT(7,9,11,12,14), 2x3-533TT(8,10), 2DCT, 30m
8 T3 1940
9 T4 1940
10 T5 1940
11 T8 1939
12 T9 1940
13 T11 1940
14 T12 1940
1937 7 15 T13 1941 1098t, 85.2x8.9x2.5m, 4b,2gt, 31000hp, 35kts, 155p; 1x1-105/45, 1x1-40/56(15), 1x1-37/83, (2x4+3x1)-20/65(15,17,18), (1x4+5x1)-20/65(16,19-21), 1x3-533TT(15), 2x3-533TT(16-21), 2DCT, 30m; radar: FuMO28
16 T14 1941
17 T16 1941
18 T17 1941
19 T19 1941
20 T20 1942
21 T21 1942
1939 5 22 T23 1942 1754t, 102.5x10.0x2.7m, 4b,2gt, 29000hp, 32.5kts, 206p; 4x1-105/45, 2x2-37/83(22,23), 2x2-37/69(24-26), (3x4+3x1)-20/65(23), (1x4+2x2)-20/65(23), (1x4+5x1)-20/65(24-25), 2x3-533TT, 2DCT, 50m; radar: FuMO21, FuMO63(24-26)
23 T28 1943
24 T33 1944
25 T35 1944
26 T36 1944
TA24 6 27 TA24 1943 1110t, 83.5x8.6x2.9m, 2b,2gt, 22000hp, 28kts, 94p; 2x1-100/47, 1x1-40/56(29), 1x2-37/69(29), (3x2+4x1)-20/65(27,28,30-32), 4x2-20/65(29), 2x3-533TT, 2DCT, 28m; radar: FuMO28
28 TA29 1944
29 TA40 1944
30 TA41 1944
31 TA42 1944
32 TA45 1944
TA32 1 33 TA32 1932 2884t, 113.2x10.7x3.6m, 3b,2gt, 42000hp, 30kts, 220p; 4x1-105/45, 4x2-37/54, (7x4+4x2)-20/65, 1x3-533TT, 40m; radar: FuMO25
TA48 1 34 TA48 1914 324t, 57.8x5.8x1.8m, 2b,2t, 5000hp, 20kts, 35p; 2x1-75/60, 4x1-13.2, 1x2-450TT
TA43 1 35 TA43 1939 1681t, 98.0x9.5x3.2m, 3b,2gt, 40000hp, 38kts, 145p; 4x1-105/45, (2x2+4x1)-37/54, (1x4+4x2+4x1)-20/65, 1x3-533TT, 30m; radar: FuMO25
TA44 1 36 TA44 1931 2975t, 109.3x11.2x3.3m, 4b,2gt, 50000hp, 32kts, 170p; 3x2-120/50, 2x1-37/54, 2x1-20/70, 5x1-20/65, 1x3-533TT, 2DCT, 52m; radar: FuMO21

SUBMARINES

SS IIB 6 1 U8 1935 279/328t, 42.7x4.1x3.9m, 2d/em, 700/360hp, 13/6.9kts, 22p, 80m; 1x1-20/65, 3-533TT
2 U11 1935
3 U14 1936
4 U17 1935
5 U120 1940
6 U121 1940
VIIA 2 7 U29 1936 626/915t, 64.5x5.9x4.4m, 2d/em, 2310/750hp, 17/8kts, 44p, 100m; (1x2+2x1)-20/65, 5-533TT
8 U30 1936
IIC 7 9 U56 1938 291/341t, 43.9x4.1x3.8m, 2d/em, 700/410hp, 12/7kts, 22p, 80m; 1x1-20/65, 3-533TT
10 U57 1938
11 U58 1939
12 U59 1939
13 U60 1939
14 U61 1939
15 U62 1939
VIIB 4 16 U46 1938 753/1040t, 66.5x6.2x4.7m, 2d/em, 3200/750hp, 17.9/8kts, 44p, 100m; (1x2+2x1)-20/65, 5-533TT
17 U48 1939
18 U52 1939
19 U101 1940
IXA 2 20 U37 1938 1032/1153t, 76.5x6.5x4.7m, 2d/em, 4400/1000hp, 18.2/7.7kts, 48p, 100m; 1x1-37/83, 2x2-20/65, 6-533TT
21 U38 1938
UA 1 22 UA 1939 1128/1357t, 86.7x6.8x4.1m, 2d/em, 4600/1300hp, 18/8.4kts, 45p, 100m; 1x1-105/45, 2x1-20/65, 6-533TT
IID 13 23 U137 1940 314/364t, 44.0x4.9x3.9m, 2d/em, 700/410hp, 12.7/7.4kts, 22p, 80m; 1x1-20/65, 3-533TT
24 U139 1940
25 U140 1940
26 U141 1940
27 U142 1940
28 U143 1940
29 U145 1940
30 U146 1940
31 U148 1940
32 U149 1940
33 U150 1940
34 U151 1941
35 U152 1941
VIIC 162 36 U71 1940 769/1070t, 67.1x6.2x4.7m, 2d/em, 3200/750hp, 17.7/7.6kts, 56p, 100m; 1x1-37/69, (1x4+2x1)-20/65 or (2x2+2x1)-20/65, 5-533TT(36,39-71,73-94,97-197), 3-533TT(37,38,95,96), 4-533TT(72); radar: FuMO61 or FuMO65
37 U72 1940
38 U78 1941
39 U96 1940
40 U235 1942
41 U236 1943
42 U237 1943
43 U242 1943
44 U244 1943
45 U245 1943
46 U246 1944
47 U248 1943
48 U249 1943
49 U251 1941
50 U255 1941
51 U260 1942
52 U267 1942
53 U275 1942
54 U278 1943
55 U281 1943
56 U285 1943
57 U286 1943
58 U287 1943
59 U290 1943
60 U291 1943
61 U307 1942
62 U309 1943
63 U310 1943
64 U312 1943
65 U313 1943
66 U315 1943
67 U316 1943
68 U339 1942
69 U348 1943
70 U349 1943
71 U350 1943
72 U351 1941
73 U363 1943
74 U367 1943
75 U368 1944
76 U369 1943
77 U370 1943
78 U393 1943
79 U396 1943
80 U397 1943
81 U398 1943
82 U399 1944
83 U425 1943
84 U427 1943
85 U428 1943
86 U429 1943
87 U430 1943
88 U475 1943
89 U480 1943
90 U481 1943
91 U483 1943
92 U485 1944
93 U486 1944
94 U552 1940
95 U554 1941
96 U555 1941
97 U560 1941
98 U579 1941
99 U612 1942
100 U636 1942
101 U637 1942
102 U650 1942
103 U668 1942
104 U676 1943
105 U677 1943
106 U679 1943
107 U680 1943
108 U681 1944
109 U682 1944
110 U683 1944
111 U704 1941
112 U708 1942
113 U711 1942
114 U712 1942
115 U714 1943
116 U716 1943
117 U717 1943
118 U720 1943
119 U721 1943
120 U722 1943
121 U733 1942
122 U739 1943
123 U745 1943
124 U746 1943
125 U747 1943
126 U748 1943
127 U749 1943
128 U750 1943
129 U758 1942
130 U760 1942
131 U763 1943
132 U764 1943
133 U773 1944
134 U774 1944
135 U775 1944
136 U776 1944
137 U778 1944
138 U779 1944
139 U822 1944
140 U825 1944
141 U826 1944
142 U901 1944
143 U903 1943
144 U904 1943
145 U905 1944
146 U907 1944
147 U922 1943
148 U923 1943
149 U924 1943
150 U926 1944
151 U927 1944
152 U928 1944
153 U953 1942
154 U956 1943
155 U958 1943
156 U963 1943
157 U965 1943
158 U968 1943
159 U975 1943
160 U977 1943
161 U978 1943
162 U979 1943
163 U982 1943
164 U989 1943
165 U991 1943
166 U992 1943
167 U994 1943
168 U1051 1944
169 U1052 1944
170 U1053 1944
171 U1055 1944
172 U1056 1944
173 U1057 1944
174 U1058 1944
175 U1101 1943
176 U1102 1944
177 U1131 1944
178 U1132 1944
179 U1161 1943
180 U1162 1943
181 U1192 1943
182 U1193 1943
183 U1194 1943
184 U1195 1943
185 U1196 1943
186 U1197 1943
187 U1198 1943
188 U1199 1943
189 U1201 1944
190 U1202 1944
191 U1203 1944
192 U1204 1944
193 U1205 1944
194 U1206 1944
195 U1207 1944
196 U1208 1944
197 U1210 1944
VIID 1 198 U218 1942 965/1080t, 76.9x6.4x5.0m, 2d/em, 3200/750hp, 16.7/7.3kts, 46p, 100m; 1x1-37/69, 2x2-20/65, 5-533TT, 15m
IXC 4 199 U155 1941 1120/1232t, 76.8x6.8x4.7m, 2d/em, 4400/1000hp, 18.2/7.3kts, 48p, 100m; 1x1-37/69, 2x2-20/65, 6-533TT
200 U510 1941
201 U516 1942
202 U518 1942
XB 2 203 U219 1942 1763/2177t, 89.8x9.2x4.7m, 2d/em, 4800/1100hp, 17/7kts, 52p, 100m; 1x1-37/69, 2x2-20/65, 2-533TT, 66m
204 U234 1944
UD2 1 205 UD2 1931 546/610t, 60.4x6.8x3.6m, 2d/em, 1800/620hp, 16/8kts, 34p, 80m; 1x1-20/65, 5-533TT
UD3 2 206 UD4 1941 990/1205t, 77.7x6.8x4.0m, 2d/em, 5000/1000hp, 19.5/9kts, 39p, 100m; 1x1-88/45(207), 1x2-20/65(206), 2x1-20/65(207), 6-533TT
207 UD5 1942
IXC/40 38 208 U170 1943 1120/1257t, 76.8x6.9x4.7m, 2d/em, 4400/1000hp, 18.2/7.3kts, 48p, 100m; 1x1-37/69, 2x2-20/65, 6-533TT; radar: FuMO61 or FuMO65
209 U183 1942
210 U189 1942
211 U190 1942
212 U530 1942
213 U532 1942
214 U534 1942
215 U539 1943
216 U541 1943
217 U546 1943
218 U548 1943
219 U802 1943
220 U804 1943
221 U805 1944
222 U806 1944
223 U843 1943
224 U853 1943
225 U857 1943
226 U858 1943
227 U866 1943
228 U868 1943
229 U869 1944
230 U870 1944
231 U878 1944
232 U879 1944
233 U880 1944
234 U881 1944
235 U889 1944
236 U1221 1943
237 U1223 1943
238 U1227 1943
239 U1228 1943
240 U1230 1944
241 U1231 1944
242 U1232 1944
243 U1233 1944
244 U1234 1944
245 U1235 1944
IXD-1 1 246 U195 1942 1610/1799t, 87.6x7.5x5.4m, 2d/em, 2800/1100hp, 15.8/6.9kts, 57p, 100m; 1x1-37/69, 2x2-20/65; 252t cargo fuel
IXD-2 8 247 U181 1942 1610/1799t, 87.6x7.5x5.4m, 2d+2d/em, 5560/1000hp, 19.2/6.9kts, 57p, 100m; 1x1-37/69, 2x2-20/65; 6-533TT; radar: FuMO61 or FuMO65
248 U861 1943
249 U862 1943
250 U864 1943
251 U873 1944
252 U874 1944
253 U875 1944
254 U876 1944
VIIC/41 77 255 U293 1943 769/1070t, 67.2x6.2x4.8m, 2d/em, 3200/750hp, 17.7/7.6kts, 44p, 120m; 1x1-37/69, 2x2-20/65, 5-533TT
256 U294 1943
257 U295 1943
258 U296 1943
259 U298 1943
260 U299 1943
261 U300 1943
262 U318 1943
263 U320 1943
264 U321 1944
265 U323 1944
266 U324 1944
267 U325 1944
268 U326 1944
269 U327 1944
270 U328 1944
271 U827 1944
272 U828 1944
273 U929 1944
274 U930 1944
275 U995 1943
276 U997 1943
277 U999 1943
278 U1001 1943
279 U1002 1943
280 U1003 1943
281 U1004 1943
282 U1005 1943
283 U1007 1944
284 U1008 1944
285 U1009 1944
286 U1010 1944
287 U1014 1944
288 U1016 1944
289 U1017 1944
290 U1018 1944
291 U1019 1944
292 U1020 1944
293 U1021 1944
294 U1022 1944
295 U1023 1944
296 U1024 1944
297 U1063 1944
298 U1064 1944
299 U1065 1944
300 U1103 1944
301 U1104 1944
302 U1105 1944
303 U1106 1944
304 U1107 1944
305 U1108 1944
306 U1109 1944
307 U1110 1944
308 U1163 1943
309 U1165 1943
310 U1167 1943
311 U1168 1944
312 U1169 1944
313 U1170 1944
314 U1171 1944
315 U1172 1944
316 U1271 1944
317 U1272 1944
318 U1273 1944
319 U1274 1944
320 U1275 1944
321 U1276 1944
322 U1277 1944
323 U1278 1944
324 U1279 1944
325 U1301 1944
326 U1302 1944
327 U1303 1944
328 U1304 1944
329 U1305 1944
330 U1306 1944
331 U1307 1944
VIIF 1 332 U1061 1943 1084/1181t, 77.6x7.3x4.9m, 2d/em, 3200/750hp, 17.6/7.9kts, 46p, 100m; 1x1-37/83, 1x2-20/65, 5-533TT; 26 spare torpedoes
XVIIA Wa201 2 333 U792 1943 277/309t, 39.0x4.5x4.3m, 1d//2Wsgt/1em(1), 230//5000/77hp, 9/25kts, 12p, 80m; 2-533TT
334 U793 1944
XVIIA Wk202 2 335 U794 1943 236/259t, 36.6x4.5x4.6m, 1d//2Wsgt/1em(1), 230//5000/77hp, 9/24kts, 12p, 80m; 2-533TT
336 U795 1944
UIT24 1 337 UIT24 1939 1043/1290t, 73.0x7.2x5.1m, 2d/em, 3600/1100hp, 17.4/8kts, 57p, 100m; 1x2-20/65, 8-533TT
UIT25 1 338 UIT25 1940 1175/1465t, 76.5x6.8x4.7m, 2d/em, 3600/1500hp, 17.8/8.2kts, 57p, 90m; 1x2-20/65, 8-533TT
XVIIB 1 339 U1405 1944 312/337t, 41.5x4.5x4.3m, 1d//Wsgt/em, 230//2500/77hp, 8.5/25kts, 12p, 80m; 2-533TT; radar: FuMO65
XXI 62 340 U2501 1944 1621/1819t, 76.7x8.0x6.3m, 2d//em/em, 4000//4400/226hp, 15.6/17.2kts, 57p, 135m; 2x2-30/73 or 2x2-20/65, 6-533TT
341 U2502 1944
342 U2503 1944
343 U2504 1944
344 U2505 1944
345 U2506 1944
346 U2507 1944
347 U2508 1944
348 U2509 1944
349 U2510 1944
350 U2511 1944
351 U2512 1944
352 U2513 1944
353 U2514 1944
354 U2515 1944
355 U2516 1944
356 U2517 1944
357 U2518 1944
358 U2519 1944
359 U2520 1944
360 U2521 1944
361 U2522 1944
362 U2523 1944
363 U2525 1944
364 U2526 1944
365 U2527 1944
366 U2528 1944
367 U3001 1944
368 U3002 1944
369 U3003 1944
370 U3004 1944
371 U3005 1944
372 U3006 1944
373 U3007 1944
374 U3008 1944
375 U3009 1944
376 U3010 1944
377 U3011 1944
378 U3012 1944
379 U3013 1944
380 U3014 1944
381 U3015 1944
382 U3019 1944
383 U3020 1944
384 U3501 1944
385 U3502 1944
386 U3503 1944
387 U3504 1944
388 U3505 1944
389 U3506 1944
390 U3507 1944
391 U3508 1944
392 U3509 1944
393 U3510 1944
394 U3511 1944
395 U3512 1944
396 U3513 1944
397 U3514 1944
398 U3515 1944
399 U3516 1944
400 U3517 1944
401 U3518 1944
XXIII 29 402 U2321 1944 234/258t, 34.7x3.0x3.7m, 1d//em/em, 630//580/35hp, 9.7/12.5kts, 14p, 80m; 2-533TT
403 U2322 1944
404 U2324 1944
405 U2325 1944
406 U2326 1944
407 U2327 1944
408 U2328 1944
409 U2329 1944
410 U2330 1944
411 U2331 1944
412 U2332 1944
413 U2333 1944
414 U2334 1944
415 U2335 1944
416 U2336 1944
417 U2337 1944
418 U2338 1944
419 U2339 1944
420 U2340 1944
421 U2341 1944
422 U2343 1944
423 U2344 1944
424 U2345 1944
425 U2346 1944
426 U2347 1944
427 U2348 1944
428 U2349 1944
429 U2350 1944
430 U2351 1944
SSX Biber 324 1 - 324 ? 1944 6/6t, 9.0x1.6x1.4m, 1pe/em, 32/13kts, 6.5/5.3kts, 1p, 20m; 2-533TR
XXVIIA Hecht 53 325 - 377 U2111 - 2113, 2251 - 2300 1944 12/17t, 10.5x1.3x1.4m, 1em, 12hp, 5.6/6kts, 2p, 30m; 1-533TR
Molch ~200 378 - 577 ? 1944 11/11t, 10.8x1.8x1.8m, 1em, 14hp, 4.3/5kts, 1p, 30m; 2-533TR
XXVIIB Seehund 167 578 - 744 U5001 - 5065, 5251 - 5352 1944 15/17t, 11.9x1.7x1.5m, 1d/em, 60/25hp, 7.7/6kts, 2p, 50m; 2-533TR
Elephant 1 745 Seeteufel 1944 30/35t, 14.2x2.0x2.5m, 1pe/em, 80/12hp, 10/6kts, 2p, 21m; 2-533TR

ESCORTS

FF SG1 2 1 SG1 1942 2100t, 95.0x11.8x3.2m, 2d, 4140hp, 16.7kts, 178p; 3x1-105/45(1), 2x1-105/45(2), 2x2-37/83, 6x2-20/65
2 SG4 1943
FS F1 1 1 F4 1936 1147t, 80.3x8.8x2.6m, 2b,2gt, 14000hp, 21kts, 121p; 2x1-105/45, 2x2-37/83, 4x1-20/65, 4DCR, 62m
KUJ41 6 2 UJ1430 1943 970t, 58.7x8.4x3.5m, 1b,1vte, 960hp, 12.8kts, 61p; 1x1-88/45, 1x1-37/83, (1x4+3x1)-20/65, 6DCT
3 UJ1431 1944
4 UJ1432 1944
5 UJ1708 1944
6 UJ1225 1944
7 UJ1222 1944
Ape 5 8 UJ206 1944 743t, 64.4x8.7x2.5m, 2d/em, 3500/150hp, 18kts, 112p; 1x1-100/47, 2x1-37/54(8), 10x1-20/70(8), 3x1-20/70(9-12), 2x2-20/65, 8DCT, 2DCR(9-12)
9 UJ2221 1943
10 UJ2222 1944
11 UJ2226 1942
12 UJ2227 1942
PC Kürassier 4 1 NK04 Kürassier 1896 94(14)-107(15-17)t, 39.9(14)-40.0(15-17)x4.8(14)-4.9(15-17)x2.2(14)-2.1(15-17)m, 2b,1vte, 1000(14)-650(15-17)hp, 17(14)-17.5(15-17)kts, 32p; 2x1-37/45, 1DCR
2 V5519 Tarantel 1900
3 V6501 1902
4 Admiral Deinhard 1901
Schlange 2 5, 6 NO21 Schlange, NO22 Eidechse 1905 - 1906 75t, 36.2x4.5x1.8m, 2b,1vte, 1000hp, 23kts, 19p; 2x1-37/45, 1DCR
Schildkröte 4 7 - 10 NO24 Schildkröte, NO25 Seestern, NO26 Qualle, NO23 Krokodil 1901 - 1904 64t, 34.5x4.4x1.6m, 2b,2vte(1), 700hp, 12kts, 18p; 2x1-37/45, 1DCR
KT2 3 11 - 13 KT2, NK03 Musketier, NK05 Husar 1897 - 1898 65t, 35.0x3.8x1.7m, 2b,1vte, 650hp, 15kts, 22p; 2x1-37/40, 1DCR
Seepferd 1 14 NO27 Seepferd 1895 65t, 34.0x3.8x1.8m, 2b,1vte, 650hp, 12kts, 9p; 1DCR
MZ1 1 15 MZ1 1944 315t, 52.0x8.3x2.0m, 1d, 1098hp, 13.6kts, 53p; 2x1-88/45, 1x1-37/57, (1x4+2x2)-20/65, 3x1-86AAR, 2-533TT, 6DCR, MS
Elbe 2 16 Elbe 1931 870t, 58.0x8.5x3.7m, 2d, 1600hp, 14kts, 65p; 1x1-88/45, 1x1-37/83
17 Weser 1931
Diana 1 18 Vs801 1917 No picture 310t, 38.0x6.5x2.6m, 1b,1vte, 400hp, 11kts, 26p; 1x1-20/65
Tyr 1 19 HV11 1878 284t, 27.8x8.2x2.0m, 2b,2vce, 120hp, 7kts, 30p; 1x1-37/83, 2x1-37/40, 1x1-13.2
Löwe 1 20 V6735 1937 279t, 39.8x6.5x2.3m, 1dg,1em, 830hp, 13.7kts, 41p; 1x1-76/28
Beskytteren 1 21 Beskytteren 1900 445t, 43.4x7.5x3.6m, 1b,1vte, 680hp, 9kts
Lindormen 1 22 V1601 1940 645t, 53.3x8.8x2.5m, 2b,2vte, 1200hp, 14kts, 66p; 2x1-75/55, 3x1-20/60
Kvintus 2 23 Kvintus 1918 No picture 199t, 28.9x6.3x2.4m, 2dg,2em, 600hp, 12kts, 26p; 2x1-37/38
24 Sixtus 1919
Greta 2 25 Hs21 1916 450t, 41.5x6.9x2.8m, 1b,1vte, 400hp, 10kts, 31p; 1x1-88/45
26 DC46 1917
Max Kochen 1 27 Vs802 1918 No picture 495t, 36.4x7.3x3.1m, 1b,1vte, 400hp, 11kts, 31p; 1x1-88/45
Seelöwe 1 28 Vs314 1918 No picture 600t, 38.2x7.1x3.7m, 1b,1vte, 420hp, 10kts, 31p; 1x1-88/45
Mob-FD 6 29 V6308 1940 869(29,30)-885(31-34)t, 57.8(29,30)-58.9(31-34)x8.4x4.0(29,30)-3.8(31-34)m, 1b,1vte, 700(29,30)-800(31-34)hp, 11kts, 70p; 1x1-88/45, 1x1-37/83, (1x4+5x1)-20/65, 4DCT
30 UJ1206 1941
31 UJ1201 1941
32 V814 1941
33 UJ1207 1942
34 UJ1712 1942
TR 1 35 NN02 1919 630t, 38.5x7.3x3.8m, 1b,1vte, 500hp, 10kts; 1x1-76/40
Kärnten 8 36 V6609 1941 No picture 510t, 41.3x7.8x4.3m, 1b,1vte, 1300hp, 12kts, 48p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
37 V6310 1941
38 V6610 1941
39 V6409 1941
40 V5310 1942
41 V6304 1942
42 V6119 1943
43 V6306 1943
Polarkreis 5 44 V6312 1941 No picture 700t, 39.7x7.7x4.0m, 1b,1vce, 1300hp, 12kts, 51p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
45 V5903 1941
46 V5902 1941
47 V5906 1942
48 V6110 1942
Polarstern 9 49 V6311 1941 632t, 41.9x7.6x4.1m, 1b,1vte, 1300hp, 13.5kts, 54p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
50 V6103 1941
51 V6313 1941
52 V5308 1941
53 V5309 1942
54 Lome 1942
55 V5311 1942
56 V5907 1942
57 V6301 1942
Mücke 1 58 V5303 1942 No picture 42.9x8.0xm, 1b,1vce, 1300hp, 13.4kts, 55p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
Steiermark 6 59 V6608 1941 711t, 44.8x8.2x3.3m, 1b,1vte, 1300hp, 12kts, 53p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
60 V5904 1941
61 V6314 1942
62 V6607 1942
63 V5905 1943
64 V6701 1944
Tirol 4 65 V5713 1941 1060t, 51.9x8.7x4.8m, 1b,1vte, 1285hp, 12kts, 55p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
66 V6408 1942
67 V6615 1943
68 V6616 1944
Seeteufel 4 69 V5301 1941 1100t, 53.6x8.8x4.2m, 2b,1vte, 2400hp, 15kts, 65p; 1x1-88/45, 2x1-37/83, 6x1-20/65, 2DCR
70 V5302 1941
71 V5901 1942
72 V6118 1942
Bris 3 73 V315 1942 1250t, 61.0x9.0x4.1m, 1b,1vte, 800hp, 11.5kts, 66p; 1x1-75/36, 2x1-37/83, (2x4+2x1)-20/65, 6DCT, 6DCR
74 V808 1942
75 V1313 1942
Ekwator 5 76 V2017 1943 1250t, 61.0x9.0x4.2m, 1b,1vte, 760hp, 11.5kts, 69p; 1x1-105/45, 1x1-37/83, (2x4+2x1)-20/65, 6DCT
77 V2013 1943
78 V2014 1943
79 V2015 1943
80 V719 1943
Jochen Homann 1 81 V1105 1943 1520t, 61.5x9.3x4.4m, 1b,1vte, 1000hp, 12kts, 60p; 1x1-88/45, 2x1-37/83, (1x4+6x1)-20/65, 2DCR
Alfred I 1 82 V716 1943 2100t, 68.7x10.2x5.0m, 2b,1vte, 1300hp, 12kts; 1x1-88/45, 1x1-37/83, (2x4+6x1)-20/65, 4DCT, 6DCR
Este 6 83 UJ1717 1944 1200t, 56.5x9.2x4.2m, 1b,1vte, 750hp, 12kts; 1x1-88/45, 1x1-37/83, (1x4+3x1)-20/65, 2x1-15, 2DCR
84 UJ1229 1944
85 WBS7 1944
86 UJ1119 1944
87 UJ1434 1944
88 UJ1435 1944
St. Georg 1 89 UJ1109 1944 1150t, 58.7x8.9x4.2m, 1b,1vte, 850hp, 12kts; 1x1-88/45, 1x1-37/83, (1x4+3x1)-20/65, 2x1-15, 2DCR
MFL1 4 90 V807 1944 700t, 46.5x8.0x3.2m, 1d, 600hp, 11.5kts; 1x1-88/45, (2x4+2x1)-20/65, 2DCR
91 V1112 1944
92 V1113 1944
93 V805 1944
TLC(1) 1 94 GD06 1940 372t, 46.2x8.8x1.8m, 2pe, 840hp, 10kts; 1x1-88/45, 2x1-40/56, 1x1-20/65
LCM(3) 1 95 GD05 1943 56t, 15.2x4.3x1.4m, 2d, 450hp, 11kts; 1x1-37/83, 1x1-20/65
Kamerun 2 96 V5908 1940 370t, 52.1x7.1x1.8m, 1b,2vte, 900hp, 12kts, 18p; 1x1-76/50, 2x1-20/65, 20m
97 V6512 1940
Laugen 1 98 NN05 1917 No picture 380t, 43.3x8.5x1.9m, 1b,1vte, 170hp, 9.5kts, 38p; 2x1-76/40, 50m
FM1 1 99 UJ116 1941 193t, 43.0x6.0x1.4m, 1b,1vte, 600hp, 14kts, 35p; 1x1-37/83, 2x1-20/65, 2DCR
MA1 3 100 Vs63 1939 315t, 53.8x6.3x2.0m, 1b,1gt, 2200hp, 19kts, 48p; 1x1-75/55, 1x1-37/83, 2x1-20/65, 2x1-86AARL, 30m
101 Vs64 1942
102 Vs66 1942
RD 1 103 TR106 1922 221t, 38.1x6.0x2.0m, 1b,1vte, 816hp, 12.5kts; 1x1-76/40, 2x1-37/54, 6x1-20/65, 2x1-15, 2x1-13.2
APC - 440 1 V5312 1936   298t
2 V5901 1923   216t; 1x1-76/40
3 NO02 1929   247t
4 V5702 1925   239t; 1x1-76/40
5 V6802 1910   153t; 1x1-76/40
6 V6805 1923   197t
7 V6401 1924   216t
8 V6402 1927   216t
9 V6403 1921   224t
10 V6406 1924   217t
11 NM... 1911   160t
12 NK06 1929   248t; 1x1-76/40
13 V6502 1928   248t; 1x1-76/40
14 V5704 1927   244t; 1x1-76/40
15 V5501 1912   168t
16 V6505 1939   397t; 1x1-88/45
17 V1705 1927   281t
18 V1706 1925   267t
19 V6602 1910   161t; 1x1-76/40
20 V6501 1926   214t; 1x1-76/40
21 V5305 1929   248t; 1x1-76/40
22 NK10 1908   121t
23 V5106 1914   199t
24 V6503 1929   248t
25 V5313 1936   361t
26 V6506 1929   247t; 1x1-76/40
27 V5116 1937   591t
28 V1703 1937   341t
29 V1704 1937   341t
30 V1512 1937   341t
31 Vs520 1927   244t
32 V1709 1925   226t
33 V5704 1930   249t; 1x1-76/40
34 FlJ24 1939   381t
35 FlJ21 1939   381t
36 FlJ23 1939   381t
37 FlJ22 1939   381t
38 WBS10 1929   247t
39 Vs163 1921   279t
40 V2011 1925   279t
41 V302 1929   408t
42 V603 1923   273t
43 NT03 1929   294t
44 V6504 1933   429t
45 V313 1929   290t
46 Vs904 1921   299t
47 V2022 1938   518t
48 Vs152 1920   222t
49 Vs908 1922   279t
50 V1406 1921   215t
51 Vs60 1925   247t
52 V6733 1912   216t
53 V1612 1920   300t
54 Vs302 1924   305t
55 V1812 1920   220t
56 V2007 1922   245t
57 V5915 1937   481t
58 V1809 1920   215t
59 V1402 1920   259t
60 V6105 1938   509t
61 V811 1929   391t
62 V6515 1920   244t
63 V6807 1912   224t
64 V1107 1938   509t
65 Vs905 1921   299t
66 Vs301 1924   279t
67 V1315 1940   497t
68 V809 1929   408t
69 V1407 1920   228t
70 V1102 1943   540t
71 Vs903 1929   301t
72 V1216 1920   244t
73 Vs907 1937   487t
74 V215 1920   253t
75 V311 1921   279t
76 Vs518 1935   464t
77 V6514 1920   530t
78 Vs207 1920   299t
79 V813 1925   265t
80 Vs519 1927   291t
81 V1103 1939   525t
82 V6604 1907   254t
83 V310 1924   296t
84 V802 1930   337t
85 DC42 1920   530t
86 H1. 1919   253t
87 Vs406 1922   221t
88 V711 1921   245t
89 Vs902 1921   245t
90 V1419 1908   256t
91 Vs901 1921   245t
92 V804 1930   337t
93 V806 1929   301t
94 V1811 1922   220t
95 V303 1935   464t
96 V1813 1920   299t
97 V5701 1934   428t
98 V2001 1934   435t
99 V6108 1937   481t
100 Vs314 1918   269t
101 V1104 1928   340t
102 V6104 1938   446t
103 V1317 1936   446t
104 V307 1929   425t
105 V5916 1937   481t
106 V204 1934   437t
107 Vs1002 1933   196t
108 Vs1011 1934   192t
109 DW06 1933   163t
110 Vs1225 1909   144t
111 Vs216 1922   174t
112 Vs53 1938   344t
113 Vs1005 1934   196t
114 Vs502 1906   136t
115 DW01 1938   203t
116 Vs1004 1933   196t
117 V5114 1934   193t
118 Vs154 1922   181t
119 Vs158 1922   174t
120 DC22 1936   177t
121 Vs509 1909   144t
122 Vs1502 1933   193t
123 DB18 1933   197t
124 DB16 1933   197t
125 Vs1009 1934   196t
126 Vs1504 1934   194t
127 V620 1939   298t
128 V5113 1934   203t
129 Vs417 1906   114t
130 DB13 1933   193t
131 Vs159 1911   169t
132 Vs1006 1933   255t
133 Vs129 1908   166t
134 Vs507 1914   127t
135 DC03 1934   163t
136 Vs1012 1933   255t
137 V1255 1938   298t
138 Vs521 1933   193t
139 V1253 1936   264t
140 Vs503 1906   136t
141 Vs313 1908   144t
142 V1217 1916   116t
143 V5115 1934   191t
144 V1213 1936   238t
145 Vs1501 1934   191t
146 Vs93 1933   163t
147 DW43 1913   134t
148 DC51 1922   181t
149 Vs1007 1934   196t
150 V1906 1939   144t
151 Vs1503 1933   193t
152 DC09 1933   164t
153 Vs832 1909   144t
154 Vs1003 1934   192t
155 DC01 1938   200t
156 Vs55 1938   344t
157 Vs1013 1933   196t
158 V1208 1934   191t
159 DB56 1915   112t
160 Vs505 1909   137t
161 DK02 1914   123t
162 Vs511 1907   121t
163 V625 1939   298t
164 Vs522 1933   196t
165 DC02 1934   174t
166 DW05 1933   163t
167 Vs833 1908   144t
168 Vs508 1916   116t
169 Vs245 1909   144t
170 Vs162 1905   115t
171 Vs1506 1934   191t
172 DC50 1908
173 Vs513 1914   127t
174 Vs1505 1933   193t
175 DW02 1934   168t
176 Vs311 1907   138t
177 Vs56 1938   325t
178 Vs1008 1933   193t
179 NH04 1938   325t
180 Vs1010 1933   196t
181 FO05 1917   105t
182 Vs57 1938   325t
183 Vs157 1922   181t
184 V1206 1933   193t
185 Vs160 1910   169t
186 V5111 1934   191t
187 V1207 1934   194t
188 Vs83 1922   174t
189 V1205 1936   212t
190 Vs206 1938   325t
191 DW44 1914   120t
192 DC37 1938   208t
193 Vs58 1938   325t
194 DC21 1938   208t
195 Vs312 1909   166t
196 DB30 1938   325t
197 Vs161 1911   169t
198 D45 1925   127t
199 DC04 1933   164t
200 Vs1253 1923   147t
201 Vs1001 1928   210t
202 Vs504 1933   174t
203 DC08 1938   203t
204 FBo27 1910   136t
205 V5112 1934   191t
206 V1231 1906   146t
207 Vs155 1922   181t
208 Vs244 1915   123t
209 Vs510 1908   144t
210 Vs1251 1912   138t
211 V1413 1905
212 V5520 1936   130t
213 V6114 1936   466t
214 DB32 1931   186t
215 NB41 1892   124t
216 HD01 1914   215t
217 V1404 1932   146t
218 V6409 1915   112t
219 Vs70 1908   221t
220 HH11 1920   169t
221 V1816 1900   207t
222 Vs73 1911   221t
223 NSa22 1899   101t
224 V1817 1905   287t
225 V1232 1916   221t
226 V6513 1915   187t
227 FL03 1916   289t
228 V1804 1919   336t
229 Vs144 1892   151t
230 NM.. 1901   108t
231 V6407 1907   299t
232 V6111 1936   452t
233 V1217 1903   181t
234 V6412 1937   122t
235 HD03 1912   255t
236 V6603 1891   129t
237 V6509 1914   175t
238 NB06 1892   154t
239 Vs68 1903   181t
240 V1215 1925   221t
241 V1414 1906   213t
242 HD05 1903   179t
243 V423 1904   320t
244 FL05 1898   170t
245 V5108 1939   100t
246 V1216 1925   221t
247 NT08 1914   175t
248 FGi05 1893   198t
249 V626 1937   117t
250 V6417 1933   178t
251 FL02 1908   318t
252 NB.. 1906   251t
253 Vs1426 1918   124t
254 V1242 1902   169t
255 FLa05 1898   117t
256 V6605 1916   137t
257 Vs72 1902   173t
258 Vs71 1916   220t
259 V1607 1907   418t
260 V1410 1924   335t
261 V5720 1916   143t
262 V5102 1912   158t
263 V5103 1906   246t
264 V6808 1906   289t
265 V6804 1914   142t
266 V1420 1914   192t
267 V6511 1936   452t
268 NK08 1906   146t
269 HD06 1901   149t
270 V1403 1935   156t
271 V5106 1914   199t
272 NS.. 1907   122t
273 FGi07 1916   132t
274 ND26 1914   133t
275 FK37 1920   169t
276 V201 1918   330t
277 FP04 1891   131t
278 V6503 1914   186t
279 NM17 1875   131t
280 V1806 1906   253t
281 FL06 1908   302t
282 V1240 1901   157t
283 V1603 1932   321t
284 V6411 1915   177t
285 V5721 1914   151t
286 V1239 1916   179t
287 V1238 1908   221t
288 V6606 1900   225t
289 V5104 1918   289t
290 HH08 1899   168t
291 HH06 1903   164t
292 Vs127 1913   104t
293 Vs87 1916   131t
294 FO03 1916   138t
295 Vs69 1903   187t
296 Vs1511 1916   171t
297 Vs264 1902   121t
298 HH03 1938   125t
299 V628 1938   348t
300 HH10 1919   105t
301 Vs88 1916   112t
302 Vs1444 1935   118t
303 Vs414 1910   146t
304 Vs265 1915   113t
305 Vs1418 1914   109t
306 FP07 1916   111t
307 Vs89 1916   113t
308 Vs111 1916   145t
309 Vs140 1903   119t
310 Vs338 1930   130t
311 HHa05 1913   113t
312 Vs90 1916   136t
313 Vs86 1914   118t
314 DC11 1916   111t
315 DB53 1914   108t
316 DC12 1918   111t
317 DB55 1911   106t
318 Vs1513 1915   113t
319 DW10 1912   112t
320 DW04 1915   115t
321 Vs142 1917   117t
322 Vs215 1925   111t
323 Vs145 1916   135t
324 HI06 1916   141t
325 Vs124 1904   107t
326 Vs339 1916   339t
327 HI05 1915   105t
328 Vs413 1916   112t
329 Vs1424 1914   141t
330 Vs164 1917   209t
331 Vs141 1915   113t
332 HR72 1917   113t
333 HF33
334 V1262 1916   112t
335 Vs258 1913   113t
336 V1261 1907   141t
337 Vs1445 1916   141t
338 Vs240 1916   125t
339 Vs268 1914   141t
340 NO11 1913   110t
341 V5508 1918   222t
342 Wachschiff 9 1920   1142brt, 58.9x11.9x5.9m, sails
343 NO30 1900   424t
344 Vs1201 1939   186t
345 Vs84 1906   728t
346 Vs1016 1892   108t
347 ND13 1890   219t
348 Vs1017 1911   148t
349 Vs403 1896   143t
350 NB15 1926   178t
351 V5507 1908   128t
352 ND30 1906   273t
353 V6601 1937   199t
354 G103 1914   176t
355 G202 1928   220t
356 V6415 1878   158t
357 NS34 1878   144t
358 V5504 1908   206t
359 IV54 1905   232t
360 V5509 1911   153t
361 V5503 1909   138t
362 IV53 1908   396t
363 Wachschiff 1 1929   265t
364 V5515 1912   149t
365 NS10 1875   100t
366 HA01 1936   317t
367 V5505 1914   135t
368 GN3 1922   114t
369 DB05 1939   200t
370 Vs514 1936   276t
371 HR27 1928   143t
372 FN01 1931   399t
373 NO36     108t
374 IV56 1943   157t
375 HF12 1937   199t
376 HF24 1924   180t
377 Vs95 1924   113t
378 GN1 1918   365t
379 Vs1551 1925   123t
380 HR30 1928   149t
381 DB20 1926   143t
382 HR57 1910   121t
383 DB06 1929   137t
384 HI.. 1926   158t
385 FGi01 1932   171t
386 FN03 1939   422t
387 FP01 1939   358t
388 HF35 1939
389 HF34 1926   181t
390 HR29 1908   137t
391 V1615 1927   114t
392 DB07 1934   200t
393 DB19 1936   192t
394 FlJ26 1935   209t
395 FlJ25 1936   209t
396 DC43 1927   220t
397 H414 1934   141t
398 V1418 1920   265t
399 V1803 1936   281t
400 V1417 1913   488t
401 V1300 1924   585t
402 HI01 1923   338t
403 NB42 1939   100t
404 NB41 1892   124t
405 12M3 1911   120t
406 H5 1917   109t
407 FBo04 1911   100t
408 HV06 1895   453t
409 V6114 1927   2200t, 73.0x11.6x4.4m, 2b,1vte, 750hp, 9.5kts
410 ND30 1938   498t
411 NH33 1906   101t
412 V5513 1913   176t
413 NH32 1935   110t
414 V5719 1917   132t
415 V5511 1936   150t
416 V6515 1940   398t
417 DW08 1939   210t
418 V1244 1929   323t
419 DC11 1929   323t
420 DC05 1938   197t
421 H452 1938   211t
422 DC07 1935   200t
423 DC13 1939   219t
424 DB43 1939   245t
425 DB45 1937   200t
426 DB46 1937   199t
427 DB51 1939   212t
428 DB52 1939   199t
429 H453 1938   212t
430 H450 1938   199t
431 DC06 1938   227t
432 DB47 1935   333t
433 DB41 1936   347t
434 H653 1938   360t
435 DB49 1937   332t
436 DB44 1940   212t
437 SM141 1924   800t; 1x1-75/36
438 HA5 1924   880t
439 HA6 1924   870t
440 HA7 1928   925t
ASC - 24 1 UJ1121 1935   581t; 1x1-75/35
2 UJ1710 1937   361t
3 UJ1414 1936   331t
4 UJ1101 1937   487t
5 UJ1706 1937   487t
6 UJ1401 1940   540t
7 UJ1755 1907   256t
8 UJ1208 1942   497t
9 UJ1707 1938   465t
10 UJ1757 1902   224t
11 UJ1104 1936   464t
12 UJ1716 1934   438t
13 UJ1756 1906   197t
14 UJ1102 1936   464t
15 UJ1709 1940   497t
16 UJ1105 1937   481t
17 UJ1425 1941   142t
18 UJ1751 1902   167t
19 UJ1423 1907   283t
20 UJ1424 1941   248t
21 UJ1754 1888   126t
22 UJ1753 1890   177t
23 UJ1752 1908   140t
24 UJ2220 1940   1700brt, 64.8x9.8x4.4m, 2d, 1600hp, 15kts; 1x1-100/47, 4x1-20/65, 2DCT

OTHER FIGHTING SHIPS

DV V180 1 1 Blitz 1910 783t, 73.9x7.9x3.1m, 4b,2t, 18000hp, 32kts, 84p; 2x1-20/65
FAAB Medusa 2 1 Medusa 1901 3100t, 105.1(1)-105.0(2)x12.2(1)-12.4(2)x5.4(1)-5.5(2)m, 0hp, 249p; 50slopes, 25deck, 50shields, 80CT; 5x1-105/65, 1x2-37/83, 4x1-20/65; radar: Würzburg
2 Arcona 1903
Adler 1 3 Adler 1909 3783t, 87.1x15.6x5.0m, 6b,2vte, 4200hp, 15.5kts; 195belt, 65deck, 190CT; 6x1-105/45, 4x1-40/56, 4x4-20/65
Nordland 1 4 Nordland 1923 4100t, 90.0x16.3x4.7m, 4b,2vte, 5800hp, 16kts, 200p+400; 195belt, 55deck, 170CT; 3x1-105/45, 2x2-37/83, (1x4+2x1)-20/65
Nymphe 2 5 Nymphe 1898 3858t, 92.7x14.8x5.0m, 3b,2vte, 4500hp, 14kts; Harvey; 203belt, 51deck; 6x1-105/45, 2x1-40/56, (2x4+6x1)-20/65
6 Thetis 1898
Ariadne 2 7 Ariadne 1904 4371t, 96.6(7)-100.8(8)x15.1x5.8m, towed; Harvey; 152belt, 51deck; 8x1-105/45, (2x2+1x1)-40/56, 4x4-20/65; radar: Würzburg D
8 Undine 1908
PG Meteor 1 1 Meteor 1924 1504t, 71.1x10.2x3.6m, 2d, 2200hp, 14.5kts, 124p; 1x1-88/45, 2x1-20/65
K1 2 2 K1 1941 1420t, 77.9x10.2x2.9m, 2d, 2770(2)-1760(3)hp, 15.5(2)-14.5(3)kts, 161p; 60belt, 35deck, 60turrets, 20CT; 2x2-120/45, 2x2-37/83, (2x4+2x2)-20/65, 8DCT, 80m
3 K3 1942
Lorelei 1 4 K4 Lorelei 1943 2306t, 98.5x10.5x3.3m, 2b,2gt, 21700hp, 28.5kts, 180p; 3x1-105/45, 2x1-40/56, 1x2-37/83, (3x4+2x2)-20/65, 120m, MS
RMON Bechelaren 1 1 Bechelaren 1932 300t, 49.0x6.0x1.2m, 2d, 1800hp, 18kts, 46p; 10belt, 5deck, 8turrets; 2x1-66/35, 1x1-37/83, 1x1-20/65
PCR Kriemhild 1 1 Kriemhild 1940 693t, 67.0x9.5x1.2m, 2d, 880hp, 10.8kts, 32p+74; 3x1-40/56, 8x1-12.7, 1x1-81/12mor; 220t cargo
AGF Grille 1 1 Grille 1935 3430t, 142.9x13.5x3.8m, 4b,2gt, 22000hp, 26kts, 257p; 3x1-105/45, 2x2-37/83, 4x1-20/65
Hela 1 2 Hela 1940 2520t, 99.8x12.7x3.5m, 2d, 4720hp, 16.3kts, 259p; 2x1-105/45, 1x1-37/83, 2x1-20/65
AFTB - 1 1 C318 Pmot 1938   296t; 2-533TT
ARAAV - 2 1 Albert Leo Schlageter 1936   295t
2 Ernst Moritz Arndt 1928   220t
AFDS - 1 1 Togo 1938 12700t, 134.0x17.9x7.9m, 1d, 5100hp, 16kts; 3x1-105/45, 4x2-37/83, (3x4+7x1)-20/65; radar: FuMO215, FuMO303
AAAV - 2 1 Hummel 1889   2850t, 82.0x11.3x5.1m, 2b,1vte, 600hp
2 Aar 1932   237t

COASTAL FORCES

PT S6 1 1 S6 1933 68t, 32.4x5.1x1.4m, 3d, 3960hp, 32kts, 12p; 2x1-20/65, 2-533TT, 2DCR
S7 3 2 - 4 S7 - 9 1934 - 1935 86t, 32.4x5.1x1.4m, 3d, 3960hp, 36.5kts, 23p; 2x1-20/65, 2-533TT, 2DCR
S10 4 5 - 8 S10 - 13 1935 92t, 32.4x5.1x1.4m, 3d, 3960hp, 35kts, 23p; 2x1-20/65, 2-533TT, 2DCR
S14 2 9 S15 1937 105t, 34.6x5.3x1.7m, 3d, 6150hp, 37.7kts, 23p; 1x1-40/56 or 1x1-37/83, (1x2+1x1)-20/65, 2-533TT, 2DCR
10 S16 1937
S18 6 11 S19 1938 105t, 34.6x5.3x1.7m, 3d, 6000hp, 39.8kts, 23p; 1x1-40/56 or 1x1-37/83, (1x2+1x1)-20/65, 2-533TT, 2DCR
12 S20 1939
13 S21 1938
14 S22 1939
15 S24 1939
16 S25 1939
S30 6 17 S30 1939 102t, 32.8x5.1x1.5m, 3d, 3960hp, 36kts, 30p; 1x1-40/56 or 1x1-37/83, (1x2+1x1)-20/65, 2-533TT, 2DCR
18 S33 1940
19 S36 1940
20 S58 1940
21 S60 1940
22 S61 1941
S38 44 23 S48 1941 115t, 34.9x5.3x1.7m, 3d, 7500hp, 41kts, 31p; 1x1-40/56 or 1x1-37/83 or 1x4-20/65, 1x2-20/65, 1x1-20/65 or 1x3-15, 2-533TT, 2DCR, 6m
24 S50 1941
25 S51 1941
26 S62 1941
27 S64 1941
28 S65 1942
29 S67 1942
30 S68 1942
31 S69 1941
32 S76 1942
33 S79 1942
34 S81 1942
35 S82 1942
36 S83 1942
37 S85 1942
38 S86 1942
39 S89 1942
40 S90 1942
41 S92 1943
42 S95 1943
43 S97 1943
44 S98 1943
45 S99 1943
46 S101 1940
47 S103 1941
48 S105 1941
49 S107 1941
50 S108 1941
51 S109 1941
52 S110 1941
53 S112 1942
54 S113 1942
55 S115 1942
56 S116 1942
57 S117 1942
58 S118 1942
59 S120 1942
60 S122 1943
61 S123 1943
62 S127 1943
63 S130 1943
64 S132 1943
65 S133 1943
66 S135 1943
LS 1 67 LS12 1944 13t, 12.5x3.5x0.9m, 2d, 1700hp, 40.9kts, 7p; 1x1-15, 2-450TT
S151 2 68, 69 S152, 154 1942 No picture 68t, 28.0x4.5x1.5m, 3d, 2850hp, 37.1kts, 19p; 2x1-20/65, 2-533TT, 2DCR
S139 39 70 S167 1943 122t, 34.9x5.3x1.7m, 3d, 7500hp, 41kts, 31p; 1x1-40/56 or 1x1-37/83 or 1x4-20/65, 1x2-20/65, 1x1-20/65 or 1x3-15, 2-533TT, 2DCR, 6m
71 S168 1943
72 S174 1944
73 S175 1944
74 S176 1944
75 S177 1944
76 S180 1944
77 S181 1944
78 S186 1944
79 S191 1944
80 S193 1944
81 S194 1944
82 S195 1944
83 S196 1944
84 S197 1944
85 S199 1944
86 S201 1944
87 S202 1944
88 S203 1944
89 S204 1944
90 S205 1944
91 S206 1944
92 S207 1944
93 S208 1944
94 S209 1944
95 S210 1944
96 S211 1944
97 S212 1944
98 S214 1944
99 S215 1944
100 S216 1944
101 S219 1944
102 S220 1944
103 S221 1944
104 S222 1944
105 S223 1944
106 S224 1944
107 S225 1944
108 S227 1944
S510 2 109, 110 S510, 513 1941 - 1943 28t, 18.7x4.6x1.5m, 2pe/pe(2), 2300/140hp, 43kts, 10p; 1x1-20/65, 2-450TT, 1DCR
S621 7 111 - 117 S621, 623, 626 - 630 1943 - 1944 70t, 28.0x4.3x1.8m, 3pe/1pe(110-114), 3pe(115,116), 3300/100(110-114)-4500(15)-3300(16)hp, 31(110-114,116)-35(115)kts, 19p; 2x1-20/65, 2-533TT, 4m
MTSMA 40 118 - 157 ? 1943 - 1944 3-4t, (8.28.8)x2.3x0.7m, 2pe, 190hp, 30kts, 2p; 1x1-15, 1-450TT, 1DCR
S170 1 158 S170 1944 124t, 34.9x5.3x1.7m, 3d, 9000hp, 43.6kts, 31p; 1x1-40/56, (1x4+1x2)-20/65, 2-533TT, 2DCR, 6m
S701 6 159 S701 1944 124t, 34.9x5.3x1.7m, 3d, 9000hp, 43.6kts, 31p; 1x1-40/56, (1x4+1x2)-20/65, 2-533TT, 2DCR, 6m
160 S703 1944
161 S704 1944
162 S705 1944
163 S706 1944
164 S707 1944
Kobra 2 165, 166 ? 1944 4t, 9.0x2.5x0.6m, 2pe, 180hp, 29kts, 2p; 1-450TT
Schlitten II 2 167, 168 ? 1944 8.5x1.7x0.6m, 1pe, 600hp, 30kts, 2p; 2x1-86AAR, 2-533TT
WAL 1 169 WAL I 1944 10.0xxm, 1pe, 800hp, 42kts, 2p; 1x1-13.2, 2x1-86AAR, 2-450TT
PS UZ1 7 1 - 7 H1, 108, HS01, JK21, Vs51, 103, 1014 1917 53t, (26.0-27.5)x(3.9-4.3)x(1.0-1.5)m, 2pe or 3pe, 420-640hp, 14-16.4kts, 14p; 2DCR
KFK2 326 8 GD99 1943 110t, 24.0x6.4x2.8m, 1d, 175hp, 9kts, 18p; 1x1-37/83, 2x2-20/65, 8DCR
9 GA91 1943
10 GA92 1943
11 GD121 1943
12 KFK9 1944
13 KFK10 1944
14 GW91 1944
15 GW92 1944
16 GW93 1944
17 UJ314 1943
18 KFK27 1943
19 GN91 1943
20 GN92 1944
21 V221 1943
22 V222 1943
23 V223 1943
24 V224 1943
25 V225 1943
26 V227 1943
27 V228 1943
28 Vs805 1943
29 DB22 1943
30 NB62 1944
31 Vs221 1943
32 V6423 1943
33 V6532 1943
34 NB65 1943
35 V6721 1943
36 Vs222 1943
37 V6723 1943
38 NO43 1943
39 NKi22 1943
40 NO40 1943
41 KFK109 1943
42 DB23 1943
43 V6424 1943
44 V6724 1943
45 V6725 1943
46 V6533 1943
47 V6422 1943
48 V6726 1943
49 V6427 1943
50 V5526 1943
51 V6531 1943
52 Vs806 1943
53 V6428 1944
54 V6516 1943
55 UJ1763 1943
56 KFK125 1943
57 V6534 1943
58 DB26 1943
59 V6421 1943
60 Vs424 1943
61 V6425 1943
62 UJ1766 1943
63 V6722 1943
64 V6535 1943
65 Vs248 1943
66 NO42 1943
67 KFK138 1942
68 Vs130 1942
69 UJ311 1942
70 Vs131 1942
71 Vs132 1942
72 V5521 1942
73 V5522 1942
74 V5523 1942
75 V5524 1942
76 Vs606 1943
77 UJ318 1943
78 Vs914 1943
79 Vs915 1943
80 Vs916 1943
81 Vs917 1943
82 V5530 1943
83 V5532 1943
84 V5534 1943
85 GD92 1943
86 KFK203 1943
87 KFK204 1943
88 V6611 1943
89 V6612 1943
90 DPK39 1943
91 V6703 1943
92 V6705 1943
93 V6507 1943
94 V6508 1943
95 UJ1769 1943
96 UJ1770 1943
97 UJ1771 1943
98 UJ1767 1943
99 V5528 1943
100 V5529 1943
101 V6613 1943
102 V6614 1943
103 NN14 1943
104 NN15 1943
105 V6523 1943
106 V6524 1943
107 Vs219 1943
108 Vs220 1943
109 Vs803 1943
110 Vs804 1943
111 Vs410 1943
112 Vs918 1943
113 Vs919 1943
114 V5538 1943
115 V5525 1943
116 V1219 1943
117 V1220 1943
118 FB10 1943
119 V229 1943
120 V232 1943
121 V1222 1943
122 V1223 1943
123 Vs1521 1943
124 Vs1522 1943
125 Vs1523 1943
126 Vs1524 1943
127 Vs920 1943
128 Vs921 1943
129 Vs425 1943
130 Vs426 1943
131 GP92 1943
132 GD95 1943
133 GD96 1943
134 GD97 1943
135 GD98 1943
136 GK93 1943
137 GK94 1943
138 UJ346 1943
139 Vs1525 1943
140 Vs1526 1943
141 V5539 1943
142 V5540 1943
143 V5541 1943
144 V5542 1943
145 V5543 1943
146 V5544 1943
147 V5545 1943
148 V1538 1943
149 V1539 1943
150 Vs235 1943
151 Vs236 1943
152 Vs260 1943
153 Vs261 1943
154 KFK297 1943
155 Vs342 1943
156 Vs326 1943
157 Vs343 1943
158 Vs327 1943
159 KFK302 1943
160 NO44 1944
161 UJ312 1944
162 Vs1410 1944
163 Vs1411 1944
164 Vs603 1944
165 Vs1401 1944
166 Vs1402 1944
167 Vs1403 1944
168 Vs1404 1944
169 Vs1405 1944
170 Vs1406 1944
171 Vs1407 1944
172 Vs1408 1944
173 Vs1409 1944
174 Vs134 1944
175 Vs166 1944
176 Vs249 1944
177 Vs250 1944
178 Vs328 1944
179 Vs329 1944
180 Vs1412 1944
181 NB61 1944
182 V5506 1944
183 V6811 1944
184 V6812 1944
185 V6813 1944
186 V6814 1944
187 NB29 1943
188 NB30 1943
189 Vs322 1943
190 V238 1944
191 V239 1944
192 V240 1944
193 V242 1944
194 V243 1944
195 V6615 1944
196 V6323 1944
197 V6324 1944
198 UJ1768 1944
199 V1263 1944
200 V1264 1944
201 KFK361 1944
202 Vs223 1944
203 Vs421 1944
204 Vs922 1944
205 KFK369 1944
206 KFK370 1944
207 SM111 1944
208 SM110 1944
209 KFK374 1944
210 V6707 1944
211 NK17 1944
212 NK18 1944
213 HI10 1944
214 HI11 1944
215 HI12 1944
216 V6528 1944
217 KFK383 1944
218 V6529 1944
219 V6511 1944
220 V6512 1944
221 NK15 1944
222 NK16 1944
223 KFK389 1944
224 KFK390 1944
225 V1267 1944
226 V1268 1944
227 V1270 1944
228 Vs251 1944
229 Vs330 1944
230 Vs827 1944
231 Vs923 1944
232 Vs1527 1944
233 Vs1528 1944
234 Vs1531 1944
235 Vs1532 1944
236 Vs135 1944
237 Vs136 1944
238 V632 1944
239 V633 1944
240 V634 1944
241 V635 1944
242 V430 1944
243 HI14 1944
244 V6326 1944
245 V637 1944
246 V638 1944
247 V641 1944
248 FO24 1944
249 FN12 1944
250 FK46 1944
251 HI15 1944
252 HI16 1944
253 HI17 1944
254 V6527 1944
255 V6708 1944
256 NO55 1944
257 NO56 1944
258 Vs224 1944
259 Vs333 1944
260 Vs828 1944
261 Vs924 1944
262 V432 1944
263 Vs225 1944
264 Vs346 1944
265 Vs427 1944
266 Vs925 1944
267 V6709 1944
268 V6710 1944
269 KFK489 1944
270 KFK490 1944
271 DW38 1944
272 UJ1440 1944
273 UJ1441 1944
274 UJ1442 1944
275 UJ1443 1944
276 UJ1444 1944
277 UJ1445 1944
278 V6717 1944
279 V6718 1944
280 V6720 1944
281 NKi714 1944
282 NS39 1944
283 Vs613 1944
284 Vs1533 1944
285 NB67 1944
286 V6325 1944
287 Vs1534 1944
288 KFK516 1944
289 HOe1 1944
290 HOe2 1944
291 HOe3 1944
292 KFK520 1944
293 KFK521 1944
294 Such I 1944
295 V1227 1944
296 Hako 8 1944
297 KFK529 1944
298 UJ301 1944
299 KFK533 1944
300 KFK534 1944
301 V630 1944
302 V631 1944
303 V6326 1944
304 UJ305 1944
305 UJ306 1944
306 UJ307 1944
307 NB75 1944
308 NB76 1944
309 UJ302 1944
310 UJ303 1944
311 UJ304 1944
312 UJ308 1944
313 UJ309 1944
314 KFK554 1944
315 KFK555 1944
316 KFK556 1944
317 KFK557 1944
318 Hako 7 1944
319 UJ310 1944
320 DW32 1944
321 DW33 1944
322 V1256 1944
323 V1257 1944
324 V1258 1944
325 V1259 1944
326 DW23 1944
327 DW24 1944
328 DW25 1944
329 NO46 1944
330 V5533 1944
331 Vs824 1944
332 Vs825 1944
333 Vs826 1944
YP SA1 6 1 - 6 FH24, 25, FC40, FK2, 58, 59 1941 - 1942 No picture 30t, 20.2x5.0x0.9m, 4pe/2pe(2), 2400/200hp, 40kts, 18p; 1x1-37/50, 1x1-13.2
Frigga 10 17 - 26 Vs1607 - 1616 1942 - 1944 No picture 60t, 18.0x5.4x2.8m, 1d, 180hp, 9.5kts
Fjordboot 85 27 - 111 Fjordboot 1 - 85 1941 - 1944 85t, 16.5x4.5x1.9m, 1d, 100-160hp, 9-12kts, 3-4p; 1x1-20/65
KFK1 1 112 V5502 1943 No picture 23t, 12.8x4.5x1.9m, 1d; 1x1-20/65
F 1 113 H106 1918 21t, 17.5x4.0x1.1m, 2pe, 120hp, 10kts, 7p
MS2 4 114 - 117 Vs820, 1211 - 1213 1941 No picture 74t, 24.6x4.9x1.3m, 1d, 220hp, 11kts, 10p; 1x1-20/65
YPH TS1 5 1 - 5 TS1 - 5 1942 - 1943 7t, 12.0x2.7x0.9m, 1pe, 2000hp, 40kts, 4p; 1x1-15
YPR Spatz 1 1 Panther 1932 17t, 14.0x2.8x0.9m, 1pe, 225hp, 13kts, 4p; 1x1-37/45
PiSiBoot 42/43 1 2 Boot 01 1944 34t, 19.3x4.3x1.2m, 2pe, 1000hp, 23.8kts, 23p; 10belt, 10deck, 50turret; 1x1-37/83, 1x3-15

AMPHIBIOUS

LCU s.F.40 27 1 s.F.201 1940 190t, 21.8x14.2x1.2m, 4pe+3ape, 1632hp, 7.5kts, 12p; 60t cargo or 120troops
2 s.F.202 1940
3 s.F.203 1940
4 s.F.204 1940
5 s.F.205 1940
6 s.F.206 1940
7 s.F.207 1940
8 s.F.208 1940
9 s.F.209 1940
10 s.F.210 1940
11 s.F.211 1940
12 s.F.212 1941
13 s.F.213 1941
14 s.F.214 1941
15 s.F.215 1941
16 s.F.216 1941
17 s.F.217 1941
18 s.F.218 1941
19 s.F.219 1941
20 s.F.220 1941
21 s.F.221 1941
22 s.F.222 1941
23 s.F.223 1941
24 s.F.224 1941
25 s.F.225 1941
26 s.F.226 1941
27 s.F.227 1941
s.F.41 4 28 s.F.243 1941 200t, 21.8x14.2x1.2m, 4pe+1ape, 352hp, 5.9kts, 12p; 70t cargo or 250troops
29 s.F.244 1941
30 s.F.245 1942
31 s.F.246 1942
SF40/41 259 32 SF01 1941/44 210t, 24.3x13.7x1.2m, 2pe, 420hp, 6.6kts, 29p; 1x1-37/83, 2x1-20/65 or 1x4-20/65; 80t cargo
33 SF02 1941/44
34 SF03 1941/44
35 SF05 1941/44
36 SF06 1941/44
37 SF07 1941/44
38 SF08 1941/44
39 SF09 1941/44
40 SF11 1941/44
41 SF12 1941/44
42 SF13 1941/44
43 SF14 1941/44
44 SF15 1941/44
45 SF17 1941/44
46 SF18 1941/44
47 SF19 1941/44
48 SF20 1941/44
49 SF21 1941/44
50 SF22 1941/44
51 SF23 1941/44
52 SF24 1941/44
53 SF26 1941/44
54 SF27 1941/44
55 SF30 1941/44
56 SF31 1941/44
57 SF33 1941/44
58 SF34 1941/44
59 SF39 1941/44
60 SF40 1941/44
61 SF41 1941/44
62 SF42 1941/44
63 SF43 1941/44
64 SF44 1941/44
65 SF46 1941/44
66 SF47 1941/44
67 SF48 1941/44
68 SF49 1941/44
69 SF50 1941/44
70 SF51 1941/44
71 SF52 1941/44
72 SF54 1941/44
73 SF55 1941/44
74 SF57 1941/44
75 SF58 1941/44
76 SF59 1941/44
77 SF60 1941/44
78 SF61 1941/44
79 SF62 1941/44
80 SF63 1941/44
81 SF64 1941/44
82 SF65 1941/44
83 SF66 1941/44
84 SF67 1941/44
85 SF68 1941/44
86 SF69 1941/44
87 SF70 1941/44
88 SF71 1941/44
89 SF72 1941/44
90 SF73 1941/44
91 SF74 1941/44
92 SF75 1941/44
93 SF76 1941/44
94 SF77 1941/44
95 SF79 1941/44
96 SF80 1941/44
97 SF81 1941/44
98 SF82 1941/44
99 SF83 1941/44
100 SF84 1941/44
101 SF85 1941/44
102 SF88 1941/44
103 SF89 1941/44
104 SF90 1941/44
105 SF91 1941/44
106 SF92 1941/44
107 SF93 1941/44
108 SF95 1941/44
109 SF96 1941/44
110 SF97 1941/44
111 SF100 1941/44
112 SF101 1941/44
113 SF102 1941/44
114 SF103 1941/44
115 SF106 1941/44
116 SF107 1941/44
117 SF111 1941/44
118 SF113 1941/44
119 I/5 Deneb 1941/44
120 I/1 Nordstern 1941/44
121 I/2 Merkur 1941/44
122 I/3 Jupiter 1941/44
123 I/4 Mars 1941/44
124 SF123 1941/44
125 SF124 1941/44
126 SF125 1941/44
127 SF126 1941/44
128 SF127 1941/44
129 SF128 1941/44
130 SF129 1941/44
131 SF130 1941/44
132 SF131 1941/44
133 SF132 1941/44
134 SF133 1941/44
135 SF134 1941/44
136 SF135 1941/44
137 SF136 1941/44
138 SF137 1941/44
139 SF138 1941/44
140 SF139 1941/44
141 SF141 1941/44
142 SF142 1941/44
143 SF143 1941/44
144 SF144 1941/44
145 I/9 1941/44
146 SF149 1941/44
147 SF155 1941/44
148 SF156 1941/44
149 SF157 1941/44
150 SF158 1941/44
151 SF159 1941/44
152 SF160 1941/44
153 SF163 1941/44
154 SF164 1941/44
155 SF170 1941/44
156 SF171 1941/44
157 SF172 1941/44
158 SF174 1941/44
159 SF178 1941/44
160 SF180 1941/44
161 SF181 1941/44
162 SF182 1941/44
163 SF183 1941/44
164 SF184 1941/44
165 SF185 1941/44
166 SF186 1941/44
167 SF187 1941/44
168 SF188 1941/44
169 SF190 1941/44
170 SF194 1941/44
171 SF198 1941/44
172 SF199 1941/44
173 SF204 1941/44
174 SF212 1941/44
175 SF218 1941/44
176 SF221 1941/44
177 SF224 1941/44
178 SF227 1941/44
179 SF228 1941/44
180 SF229 1941/44
181 SF230 1941/44
182 SF231 1941/44
183 SF233 1941/44
184 SF234 1941/44
185 SF236 1941/44
186 SF237 1941/44
187 SF238 1941/44
188 SF239 1941/44
189 SF240 1941/44
190 F2 1941/44
191 F5 1941/44
192 F4 1941/44
193 SF247 1941/44
194 SF248 1941/44
195 SF249 1941/44
196 SF250 1941/44
197 SF251 1941/44
198 SF252 1941/44
199 SF253 1941/44
200 SF254 1941/44
201 SF255 1941/44
202 SF256 1941/44
203 SF257 1941/44
204 SF258 1941/44
205 SF259 1941/44
206 SF260 1941/44
207 SF261 1941/44
208 SF265 1941/44
209 SF266 1941/44
210 SF275 1941/44
211 SF277 1941/44
212 SF279 1941/44
213 SF280 1941/44
214 SF281 1941/44
215 SF285 1941/44
216 SF286 1941/44
217 SF288 1941/44
218 SF289 1941/44
219 SF290 Konrad 1941/44
220 SF295 1941/44
221 SF296 1941/44
222 SF299 1941/44
223 SF321 1941/44
224 SF322 1941/44
225 SF323 1941/44
226 SF324 1941/44
227 SF325 1941/44
228 SF326 1941/44
229 SF327 1941/44
230 SF328 1941/44
231 SF329 1941/44
232 SF330 1941/44
233 SF331 1941/44
234 SF332 1941/44
235 SF333 1941/44
236 SF335 1941/44
237 SF336 1941/44
238 SF337 1941/44
239 SF338 1941/44
240 SF339 1941/44
241 SF340 1941/44
242 SF341 1941/44
243 SF342 1941/44
244 SF343 1941/44
245 SF344 1941/44
246 SF345 1941/44
247 SF346 1941/44
248 SF347 1941/44
249 SF348 1941/44
250 SF349 1941/44
251 SF350 1941/44
252 SF351 1941/44
253 SF352 1941/44
254 SF353 1941/44
255 SF354 1941/44
256 SF355 1941/44
257 SF356 1941/44
258 SF357 1941/44
259 SF358 1941/44
260 SF359 1941/44
261 SF360 1941/44
262 SF361 1941/44
263 SF362 1941/44
264 SF363 1941/44
265 SF364 1941/44
266 SF365 1941/44
267 SF366 1941/44
268 SF367 1941/44
269 SF368 1941/44
270 SF369 1941/44
271 SF370 1941/44
272 SF371 1941/44
273 SF372 1941/44
274 SF373 1941/44
275 SF374 1941/44
276 SF376 1941/44
277 F1 1941/44
278 F3 1941/44
279 SF381 1941/44
280 SF382 1941/44
281 SF383 1941/44
282 SF384 1941/44
283 SF385 1941/44
284 SF386 1941/44
285 SF387 1941/44
286 SF388 1941/44
287 SF389 1941/44
288 SF390 1941/44
289 SF391 1941/44
290 SF392 1941/44
MFP-A 76 291 F100A 1941 220t, 47.0x6.5x1.5m, 2p+1d(291-294,298)-3d(295-297,299-366), 1300(291-294,298)-390(295-297,299-366)hp, 12.1(291-294,298)-10.5(295-297,299-366)kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; 105t cargo or 3tanks or 200troops
292 F103A 1941
293 F106A 1941
294 F108A 1941
295 F109A 1941
296 F110A 1941
297 F112A 1941
298 F113A 1941
299 F114A 1941
300 F117A 1941
301 F118A 1941
302 F139A 1942
303 F140A 1941
304 F143A 1942
305 F148A 1941
306 F149A 1941
307 F155A 1941
308 F161A 1941
309 F165A 1941
310 F167A 1941
311 F171A 1941
312 F172A 1941
313 F178A 1941
314 F179A 1941
315 F187A 1942
316 F202A 1942
317 F207A 1942
318 F209A 1942
319 F214A 1942
320 F215A 1942
321 F218A 1942
322 F221A 1942
323 F223A 1942
324 F224A 1942
325 F225A 1942
326 F226A 1942
327 F227A 1942
328 F228A 1942
329 F233A 1942
330 F235A 1942
331 F236A 1942
332 F237A 1942
333 F238A 1942
334 F239A 1942
335 F242A 1942
336 F246A 1942
337 F248A 1942
338 F250A 1942
339 F252A 1942
340 F279A 1942
341 F282A 1942
342 F286A 1942
343 F287A 1942
344 F289A 1942
345 F291A 1942
346 F293A 1942
347 F295A 1942
348 F297A 1942
349 F307A 1942
350 F314A 1942
351 F318A 1942
352 F319A 1942
353 F320A 1942
354 F321A 1942
355 F322A 1942
356 F329A 1942
357 SM244 1942
358 F349A 1942
359 F351A 1942
360 F352A 1942
361 F354A 1942
362 F356A 1942
363 F362A 1942
364 F366A 1942
365 F381A 1942
366 F383A 1942
MFP-B 16 367 F197B 1942 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; 105t cargo or 3tanks or 200troops
368 F204B 1942
369 F205B 1942
370 F206B 1942
371 F208B 1942
372 F212B 1942
373 F222B 1942
374 F234B 1942
375 F280B 1942
376 F290B 1942
377 F379B 1943
378 F380B 1943
379 F384B 1942
380 F385B 1942
381 F390B 1942
382 F518B 1942
MFP-C 27 383 F392C 1942 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; 105t cargo or 3tanks or 200troops
384 F393C 1942
385 F397C 1942
386 F403C 1942
387 F404C 1942
388 F407C 1942
389 F408C 1942
390 F410C 1942
391 F452C 1942
392 F453C 1943
393 F455C 1942
394 F457C 1942
395 F470C 1942
396 F487C 1943
397 F490C 1943
398 F499C 1943
399 F500C 1943
400 F506C 1942
401 F507C 1942
402 F508C 1942
403 F510C 1943
404 F511C 1943
405 F512C 1943
406 F516C 1943
407 F517C 1943
408 F540C 1942
409 F545C 1942
MFP-C2 11 410 F480C2 1942 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; 105t cargo or 3tanks or 200troops
411 F497C2 1943
412 F522C2 1943
413 F554C2 1943
414 F555C2 1943
415 F596C2 1943
416 F600C2 1943
417 F605C2 1943
418 F606C2 1943
419 F614C2 1943
420 F617C2 1943
MFP-C2A 1 421 F593C2A 1943 220t, 47.0x6.5x1.5m, 3d, 390hp, 10.5kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; 105t cargo or 3tanks or 200troops
MFP-D 104 422 F802D 1943 239t, 49.8x6.6x1.4m, 3d, 375hp, 10.3kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-88/45, 2x1-37/83, 6x1-20/65; 140t cargo or 3tanks or 200troops
423 F803D 1943
424 F804D 1943
425 F805D 1943
426 F806D 1943
427 F807D 1943
428 F808D 1943
429 F821D 1943
430 F823D 1943
431 F828D 1943
432 F831D 1943
433 F840D 1944
434 F841D 1944
435 F842D 1944
436 F845D 1944
437 F846D 1944
438 F847D 1944
439 F860D 1944
440 F861D 1944
441 F862D 1943
442 F864D 1944
443 F865D 1944
444 F866D 1943
445 F867D 1943
446 F873D 1944
447 F874D 1944
448 F875D 1944
449 F876D 1944
450 F879D 1944
451 F880D 1944
452 F881D 1944
453 F882D 1944
454 F887D 1944
455 F892D 1944
456 F909D 1944
457 F910D 1944
458 F921D 1944
459 F930D 1944
460 F931D 1944
461 F935D 1944
462 F936D 1944
464 F948D 1944
465 F951D 1944
466 F961D 1944
467 F965D 1944
468 F971D 1944
469 F974D 1944
470 F975D 1944
471 F976D 1944
472 F977D 1944
473 F978D 1944
474 F979D 1944
475 F982D 1944
476 F983D 1944
477 F984D 1944
478 F985D 1944
479 F986D 1944
480 F988D 1944
481 F989D 1944
482 F990D 1944
483 F991D 1944
484 F992D 1944
485 F993D 1944
486 F994D 1944
487 F995D 1944
488 F996D 1944
489 F998D 1944
490 F999D 1944
491 F1000D 1944
492 F1001D 1944
493 F1002D 1944
494 F1006D 1944
495 F1007D 1944
496 F1008D 1944
497 F1009D 1944
498 F1010D 1944
499 F1011D 1944
500 F1028D 1944
501 F1029D 1944
502 F1037D 1944
503 F1038D 1944
504 F1041D 1944
505 F1061D 1944
506 F1062D 1944
507 F1063D 1944
508 F1064D 1944
509 F1071D 1944
510 F1072D 1944
511 F1103D 1944
512 F1104D 1944
513 F1105D 1944
514 F1106D 1944
515 F1107D 1944
516 F1155D 1944
517 F1156D 1944
518 F1157D 1944
519 F1165D 1944
520 F1167D 1944
521 F1179D 1944
522 F1191D 1944
523 F1192D 1944
524 F1194D 1944
525 F1195D 1944
MZ-A 5 526 F4711 1942 239t, 47.0x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 65t cargo or 200troops
527 F2724 1942
528 F4744 1942
529 F2703 1942
530 F2759 1942
MZ-B 4 531 F4769 1943 279t, 46.5x6.5x1.0m, 3d, 450hp, 11kts, 13p; 1x1-76/40, 2x1-20/65; 65t cargo or 200troops
532 F4770 1943
533 F2783 1943
534 F4799 1943
PiLB43 2 535 PiLB43/I 1944 225t, 35.5x8.6x1.1m, 3d(535)-2d(536), 360(535)-240(536)hp, 8.3(535)-6(536)kts; 1x1-75/46 or 1x24-82RL, 1x4-20/65; 100t cargo or 250troops
536 PiLB43/II 1944
MNL I 4 537 MNL21 1944 217t, 38.4x5.2x1.3m, 2d, 260hp, 10.6kts, 14p; 1x1-37/83, 1x4-20/65; 90t cargo or 200troops
538 MNL22 1944
539 MNL23 1944
540 MNL24 1944
SF43 13 541 SF301 1944 312t, 32.0x14.7x1.8m, 2pe, 280hp, 10kts, 10p; 3x1-15 or 3x1-20/6'5; 169t cargo
542 SF302 1944
543 SF303 1944
544 SF304 1944
545 SF305 1944
546 SF307 1944
547 SF308 1944
548 SF309 1944
549 SF310 1944
550 SF311 1944
551 SF313 1944
552 SF314 1944
553 SF315 1944
LCT(2) 1 554 Dieppe 1941 453t, 48.8x9.5x2.1m, 3pe, 1050hp, 10.5kts, 27p; 2x1-37/83, 2x1-20/65, 2DCR; 3-7tanks or 250t cargo
LC Siebelgefaß 123 1 - 123 I-A-1, 2, I-O-01 - 04, 09, 11, 13, 14, 17 - 20, 22, 24 - 26, 28, 29, 33, 35 - 40, 43, 49 - 53, 55 - 59, 61, 63, 66, 67, 69 - 71, 75, 76, 80 - 84, 86, 89 - 94, 98 - 100, 106 - 109, 112, 113, 116 - 170 1940 - 1944 20t, 18.5x4.0x0.8m, 1pe(1) -2d or 2pe(2-123), 200(1)-(65-125,2-123)hp, 9.5-11.9kts, 8p; 2x1-15, 1x1-86AARL; 7t cargo or 40troops
PiLB39 56 124 - 179 PiLB2 - 7, 9 - 24, 51 - 53, 55, 56, 58, 62, 64, 65, 68 - 70, 105 - 123, 126 - 128 1940 - 1942 29t, 15.0x4.7x0.7m, 2d, 90hp, 8kts, 7p; 1x1-20/65 or 1x1-37/83 or 1x4-20/65; 20t cargo or 100troops
B-Fähre 40 ~75 180 - 254 ? 1940 11t, 15.5x6.4x0.6m, 2pe, 66hp, 5kts; 1x1-20/65; 3t cargo
H-Fähre 40 ~7 255 - 261 ? 1940 18.0x12.6x1.0m, 3pe+2ape, 1554hp, 9kts, 14p; 1x1-88/45 or 35t cargo
PiLB40 182 262 - 443 PiLB201, 203 - 209, 215 - 227, 253 - 255, 257, 261, 262, 265, 301, 303 - 314, 317, 318, 320 - 335, 351 - 361, 364 - 375, 377, 378, 380 - 385, 387 - 390, 393 - 396, 398 - 401, 403 - 409, 411, 414 - 424, 426 - 463, 465 - 481, 483, 484, 486 - 491 1941 - 1944 50t, 19.0x5.9x0.8m, 2d, 136-180hp, 8-9.2kts, 7p; 1x1-2-/65 or 1x1-37/83 or 1x4-20/65; 40t cargo or 150troops
PiLB41 30 444 - 473 PiLB501 - 505, 509, 513, 517 - 532, 546 - 552 1942 - 1944 71t, 19.7x5.7x1.0m, 2d, 220-240hp, 10.8kts, 7p; 1x1-20/65 or 1x1-37/83 or 1x4-20/65; 40t cargo or 150troops
StuBo42 ~1000 474 - 1473 ? 1942 - 1944 13t, 14.7x3.0x0.7m, 2pe, 500hp, 21.6kts, 7p; 3t cargo or 40troops
F.V.B.3 2 1474, 1475 Infanterietransporter I, II 1942 20t, 18.6x3.1x0.9m, 2pe, 200hp, 11.3kts, 7t cargo
SchäLB42/43 ~100 1476 - 1575 SchäLB600 - 799 (some) 1943 - 1944 8t, 11.0x3.1x0.9m, 1d, 45hp, 6kts, 4p; 5t cargo or 40troops
V-ST ~5 1575 - 1580 V-ST-01, 02, ST03 - 15 (some) 1944 38t, 19.1x4.4x0.8m, 2pe, 560hp, 16kts, 12p; 1x1-20/65; 20t cargo
ST 1 1581 Schnelltransporter I 1944 73t, 28.4x4.4x0.9m, 2pe, 720hp, 20kts, 12p; 1x1-37/57, 2x1-20/65; 20t cargo
LCG AFP-A 20 1 AF2 1942 400-416t, 47.0x6.6x1.7m, 3d, 390hp, 10.5kts, 48-53p; 40belt, 20shields, 20CT; 2x1-88/45, 1x1-37/83(partly), 2x4-20/65, 1x1-15/84(partly), 1DCR(partly), 26m(partly)
2 AF5 1942
3 AF7 1942
4 AF9 1942
5 AF10 1942
6 AF24 1942
7 AF59 1941
8 AF60 1941
9 AF61 1942
10 AF63 1942
11 AF65 1942
12 AF68 1942
13 AF71 1942
14 AF74 1941
15 AF75 1941
16 AF77 1941
17 AF78 1942
18 AF79 1942
19 KF347 1942
20 KF348 1942
AFP-B 2 21 AF80 1942 400-416t, 47.0x6.6x1.7m, 3d, 390hp, 10.5kts, 48-53p; 40belt, 20shields, 20CT; 2x1-88/45, 1x1-37/83(partly), 2x4-20/65, 1x1-15/84(partly), 1DCR(partly), 26m(partly)
22 AF81 1942
AFP-C 22 23 AF14 1943 400-416t, 47.0x6.6x1.7m, 3d, 390hp, 10.5kts, 48-53p; 40belt, 20shields, 20CT; 2x1-88/45, 1x1-37/83(partly), 2x4-20/65, 1x1-15/84(partly), 1DCR(partly), 26m(partly)
24 AF16 1942
25 AF17 1942
26 AF19 1942
27 AF20 1942
28 AF21 1942
29 AF23 1942
30 AF26 1943
31 AF28 1943
32 AF29 1942
33 AF30 1943
34 AF31 1943
35 AF33 1943
36 AF34 1943
37 AF36 1943
38 AF37 1943
39 AF38 1943
40 AF41 1942
41 AF42 1942
42 AF45 1943
43 AF46 1943
44 KF486 1943
AFP-C2 4 45 AF39 1943 400-416t, 47.0x6.6x1.7m, 3d, 390hp, 10.5kts, 48-53p; 40belt, 20shields, 20CT; 2x1-88/45, 1x1-37/83(partly), 2x4-20/65, 1x1-15/84(partly), 1DCR(partly), 26m(partly)
46 AF40 1943
47 AF49 1943
48 AF50 1943
AFP-D 21 49 AF83 1943 440t, 49.8x6.6x1.7m, 3d, 375hp, 8kts, 65p; 40belt, 20shields, 20CT; 2x1-88/45, 1x1-37/83, 2x4-20/65, 1x1-15, 1DCR
50 AF84 1943
51 AF88 1943
52 AF90 1944
53 AF91 1944
54 AF93 1943
55 AF94 1943
56 AF95 1943
57 AF100 1943
58 AF101 1943
59 AF102 1943
60 AF104 1943
61 AF106 1944
62 AF107 1944
63 AF109 1944
64 AF112 1944
65 AT916 1944
66 AT917 1944
67 KF1003 1944
68 KF1004 1944
69 KF1005 1944
MAL I 1 70 MAL12 1943 140t, 34.2x7.7x0.9m, 2d, 260hp, 8.5kts, 28p; 2x1-88/45, 2x2-20/65, 1x1-86AARL
MAL Ia 3 71 MAL26 1944 146t, 34.3x7.7x0.8m, 2d, 260hp, 8.5kts, 28p; 2x1-88/45, 1x1-37/83, 1x4-20/65
72 MAL28 1944
73 MAL30 1944
MAL II 2 74 MAL41 1944 277t, 35.5x8.6x1.2m, 2d, 260hp, 8kts, 29p; 2x1-105/45, 2x1-37/83, 1x4-20/65
75 MAL42 1944
ALCG - 21 1 SAT3 August 1936 400t; 1x1-128/45
2 SAT4 Helene 1937   400t
3 SAT5 Robert Müller 6 1936   399t; 2x1-105/45
4 SAT6 Soemba 1940   314t; 2x1-105/45
5 SAT7 Nienburg 1939   400t; 1x1-105/45
6 SAT8 Paraat 1940   305t; 1x1-128/45
7 SAT9 Unitas 1938   359t; 2x1-105/45
8 SAT10 Kemphaan 1936   343t; 2x1-105/45
9 SAT11 Cascade 1937   338t; 2x1-105/45
10 SAT13 Joost 1941   397t; 1x1-150/45
11 SAT14 Berkelstroom 1940   399t; 1x1-150/45
12 SAT15 Polaris 1936   322t; 1x1-150/45
13 SAT16 Westflandern 1927   345t; 2x1-105/45
14 SAT18 Ostsee 1936   336t; 2x1-105/45
15 SAT19 Trompenburgh 1940   379t; 1x1-150/45
16 LAT2 Memelland 1939   231t; 1x1-75/35
17 LAT16 Wilhelm Jordan 1937   199t
18 LAT17 Wolf 1939   212t
19 LAT18 Heimatland 1938   212t
20 LAT23 Germania 1937   199t
21 LAT24 Orion 1938 211t

MINE WARFARE

ML MFP-AM 26 1 F166AM 1941 240t, 47.0x8.3x1.5m, 3d, 390hp, 10kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65, 52m or 8 LC
2 F188AM 1942
3 F189AM 1942
4 F192AM 1942
5 F193AM 1942
6 F194AM 1942
7 F195AM 1942
8 F196AM 1942
9 F200AM 1942
10 F210AM 1942
11 F220AM 1942
12 F230AM 1942
13 F240AM 1942
14 F257AM 1942
15 F258AM 1942
16 F259AM 1942
17 F260AM 1942
18 F261AM 1942
19 F262AM 1942
20 F263AM 1942
21 F265AM 1942
22 F266AM 1942
23 F267AM 1942
24 F268AM 1942
25 F269AM 1942
26 F285AM 1942
MFP-CM 3 27 F271CM 1942 240t, 47.0x8.4x1.5m, 3d, 390hp, 10kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65, 52m or 8 LC
28 F272CM 1942
29 F274CM 1942
MFP-C2M 3 30 F275C2M 1942 240t, 47.0x8.4x1.5m, 3d, 390hp, 10kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65, 52m or 8 LC
31 F276C2M 1942
32 F483C2M 1942
MFP-DM 21 33 F819DM 1944 256t, 49.8x8.6x1.4m, 3d, 375hp, 8kts, 21p; 1x1-75/36 or 1x1-75/46 or 1x1-88/45, 2x1-37/83, 6x1-20/65, 54m or 10 LC
34 F858DM 1944
35 F890DM 1944
36 F920DM 1944
37 F922DM 1944
38 F932DM 1944
39 F939DM 1944
40 F943DM 1944
41 F944DM 1944
42 F952DM 1944
43 F967DM 1944
44 F1033DM 1944
45 F1034DM 1944
46 F1036DM 1944
47 F1043DM 1944
48 F1044DM 1944
49 F1045DM 1944
50 F1047DM 1944
51 F1048DM 1944
52 F1073DM 1944
53 F1153DM 1944
MWI 1 54 MT1 1917 673t, 53.1x9.3x2.3m, 2b,2vte, 371hp, 9.5kts, 53p; m
Lauting 3 55 Lauting 1934 1253(1,2)-1158(3)t, 56.7x10.4x4.4m, 1d, 450hp, 9.5kts, 43p; 4x1-20/65, 370m(1,2), 240m(3)
56 Rhein 1934
57 Irben 1936
Brummer 1 58 Brummer 1934 1860t, 97.3x11.5x3.6m, 3b,2gt/2d(2), 6000/1400hp, 22kts, 168p; 3x1-105/45, 1x2-37/83, 10x1-20/65, 280m
Tyr 1 59 Tyr 1887 294t, 31.8x8.6x2.2m, 2b,2vte, 450hp, 10.5kts, 44p; 1x1-120/44, 20m
Nor 3 60 Nor 1879 270t, 29.0x7.9x2.0m, 2b,2vte, 230hp, 10kts, 16p; 1x1-47/40, 2x1-37/23, 20m
61 Brage 1879
62 NK31 1882
Albona 1 63 Laurana 1918 No picture 121t, 31.8x6.5x1.4m, 1b,1vce, 280hp, 9kts, 19p; 2x1-76/40, 6x1-20/65, 34m
Linz 1 64 Linz 1943 3374brt, 104.2x13.9x6.9m, 1d, 4800hp, 16kts, 212p; 2x1-105/45, 2x1-37/69, (4x4+4x2)-20/65, 340m
Fasana 1 65 Fasana 1925 No picture 705t, 66.3x9.8x1.9m, 2d, 700hp, 10kts, 66p; 1x1-76/40, (2x2+2x1)-20/65, 54m
Lothringen 1 66 Lothringen 1944 1975t, 94.5x12.1x3.2m, 2b,2gt, 22000hp, 24kts, 175p; 2x1-88/45, 2x1-37/83, 3x1-20/65, 200m
1915 1 67 Nymphe 1916 507t, 58.4x7.3x2.3m, 2b,2vte, 1800hp, 16.5kts, 40p; 1x1-105/45, 3x1-20/65, 40m
AML - 8 1 Elsass 1930 3648t, 103.5x13.7x3.7m, 4b,2gt, 14260hp, 23.3kts; 2x1-105/45, 16-20/65, 180m
2 Kaiser 1905   1920t, 96.3x11.7x3.0m, 4b,2gt, 3000hp, 16kts; 2x1-88/45, 1x1-37/83, 8-20/65, 200m
3 Ostmark 1932   3648t, 103.5x13.7x3.7m, 4b,2gt, 13000hp, 23kts; 2x1-105/45, 4x1-40/56, 2x1-37/83, 4-20/65, 240m
4 Wullenwever 1912 1882brt, 93.1x10.5x5.0m, 4b,3t, 9000hp, 22kts; 4-20/65, 125m
5 Natter 1935   581t; 1x1-75/35, m
6 Oldenburg 1934   1141t; 145m
7 Schildkröte 1931   240t; 67m
8 Westmark 1923
ARML - 1 1 Alzey 1914   180t; 30m
MS Greta 1 1 M3406 1917 450t, 41.5x6.9x2.8m, 1b,1vte, 400hp, 10kts, 31p; 1x1-88/45, MS
TR 3 2 M3830 1918 630t, 38.5x7.3x3.8m, 1b,1vte, 500hp, 10kts; 1x1-76/40, MS
3 M4407 1919
4 M3854 1918
Janny 2 5 M3421 1942 218t, 36.5x7.0x3.4m, 1d, 340hp
6 M5621 1942
Borndiep 3 7 M3204 1942 No picture 190t, 38.4x6.8x2.5m, 1d, 240hp, 9kts
8 M3203 1942
9 M3205 1942
MFL1 1 10 M3681 1944 700t, 46.5x8.0x3.2m, 1d, 600hp, 11.5kts; 1x1-88/45, (2x4+2x1)-20/65, MS
KFK2 104 11 M3660 1943 110t, 24.0x6.4x2.8m, 1d, 175hp, 9kts, 18p; 1x1-37/83, 2x2-20/65, MS
12 M3661 1943
13 M3664 1943
14 M3665 1943
15 M3666 1943
16 M3667 1943
17 M3669 1943
18 M3670 1943
19 M5609 1943
20 M5610 1943
21 M3105 1942
22 M3102 1942
23 M3104 1942
24 M3108 1942
25 M3115 1942
26 M3116 1942
27 M3119 1942
28 M3103 1942
29 M3111 1942
30 M3114 1943
31 M3101 1943
32 M3109 1943
33 M3112 1943
34 M3107 1943
35 M3106 1943
36 M3118 1943
37 M3124 1943
38 M3125 1943
39 M3127 1943
40 M3128 1943
41 M3129 1943
42 M3131 1943
43 M3132 1943
44 M3134 1943
45 M3135 1943
46 M3136 1943
47 M3137 1943
48 M3138 1943
49 M3139 1943
50 M3671 1943
51 M3441 1943
52 M3442 1943
53 M3444 1943
54 M3445 1943
55 M3446 1943
56 M3241 1943
57 M3244 1943
58 M5632 1944
59 M3141 1944
60 M3142 1944
61 M3143 1944
62 M3144 1944
63 M3672 1943
64 M3151 1944
65 M3152 1944
66 M3154 1944
67 M3145 1944
68 M3157 1944
69 M3130 1944
70 M3249 1944
71 M3448 1944
72 M3449 1944
73 M3450 1944
74 M3451 1944
75 M3452 1944
76 M3673 1944
77 M3896 1944
78 M3881 1943
79 M3890 1944
80 M3891 1944
81 M3892 1944
82 M3894 1944
83 M3893 1944
84 M3895 1944
85 M3888 1944
86 M3889 1944
87 M3885 1944
88 M3882 1943
89 M3883 1944
90 M3884 1944
91 M3886 1944
92 M3887 1944
93 M3259 1944
94 M3260 1944
95 M3216 1944
96 M4251 1944
97 M4252 1944
98 M4253 1944
99 M4254 1944
100 M4255 1944
101 M3113 1944
102 M3121 1944
103 M3110 1944
104 M3453 1944
105 M3158 1944
106 M3146 1944
107 M3250 1944
108 M3251 1944
109 M3252 1944
110 M3253 1944
111 M3254 1944
112 M3255 1944
113 M3266 1944
114 M3454 1944
1915 1 115 M528 1916 507t, 58.4x7.3x2.3m, 2b,2vte, 1800hp, 16.5kts, 40p; 1x1-105/45, 3x1-20/65, 30m, MS
1916 12 116 M566 1917 539(116)-553(117-119) -560(120,127)-548(121,122) -590(123,124)-580(125,126)t, 59.3(116,118,119,123)-58.2(117) -59.6(120-122,126,127)-59.5(124,125) x7.4(116,119,123)-7.3(117,118,120-122,124-127)x2.3m, 2b,2vte, 1850(116,119-121,123,124,127)-1790(117) -1870(118)-1840(122,126) -1600(125)hp, 16(116,117,119-124,126,127)-16.5(118)-15(125)kts, 40p; 1x1-105/45, 3x1-20/65, 30m, MS
117 M572 1918
118 M575 1918
119 M582 1919
120 M504 1918
121 M3600 1918
122 M509 1918
123 M513 1920
124 M3800 1919
125 M535 1919
126 M538 1919
127 M545 1919
1935 15 128 M5201 1938 874t, 68.1x8.7x2.1m, 2b,2vse, 3500hp, 18.1kts, 84p; 2x1-105/45, 1x2-37/83, (1x4+4x2)-20/65, 30m, 2DCT, MS, MgS, AS
129 M5202 1939
130 M3 1938
131 M4 1938
132 M7 1938
133 M9 1939
134 M12 1939
135 M14 1939
136 M15 1940
137 M18 1940
138 M19 1940
139 M21 1940
140 M22 1940
141 M23 1940
142 M24 1941
1938 8 143 M28 1941 908t, 71.0x9.2x2.1m, 2b,2vse, 3200hp, 18.1kts, 97p; 2x1-105/45, 1x2-37/83, (1x4+4x2)-20/65, 30m, 2DCT, MS, MgS, AS
144 M29 1940
145 M30 1940
146 M32 1941
147 M33 1942
148 M34 1943
149 M35 1941
150 M36 1942
1939(Mob) 21 151 M38 1941 878t, 68.4x8.7x2.1m, 2b,2vse, 3700hp, 18.3kts, 119p; 2x1-105/45, 1x2-37/83, (1x4+4x2)-20/65, 30m, 2DCT, MS, MgS, AS
152 M81 1941
153 M82 1941
154 M85 1942
155 M102 1942
156 M104 1942
157 M131 1942
158 M151 1941
159 M154 1941
160 M155 1942
161 M201 1940
162 M202 1941
163 M203 1941
164 M204 1941
165 M205 1941
166 M251 1940
167 M252 1941
168 M253 1941
169 M254 1941
170 M255 1941
171 M256 1942
M551 2 172 M551 1940 620t, 55.8x8.1x2.7m, 2b,2vte, 1657hp, 15.3kts, 59p; 1x1-75/60(172), 3x1-20/65(173), MS
173 M552 1937
1940 71 174 M261 1942 775t, 62.3x8.9x2.3m, 2b,2vte, 2615hp, 17.2kts, 75p; 2x1-105/45, 2x1-37/83, (1x4+2x1)-20/65, 4DCT, 2DCR, 12m, MS, MgS, AS
175 M265 1944
176 M266 1944
177 M272 1943
178 M273 1943
179 M275 1943
180 M277 1944
181 M291 1943
182 M293 1944
183 M294 1944
184 M301 1941
185 M302 1942
186 M305 1943
187 M306 1943
188 M321 1941
189 M322 1941
190 M323 1942
191 M324 1942
192 M326 1943
193 M327 1944
194 M328 1944
195 M329 1944
196 M330 1944
197 M341 1942
198 M342 1942
199 M348 1943
200 M361 1942
201 M362 1942
202 M364 1943
203 M365 1943
204 M368 1943
205 M369 1943
206 M381 1941
207 M382 1941
208 M386 1943
209 M401 1942
210 M403 1943
211 M404 1943
212 M405 1943
213 M406 1943
214 M407 1943
215 M408 1943
216 M411 1942
217 M412 1942
218 M415 1943
219 M421 1942
220 M423 1942
221 M425 1943
222 M431 1942
223 M432 1942
224 M434 1942
225 M436 1943
226 M437 1943
227 M441 1942
228 M442 1942
229 M443 1943
230 M446 1943
231 M452 1943
232 M453 1943
233 M454 1943
234 M455 1943
235 M456 1943
236 M460 1943
237 M461 1943
238 M467 1942
239 M470 1943
240 M475 1942
241 M476 1943
242 M484 1943
243 M495 1943
244 M496 1943
M1227 1 245 M1227 1917 201t, 35.4x5.8x2.2m, 1b,1vte, 800hp, 12kts, 22p; 1x1-76/40, 1x1-20/65, MS
1943 4 246 M601 1944 821t, 67.8x9.0x2.3m, 2b,2vte, 2700hp, 17kts, 96p; 2x1-105/45, 2x1-37/57, (1x4+2x1)-20/65, 2-533TT, 4DCT, 24m, MS, MgS, AS
247 M602 1944
248 M603 1944
249 M801 1944
1940(TS) 11 250 TS1 1943 775t, 62.3x8.9x2.3m, 2b,2vte, 2615hp, 17.2kts, 75p; 2x1-105/45, 2x1-37/83, (1x4+2x1)-20/65, 2-533TT, 4DCT, 2DCR, 12m, MS, MgS, AS
251 TS2 1944
252 TS4 1944
253 TS5 1944
254 TS6 1944
255 TS7 1944
256 TS8 1944
257 TS9 1944
258 TS10 1944
259 TS11 1944
260 TS12 1944
AMS - 67 1 M4622 1937   481t
2 M4042 1936   487t
3 M4044 1938   654t
4 M4625 1936   429t
5 M5208 1937   465t
6 M4046 1936   435t
7 M4455 1937   481t
8 M4628 1937   487t
9 M4045 1939   525t
10 M5606 1934   164t
11 M3200 1935   242t
12 M5604 1934   174t
13 M5601 1927   127t
14 M5602 1916   116t
15 M5607 1934   163t
16 M3620 1914   310t
17 M4431 1908   285t
18 M4406 1915   299t
19 M4216 1934   156t
20 M4201 1926   336t
21 M4402 1911   242t
22 M3406 1930   120t
23 M3420 1929   372t
24 M6027 1907   223t
25 M3477 1901   156t
26 M4020 1931   127t
27 M4000 1919   320t
28 M3238 1901   149t
29 M4012 1931   113t
30 M4203 1911   251t
31 M3856 1907   248t
32 M6031 1918   208t
33 M3829 1933   101t
34 M3608 1914   149t
35 M3602 1915   111t
36 M3825 1939   187t
37 M4213 1936   125t
38 M3613 1910   135t
39 M3828 1903   111t
40 M4607 1919   120t
41 M3618 1912   109t
42 M3823 1898   106t
43 M3633 1916   106t
44 M4603 1917   131t
45 M4606 1931   182t
46 M3232 1918   147t
47 M4211 1936   139t
48 M3414 1920   146t
49 M3635 1903   143t
50 M4602 1914   131t
51 M3616 1928   151t
52 M3401 1939   174t
53 M3416 1916   117t
54 M3603 1934   152t
55 M3403 1936   161t
56 M3402 1939   179t
57 M3827 1911   141t
58 M3411 1916   138t
59 M3404 1917   136t
60 M3634 1927   140t
61 M3418 1916   141t
62 M3813 1912   141t
63 M3605 1917   139t
64 M3430 1939   131t
65 M7505 1936   107t
66 M7606 1929   123t
67 M7608 1916   129t
ARMS - 8 1 Avala 1869   146t
2 Presern 1868
3 Stefania 1880   300t
4 Descartes 1896   300t
5 Stig 1895   109t
6 Oder 1935   132t
7 Weichsel 1937   132t
8 Zell 1938 117t
MSB R2 5 1 - 5 R2, 4, 14 - 16 1932 - 1934 44(1)-46(2)-53(3-5)t, 24.5(1)-26.5(2)-27.8(3-5)x4.4x1.5(1)-1.6(2-5)m, 2d, 750(1,3)-700(2)-770(4,5)hp, 20(1)-19.5(2)-16.5(3)-19.8(4,5)kts, 18p; 4x1-20/65, 2DCR, 10m, MS
R8 1 6 R8 1934 63t, 27.8x4.5x1.1m, 2d, 750hp, 16.5kts, 18p; 4x1-20/65, 2DCR, 10m, MS
R17 5 7 R18 1935 120(7)-124(8-11)t, 36.9(7)-37.0(8-11)x5.4(7)-5.8(8-11)x1.3(7)-1.4(8-11)m, 2d, 1800(7,9-11)-2200(8)hp, 21kts, 17(7)-27(8-11)p; (2x2+2x1)-20/65, 1x1-86AARL, 2DCR, 12m, MS
8 R21 1937
9 R22 1937
10 R23 1938
11 R24 1937
R25 5 12 R25 1938 126t, 35.4x5.6x1.4m, 2d, 1800hp, 23.5kts, 20p; 1x1-37/83 or 1x1-37/57, (2x2+2x1)-20/65, 2DCR, 10m, MS
13 R26 1938
14 R28 1938
15 R31 1938
16 R32 1938
KR1 3 17 - 19 KR1 - 3 1938 11(17,18)-13(19)t, 13.5x3.4(17,18)-3.5(19)x0.9m, 2d, 170(17,18)-150(19)hp, 10(17,18)-12(19)kts, 8p; MS
FR1 8 20 - 27 FR1, 3 - 5, 7 - 10 1938 - 1939 21(20-23)-27(24-27)t, 15.4(20-23)-17.4(24-27)x3.3x0.8(20-23)-0.9(24-27)m, 2d, 260(20-23)-300(24-27)hp, 13kts, 10p; 1x1-15, 1x1-13.2, MS
R41 46 28 R43 1940 135t, 37.8(28-55)-38.6(56-73)x5.8x1.4m, 2d, 1800hp, 20kts, 38p; 1x1-37/83 or 1x1-37/69, 2x2-20/65, 1x1-86AARL, 2DCR, MS
29 R47 1940
30 R48 1940
31 R49 1940
32 R53 1940
33 R55 1940
34 R57 1940
35 R58 1940
36 R59 1940
37 R63 1941
38 R65 1941
39 R67 1941
40 R68 1941
41 R69 1941
42 R71 1941
43 R72 1941
44 R76 1941
45 R83 1941
46 R85 1941
47 R87 1941
48 R88 1941
49 R90 1941
50 R91 1941
51 R96 1942
52 R98 1942
53 R99 1942
54 R100 1942
55 R101 1942
56 R102 1942
57 R103 1942
58 R104 1942
59 R105 1942
60 R107 1942
61 R112 1942
62 R113 1942
63 R115 1942
64 R117 1942
65 R118 1943
66 R119 1943
67 R120 1943
68 R121 1943
69 R122 1943
70 R124 1943
71 R126 1943
72 R127 1943
73 R128 1943
R151 26 74 R152 1940 126(74-94)-128(95-99)t, 35.4(74-94)-36.2(95-99)x5.6x1.4m, 2d, 1800hp, 23.5kts, 31p; 1x1-37/83 or 1x1-37/69, (2x2+2x1)-20/65, 2DCR, 10m, MS
75 R153 1940
76 R154 1940
77 R155 1940
78 R156 1940
79 R157 1940
80 R159 1940
81 R160 1941
82 R162 1941
83 R167 1941
84 R168 1941
85 R170 1941
86 R172 1941
87 R173 1941
88 R174 1941
89 R175 1941
90 R176 1941
91 R177 1941
92 R181 1942
93 R183 1942
94 R189 1942
95 R198 1942
96 R199 1943
97 R202 1943
98 R212 1942
99 R214 1943
RA1 1 100 RA1 1942 160t, 37.4x5.5x2.4m, 2d, 1836hp, 15.5kts, 39p; 1x1-37/83, 3x1-20/65, MS
RA3 1 101 RA3 1943 137t, 37.1x5.7x2.0m, 2d, 1836hp, 15.5kts, 39p; 1x1-37/83, 3x1-20/65, MS
R130 17 102 R130 1943 155t, 41.1x5.8x1.6m, 2d, 1800hp, 19kts, 41p; 1x1-37/83 or 1x1-37/69, (2x2+2x1)-20/65, 1x1-86AARL, 2DCR, MS
103 R132 1944
104 R133 1944
105 R134 1944
106 R135 1944
107 R136 1944
108 R137 1944
109 R138 1944
110 R140 1944
111 R142 1944
112 R143 1944
113 R144 1944
114 R145 1944
115 R146 1944
116 R147 1944
117 R148 1944
118 R149 1944
R218 38 119 R220 1943 148t, 39.4x5.7x1.5m, 2d, 2500(119-132,134-156)-2400(133)hp, 21kts, 40p; 1x1-37/83 or 1x1-37/69, 3x2-20/65, 2DCR, 12m, MS
120 R223 1943
121 R224 1943
122 R225 1944
123 R226 1944
124 R227 1944
125 R228 1944
126 R229 1944
127 R230 1944
128 R231 1944
129 R233 1944
130 R234 1943
131 R236 1944
132 R238 1944
133 R239 1944
134 R240 1944
135 R241 1944
136 R242 1944
137 R243 1944
138 R244 1944
139 R245 1944
140 R246 1944
141 R247 1944
142 R249 1944
143 R251 1944
144 R252 1944
145 R253 1944
146 R254 1944
147 R255 1944
148 R256 1944
149 R257 1944
150 R258 1944
151 R259 1944
152 R260 1944
153 R264 1944
154 R265 1944
155 R266 1944
156 R268 1944
R301 9 157 R302 1943 184t, 41.0x6.0x1.8m, 3d, 3750hp, 23.5kts, 42p; 1x1-37/83 or 1x1-37/69, (3x2+1x1)-20/65, 2x1-86AARL, 2-533TT, 2DCR, 16m, MS
158 R303 1943
159 R305 1943
160 R307 1944
161 R308 1944
162 R309 1944
163 R310 1944
164 R311 1944
165 R312 1944
RA11 1 166 RA11 1942 95t, 35.7x5.8x1.1m, 3d, 3000hp, 23kts, 21p; 1x2-20/70, MS
RA101 10 167 - 176 RA101 - 110 1943 - 1944 77(167-171)-85(172-176)t, 28.9(167-171)-30.0(172-176)x4.4(167-171)-4.6(172-176)x1.5m, 2d, 714hp, 15.6(167-171)-14.6(172-176)kts, 18p; 2x1-20/65, 6m, MS
RA201 4 177 - 180 M5401 - 5404 1943 No picture 35t, 25.0x4.5x1.4m, 14kts, 22p; 2x1-20/65, MS
MS2 2 181, 182 MS8, 10 1941 No picture 74t, 24.6x4.9x1.3m, 1d, 220hp, 11kts, 10p; 1x1-20/65, MS
RA251 2 183, 184 RA254, 258 1943 - 1944 95t, 34.1x5.0x1.4m, 3d(183)-3pe(184), 1100(183)-1700(184)hp, 18(183)-19(184)kts, 26p; 1x1-37/54, 3x1-20/65, 2-450TT, 2DCR, MS
R401 10 185 R401 1944 150t, 39.4x5.7x1.5m, 2d, 1800hp, 25kts, 37p; 1x1-37/69, 3x2-20/65, 2x1-86AARL, 2DCR, 12m, MS
186 R403 1944
187 R404 1944
188 R405 1944
189 R406 1944
190 R407 1944
191 R408 1944
192 R409 1944
193 R410 1944
194 R411 1944
194 R412 1944
RD101 4 195 RD101 1944 No picture 110t, 34.0x5.8x1.4m, 2pe, 2300hp, 17kts, 24p; 1x1-20/65, MS
196 RD109 1944
197 RD111 1944
198 RD116 1944
MDV KFK2 2 1 Sp1 1943 110t, 24.0x6.4x2.8m, 1d, 175hp, 9kts, 18p; 1x1-37/83, 2x2-20/65, MgS
2 Sp2 1943
MFP-A 1 1 F170A 1941 400t, 47.0x6.5x1.7m, 3d, 390hp, 10.5kts, 48p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65, MgS
MFP-B 1 2 F199B 1942 400t, 47.0x6.5x1.7m, 3d, 390hp, 10.5kts, 48p; 1x1-75/36 or 1x1-75/46 or 1x1-37/83, 2x1-20/65; MgS
AMDV - 25 1 Sperrbrecher 22 1939   5375t, 109.9x14.6x5.9m, 1d, 3000hp, 15kts; 2x1-105/45, 6-37/83, 14-20/65, 8x1-86AARL
2 Sperrbrecher 11 1936   6095brt, 144.9x18.6x7.3m, 1d, 3350hp, 13kts; 2x1-105/45, 4-37/83, 10-20/65
3 Sperrbrecher 13 1938   5375t, 109.9x14.6x5.9m, 1d, 3000hp, 15kts; 2x1-105/45, 6-37/83, 14-20/65, 8x1-86AARL
4 Sperrbrecher 17 1929   6728brt, 146.8x18.4x8.8m, 2d, 7200hp, 14kts; 1x1-105/45, 4-37/83, 6-20/65
5 Sperrbrecher 18 1930   2448brt, 98.2x13.9x6.2m, 2b,2vce, 1225hp, 9kts; 2x1-105/45, 6-37/83, 4-20/65, 4x1-86AARL
6 Sperrbrecher 23 1941   5527brt, 120.7x16.2x6.2m, 1d, 3000hp, 13.5kts; 2x1-105/45, 6-37/83, 6-20/65, 4x1-86AARL
7 Sperrbrecher 24 1927   8222t, 103.3x14.9x7.4m, 1d, 2500hp, 13kts; 2x1-105/45, 6-37/83, 14-20/65, 8x1-86AARL
8 Sperrbrecher 27 1932   7900t, 104.7x15.2x7.5m, 1d, 4200hp, 15kts; 2x1-105/45, 6-37/83, 14-20/65, 8x1-86AARL
9 Sperrbrecher 28 1941   5340brt, 138.8x17.4x7.9m, 1d, 5500hp, 14kts; 2x1-105/45, 6-37/83, 16-20/65, 8x1-86AARL
10 Sperrbrecher 29 1940   7258brt, 145.4x18.3x7.9m, 1d, 4400hp, 13.5kts; 2x1-105/45, 6-37/83, 12-20/65
11 Sperrbrecher 131 1938   1311brt, 74.2x11.7x4.6m, 2b,1vce, 1100hp, 12kts; 2x1-88/45, 8-20/65
12 Sperrbrecher 132 1938   1046brt, 78.0x10.6x4.2m, 2b,1vce, 800hp, 12kts; 1x1-88/45, 1x1-37/83, 8-20/65
13 Sperrbrecher 33 1940   7500t, 115.1x15.3x6.5m, 2d, 3900hp, 14.2kts; 2x1-105/45, 6-37/83, 12-20/65
14 Sperrbrecher 121 1929   1906brt, 85.9x11.4x6.3m, 2d, 3000hp, 15kts; 1x1-75/35, 2x1-37/83, 12-20/65, 2x1-86AARL
15 Sperrbrecher 153 1940   1495brt, 76.2x10.5x.5m, 2d, 1100hp, 11kts; 2x1-88/45, 4-37/83, 10-20/65, 4x1-86AARL
16 Sperrbrecher 154 1943   1230brt, 62.8x10.2x4.3m, 1d, 875hp, 9.5kts; 1x1-88/45, 1x1-37/83, 4-20/65
17 Sperrbrecher 167 1901   1506brt, 76.2x11.1x4.8m, 1b,1vte, 630hp, 9kts; 1x1-88/45, 2-37/83, 4-20/65
18 Sperrbrecher 172 1935   1446brt, 87.0x12.0x4.9m, 2b,2vce, 1100hp, 12kts; 1x1-88/45, 1x1-37/83, 8-20/65
19 Sperrbrecher 175 1937   2600t, 83.2x12.0x5.0m, 2b,2vce, 1850hp, 14kts; 1x1-75/35, 1x1-37/83, 4-20/65
20 Sperrbrecher 177 1925   1236brt, 72.4x11.0x4.7m, 1d, 800hp, 11kts; 1x1-75/35, 7-20/65
21 Sperrbrecher 179 1940   1535brt, 78.6x12.8x5.5m, 1d, 1500hp, 12kts; 2x1-105/45, 2-37/83, 10-20/65
22 Sperrbrecher 139 1909   975t; 1x1-88/45
23 Sperrbrecher 104 1900   546t
24 Sperrbrecher 145 1939   395t
25 Sperrbrecher 148 1940   544t; 1x1-88/45
ARMDV - 1 1 Sperrbrecher 202 1905   650t

NAVAL AVIATION (approximately, maximal number of delivered planes signed)

Seaplanes R: 20 Ar 196A-1, 415 Ar 196A-3/4, 91 Ar 196A-5, 11 Do 24N-1, 180 Do 24T-1, 49 Do 24T-2 (delivery till 1945), 70 BV 138C-1
Gyroplanes O: 150 Fa 330 Bachstelze



© Ivan Gogin, 2011-14
