World navies yesterday

1935

Germany 01 January 1935

IN SERVICE: 4 battleships-predreadnoughts, 1 seaplane tender, 2 heavy cruisers, 1 protected cruiser, 5 light cruisers, 25 torpedo boats, 2 fishery protection vessels, 2 dispatch vessels, 1 gunnery training ship, 1 gunboat, 7 motor torpedo boats, 2 motor anti-submarine boats, 2 minelayers, 3 mine transports, 28 minesweepers, 16 minesweeping boats

CAPITAL SHIPS

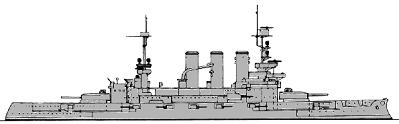

BB Braunschweig 1 1 Hessen 1905 14394t, 127.7x25.6x8.1m, 10b,3vte, 16500hp, 18.2kts, 743p; 225belt, 40deck, 250turrets, 300CT; 2x2-283/40, 12x1-173/40, 4x1-88/45, 4x1-500TT

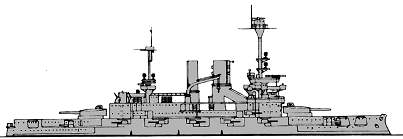

Deutschland 3 2 Hannover 1907 13994t, 127.6x22.2x8.3m, 12b,3vte, 20540hp, 18.6kts, 743p; 240belt, 40deck, 280turrets, 300CT; 2x2-283/40, 14x1-173/40(2), 14x1-149/45(3,4), 4x1-88/45(4), 2x1-88/45(3), 4x1-500TT
3 Schlesien 1908
4 Schleswig-Holstein

AIRCRAFT CARRYING SHIPS

AV
Krischan I 1 1 Krischan I 1934 250t, 38.2x6.7x2.5m, 2d, 750hp, 15kts, 19p; 1seaplane (He60)

CRUISERS

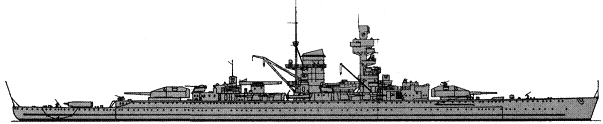

CA Deutschland 2 1 Deutschland 1933 14290(1)-15180(2)t, 186.0x20.7(1)-21.3(2)x5.8m, 8d(2), 56800hp, 28kts, 1150p; 80belt, 63(1)-58(2)deck, 150turrets, 150CT; 2x3-283/52, 8x1-149/55, 3x2-88/78, 4x2-37/83, 8x1-20/65, 2x4-533TT
2 Admiral Scheer 1934

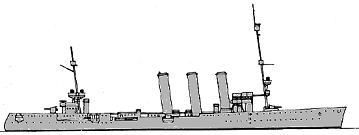

CL Bremen 1 1 Berlin 1905 3816t, 113.8x13.3x5.6m, 10b,2vte, 11750hp, 23kts, 288p; 80slopes, 35deck, 50shields, 100CT; 8x1-105/45, 2x1-500TT

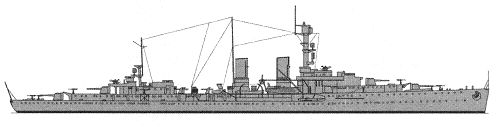

Emden 1 2 Emden 1925 6990t, 155.1x14.3x6.6m, 10b,2gt, 45900hp, 29kts, 650p; 50belt, 40deck, 20shields, 100CT; 8x1-149/45, 3x1-88/45, 2x2-533TT, 120m

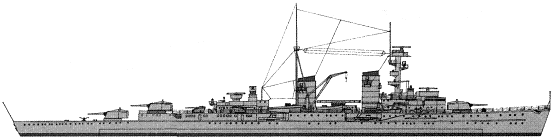

Königsberg 3 3 Königsberg 1929 7700t, 174.0x15.2x5.6m, 6b,2gt/2d(2), 65000/1800hp, 32kts, 850p; 65belt, 40deck, 30turrets, 100CT; 3x3-149/60, 3x1-88/45, 4x2-37/83, 4x1-20/65, 4x3-533TT, 120m
4 Karlsruhe 1929
5 Köln 1930

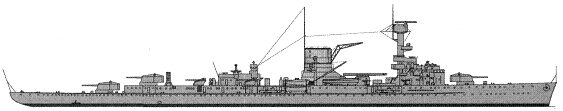

Leipzig 1 6 Leipzig 1931 8100t, 177.1x16.3x4.9m, 8b,2gt+4d(3), 72400hp, 32kts, 850p; 50belt, 25deck, 30turrets, 100CT; 3x3-149/60, 4x1-88/45, 4x2-37/83, 4x1-20/65, 4x3-533TT, 120m

TORPEDO SHIPS

TB V150 6 1 T151 1908 691t, 72.5x7.8x3.0m, 4b,2vte, 10900hp, 30kts, 84p; 2x1-88/45, 1x2-500TT(1-3), 3x1-450TT(4-6)
2 T153 1908
3 T155 1908
4 T156 1908
5 T157 1908
6 T158 1908
V180 1 7 T190 1911 775t, 73.9x7.9x3.1m, 4b,2t, 18000hp, 32kts, 84p; 2x1-105/45, 2x1-20/65, 2x2-500TT
G192 1 8 T196 1911 810t, 74.0x7.9x3.0m, 4b,2t, 18200hp, 32kts, 76p; 2x1-105/45, 2x1-20/65, 2x2-500TT
G7 4 9 G7 1912 884t, 76.1x7.6x3.1m, 3b,2t, 16000hp, 30kts, 74p; 2x1-105/45, 2x1-500TT, 18m
10 G8 1912
11 G10 1912
12 G11 1912
S13 1 13 S23 1913 749t, 71.5x7.4x2.8m, 3b,2t, 15700hp, 32.5kts, 74p; 2x1-105/45, 2x1-500TT, 18m
Möwe 6 14 Möwe 1926 1213(14)-1290(15-19)t, 88.8(14)-88.5(15-19)x8.3x2.8m, 3b,2gt, 22100(14)-23000(15-19)hp, 32(14)-33(15-19)kts, 120p; 3x1-105/45, 2x3-533TT, 30m
15 Greif 1927
16 Seeadler 1927
17 Albatros 1927
18 Kondor 1928
19 Falke 1927
Wolf 6 20 Wolf 1928 1320t, 92.6x8.6x2.8m, 3b,2gt, 23000hp, 34kts, 120p; 3x1-105/55, 2x3-533TT, 30m
21 Iltis 1928
22 Jaguar 1929
23 Leopard 1929
24 Luchs 1929
25 Tiger 1929

ESCORTS

FPV Elbe 2 1 Elbe 1931 870t, 58.0x8.5x3.7m, 2d, 1600hp, 14kts, 65p; 1x1-88/45, 1x1-37/83
2 Weser 1931

OTHER FIGHTING SHIPS

DV S138 1 1 Pfeil 1907 684t, 70.7x7.8x2.8m, 4b,2vte, 11000hp, 30.3kts, 80p; 2x1-20/65
V180 1 2 Blitz 1910 775t, 73.9x7.9x3.1m, 4b,2t, 18000hp, 32kts, 84p; 2x1-20/65
AGML Bremse 1 1 Bremse (TS) 1932 2054t, 103.6x10.2x2.8m, 8d(2), 26000hp, 27kts, 192p+90; 4x1-128/45, 2x1-20/65, 350m
PG Meteor 1 1 Meteor 1924 1504t, 71.1x10.2x3.6m, 2d, 2200hp, 14.5kts, 124p; 1x1-88/45

COASTAL FORCES

PT S1 1 1 S1 1930 52t, 26.9x4.4x1.4m, 3pe/1pe(3), 2700/100hp, 34.2kts, 12p; 1x1-13.2, 2-533TT
S2 4 2 - 4 S2 - 5 1932 58t, 27.9x4.5x1.5m, 3pe/1pe(3), 3000/100hp, 33.8kts, 13p; 1x1-20/65, 2-533TT
S6 1 5 S6 1933 68t, 32.4x5.1x1.4m, 3d, 3960hp, 32kts, 12p; 1x1-20/65, 2-533TT
S7 2 6, 7 S7, 8 1934 86t, 32.4x5.1x1.4m, 3d, 3960hp, 36.5kts, 18p; 1x1-20/65, 2-533TT
PS UZ23 2 1, 2 UZ27, 29 1918 60t, 31.0x4.4x1.3m, 2pe, 570hp, 16kts, 14p; DCR

MINE WARFARE SHIPS

ML MWI 2 1 MT1 1917 673t, 53.1x9.3x2.3m, 2b,2vte, 371hp, 9.5kts, 47p; m
2 MT2 1917
MT Lauting 3 1 Lauting 1934 1253(1,2)-1220(3)t, 56.7x10.4x4.4m, 1d, 450hp, 9.5kts, 40p; 4x1-20/65, 370m
2 Rhein 1934
3 Otter 1934
MS M27 1 1 M50 1916 503t, 58.2x7.3x2.3m, 2b,2vte, 1890hp, 16.5kts, 40p; 3x1-88/45, 30m, MS
M57 27 2 M60 1918 535(2,3)-539(4)- 553(5,7,8)-548(10,13-17)- 564(11,19,20)-560(12,21,27)- 550(22,23-26,28,29)-590(18)t, 59.3(2-4,6-9,11,18-20)-58.2(5)- 59.6(10,12-17,21-25,28,29)-59.5(26)x7.3(2,3,5,6,9,10,12-17,21-29)-7.4(4,7,8,11,18-20)x2.3m, 2b,2vte, 1750(2,3)-1850(4,5,7,8,12,18,21-25,27-29)- 1790(5)-1870(6,9)- 1840(10,13-17)-1600(26)hp, 16(2-5,7,8,10,12-18,21-25,27-29)-16.5(6,9)-15(26)kts, 40p; 2x1-105/45(2-4,10-29), 2x1-88/45(5,8,9), 3x1-88/45(6,7), 30m, MS
3 M61 1918
4 M66 1917
5 M72 1918
6 M75 1917
7 M84 1917
8 M85 1918
9 M89 1918
10 M98 1918
11 M102 1918
12 M104 1918
13 M107 1918
14 M108 1918
15 M109 1918
16 M110 1918
17 M111 1918
18 M113 1920
19 M115 1918
20 M117 1919
21 M122 1919
22 M126 1919
23 M129 1919
24 Fuchs (TS) 1919
24 M132 1919
25 M136 1919
26 M145 1919
27 Taku 1919
28 M157 1919
MSB R1 1 1 R1 1931 43t, 24.5x4.4x1.2m, 2d, 700hp, 17kts, 15p; 1x1-20/65, MS
R2 14 2 - 15 R2 - 7, 9 - 16 1932 - 1934 44(2)-46(3-5)-48(6,7)-53(8-15)t, 24.5(2)-26.5(3-7)-27.8(8-15)x4.4x1.5(2)-1.6(3-7)-1.3(8-15)m, 2d, 750(2,6,7-13)-700(3-5)-770(14,15)hp, 20(2)-19.5(3-7)-16.5(8-13)-19.8(14,15)kts, 15p; 1x1-20/65, MS
R8 1 16 R8 1934 63t, 27.8x4.5x1.1m, 2d, 750hp, 16.5kts, 15p; 1x1-20/65, MS
