World navies yesterday

1930

UNITED KINGDOM 01 January 1930

IN SERVICE: 16 battleships, 4 battlecruisers, 4 monitors, 4 fleet aircraft carriers, 2 light aircraft carriers, 2 seaplane tenders, 13 heavy cruisers, 1 protected cruiser, 35 light cruisers, 1 cruiser-minelayer, 21 destroyer leaders, 127 destroyers, 55 submarines, 28 sloops, 5 patrol ships, 1 patrol craft, 19 river gunboats, 9 motor torpedo boats, 6 small landing ships, 2 small landing barges, 2 landing crafts, 4 minelayers, 2 auxiliary minelayers, 28 minesweepers, 15 minesweeping trawlers, 29 minesweeping drifters

CAPITAL SHIPS AND MONITORS

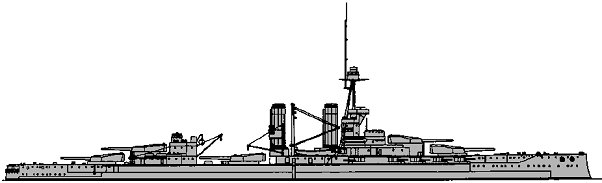

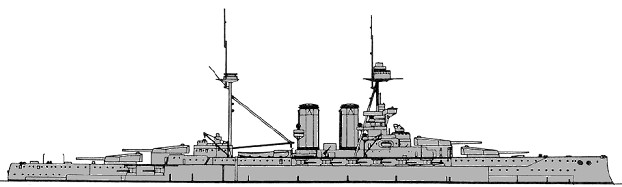

BB Iron Duke 4 1 Iron Duke 1914 30380t, 189.8x27.4x9.0m, 18, 4t, 29000hp, 21.3kts, 1022p; 305belt, 280turrets, 89deck, 305CT; 5x2-343/45, 12x1-152/45, 2x1-76/45, 4x1-47/40, 4-533TT
2 Marlborough 1914
3 Benbow 1914
4 Emperor of India 1914
Queen Elizabeth 5 5 Queen Elizabeth 1915 35710(5, 6, 9)-31500(7, 8)t, 196.8x31.7(5, 6, 9)-27.6(7, 8)x8.8m, 24boilers, 4turbines, 56000hp, 23.5(5, 6, 9)-24(7, 8)kts, 951p; 330belt, 330turrets, 102deck, 280CT; 4x2-381/42, 12x1-152/45, 4x1-102/45, 4x1-47/40, 4-533TT
6 Warspite 1915
7 Barham 1915
8 Valiant 1916
9 Malaya 1916

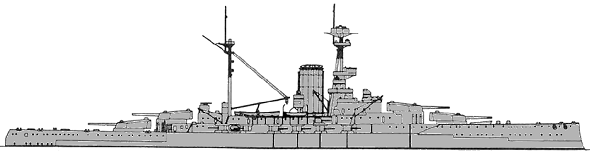

Revenge 5 10 Revenge 1916 32526(10, 13)-32474(11)-32100(12)-33500(14)t, 190.3x30.9(10, 13)-31.0(11)-31.1(12, 14)x8.3(10, 13)-8.7(11, 12)-8.4(14)m, 18b, 4gt, 40000hp, 22(10-13)-21.5(14)kts, 997p; 330belt, 330turrets, 102deck, 280CT; 4x2-381/42, 12x1-152/45, 4x1-102/45, 4x1-47/40, 4-533TT
11 Royal Sovereign 1916
12 Royal Oak 1916
13 Resolution 1916
14 Ramillies 1917

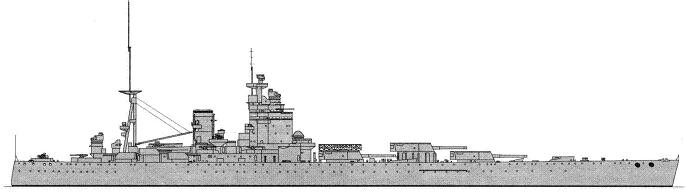

Nelson 2 15 Nelson 1927 41250t, 216.4x32.3x10.2m, 8b, 2gt, 45000hp, 23kts, 1314p; 356belt, 406turrets, 159deck, 356CT; 3x3-406/45, 6x2-152/50, 6x1-120/40, 8x1-40/39, 4x1-47/40, 2-622TT
16 Rodney 1927

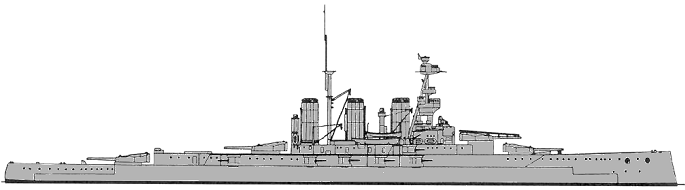

BC Tiger 1 1 Tiger 1914 35710t, 214.6x27.6x8.7m, 39b, 4gt, 85000hp, 28kts, 1121p; 229belt, 229turrets, 76deck, 254CT; 4x2-343/45, 12x1-152/45, 4x1-102/45, 4x1-47/40, 4-533TT
Renown 2 2 Renown 1916 37150(2)-37490(3)t, 242.0x31.2(2)-30.8(3)x9.5(2)-9.6(3)m, 42b, 4t, 112000hp, 30kts, 967p; 229belt, 229turrets, 102(2)-76(3)deck, 254CT; 3x2-381/42, (5x3+4x1)-102/45, (4x2+2)-533TT(3)
3 Repulse 1916

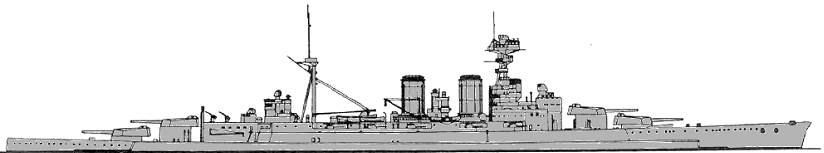

Hood 1 4 Hood 1920 46680t, 262.1x31.7x8.7m, 24b, 4gt, 144000hp, 31kts, 1477p; 305belt, 381turrets, 76deck, 280CT; 4x2-381/42, 12x1-140/50, 4x1-102/45, 4x1-47/40, 6-533TT
MON Abercrombie 1 1 Roberts 1915 6150t, 102.0x27.4x3.1m, 2b, 2vte, 1800hp, 6kts, 198p; 102belt, 254turret, 51deck; 1x2-356/45, 1x1-152/40, 2x1-76/50, 1x1-76/45, 1x1-47/50, 2x1-40/39
Marshal Ney 1 2 Marshal Soult 1915 6900t, 108.4x27.5x3.2m, 2diesels, 1500hp, 6kts, 187p; 102belt, 330turret, 102deck, 152CT; 1x2-381/42, 8x1-102/45, 2x1-76/50, 1x1-76/45, 1x1-47/50, 2x1-40/39
Erebus 2 3 Erebus 1916 8450t, 123.4x26.9x3.6m, 4b, 2vte, 6000hp, 12kts, 204p; 102belt, 330turret, 102deck; 1x2-381/42, 8x1-102/45, 2x1-76/45, 2x1-76/40, 2x1-40/39
4 Terror 1916

AIRCRAFT CARRYING SHIPS

CV Furious 1 1 Furious 1917 27165t, 239.7x27.9x8.6m, 18b, 4gt, 90000hp, 30kts, 1218p; 76belt, 76deck; 10x1-140/50, 2x1-102/45, 4x1-47/40, 4x1-40/39, 36aircraft (6 Flycatcher, 12 Dart, 18 Fairey IIIF)
Eagle 1 2 Eagle 1923 26800t, 203.5x32.0x8.1m, 32b, 4gt, 50000hp, 22.5kts, 950p; 114belt, 76shields, 38deck; 9x1-152/50, 5x1-102/45, 2x1-40/39, 25aircraft (9 Flycatcher, 12 Fairey IIIF)

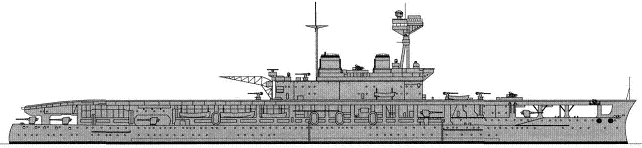

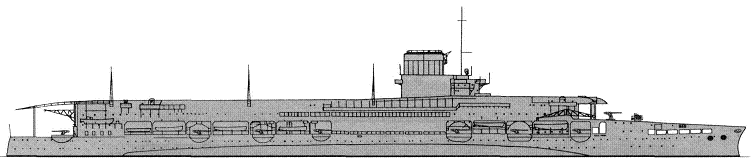

Courageous 2 3 Courageous 1917 27560(3)-27400(4)t, 239.8x27.9x8.5m, 18b, 4gt, 90000hp, 1216p; 76belt, 76deck; 16x1-120/40, 4x1-47/40, 4x1-40/39, 48 aircraft (12 Flycatcher, 12 Ripon or Dart, 12 Fairey IIIF)
4 Glorious 1917
CVL Argus 1 1 Argus 1918 15750t, 172.5x24.2x6.4m, 12b, 4gt, 20000hp, 20kts, 401p; 51magazines; 6x1-102/45, 20aircraft (4 Flycatcher, 12 Fairey IIIF)

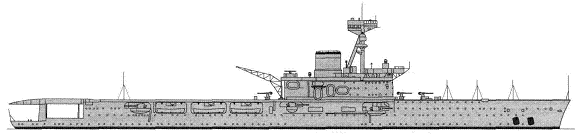

Hermes 1 2 Hermes 1924 13700t, 182.3x21.4x5.7m, 6b, 2gt, 40000hp, 25kts, 664p; 76belt, 25deck; 6x1-140/50, 2x1-102/45, 2x1-40/39, 20aircraft (6 Flycatcher, 9 Dart)
AV Ark Royal 1 1 Ark Royal 1914 7400t, 111.6x15.5x5.5m, 2b, 1vte,, 3000hp, 11kts, 180p; 4x1-76/50, 7aircraft (really none)
Pegasus 1 2 Pegasus 1917 No picture 3300t, 101.2x13.1x4.6m, 6b, 2gt, 9500hp, 20kts, 280p; 2x1-76/45, 2x1-76/40, 9aircraft (really none)

CRUISERS

CA Vindictive 1 1 Vindictive 1918 12000t, 184.4x19.8x5.9m, 12b, 4gt, 60000hp, 30kts, 560p; 76belt, 38deck, 76CT; 6x1-190/45, 3x1-102/45, 4x1-47/40, 1x1-40/39, 6-533TT
Hawkins 3 2 Hawkins 1919 12300t, 184.4x19.8x5.9m, 8(2)-10(3, 4)b, 4gt, 55000(2)-65000(3, 4)hp, 29.5(2)-30.5(3, 4)kts, 712p; 76belt, 51gunhouses, 38deck, 76CT; 7x1-190/45, 4x1-102/45(2, 3), 3x1-102/45(4), 4x1-47/40(2), 2x1-40/39, 6-533TT, 1seaplane(3) (1 Fairey IIIF)
3 Frobisher 1924
4 Effingham 1925

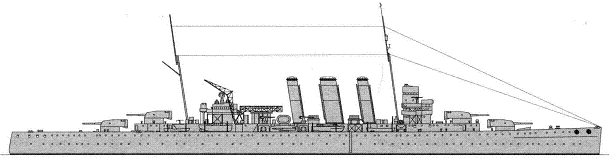

Kent 7 5 Cumberland 1928 13400-13540t, 192.0-192.9x20.8x6.3m, 8b, 4gt, 80000hp, 31.5kts, 710p; 25belt, 111magazines, 38deck, 25turrets; 4x2-203/50, 4x1-102/45, 4x1-47/40, 4x1-40/39, 2x4-533TT
6 Berwick 1928
7 Cornwall 1928
8 Suffolk 1928
9 Kent 1928

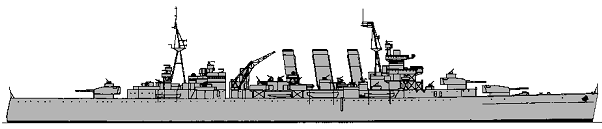

London 4 10 London 1929 13315t, 192.0-192.9x20.1x6.3m, 8b, 4gt, 80000hp, 32.3kts, 700p; 25belt, 102magazines, 25turrets, 38deck; 4x2-203/50, 4x1-102/45, 4x1-47/40, 4x1-40/39, 2x4-533TT
11 Devonshire 1929
12 Sussex 1929
13 Shropshire 1929
CL Weymouth 1 1 Dartmouth 1911 5800t, 138.1x14.6x4.7m, 12b, 4t, 22000hp, 25kts, 475p; 102shields, 51deck; 8x1-152/50, 2x1-76/45, 4x1-47/40, 2-533TT
Birmingham 2 2 Birmingham 1914 6100t, 139.0x14.6x4.7m, 12b, 4t, 25000hp, 25.5kts, 480p; 51belt, 102shields, 38deck, 102CT; 9x1-152/45, 1x1-76/45, 4x1-47/40, 2-533TT
3 Lowestoft 1914
Caroline 4 4 Carysfort 1915 4733t, 135.9x12.6x4.9m, 8b, 4t, 40000hp, 28.5kts, 301p; 76belt, 102shields, 25deck; 4x1-152/45(4-6), 3x1-152/45(7), 2x1-102/45(5), 2x1-76/45(4, 6, 7), 4x1-47/40, 2x1-40/39, 4x2-533TT
5 Cleopatra 1915
6 Comus 1915
7 Conquest 1915
Calliope 2 8 Calliope 1915 4695t, 135.9x12.6x4.5m, 6b, 4(8)-2(9)gt, 37500(8)-40000(9)hp, 29.5(8)-29(9)kts, 368p; 102belt, 102shields, 25deck, 152CT; 4x1-152/45, 2x1-76/45, 4x1-47/40, 2x1-40/39, 2-533TT
9 Champion 1915
Cambrian 4 10 Castor 1915 4799t, 135.9x12.6x4.5m, 6b, 4gt, 40000hp, 28.5kts, 368p; 76belt, 102shields, 25deck, 152CT; 4x1-152/45, 2x1-76/45, 4x1-47/40, 2x1-40/39(10, 11), 2-533TT
11 Cambrian 1916
12 Canterbury 1916
13 Constance 1916
Centaur 2 14 Centaur 1916 4870t, 135.9x12.8x4.1m, 6b, 4gt, 40000hp, 29kts, 437p; 76belt, 102shields, 25deck, 152CT; 4x1-152/45(14), 3x1-152/45(15), 2x1-76/45, 2x1-40/39, 2-533TT
15 Concord 1916
Caledon 3 16 Caledon 1917 4950t, 137.2x13.0x5.0m, 6b, 2gt, 40000hp, 29kts, 400p; 76belt, 25shields, 25deck; 5x1-152/45, 2x1-76/45, 4x1-47/40, 2x1-40/39, 4x2-533TT
17 Calypso 1917
18 Caradoc 1917
Ceres 5 19 Cardiff 1917 5020t, 137.2x13.3x4.5m, 6b, 2gt, 40000hp, 29kts, 460p; 76belt, 25shields, 25deck; 5x1-152/45, 2x1-76/45, 4x1-47/40, 2x1-40/39, 4x2-533TT
20 Ceres 1917
21 Curlew 1917
22 Coventry 1918
23 Curacoa 1918
Carlisle 5 24 Carlisle 1918 5250t, 137.6x13.3x4.7m, 6b, 2gt, 40000hp, 29kts, 432p; 76belt, 25shields, 25deck; 5x1-152/45, 2x1-76/45, 4x1-47/40, 2x1-40/39, 4x2-533TT
25 Cairo 1919
26 Calcutta 1919
27 Colombo 1919
28 Capetown 1922
Danae 3 29 Danae 1918 5870t, 143.6x13.9x5.0m, 6b, 2gt, 40000hp, 29kts, 450p; 76belt, 25shields, 25deck, 76CT; 6x1-152/45, 3x1-102/45, 2x1-40/39, 4x3-533TT
30 Dauntless 1918
31 Dragon 1918
Delhi 3 32 Delhi 1919 5870t, 143.6x13.9x5.0m, 6b, 2gt, 40000hp, 29kts, 450p; 76belt, 25shields, 25deck, 76CT; 6x1-152/45, 3x1-102/45, 2x1-40/39, 4x3-533TT
33 Durban 1921
34 Despatch 1922

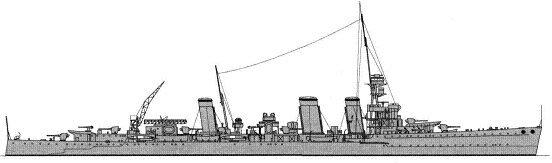

Emerald 2 35 Emerald 1926 9450t, 173.7x16.6x5.6m, 8b, 4gt, 80000hp, 33kts, 450p; 76belt, 25turret/shields, 25deck, 76CT; 7x1-152/45(35), (1x2+5x1)-152/45(36), 3x1-102/45, 4x1-47/40, 2x1-40/39, 4x4-533TT
36 Enterprise 1926
CM Adventure 1 1 Adventure 1927 8370t, 158.5x18.0x5.2m, 6b, 2gt/4dg, 4em(2), 40000/8000hp, 28kts, 395p; 25belt, 25deck; 4x1-120/40, 4x1-47/40, 4x1-40/39, 280mines

TORPEDO SHIPS

DL Lightfoot 1 1 Abdiel 1916 1700t, 99.0x9.7x3.7m, 4b, 3t, 36000hp, 34.5kts, 104p; 2x1-102/40, 2x1-40/39, 80mines
Parker 3 2 Grenville 1916 1912t, 99.0x9.7x3.7m, 4b, 3t, 36000hp, 34kts, 116p; 4x1-102/40(2, 3), 2x1-102/40(4), 2x1-40/39, 2x2-533TT(2, 3), 80mines(4)
3 Saumarez 1916
4 Seymour 1916
V 5 5 Vampire 1917 1400t, 95.1x9.0x3.2m, 3b, 2gt, 27000hp, 34kts, 115p; 4x1-102/45, 2x1-40/39, 2x3-533TT, 1DCR
6 Valentine 1917
7 Valhalla 1917
8 Valorous 1917
9 Valkyrie 1917
Shakespeare 5 10 Shakespeare 1917 2000t, 100.3x9.6x3.8m, 4b, 2gt, 40000hp, 36kts, 183p; 5x1-120/45, 1x1-76/45, 2x1-40/39, 2x3-533TT, 2DCT, 1DCR
11 Spencer 1917
12 Wallace 1919
13 Keppel 1924
14 Broke 1925
Scott 7 15 Bruce 1918 2050t, 101.3x9.7x3.8m, 4b, 2gt, 40000hp, 36kts, 164p; 5x1-120/45, 1x1-76/45, 2x1-40/39, 2x3-533TT, 2DCT, 1DCR
16 Douglas 1918
17 Campbell 1918
18 Stuart 1918
19 Montrose 1918
20 Malcolm 1919
21 Mackay 1919
DD
R-Admiralty 10 1 Romola 1916 1200-1244t, 84.1x8.1x2.7m, 3b, 2gt, 27000hp, 36kts, 82p; 3x1-102/40, 1x1-40/39, 2x2-533TT
2 Rowena 1916
3 Restless 1916
4 Salmon 1916
5 Skate 1917
6 Tempest 1917
7 Tetrarch 1917
8 Thisbe 1917
9 Thruster 1917
10 Torrid 1917
R-Thornycroft 2 11 Taurus 1917 1208t, 83.6x8.2-8.3x2.7m, 3b, 2gt, 27000hp, 36kts, 82p; 3x1-102/40, 1x1-40/39, 2x2-533TT
12 Teazer 1917
R-Yarrow 1 13 Tyrant 1917 1051t, 83.4x7.8x2.7m, 3b, 2t, 27000hp, 36kts, 82p; 3x1-102/40, 1x1-40/39, 2x2-533TT
Modified R 2 14 Umpire 1917 1225-1242t, 84.1x8.1x2.7m, 3b, 2gt, 27000hp, 36kts, 82p; 3x1-102/45, 1x1-40/39, 2x2-533TT
15 Urchin 1917
V-Admiralty 20 16 Vanquisher 1917 1480-1523t, 95.1x9.0x3.2m, 3b, 2gt, 27000hp, 34kts, 134p; 4x1-102/45 (can be 3x1-102/45 on 16, 17, 19, 24, 30, 31, 35), 1x1-40/39, 2x3-533TT(18, 20-23, 25-29, 32-34), (1x3+1x2)-533TT(16, 17, 19, 24, 30, 31, 35) (can be 1x2-533TT on 16, 17, 19, 24, 30, 31, 35), 2DCT (or can be not on 16, 17, 19, 24, 30, 31, 35), 1DCR, MS, (can be 60mines on 16, 17, 19, 24, 30, 31, 35)
17 Vanoc 1917
18 Vega 1917
19 Venturous 1917
20 Vendetta 1917
21 Venetia 1917
22 Verdun 1917
23 Violent 1917
24 Vimiera 1917
25 Vivacious 1917
26 Vectis 1917
27 Vimy 1918
28 Vanessa 1918
29 Vanity 1918
30 Velox 1918
31 Versatile 1918
32 Vesper 1918
33 Vidette 1918
34 Vivien 1918
35 Vortigern 1918
V-Thornycroft 2 36 Viceroy 1918 1512t, 95.1x9.4x2.9m, 3b, 2gt, 27000hp, 34kts, 134p; 4x1-102/45, 1x1-40/39, 2x3-533TT, 2DCT, 1DCR, MS
37 Viscount 1918
W-Admiralty 19 38 Wakeful 1917 1490t, 95.1x9.0x3.2m, 3b, 2gt, 27000hp, 34kts, 134p; 4x1-102/45 (can be 3x1-102/45 on 39, 42, 44, 46, 49), 1x1-40/39, 2x3-533TT (can be 1x3-533TT on 39, 42, 44, 46, 49), 2DCT, 1DCR, MS, (can be 60mines on 39, 42, 44, 46, 49)
39 Watchman 1918
40 Walpole 1918
41 Whitley 1918
42 Walker 1918
43 Westcott 1918
44 Walrus 1918
45 Wolfhound 1918
46 Warwick 1918
47 Wessex 1918
48 Voyager 1918
49 Whirlwind 1918
50 Wrestler 1918
51 Winchelsea 1918
52 Winchester 1918
53 Westminster 1918
54 Windsor 1918
55 Wryneck 1918
56 Waterhen 1918
W-Thornycroft 2 57 Woolsey 1918 1512t, 95.1x9.4x2.9m, 3b, 2gt, 27000hp, 34kts, 134p; 4x1-102/45, 1x1-40/39, 2x3-533TT, 2DCT, 1DCR, MS
58 Woolston 1918
S-Admiralty 47 59 Simoom 1918 1225t, 84.1x8.1x2.7m, 3b, 2gt, 27000hp, 36kts, 90p; 3x1-102/40, 1x1-40/39, 2x2-533TT, 2DCT, 1DCR
60 Scimitar 1918
61 Scotsman 1918
62 Scout 1918
63 Shark 1918
64 Sparrowhawk 1918
65 Splendid 1918
66 Sabre 1918
67 Sirdar 1918
68 Somme 1918
69 Senator 1918
70 Sepoy 1918
71 Seraph 1918
72 Swallow 1918
73 Tribune 1918
74 Trinidad 1918
75 Tactician 1918
76 Tara 1918
77 Scythe 1918
78 Seabear 1918
79 Seafire 1918
80 Searcher 1918
81 Sportive 1918
82 Tilbury 1918
83 Tintagel 1918
84 Trojan 1918
85 Saladin 1919
86 Shamrock 1919
87 Steadfast 1919
88 Sterling 1919
89 Seawolf 1919
90 Sardonyx 1919
91 Stormcloud 1919
92 Spindrift 1919
93 Serapis 1919
94 Serene 1919
95 Sesame 1919
96 Strenuous 1919
97 Stronghold 1919
98 Sturdy 1919
99 Truant 1919
100 Trusty 1919
101 Turbulent 1919
102 Tenedos 1919
103 Thanet 1919
104 Thracian 1922
105 Shikari 1924
S-Yarrow 3 106 Turquoise 1919 1060t, 83.4x7.8x3.0m, 3b, 2gt, 27000hp, 36kts, 90p; 3x1-102/40, 1x1-40/39, 2x2-533TT, 2DCT, 1DCR
107 Tuscan 1919
108 Tyrian 1919
S-Thornycroft 1
109 Tourmaline 1919 1240t, 84.1x8.3x3.2m, 3b, 2gt, 27000hp, 36kts, 90p; 3x1-102/40, 1x1-40/39, 2x2-533TT, 2x1-450TT, 2DCT, 1DCR
Modified W-Admiralty 14 110 Vansittart 1919 1508t, 95.1x9.0x3.2m, 3b, 2gt, 27000hp, 34kts, 127p; 4x1-120/45, 2x1-40/39, 2x3-533TT, 2DCT, 1DCR
111 Volunteer 1919
112 Venomous 1919
113 Verity 1919
114 Wanderer 1919
115 Veteran 1919
116 Whitshed 1919
117 Wild Swan 1919
118 Witherington 1919
119 Wivern 1919
120 Wolverine 1920
121 Worcester 1922
122 Wren 1923
123 Whitehall 1924
Modified W-Thornycroft 2 124 Wishart 1920 1530t, 95.1x9.4x2.9m, 3b, 2gt, 30000hp, 35kts, 127p; 4x1-120/45, 2x1-40/39, 2x3-533TT, 2DCT, 1DCR
125 Witch 1924
Amazon 1 126 Amazon 1926 1812t, 98.5x9.6x3.8m, 3b, 2gt, 39500hp, 37kts, 138p; 4x1-120/45, 2x1-40/39, 2x3-533TT
Ambuscade 1 127 Ambuscade 1927 1585t, 98.1x9.5x3.5m, 3b, 2gt, 33000hp, 37kts, 138p; 4x1-120/45, 2x1-40/39, 2x3-533TT

SUBMARINES

SS E-II 1 1 E51 1917 667/807t, 55.6x4.6x3.8m, 2d/em, 1600/840hp, 15/9kts, 30p, 30m; 1x1-76/50, 3-450TT, 20mines
L-I 8 2 L1 1917 891/1074t, 70.4x7.2x4.0m, 2d/em, 2400/1600hp, 17/10.5kts, 35p, 50m; 1x1-102/40, 6-450TT
3 L2 1917
4 L7 1917
5 L3 1918
6 L4 1918
7 L5 1918
8 L6 1918
9 L8 1918
M 2 10 M2 1920 1788(10)-1745(11)/1946t, 90.2(10)-93.2(11)x7.5x4.9(10)-4.8(11)m, 2d/em, 2400/1600hp, 15/9kts, 65p, 30m; 1x1-76/45, 4-450TT(10), 4-533TT(11), 100mines(11), 1seaplane(10) (1 Peto)
11 M3 1920
H-II 14 12 H23 1918 423/510t, 52.4x4.8x4.0m, 2d/em, 480/620hp, 11.5/10.5kts, 22p, 30m; 4-533TT
13 H24 1918
14 H27 1918
15 H28 1918
16 H30 1918
17 H31 1919
18 H32 1919
19 H33 1919
20 H34 1919
21 H43 1919
22 H48 1919
23 H49 1919
24 H44 1920
25 H50 1920
R 1 26 R4 1919 410/503t, 49.9x4.6x3.5m, 1d/2em(1), 240/1200hp, 9.5/15kts, 22p, 75m; 6-450TT
L-II 16 27 L11 1918 890/1080t, 72.7x7.2x4.0m, 2d/em, 2400/1600hp, 17/10.5kts, 38p, 50m; 1x1-102/40, 4-533TT, 2-450TT(30, 31, 33-37, 39-42), 16mines(27-29, 32), 14mines(38)
28 L12 1918
29 L14 1918
30 L15 1918
31 L16 1918
32 L17 1918
33 L18 1919
34 L19 1919
35 L20 1919
36 L33 1919
37 L21 1920
38 L25 1920
39 L22 1921
40 L23 1924
41 L26 1926
42 L27 1926
L-III 6 43 L56 1919 960/1150t, 71.6x7.2x4.0m, 2d/em, 2400/1600hp, 17/10.5kts, 44p, 50m; 2x1-102/40(45), 1x1-102/40(43, 44, 46-48), 6-533TT
44 L71 1920
45 L52 1921
46 L69 1923
47 L54 1924
48 L53 1925
K-II 1 49 K26 1923 2140/2530t, 107.0x8.5x4.9m, 2b, 2gt/4em(2), 10500/1440hp, 23.5/9.5kts, 59p, 50m; 3x1-102/40, 6-533TT
X 1 50 X1 1925 2780/3600t, 110.8x9.1x4.8m, 2d+2dg/2em, 7000/2400hp, 19.5/8kts, 110p, 60m; 2x2-132/42, 6-533TT
Oberon 1 51 Oberon 1927 1598/1831t, 82.2x8.5x4.7m, 2d/em, 2950/1350hp, 13.7/7.5kts, 54p, 60m; 1x1-102/40, 8-533TT
Odin 4 52 Odin 1929 1781/2038t, 86.4x9.1x4.9m, 2d/em, 4520/1390hp, 17.5/8kts, 53p, 95m; 1x1-102/40, 8-533TT
53 Osiris 1929
54 Oswald 1929
55 Otus 1929

ESCORTS

SL Acacia 9 1 Bluebell 1915 1275t, 80.0x10.1x3.4m, 2b, 1vte, 1800hp, 16.5kts, 90p; 2x1-102/40, 2x1-40/39, 2DCT, 1DCR, MS
2 Daffodil 1915
3 Dahlia 1915
4 Foxglove 1915
5 Hollyhock 1915
6 Laburnum 1915
7 Lily 1915
8 Magnolia 1915
9 Veronica 1915
Azalea 2 10 Clematis 1915 1275t, 80.0x10.1x3.4m, 2b, 1vte, 1800hp, 16.5kts, 90p; 2x1-102/40, 2x1-47/50, 2DCT, 1DCR, MS
11 Heliotrope 1915
Arabis 11 12 Rosemary 1915 1350t, 81.7x10.2x3.4m, 2b, 1vte, 2000hp, 16kts, 104p; 2x1-102/40 or 2x1-120/40, 2x1-47/50, 2DCT, 1DCR, MS
13 Cornflower 1916
14 Crocus 1916
15 Cyclamen 1916
16 Delphinium 1916
17 Godetia 1916
18 Lupin 1916
19 Snapdragon 1916
20 Verbena 1916
21 Wallflower 1916
22 Wisteria 1916
Aubretia 1 23 Heather 1916 1450t, 81.7x10.2x3.4m, 2b, 1vte, 2500hp, 17.5kts, 92p; 2x1-102/40, 1x1-47/50, 2DCT, 1DCR
Anchusa 3 24 Bryony 1917 1493t, 80.0x10.7x3.5m, 2b, 1vte, 2500hp, 17.5kts, 119p; 2x1-102/40, 2x1-76/40, 2DCT, 1DCR
25 Chrysanthemum 1918
26 Harebell 1918
Bridgewater 2 27 Bridgewater 1929 1600t, 81.2x10.4x3.7m, 2b, 2gt, 2000hp, 16.5kts, 100p; 2x1-102/45, 2x1-47/40, 1DCR, MS
28 Sandwich 1929
FS P-boat 3 1 P40 1916 613t, 74.5x7.2x2.4m, 2b, 2t, 3500hp, 20kts, 54p; 1x1-102/40, 1x1-40/39, 3x1-356TT, 2DCR
2 Spey 1917
3 P59 1917
PC-boat 4
4 Dart 1918 780t, 75.3x8.2x2.4m, 2b, 2t, 3500hp, 20kts, 55p; 1x1-102/40, 2x1-76/40, 2x1-356TT, 2DCR
5 PC74 1918
PC Z-whaler 1 1 Cachalot 1915 346t, 40.5x7.6x2.6m, 2b, 1vte, 1200hp, 13kts, 26p; 1x1-76/50, 2DCT

OTHER FIGHTING SHIPS

PR Woodcock 1 1 Woodlark 1898 No picture 150t, 44.2x7.3x0.6m, 1b, 1vte, 550hp, 13kts, 25p; 2x1-57/40
Moorhen 2 2 Moorhen 1901 180t, 48.7x7.5x0.8m, 1b, 1vte, 670hp, 13kts, 35p; 2x1-57/40
3 Teal 1901
Widgeon 1 4 Widgeon 1904 195t, 48.7x7.5x1.0m, 1b, 1vte, 800hp, 12.5kts, 35p; 2x1-57/40
Insect 11 5 Aphis 1915 750t, 72.4x11.0x1.2m, 2b, 2vte, 2000hp, 14kts, 54-65p; 2x1-152/40(5-8, 10-15), 1x1-152/40(9), 1x1-76/40
6 Gnat 1915
7 Mantis 1915
8 Scarab 1915
9 Bee 1916
10 Cicala 1916
11 Cockchafer 1916
12 Cricket 1916
13 Ladybird 1916
14 Moth 1916
15 Tarantula 1916
Peterel 2 16 Peterel 1927 No picture 400t, 56.4x8.8x1.3m, 2b, 2gt, 2250hp, 16kts, 55p; 2x1-76/45
17 Gannet 1928
Tern 2 18 Seamew 1928 No picture 330t, 51.2x8.2x1.3m, 2b, 2gt, 1370hp, 14kts, 55p; 2x1-76/45
19 Tern 1928

COASTAL FORCES

PT CMB-40 1 1 CMB12 1916 5t, 13.7x2.6x0.9m, 1pe, 250hp, 25kts, 3p; 1-450TT
  CMB-55 6 2 - 7 CMB14A ... 120F 1917 - 1922 11t, 18.3x3.4x0.9m, 2pe, 500-900hp, 35-41kts, 5p; (1-2)-450TT, 1DCR
  CMB-70 2 8, 9 CMB103MT, 104MT 1922 24t, 22.1x4.3x1.1m, 2pe, 1400hp, 36.6kts, 5p; 1DCR, 7mines

AMPHIBIOUS

LCU X1 12 1 X21 1915 160t, 32.2x6.4x1.1m, 1sd, 60hp, 8kts, ?p; 500troops
2 X23 1915
3 X31 1915
4 X36 1915
5 X45 1915
6 X64 1915
7 X95 1915
8 X103 1915
9 X131 1915
10 X134 1915
11 X140 1915
12 X149 1915
X201 6 13 X201 1916 137t, 29.6x6.1x1.1m, 1sd, 60hp, 8kts, ?p; 500troops
14 X206 1916
15 X209 1916
16 X213 1916
17 X217 1916
18 X225 1916
LCU(x) DX1 2 1 DX1 1916 137t, 29.6x6.1x1.1m, ?p; 500troops
2 DX2 1916
LC MLC1 1 1 MLC1 1926 No picture 26t, 12.2x3.5x0.4m, 2pe, 68hp, 4.7kts, 3p; 100troops
MLC10 1 2 MLC10 1929 No picture 32t, 13.0x3.6x0.5m, 2pe, 68hp, 5kts, 3p; 1 12t tank or 100 troops

MINE WARFARE

ML M15 1 1 Medea 1915 650t, 54.0x9.4x2.0m, 2b, 2vte, 650hp, 9kts, 69p; 50mines
M29 3 2 Medusa 1915 580t, 54.0x9.4x1.8m, 2b, 2vte, 400hp, 9kts, 72p; 50mines
3 Melpomene 1915
4 Minerva 1915
AML - 2
1 Kate Lewis 1916   207t, 24 mines
2 Strathcoe 1916   215t, 24 mines
MS Hunt-II 28 1 Aberdare 1918 930t, 70.4x8.7x2.3m, 2b, 2vte, 2200hp, 16kts, 74p; 1x1-102/40, 1x1-76/40, MS
2 Abingdon 1918
3 Derby 1918
4 Fareham 1918
5 Harrow 1918
6 Pangbourne 1918
7 Saltash 1918
8 Stoke 1918
9 Sutton 1918
10 Tiverton 1918
11 Widnes 1918
12 Albury 1919
13 Alresford 1919
14 Bagshot 1919
15 Carstairs 1919
16 Caterham 1919
17 Dundalk 1919
18 Dunoon 1919
19 Elgin 1919
20 Fermoy 1919
21 Forres 1919
22 Huntley 1919
23 Lydd 1919
24 Marazion 1919
25 Petersfield 1919
26 Ross 1919
27 Saltburn 1919
28 Selkirk 1919
TL Mersey 9 1 Moy 1917 665t, 45.1x7.2x2.8m, 1b, 1vte, 600hp, 11kts, ?p; 1x1-76/40, MS
2 Ouse 1917
3 Doon 1917
4 Excellent 1918
5 Colne 1918
6 Cherwell 1918
7 Blackwater 1918
8 Boyne 1918
9 James Ludford 1919
Castle 2
10 Madras 1919 547t, 40.8x7.2x2.8m, 1b, 1vte, 480hp, 10.5kts, ?p; 1x1-76/40, MS
11 Sealdah 1919
Axe 4 12 Dee 1916 520t, 42.3x7.2x3.7m, 1b, 1vte, 490hp, 10.5kts, 20p; 1x1-75/50, MS
13 Garry 1916
14 Kennet 1916
15 Liffey 1916
DF Admiralty steel 22 1 Billow 1918 200t, 28.4x5.7x2.3m, 1b, 1vte, 270hp, 9kts, ?p; 1x1-57/40, MS
2 Cascade 1918
3 Cloud 1918
4 Coldsnap 1918
5 Crescent Moon 1918
6 Eddy 1918
7 Flicker 1918
8 Glitter 1918
9 Halo 1918
10 Harmattan 1918
11 Horizon 1918
12 Indian Summer 1918
13 Landfall 1918
14 Leeward 1918
15 Lunar Bow 1918
16 Mist 1918
17 Noontide 1918
18 Sheen 1918
19 Shower 1918
20 Seabreeze 1919
21 Sundown 1919
22 Whirlpool 1920
Admiralty wooden 7
23 Anticyclone 1918 175t, 28.7x6.1x2.2m, 1b, 1vte, 270hp, 9kts, ?p; 1x1-57/40, MS
24 Avalanche 1918
25 Fiery Cross 1918
26 Flat Calm 1918
27 Full Moon 1918
28 Midnight Sun 1918
29 Fumarole 1919
ATL -   1 Vernon 1916   215brt

NAVAL AVIATION (approximately, maximal number of delivered planes signed)

Deck planes F: 193 Flycatcher I; TB: 117 Dart II; B: 20 Ripon II; R: 207 Fairey IIID
Seaplanes R: 90 Fairey IIIF I, 33 Fairey IIIF II







© Ivan Gogin, 2010
