Turkey 01 January 1930
CAPITAL SHIPS

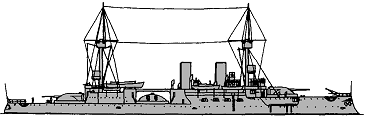

| BB | Torgud Reis | 1 | 1 | Torgud Reis (TS) | 1894 | |
10670t, 115.7x19.5x7.6m, 12b,2vte, 10200hp, 16.5kts, 600p; Harvey- 400belt, 60deck, 300barbettes, 300CT; 2x2-280/40, 1x2-280/35, 2x1-88/30, 2-450TT |

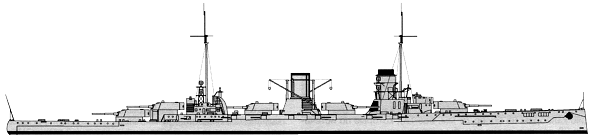

| CB | Yavuz Sultan Selim | 1 | 1 | Yavuz Sultan Selim | 1912 | |
25400t, 186.6x29.5x8.7m, 24b,4t, 52000hp, 25.5kts, 1053p; 270belt, 50deck, 230turrets, 350CT; 5x2-283/47, 10x1-150/45, 16x1-88/45, 4-500TT |
CRUISERS

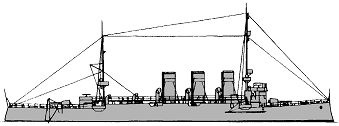

| CL | Mecidiye | 1 | 1 | Mecidiye | 1903 |  |
3967t, 102.4x12.8x4.8m, 16b,2vqe, 12500hp, 22kts, 312p; 38deck, 102slopes; 4x1-130/55, 4x1-76/50, 2-450TT |

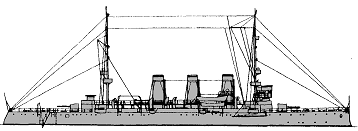

| Hamidiye | 1 | 2 | Hamidiye | 1904 |  |
3904t, 112.0x14.5x4.88m, 6b,2vte, 12000hp, 22kts, 302p; 38deck, 102slopes; 2x1-150/45, 8x1-75/50, 2x1-450TT, 70m |
TORPEDO SHIPS
| PGT | Peyk-i Şevket | 2 | 1 | Peyk | 1907 |  |
775t, 80.1ppx8.4x4.6m, 4b,2vte, 5100hp, 21kts, 105p; 2x1-105/40, 6x1-57/40, 2x1-37/50, (1+2x1)-450TT |
| 2 | Berk | 1907 | |||||
| DD | Samsun | 3 | 1 | Samsun | 1907 |  |
284t, 58.2x6.3x2.8m, 2b,2vte, 5950hp, 28kts, 23p; 1x1-65/50, 6x1-47/50, 2x1-450TT |
| 2 | Taşoz | 1907 | |||||
| 3 | Basra | 1907 | |||||
| TB | Akhisar | 1 | 1 | Akhisar | 1904 |  |
165t, 51.0x5.7x1.4m, 2b,2vte, 2400hp, 24kts, 30p; 1x1-47/45, 2x1-37/23, 1x1-450TT |
SUBMARINES
| SS | İnönü | 2 | 1 | Birinci İnönü | 1928 |  |
519/674t, 58.7x5.8x3.8m, 2d/em, 1100/700hp, 13.5/8.5kts, 44p, 50m; 1x1-75/55, 6-450TT |
| 2 | İkinci İnönü | 1928 |
OTHER FIGHTING SHIPS
| PG | Aydin Reis | 2 | 1 | Sakiz | 1914 |  |
503t, 54.5x8.2x2.4m, 3b,2vte, 1025hp, 14kts, 75p; 2x1-47/50 |
| 2 | Bürak Reis | 1914 | |||||
| İsa Reis | 3 | 3 | İsa Reis | 1914 |  |
413t, 47.0x7.9x1.3m, 3b,2vte, 850hp, 14kts, 60p; 2x1-75/50, 2x1-47/50 | |
| 4 | Kemal Reis | 1914 | |||||
| 5 | Hizir Reis | 1914 | |||||
| ADV | - | 1 | 1 | Galata | 1896 | 120t |
COASTAL FORCES
| YP | No1 | 9 | 1-9 | No11, 14, 15, 17, 18, 20-23 | 1914 |  |
20t, 18.3ppx3.3x1.6m, 2pe(1), 70hp, 11.9kts, 6p; 1x1-37/37 |
MINE WARFARE SHIPS
| ML | Nusret | 1 | 1 | Nusret | 1913 |  |
365t, 40.2ppx7.6x3.4m, 2b,2vte, 1200hp, 15kts; 2x1-57/40, 40m |
| AML | - | 1 | 1 | Uyanik | 1886 |  |
616brt; 1x1-75/35, 50m |
