GERMANY 01 January 1930
IN SERVICE: 6 battleships-predreadnoughts, 5 protected cruisers, 3 light cruisers, 29 torpedo boats, 3 fishery protection vessels, 2 dispatch vessels, 10 motor torpedo boats, 5 motor anti-submarine boats, 2 mine transports, 29 minesweepers, 8 minesweeping boats
CAPITAL SHIPS

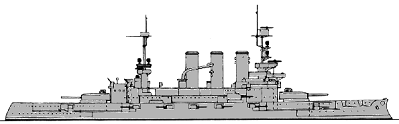

| BB | Braunschweig | 4 | 1 | Braunschweig | 1904 | |
14394t, 127.7x25.6x8.1m, 14b(1, 2)-10b(3), 2vte, 17700(1, 2)-16500(3)hp, 18.7(1, 2)-18.2(3)kts, 743p; 225belt, 40deck, 250turrets, 300CT; 2x2-283/40, 12x1-173/40(1), 10x1-173/40(2), 14x1-173/40(3), 8x1-88/45, 2-500TT(1), 4-500TT (2, 3) |
| 2 | Elsass | 1904 | |||||
| 3 | Hessen | 1905 | |||||

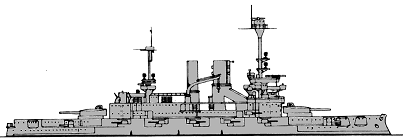

| Deutschland | 3 | 4 | Hannover | 1907 | |
13994t, 127.6x22.2x8.3m, 12b, 2vte, 20540hp, 18.5-19kts, 743p; 240belt, 40deck, 280turrets, 300CT; 2x2-283/40, 14x1-173/40(4), 14x1-149/45(5, 6), 4x1-88/45(4, 6), 2x1-88/45(5), 4-500TT | |
| 5 | Schlesien | 1908 | |||||
| 6 | Schleswig-Holstein | 1908 |
CRUISERS

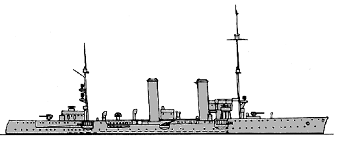

| CL | Gazelle | 3 | 1 | Nymphe | 1900 |  |
3082(1, 2)-3180(3)t, 108.7(1, 2)-105.0(3)x12.2(1, 2)-12.4(3)x5.4(1, 2)-5.5(3)m, 10b(1)-9b(2, 3), 2vte, 9020(1,2)-8580(3)hp, 21.8(1,2)-21.5(3)kts, 249(1,2)-259(3)p; 25deck, 50shields, 80CT; 10x1-105/45(1,2), 10x1-105/40(3), 2x1-500TT, 200m(3) |
| 2 | Amazone | 1901 | |||||
| 3 | Arcona | 1903 | |||||

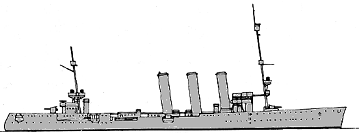

| Bremen | 2 | 4 | Hamburg | 1904 |  |
3816t, 111.1(4)-113.8(5)x13.3x5.6m, 10b, 2vte, 11750hp, 23kts, 288p; 35deck, 50shields, 100CT; 10x1-105/45(4), 8x1-105/45(5), 2x1-500TT | |
| 5 | Berlin | 1905 | |||||

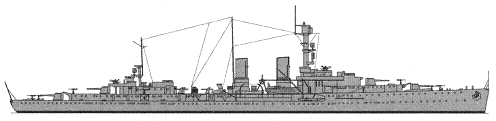

| Emden | 1 | 6 | Emden | 1925 |  |
6990t, 155.1x14.3x6.6m, 10b, 2gt, 45900hp, 29kts, 650p; 50belt, 40deck, 20shields, 100CT; 8x1-149/45, 2x1-88/45, 2x2-500TT, 120m | |

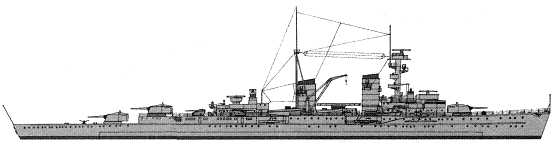

| Königsberg | 2 | 7 | Königsberg | 1929 |  |
7700t, 174.0x15.2x5.6m, 6b,2gt/2d(2), 65000/1800hp, 32kts, 850p; 65belt, 40deck, 30turrets, 100CT; 3x3-149/60, 2x1-88/45, 4x3-500TT, 120m | |
| 8 | Karlsruhe | 1929 |
TORPEDO SHIPS
| TB | V150 | 7 | 1 | T151 | 1908 |  |
691t, 72.5x7.8x3.0m, 4b,2vte, 10900hp, 30kts, 84p; 2x1-88/45(1,3,4-7), 2x1-88/35(2), 1x2-500TT(1,3,4), 3x1-450TT(2,5-7) |
| 2 | T152 | 1908 | |||||
| 3 | T153 | 1908 | |||||
| 4 | T155 | 1908 | |||||
| 5 | T156 | 1908 | |||||
| 6 | T157 | 1908 | |||||
| 7 | T158 | 1908 | |||||
| V180 | 2 | 8 | T185 | 1910 |  |
783(8)-775(9)t, 73.9x7.9x3.1m, 4b,2t, 18000hp, 32kts, 84p; 2x1-105/45, 2x2-500TT | |
| 9 | T190 | 1911 | |||||
| G192 | 1 | 10 | T196 | 1911 |  |
810t, 74.0x7.9x3.0m, 4b,2t, 18200hp, 32kts, 76p; 2x1-105/45, 2x2-500TT | |
| G7 | 4 | 11 | G7 | 1912 |  |
775t, 71.5x7.6x3.0m, 3b,2t, 16000hp, 31.5kts, 74p; 2x1-105/45, 2x1-500TT, 18m | |
| 12 | G8 | 1912 | |||||
| 13 | G10 | 1912 | |||||
| 14 | G11 | 1912 | |||||
| S13 | 3 | 15 | S18 | 1913 |  |
749t, 71.5x7.4x2.8m, 3b,2t, 15700hp, 32.5kts, 74p; 2x1-105/45(15,17), 2x1-88/45(16), 2x1-500TT, 18m | |
| 16 | S19 | 1913 | |||||
| 17 | S23 | 1913 | |||||
| Möwe | 6 | 18 | Möwe | 1926 |  |
1213(18)-1290(19-23)t, 87.0(18)-88.5(19-23)x8.3x2.8m, 3b,2gt, 22100(18)-23000(19-23)hp, 32(18)-33(19-24)kts, 120p; 3x1-105/45, 2x3-500TT, 30m | |
| 19 | Greif | 1927 | |||||
| 20 | Seeadler | 1927 | |||||
| 21 | Albatros | 1927 | |||||
| 22 | Falke | 1927 | |||||
| 23 | Kondor | 1928 | |||||
| Wolf | 6 | 24 | Wolf | 1928 |  |
1320t, 92.6x8.6x2.8m, 3b,2gt, 23000hp, 34kts, 120p; 3x1-105/55, 2x3-500TT, 30m | |
| 25 | Iltis | 1928 | |||||
| 26 | Jaguar | 1929 | |||||
| 27 | Leopard | 1929 | |||||
| 28 | Luchs | 1929 | |||||
| 29 | Tiger | 1929 |
ESCORTS
| FPV | Iltis | 1 | 1 | Panther | 1902 |  |
1193t, 66.9x9.7x3.1m, 4b,2vte, 1300hp, 14kts, 130p, 2x1-105/40(can be fitted) |
| Meteor | 1 | 2 | Meteor | 1924 |  |
1504t, 71.1x10.2x3.6m, 2b,2vte, 885hp, 11.5kts, 124p; 1x1-88/45(can be fitted) | |
| M57 | 1 | 3 | Zieten | 1919 |  |
OTHER FIGHTING SHIPS
| DV | S138 | 2 | 1 | Pfeil | 1907 |  |
684t, 70.7x7.8x2.7m, 4b,2vte, 11000hp, 30.3kts, 80p; 2x1-20/65 |
| 2 | Blitz | 1907 |
COASTAL FORCES
| PT | LM14 | 3 | 1 - 3 | UZ(S)16, 17, 20 | 1918-1919 |  |
7t, 16.5x2.4x0.6m, 3pe, 780(1)-680(2)-740(3)hp, 31.6kts, 7p; 1-450TT |
| LM17 | 1 | 4 | UZ(S)13 | 1917 |  |
8t, 17.0x2.4x0.6m, 3pe, 780hp, 30.8kts, 7p; 1x1-20/60, 1-450TT | |
| LM21 | 3 | 5 - 7 | UZ(S)14, 15, 21 | 1917-1919 |  |
7t, 16.0x2.4x0.7m, 3pe, 780hp, 31.8kts, 7p; 1x1-20/60(7), 1-450TT | |
| Luer | 1 | 8 | Luer | 1928 |  |
23t, 21.0x3.6x1.3m, 3pe, 1350hp, 33.5kts, 8p; 2-450TT (can be fitted) | |
| Narwal | 1 | 9 | Narwal | 1928 |  |
31t, 21.3x4.1x0.9m, 3pe, 1125hp, 34.8kts, 8p; 2-450TT | |
| K | 1 | 10 | K | 1929 | |
16t, 17.4x3.5x1.2m, 2pe, 1060hp, 40kts, 8p; 2-450TT | |
| PS | UZ23 | 5 | 1 - 5 | UZ27 - 29, 34, 35 | 1918 |  |
60t, 31.0x4.4x1.3m, 2pe, 570hp, 16kts, 14p; 1x1-52/55(4), DCR |
MINE WARFARE
| MT | MW I | 2 | 1 | Heppens | 1917 |  |
673t, 53.1x9.3x2.3m, 2b,2vte, 371hp, 9.5kts, 53p; mines |
| 2 | Mariensiel | 1917 | |||||
| MS | M27 | 1 | 1 | M50 | 1916 |  |
503t, 58.2x7.3x2.2m, 2b,2vte, 1890hp, 16.5kts, 40p; 3x1-88/45, 30m, MS |
| M57 | 28 | 2 | M60 | 1918 |  |
535-590t, 58.2-59.5x7.3-7.4x2.2-2.3m, 2b,2vte, 1600-1870hp, 15-16.5kts, 40p; 2x1-105/45(2-4,10-29), 2x1-88/45(5,8,9), 3x1-88/45(6,7) | |
| 3 | M61 | 1918 | |||||
| 4 | M66 | 1917 | |||||
| 5 | M72 | 1918 | |||||
| 6 | M75 | 1917 | |||||
| 7 | M84 | 1917 | |||||
| 8 | M85 | 1918 | |||||
| 9 | M89 | 1918 | |||||
| 10 | M98 | 1918 | |||||
| 11 | M102 | 1918 | |||||
| 12 | M104 | 1918 | |||||
| 13 | M107 | 1918 | |||||
| 14 | M108 | 1918 | |||||
| 15 | M109 | 1918 | |||||
| 16 | M110 | 1918 | |||||
| 17 | M111 | 1918 | |||||
| 18 | M113 | 1920 | |||||
| 19 | M115 | 1918 | |||||
| 20 | M117 | 1919 | |||||
| 21 | M122 | 1919 | |||||
| 22 | M126 | 1919 | |||||
| 23 | M129 | 1919 | |||||
| 24 | Fuchs (TS) | 1919 | |||||
| 25 | M132 | 1919 | |||||
| 26 | M136 | 1919 | |||||
| 27 | M145 | 1919 | |||||
| 28 | M146 | 1919 | |||||
| 29 | M157 | 1919 | |||||
| MSB | F1 | 1 - 8 | F7, 11, 17, 20, 46, 62, 69, 71 | 1915-1919 |  |
20(1,2)-21(3-8)t, 16.5(1,2)-17.5(3-8)x4.0x1.1m, 2pe, 120-130hp, 10-11kts, 7p; MS |
