World navies yesterday

1930

Brazil 01 January 1930

BATTLESHIPS

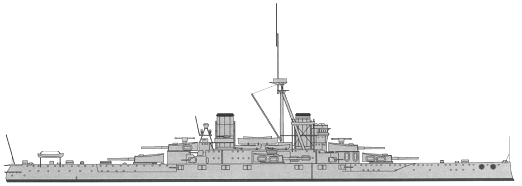

BB Minas Gerais 2 1 Minas Gerais 1910 21200t, 165.5x25.33x7.6m, 18b,2vte, 23500hp, 21kts, 900p; 229belt, 51deck, 229turrets, 305CT; 6x2-305/45, 12x1-120/50, 2x1-76/50, 8x1-37/32
2 São Paolo 1910
BC Marshal Deodoro 1 1 Marshal Floriano 1901 3162t, 81.5x14.4x4.2m, 8b,2vte, 3400hp, 15kts, 200p; Harvey: 350belt, 45deck, 220turrets, 125CT; 2x1-234/45, 4x1-120/50, 6x1-57/40, 2-450TT

CRUISERS

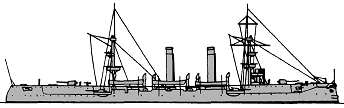

CL Almirante Barroso 1 1 Almirante Barroso 1897 3437t, 108.0x13.3x5.2m, 4b,2vte, 7500hp, 20.2kts, 366p; Harvey: 88slopes, 31deck, 102CT; 6x1-152/50, 4x1-120/50, 10x1-57/40, 4x1-37/23, 3-450TT

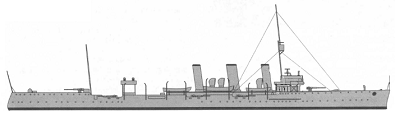

Bahia 2 2 Bahia 1910 3185t, 122.4x11.9x4.4m, 6b,3gt, 22000hp, 28kts, 350p; 31slopes, 19deck, 76CT; 10x1-120/50, 4x1-76/40, 4x1-47/40, 2x2-533TT
3 Rio Grande do Sul 1910

TORPEDO SHIPS

DD Pará 10 1 Amazonas 1909 560t, 73.2ppx7.2x2.4m, 2b,2vte, 8000hp, 27kts, 130p; 2x1-102/40, 4x1-47/40, 2x1-450TT
2 Pará 1909
3 Piaui 1909
4 Rio Grande do Norte 1909
5 Paraíba 1909
6 Alagoas 1910
7 Sergipe 1910
8 Paraná 1910
9 Santa Catharina 1910
10 Mato Grosso 1909
Alexandrino Dealenca 1 11 Maranhão 1914 1300t, 81.5x8.2x2.9m, 4b,2t, 24500hp, 29kts, 73p; 3x1-102/40, 2x1-47/50, 2x2-450TT
TB Goiás 1 1 Goiás 1907 No picture 150t, 46.3ppx4.7x1.3m, 2vte,1t(3), 950hp, 26kts, 30p; 2x1-47/40, 2x1-450TT

SUBMARINES

SS F1 3 1 F1 1913 250/305t, 46.0ppx4.4x3.7m, 2d/em, 700/500hp, 13.5/8kts, 20p, 40m; 2-450TT
2 F2 1914
3 F3 1914
Humaytá 1 4 Humaytá 1929 1450/1884t, 86.7x7.8x4.3m, 2d/em, 4000/1000hp, 18.5/10kts, 61p, 100m; 1x1-120/41, 2x1-13.2, 6-533TT, 16m

OTHER FIGHTING SHIPS

RMON Pernambuco 1 1 Pernambuco 1910 470t, 44.5x7.3x1.6m, 2b,2vte, 800hp, 11kts, 60p; 168belt, 102deck, 152turret, 89CT; 1x2-120/45, 2x1-57/43, 2x1-37/32
PGR Yutohy 1 1 Teffé 1892 No picture 33t, 27.4ppx4.6x1.5m, 11kts; 1x1-47/40
Acre 1 2 Missões 1906 No picture 200t, 36.6x6.1x0.6m, 1b,1vte, 300hp, 11kts; 1x1-87/13, 1x1-57/43
APGR - 4 1 Oyapock 1908   295t
2 Teniente Mário Alves 1913   280t
3 Amapá 1912   320t
4 Ajuricaba 1923   120t

MINE WARFARE SHIPS

AML - 1 1 Tenente Maria do Couto     340t; 30m
AMS - 2 1 Heitor Perdigão 1921   500t
2 Muniz Freire 1921   500t
