World navies yesterday

1925

Japan 01 January 1925

CAPITAL SHIPS AND MONITORS

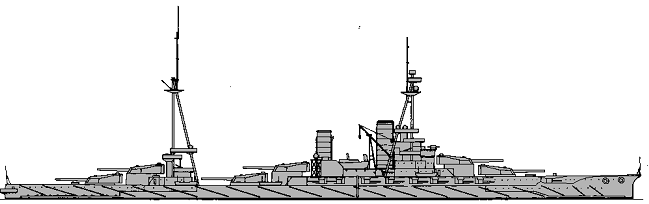

BB	Fuso	2	1	Fuso	1915		35900(1)-39154(2)t, 205.1x28.7x8.7m, 24b,4t, 40000hp, 22.5kts, 1193p; 305belt, 76deck, 305turrets, 350CT; 6x2-356/45, 16x1-152/50, 6x1-76/40, 6-533TT
			2	Yamashiro	1917

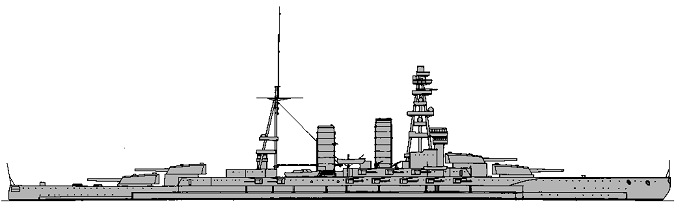

	Ise	2	3	Ise	1917		36500t, 208.2x28.7x8.8m, 24b,4t, 45000hp, 23kts, 1360p; 305belt, 51deck, 305turrets, 305CT; 6x2-356/45, 20x1-140/50, 4x1-76/40, 6-533TT
			4	Hyuga	1918
	Nagato	2	5	Nagato	1920		38500t, 215.8x29.0x9.1m, 21b,4gt, 80000hp, 26.5kts, 1333p; 305belt, 121deck, 356turrets, 356CT; 4x2-410/45, 20x1-140/50, 4x1-76/40, 8-533TT
			6	Mutsu	1921

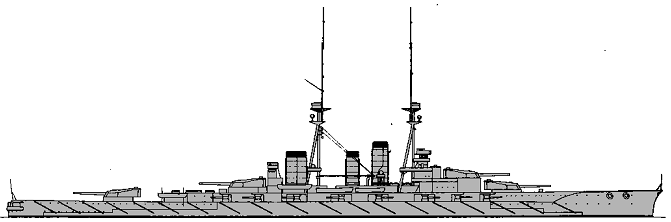

BC	Kongo	4	1	Kongo	1913		32200t, 214.5x28.0x8.4m, 36b,4t, 64000hp, 27.5kts, 1221p; 203belt, 57deck, 229turrets, 254CT; 4x2-356/45, 16x1-152/50, 7x1-76/40, 8-533TT
			2	Hiei	1914
			3	Kirishima	1915
			4	Haruna	1915
BC	Mishima	1	1	Mishima	1897		5050t, 86.4x15.9x5.8m, 8b,2vte, 5750hp, 16kts, 404p; Harvey: 254belt, 76deck, 203turrets, 203CT; 2x2-254/45, 6x1-152/40

AIRCRAFT CARRYING SHIPS

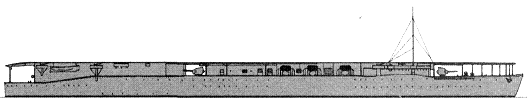

CVL	Hosho	1	1	Hosho	1922		9630t, 168.1x22.7x6.2m, 8b,2t, 30000hp, 25kts, 550p; 4x1-140/50, 4x1-76/40, 26aircraft (7 1MF, 4 2MR, 6 1MT)
AV	Wakamiya	1	1	Wakamiya	1901		7720t, 111.3x14.7x5.8m, 3b,1vte, 1591hp, 10kts, 234p; 2x1-76/40, 2x1-47/40, 4seaplanes (really no)

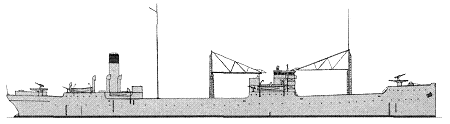

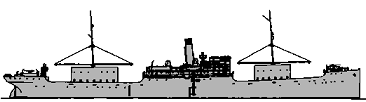

	Notoro	2	2	Notoro	1920		14050t, 138.9x17.7x8.1m, 4b,2vte, 5850hp, 12kts, 155p; 2x1-120/45, 2x1-76/40, 10seaplanes (W.33)
			3	Tsurumi	1922

CRUISERS

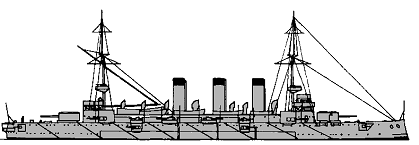

CA	Asama	1	1	Asama	1899		10500t, 134.7x20.5x7.4m, 16b,2vte, 18000hp, 21.5kts, 726p; Harvey: 178belt, 76deck, 152turrets, 356CT; 2x2-203/45, 14x1-152/40, 9x1-76/40, 3x1-47/30, 2-450TT
	Yakumo	1	2	Yakumo	1900		10300t, 132.3x19.6x7.2m, 24b,2vte, 15500hp, 20.5kts, 700p; 178belt, 63deck, 152turrets, 356CT; 2x2-203/45, 12x1-152/40, 9x1-76/40, 3x1-47/30, 2-450TT
	Azuma	1	3	Azuma (TS)	1900		9953t, 137.9x20.9x7.2m, 24b,2vte, 17000hp, 20kts, 650p; 178belt, 63deck, 152turrets, 356CT; 2x2-203/45, 12x1-152/40, 9x1-76/40, 8x1-47/40, 2-450TT

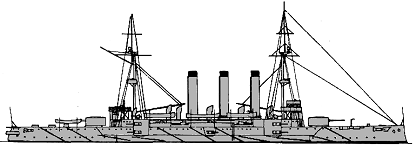

	Izumo	2	4	Izumo	1900		10300t, 132.3x20.9x7.4m, 24b,2vte, 14500hp, 20.8kts, 672p; 178belt, 63deck, 152turrets, 356CT; 2x2-203/45, 14x1-152/40, 9x1-76/40, 4x1-47/30, 2-450TT
			5	Iwate	1901
	Kasuga	2	6	Kasuga	1904		8500t, 111.7x18.9x7.3m, 12b,2vte, 13500hp, 20kts, 600p; 150belt, 38deck, 150turrets, 150CT; 1x1-254/40(6), 1x2-203/45(6), 2x2-203/45(7), 4x1-152/40, 5x1-76/40, 4-450TT
			7	Nisshin	1904

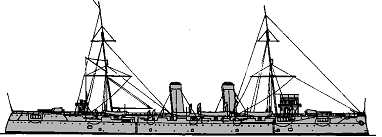

CL	Chitose	1	1	Chitose	1899		5598t, 120.4x15.0x5.4m, 8b,2vte, 15000hp, 22.5kts, 434p; Harvey: 114slopes, 45deck, 114shields, 114CT; 2x1-203/45, 10x1-120/40, 11x1-76/40, 6x1-47/30, 5-356TT
	Tsushima	1	2	Tsushima	1904		3716t, 104.1x13.4x4.9m, 16b,2vte, 9500hp, 20kts, 320p; Harvey: 64slopes, 25shields, 102CT; 6x1-152/40, 9x1-76/40
	Tone	1	3	Tone	1910		4900t, 123.2x14.4x5.1m, 16b,2vte, 15000hp, 23kts, 370p; 76deck, 25shields, 102CT; 2x1-152/45, 8x1-120/40, 6x1-76/40, 3-450TT

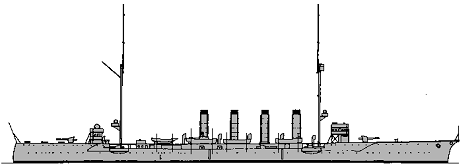

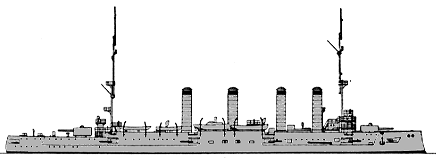

	Chikuma	3	4	Chikuma	1912		5040t, 144.8x14.2x5.1m, 6b,2t, 22500hp, 26kts, 414p; 89belt, 57deck, 25shields, 102CT; 8x1-152/45, 6x1-76/40, 2x2-533TT
			5	Hirado	1912
			6	Yahagi	1912

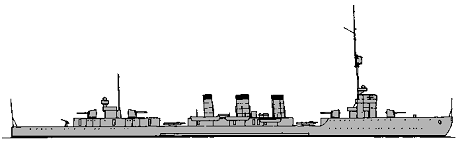

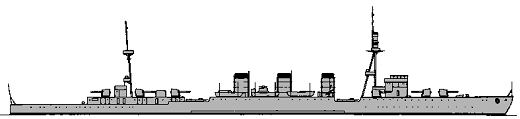

	Tenryu	2	7	Tenryu	1919		4350t, 142.9x12.3x4.0m, 10b,3gt, 51000hp, 33kts, 327p; 63belt, 25deck, 20shields, 51CT; 4x1-140/50, 1x1-76/40, 2x3-533TT, 48m
			8	Tatsuta	1919
	Kuma	5	9	Kuma	1920		5832t, 162.2x14.2x4.8m, 12b,4gt, 90000hp, 36kts, 450p; 63belt, 29deck, 20shields, 51CT: 7x1-140/50, 2x1-76/40, 4x2-533TT, 48m
			10	Tama	1921
			11	Kitakami	1921
			12	Oi	1921
			13	Kiso	1921

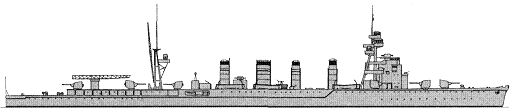

	Nagara	5	14	Nagara	1922		7050t, 162.2x14.2x4.8m, 12b,4gt, 90000hp, 36kts, 450p; 63belt, 29deck, 20shields, 51CT; 7x1-140/50, 2x1-76/40, 4x2-610TT, 48m, 1seaplane (HD-26)
			15	Isuzu	1923
			16	Natori	1922
			17	Yura	1923
			18	Kinu	1922
	Yubari	1	19	Yubari	1923		4400t, 138.9x12.0x3.6m, 8b,3gt, 57750hp, 35.5kts, 328p; 57belt, 25deck, 25turrets; (2x2+2x1)-140/50, 1x1-76/40, 2x2-610TT, 48m
	Sendai	1	20	Sendai	1924		7100t, 163.0x14.2x4.9m, 12b,4gt, 90000hp, 35.2kts, 450p; 64belt, 29deck, 25shields; 7x1-140/50, 2x1-76/40, 4x2-610TT, 48m, 1seaplane (HD-26)

TORPEDO SHIPS

DD	Harusame	2	1	Ariake	1905		435t, 71.4x6.6x1.8m, 4b,2vte, 6000hp, 29kts, 55p; 2x1-76/40, 4x1-57/40, 2x1-450TT
			2	Fubuki	1905
	Asakaze	17	3	Yayoi	1905		450t, 72.0x6.6x1.8m, 4b,2vte, 6000hp, 29kts, 70p; 2x1-76/40, 4x1-76/23, 2x1-450TT
			4	Oite	1906
			5	Mikazuki	1906
			6	Shigure	1906
			7	Hatsuharu	1907
			8	Shiratsuyu	1906
			9	Shirayuki	1906
			10	Matsukaze	1907
			11	Nagatsuki	1907
			12	Yunagi	1906
			13	Uzuki	1907
			14	Minazuki	1907
			15	Hayate	1907
			16	Kikuzuki	1907
			17	Uranami	1908
			18	Isonami	1909
			19	Ayanami	1909
	Umikaze	2	20	Umikaze	1911		1150t, 98.5x8.5x2.7m, 8b,3t, 20500hp, 33kts, 140p; 2x1-120/40, 5x1-76/40, 2x2-450TT(20), 3x1-450TT(21)
			21	Yamakaze	1911
	Sakura	2	22	Sakura	1912		830t, 83.6x7.3x2.2m, 5b,3vte, 9500hp, 30kts, 92p; 1x1-120/40, 4x1-76/40, 2x2-450TT
			23	Tachibana	1912
	Urakaze	1	24	Urakaze	1915		1085t, 87.2x8.4x2.4m, 3b,2t, 22000hp, 30kts, 120p; 1x1-120/40, 4x1-76/40, 2x2-533TT
	Kaba	10	25	Kaba	1915		850t, 83.6x7.3x2.3m, 4b,3vte, 9500hp, 30kts, 92p; 1x1-120/40, 4x1-76/40, 2x2-450TT
			26	Matsu	1915
			27	Kashiwa	1915
			28	Katsura	1915
			29	Kaede	1915
			30	Kiri	1915
			31	Kusunoki	1915
			32	Ume	1915
			33	Sakaki	1915
			34	Sugi	1915
	Momo	4	35	Momo	1916		1080t, 85.6x7.7x2.3m, 4b,2gt, 16000hp, 31.5kts, 110p; 3x1-120/40, 2x3-450TT
			36	Kashi	1917
			37	Hinoki	1917
			38	Yanagi	1917
	Amatsukaze	4	39	Amatsukaze	1917		1570t, 96.9x8.5x2.8m, 5b,3t, 27000hp, 34kts, 128p; 4x1-120/40, 3x2-450TT
			40	Isokaze	1917
			41	Tokitsukaze	1917
			42	Hamakaze	1917
	Kawakaze	2	43	Kawakaze	1918		1580t, 103.6x8.8x2.8m, 4b,2gt(43)-2t(44), 34000hp, 37.5kts, 128p; 3x1-120/45, 2x3-533TT
			44	Tanikaze	1919
	Enoki	6	45	Enoki	1918		1100t, 85.8x7.7x2.3m, 4b,2gt, 17500hp, 31.5kts, 110p; 3x1-120/40, 2x3-450TT
			46	Nara	1918
			47	Tsubaki	1918
			48	Kuwa	1918
			49	Keyaki	1918
			50	Maki	1918
	Momi	21	51	Momi	1919		1020t, 85.3x7.9x2.4m, 3b,2gt, 21500hp, 36kts, 110p; 3x1-120/45, 2x2-533TT, 20m, MS
			52	Kaya	1920
			53	Nire	1920
			54	Nashi	1919
			55	Take	1919
			56	Kaki	1920
			57	Kuri	1920
			58	Tsuga	1920
			59	Fuji	1921
			60	Kiku	1920
			61	Aoi	1920
			62	Hagi	1921
			63	Susuki	1921
			64	Ashi	1921
65			Tsuta	1921
66			Warabi	1921
67			Hasu	1922
68			Hishi	1922
69			Sumire	1923
70			Yomogi	1922
71			Tade	1922
Minekaze	15	72	Minekaze	1920		1650t, 102.6x9.0x2.9m, 4b,2gt, 38500hp, 39kts, 148p; 4x1-120/45, 3x2-533TT, 20m
		73	Sawakaze	1920
		74	Okikaze	1920
		75	Hakaze	1920
		76	Yakaze	1920
		77	Nadakaze	1921
		78	Shimakaze	1920
		79	Akikaze	1921
		80	Shiokaze	1921
		81	Yukaze	1921
		82	Hokaze	1921
		83	Tachikaze	1921
		84	Nokaze	1922
		85	Namikaze	1922
		86	Numakaze	1922
1-go	5	87	1-go	1922		1720t, 102.6x9.1x2.9m, 4b,2gt, 38500hp, 37.2kts, 148p; 4x1-120/45, 3x2-533TT, 20m, MS
		88	3-go	1923
		89	5-go	1923
		90	7-go	1924
		91	9-go	1924
2-go	8	92	2-go	1922		1100t, 85.3x7.9x2.5m, 3b,2gt, 21500hp, 35.5kts, 110p; 3x1-120/45, 2x2-533TT, 20m, MS
		93	4-go	1922
		94	6-go	1923
		95	8-go	1924
		96	10-go	1923
		97	12-go	1924
		98	16-go	1923
		99	18-go	1923

SUBMARINES

SS	C-1	2	1	HA1	1909		286/321t, 43.3x4.1x3.4m, 1pe/em, 600/300hp, 12/8.5kts, 26p, 30m; 2-450TT
			2	HA2	1909
	C-2	3	3	HA3	1911		291/326t, 43.3x4.1x3.4m, 1pe/em, 600/300hp, 12/8.5kts, 25p, 30m; 2-450TT
			4	HA4	1911
			5	HA5	1911
	VK	1	6	HA6	1912		304/340t, 38.6x3.8x3.1m, 1pe/em, 1000/300hp, 10.8/8kts, 26p, 30m; 2-450TT
	C-3	2	7	HA7	1916		290/326t, 43.7x4.1x3.4m, 1pe/em, 600/300hp, 12/8.5kts, 26p, 30m; (2+2x1)-450TT
			8	HA8	1917
	S-2	1	9	HA9	1920		480/737t, 58.6x5.2x3.3m, 2d/em, 1800/850hp, 16.5/9.5kts, 30p, 30m; 1x1-76/40, 4-450TT, 2-450TR
	S-1	1	10	HA10	1917		418/665t, 56.7x5.2x3.1m, 2d/em, 2000/850hp, 17/10kts, 30p, 30m; 1x1-76/40, 4-450TT, 4-450TR
	K-1	2	11	RO11	1919		735/1030t, 69.2x6.4x3.4m, 2d/em, 2600/1200hp, 18/9kts, 44p, 30m; 1x1-76/23, 4-450TT, 2-450TR
			12	RO12	1919
	F-1	2	13	RO1	1920		689/1047t, 65.6x6.1x4.2m, 2d/em, 2800/1200hp, 13/8kts, 43p, 40m; 1x1-76/23, 5-450TT
			14	RO2	1920
	K-2	3	15	RO13	1920		755/1050t, 70.1x6.1x3.7m, 2d/em, 2600/1200hp, 17/9kts, 45p, 45m; 1x1-76/23, 4-450TT, 2-450TR
			16	RO14	1921
			17	RO15	1921
	L-1	2	18	RO51	1920		893/1195t, 70.6x7.2x3.9m, 2d/em, 2400/1600hp, 17/8kts, 48p, 60m; 1x1-76/23, 6-450TT
			19	RO52	1920
	K-3	10	20	RO16	1922		755/1050t, 70.1x6.1x3.7m, 2d/em, 2600/1200hp, 17/9kts, 45p, 45m; 1x1-76/23, 4-450TT, 2-450TR
			21	RO17	1921
			22	RO18	1921
			23	RO19	1922
			24	RO20	1922
			25	RO21	1922
			26	RO22	1922
			27	RO23	1923
			28	RO24	1920
			29	RO25	1921
	L-2	4	30	RO53	1921		893/1195t, 70.6x7.1x3.9m, 2d/em, 2400/1600hp, 17/8kts, 48p, 60m; 1x1-76/23, 4-450TT
			31	RO54	1921
			32	RO55	1921
			33	RO56	1922
	F-2	3	34	RO3	1922		689/1047t, 65.6x6.1x4.1m, 2d/em, 2600/1200hp, 14/8kts, 43p, 40m; 1x1-76/23, 5-450TT
			35	RO4	1922
			36	RO5	1922
	L-3	3	37	RO57	1922		897/1195t, 76.2x7.2x4.0m, 2d/em, 2400/1600hp, 17/8kts, 48p, 60m; 1x1-76/23, 4-533TT
			38	RO58	1922
			39	RO59	1923
	K-4	3	40	RO26	1923		770/1080t, 74.2x6.1x3.7m, 2d/em, 2600/1200hp, 17/9kts, 45p, 45m; 1x1-76/23, 4-533TT
			41	RO27	1924
			42	RO28	1923
	KT	3	43	RO29	1923		665/1030t, 74.2x6.1x3.7m, 2d/em, 1200/1200hp, 13/8kts, 43p, 75m; 1x1-120/45, 4-533TT
			44	RO30	1924
			45	RO32	1924
	L-4	4	46	RO60	1923		996/1322t, 76.2x7.4x3.8m, 2d/em, 2400/1600hp, 16.5/9kts, 60p, 60m; 1x1-76/40, 6-533TT
			47	RO61	1924
			48	RO62	1924
			49	RO63	1924
	KD-1	1	50	I51	1924		1500/2430t, 91.4x8.8x4.6m, 4d/em, 5200/2000hp, 20/10kts, 60p, 60m; 1x1-120/45, 1x1-76/40, 8-533TT

OTHER FIGHTING SHIPS

PG	Chihaya	1	1	Chihaya	1901		1464t, 87.7x9.6x2.8m, 4b,2vte, 6000hp, 21kts, 125p; 2x1-120/40, 4x1-76/40, 2x1-450TT
	Uji	1	2	Uji	1903		620t, 57.8x8.4x2.1m, 2b,2vte, 1000hp, 13kts, 86p; 4x1-76/40
	Yodo	1	3	Yodo	1908		1250t, 93.1x9.8x3.0m, 4b,2vce, 6500hp, 22kts, 180p; 63deck, 51CT; 2x1-120/40, 4x1-76/40, 2x1-450TT
	Mogami	1	4	Mogami	1908		1350t, 96.3x9.8x3.0m, 6b,3t, 8000hp, 23kts, 180p; 63deck, 51CT; 2x1-120/40, 4x1-76/40, 2x1-450TT
	Saga	1	5	Saga	1912		885t, 69.0x9.0x2.2m, 2b,2vte, 1600hp, 15kts, 98p; 1x1-120/45, 3x1-76/40
	Ataka	1	6	Ataka	1923		1133t, 71.7x9.0x2.3m, 2b,2vte, 1700hp, 16kts, 118p; 2x1-120/45, 2x1-76/40
PR	Sumida	1	1	Sumida	1906		126t, 44.2x7.2x0.6m, 2b,3vte, 550hp, 13kts, 40p; 2x1-47/40
	Fushimi	1	2	Fushimi	1906		180t, 48.7x7.4x0.7m, 2b,3vte, 900hp, 14kts, 45p; 2x1-57/40
	Toba	1	3	Toba	1911		291t, 55.9x8.2x0.8m, 2b,3vte, 1400hp, 15kts, 59p; 2x1-76/23
	Seta	4	4	Seta	1923		400t, 56.1x8.2x1.0m, 2b,2vce, 2100hp, 16kts, 62p; 2x1-76/40
			5	Kataka	1923
			6	Hira	1923
			7	Hozu	1923

COASTAL FORCES

PT

CMB-55

4

1 - 4

No615, 1149 and 2 others

1920

14t, 16.8x3.4x1.0m, 2pe, 1000hp, 40kts, 5p; 2-450TR, 1DCR

MINE WARFARE

ML	Tokiwa	1	1	Tokiwa	1899		10500t, 134.7x20.5x7.4m, 16b,2vte, 18000hp, 21.5kts, 726p; Harvey: 178belt, 76deck, 152turrets, 356CT; 1x2-203/45, 8x1-152/40, 3x1-76/40, 300m
	Aso	1	2	Aso	1903		7800t, 137.0x17.5x6.5m, 26b,2vte, 16500hp, 21kts, 593p; Harvey: 200belt, 50deck, 60casemates, 160CT; 2x1-152/50, 8x1-152/45, 16x1-76/40, 420m
	Natsushima	13	3	Natsushima	1912		435t, 45.7x7.6x2.3m, 1b,1vte, 600hp, 12.8kts, 40p; 2x1-76/40, 60m, MS
			4	Sokuten	1913
			5	Toshima	1915
			6	Kuroshima	1915
			7	Ashizaki	1916
			8	KAtoku	1916
			9	Kurokami	1917
			10	Katashima	1917
			11	Ento	1917
			12	Enoshima	1919
			13	Kurosaki	1921
			14	Ninoshima	1920
			15	Washizaki	1921
	Katsuriki	1	16	Katsuriki	1917		2000t, 73.1x11.9x4.3m, 2b,2vte, 1800hp, 13kts; 3x1-76/40, 150m
MS	Asakaze	12	1	Asakaze	1906		450t, 72.0x6.6x1.8m, 4b,2vte, 6000hp, 29kts, 70p; 2x1-120/40, 2x1-76/40, MS
			2	Wakaba	1906
			3	Ushio	1905
			4	Nenohi	1905
			5	Kisaragi	1905
			6	Kamikaze	1905
			7	Hatsushimo	1906
			8	Yugure	1906
			9	Harukaze	1906
			10	Hibiki	1906
			11	Hatsuyuki	1906
			12	Yudachi	1906
	W1	3	13	W1	1923		702t, 76.3x8.0x2.3m, 3b,2vte, 4000hp, 20kts, 92p; 2x1-120/45, 1x1-76/40, MS
			14	W2	1923
			15	W3	1923

NAVAL AVIATION (approximately, maximal number of delivered planes signed)
