World navies yesterday - Germany 01.01.1925

1925

Germany 01 January 1925

IN SERVICE: 5 battleships-predreadnoughts, 8 protected cruisers, 32 large torpedo boats, 2 gunboats, 1 fishery protection vessel, 7 motor torpedo boats, 5 motor anti-submarine boats, 34 minesweepers

CAPITAL SHIPS

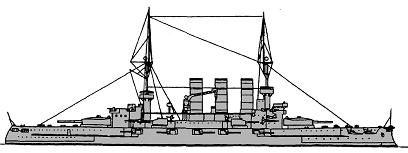

BB	Braunschweig	2	1	Braunschweig	1904	14394t, 127.7x25.6x8.1m, 14b,3vte, 17700hp, 18.7kts, 743p; 225belt, 40deck, 250turrets, 300CT; 2x2-283/40, 12x1-173/40(1), 10x1-173/40(2), 8x1-88/45, 2x1-500TT(1), 4x1-500TT(2)
			2	Elsass	1904

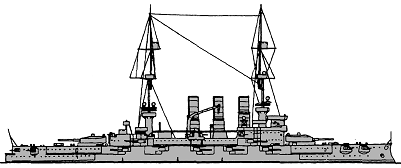

	Deutschland	3 3 4 5		Hannover	1907	13994t, 127.6x22.2x8.3m, 12b,3vte, 20540hp, 18.6kts, 743p; 240belt, 40deck, 280turrets, 300CT; 2x2-283/40(3,4), 14x1-173/40(3,4), 6x1-105/45(5), 4x1-88/45(3), 20x1-88/35(4), 4x1-88/35(5), 6-450TT(4)
				Schlesien	1908
				Schleswig-Holstein	1908

CRUISERS

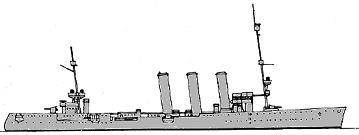

CL	Gazelle	6	1	Niobe	1900	2963(1)-3082(2-5)-3180(6)t, 105.0(1,6)-108.7(2,4)-105.1(3,5)x12.2(1-5)-12.4(6)x5.5(1,6)-5.4(2-5)m, 8b(1)-10b(2)-9b(3-6),2vte, 8110(1)-9020(2-5)-8580(6)hp, 22.1(1)-21.8(2-5)-21.5(6)kts, 249(1-5)-259(6)p; 50slopes, 25deck, 50shields, 80CT; 10x1-105/45(1-4), 10x1-105/40(5,6), 2x1-500TT(1,2,4-6), 200m(5,6)
			2	Nymphe	1900
			3	Thetis	1901
			4	Amazone	1901
			5	Medusa	1901
			6	Arcona	1903

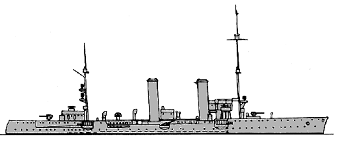

	Bremen	2	7	Hamburg	1904	3816t, 111.1(7)-113.8(8)x13.3x5.6m, 10b,2vte, 11750hp, 23kts, 288p; 80slopes, 35deck, 50shields, 100CT; 10x1-105/45(7), 8x1-105/45(8), 2x1-500TT
	Bremen	2	8	Berlin	1905

TORPEDO SHIPS

TB	S138	7	1	T139	1907	684t, 70.7x7.8x2.8m, 4b,2vte, 11000hp, 30.3kts, 80p; 2x1-88/45, 3x1-450TT
			2	T141	1907
			3	T143	1907
			4	T144	1907
			5	T146	1907
			6	T148	1908
			7	T149	1908
	V150	8	8	T151	1908	691t, 72.5x7.8x3.0m, 4b,2vte, 10900hp, 30kts, 84p; 2x1-88/45(10-15), 2x1-88/35(9), 1x2-500TT(8,10,12), 3x1-450TT(9,11,13-15)
			9	T152	1908
			10	T153	1908
			11	T154	1908
			12	T155	1908
			13	T156	1908
			14	T157	1908
			15	T158	1908
	G169	1	16	T175	1910	824t, 74.0x7.9x3.0m, 4b,2t, 15000hp, 32kts, 84p; 2x1-88/45, 4x1-500TT
	V180	2	17	T185	1910	783(17)-775(18)t, 73.9x7.9x3.1m, 4b,2t, 18000hp, 32kts, 84p; 2x1-105/45, 2x2-500TT
	V180	2	18	T190	1911
	G192	1	19	T196	1911	810t, 74.0x7.9x3.0m, 4b,2t, 18200hp, 32kts, 76p; 2x1-105/45, 2x2-500TT
	S165	1	20	T168	1911	765t, 74.2x7.9x3.0m, 4b,2t, 17500hp, 32kts, 84p; 2x1-88/45, 1x1-88/30, 3x1-450TT
	V1	5	21	V1	1912	753t, 71.1x7.6x3.1m, 3b,2t, 17000hp, 32kts, 74p; 2x1-105/45, 2x1-500TT, 18m
			22	V2	1912
			23	V3	1912
			24	V5	1913
			25	V6	1913
	G7	4	26	G7	1912	775t, 71.5x7.6x3.0m, 3b,2t, 16000hp, 31.5kts, 74p; 2x1-105/45, 2x1-500TT, 18m
			27	G8	1912
			28	G10	1912
			29	G11	1912
	S13	3	30	S18	1913	749t, 71.5x7.4x2.8m, 3b,2t, 15700hp, 32.5kts, 74p; 2x1-105/45(30,32), 2x1-88/45(31), 2x1-500TT, 18m
			31	S19	1913
			32	S23	1913

OTHER FIGHTING SHIPS

PG	Iltis	1	1	Panther	1902	1193t, 66.9x9.7x3.1m, 4b,2vte, 1300hp, 14kts, 130p; 2x1-105/40 (can be fitted)
PG	Meteor	1	2	Meteor	1924	1504t, 71.1x10.2x4.0m, 2b,2vte, 885hp, 11.5kts, 124p; 1x1-88/45 (can be fitted)
FPV	M57	1	1	Zieten	1919	507(1)-503(2)t, 58.4(1)-58.2(2)x7.3x2.3m, 2b,2vte, 1800(1)-1890(2)hp, 16.5kts, 40p; 3x1-88/45

COASTAL FORCES

PT	L14	3	1 - 3	LM16, 27, 28	1918 - 1919	7t, 16.5x2.4x0.6m, 3pe, 720hp, 31.6kts, 7p; 1-450TT
	LM17	1	4	LM20	1917	8t, 17.0x2.4x0.6m, 3pe, 720hp, 30.8kts, 7p; 1x1-20/60, 1-450TT
	L21	3	5 - 7	LM21 - 23	1917 - 1919	7t, 16.0x2.4x0.7m, 3pe, 720hp, 31.8kts, 7p; 1x1-20/60(5), 1-450TT
PS	UZ23	5	1 - 5	UZ27 - 29, 34, 35	1918	60t, 31.0x4.4x1.3m, 2pe, 570hp, 16kts, 14p; 1x1-52/55(4), DCR

MINE WARFARE SHIPS

MS	M27	2	1	M28	1916	507(1)-503(2)t, 58.4(1)-58.2(2)x7.3x2.3m, 2b,2vte, 1800(1)-1890(2)hp, 16.5kts, 40p; 2x1-105/45(1), 3x1-88/45(2), 30m, MS
	M27	2	2	M50	1916
	M57	32	3	M60	1918	535(3,4)-539(5)-553(6,8-11,) -548(13,16-20)-564(14,22,23) -560(15,24,32,)-550(25-31,33,34) -590(21)t, 59.3(3-5,7-12,14,21-23)-58.2(6)-59.6(13,15-20,24-28,32-34)-59.5(29-30)x7.3(3,4,6,7,12,13,15-20,24-34)-7.4(5,8-11,14,21-23)x2.2(1-13,15-21,24-34)-2.3(14,22,23)m, 2b,2vte, 1750(3,4)-1850(5,8-11,15,21,24-28,32-34) -1790(6)-1870(7,12) -1840(13,16-20)-1600(29-31)hp, 16(1-6,8-11,13-28,32-34)-16.5(7,12)-15(29-31)kts, 40p; 2x1-105/45(3-5,8,9,13-34), 2x1-88/45(6,11,12), 3x1-88/45(7,10), 30m, MS
			4	M61	1918
			5	M66	1917
			6	M72	1918
			7	M75	1917
			8	M81	1919
			9	M82	1919
			10	M84	1917
			11	M85	1918
			12	M89	1918
			13	M98	1918
			14	M102	1918
			15	M104	1918
			16	M107	1918
			17	M108	1918
			18	M109	1918
			19	M110	1918
			20	M111	1918
			21	M113	1920
			22	M115	1918
			23	M117	1919
			24	M122	1919
			25	M126	1919
			26	M129	1919
			27	M130	1919
			28	M132	1919
			29	M133	1919
			30	M134	1920
			31	M136	1919
			32	M145	1919
			33	M146	1919
			34	M157	1919
