World navies yesterday

1920



Italy 01 January 1920

BATTLESHIPS

BB Duilio 1 1 Dandolo 1882 11264t, 109.2x19.7x8.3m, 8b,2vc, 8045hp, 15.6kts, 495p; steel, 550belt, 50deck, 225turrets; 2x2-254/40, 7x1-152/40, 5x1-120/40, 16x1-57/43, 8x5-37/20, 4x1-11.4/94, 4-450TT
Re Umberto 1 2 Sardegna 1895 15426t, 130.7x23.4x8.8m, 18b,2vte, 22800hp, 20kts, 733-794p; steel, 100belt, 75deck, 100turrets, 300CT; 2x2-343/30, 4x1-76/40
Ammiraglio di Saint Bon 2 3 Ammiraglio di Saint Bon 1901 9940-10531t, 111.8x21.1x7.7m, 12b,2vte, 14000hp, 18.2kts, 565p; Harvey, 250belt, 70deck, 250turrets, 250CT; 2x2-254/40, 8x1-152/40, 8x1-120/40, 6x1-76/40(4), 8x1-57/43(3), 8x1-47/40(4), 2x1-37/25(3), 4-450TT
4 Emanuele Filiberto 1902
Regina Elena 4 5 Regina Elena 1907 13864-14192t, 144.6x22.4x8.5m, 28b,2vte(5,6)-18b,2vte(7)-22b,2vte(8), 19299-21968hp, 21kts, 764p; Harvey, 250belt, 38deck, 250turrets, 250CT; 2x1-305/40, 6x2-203/45, 16x1-76/40(5,6), 24x1-76/40(7,8), 2x1-47, 2-450TT
6 Vittorio Emanuele 1908
7 Roma 1908
8 Napoli 1908
Dante Alighieri 1 9 Dante Alighieri 1913 21800t, 168.1x26.6x8.8m, 23b,4st, 32190hp, 22.8kts, 981p; 250belt, 50deck, 250turrets, 280CT; 4x3-305/46, (4x2+12x1)-120/50, 20x1-76/50, 3-450TT, 1seaplane
Giulio Cesare 2 10 Giulio Cesare 1914 24250-24801t, 176.1x28.0x9.4m, 24b,4gt(10)-20b,4gt(11), 31000hp, 22kts, 1235p; 250belt, 84deck, 280turrets, 280CT; (3x3+2x2)-305/46, 18x1-120/50, 13x1-76/50, 3-450TT
11 Conte di Cavour 1915
Andrea Doria 2 12 Andrea Doria 1916 24715-24729t, 176.1x28.0x9.5m, 20b,4gt, 30000-31000hp, 21kts, 1233p; 250belt, 54decks, 280turrets, 280CT; (3x3+2x2)-305/46, 16x10-152/45, 19x1-76/50, 3-450TT
13 Caio Duilio 1915
MON Faà di Bruno 1 1 Faà di Bruno 1917 2854t, 55.6x27.0x2.2m, 2b,2vte, 465hp, 2.5kts, 743p; 2900concrete belt, 40deck, 110turret; 1x2-381/40, 4x1-76/40, 2x1-40/39
Monte Grappa 2 2 Monte Grappa 1919 No picture 575-633t, 40.0ppx10.0x1.8m, 2d, 700hp, 7kts; 1x1-381/40
3 Montello 1919
AMON - 7 1 Monfalcone     525t; 1x1-305/46
2 Monte Santo     570t; 1x1-381/40
3 Monte Sabotino     570t; 1x1-381/40
4 Monte Cucco     440t; 1x1-305/40
5 Vodice     440t; 1x1-305/40
6 Carso     360t; 2x1-190/45
7 Pasubio     225t; 1x1-152/50

AIRCRAFT CARRYING SHIPS

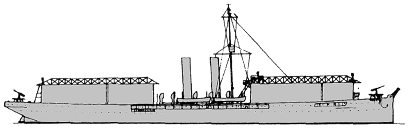

AV - 1 1 Europa 1895 8805t, 123.2x14.1x5.9m, 1vte, 3000hp, 12.2kts; 2x1-76/30, 8seaplanes

CRUISERS

CA Vettor Pisani 1 1 Vettor Pisani 1899 7128t, 105.7x18.0x7.2m, 8b,2vte, 13259hp, 18.6kts, 486p; Harvey, 150belt, 37deck, 150casemates, 150CT; 12x1-152/40, 4x1-120/40, 2x1-75/21, 14x1-57/40, 8x1-37/25, 2x1-11.4/94, 4-450TT
Garibaldi 2 2 Varese 1901 7972t, 111.8x18.3x7.1m, 24b,2vte, 13500hp, 19.5kts, 559p; 150belt, 38deck, 150turrets, 150CT; 1x1-254/40, 1x2-203/45, 14x1-152/40, 10x1-76/40, 6x1-47/40, 4-450TT
3 Francesco Ferruccio 1905
Amalfi 1 4 Pisa 1909 10600t, 140.5x21.0x7.1m, 22b,2vte, 20000hp, 23kts, 687p; 200belt, 130deck, 160turrets, 180CT; 2x2-254/45, 4x2-190/45, 20x1-76/50, 3-450TT
San Giorgio 2 5 San Giorgio 1910 11300(5)-11900(6)t, 140.8x21.0x7.3-7.8m, 14b,2vte(5)-14b,4st(6), 19500(5)-23000(6)hp, 23.2(5)-23.8(6)kts, 698-705p; 200belt, 50deck, 200turrets, 250CT; 2x2-254/45, 4x2-190/45, 16x1-76/50, 3-450TT
6 San Marco 1911
CL Flavio Gioia 1 1 Flavio Gioia 1883 3064t, 84.5x12.8x5.2m, 8b,1hr, 4156hp, 14kts, 268p; steel, deck; 4x1-76/40
Amerigo Vespucci 1 2 Amerigo Vespucci 1884 2751t, 84.5x12.8x5.5m, 8b,1hr, 3000hp, 13kts, 268p; 4x1-176/40
Etna 1 3 Etna 1887 3737-3888t, 91.4x13.2x5.8m, 4b,2vde, 6252-7480hp, 16.6-18kts, 308p; compound, 38deck, 13CT; 4x1-152/40(5), 8x1-152/40(6), 2x1-120/40(5), 2x1-76/40(5), 1x1-75/21, 4x1-57/40(5), 5x1-57/40(6), 2x1-47/40(5), 2x1-37/25(5), (1x5+6x1)-37/20(6), 1x1-11.4/94(5), 3x1-11.4/94(6), 2-350TT
Piemonte 1 4 Piemonte 1889 2597t, 97.8x11.6x4.9m, 4b,2vte, 7100hp, 20.4kts, 298p; compound, 76deck, 114shields, 76CT; 10x1-120/40, 6x1-57/40, 4x1-37/20, 4x1-11.4/94, 2-350TT
Umbria 4 5 Lombardia 1893 2411-2750(5,6,8)-2950(7)t, 84.8(5,6)-88.2(7)-88.3(8)x12.0(5,6)-12.7(7)-12.0(8)x4.7-5.5m, 4b,2hte(5-7)-4b,2vte(8), 6842-7677hp, 17-19.8kts, 213-278p; Harvey, 50(5-7)-25(8)deck, 50CT; 2x1-152/40(9), 6x1-120/40(5-7), 7x1-76/40(8), 8x1-57/40(5), 1x1-40/39(8), 2x1-37/25(5-7), 1x1-37/43(8), 2-450TT(5-7), 3seaplanes(7), mines(6,8)
6 Liguria 1894
7 Elba 1896
8 Puglia 1901
Calabria 1 9 Calabria 1897 2660t, 81.0x12.7x5.1m, 4b,2vte, 4260hp, 16.4kts, 254p; 50deck, 50CT; 6x1-120/40, 6x1-57/40, 2x1-37/25, 2-450TT
Libia 1 10 Libia 1913 4466t, 111.8x14.5x5.5m, 16b,2vte, 11530hp, 22.9kts, 314p; 100deck, 76shields, 100CT; 2x1-152/50, 8x1-120/45, 3x1-76/40, 8x1-47/50, 6x1-37/25, 2-450TT
Quarto 1 11 Quarto 1913 3442t, 131.6x12.8x4.1m, 10b, 4st, 25000hp, 28kts, 247p; 40deck, 100CT; 6x1-152/50, 6x1-76/50, 2-450TT, 200mines
Nino Bixio 2 12 Nino Bixio 1914 4141t, 140.3x13.0x4.1m, 14b,3st, 22500hp, 26.8-27.5kts, 296p; 40deck, 100CT; 6x1-120/50, 6x1-76/50, 2-450TT, 200mines
13 Marsala 1914
Campania 1 14 Campania 1917 3187t, 83.0x12.7x5.2m, 4b,2vte, 5000hp, 15.7kts, 204p; 25deck, 50CT; 6x1-152/40, 5x1-76/40, 2x1-47/50

TORPEDO SHIPS

PGT Tripoli 1 1 Tripoli 1886 952t, 73.4x7.9x3.7m, 6b,3de, 2500hp, 17.5kts, 111p; steel, 40deck; 2x1-76/40, 4x1-57/40, 64mines
Goito 2 2 Goito 1888 955-974t, 73.4x7.9-8.0x3.0-3.6m, 6b,2vde(2)-6b,3vte(3), 2500(2)-3180(3)hp, 18(3)-17(2)kts, 121p; steel, 40deck; 6x1-57/40(3), 5x1-57/40(2), (3x5+2x1)-37/20(2), 2x1-37/20(3), 4-350TT(3), 60mines(2)
3 Montebello 1889
Partenope 2 4 Minerva 1892 821-931t, 73.1x8.2x3.5m, 4b,2vte, 3884-4422hp, 18.1-20.8kts, 121p; 1x1-120/40(5), 2x1-76/40(4), 6x1-57/43(5), 4x1-57/43(4), 3x1-37/20(5), 2x1-37/20(4), (2+4x1)-450TT(5), 20mines(4)
5 Iride 1892
Agordat 2 6 Agordat 1900 1340-1292t, 91.6x9.3x3.6m, 8b,2vte, 7500(7)-8000(8)hp, 22(7)-22.5(8)kts, 185p; steel, 20deck; 2x1-120/40(7), 12x1-76/40(6), 4x1-76/40(7), 2x1-450TT(6), mines(7)
7 Coatit 1900
DD Fulmine 1 1 Fulmine 1900 337t, 62.2x6.4x2.3m, 4b,2vte, 4729hp, 24kts, 48p; 1x1-76/40, 3x1-57/43, 2x1-350TT
Lampo 5 2 Lampo 1900 348t, 62.1x6.5x2.6m, 4b,2vte, 5230-5998hp, 30kts, 61p; 1x1-76/40(2,3,5), 5x1-57/43(2,3,5), 6x1-57/43(4,6), 2x1-350TT, 12mines
3 Dardo 1901
4 Strale 1901
5 Euro 1901
6 Ostro 1901
Nembo 3 7 Aquilone 1903 380t, 64.0x5.9x2.3m, 3b,2vte, 5200-5350hp, 30kts, 58p; 4x1-76/40, 2x1-450TT, 16mines
8 Zeffiro 1905
9 Espero 1905
Artigliere 5 10 Artigliere 1907 412t, 65.0x6.1x2.1m, 3b,2vte, 6000hp, 28.5kts, 55p; 4x1-76/40, 3x1-450TT, 10mines
11 Bersagliere 1907
12 Granatiere 1907
13 Lanciere 1907
14 Corazziere 1910
Alpino 3 15 Alpino 1910 424t, 65.0x6.1x2.1m, 3b,2vte, 6000hp, 28.5kts, 50p; 4x1-76/40, 3x1-450TT, 10mines
16 Fuciliere 1910
17 Pontiere 1910
Ascaro 1 18 Ascaro 1913 414t, 65.0x6.1x2.1m, 3b,2vte, 6000hp, 28.5kts, 55p; 4x1-76/40, 3x1-450TT, 10mines
Indomito 4 19 Indomito 1913 900t, 73.0x7.3x2.4m, 4b,2st, 16000hp, 28kts, 79p; 5x1-102/35, 1x1-40/39, 2x2-450TT, 10mines
20 Impavido 1913
21 Insidioso 1914
22 Irrequieto 1913
Ardito 2 23 Ardito 1913 900t, 73.0x7.3x2.4m, 4b,2st, 16000hp, 28kts, 69p; 5x1-102/35, 1x1-40/39, 2x2-450TT, 10mines
24 Ardente 1914
Audace 1 25 Animoso 1914 840t, 75.5x7.5x2.6m, 4b,2st, 16000hp, 30kts, 79p; 5x1-102/35, 2x1-40/39, 2x1-450TT, 10mines
Alessandro Poerio 2 26 Alessandro Poerio 1915 1216t, 85.0x8.0x3.1m, 3b,2st, 20000hp, 31.5kts, 129p; 5x1-102/45(26), 6x1-102/45(27), 2x1-40/39, 2x2-450TT, 42mines
27 Guglielmo Pepe 1915
Rosolino Pilo 8 28 Rosolino Pilo 1915 912t, 73.0x7.3x2.7m, 4b,2st, 16000(28-31,33,35)-14800(32,34)hp, 30(28-31,33,35)-29(32,34)kts, 79p; 6x1-76/40, 4x1-450TT, 10mines
29 Giuseppe Cesare Abba 1915
30 Pilade Bronzetti 1916
31 Giuseppe Missori 1916
32 Antonio Mosto 1915
33 Ippolito Nievo 1915
34 Francesco Nullo 1915
35 Simone Schiaffino 1915
Carlo Mirabello 3 36 Carlo Mirabello 1916 1972t, 103.4x9.7x3.6m, 4b,2st, 44000hp, 35kts, 169p; 8x1-102/35, 2x1-76/40, 2x2-450TT, 100mines(36,37), 120mines(38)
37 Carlo Alberto Racchia 1916
38 Augusto Riboty 1917
Giuseppe Sirtori 4 39 Giuseppe Sirtori 1916 850t, 73.5x7.3x2.8m, 4b,2st, 15500hp, 30kts, 85p; 6x1-102/35, 2x1-40/39, 2x2-450TT, 10mines
40 Giovanni Acerbi 1917
41 Vincenzo Giordano Orsini 1917
42 Francesco Stocco 1917
Audace 1 43 Audace 1917 1170t, 87.5x8.3x2.9m, 3b,2st, 22000hp, 30kts, 118p; 7x1-102/35, 2x1-40/39, 2x2-450TT
Aquila 3 44 Aquila 1917 1733(44)-1760(45,46)t, 94.7x9.5x3.6m, 5b,2st, 40000hp, 34kts, 146p; (2x2+1x1)-120/45, 2x1-76/40, 2x2-450TT, 44mines(44,46), 24mines(45)
45 Nibbio 1918
46 Sparviero 1917
Giuseppe La Masa 7 47 Giuseppe La Masa 1919 851t, 73.5x7.3x2.8m, 4b,2st, 15500hp, 30kts, 78p; 4x1-102/45, 2x1-76/40, 2x2-450TT, 10mines
48 Angelo Bassini 1918
49 Agostino Bertani 1919
50 Giacinto Carini 1917
51 Nicola Fabrizzi 1918
52 Giuseppe La Farina 1919
53 Giacomo Medici 1918
TB 72S 3 1-3 105S, 115S, 128S 1890 - 1895 78t, 39.8x4.8x2.0m, 1b,1vde, 902-1080hp, 21-22kts, 17p; 2x1-37/25(1,3), (1+1x1)-350TT(2,3), sweeps(1)
60S 3 4-6 113S, 114S, 134S 1890 - 1894 78t, 39.8x4.8x2.0m, 1b,1st(4)-1b,1vde(5,6), 683-1082hp, 21-22kts, 17p; 2x1-37/25, (1+1x1)-350TT
Condore 1 7 Condore 1900 138t, 48.0x5.6x1.4m, 2b,2vte, 2370hp, 26kts, 31p; 2x1-37/25, 2x1-350TT
Pellicano 1 8 Pellicano 1900 181t, 48.7x5.7x1.5m, 3b,2vte, 2740hp, 21kts, 30p; 2x1-37/25, 2x1-350TT
Sirio 4 9 Sirio 1905 207t, 51.1x6.0x1.6m, 2b,2vte, 3100hp, 25.5kts, 38p; 2x1-76/30, 3x1-450TT
10 Sagittario 1905
11 Spica 1905
12 Saffo 1906
Pegaso 3 13 Pegaso 1905 207t, 50.4x5.3x1.7m, 2b,2vte, 2900-3279hp, 25-26.6kts, 42p; 2x1-76/40, 1x1-13.2/76, 2x1-450TT
14 Procione 1906
15 Pallade 1906
Cigno 8 16 Calipso 1909 208-217t, 50.3x5.3x1.7m, 2b,2vte, 2900hp, 25kts, 38p; 2x1-76/40, 1x1-13.2/76, 4x1-450TT
17 Calliope 1906
18 Canopo 1907
19 Cassiopea 1906
20 Centauro 1907
21 Cigno 1906
22 Climene 1909
23 Clio 1907
Alcione 6 24 Airone 1907 217t, 50.3x5.3x1.7m, 2b,2vte, 2900hp, 25kts, 38p; 1x1-76/40, 1x1-76/30(25,27,29), 1x1-13.2/76, 2x1-450TT, sweeps(24,26,28)
25 Albatros 1907
26 Alcione 1907
27 Ardea 1907
28 Arpia 1908
29 Astore 1908
Orione 4 30 Olimpia 1907 220t, 52.6x6.0x1.5m, 2b,2vte, 2900hp, 25kts, 38p; 2x1-76/30, 1x1-13.2/76, 2x1-450TT
31 Orfeo 1907
32 Orione 1907
33 Orsa 1907
Gabbiano 1 34 Gabbiano 1907 174t, 49.6x5.9x1.7m, 2b,2vc, 2200hp, 22kts, 32p; 2x1-47/40, 3x1-350TT, 14mines
1PN 35 35 1PN 1911 134-143t, 42.5x4.6x1.4-1.5m, 2b,2vte(35-62,65-69)-2b,3st(63)-2b,2st(64), 3200hp, 27kts, 30p; 1x1-76/40, 1x1-76/30, 2x1-450TT, 10mines
36 2PN 1911
37 3PN 1911
38 4PN 1911
39 6PN 1912
40 7PN 1912
41 8PN 1912
42 9PN 1912
43 10PN 1912
44 11PN 1913
45 12PN 1913
46 13OS 1912
47 14OS 1912
48 15OS 1912
49 16OS 1912
50 18OS 1912
51 19OS 1912
52 20OS 1913
53 21OS 1913
54 22OS 1912
55 23OS 1913
56 24OS 1913
57 25AS 1912
58 26AS 1913
59 27AS 1913
60 28AS 1913
61 29AS 1913
62 30AS 1913
63 31AS 1915
64 32AS 1914
65 33PN 1913
66 34PN 1913
67 35PN 1913
68 37PN 1913
69 38PN 1913
39RM 1 70 39RM 1916 158t, 42.5x4.6x1.6m, 2b,2vde+1st(3), 2700hp, 27kts, 30p; 1x1-76/40, 2x1-450TT
40PN 30 71 40PN 1916 168t, 42.5x4.6x1.6m, 2b,2vte, 2700hp, 27kts, 30p; 2x1-76/30, 1x1-37/43(77-83,85,89-91), 1x2-450TT, 10mines
72 41PN 1916
73 42PN 1916
74 43PN 1916
75 44PN 1916
76 45PN 1916
77 46OS 1916
78 47OS 1916
79 48OS 1916
80 49OS 1916
81 50OS 1916
82 51OS 1916
83 52AS 1916
84 53AS 1916
85 54AS 1916
86 55AS 1916
87 56AS 1916
88 57AS 1916
89 58OL 1916
90 59OL 1916
91 60OL 1916
92 61OL 1916
93 62OL 1916
94 63OL 1916
95 64PN 1917
96 65PN 1918
97 66PN 1918
98 67PN 1918
99 68PN 1918
100 69PN 1918
Francesco Rismondo 1 101 Francesco Rismondo 1910 132t, 44.2x4.3x1.5m, 2b,2vte, 2400hp, 26.5kts, 20p; 2x1-47/40, 2x1-450TT
70OLT 2 102 74OLT 1918 195t, 45.7x4.6x1.8m, 2b,2st, 3500hp, 27kts, 31p; 2x1-76/30, 1x2-450TT, 7mines
103 75OLT 1918

SUBMARINES

SS Argonauta 1 1 Argonauta 1915 255/306t, 45.2x4.2x3.1m, 2d/em, 700/450hp, 13.5/8.8kts, 24p, 40m; 1x1-76/30, 2-450TT
Pacinotti 1 2 Pacinotti 1916 710/869t, 65.0x6.1x4.1m, 2d/em, 1100/900hp, 12/8.5kts, 39p, 35m; 2x1-76/30, 5-450TT
F1 17 3 F1 1916 262/319t, 45.6x4.2x3.1m, 2d/em, 670/500hp, 12.5/8.2kts, 26p, 40m; 1x1-76/30, 2-450TT
4 F2 1916
5 F5 1916
6 F6 1917
7 F7 1917
8 F9 1916
9 F10 1916
10 F12 1917
11 F13 1917
12 F14 1917
13 F15 1917
14 F16 1917
15 F17 1917
16 F18 1917
17 F19 1918
18 F20 1918
19 F21 1918
H1 7 20 H1 1916 364/475t, 45.8x4.7x3.8m, 2d/em, 480/620hp, 12/11kts, 22p, 50m; 4-450TT
21 H2 1916
22 H3 1917
23 H4 1917
24 H6 1917
25 H7 1917
26 H8 1918
Pietro Micca 5 27 Pietro Micca 1918 842/1244t, 63.2x6.2x4.3m, 2d/em, 2600-2900/1300-1800hp, 11/10.9kts, 40p, 50m; 1x1-76/40, 1x1-76/30, 6-450TT
28 Angelo Emo 1919
29 Luigi Galvani 1918
30 Lorenzo Marcello 1919
31 Torricelli 1918
Andrea Provana 4 32 Andrea Provana 1918 762/924t, 67.0x5.9x3.8m, 2d/em, 2600/1400hp, 16/9.8kts, 40p, 50m; 2x1-76/40, 6-450TT
33 Agostino Barbarigo 1918
34 Giacomo Nani 1919
35 Sebastiano Veniero 1919
N1 6 36 N1 1918 277/363t, 45.8x4.3x3.2m, 2d/em, 650(36-39)-820(40,41)/400(36-39)-450(40,41)hp, 12.5(36-39)-13.5(40,41)/7.6(36-39)-7.9(40,41)kts, 23p, 40m; 1x1-76/30, 2-450TT
37 N2 1918
38 N3 1918
39 N4 1919
40 N5 1919
41 N6 1919
X2 2 42 X2 1918 403/468t, 42.6x5.5x3.2m, 2d/em, 650/325hp, 8.2/6.3kts, 25p, 40m; 1x1-76/30, 18mines
43 X3 1918

ESCORTS

AY - 6 1 Giuliana 1893   1050t, 76.2x8.5x3.9m, 1vte, 700hp, 11.9kts; 2x1-76/40
2 Archimede 1892   900t; 4x1-57/43
3 Capitano Verri 1887   705t; 3x1-102/40
4 Cunfida 1892   560t; 2x1-76/40
5 Misurata 1894   880t; 2x1-76/40
6 Tobruk 1897   850t; 3x1-76/40
APC - 76 1 G1 1912   425t; 2x1-76/40
2 G3 1912   370t
3 G8 1911   440t; 2x1-76/40
4 G9 1912   356t; 1x1-76/40
5 G10 1911   380t; 1x1-76/40
6 G13 1912   500t; 2x1-76/40
7 G15 1912   380t; 2x1-76/40
8 G16 1912   420t; 2x1-76/40
9 G17 1911   380t; 2x1-76/40
10 G18 1913   335t; 2x1-76/40
11 G21 1912   440t; 2x1-76/40
12 G22 1912   440t; 2x1-76/40
13 G23 1912   430t; 1x1-76/40
14 G24 1911   385t; 2x1-76/40
15 G26 1911   402t; 2x1-76/40
16 G27 1911   500t; 2x1-76/40
17 G28 1911   400t; 2x1-76/40
18 G29 1911   420t; 2x1-76/40
19 G30 1911   394t; 2x1-76/40
20 G31 1911   400t; 2x1-76/40
21 G33 1911   410t; 2x1-76/40
22 G34 1911   370t; 2x1-76/40
23 G36 1911   385t; 2x1-76/40
24 G37 1911   390t; 2x1-76/30
25 G38 1909   452t; 2x1-76/40
26 G40 1912   395t; 2x1-76/40
27 G41 1911   388t; 2x1-76/40
28 G44 1910   396t; 2x1-76/40
29 G47 1911   465t; 2x1-76/40
30 Aliseo     215t
31 Valoroso 1913   420t; 2x1-76/40
32 Balena 1911   286t; 1x1-76/40
33 Basiluzzo 1915   110t
34 Bufera     1x1-76/40
35 Burrasca 1912   280t; 1x1-76/40
36 Capodoglio
37 Ciclone     170t
38 Cicogna
39 Cuma
40 Favignana 1898   170t
41 Flutto     1x1-76/40
42 Folaga
43 Gaeta 1916   250t; 1x1-76/40
44 Lampedusa 1915   166t; 1x1-76/40
45 Lavezzi 1912   168t
46 Voragine     1x1-76/40
47 Lido 1908   279t; 1x1-76/40
48 Lilibeo 1915   124t
49 Liscanera 1916   222t; 1x1-76/40
50 Mestrale 1912   200t
51 Marmarica     310t; 1x1-76/40
52 Maroso 1896   225t
53 Monsone
54 Montecristo 1876   429t
55 Ogliastra 1892
56 Panaria 1904   355t; 2x1-76/40
57 Vortice     1x1-76/40
58 Pelago 1914   322t; 2x1-76/40
59 Porto d'Anzio 1914   166t; 1x1-76/40
60 Porto Ercole 1914   140t; 1x1-76/40
61 Portofino 1915   270t; 1x1-76/40
62 Procella
63 Razzoli
64 Selinunte
65 Scolta 1913   424t; 2x1-76/40
66 Serpentara
67 Sirena
68 Spartivento
69 Talamone 1916   190t; 1x1-76/40
70 Tempesta 1883   161t
71 Terracina 1916   230t; 1x1-76/40
72 Tifone
73 Vigilante 1906   316t; 1x1-76/40
74 Tuono
75 Vortice
76 Zannone
ADV - 2 1 Gianicolo 1908   262t
2 Malamocco     300t

OTHER FIGHTING SHIPS

PG Brondolo 2 1 Brondolo 1909 117t, 38.1x6.3x0.8m, 1b,2vte, 500hp, 13kts, 18p; 1x1-76/40, mines
2 Marghera 1909
Sebastiano Caboto 1 3 Sebastiano Caboto 1912 1050t, 63.4x9.7x3.0m, 2b,2vte, 1203hp, 13.2kts, 107p; 6x1-76/40
PR Ape 2 1,2 Ape, Vespa 1918 No picture 50t, 20.5ppx3.4x0.9m, 2pe, 120hp, 9.4kts; 1x1-75/17
APG - 7 1 Abisso 1912   400t; 2x1-76/40
2 Generale Arimondi 1910   580t; 1x1-76/40
3 Boeo 1916   235t; 1x1-76/40
4 Cirenaica 1885   305t; 2x1-76/40
5 Linosa 1898   388t; 2x1-76/40
6 Palmaiola 1902   562t; 1x1-76/40
7 Scaparro 1916   160t; 2x1-127/51

COASTAL FORCES

MTB MAS1 2 1,2 MAS1,2 1916 13t, 16.0x2.6x1.0m, 2pe/em, 450/10hp, 23/4kts, 8p; 1x1-47/40(1), 2-450TT, 4mines(1), 4dc(2)
MAS3 15 3-17 MAS4-6, 8, 9, 11-13, 15, 17-22 1916-1917 16t, 16.0x2.6x1.2m, 2pe(3-6,8,12,14)-2pe/em(7,9-11,13,15-17), 450(3-6,8,12,14)-450/10(7,9-11,13,15-17)hp, 22.3-25.2(3-6,8,12,14)-22.3-25.2/4(7,9-11,13,15-17)kts, 8p; 2-450TT or 1x1-47/40, 6dc
MAS91 11 18-28 MAS91, 92, 94-102 1917-1918 12-13t, 16.2x2.8x1.3-1.4m, 2pe(18,23-25)-2pe/em(19-22,26-28), 450(18)-500/10(19-22,26-28)-500(23-25)hp, 29.5(18,23-25)-29.5/4(19-22,26-28)kts, 8p; 1x1-47/40 or 2-450TT, 4dc
MAS158 45 29-73 MAS158-165, 167-202 1918-1919 12t, 16.0x2.6x1.1m, 2pe, 400-480hp, 23-26.5kts, 8p; 1x1-57/43(32-35,39-73), 2-450TT(29-31,36-38), 6dc
MAS203 1 74 MAS203 1917 13t, 16.0x2.6x0.9m, 2pe/em, 460/10hp, 26/4kts, 8p; 1x1-47/40 or 2-450TT, 10dc
MAS204 14 75-88 MAS204-217 1918 14t, 16.0x2.6x1.1m, 2pe/em(75-87)-2pe(88), 480/10(75-87)-480(88)hp, 23-24/4(75-87)-23-24(88)kts, 7p; 1x1-57/43 or 2-450TT, 10dc
MAS218 15 89-103 MAS218-232 1918-1919 13t, 16.4x2.9x1.4m, 2pe/em(89-93,99)-2pe(94-98,100-103), 500/10(89-93,99)-500(94-98,100-103)hp, 26/4(89-93,99)-26(94-98,100-103)kts, 8p; 1x1-57/43 or 2-450TT, 4dc
MAS325 2 104,105 MAS325, 326 1918 14t, 16.0x2.9x1.2m, 2pe, 440hp, 23kts, 8p; 1x1-57/43 or 2-450TT, 4dc
MAS319 5 106-110 MAS319-323 1919 14t, 16.0x2.9x1.2m, 2pe, 700hp, 28kts, 8p; 2-450TT, 4dc
Grillo 1 111 Locusta 1918 8t, 16.0x3.1x0.7m, 1pe(+tracks), 10hp, 4kts, 4p; 2-450TT
MAS411 4 112-115 MAS411-414 1919 23t, 18.0x3.6x1.2m, 2pe/em, 1600/16hp, 25/5kts, 10p; 2-450TT, 4dc
MAS551 1 116 MAS551 1919 No picture 19t
MGB MAS23 27 1-27 MAS23, 24, 26, 27, 29-48, 50-52 1916-1917 12t, 16.0x2.6x1.3m, 2pe, 400hp, 18-22kts, 8p; 1x1-47/40, 4dc
MAS53 5 28-32 MAS53-57 1917 11t, 16.0x2.6x1.2m, 2pe, 400-450hp, 23.2-24kts, 8p; 1x1-47/40(29-32), 2-450TT(28), 6dc
MAS58 5 33-37 MAS58-62 1917 12t, 16.0x3.0x1.2m, 3pe(33)-2pe(34-37), 600(33)-400(34-37)hp, 25(33)-22-23(34-37)kts, 8p; 1x1-47/40, 6dc
MAS318 1 38 MAS318 1917 20t, 17.5x3.2x1.2m, 2pe, 500hp, 20kts, 10p; 1x1-57/43, 20dc
MAS115 23 39-61 MAS115-124, 126-134, 136-139 1918 19t, 18.0x3.2x1.2m, 2pe, 500hp, 21-23kts, 12p; 1x1-76/30, 20dc
MAS140 16 62-77 MAS141-143, 145-157 1918-1919 12t, 16.0x2.6x1.1m, 2pe, 400-480hp, 24-25kts, 8p; 1x1-57/43, 6dc
MAS233 19 78-96 MAS233-239, 241-252 1918-1919 19t, 18.0x3.3x1.2m, 2pe, 500hp, 20kts, 12p; 1x1-76/40, 20dc
MAS MAS63 26 1-26 MAS63-78, 80-87, 89, 90 1917-1918 44t, 24.4x3.7x1.2m, 2pe, 460hp, 15-17kts, 15p; 1x1-76/40, 10dc
MAS103 10 27-36 MAS103, 105-107, 109-114 1918 44t, 24.4x3.7x1.2m, 2pe, 460hp, 15-17kts, 15p; 1x1-76/30, 10dc
MAS253 47 37-83 MAS253, 255-263, 265-292, 294-302 1918 44t, 24.4x3.7x1.2m, 2pe, 460hp, 15-17kts, 15p; 1x1-76/40, 10dc
MAS303 12 84-95 MAS303-307, 309-312, 314-316 1918-1919 45t, 24.4ppx3.8x1.3m, 2pe, 460hp, 18kts, 15p; 1x1-76/40, 10dc
MAS327 14 96-109 MAS327-334, 346, 372-376 1918-1919 45t, 24.4ppx3.8x1.3m, 2pe, 460hp, 18kts, 15p; 1x1-76/40, 10dc
MAS377 18 110-127 MAS377, 379-393, 395, 396 1918-1919 44t, 24.4x3.7x1.2m, 2pe, 460hp, 15-17kts, 15p; 1x1-76/40, 10dc

AMPHIBIOUS SHIPS

AP Marco Polo 1 1 Cortellazzo 1894 4820t, 106.1x14.7x5.9m, 4b,2vte, 10663t, 17.8kts, 402p; 100belt, 25deck, 50shields, 50CT; light guns; troops
Vettor Pisani 1 2 Zenson 1898 7057t, 105.7x18.0x7.2m, 8b,2vte, 13219hp, 19.1kts, 486p; Harvey, 150belt, 37deck, 150casemates, 150CT; light guns; troops

MINE WARFARE SHIPS

ML Castore 1 1 Castore 1889 522t, 35.1x11.3x2.5m, 2b,1vc, 364hp, 8kts, 49p; 20mines
AML - 2 1 Betta N.3 1891   580t; mines
2 Bengasi 1904   3570t, 87.4x11.2m, 1vte, 2026hp, 13.5kts; 2x1-76/40, mines
MS RD1 35 1 RD1 1916 196-302t, 34.0-38.0x5.8-7.2x1.9-2.5m, 1b,1vte, 590-1150hp, 10-14kts, 22p; 1x1-76/40, sweeps
2 RD3 1916
3 RD4 1917
4 RD5 1917
5 RD6 1917
6 RD7 1917
7 RD8 1917
8 RD9 1917
9 RD11 1917
10 RD12 1917
11 RD13 1918
12 RD15 1917
13 RD16 1917
14 RD17 1917
15 RD18 1917
16 RD19 1917
17 RD20 1917
18 RD21 1918
19 RD22 1918
20 RD23 1918
21 RD24 1918
22 RD25 1918
23 RD26 1918
24 RD27 1918
25 RD28 1918
26 RD29 1919
27 RD30 1919
28 RD31 1919
29 RD32 1919
30 RD33 1919
31 RD34 1919
32 RD35 1919
33 RD36 1919
34 RD39 1919
35 RD50 1919
AMS - 1 1 Rondine 1911   400t; 1x1-76/40, sweeps





Custom Search

© Ivan Gogin, 2014
