World navies yesterday

1915



Spain 01 January 1915

BATTLESHIPS

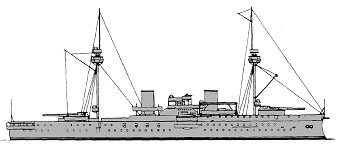

BB Pelayo 1 1 Pelayo 1888 9950t, 105.1x20.2x7.6m, 16b,2vc, 9473hp, 16kts, 520p; steel- 450belt, 70deck, 400barbettes, 155CT; 2x1-320/35, 2x1-280/35, 9x1-140/36, 5x1-57/42, 14x1-37/27

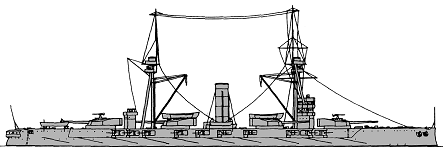

España 1 2 España 1913 15700t, 139.9x24.0x7.8m, 12b,4st, 15500hp, 19.5kts, 854p; 230belt, 90deck, 234turrets, 250CT; 4x2-305/50, 20x1-102/50, 4x1-47/50

CRUISERS

CA Carlos V 1 1 Carlos V 1897 10100t, 115.8x20.4x7.6m, 12b,2vte, 18500hp, 20kts, 583p; 50belt, 50deck, 250barbettes, 300CT; 2x1-280/35, 8x1-140/36, 4x1-57/42, 2x1-42/43, 4x1-37/27, 6-356TT
Princesa de Asturias 2 2 Princesa de Asturias 1903 7549t, 111.0x18.6x6.6m, 6b,2hte, 14800hp, 20kts, 542p; Harvey- 300belt, 57deck, 100turrets, 200CT; 2x1-240/41, 8x1-140/33, 8x1-57/42, 10x1-37/27, 5-450TT
3 Cataluña 1904
CL Río de La Plata 1 1 Río de La Plata 1900 1950t, 76.3x10.8x4.4m, 2vte, 7100hp, 20kts, 213p; steel- 20slopes, 15deck, 120CT; 2x1-140/43, 4x1-100/56, 6x1-57/42, 2x1-37/27, 2-356TT
Extremadura 1 2 Extremadura 1902 2180t, 88.4x11.0x4.3m, 4b,2vte, 7000hp, 20kts, 246p; 50deck, 30CT; 8x1-101/50, 2x1-75/14, 4x1-57/42, 2x1-37/20
Reina Regente 1 3 Reina Regente 1910 5871t, 110.9x16.1x5.0m, 12b,2vte, 11000hp, 19.5kts, 497p; 120slopes, 90deck, 75shields, 90CT; (2x2+6x1)-150/48, 12x1-57/42, 8x1-37/27
CLL Velasco 1 1 Infanta Isabel 1888 1152t, 67.4x9.8x3.9m, 4b,1hc, 1500hp, 13kts, 173p; 1x1-66/40, 10x1-57/42

TORPEDO SHIPS

PGT Temerario 3 1 Temerario 1891 630t, 58.0ppx6.7x3.2m, 2b,2vte, 2600hp, 19kts, 91p; steel- 13deck; 2x1-120/35, 4x1-57/42, 1x4-25/42, 2x1-356TT
2 Nueva España 1891
3 Marqués de Molins 1894
María de Molina 3 4 María de Molina 1898 830t, 71.6ppx8.0x2.7m, 4b,2vte, 3500hp, 19.5kts, 91p; 152CT; 2x1-120/35, 4x1-42/42, (1+2x1)-356TT
5 Marqués de la Victoria 1900
6 Álvaro de Bazán 1900
DD Furor 1 1 Terror 1896 450t, 67.1ppx6.7x1.7m, 4b,2vte, 6000hp, 28kts, 67p; 2x1-75/42, 2x1-57/42, 2x1-37/27, 2x1-356TT
Audaz 3 2 Audaz 1898 430(2,3)-457(4)t, 69.8x6.9x1.8m, 4b,2vte, 7500hp, 30kts, 67p; 2x1-75/42, 2x1-57/42, 2x1-37/27, 2x1-356TT
3 Osado 1898
4 Proserpina 1898
Bustamante 1 5 Bustamante 1914 530t, 67.4x6.7x1.7m, 3b,3st, 6250hp, 28kts, 70p; 5x1-57/50, 2x2-450TT
TB Orión 1 1 No42 1886 88t, 38.0x4.8x2.0m, 1b,1vc, 1000hp, 21kts, 18p; 2x5-25/42, 2-356TT
Habana 1 2 No45 1887 67t, 38.9x3.8x1.6m, 1b,1vc, 730hp, 24.5kts, 17p; 1x5-25/42, 2-356TT
Azor 1 3 No1 1887 108t, 41.1x4.2x2.1m, 1b,1vc, 1300hp, 24kts, 23p; 3x1-42/42, 2-356TT
T-1 6 4 T-1 1912 190t, 52.3x5.0x1.5m, 2b,3st, 3750hp, 26kts, 31p; 3x1-47/50, (1x2+1x1)-450TT
5 T-2 1912
6 T-3 1912
7 T-4 1913
8 T-5 1913
9 T-6 1914

ESCORTS

PC Delfín 3 1 Delfín 1911 No picture 158t, 11kts; 1x1-57/42
2 Dorado 1911
3 Gaviota 1911

OTHER FIGHTING SHIPS

PG Mac-Mahón 1 1 Mac-Mahón 1888 No picture 115t, 27.6x4.9x1.8m, 2b,2vte, 150hp, 9kts, 15p; 2x1-42/42, 1x5-37/17
Hernan Cortés 2 2 Hernan Cortés 1895 No picture 295t, 47.4x6.6x1.9m, 1b,1vte, 352hp, 13kts, 53p; 2x1-75/42, 2x1-57/42
3 Vasco Núñez de Balboa 1895
Ponce de Leon 1 4 Ponce de Leon 1896 No picture 200t, 41.4x5.8x1.8m, 2b,2vte, 230hp, 12kts, 38p; 2x1-57/42
Recalde 4 5 Recalde 1911 811t, 65.5x9.1x3.0m, 2b,2vte, 1200hp, 13.5kts, 130p; 4x1-76/50
6 Laya 1911
7 Bonifaz 1911
8 Lauria 1912
PR Perla 1 1 Perla 1889 No picture 42t, 19.0x3.6x1.8m, 110hp, 7kts, 26p; 1x2-25/42
Cartagenera 1 2 Cartagenera 1908 27t, 16.3x3.6x1.2m, 1b,1vc, 120hp, 12kts; 1x1-42/42

MINE WARFARE SHIPS

ML Anteo 1 1 Anteo 1903 No picture 342t, 40.0x6.6x2.1m, 1b,1vte, 650hp, 11kts; 40mines, sweeps



© Ivan Gogin, 2014
