World navies yesterday

1915



Netherlands 01 January 1915

BATTLESHIPS

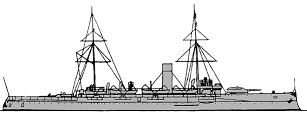

BC Evertsen 1 1 Kortenaer 1895 3464t, 86.2x14.3x5.2m, 6b,2vte, 4700hp, 16kts, 263p; steel- 150belt, 55deck, 240barbette, 240CT; (1x2+1x1)-209/32, 2x1-149/32, 6x1-75/27, 8x1-37/20, 3-450TT

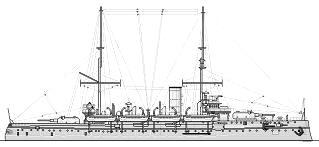

Koningin Regentes 3 2 Koningin Regentes 1901 5002(2,3)-5084(4)t, 96.6x15.2x5.8m, 6b,2vte, 6500hp, 16.5kts, 340p; 150belt, 50deck, 100turrets, 250CT; 2x1-238/37, 4x1-149/37, 8x1-75/37, 4x1-37/20, 3-450TT
3 De Ruyter 1902

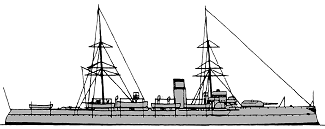

4 Hertog Hendrik 1904
Marten Harpertzoon Tromp 1 5 Marten Harpertzoon Tromp 1905 5295t, 100.8x15.2x5.7m, 8b,2vte, 6400hp, 16.5kts, 340p; 150belt, 50deck, 100turrets, 195CT; 2x1-238/37, 4x1-149/37, 8x1-75/37, 4x1-37/20, 3-450TT
Jacob van Heemskerck 1 6 Jacob van Heemskerck 1908 4920t, 98.0x15.2x5.7m, 8b,2vte, 6400hp, 16.5kts, 340p; 150belt, 50deck, 100turrets, 195CT; 2x1-238/37, 6x1-149/37, 6x1-75/37, 4x1-37/20, 2-450TT

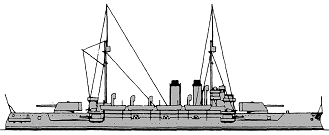

De Zeven Provinciën 1 7 De Zeven Provinciën 1910 6510t, 103.5x17.1x6.2m, 8b,2vte, 8000hp, 16kts, 448p; 150belt, 50deck, 250turrets, 200CT; 2x1-283/40, 4x1-149/37, 10x1-75/52, 2x1-37/20

CRUISERS

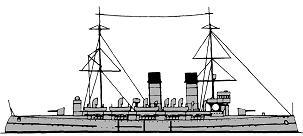

CL Holland 4 1 Holland 1898 3840(1,2)-3970(3,4)t, 93.3(1,2)-94.7(3,4)x14.8x5.4m, 8b,2vte(1,2)-10b,2vte(3,4), 10000hp, 20kts, 371p; Harvey- 57deck, 152shields, 102CT; 2x1-149/37, 6x1-120/37, 6x1-75/37, 8x1-37/20, 4x5-37/17, 2-450TT
2 Zeeland 1898
3 Gelderland 1900
4 Noord Brabant 1900

TORPEDO SHIPS

DD Fret 8 1 Fret 1911 510t, 70.4x6.60x2.0m, 4b,2st, 8500hp, 30kts, 83p; 4x1-75/52, 2x1-450TT
2 Wolf 1911
3 Bulhond 1912
4 Jakhals 1912
5 Hermelijn 1913
6 Lynx 1913
7 Panter 1914
8 Vos 1914
TB1cl Ardjoeno 3 1-3 Cycloop, Idjen, Empong 1888-1890 84-90t, 38.6-39.2x4.0x1.9-2.1m, 1b,1vc, 680-1089hp, 19.8-22.8kts, 16p; 2x1-37/20, 2-450TT
No.XXIII 1 4 Cerberus 1888 82t, 38.2x4.0x1.8m, 1b,1vc, 912hp, 21.2kts, 16p; 2x1-37/20, (1+2x1)-450TT
Lamongan 1 5 Makjan 1891 No picture 59t, 32.9x4.0x1.6m, 1b,1vc, 780hp, 20.4kts, 15p; 2x1-37/20, 2-450TT
Hydra 5 6 Hydra 1900 103t, 39.6x4.1x2.1m, 2b,1vte, 1500hp, 24kts, 21p; 2x1-37/20, 3x1-450TT
7 Scylla 1900
8 Minotaurus 1902
9 Python 1902
10 Sphinx 1903
Ophir 6 11 Ophir 1901 140t, 46.6x4.7x2.4m, 2b,1vte, 2000hp, 25kts, 25p; 2x1-50/37, 3x1-450TT
12 Pangrango 1901
13 Rindjani 1901
14 Smeroe 1903
15 Tangka 1903
16 Wajang 1903
G1 4 17 G1 Johan van Brakel 1905 145t, 46.6x4.7x2.3m, 2b,1vte, 2000hp, 25kts, 25p; 2x1-50/37, (1+2x1)-450TT
18 G2 Jan Danielzoon van der Rijn 1905
19 G3 Meijndert Jentjes 1905
20 G4 Willem Willemsze 1905
Draak 3 21 Draak 1907 103t, 39.6x4.1x2.2m, 2b,1vte, 1500hp, 24kts, 21p; 2x1-37/20, (1+1x1)-450TT
22 Krokodil 1907
23 Zeeslang 1907
G13 4 24 G13 1914 230t, 49.5ppx5.3x1.5m, 2b,2vte, 2600hp, 25kts, 27p; 2x1-75/37, 3x1-450TT
25 G14 1914
26 G15 1914
27 G16 1914
TB2cl No.XIII 1 1 No.XVII 1880 30t, 24.6x3.2x1.6m, 1b,1hda, 250hp, 17-18kts, 11p; 2spar torpedoes
K1 3 2-4 K1 Michiel Gardeyn, K2 Christiaan Cornelis, K3 Willem Warmont 1905 No picture 47t, 30.0x3.6x1.7m, 1b,1vte, 560hp, 18.7kts, 12p; 2x1-37/20, 2-356TT

SUBMARINES

SS O1 1 1 O1 1906 105/124t, 20.4x4.9x2.8m, 1d/em, 200/80hp, 9/6kts, 10p, 25m; 1-250TT
O2 4 2 O2 1911 130/150t, 32.1x3.3x2.7m, 1d/em, 350/200hp, 11/8.6kts, 10p, 25m; 2-450TT
3 O3 1913
4 O4 1914
5 O5 1914
K I 1 6 K I 1914 330/386t, 48.6x4.7x3.0m, 2d/em, 1800/500hp, 17/10.5kts, 17p, 40m; 3-450TT

ESCORTS

PC Albatros 1 1 Albatros 1912 No picture 892t, 50.0ppx9.4x3.3m, 1vte, 1140hp, 12kts, 47p; 2x1-37/45
Orion 1 2 Orion 1912 No picture 1062t, 55.9ppx9.0x3.7m, 1vte, 1380hp, 14kts, 71p; 2x1-75/52
Aldebaran 1 3 Aldebaran 1913 No picture 892t, 53.3ppx8.2x3.5m, 1vte, 800hp, 12kts, 45p; 2x1-37/45
Bellatrix 1 4 Bellatrix 1914 No picture 763t, 53.3ppx9.0x3.0m, 1vte, 800hp, 12kts, 45p; 1x1-75/52
AFPV - 3 1 Dolfijn 1889
2 Zeehond 1892
3 Cornelius Drebbel 1913

OTHER FIGHTING SHIPS

PG Borneo 1 1 Borneo 1892 No picture 800t, 53.8x9.5x4.1m, 1040hp, 13.2kts, 102p; 6x1-105/32, 2x1-37/20, 2x5-37/17
Nias 2 2 Mataram 1896 810-820t, 53.9x9.4x3.7m, 2vte, 1300hp, 12.9kts, 97p; 2x1-105/32, 4x1-37/20, 2x5-37/17
3 Serdang 1897
Koetei 2 4 Koetei 1898 788t, 53.7x9.4x3.7m, 2vte, 1380hp, 13.7kts, 97p; 2x1-105/32, 4x1-37/20, 2x5-37/17
5 Assahan 1900
Brinio 1 6 Brinio 1914 634t, 52.7x8.5x2.8m, 2d, 1200hp, 14kts, 52p; 55belt, 17deck, 50shields, 50CT; 4x1-105/47, 2x1-12.7/90
Hydra 2 7 Los 1875 221t, 25.9x8.0x2.2m, 2b,1vc, 124-146hp, 7.5-8kts, 34p; 1x1-209/32, 2x1-37/20, 1x5-37/20
8 Sperwer 1875
Wodan 10 9 Wodan 1877 264-280t, 27.8x8.2x2.3m, 2b,1vc, 101-171hp, 7-8.3kts, 34p; 1x1-283/27(16,18), 1x1-283/20(10-15,17), 1x1-120/37(9), 2x1-37/20, 1x5-37/17
10 Braga 1879
11 Freyr 1877
12 Heimdall 1879
13 Njord 1878
14 Thor 1877
15 Tyr 1878
16 Hefring 1880
17 Vidar 1879
18 Bulgia 1884

MINE WARFARE SHIPS

ML Hydra 2 1 Das 1876 221t, 25.9x8.0x2.2m, 2b,1vc, 124-146hp, 7.5-8kts, 34p; 2x1-37/20, mines
2 Havik 1874
Wodan 2 3 Hadda 1880 264-280t, 27.8x8.2x2.3m, 2b,1vc, 101-171hp, 7-8.3kts, 34p; 2x1-37/20, 1x5-37/17, mines
4 Balder 1879
Koetei 1 5 Siboga 1898 788t, 53.7x9.4x3.7m, 2vte, 1380hp, 13.7kts, 97p; 1x1-105/32, 4x1-37/20, 2x5-37/17, mines
Hydra 2 6 Hydra 1912 670t, 49.7x9.0x2.8m, 2b,2vte, 900hp, 11kts, 59p; 3x1-75/52, 2x1-12.7/90, 70mines
7 Medusa 1911
