World navies yesterday

1900



United Kingdom 01 January 1900

BATTLESHIPS

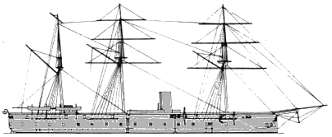

BB Warrior 1 1 Warrior 1861 9137t, 128.0x17.8x7.9m, 10b,1hset, 5267hp, 14.1kts, 635p; iron: 114belt; 4x1-203/15MLR, 28x1-178/16MLR, 4x1-95/21
Hector 1 2 Hector 1864 6710t, 92.0x17.1x7.6m, 6b,1hrcr, 3260hp, 12.6kts, 530p; iron: 114belt, 114battery; 2x1-203/15MLR, 16x1-178/16MLR
Achilles 1 3 Achilles 1864 9820t, 115.8ppx17.8x8.3m, 10b,1hset, 5720hp, 14.3kts, 705p; iron: 114belt, 114battery; 14x1-229/14MLR, 2x1-152/26, 8x1-47/40, 16x1-11.4, 6-356TC
Bellerophon 1 4 Bellerophon 1866 7551t, 91.4x17.1x7.5m, 8b,1hset, 6521hp, 14.2kts, 650p; iron: 152belt, 152battery, 203CT; 10x1-203/26, 4x1-152/26, 6x1-102/25, 4x1-57/40, 12x1-11.4, 2-406TC
Hercules 1 5 Hercules 1868 8830t, 99.1ppx18.0x7.7m, 8b,1ite, 8530hp, 15.9kts, 638p; iron: 229belt, 203battery; 8x1-254/15MLR, 2x1-229/14MLR, 3x1-178/16MLR, 2x1-152/40, 8x1-148/11, 6x1-120/40, 9x1-57/40, 13x1-47/40, 4-356TC
Audacious 3 6 Audacious 1870 6010t, 85.3ppx16.5x6.9m, 6b,2hrcr, 4020-4830hp, 12.6-14.1kts, 450p; iron: 203belt, 152battery; 10x1-229/14MLR, 4x1-127/25(8), 8x1-102/27(6), 6x1-102/27(7), 6x1-95/21, 4x1-57/40(6), 6x1-47/40(6), 4-356TC
7 Invincible 1870
8 Iron Duke 1871
Sultan 1 9 Sultan 1871 9540t, 99.1ppx18.0x8.1m, 8b,1vte, 8244hp, 15.3kts, 633p; iron: 229belt, 229battery; 8x1-254/15MLR, 4x1-229/14MLR, 4x1-120/40, 7x1-95/21, 4x1-57/40, 4-356TC, 2 TBs
Swiftsure 2 10 Swiftsure 1872 6640-6910t, 85.3x16.8x7.6m, 6b,1hrcr, 4890-4910hp, 13.7-14.1kts, 450p; iron: 203belt, 152battery; 10x1-229/14MLR, 4x1-127/25(11), 8x1-102/27(10), 6x1-95/21, 8x1-57/40, 8x1-47/40, 4-356TC
11 Triumph 1873
Devastation 2 12 Devastation 1873 9387-9390t, 93.6x19.0x8.0m, 8b,2vte, 7000hp, 14kts, 358p; iron: 305belt, 76deck, 356turrets, 229CT; 2x2-254/32, 6x1-57/40, 8x1-47/40, 8x1-25/60, 2-356TT
13 Thunderer 1877
Alexandra 1 14 Alexandra 1877 9492t, 104.9x19.5x8.0m, 12b,2vic, 8498hp, 15.1kts, 674p; iron: 305belt, 38deck, 305battery, 305CT; 8x1-254/15MLR, 4x1-234/32, 6x1-120/40, 6x1-57/40, 12x1-47/40, 4-356TC
Temeraire 1 15 Temeraire 1877 8540t, 86.9ppx18.9x8.2m, 12b,2vic, 7697hp, 14.7kts, 580p; iron: 279belt, 38deck, 254barbettes; 4x1-279/12MLR, 4x1-254/15MLR, 6x1-102/27, 4x1-57/40, 10x1-47/40, 2-356TC
Belleisle 2 16 Belleisle 1878 4870t, 74.7ppx15.9x6.4m, 4b,2hdase, 4040hp, 13kts, 250p; iron: 305belt, 76deck, 267battery, 229CT; 4x1-305/14MLR, 4x1-95/21, 6x1-47/40, 2-356TC
17 Orion 1882
Dreadnought 1 18 Dreadnought 1879 10886t, 104.6x19.5x8.1m, 12b,2vce, 8206hp, 14.5kts, 369p; iron: 356belt, 76deck, 356turrets, 356CT; 2x2-318/16MLR, 6x1-57/40, 10x1-47/40, 2-356TT
Superb 1 19 Superb 1880 9710t, 101.3ppx18.0x7.8m, 5b,2hte, 8500hp, 14.5kts, 654p; iron: 305belt, 38deck, 305battery, 203CT; 12x1-254/15MLR, 10x1-152/40, 6x1-57/40, 10x1-47/40, 4-356TC
Neptune 1 20 Neptune 1881 9130t, 91.4ppx19.2x7.6m, 8b,1hset, 7993hp, 14.2kts, 541p; iron: 305belt, 76deck, 330turrets, 203CT; 2x2-305/12MLR, 2x1-229/14MLR, 6x1-95/21, 6x1-57/40, 8x1-47/40, 2-356TC
Inflexible 1 21 Inflexible 1881 11880t, 104.9x22.9x7.8m, 12b,2ice, 8488hp, 14.7kts, 440p; iron: 610belt, 76deck, 432turrets(compound), 305CT; 2x2-406/18MLR, 8x1-120/40, 4x1-57/40, 2x1-47/40, (2+2)-356TT/TC
Agamemnon 2 22 Agamemnon 1883 8510t, 91.7x20.1x7.2m, 10b,2ice, 6000hp, 13kts, 345p; iron: 457belt, 76deck, 406turrets(compound), 305CT; 2x2-318/16MLR, 2x1-152/26, 6x1-57/43, 8x1-47/40, 2-356TC
23 Ajax 1883
Conqueror 2 24 Comqueror 1886 6200-6440t, 87.8x17.7x7.2m, 8b,2ice, 6000hp, 15.5kts, 330p; compound: 305belt, 64deck, 356turret, 305CT; 1x2-305/25, 4x1-152/26, 7x1-57/40, 5x1-47/40, 6-356TC
25 Hero 1888
Colossus 2 26 Edinburgh 1887 9420t, 99.1ppx20.7x7.9m, 10b,2ice, 6808(26)-7488(27)hp, 16(26)-16.5(27)kts, 396p; compound: 457belt, 76deck, 406turrets, 356CT; 2x2-305/25, 5x1-152/27, 4x1-57/40, 10x1-47/40, 2-356TT
27 Colossus 1885
Collingwood 1 28 Collingwood 1887 9500t, 99.1ppx20.7x8.0m, 12b,2ice, 9600hp, 16.8kts, 498pp; compound: 457belt, 76deck, 229barbettes, 305CT: 2x2-305/25, 6x1-152/27, 12x1-57/40, 8x1-47/40, 4-356TT
Rodney 4 29 Rodney 1888 10300(29,30)-10600(31,32)t, 99.1pp(29,30)-100.6pp(31,32)x20.7(29,30)-20.9(31,32)x8.5m, 12b,3ice, 11500hp, 17(29,30)-17.4(31,32)kts, 530p; compound: 457belt, 76decks, 292(29,30)-356(31,32)barbettes, 305CT; 2x2-343/30, 6x1-152/27, 12x1-57/40, 10x1-47/40, 5-356TT
30 Howe 1889
31 Camperdown 1889
32 Anson 1889
Benbow 1 33 Benbow 1888 10600t, 100.6ppx20.9x8.5m, 12b,2ice, 10860hp, 17.5kts, 523p; compound: 457belt, 76deck, 356barbettes, 305CT; 2x1-413/30, 10x1-152/27, 12x1-157/40, 7x1-47/40, 5-356TT
Victoria 1 34 Sans Pareil 1891 10470t, 110.6x21.3x8.2m, 8b,2vte, 14482hp, 17.7kts, 430p; compound: 457belt, 76deck, 432turret, 356CT; 1x2-413/30, 1x1-254/32, 12x1-152/27, 12x1-57/40, 9x1-47/40, (4+2)-356TT/TC
Trafalgar 2 35 Trafalgar 1890 12590t, 105.2ppx22.3x8.7m, 6b,2vte, 12000hp, 16.7kts, 577p; compound: 508belt, 76deck, 457turret, 356CT; 2x2-343/30, 6x1-152/40, 8x1-57/40, 9x1-47/40, 4-356TT
36 Nile 1891
Royal Sovereign 7 37 Royal Sovereign 1892 15580t, 125.0x22.9x8.4m, 8b,2vte, 11000hp, 16.5kts, 712p; compound: 457belt, 76deck, 432barbettes, 356CT; 2x2-343/30, 10x1-152/40, 16x1-57/40, 12x1-47/40, 7-450TT
38 Empress of India 1893
39 Repulse 1894
40 Ramillies 1893
41 Resolution 1893
42 Revenge 1894
43 Royal Oak 1894
Hood 1 44 Hood 1893 15590t, 125.0x22.9x8.3m, 8b,2vte, 11000hp, 16.7kts, 690p; compound: 457belt, 76deck, 432turrets, 356CT; 2x2-343/30, 10x1-152/40, 10x1-57/40, 12x1-47/40, 5-450TT
Centurion 2 45 Centurion 1894 10500t, 109.7ppx21.3x7.8m, 8b,2vte, 13000hp, 18.5kts, 620p; compound: 305belt, 64(NS)deck, 152(Harvey) gun houses, 305CT; 2x2-254/32, 10x1-120/40, 8x1-57/40, 12x1-47/40, 7-450TT
46 Barfleur 1894
Majestic 9 47 Magnificent 1895 15730-16060T, 128.3X22.9X8.2m, 8b,2vte, 12000hp, 17kts, 672p; Harvey: 229belt, 102deck, 254gunhouses, 356CT; 2x2-305/35, 12x1-152/40, 16x1-76/40, 12x1-47/40, 5-450TT
48 Majestic 1895
49 Prince George 1896
50 Victorious 1896
51 Jupiter 1897
52 Mars 1897
53 Hannibal 1898
54 Caesar 1898
55 Illustrious 1898
Renown 1 56 Renown 1897 12350t, 124.4x22.0x8.2m, 8b,2vte, 12000hp, 18kts, 674p; Harvey: 203belt, 76deck, 152gunhouses, 229CT; 2x2-254/32, 10x1-152/40, 12x1-76/40, 12x1-47/40, 5-450TT
Canopus 1 57 Canopus 1899 14300t, 128.5x22.6x8.0m, 20b,2vte, 13500hp, 18kts, 682p; Harvey: 152(Krupp)belt, 76deck, 203gunhouses, 305CT; 2x2-305/35, 12x1-152/40, 10x1-76/40, 6x1-47/40, 4-450TT
BC Hotspur 1 1 Hotspur 1871 4331t, 71.6ppx15.2x6.1m, 2hse, 3497hp, 12.7kts, 209p; iron: 279belt, 70deck, 216(compound)turret, 254CT; 1x2-305/12MLR, 2x1-152/26, 2-356TT, 1torpedo boat
Rupert 1 2 Rupert 1874 5440t, 80.5ppx16.2x6.9m, 2hse, 4630hp, 13.6kts, 217p; iron: 279belt, 76deck, 356turret, 305CT; 1x2-234/32, 2x1-152/26, 4x1-57/40, 6x1-47/40, 8x1-11.4, 4-356TT
MON
Cerberus 1 1 Magdala 1870
Glatton 1 2 Glatton 1872 4912t, 74.7ppx16.5x5.8m, 2hrcr, 2870hp, 12.1kts, 185p; iron: 305belt, 76deck, 356turret, 229CT; 1x2-305/12MLR, 3x1-57/40, 4x1-11.4, 2-356TC
Cyclops 4 3 Cyclops 1877 3560t, 68.6ppx13.7x5.0m, 2hice(5,8)-2hidase(6,7), 1470-1755hp, 10.9-11.2kts, 150p; iron: 203belt, 38deck, 254turrets, 229CT; 2x2-254/15MLR, 4x1-47/40, 5x1-11.4
4 Hecate 1877
5 Gorgon 1874
6 Hydra 1876

CRUISERS

CA Raleigh 1 1 Raleigh 1874 5200t, 90.8ppx14.9x7.5m, 9b,1hse, 5639hp, 15.3kts, 530p; 2x1-229/14MLR, 6x1-178/16MLR, 6x1-160/16MLR, 8x1-152/26, 8x1-127/25, 4x1-76/20, 12x6-11.4, 2-356TC
Shah 1 2 Shah 1875 6250t, 101.8ppx15.8x8.1m, 10b,1hse, 7480hp, 16.2kts, 600p; 2x1-229/14MLR, 16x1-178/16MLR, 8x1-160/16MLR, 4x1-76/20, 12x6-11.4, 2-356TC
Nelson 1 3 Nelson 1881 7473t, 85.3ppx18.3x7.6m, 10b,2ihce, 6624hp, 14kts, 560p; iron: 229belt, 76deck, 229CT; 4x1-254/15MLR, 8x1-229/14MLR, 4x1-120/40, 6x1-57/40, 14x1-47/40, 2-356TT
Imperieuse 2 4 Imperieuse 1886 8500t, 96.0ppx18.9x8.2m, 12b,3ice, 10000hp, 16.7kts, 555p; compound: 254belt, 102deck, 203barbettes, 229CT; 4x1-234/32, 8x1-152/27, 4x1-57/40, 6-450TT
5 Warspite 1888
Orlando 7 6 Orlando 1888 5600t, 91.4ppx17.1x6.9m, 4b,2vte, 8500hp, 18kts, 484p; compound: 254belt, 76deck, 305CT; 2x1-234/32, 10x1-152/27, 6x1-57/40, 10x1-47/40, 6-450TT
7 Australia 1888
8 Undaunted 1889
9 Narcissus 1889
10 Galatea 1889
11 Immortalité 1889
12 Aurora 1889
Blake 2 13 Blake 1892 9150t, 121.8x19.8x7.3m, 6b,2vte, 20000hp, 21.4kts, 570p; compound: 152deck, 114shields, 305CT; 2x1-234/32, 10x1-152/40, 16x1-47/40, 4-356TT
14 Blenheim 1894
Edgar 9 15 Edgar 1893 7350(15,17-19,23)-7700(16,20-22)t, 118.1x18.3x7.2m, 5b,2vite, 12000hp, 20kts, 544p; steel: 127deck, 152casemates, 305CT; 2x1-234/32(15,17-19,21-23), 1x1-234/32(16,20), 10x1-152/40(15,17-19,21-23), 12x1-152/40(16,20), 12x1-57/40, 5x1-47/40, 4-450TT
16 Royal Arthur 1893
17 Hawke 1893
18 Endymion 1894
19 Grafton 1894
20 Crescent 1894
21 Gibraltar 1894
22 St. George 1894
23 Theseus 1896
Powerful 2 24 Terrible 1898 14200t, 164.0x21.6x7.3m, 48b,2vte, 25000hp, 22kts, 894p; Harvey: 152deck, 152turrets, 305CT; 2x1-234/41, 12x1-152/40, 16x1-76/40, 12x1-47/40, 4-450TT
25 Powerful 1897
Diadem 4 26 Diadem 1898 11000t, 141.0x21.0x7.8m, 30b,2vte, 16500hp, 20.2kts, 677p; Harvey: 102deck, 114casemates, 305CT; 16x1-152/40, 14x1-76/40, 3x1-47/40, 3-450TT
27 Niobe 1898
28 Europa 1899
29 Andromeda 1899
CL Volage 2 1 Volage 1870 3078t, 82.3ppx12.8x6.7m, 5b1hset(1)-5b,1hrcr(2), 4530(1)-4130(2)hp, 15.3(1)-15(2)kts, 340p; 2x1-160/16MLR, 10x1-152/26, 2x1-76/20, 9x6-11.4, 2-356TC
2 Active 1871
Emerald 2 3 Ruby 1877 2120t, 67.1ppx12.2x5.5m, 6b,2hce, 1833(3)-2005(4)hp, 12.3(3)-13.2(4)kts, 232p; 12x1-160/16MLR(3), 14x1-127/25(4), 8x1-11.4
4 Garnet 1878
Bacchante 1 5 Boadicea 1877 3913t, 85.3ppx13.7x7.2m, 10b,1hcercr, 5134t, 14.8kts, 375p; 14x1-178/14MLR, 2x1-160/16MLR, 2x1-152/26, 7x1-76/20, 10x6-11.4, 2-356TC
Comus 5 6 Comus 1879 2380t, 68.6ppx13.6x5.9m, 6b,1hce, 2420-2610hp, 12.9-13kts, 265p; steel: 13deck; 2x1-178/16MLR(7), 8x1-160/16MLR(6), 12x1-160/16MLR(7), 4x1-152/26(6,8,9), 10x1-152/26(10), 8x1-127/25(8,9), 2x1-76/19, 4x1-47/40(8), 1x1-47/40(9), 2-356TC
7 Curacoa 1880
8 Champion 1880
9 Cleopatra 1880
10 Cordelia 1887
Iris 2 11 Iris 1879 3730t, 101.5(11)-96.0(12)x14.0x6.7m, 12b,2hdace, 6000hp, 17.5kts, 275p; 13x1-127/25, 4x1-47/40, 4-356TC
12 Mercury 1879
Satellite 6 13 Satellite 1883 1420t, 61.0ppx11.6x4.8m, 8b,1hce, 1400-1640hp, 13-13.1kts, 175-200p; steel: 25deck; 1x1-152/26(17), 8x1-152/26(13-16), 10x1-127/25(17), 14x1-127/25(18), 4x1-11.4(13-17), 8x1-11.4(18)
14 Heroine 1883
15 Hyacinth 1884
16 Royalist 1886
17 Rapid 1884
18 Pylades 1886
Calypso 2 19 Calypso 1885 2770t, 71.6ppx13.6x6.1m, 6b,1hce, 3000hp, 13.7kts, 317p; steel: 13deck; 4x1-152/26, 12x1-127/25, 2x1-76/19, 10x1-11.4, 2-356TC
20 Calliope 1887
Leander 4 21 Leander 1885 4300t, 96.0x14.0x6.3m, 12b,2hdace, 5500hp, 16.5kts, 278p; steel: 38deck, 38shields; 10x1-152/26, 4x1-47/40(21,23,24), 8x1-47/40(22), 6x4-25/40(21,23,24), 2x4-25/40(22), 2x6-11.4, 4x5-11.4, 4-356TC
22 Arethusa 1887
23 Phaeton 1886
24 Amphion 1886
Mersey 4 25 Mersey 1887 4050t, 96.0x14.0x5.9m, 12b,2hdace, 6000hp, 18kts, 325p; steel: 76deck, 51shields, 229CT; 2x1-203/30, 10x1-152/26, 3x1-57/40, 3x1-47/40, 9x1-11.4, (2+2)-356TT/TC
26 Severn 1888
27 Thames 1888
28 Forth 1889
Medea 5 29 Magicienne 1889 2950(29,32,33)-2800(30,31)t, 80.8ppx12.8(29,32,33)-12.5(30,31)x5.0m, 6b,2hdace(29,32,33)-6b,2vce(30,31), 9000hp, 19.7(29,32,33)-20(30,31)kts, 218p; steel: 51deck, 114shields, 76CT; 6x1-152/26, 9x1-57/40, 1x1-47/40, 3x1-11.4, (2+2)-356TT/TC
30 Medea 1889
31 Medusa 1889
32 Marathon 1889
33 Melpomene 1889
Apollo 21 34 Latona 1891 3400(34-44)-3600(45-54), 95.7x13.1(34-44)-13.3(45-54)x5.3(34-44)-5.6(45-54), 5b,2vte, 9000hp, 20(34-44)-19.7(45-54), 273p; steel: 51deck, 114shields, 76CT; 2x1-152/40, 6x1-120/40, 8x1-57/40, 1x1-47/40, 4x1-11.4, 4-356TT
35 Melampus 1891
36 Andromache 1891
37 Terpsichore 1892
38 Naiad 1892
39 Thetis 1892
40 Sybille 1894
41 Apollo 1892
42 Tribune 1892
43 Sappho 1893
44 Scylla 1893
45 Sirius 1892
46 Pique 1893
47 Spartan 1892
48 Indefatigable 1892
49 Rainbow 1893
50 Intrepid 1892
51 Brilliant 1893
52 Retribution 1893
53 Aeolus 1894
54 Iphigenia 1893
Astraea 8 55 Bonaventure 1894 4360t, 103.5x15.1x5.8m, 8b,2vte, 9500hp, 19.5kts, 318p; steel: 51deck, 114shields, 76CT; 2x1-152/40, 8x1-120/40, 10x1-57/40, 1x1-47/40, 4-450TT
56 Cambrian 1894
57 Astraea 1895
58 Charybdis 1896
59 Fox 1896
60 Hermione 1896
61 Flora 1895
62 Forte 1895
Eclipse 9 63 Eclipse 1897 5600t, 113.7x16.3x6.3m, 8b,2vte, 9600hp, 19.5kts, 450p; Harvey: 76deck, 76shields, 152CT; 5x1-152/40, 6x1-120/40, 8x1-76/40, 6x1-47/40, 2x1-11.4, 3-450TT
64 Talbot 1896
65 Venus 1897
66 Minerva 1897
67 Juno 1897
68 Diana 1897
69 Doris 1897
70 Dido 1898
71 Isis 1898
Arrogant 3 72 Arrogant 1898 5750t, 104.2x17.5x6.1m, 18b,2vte, 10000hp, 19kts, 480p; Harvey: 76deck, 114shields, 229CT; 4x1-152/40, 6x1-120/40, 8x1-76/40, 3x1-47/40, 5x1-11.4, 3-450TT
73 Furious 1898
74 Gladiator 1899
Highflyer 2 75 Hermes 1899 5650t, 113.4x16.5x6.3m, 18b,2vte, 10000hp, 20kts, 450p; Harvey: 76deck, 76shields, 152CT; 11x1-152/40, 9x1-76/40, 6x1-47/40, 2-450TT
76 Highflyer 1899
CLL Barracouta 4 1 Barrosa 1890 1580t, 71.0x10.7x4.6m, 4b,2vte, 160p; steel: 51deck, 51shields; 6x1-120/40, 4x1-47/40, 2x1-11.4, 2-356TT
2 Barracouta 1891
3 Blanche 1891
4 Blonde 1891
Barham 2 5 Barham 1891 1830t, 85.3ppx10.7x4.0m, 6b,2vte, 4700hp, 18kts, 169p; steel: 51deck, 51shields; 6x1-120/40, 4x1-47/40, 2x1-11.4, 2-356TT
6 Bellona 1891
Pearl 9 7 Katoomba 1891 2575t, 84.7x12.5x4.7m, 4b,2vte, 7500hp, 19kts, 217p; steel: 51deck, 51shields, 76CT; 8x1-120/40, 8x1-47/40, 4x1-11.4, (2+2)-356TT/TC
8 Tauranga 1891
9 Mildura 1891
10 Ringarooma 1891
11 Wallaroo 1891
12 Pallas 1891
13 Phoebe 1892
14 Pearl 1892
15 Philomel 1891
Pelorus 6 16 Proserpine 1899 2135-2200t, 95.6x11.1x4.9m, 16b,2vte, 7000hp, 20kts, 224p; steel: 51deck, 76shields, 76CT; 8x1-102/40, 8x1-47/40, 3x1-7.7, 2-450TT
17 Pelorus 1897
18 Pactolus 1898
19 Pegasus 1898
20 Pomone 1899
21 Prometheus 1899
SL Osprey 2 1 Wild Swan 1876 1130t, 58.8ppx11.0x4.8m, 3b,1hce, 1056hp, 12.2kts, 150p; 2x1-152/26, 6x1-127/25, 4x1-11.4
2 Pelican 1877
Doterel 1 3 Gannet 1879 1130t, 58.8ppx11.0x4.8m, 3b1hce, 1107hp, 11.5kts, 150p; 2x1-178/16MLR, 2x1-127/25, 6x1-11.4
Mariner 4 4 Reindeer 1884 970t, 50.9ppx9.9x4.3m, 3b,1hce, 970-1230hp, 11.5(4,5)-12.5(6,7)kts, 126p; 6x1-127/25(4), 8x1-127/25(5-7), 8x1-11.4
5 Mariner 1885
6 Icarus 1886
7 Melita 1889
Nymphe 4 8 Swallow 1886 1140t, 59.4ppx8.5x3.8m, 4b,2hte, 1570(1,4)-2000(2,3)hp, 13.5(1,4)-14.5(2,3)kts, 138p; 8x1-127/25, 8x1-11.4
9 Buzzard 1888
10 Nymphe 1889
11 Daphne 1889
Beagle 2 12 Beagle 1889 1170t, 59.4ppx8.5x3.8m, 4b2hte, 2000hp, 14.5kts, 138p; steel: 37deck; 8x1-127/25, 4x4-25/40, 4x5-11.4
13 Basilisk 1889
Alert 2 14 Alert 1895 960t, 62.4x9.9x3.5m, 4b1vte, 1400hp, 13.2kts, 105p; 38deck; 6x1-102/40, 4x1-47/40, 2x1-11.4
15 Torch 1895
Phoenix 2 16 Phoenix 1896 1050t, 62.4x9.9x4.2m, 4b,1vte, 1400hp, 13kts, 106p; 6x1-102/40, 4x1-47/40, 3x1-11.4
17 Algerine 1896
Condor 1 18 Rosario 1899 980t, 62.2x9.9x3.5m, 4b,2vte, 1400hp, 13.5kts, 130p; steel: 38deck, 6shields; 6x1-102/40, 4x1-47/40
DV Surprise 2 1 Surprise 1886 1650-1700t, 83.9x9.9x4.0m, 4b,2hdace, 3030hp, 17kts, 93p; steel: 10deck; 4x1-127/25(12), 4x1-57/40(12), 10x1-57/40(13), 2x1-11.4(12)
2 Alacrity 1886
CT Scout 2 1 Scout 1886 1580t, 68.6x10.4x4.4m, 4b,2hdace, 3200hp, 17kts, 147p; steel: 10deck, 25shields, 76TT; 4x1-120/40, 8x1-47/40, 2x1-11.4, (3+4)-356TT/TC
2 Fearless 1887
Archer 7 3 Archer 1887 1950t, 73.2x11.0x4.4m, 4b,2hdace, 3500(3-8)-4500(9)hp, 16.5(3-8)-17.5(9)kts, 176p; steel: 10deck, 25shields, 76CT; 6x1-152/26, 8x1-47/40, 2x1-11.4, (1+4)-356TT/TC
4 Mohawk 1887
5 Brisk 1888
6 Porpoise 1888
7 Cossack 1888
8 Tartar 1888
9 Racoon 1888

TORPEDO SHIPS

RT Polyphemus 1 1 Polyphemus 1882 73.2ppx12.2x6.3m, 4b,2hce, 7000hp, 18kts, 146p; steel: 76deck; 6x1-57/40, 5-356TT
PGT Rattlesnake 1 1 Rattlesnake 1887 550t, 61.0ppx7.0x3.2m, 4b,2vte, 2700hp, 19.2kts, 66p; steel: 19deck; 1x1-102/27, 6x1-47/40, (2+2x1)-356TT
Grasshopper 3 2 Grasshopper 1888 526t, 61.0ppx7.0x3.2m, 4b,2vte, 2700hp, 19.2kts, 66p; 1x1-102/27, 6x1-47/40, (2+2x1)-356TT
3 Sandfly 1888
4 Spider 1888
Sharpshooter 13 5 Sharpshooter 1889 735t, 70.1ppx8.2x3.2m, 4b,2vte, 3600hp, 19kts, 91p; 2x1-120/40, 4x1-47/40, (1+2x2)-356TT
6 Spanker 1890
7 Speedwell 1890
8 Sheldrake 1890
9 Skipjack 1891
10 Seagull 1891
11 Salamander 1891
12 Gleaner 1891
13 Gossamer 1891
Alarm 11 14 Jason 1893 810t, 70.1ppx8.2x3.7m, 4b,3vte, 3500(14-22,24)-5000(23)hp, 18.7(14-22,24)-20.5(23)kts, 91p; 2x1-120/40, 4x1-47/40, 1x5-11.4, (1+2x1)-356TT(14,17,20,22,23), (1+2x2)-356TT(15,16,18,19,21,24)
15 Circe 1893
16 Hebe 1894
17 Onyx 1894
18 Leda 1893
19 Alarm 1894
20 Jaseur 1893
21 Renard 1894
22 Niger 1893
23 Speedy 1894
24 Antelope 1894
Dryad 5 25 Dryad 1894 1070t, 80.1x9.3x3.5m, 4b,2vte, 6000hp, 20kts, 120p; 2x1-120/40, 4x1-57/40, 1x5-11.4, (1+4x1)-450TT
26 Hazard 1894
27 Harrier 1895
28 Halcyon 1895
29 Hussar 1895
DD Havock 2 1 Havock 1894 275t, 56.4x5.7x2.2m, 2b,2vte(1)-8b,2vte(2), 3800hp, 26kts, 46p; 1x1-76/40, 3x1-57/40, (1+2x1)-450TT
2 Hornet 1894
Daring 2 3 Daring 1895 288t, 56.4x5.8x2.1m, 3b,2vce, 3200hp, 27kts, 48p; 1x1-76/40, 3x1-57/40, (1+2x1)-450TT
4 Decoy 1895
Ferret 2 5 Ferret 1895 280t, 60.1x6.0x2.7m, 4b,2vte, 4475hp, 27.2kts, 46p; 1x1-76/40, 3x1-57/40, (1+2x1)-450TT
6 Lynx 1895
Ardent 3 7 Ardent 1895 295t, 61.5x5.8x2.2m, 3b,2vte, 4500(7,9)-4200(8)hp, 28(7)-29(8)-30(9)kts, 53p; 1x1-76/40, 5x1-57/40, 2x1-450TT
8 Boxer 1895
9 Bruizer 1895
Janus 3 10 Janus 1895 320t, 61.1x5.9x2.4m, 4b,2vte, 3900hp, 28kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
11 Lightning 1896
12 Porcupine 1896
Banshee 3 13 Banshee 1895 345t, 64.9x5.9x2.9m, 4b,2vte, 4400hp, 28kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
14 Contest 1895
15 Dragon 1895
Handy 3 16 Handy 1895 310t, 60.1x5.9x2.3m, 3b,2vte, 4000hp, 27kts, 55p; 1x1-76/40, 5x1-57/40, 2x1-450TT
17 Hart 1896
18 Hunter 1896
Rocket 3 19 Rocket 1895 325t, 62.2x6.0x2.21m, 4b,2vte, 4100hp, 27kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
20 Shark 1895
21 Surly 1895
Charger 3 22 Charger 1896 295t, 59.4x5.6x2.2m, 4b,2vte, 3100(22,23)-3800(24)hp, 26.2kts, 53p; 1x1-76/40, 5x1-57/40, 2x1-450TT
23 Hasty 1896
24 Dasher 1896
Haughty 2 25 Haughty 1896 325t, 61.0x5.9x2.4m, 8b,2vte, 4200hp, 27kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
26 Hardy 1896
Salmon 2 27 Salmon 1896 340t, 61.5x6.0x2.4m, 8b,2vte, 3700hp, 27kts, 52p; 1x1-76/40, 5x1-57/40, 2x1-450TT
28 Snapper 1896
Sunfish 3 29 Sunfish 1896 340t, 62.2x5.8x2.6m, 8b,2vte, 4000hp, 27kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
30 Opossum 1896
31 Ranger 1896
Sturgeon 3 32 Sturgeon 1896 340t, 59.3x5.8x2.3m, 4b,2vte, 4000hp, 27.8kts, 52p; 1x1-76/40, 5x1-57/40, 2x1-450TT
33 Starfish 1896
34 Skate 1896
Swordfish 2 35 Swordfish 1896 355t, 62.3x5.8x2.4m, 8b,2vte, 4500hp, 27kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
36 Spitfire 1896
Desperate 4 37 Desperate 1897 350t, 64.0x6.0x2.1m, 3b,2vte, 5700hp, 30kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
38 Fame 1897
39 Foam 1897
40 Mallard 1897
Quail 4 41 Quail 1897 415t, 66.5x6.6x2.9m, 4b,2vte, 6300hp, 30kts, 56p; 1x1-76/40, 5x1-57/40, 2x1-450TT
42 Sparrowhawk 1897
43 Thrasher 1897
44 Virago 1897
Avon 2 45 Avon 1899 405t, 65.3x6.1x2.5m, 4b,2vte, 6300hp, 30kts, 60p; 1x1-76/40, 5x1-57/40, 2x1-450TT
46 Bittern 1897
Earnest 6 47 Earnest 1897 415t, 66.5x6.6x3.0m, 4b,2vte, 6300hp, 30kts, 56p; 1x1-76/40, 5x1-57/40, 2x1-450TT
48 Griffon 1897
49 Locust 1898
50 Panther 1898
51 Seal 1898
52 Wolf 1898
Star 6 53 Star 1898 440t, 67.1x6.4x3.0m, 4b,2vte, 6200hp, 30kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
54 Whiting 1897
55 Bat 1897
56 Crane 1898
57 Chamois 1897
58 Flying Fish 1898
Angler 2 59 Angler 1898 352t, 64.0x6.0x2.1m, 3b,2vte, 5700hp, 30kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
60 Ariel 1898
Violet 2 61 Violet 1898 400t, 65.2(61)-65.5(62)x6.4x2.9m, 4b,2vte, 6300hp, 30kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
62 Sylvia 1899
Gipsy 3 63 Gipsy 1898 400t, 65.7x6.5x2.5m, 4b,2vte, 6300hp, 30kts, 60p; 1x1-76/40, 5x1-57/40, 2x1-450TT
64 Osprey 1898
65 Fairy 1898
Fawn 2 66 Fawn 1898 440t, 67.1x6.4x3.0m, 4b,2vte, 6200hp, 30kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
67 Flirt 1899
Conflict 3 68 Conflict 1899 360t, 62.7x6.1x2.5m, 3b,2vte, 4500hp, 27kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
69 Teazer 1899
70 Wizard 1899
Cheerful 1 71 Mermaid 1899 400t, 65.5x6.4x2.5m, 4b,2vte, 6100hp, 30kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
Coquette 2 72 Coquette 1899 367t, 64.0x6.0x2.3m, 3b,2vte, 5700hp, 30kts, 54p; 1x1-76/40, 5x1-57/40, 2x1-450TT
73 Cynthia 1899
Leopard 1 74 Leopard 1899 400t, 65.3x6.1x2.5m, 4b,2vte, 6300hp, 30kts, 60p; 1x1-76/40, 5x1-57/40, 2x1-450TT
Leven 1 75 Leven 1899 420t, 65.7x6.5x2.5m, 4b,2vte, 6100hp, 30kts, 58p; 1x1-76/40, 5x1-57/40, 2x1-450TT
TB TB2 9 1 - 9 TB3, 4, 6-12 1878 - 1880 33t, 26.5(1-6,8,9)-27.9(7)x3.1x1.6m, 1b,1hce, 460hp, 20kts, 15p; 2-356TC
TB17 2 10 - 11 TB17, 18 1878 33t, 26.2x3.4x1.4m, 1b,1hce, 450hp, 21kts, 15p; 2-356TC
TB14 1 12 TB14 1879 33t, 26.2x3.4x1.4m, 1b1hce, 550hp, 21.7kts, 15p; 2-356TC
TB15 1 13 TB15 1879 28t, 26.5x3.1x1.7m, 1b,1hce, 450hp, 21kts, 15p; 2-356TC
TB20 1 14 TB20 1880 28t, 26.5x3.1x1.2m, 1b,1hce, 360hp, 16.7kts, 15p; 2-356TC
TB21 2 15, 16 TB21, 22 1885 63t, 34.6x3.8x1.8m, 1b,1hce, 730hp, 18kts, 14p; 2x1-25/40, (2+1x1)-356TT
TB23 2 17, 18 TB23, 24 1886 67t, 34.6x3.8x2.1m, 1b,1hce, 600(17)-500(18)hp, 18.7kts, 14p; 2x1-47/40, (2+1x1)-356TT
TB25 1 19 TB25 1886 60t, 39.1x3.8x1.8m, 1b,1hce, 591hp, 19.4kts, 16p; 3x2-25/40, 2x2-356TT
TB26 23 20 - 42 TB26, 27, 29, 41-60 1886 - 1887 60t, 38.9x3.8x2.5m, 1b,1hce, 700-750hp, 19.5-21.5kts, 16p; 3x2-25/40, 2x2-356TT
TB30 21 43 - 63 TB30-33, 61-74, 76-78 1886 - 1887 60t, 38.2x4.0x2.5m, 1b,1hce, 670hp, 19.5kts, 16p; 2x1-25/40, (1+2x2)-356TT
TB34 5 64 - 68 TB34-38 1886 - 1887 60(64-66)-66(67,68)t, 38.1pp(64-66)-40.3pp(67,68)x4.4x1.3m, 1b,1hce, 950hp, 18-19kts, 16p; 2x1-47/40(67,68), 2x1-25/40(64-66), (1+2x2)-356TT
TB79 1 69 TB79 1886 75t, 39.2x4.0x1.7m, 1b,1vte, 1000hp, 22.2kts, 16p; 2x1-47/40, (2+1x1)-356TT
TB80 1 70 TB80 1887 105t, 41.2ppx4.3x1.8m, 2b,1vte, 1539hp, 23kts, 21p; 3x1-47/40, (1+1x2)-356TT
TB39 2 71, 72 TB39, 40 1885 No picture 40t, 30.5ppx3.8x1.2m, 1b,1hce, 500hp, 15p; 2x2-25/40, 1x1-356TT
Baluchi 3 73 - 75 TB1 Baluchi, TB2 Karen, TB3 Pathan 1888 96t, 41.0x4.5x2.1m, 2b,1hce, 1260hp, 23kts, 18p; 2x2-25/40, (1+2x2)-356TT
Gurkha 1 76 TB7 Gurkha 1888 92t, 41.2x4.3x2.1m, 2b,1hce, 1000hp, 21.5kts, 18p; 2x2-25/40, (1+2x2)-356TT
Mahratta 3 77 - 79 TB4 Mahratta, TB5 Sikh, TB6 Rajput 1889 95t, 41.2x4.4x2.3m, 2b,1hce, 1000hp, 22kts, 18p; 2x2-25/40, (1+2x2)-356TT
TB82 6 80 - 85 TB82-87 1889 85t, 39.7ppx4.1x1.8m, 1b,1vte, 1800hp, 23kts, 19p; 3x1-47/40, (1+1x2)-356TT
TB88 2 86 TB88 1894 112t, 43.3ppx4.5x2.3m, 1b,1vte, 1850hp, 23.5kts, 18p; 3x1-47/40, (1+1x2)-450TT
87 TB89 1894
TB91 2 88 TB91 1894 141t, 43.3(89)-42.8(90)x4.7x2.3m, 1b,1vte, 2350hp, 24.5kts, 18p; 3x1-47/40, (1+1x2)-450TT
89 TB92 1894
TB93 1 90 TB93 1894 136t, 42.8x4.7x1.6m, 2b,2vte, 2200hp, 23.5kts, 18p; 3x1-47/40, (1+1x2)-450TT
TB94 3 91 TB94 1894 130t, 43.4ppx4.7x2.7m, 2b,2vte, 2000hp, 23kts, 18p; 3x1-47/40, (1+1x2)-450TT
92 TB95 1895
93 TB96 1895
TB97 1 94 TB97 1894 130t, 42.8ppx4.9x2.3m, 2b,2vte, 2000hp, 23kts, 18p; 3x1-47/40, (1+1x2)-450TT
TB90 1 95 TB90 1895 112t, 42.8ppx4.4x2.0m, 1b,1vte, 1500hp, 23kts, 18p; 3x1-47/40, (1+1x2)-450TT
TB2cl TB51 11 1 - 11 TB51-61 1878 - 1879 11t, 18.5x2.3x0.9m, 1b,1hce, 120-150hp, 15kts, 7p; 2-356TC
TB63 1 12 TB63 1878 15t, 18.3x2.3xm, 1b,1hce, hp, 16kts, 7p; 2-356TC
TB64 8 13 - 20 TB64-67, 69-71, 73 1880 - 1882 No picture 13t, 19.2-20.1ppx2.4x1.0m, 1b,1hce, 110hp, 16.5kts, 7p; 2-356TC
TB76 18 21 - 38 TB76-82, 84-92, 94, 95 1882 - 1883 No picture 13t, 19.5x2.3x1.1m, 1b,1hce, 170hp, 16.5kts, 7p; 2-356TT
TB74 4 39 - 42 TB74, 75, 96, 97 1883 No picture 12t, 18.5pp-19.4ppx2.4x1.1m, 1b,1hce, 220hp, 16kts, 7p; 1x1-11.4, 2-356TT
TB98 1 43 TB98 1883 No picture 15t, 22.2x2.3x0.8m, 1b,1hce, 167hp, 11.7kts, 7p; 2-356TT
WTB1 12 44 - 55 WTB1-12 1883 - 1888 No picture 11-14t, 17.1x2.8x1.5m, 1b,1hce, 140-200hp, 16kts, 9p; (1-2)x1-11.4, 1-356TT or 2-356TC or 1x1-356TT
TB99 2 56, 57 TB99, 100 1885 - 1886 No picture 12t, 19.8x2.4x1.1m, 1b,1hce, 189hp, 16.8kts, 7p; 2-356TT
TB49 2 58, 59 TB49, 50 1888 15-16t, 18.1pp-18.3ppx2.5-2.6x0.9m, 1b,1vte, 9p; 1x1-25/40, 1x1-356TT
TB39 10 60 - 69 TB39 - 48 1889 17t, 18.3ppx2.8xm, 1b,1vte, 240hp, 16.5kts, 9p; 1x1-25/40, 2-356TC
CTB Hecla 1 1 Hecla 1879 No picture 6400t, 119.6ppx11.8x6.9m, b,2hice, 1758hp, 12.1kts, 277p; 4x1-160/16MLR, 1x1-127/25, 1x1-121/21, 4 TB2cl
Vulcan 1 2 Vulcan 1891 6620t, 113.7x17.7x6.7m, 5b,2vte, 12000hp, 20kts, 432p; steel: 127deck, 152CT; 8x1-120/40, 12x1-47/40, 12x1-11.4, 6TT, 9 TB2cl

OTHER FIGHTING SHIPS

PG Staunch 1 1 Staunch 1868 200t, 22.9x7.6x2.0m, 1b,2hse, 134hp, 7.7kts, 31p; 1x1-229MLR
Plucky 1 2 Plucky 1870 212t, 24.4x7.7x1.9m, 1b,2hse, 234hp, 7.7kts, 31p; 1x1-229MLR
Ant 23 3 Blazer 1870 254t, 25.9x8.0x1.8-2.0m, 1b,2hse(t), 260hp, 8.5kts, 30p; 1x1-254MLR
4 Comet 1870
5 Bustard 1871
6 Kite 1871
7 Scourge 1871
8 Mastiff 1871
9 Bloodhound 1871
10 Arrow 1871
11 Bonetta 1871
12 Badger 1872
13 Fidget 1872
14 Bulldog 1872
15 Pike 1872
16 Pickle 1872
17 Snap 1872
18 Ant 1873
19 Cuckoo 1873
20 Hyaena 1873
21 Weazel 1873
22 Gadfly 1879
23 Pincher 1879
24 Griper 1879
25 Tickler 1879
Ariel 1 26 Goshawk 1873 No picture 430t, 38.1ppx6.9x3.2m, 2b,1hce, 484hp, 9.5kts, 40p; 2x1-127/25, 2x1-95/21
Forester 3 27 Firm 1877 455t, 38.1ppx7.2x3.2m, 2b,2hce, 500hp, 10kts, 60p; 2x1-127/25, 2x1-95/21
28 Firebrand 1877
29 Firefly 1877
Medina 11 30 Medina 1876 363t, 33.5x10.4x1.8m, 1b,2hse, 310hp, 9.5kts, 51p; 3x1-160/16MLR
31 Medway 1876
32 Sabrina 1876
33 Spey 1876
34 Tay 1876
35 Tees 1876
36 Don 1877
37 Esk 1877
38 Slaney 1877
39 Trent 1877
40 Tweed 1877
Linnet 2 41 Swift 1880 788t, 50.3ppx8.8x3.3m, 4b,1hce, 1010-1050hp, 11.8kts, 92p; 2x1-178/14MLR, 3x1-95/21
42 Linnet 1880
Banterer 7 43 Redwing 1880 465t, 38.1ppx7.2x3.1m, 4b,1hce, 440hp, 9.5kts, 60p; 2x1-127/25, 2x1-95/21, 2x1-25/40
44 Grappler 1881
45 Banterer 1882
46 Espoir 1883
47 Bullfrog 1885
48 Cockchafer 1883
49 Raven 1883
Bouncer 2 50 Bouncer 1881 265t, 26.6x8.0x2.0m, 1b,2hse, 230hp, 8.5kts, 30p; 1x1-254/15MLR
51 Insolent 1881
Handy 1 52 Excellent 1883 No picture 508t, 35.1x11.3x2.8m, 2b,2hse, 310hp, 8.5kts; 1x1-343/30
Albacore 3 53 Albacore 1884 560t, 41.2ppx7.9x2.6m, 4b,1vce, 650hp, 10.7kts, 60p; 2x1-127/25, 2x1-102/27, 2x1-25/40
54 Mistletoe 1884
55 Watchful 1884
Curlew 2 56 Curlew 1886 950t, 59.4ppx8.5x3.2m, 4b,2hdace, 1500hp, 14.5kts, 46p; 1x1-152/26, 3x1-127/25, 7x1-11.4, (1+2)-356TT/TC
57 Landrail 1887
Bramble 3 58 Rattler 1887 810t, 50.3ppx8.8x3.4m, 2b,1vte, 1200(57)-1000(58,59)hp, 13kts, 76p; 6x1-102/40, 4x1-11.4
59 Lizard 1887
60 Cockatrice 1887
Pigmy 6 61 Pheasant 1888 755t, 50.3ppx9.1x3.4m, 2b,1vte, 1200hp, 13.2kts, 76p; 6x1-102/27, 4x1-11.4
62 Partridge 1888
63 Peacock 1888
64 Pigmy 1889
65 Pigeon 1889
66 Plover 1889
Redbreast 9 67 Goldfinch 1889 805t, 50.3ppx9.5x3.4m, 2b,1vte, 1200hp, 13kts, 76p; 6x1-102/27(63,65-71), 6x1-102/28(64), 2x1-47/40(63,64,69-71), 4x1-11.4(65-68), 2x1-11.4(63,64,69-71)
68 Lapwing 1889
69 Magpie 1889
70 Redbreast 1889
71 Redpole 1890
72 Ringdove 1890
73 Sparrow 1890
74 Thrush 1890
75 Widgeon 1890
Bramble 1 76 Dwarf 1899 710t, 57.2x10.1x2.4m, 4b,2vte, 1300hp, 13.5kts, 85p; 2x1-102/40, 4x1-76/40, 10x1-11.4
APG - 2 1 Lady Loch 1886   336t; 1x1-152/26
2 Otter 1884   220t
PGR Heron 4 1-4 Nightingale, Robin, Sandpiper, Snipe 1898 No picture 85t, 32.8x6.1x0.6m, 1b,1vte, 240hp, 9kts, 25p; 2x1-57/40
Woodcock 2 5 Woodcock 1898 No picture 150t, 44.2x7.3x0.6m, 1b,1vte, 550hp, 13kts, 25p; 2x1-57/40, 4x1-7.9
6 Woodlark 1898
Custom Search

© Ivan Gogin, 2014
