World navies yesterday

1900

Portugal 01 January 1900

BATTLESHIPS

BC

Vasco da Gama

1

1

Vasco da Gama

1876

2384t, 61.0ppx14.2x5.8m, 2vc, 3000hp, 10.3kts, 232p; iron- 229belt, 254battery; 2x1-163/18, 1x1-149/22, 4x1-67/40

CRUISERS

CL	Bartolomeu Dias	1	1	Bartolomeu Dias	1858	No picture	2377t, 63.1ppx11.4x6.3m, 1hrcr, 400hp, 10kts, 473p; 5x1-127/25

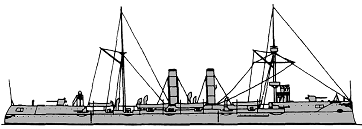

	Dom Carlos I	1	2	Dom Carlos I	1898		4253t, 117.0x14.4x5.3m, 12b,2vte, 12500hp, 22kts, 473p; 110slopes, 37deck, 102CT; 4x1-152/45, 8x1-120/44, 16x1-47/40, 2x1-37/25, 5-356TT
	São Gabriel	2	3	São Gabriel	1899		1771t, 75.0x10.8x4.3m, 4b,2vte, 4000hp, 17.5kts, 242p; 20deck, 60CT; 2x1-149/45, 4x1-120/45, 8x1-47/40, 2x1-37/20, 1-356TT
			4	São Rafael	1899
CLL	Duque da Terceira	1	1	Duque da Terceira	1864	No picture	1406t, 54.9ppx10.4x4.5m, 660hp, 10kts, 194p; 2x1-120/44, 2x1-65/40
	Afonso d'Albuquerque	1	2	Afonso d'Albuquerque	1884	No picture	1092t, 62.0ppx10.1x3.7m, 1360hp, 13kts, 178p; 2x1-152/26, 5x1-127/25, 2x1-47/40
	Adamastor	1	3	Adamastor	1897		1757t, 74.0ppx10.7x4.7m, 4b,2vte, 4000hp, 18kts, 237p; 30deck, 65CT; 2x1-149/27, 4x1-105/37, 4x1-65/40, 2x1-37/25, 3-356TT

TORPEDO SHIPS

TB	Fulminante	1	1	Fulminante	1880	No picture	40t, 22.9ppx4.6x0.8m, 1b,1vc, 150hp, 11.5kts; 2spar torpedoes
	Espadarte	1	2	N°1	1881	No picture	53t, 26.2ppx3.4x1.5m, 1b,1vc, 450hp, 19.7kts, 18p; 2-356TT
	N°2	3	3-5	N°2-4	1886		65t, 36.5ppx3.9x1.0m, 1b,1vc, 700hp, 19kts; 2x5-37/17, 2-356TT

SUBMARINES

OTHER FIGHTING SHIPS

PG	Tejo	3	1	Tejo	1869	No picture	578t, 43.6ppx7.9x3.3m, 1b,1hse, 400(1,2)-500(3)hp, 10(1,3)-9(2)kts, 109p; 1x1-163/14(2,3), 2x1-121/14, 1x1-100/27(1)
			2	Douro	1873
			3	Quanza	1877
	Rio Lima	1	4	Rio Lima	1875	No picture	628t, 45.4x8.6x3.2m, 500hp, 11kts, 109p; 1x1-152/26, 2x1-100/27
	Rio Tâmega	2	5	Rio Tâmega	1875	No picture	635t, 45.4ppx8.6x3.2m, 500hp, 11kts, 109p; 2x1-105/32, 2x1-65/40, 1x1-37/20
			6	Rio Sado	1875
	Tavira	2	7	Tavira	1878	No picture	160t
			8	Faro	1878
	Mandovi	2	9	Bengo	1879	No picture	462t, 38.2ppx7.5x2.7m, 400hp, 10.5kts, 92p; 1x1-152/26, 2x1-87/21
			10	Mandovi	1879
	Rio Vouga	1	11	Rio Vouga	1882	No picture	721t, 49.1ppx8.4x3.6m, 600hp, 10kts, 121p; 2x1-47/40
	Vilhena	1	12	Vilhena	1882	No picture	160t, 29.0x4.9x1.8m, 310hp, 12kts, 42p; 1x1-76/16
	Liberal	2	13	Liberal	1884	No picture	560t, 42.5ppx7.9x3.4m, 500hp, 10kts, 109p; 1x1-152/26, 2x1-100/27, 1x1-37/20
			14	Zaire	1884
	Massabi	2	15	Massabi	1884	No picture	280t, 37.0ppx5.9x2.0m, 375hp, 11kts, 42p; 1x1-76/16
			16	Cacongo	1886
	Zambeze	1	17	Zambeze	1886	No picture	631t, 43.6ppx7.9x3.3m, 460hp, 10kts, 113p; 3x1-100/27, 1x1-37/20
	Diu	1	18	Diu	1889	No picture	730t, 45.0ppx8.2x4.0m, 700hp, 11.5kts, 124p; 1x1-149/27, 2x1-105/32
	Limpopo	1	19	Limpopo	1890	No picture	288t, 37.8x6.4x2.0m, 1b,1vc, 520hp, 11.3kts, 42p; 1x1-65/40
	D. Luiz	1	20	D. Luiz	1895	No picture	789t, 45.9ppx8.3x4.2m, 500hp, 10kts, 120p; 4x1-105/32, 2x1-47/40
	Thomaz Andrea	2	21	Thomaz Andrea	1896	No picture	300t, 41.0ppx8.0x2.0m, 500hp, 12kts; 2x1-47/40
			22	Al. Baptista de Andrade	1897
	Chaimite	1	23	Chaimite	1898		341t, 41.0ppx8.0x2.0m, 2vte, 480hp, 11kts, 26p; 2x1-47/40
PR	Pedro d'Annaia	3	1-3	Pedro d'Annaia, Diogo Cão, Honório Barreto	1895	No picture	93t, 30.0ppx6.0x0.8m, 500hp, 9kts; 2x1-47/40
