World navies yesterday

1900

Germany 01 January 1900

BATTLESHIPS

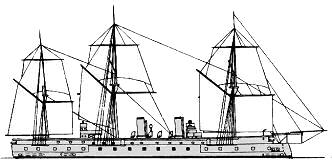

BB	Kronprinz	1	1	Kronprinz	1867		6760t, 89.4x15.2x7.9m, 8b,1hse, 4870hp, 14.7kts, 541p; iron; 124belt, 121battery, 50CT; 2x1-209/20, 14x1-209/17, 6x5-37/20, 5-350TT
	König Wilhelm	1	2	König Wilhelm	1869		10761t, 112.2x18.3x8.6m, 8b,1hse, 8440hp, 14.7kts, 730p; iron; 305belt, 51deck, 203battery, 100CT; 22x1-238/18, 1x1-149/28, 18x1-88/27, 5-350TT
	Kaiser	2	3	Kaiser	1875		8940t, 89.3x19.1x7.9m, 8b,1hse, 5700hp, 14.5kts, 656p; steel; 254belt, 51deck, 203casemate, 50(3)-100(4)CT; 1x1-149/28(3), 8x1-149/32(4), 6x1-105/32(3), 9x1-88/27(3), 8x1-88/27(4), 4x1-37/42, 5-350TT
			4	Deutschland	1875
	Sachsen	4	5	Sachsen	1878		7742-7938t, 98.2x18.4x6.5m, 8b,2hc, 6201-6454hp, 14.2-15.7kts, 317p; 254belt, 75deck, 254barbettes/citadel, 200CT; 6x1-263/20, 8x1-88/27, 6x1-87/22, 8x5-37/20, 2-450TT, 3-350TT
			6	Bayern	1881
			7	Württemberg	1881
			8	Baden	1883
	Oldenburg	1	9	Oldenburg	1886		5743t, 79.8x18.0x6.3m, 8b,2hc, 3942hp, 13.8kts, 389p; compound; 300belt, 30deck, 200battery, 50CT; 8x1-238/28, 4x1-149/20, 6x1-50/37, 4-350TT
	Kurfürst Friedrich Wilhelm	4	10	Kurfürst Friedrich Wilhelm	1894		10670t, 115.7x19.5x7.9m, 12b,2vte, 10000hp, 16.5kts, 568p; compond(10,12); 400belt, 60deck, 300barbettes, 300CT; 2x2-283/37, 1x2-283/32, 6x1-105/32, 8x1-99/27, 6-450TT
			11	Brandenburg	1893
			12	Weissenburg	1894
			13	Wörth	1893
	Kaiser Friedrich III	1	14	Kaiser Friedrich III	1898		11785t, 125.3x20.4x8.3m, 12b,3vte, 13000hp, 17.5kts, 651p; 300belt, 65deck, 250turrets, 250CT; 2x2-238/37, 18x1-150/37, 12x1-88/27, 6-450TT
BC	Siegfried	6	1	Siegfried	1890		3741t, 79.0x14.9x5.7m, 4b,2vte, 5000hp, 14.5kts, 276p; compound; 240belt, 30deck, 200barbettes, 80CT; 3x1-238/32, 8x1-88/27, 4-350TT
			2	Beowulf	1892
			3	Frithjof	1893
			4	Heimdall	1894
			5	Hildebrand	1893
			6	Hagen	1894
	Odin	2	7	Odin	1896		3750t, 79.0x15.2x5.6m, 8b,2vte, 4650(7)-5120(8)hp, 14.4(7)-15(8)kts, 276p; 220belt, 70deck, 200barbettes, 120CT; 3x1-238/32, 10x1-88/27, 3-450TT
			8	Ägir	1896

CRUISERS

CL	Bismarck	5	1	Blücher	1878		3386(1)-2994(2-5)t, 82.5(1)-82.0(2-5)x13.7x6.3m, 4b,1hse, 2500hp, 12.5kts, 404p; 10x1-149/22(2,3), 14x1-149/22(4), 12x1-149/22(5), 2x1-88/27(2-5), 4x1-87/24(1), 13x5-37/20(1), 6x5-37/20(2-5), 3-450TT(1), 4-350TT(1)
			2	Stosch	1878
			3	Moltke	1878
			4	Gneisenau	1880
			5	Stein	1880
	Carola	4	6	Carola	1881		2424t, 76.4x12.5x6.1m, 8b,1hc(6,7)-6b,1hc(8,9), 2100hp, 13.5kts, 269p; 6x1-149/20(6), 10x1-149/20(8,9), 2x1-105/32(6), 8x1-88/27(6,8,9), 2x1-87/22(7), 2x1-50/37(6), 10x5-37/20(8,9)
			7	Olga	1881
			8	Marie	1882
			9	Sophie	1882
	Nixe	1	10	Nixe	1886		1982t, 63.3x13.2x6.4m, 2b,1hc, 700hp, 9kts, 358p; 6x1-125/21, 2x1-88/27, 4x5-37/20
	Alexandrine	2	11	Alexandrine	1886		2662t, 81.2x12.6x6.3m, 8b,1hc, 2400hp, 14kts, 282p; 10x1-149/27, 4x1-105/32, 6x5-37/20
			12	Arcona	1886
	Charlotte	1	13	Charlotte	1886		3763t, 83.9x14.6x6.9m, 8b,1hc, 3000hp, 13kts, 506p; 2x1-105/32, 16x1-88/27, 4x5-37/20
	Irene	2	14	Irene	1888		5027t, 103.7x14.2x7.6m, 4b,2hc, 8000hp, 18kts, 365p; compound; 75slopes, 50deck, 50CT; 4x1-149/28, 8x1-105/32, 6x1-50/37, 3-350TT
			15	Prinzess Wilhelm	1889
	Kaiserin Augusta	1	16	Kaiserin Augusta	1892		6381t, 123.2x15.6x7.4m, 8b,3vte, 12000hp, 21kts, 430p; 70slopes, 50deck, 50CT; 14x1-149/32, 8x1-88/27, 4x5-37/20, 5-350TT
	Gefion	1	17	Gefion	1894		4275t, 110.4x13.2x6.5m, 6b,2vte, 9000hp, 19kts, 212p; steel; 25slopes, 30deck, 30CT; 10x1-105/32, 6x1-50/37, 2x1-450TT
	Victoria Louise	5	18	Victoria Louise	1899		6491(18-20)-6705(21,22)t, 110.6x17.4(18-20)-17.6(21,22)x6.8-7.3m, 12b,3vte(18-21)-18b,3vte(22), 10000hp, 19.5(18-20)-18.5(21,22)kts, 477p; 100slopes, 40deck, 100turrets, 150CT; 2x1-209/37, 8x1-149/37, 10x1-88/27, 3-450TT
			19	Hertha	1898
			20	Freya	1898
			21	Vineta	1899
			22	Hansa	1899
CLL	Grille	1	1	Grille	1858		491t, 56.9x7.4x3.2m, 2b,1hc, 760hp, 14.4kts, 70p; 1x1-125/21, 2x1-79/25, 6x5-37/20
	Zieten	1	2	Zieten	1876		1170t, 79.4x8.6x4.6m, 6b,2hc, 2000hp, 16kts, 94p; 6x1-50/37
	Blitz	2	3	Blitz	1883		1486t, 78.4x9.9x4.4m, 8b,2hc, 2700hp, 15.6kts, 134p; 6x1-88/27, (2x1+1)-350TT
			4	Pfeil	1884
	Greif	1	5	Greif	1887		2266t, 102.6x9.8x4.3m, 6b,2hc, 5400hp, 18kts, 170p; 2x1-105/32, 8x1-88/27, 6x5-37/20
	Schwalbe	2	6	Schwalbe	1888		1359t, 66.9x9.4x4.7m, 4b,2hc, 1500hp, 13.5kts, 117p; 8x1-105/32, 5x5-37/20
			7	Sperber	1889
	Wacht	2	8	Wacht	1888		1499t, 85.5x9.7x4.7m, 4b,2dte, 4000hp, 19kts, 141p; compound; 40slopes, 20deck, 25CT; 4x1-88/27, 3-350TT
			9	Jagd	1889
	Bussard	2	10	Bussard	1890		1868t, 82.6x10.2x5.6m, 4b,2hte, 2800hp, 15.5kts, 161p; 8x1-105/32, 2x1-350TT
			11	Falke	1891
	Meteor	2	12	Meteor	1891		1078(12)-1117(13)t, 79.9x9.6x4.5m, 4b,2vte, 4500(12)-5000(13)hp, 19(12)-19.5(13)kts, 115p; steel; 25slopes, 15deck, 30CT; 4x1-88/27, 3-350TT
			13	Comet	1893
	Seeadler	3	14	Seeadler	1892		1864t, 82.6x10.5x5.4m, 4b,2hte, 2800hp, 15.5kts, 161p; 8x1-105/32, 2x1-350TT
			15	Condor	1892
			16	Cormoran	1893
	Geier	1	17	Geier	1895		1918t, 83.9x10.6x5.2m, 4b,2hte, 2880hp, 15.5kts, 161p; 8x1-105/32, 2x1-450TT
	Hela	1	18	Hela	1896		2082t, 105.0x11.0x4.6m, 6b,2vte, 6000hp, 20kts, 178p; steel; 25slopes, 20deck, 30CT; 4x1-88/27, 6x1-50/37, (1+2x1)-450TT

TORPEDO SHIPS

DD	D1	2	1	D1	1887		300t, 56.1x6.6x3.4m, 2b,1vte, 2000hp, 20.6kts, 46p; 3x1-50/37, (1+2x1)-350TT
			2	D2	1887
	D3	2	3	D3	1888		300t, 57.6x6.8x3.2m, 2b,1vte, 2200hp, 20.3kts, 46p; 3x1-50/37, (1+2x1)-350TT
			4	D4	1888
	D5	2	5	D5	1889		406t, 59.6x7.4x3.5m, 2b,1vte, 3200hp, 22.6kts, 46p; 3x1-50/37, (1+2x1)-350TT
			6	D6	1889
	D7	2	7	D7	1891		410t, 59.7x7.4x3.4m, 2b,1vte, 3600hp, 22.5kts, 46p; 3x1-50/37, (1+2x1)-450TT
			8	D8	1891
	D9	1	9	D9	1894		458t, 63.0x7.7x3.7m, 3b,1vte, 4200hp, 23.5kts, 52p; 3x1-50/37, (1+2x1)-450TT
	D10	1	10	D10	1898		371t, 66.1x6.0x2.4m, 3b,2vte, 5783hp, 27.2kts, 47p; 5x1-50/37, (1+2x1)-450TT
	S90	1	11	S90	1899		394t, 63.0x7.0x2.8m, 3b,2vte, 5900hp, 27kts, 57p; 3x1-50/37, 3x1-450TT
TB	Nr. XVIII	8	1-8	V1, 2, 4-9	1884		61t, 32.8x3.8x1.8m, 1b,1vte, 590hp, 17.9kts, 14p; 2x5-37/20, 2-350TT
	Nr. XXVIII	1	9	S2	1884		99t, 37.7x4.9x2.2m, 1b,1vte, 970hp, 19.3kts, 15p; 2x5-37/20, (2+1x1)-350TT
	S7	17	10-26	S7-23	1885		98t, 37.7x4.9x2.2m, 1b,1vte, 725hp, 20.4kts, 16p; 1x1-50/37, (1+2x1)-350TT
	S24	7	27	S24	1886		103t, 37.7x4.8x2.3m, 1b,1vte, 840hp, 19.1kts, 16p; 1x1-50/37, (1+2x1)-350TT
			28	S25	1886
			29	S27	1886
			30	S28	1886
			31	S29	1886
			32	S30	1887
			33	S31	1887
	S32	1	34	S32	1886		119t, 39.1x5.3x2.5m, 1b,1vte, 900hp, 19.9kts, 20p; 1x1-50/37, (1+2x1)-350TT
	S33	8	35	S33	1887		113t, 39.9x4.8x2.3m, 1b,1vte, 1100hp, 20kts, 16p; 1x1-50/37, (1+2x1)-350TT
			36	S34	1887
			37	S35	1887
			38	S36	1887
			39	S37	1887
			40	S38	1887
			41	S39	1887
			42	S40	1887
	S42	1	43	S42	1889		153t, 44.2x5.0x2.6m, 1b,1vte, 1420hp, 22.2kts, 16p; 1x1-50/37, (1+2x1)-350TT
	S43	14	44	S43	1889		152t, 44.2x5.0x2.7m, 1b,1vte, 1571hp, 21.5kts, 16p; 1x1-50/37, (1+2x1)-350TT
			45	S44	1889
			46	S45	1889
			47	S46	1889
			48	S47	1889
			49	S49	1890
			50	S50	1890
			51	S51	1890
			52	S52	1890
			53	S53	1890
			54	S54	1890
			55	S55	1890
			56	S56	1890
			57	S57	1890
	S58	8	58	S58	1892		152t, 44.3x5.0x2.6m, 1b,1vte, 1232hp, 20.2kts, 16p; 1x1-50/37, (1+2x1)-350TT
			59	S59	1892
			60	S60	1892
			61	S61	1892
			62	S62	1892
			63	S63	1892
			64	S64	1892
			65	S65	1892
	S66	1	66	S66	1893		172t, 47.9x5.4x2.7m, 2b,1vte, 1610hp, 22.1kts, 24p; 1x1-50/37, (1+2x1)-450TT
	S67	7	67	S67	1893		166t, 47.9x5.4x2.6m, 1b,1vte, 1600hp, 21.9kts, 24p; 1x1-50/37, (1+2x1)-450TT
			68	S68	1893
			69	S69	1893
			70	S70	1893
			71	S71	1893
			72	S72	1893
			73	S73	1894
	S74	1	74	S74	1895		186t, 49.9x5.5x2.8m, 2b,1vte, 2500hp, 23.7kts, 24p; 1x1-50/37, (1+2x1)-450TT
	S75	7	75	S75	1895		180t, 49.0x5.3x2.9m, 2b,1vte, 1744hp, 22.3kts, 24p; 1x1-50/37, (1+2x1)-450TT
			76	S76	1895
			77	S77	1895
			78	S78	1895
			79	S79	1895
			80	S80	1895
			81	S81	1896
	S82	6	82	S82	1897		170t, 48.2x5.1x2.6m, 2b,1vte, 2146hp, 25.3kts, 29p; 1x1-50/37, (1+2x1)-450TT
			83	S83	1897
			84	S84	1897
			85	S85	1898
			86	S86	1898
			87	S87	1898
G88	2	88	G88	1898		177t, 48.7x5.0x2.8m, 2b,1vqe, 2468hp, 26kts, 29p; 1x1-50/37, (1+2x1)-450TT
		89	G89	1898
TSS	Ulan	1	1	Ulan	1876		438t, 38.0x8.0x4.6m, 4b,1vse, 800hp, 12kts, 41p; 3x5-37/20, 1-381TT

ESCORTS

PC

Sirius

4

1-4

Sirius, Vega, Castor, Pollux

1889-1890

52t, 22.6x4.6x1.6m, 1b,1vte, 200hp,,

OTHER FIGHTING SHIPS

PG	Wespe	11	1	Wespe	1876		1163t, 46.4x10.6x3.4m, 4b,2dc, 700hp, 10kts, 88p; iron- 203belt, 40deck, 203barbette, 20CT; 1x1-305/20, 2x1-87/22, 2x5-37/20, 2-350TT
			2	Viper	1877
			3	Biene	1877
			4	Mücke	1878
			5	Scorpion	1877
			6	Basilisk	1880
			7	Camaeleon	1879
			8	Crocodill	1880
			9	Salamander	1880
			10	Natter	1881
			11	Hummel	1881
	Otter	1	12	Otter	1878		164t, 31.0x6.2x1.6m, 1b,2vse, 140hp, 8kts, 43p; small arms
	Wolf	2	13	Wolf	1878		570t, 47.2x7.7x3.4m, 2b,1hse, 340hp, 8.5kts, 106p; 2x1-125/21(14), 1x1-87/22(13), 2x1-87/22(14), 1x1-50/37(13), 2x5-37/20(13), 3x5-37/20(14)
			14	Hyäne	1879
	Habicht	2	15	Habicht	1880		1005t, 59.2x8.9x4.2m, 2b,1hc, 600hp, 11kts, 127p; 5x1-125/21(15), 2x1-125/21(16), 5x5-37/20
			16	Möwe	1880
	Hay	1	17	Hay	1882		247t, 34.0x6.4x2.8m, 2b,1vc, 202hp, 9.3kts, 40p; 2x1-88/27
	Brummer	2	18	Brummer	1884		929t, 64.8x8.5x4.8m, 2b,1dc, 1658(18)-2081(19)hp, 14.1(18)-15.2(19)kts, 78p; compound- 160breastwork, 40deck; 1x1-209/28, 1x1-87/22, 2x5-37/20, 1-350TT
			19	Bremse	1884
	Iltis	2	20	Iltis	1898		1031t, 65.2x9.1x3.6m, 4b,2hte, 1300hp, 14.5kts, 130p; 4x1-88/27
			21	Jaguar	1899
APG	-	1	1	Lorelei	1886		924t

MINE WARFARE SHIPS

ML	Rhein	1	1	Rhein	1867		482t, 47.1x6.0x3.2m, 1b,1vse, 200hp, 9kts, 81p; 2x5-37/20, 100mines
	Pelikan	1	2	Pelikan	1891		2424t, 84.2x11.7x5.1m, 2b,2vte, 3000hp, 15kts, 195p; 4x1-88/27, 400mines
