World navies yesterday

2017



United Kingdom 01 January 2017

SUBMARINES

SSBN Vanguard 4 S28 Vanguard 1993 14000/15850t, 149.3x12.8x10.1m, 1nr,2gst(1wj), 27500hp, /25kts, 143p, 230m; 16 Trident D-5 SLBM(16), 4-533TT; type 1007 radar, type 2054(type 2043, type 2046, type 2081, type 2082) sonar suite, UAC(3), UAP(3) ECM, 3x SSE Mk 10 dl, SMCS NG(28-30), DCM4(28-30) CCS
S29 Victorious 1995
S30 Vigilant 1996
S31 Vengeance 1999
SSN Trafalgar 4 S90 Torbay 1987 4740/5208t, 85.4x9.8x8.3m, 1nr,2gst(1wj), 15000hp, 20/30kts, 97p, 300m;  5-533TT(inc Tomahawk CruM(4)); type 1007 radar, type 2076 sonar suite), type 2046, type 2082, BQS-15A(91) sonars, UAP(1), CESM/7415 ECM, type 2071 dl, 2x SSE Mk8 dl, SMCS NG(90-93) CCS
S91 Trenchant 1989
S92 Talent 1990
S93 Triumph 1991
Astute 3 S119 Astute 2010 7000/7400t, 97.0x11.3x10.0m, 1nr,2gst(1wj), 27500hp, /29kts, 98p, 300m; 6-533TT(inc Tomahawk CruM(4)); 1 DDS, 11 commandos; type 1007 radar, type 2076 sonar suite, type 2077, type 2081, type 2082, type 2015 sonars, UAP-4, RESM, CESM/7415 ECM, SCAD 101/102 dl, SCAD200 jammer, ACMS CCS
S120 Ambush 2013
S121 Artful 2016

PRINCIPAL SURFACE COMBATANTS

DD Daring 6 D32 Daring 2009 7450t, 152.4x21.2x5.5m, 2gtg+2dg,2em, 68000hp, 30kts, 190+45p; 2x4 Harpoon SSM(8), 6x8 Sea Viper SAM VLS(32 Aster-30, 16 Aster-15), 1x1-114/55, 2x1-30/75, 2x6-20/76, 1hel(Merlin); type 1045, type 1046, type 1008, 2x type 1047 radars, 2x EOGS 2500 e/o directors, type 2100 sonar, EWCP ECM, 4x DLH dl, type 2170 SSTD td, 2x DLF(3) fd, CMS-1 CCS
D33 Dauntless 2010
D34 Diamond 2011
D35 Dragon 2012
D36 Defender 2013
D37 Duncan 2013
FF Norfolk 13 F231 Argyll 1991 4300t, 133.0x16.1x4.3m, CODLAG:2gt+4dg,2em, 41540(229,231,232,234-236)-56300(237-239,78,79,81-83)hp, 28(229,231,232,234-236)-30(237-239,78,79,81-83)kts, 169p; 2x4 Harpoon SSM(8), 1x32 Sea Wolf SAM VLS(32), 1x1-114/55, 2x1-30/75, 2x1-20/90, 4-324TT, 1hel(Lynx)(231), 1hel(Merlin)(78,79,81-83,229,234-239), Scan Eagle UAV(82,83,234,235); type 996(2)(78,79,81,229,231,236-239), type 997(82,83,234,235), 2x type 911(78,79,81,229,231,236-239), 2x type 911(1)(82,83,234,235), type 1007, type 1008 radars, type 2050NE, type 2031Z(229,231,234-238), type 2087(78,79,81-83,239) sonars, GSA8, SIGMA e/o directors, UAT(5/6), UAD/UAK, 2x type 675(229,231,234-236), 2x type 695(78,79,81-83,237-239), MIDAS(82,83,234,235) ECM, 4x DLB(229,231,234-236), 4x DLH(78,79,81-83,237-239) dl, 2x DEC laser-dazzlers, 4x DLF(2) fd, type 182(229,231,234-236), type 2070(237,238), type 2170 SSTDS(78,79,81-83,239) td, SSCS DNA(1)(81,82,234,235), CMS-1 DNA(2)(78,79,83,229,231,236-239) CCS
F229 Lancaster 1992
F234 Iron Duke 1993
F235 Monmouth 1993
F236 Montrose 1994
F237 Westminster 1994
F238 Northumberland 1994
F239 Richmond 1995
F82 Somerset 1996
F81 Sutherland 1997
F78 Kent 2000
F79 Portland 2001
F83 St. Albans 2002

PATROL AND COASTAL COMBATANTS

PS Tyne 3 P281 Tyne 2003 1800t, 79.8x13.6x4.2m, 2d, 11280hp, 20kts, 45+3p; 1x1-20/85; 2x Nucleus-3 5000 radars
P282 Severn 2003
P283 Mersey 2004
Clyde 1 P257 Clyde 2007 1850t, 81.5x13.6x4.2m, 2d, 11280hp, 20kts, 36+20p; 1x1-30/75, heldeck; Terma-Scanter 4100 radar
PB Archer 16 P163 Express 1988 49t, 20.8x5.8x1.8m, 2d, 1590(exc274,275)-2000(274,275)hp, 22.5(exc274,275)-25(274,275)kts, 5+13p; Decca 1216 radar
P164 Example 1986
P165 Explorer 1985
P167 Exploit 1988
P264 Archer 1985
P270 Biter 1985
P272 Smiter 1986
P273 Pursuer 1988
P274 Tracker 1998
P275 Raider 1998
P279 Blazer 1988
P280 Dasher 1988
P291 Puncher 1988
P292 Charger 1988
P293 Ranger 1988
P294 Trumpeter 1988
Grey Fox 2 P284 Scimitar 1988 no picture 24t, 16.0x4.4x1.2m, 2d, 740hp, 32kts, 5+30p; Bridgemaster 360 radar
P285 Sabre 1988
Rona 2 1 Rona 2009 no picture 20t, 14.9x4.1x0.9m, 2d(2wj), 1430hp, 33kts, 3p; Furuno radar
2 Mull 2010

AMPHIBIOUS

LPH Ocean 1 L12 Ocean 1999 21758t, 203.4x36.1x6.7m, 2d, 23904hp, 19kts, 490p; 4x1-30/75, 3x6-20/76, 18ac(Sea King, Lynx helicopters); 4 LCVP Mk 5, 2 Griffon LCAC, 80vehicles, 500troops; type 1007, type 1008, type 997, 3x Mk 90 radars, UAT(4), 2x type 675 ECM, 8x DLJ(2) dl, 2x DLH dl, type 2170 td, CMS-1 CCS
LPD Albion 2 L14 Albion 2003 18500t, 176.0x28.9x7.2m, 4dg,2em, 16320hp, 18kts, 325p; 2x7-30/77(14), 2x1-20/85, 2x6-20/76(15), 4hel(Merlin); 4 LCU Mk 10, 4 LCVP Mk 5, 70vehicles, 305troops; 2x type 1007, type 1008, type 996(2)(14), type 997(15), 2x Goalkeeper radars, UAT(4) ECM, 8x DLJ(2) dl, type 2170 td, ADAWS 2000 Mod. 1(14), CMS-1(15) CCS
L15 Bulwark 2005
LSD Bay 3 L3007 Lyme Bay 2007 16160t, 176.6x26.4x5.8m, 4dg,2em(2az), 9000hp, 18kts, 67p; heldeck; 1 LCU Mk 10, 36tanks, 356troops, 200t cargo; 2x radars
L3008 Mounts Bay 2006
L3009 Cardigan Bay 2006
LCAC type 2400TD(M) 4 C21-24   2011 no picture 11t, 12.6x6.8x0m, 1d(1ap), 580hp, 45kts, 2p; 16troops; Raytheon radar
LC Arromanches 5 L107 Andalsnes 1984 no picture 290t, 33.3x8.3x1.5m, 2d, 660hp, 9.2kts, 6p; 100t cargo; Bridgemaster-E 180 radar
L110 Aachen 1987
L111 Arezzo 1987
L105 Arromanches 1987
L113 Audemer 1987
LCVP Mk 5 19 0202-2025, 0338-0341, 0344-0347, 0353-0356, 9675, 9676, 9707   1996-2004 no picture 23t, 15.3x4.2x0.6m, 2d, 860hp, 25kts, 3p; 35troops; Raytheon 40 radar
LCU Mk 10 10 9730 LCU01 1999 no picture 240t, 29.8x7.4x1.5m, 2d, 1090hp, 12kts, 7p; 1tank; radar
9731 LCU02 1999
9732 LCU03 2003
9733 LCU04 2003
9734 LCU05 2004
9735 LCU06 2004
9736 LCU07 2004
9737 LCU08 2004
9738 LCU09 2005
9739 LCU10 2005
PACSCAT 1 T1   2010 no picture 175t, 30.0x7.7x0.5m, 2d(2wj), 25kts; 55t cargo; radar

MINE WARFARE

MSO Hunt 8 M30 Ledbury 1981 725t, 60.0x9.9x2.2m, 2d, 2000hp, 17kts, 45p; 1x1-30/75, 2x Seafox USV, mechanical, acoustic, magnetic minesweeping gear, 2x FAST minesweeping drones; type 1006(4) radar, type 2193, Mil Cross sonars, 2x DLJ(2) fd, 2x DLK dl, NAUTIS III CCS
M31 Cattistock 1982
M33 Brocklesby 1983
M34 Middleton 1984
M37 Chiddingfold 1984
M38 Atherstone 1987
M39 Hurworth 1985
M41 Quorn 1989
MSC Sandown 7 M106 Penzance 1998 484t, 52.5x10.5x2.3m, 2d(2vs), 2024hp, 15kts, 34p; 1x1-30/75, 1x Seafox C USV; type 1007 radar, type 2093 sonar, NAUTIS-3 CCS
M107 Pembroke 2000
M108 Grimsby 1999
M109 Bangor 2000
M110 Ramsey 2001
M111 Blyth 2001
M112 Shoreham 2002

AUXILIARY

AGOR Scott 1 H131 Scott 1997 13500t, 131.1x21.5x8.3m, 2d, 10880hp, 17.5kts, 78p; Decca, KH radars, SASS Mk 1 sonar array
AGS Echo 2 H87 Echo 2003 3600t, 90.6x16.8x5.5m, 3dg,2em(2az), 5000hp, 15kts, 34+38p; 2x1-20/85; 2x KH radars, sonar
H88 Enterprise 2003
PSO Polarbjorn 1 A173 Protector 2001 4985t, 89.7x17.8x7.9m, 2d, 9500hp, 14.5kts, 88+84p; heldeck; 2x radars

ROYAL FLEET AUXILIARY

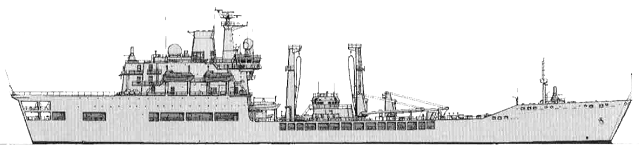

AORH Wave 2 A389 Wave Knight 2003 31500t, 196.5x27.2x9.5m, 4dg,2em, 19000hp, 18kts, 102p; 2x1-30/75, 2x6-20/76, 1hel (Merlin); 15000t diesel oil, 3000t aviation fuel, 500m3 dry cargo, 3 underway replenishment stations (liquid and dry cargo), 2 cranes; KH 6000, type 1007, 2x Mk 90 radars, 2x Sea Gnat dl
A390 Wave Ruler 2003

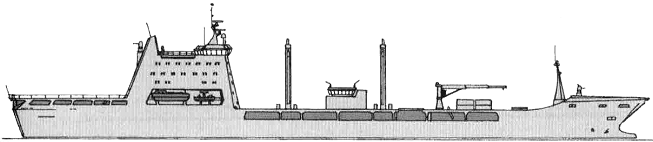

Mars 1 A136 Tidespring 2016 37000t, 200.9x28.6xm, 2d, 19585hp, 20kts, 63+46p; 2x1-30/75, 2x6-20/76, 1hel(Merlin); 19000t fuel oil, 500m3 dry cargo, 3 underway replenishment stations (liquid and dry cargo), crane; 3x Sharp Eye, 2x Mk 90 radars

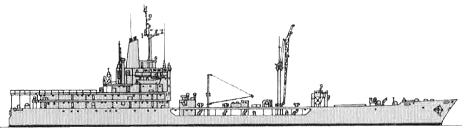

Rover 2 A271 Gold Rover 1974 11520t, 140.6x19.2x7.3m, 2d(1), 15300hp, 19kts, 49p; 2x1-20/85, heldeck; 6600t fuel oil, 1x2 underway replenishment station (liquid cargo); Decca 52690, Decca 1690 radars, 2x Corvus dl, type 182 td
A273 Black Rover 1974

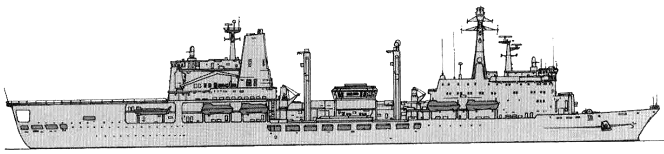

AOEH Fort Victoria 1 A387 Fort Victoria 1994 36580t, 203.5x30.4x9.7m, 2d, 24000hp, 20kts, 280p; 2x1-30/75, 2x6-20/76, 3hel(Merlin); 12505m3 liquid cargo, 6234m3 dry cargo, 2x2 underway replenishment stations (liquid and dry cargo); type 1007, Nucleus 6000A radars, UAT(4) ECM, 4x Sea Gnat dl, type 182 td

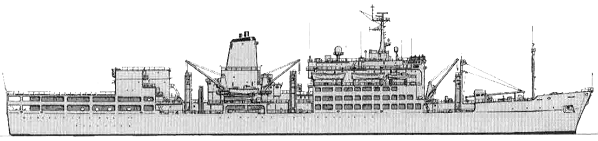

AFSH Fort Grange 2 A385 Fort Rosalie 1978 23480t, 185.1x24.1x9.0m, 1d, 23200hp, 22kts, 180p; 2x1-20/85, 4hel(Merlin or Sea King); 3500t ammunition (6234m3), 3x2 underway replenishment stations (dry cargo), 3x 10t cranes, 3x 5t cranes; type 1007, KH 21/16P, KH 14/12 radars, 2x Corvus dl, type 182 td
A386 Fort Austin 1979
CVHT Contender Bezant 1 A135 Argus 1982 28480t, 173.0x30.6x8.2m, 2dg,2em, 23400hp, 22kts, 108+137p; 2x1-20/90, 12hel(Sea King, Lynx, Gazelle); type 1006, type 1007, type 994 radars, UAN(1) ECM, 2x Shield dl, type 182 td

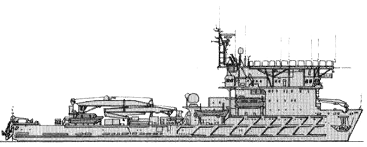

AR Diligence 1 A132 Diligence 1981 10765t, 111.5x20.9x6.7m, 5dg,4em(1), 6000hp, 12kts, 156p; 2x1-20/85, 2x1-12.7, heldeck; 2 40t cranes, 1 5t crane, midget submarine; 2x radars, UAR-1 ECM, 4x Shield dl

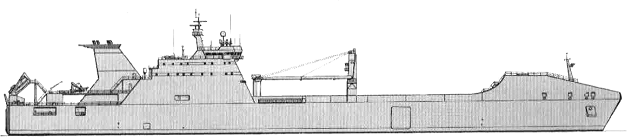

AKR Point 4 1 Hartland Point 2002 23235t, 193.0x29.0x7.4m, 2d, 22030hp, 21kts, 18+12p; 130 AFVs or 25 tanks or 656 containers, stern ramp; 2x radars
2 Anvil Point 2003
3 Hurst Point 2002
4 Eddystone 2002

SERCO-DENHOLM COMPANY

ABU Moor 2 1 SD Moorhen 1989 no picture 530t, 32.3x11.5x2.0m, 2d(2az), 730hp, 8kts, 10p; boom; radar
2 SD Moorfowl 1989
Multi Cat 2510 2 1 SD Navigator 2009 no picture 310t, 25.5x10.6x2.6m, 2d, 960hp, 8kts, 3+12p; 9t(1) or 2t(2) crane; JRC5210 radar
2 SD Raasay 2010
Multi Cat 1908 2 1 SD Engineer 1996 no picture 17.5x8.0xm, 2d, 600hp, 8kts
2 SD Inspector 1996
YOG Teesdale 1 1 SD Teesdale 1976 no picture 1300t, 43.9x10.0x3.9m, 2d, 425hp, 7kts, 5p
AGE WSS 8316 1 1 SD Victoria 2010 2500t, 83.0x16.0x4.3m, 2d, 4000hp, 14kts, 16+72p; midget submarine; 2x radars
Warden 1 1 SD Warden 1989 no picture 900t, 48.6x10.5x3.5m, 2d, 3800hp, 15kts, 11p; RM1250 radar, type 2053 sonar
SD Northern River 1 1 SD Northern River 1998 no picture 3612t, 92.8x18.8x6.4m, 2d, 9600hp, 13kts; midget submarine, 1 50t crane, 1 20t crane; 2x radars
Kingdom of Fife 1 1 Kingdom of Fife   no picture
YTL Adept 6 1 SD Adept 1980 no picture 450t, 38.8x9.1x4.2m, 2d(2vs), 2640hp, 12.5kts, 9p; Decca radar
2 SD Capable 1981
3 SD Careful 1982
4 SD Faithfull 1985
5 SD Forceful 1985
6 SD Powerful 1985
Impulse 2 1 SD Impulse 1993 no picture 530t, 32.5x10.4x4.0m, 2d, 3400hp, 12.5kts, 7p; Decca radar
2 SD Impetus 1993
ATD Tug 2909 4 1 SD Reliable 2009 no picture 370t, 29.1x10.0x4.8m, 2d(2az), 4025hp, 12kts, 8p; radar
2 SD Bountiful 2010
3 SD Resourceful 2010
4 SD Dependable 2010
ASD Tug 2509 2 1 SD Independent 2009 no picture 345t, 26.1x9.4x4.3m, 2d(2az), 3500hp, 13kts, 8p; radar
2 SD Indulgent 2009
Stan Tug 2608 3 1 SD Hercules 2009 no picture 270t, 26.6x8.8x3.4m, 2d, 2200hp, 12kts, 9p; radar
2 SD Mars 2009
3 SD Jupiter 2009
SD Kyle of Lochalsh 1 1 SD Kyle of Lochalsh 1997 no picture 300t, 25.5x9.0x2.8m, 2d, 3000hp, 12kts; radar
ASD Tug 2009 4 1 SD Eileen 2010 no picture 267t, 21.2x9.4x3.7m, 2d(2az), 2000hp, 11kts, 3p; radar
2 SD Suzanne 2010
3 SD Christina 2010
4 SD Deborah 2010
YFL Melton 3 1 SD Melton 1981 no picture 143t, 24.4x6.4x3.0m, 1d, 320hp, 10.5kts, 6p; radar
2 SD Menai 1981
3 SD Meon 1982
Bovisand 2 1 SD Bovisand 1997 no picture 225t, 23.9x11.1x2.3m, 2d, 1225hp, 15.5kts, 4p; 75passengers; radar
2 SD Cawsand 1997
Newhaven 4 1 SD Newhaven 2000 no picture 125t, 18.3x6.8x1.9m, 2d, 710hp, 10kts, 3p; 60passengers; radar
2 SD Nutbourne 2000
3 SD Netley 2000
4 SD Padstow 2000
Oban 3 1 SD Oban 2000 no picture 230t, 27.7x7.3x3.8m, 2d, 1000hp, 10kts, 7p; 60passengers; radar
2 SD Omagh 2000
3 SD Oronsay 2000
FFCS 3307 1 1 SD Eva 2009 no picture 120t, 33.2x7.4x2.0m, 2d, 2800hp, 22kts, 4p; 34passengers; JRC5210 radar

SCOTTISH FISHERIES PROTECTION AGENCY

PSO Jura 2 1 Jura 2006 no picture 2200t, 84.0x13.0x4.5m, 3dg,2em(1), 6200hp, 18kts, 15p; 2x Sperry Bridgemaster radars
2 Hirta 2008
PS Minna 1 1 Minna 2003 no picture 855t, 47.7x10.0x4.5m, 2dg,2em, 2145hp, 14kts, 15p; 2x radars

UK BORDER AGENCY

PC Stan Patrol 4207 4 1 Seeker 2001 no picture 205t, 42.8x7.1x2.5m, 2d, 5600hp, 26kts, 12+4p; 2x Racal-Decca radars
2 Searcher 2002
3 Vigilant 2003
4 Valiant 2004
Telkkä 1 1 Protector 2009 no picture 400t, 49.0x7.5x3.6m, 2d, 6120hp, 20kts, 12p; 2x radars

AIRCRAFT

NAVY

Ship-based

28 Wildcat HMA.2, 10 Lynx HMA.8, 30 Merlin HM.2, 8 Sea King AEW.7

Land-based combat capable

12 Hawk T.1

ARMY

Land-based combat capable

50 AH-64D Apache, 5 AS365N3, 34 Wildcat AH.1, 21 Lynx AH.9A, 34 Gazelle AH.1, 29+ Watchkeeper

AIR FORCE

Land-based combat capable

4 F-35B Lightning II, 138 Typhoon FGR.4/T.3, 65 Tornado GR.4/GR.4A, 5 Sentinel R.1, 6 Shadow R.1, 2 RC-135W Rivet Joint, 6 E-3D Sentry, 28 Hawk T.2, 78 Hawk T.1/1A/1W, 1 AW.139, 4 Griffin HAR.2, 10 MQ-9A Reaper
Tri-service helicopter school 10 Griffin HT.1

MARINES

equipment 99 BvS-10 Mk 2 Viking APC, 18 L118 105mm light guns, 32 L16A1 81mm mortars, FGM-148 Javelin ATGW, Starstreak SAM, 4 MAMBA radars
