World navies yesterday

2017



Spain 01 January 2017

SUBMARINES

SS Galerna 3 S71 Galerna 1983 1490/1750t, 67.9x6.8x5.4m, 2dg,1em, 3600/4600hp, 12/20.5kts, 54p, 300m; 4-533TT; DRUA-33C radar, DUUA-2A/B, DSUV-22, DUUX-2A(71,73), DUUX-5(74), Solarsub sonars, Manta-E, ACRUX ECM
S73 Mistral 1985
S74 Tramontana 1986

PRINCIPAL SURFACE COMBATANTS

FF O. H. Perry 6 F81 Santa María 1986 4017(81-84)-4107(85,86)t, 138.8x14.3x4.5m, 2gt(1), 41000hp, 29kts, 223p; 1x1 Harpoon SSM(8)/Standard SM-1MR SAM(32), 1x1-76/62, 1x12-20/120, 2x3-324TT, 2helicopters (SH-60B); Raytheon 1650/9xR, SPS-64, SPS-49(v)4(81-84), SPS-49(v)5(85,86), SPS-67(81-84), Raycass(85,86), Mk 92 mod.2(81-84), Mk 92 mod.6(85,86), STIR Mk 54 mod.0, RAN-12L/X(81-84), RAN-30L/X(85,86), VPS-2 radars, Enosa(85,86) e/o, DE1160B, SQR-19(v) TASS sonars, Elnath, Rigel(81-83), Nettunel Mk 3000(84-86) ECM, 4x Mk 36 SRBOC dl, SLQ-25 td, NTDS(81-84), SYS-2(85,86) CCS
F82 Victoria 1987
F83 Numancia 1988
F84 Reina Sofía 1990
F85 Navarra 1994
F86 Canarias 1994
Álvaro de Bazán 5 F101 Álvaro de Bazán 2002 6000(101-104)-6050(105)t, 146.7x18.6x4.8m, CODOG: 2gt/2d(2), 47600/12240(101-104)-47600/16320(105)hp, 29kts, 235p; 2x4 Harpoon SSM(8), 1x48 Standard SM-2MR SAM / 4x ESSM SAM(32+64), 1x1-127/54, 2x1-25/75(105), 2x1-20/120(101-104), 4x1-12.7, 4-324TT, 1 helicopter (SH-60B); SPY-1D(101-104), SPY-1D(v)(105), SPS-73(v)12(101-104), SPS-67(v)3(101-104), 2x Aries(105), 2x SPG-62, DORNA radars, Sirius, FLIR(105) e/o, DE1160 sonar, Elnath Mk 9000, Aldebarán SLQ-380, Regulus Mk 9500 ECM, 4x Mk 36 SRBOC dl, SLQ-25 td, DANCS CCS
F102 Almirante Juan de Borbón 2003
F103 Blas de Lezo 2004
F104 Méndez Núñez 2006
F105 Cristóbal Colón 2012

PATROL AND COASTAL COMBATANTS

PSO Alborán 1 P62 Alborán 1997 2000t, 65.9x10.5x4.4m, 1d, 3000hp, 15kts, 32+22p; 2x1-12.7, heldeck; FAR-2825, FR-2130S radars
Meteoro 4 P41 Meteoro 2011 2575t, 93.9x14.2x4.4m, 2dg,2em, 10400hp, 21kts, 35+35p; 1x1-76/62, 2x1-25/75, 2x1-12.7, 1 helicopter (NH90); Aries, Vision Master, RTN-25X radars, DORNA e/o, Rigel ECM, 4x dl, Scomba CCS
P42 Rayo 2011
P43 Relámpago 2012
P44 Tornado 2012
PS Descubierta 4 P76 Infanta Elena 1980 1640t, 88.9x10.4x4.0m, 4d(2), 18000hp, 26kts, 118+30p; 2x2 Harpoon SSM(4), 1x1-76/62, 2x1-20/70; DA-05/2, ZW-06/2, WM22/41(75), WM25(78,79), Furuno, type 1007 radars, Compass, 2x Panda e/o, Deneb Mk Mk 1600, Canopus Mk 1600 ECM, 2x Mk 36 dl, Tritan IV CCS
P77 Infanta Cristina 1980
P78 Cazadora 1981
P79 Vencedora 1982
Serviola 4 P71 Serviola 1991 1150t, 68.7x10.4x3.4m, 2d, 7500hp, 20kts, 42p; 1x1-76/50, 2x1-12.7, heldeck; Decca 2459, Decca 2690 radars, Alcor-C(71,73), MSP4000(72,74) e/o, ULQ-13(71) ECM, Hispani Mini CCS
P72 Centinela 1991
P73 Vigía 1992
P74 Atalaya 1992
Arnomendi 2 P63 Arnomendi 2000 1965t, 66.5x10.5x4.4m, 1d, 3265hp, 16kts, 37p; 2x1-12.7, heldeck; 2x Furuno radars
P64 Tarifa 2004
PC Anaga 3 P22 Tagomago 1981 350t, 44.4x6.6x2.6m, 1d, 4500hp, 20kts, 25p; 1x1-76/50, 1x1-20/70; 2x Decca 1226 radars
P26 Medas 1981
P28 Tabarca 1981
PB Cabo Fradera 1 P201 Cabo Fradera 1963 no picture 28t, 17.8x4.2x0.8m, 2d, 280hp, 10kts, 9p
PVC11 2 P101, 114   1978-1979 no picture 22t, 15.9x4.4x1.3m, 2d, 1024hp, 27kts, 7p; 1x1-12.7; Decca 110 radar
Toralla 2 P81 Toralla 1987 no picture 78t, 28.5x6.5x1.5m, 2d, 2200hp, 20kts, 13p; 1x1-12.7; Decca 1070, Koden radars
P82 Formentor 1989

AMPHIBIOUS

LHA Juan Carlos I 1 L61 Juan Carlos I 2010 27560t, 231.4x32.0x6.8m, CODLAG:1gtg+2dg,2em(2ap); 30500hp, 21kts, 247p; 4x1-20/90, 4x1-12.7, 18 aircraft (presumably 8 AV-8B attackers, 4 NH90, 4 AB-212, 2 CH-47); 4 LCM-1E or 2 LCAC, 46 tanks, 1200troops; Lanza, 3x Aries, Vision Master, Dorna radars, Elnath Mk 9500, Aldebarán, Regulus ECM, 6x Mk 36 SRBOC dl, SLQ-25 td, Scomba CCS
LPD Galicia 2 L51 Galicia 1998 13800t, 163.1x25.0x5.2m, 4d(2), 21800hp, 20kts, 116p; 2x1-20/90, 6 helicopters (6 AB-212 or 4 SH-3); 4 LCM or 2 LCAC, 33 tanks, 543troops; TRS-3D(52), 2x Kelvin Hughes, VPS-2 radars, Aldebaran ECM, 4x Mk 36 SRBOC dl, SLQ-25 td, SICOA(52) CCS
L52 Castilla 2000
LC L601 new 12 L603   2006 111t, 23.3x6.4x2.8m, 2d, 2200hp, 14kts, 3p; 56t cargo
L604   2006
L605   2006
L606   2006
L607   2006
L608   2007
L609   2007
L610   2007
L611   2007
L612   2007
L613   2007
L614   2008

MINE WARFARE

MSO Segura 6 M31 Segura 1999 550t, 54.0x10.7x2.2m, 2d(2vs), 1525hp, 14kts, 41p; 1x1-20/90, 2 Pluto Plus USV(31-34), Pluto Plus USV(35,36), 18x Minesniper Mk 2 USV(35,36); type 1007, Koden(35,36) radars, Alcor-C e/o, SQQ-32(SP) sonar, SMYC/CM CCS
M32 Sella 1999
M33 Tambre 2000
M34 Turia 2000
M35 Duero 2004
M36 Tajo 2005

AUXILIARIES

AK Rivanervion 1 A04 Martín Posadillo 1973 1920t, 75.0x13.0x4.3m, 1d, 2400hp, 10kts, 18p; 2x1-12.7; 850t cargo (25 jeeps), 9passengers; 2x nav. radars
Araguary 1 A05 El Camino Español 1984 5408t, 98.0x18.2x4.6m, 2d, 6480hp, 13kts, 24p; 24tanks, 15 trucks, 102 jeeps, 40passengers, 2x 25t cranes; 2x radars
Bajamar 1 A01 Contramaestre Casado 1953 no picture 4965t, 104.7x14.4x6.1m, 1d, 4500hp, 14kts, 62p; 2x1-20/70; 2x 5t cranes, heldeck, 4186m³ cargo, 140 passengers; Decca 626, Decca 1226 radars

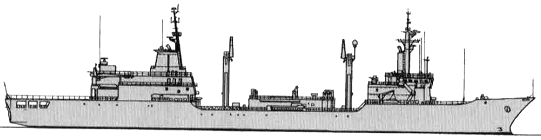

AOR Mar del Sur 1 A14 Patiño 1995 17045t, 165.8x22.0x7.9m, 2d(1), 26330hp, 20kts, 180p; 2x1-20/90, 2x1-12.7, 3 helicopters (3 Bell 212 or 2 SH-3D); 70passengers, 6815t cargo oil fuel, 1800t aviation fuel, 520t dry cargo), 2x2 underway replenishment stations (liquid and dry cargo), 1 crane; 2x Decca 2690 radars, Aldebaran ECM, 4x SRBOC Mk 36 dl, SLQ-25 td

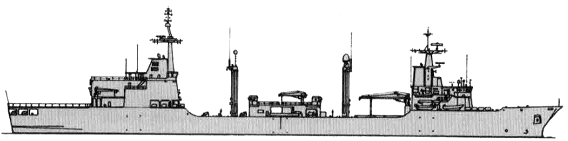

Cantabria 1 A15 Cantabria 2010 19600t, 173.9x23.0x8.0m, 2d(1), 29200hp, 21kts, 122p; 2x1-20/90, 2x1-12.7, 3 helicopters (3 Bell 212 or 2 SH-3D); 48passengers, 8200t cargo oil fuel, 1450t aviation fuel, 140t water, 20 containers), 2x2 underway replenishment stations (liquid and dry cargo), 1 crane; 2x Aries, nav. radars, ECM, 4x SRBOC Mk 36 dl, SLQ-25 td, Scomba CCS
AGI Jasmund 1 A111 Alerta 1985 2292t, 76.5x12.4x4.2m, 1d, 2200hp, 11kts, 60p; 2x1-12.7; Decca radar
AGOR Mar Antartico 1 A33 Hespérides 1991 2750t, 82.5x14.3x4.8m, 4dg,2em(1), 3800hp, 15kts, 39+30p; 2x Decca 2690 radars
Mahón 1 A52 Las Palmas 1981 no picture 1437t, 41.0x11.6x5.5m, 2d, 7744hp, 14kts, 33p; 2x1-12.7; 2x Decca radars
AGS Malaspina 2 A31 Malaspina 1975 no picture 1090t, 57.7x11.7x3.6m, 2d, 2700hp, 15kts, 62p; 2x1-20/90; Raytheon 1620 radar, Egg Mk B, Burnett 538-2 sonars
A32 Tofiño 1975
Castor 1 A23 Antares 1974 no picture 380t, 38.3x7.6x3.1m, 1d, 800hp, 10kts, 38p; HR-3601 radar
ASR Amatista 1 A101 Mar Caribe 1975 no picture 1860t, 58.5x12.0x4.2m, 2d, 4860hp, 13kts, 49p; Visma midget submarine, 7t crane; Koden B711, Pathfinder radars, Klein sonar
ATF Mahón 1 A51 Mahón 1978 no picture 1437t, 41.0x11.6x5.5m, 2d, 7744hp, 14kts, 33p; 2x1-12.7; 2x Decca radars
YTL Punta Amer 1 A53 La Graña 1982 no picture 665t, 31.2x8.4x3.2m, 1d(1vs), 3240hp, 12kts
Y118 2 Y118   1989 no picture 236t, 23.9x7.5x3.8m, 2d(2vs), 1780hp, 14kts, 6p
Y121   1990
Y124 2 Y124   2001 no picture 242t, 23.9x7.5x3.6m, 2d(2vs), 1770hp, 11kts, 6p
Y126   2002
Y122 2 Y122   1999 no picture 423t, 29.5x11.0x2.5m, 2d(2vs), 3520hp, 12kts, 8p; radar
Y123   1999
YO Y251 1 Y251   1981 no picture 830t, 46.7x8.4x3.1m, 1d, 700hp, 11kts; 500t fuel
Y254 1 Y254   1981 no picture 214t, 27.2x5.5x2.2m, 1d, 400hp, 10.7kts; 100t fuel
Y231 2 Y231   1981 no picture 524t, 37.6x7.0x2.9m, 1d, 600hp, 11kts, 13p; 300t fuel
Y255   1981
Y202 4 Y202   1985 no picture 351t
Y211   1985
Y221   1991
Y222   1991
YFO Y421 5 Y421   1990 no picture 250t, 25.4x7.7x1.9m, 1d, 5.5kts; 137t fuel
Y422   1990
Y423   1990
Y424   1990
Y425   1990
Y426 1 Y426   1997 no picture 140t, 20.2x5.3x2.5m
YTF Proserpina 1 Y563 Proserpina 1981 no picture 103t, 21.5x5.9x1.9m, 1d, 200hp, 10kts, 6p

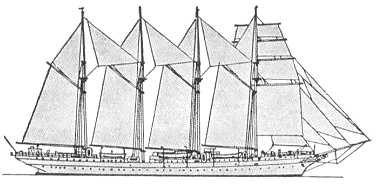

AXS Juan Sebastián de Elcano 1 A71 Juan Sebastián de Elcano 1928 3750t, 94.1x13.6x7.0m, 1d/sails, 1600hp/3151m², 11kts, 181+60p; 2x1-37/40; 2x Decca 626 radars

GUARDIA CIVIL

PSO Río Segura 1 1 Río Segura 2011 no picture 2100t, 73.0x12.0x4.5m, 2d, 3040hp, 20kts, 27+12p; 3x1-12.7, heldeck; 2x Furuno radars
PS Amazonas Reefer I 1 1 Río Miño 1984 no picture 605t, 51.8x8.6x3.3m, 1d, 1000hp, 12kts, 30p; heldeck; 2x nav. radars
Arsterturm 90 1 1 Río Tajo 1973 no picture 52.9x11.3x3.4m, 2d, 1900hp, 12kts; 2x nav. radars
PB M01 4 M07, 08, 12, 14   1993-1996 no picture 18t, 16.5x3.8x0.7m, 2d((2wj), 1360hp, 40kts, 4p; 1x1-12.7; Ericsson radar
Salema 1 A01 Salema 1999 no picture 52t, 22.2x6.0x1.8m, 2d, 1100hp, 20kts, 8p; 1x1-12.7; radar
Tinecheyde 2 M15 Tinecheyde 1999 no picture 19t, 17.4x3.8x0.8m, 2d(2wj), 200hp, 40kts, 5p; 1x1-12.7; Ericsson radar
M16 Almirante Díz Pimienta 1999
Río Guadiaro 3 A02 Río Guadiaro 2001 no picture 93t, 26.0x6.0x1.5m, 2d(2wj), 2800hp, 26.5kts, 9p; 1x1-40/17gl, 2x nav. radars
A03 Río Pisuerga 2001
A04 Río Nalón 2001
Río Palma 14 A06 Río Andarax 2003 no picture 129t, 30.0x6.0x1.8m, 2d(2wj), 3140hp, 32kts, 10p; 1x1-40/17gl, 2x nav. radars
A07 Río Guadalope 2003
A08 Río Almanzora 2003
A09 Río Nervión 2004
A10 Río Guadalaviar 2004
A11 Río Gabriel 2004
A12 Río Cervantes 2004
A13 Río Ara 2004
A14 Río Adaja 2005
A15 Río Duero 2005
A16 Río Guadiana 2006
A17 Río Francolí 2006
A18 Río Guadalete 2009
A19 Cabaleiro 2008
Río Arba 16 M17 Río Arba 2003 no picture 20t, 17.0x3.8x0.9m, 2d(2wj), 2600hp, 52kts, 4p; Ericsson radar
M18 Río Caudal 2004
M19 Río Bernesga 2004
M20 Río Martín 2004
M21 Río Guadalobón 2004
M22 Río Sedeña 2004
M23 Río Ladra 2004
M24 Río Cervera 2005
M25 Río Júcar 2005
M26 Río Gallo 2005
M27 Río Jiloca 2005
M28 Río Aragón 2006
M29 Río Santa Eulalia 2005
M30 Río Ulla 2005
M32 Río Mijares 2006
M54 Sa Costera 2014
Corvo Mariño 1 M31 Corvo Mariño 2006 no picture 20t, 18.0x4.9x1.2m, 2d(2wj), 2000hp, 34kts, 5p; Furuno radar
Canal Bocayna 11 M34 Canal Bocayna 2008 no picture 37t, 20.4x4.9x1.0m, 2d(2wj), 2200hp, 30kts, 5p; Furuno radar
M35 Pico del Teide 2008
M36 Río Guadalquivir 2008
M37 Río Tordera 2008
M38 Río Pas 2008
M39 Río Guadalentín 2008
M43 Río Ter 2010
M44 Río Genil 2010
M45 Río Gállego 2010
M46 Río Nacimiento 2010
M47 Río Nansa 2011
Río Aller 4 M40 Río Aller 2008 no picture 15.7x4.5x1.1m, 2d(2wj), 1400hp, 35kts, 4p; Furuno radar
M41 Cabo de Gata 2008
M42 Río Tormes 2008
L16 Río Vero 2016
Río Segre 1 A20 Río Segre 2010 no picture 140t, 30.0x6.7x2.9m, 2d, 4960hp, 27kts, 8+2p; 2x nav. radars
Río Tambre 7 M48 Río Tambre 2011 no picture 21.2x5.5x1.5m, 2d(2wj)
M49 Río Órbigo 2011
M50 Río Jándula 2011
M51 Río Jallas 2014
M52 Río Saja 2014
M53 Río Navia 2014
M57 Río Lea 2016
Río Belelle 2 M55 Río Belelle 2015 no picture 18t, 16.5x3.8x0.7m, 2d(2wj), 1360hp, 40kts, 4p; 1x1-12.7; radar
M56 Río Águeda 2015

CUSTOMS

PS Petrel 1 1 Petrel 1993 no picture 1600t, 72.5x12.0xm, d, 3500hp, 14kts, 19p; heldeck; 2x radars
Fulmar 1 1 Fulmar 2006 no picture 625t, 61.0x9.9x2.7m, 2d, 7400hp, 21.5kts, 30+10p; 2x1-12.7, heldeck; radars
PB Aguilcho 2 1 Gavilán III 1983 no picture 65t, 28.0x5.2x1.3m, 2d, 3920hp, 24kts, 14p; 1x1-12.7; MRD38, BX-3532R radars
2 Gavilán IV 1987
Halcón II 1 1 Halcón III 1983 no picture 70t, 25.2x6.1xm, 2d, 3200hp, 28kts; 1x1-12.7; MRD38, BX-3532R radars
Alcaraván I 5 1 Alcaraván I 1984 no picture 85t, 28.5x6.5x1.8m, 2d, 3750(1)-3920(2-5)hp, 28kts, 14p; 1x1-12.7; MRD38, BX-3532R radars
2 Alcaraván II 1984
3 Alcaraván III 1985
4 Alcaraván IV 1986
5 Alcaraván V 1987
VA II 2 1 VA II 1985 no picture 24t, 15.7x4.1x1.2m, 2d, 1400hp, 23kts; radar
2 VA IV 1985
HJ I 4 1 HJ I 1986 no picture 20t, 14.0x3.8x0.7m, 2d(2wj), 2000hp, 50kts, 5p; MTR-114 radar
2 HK VIII 1987
3 HK IX 1987
4 HK X 1987
Cormorán 1 1 Cormorán 1990 no picture 22t, 17.0x40x1.0m, 2d, 2800hp, 55kts, 5p; radar
HJ A 1 1 HJ A 1994 no picture 15t, 1980hp, 50kts
Alcaudon 2 1 Alcaudon 1998 no picture 19t, 2300hp, 55kts
2 Fenix 1999
Colimbo II 3 1 Colimbo II 1999 no picture 19t, 2300hp, 52kts
2 Colimbo III 2001
3 Colimbo IV 2003
Milano II 1 1 Milano II 1999 no picture 15t, 2300hp, 50kts
Gerifalte 11 1 Gerifalte 2001 no picture 130t, 30.0x6.0x1.8m, 2d, 4730hp, 35kts, 12p; radar
2 Décimo Aniversario 2001
3 Arao 2003
4 Abanto 2005
5 Paiño 2006
6 Albatros 2007
7 Sacre 2007
8 Alcatraz 2008
9 Alca 2009
10 Alcotán 2009
11 Halcón 2009
Águila I 5 1 Águila I 2008 no picture 22t, 2d(wj), 2410hp, 45kts
2 Águila II 2008
3 Águila III 2008
4 Águila IV 2009
5 Águila V 2009

COAST GUARD

ATR UT722L 2 BS-11 Don Inda 2006 80.0x18.0x6.8m, 4d(2), 21760hp, 17.5kts, 24p
BS-32 Clara Campoamor 2007
ATF Punta Mayor 1 BS-31 Punta Mayor 1984 no picture 2300t, 60.0x12.8x4.4m, 2d, 8000hp, 14.4kts
Alonso de Chaves 1 BS-12 Alonso de Chaves 1987 no picture 2700t, 63.5x13.9x5.0m, 2d, 8640hp, 15.5kts
Remolcanosa Cien 1 BS-91 Ria de Vigo 1985 no picture 2100t, 68.0x13.8x3.9m, 2d, 11000hp, 18kts
Remolcanosa Quince 1 BS-42 Punta Salinas 1982 no picture 2700t, 62.8x13.0x5.3m, 2d, 8800hp, 16.2kts
OFF Valencia 2 BS-45 OFF Valencia 1983 no picture 2400hp, 60.1x13.0x5.0m, 2d, 6120hp, 14kts
BS-46 L'Albufera 1984
Galante 2 BS-34 Golfo de Vizcaya 1983 no picture 2100t, 62.5x12.3x4.4m, 2d, 7200hp, 13.7kts
BS-35 Catalunya 1983
ATR Luz de Mar 2 BS-41 Luz de Mar 2005 56.0x15.0xm, 2d, 10450hp, 16kts, 12p
BS-22 Miguel de Cervantes 2005
Maria de Maetzo 4 1 Maria de Maetzo 2010 no picture 39.7x12.5xm, 2d, 5090hp
2 Maria Pita 2010
3 Maria Zambrano 2010
4 Marta Mata 2010
YOS Sebastian de Ocampo 1 1 Sebastian de Ocampo 2005 no picture 773t, 41.0x13.0x5.1m, 15kts, 9+11p
Irmans Garcia de Nodal 1 1 Irmans Garcia de Nodal 2005 no picture 522t, 39.0x9.3x3.3m, 2d, 2520hp, 15kts, 9+10p

DEPARTMENT OF FISHERIES

PB Punta Roncadoira 1 IP601 Punta Roncadoira 2004 no picture 20t, 18.0x4.9x1.2m, 2d(2wj), 2000hp, 34kts, 5p; Furuno radar
Paio Gómez Chariño 1 IP700 Paio Gómez Chariño 2004 no picture 129t, 30.0x6.0x1.8m, 2d(2wj), 3140hp, 32kts, 10p; 2x nav. radars



AIRCRAFT



NAVY

Ship-based

 4 AV-8B Harrier II, 8 AV-8B Harrier II+, 1 TAV-8B Harrier, 7 SH-3D Sea King, 7 HA-18 (AB-212), 9 Hughes 500MD, 12 SH-60B Seahawk

ARMY

Land-based combat capable

6 EC665 Tiger HAP-E, 4 EC665 Tiger HAD-E, 17 Bo-105 HOT, 2 Searcher Mk II-J, 4 Searcher Mk III

AIR FORCE

Combat capable

59 Typhoon, 19 F-5B Freedom Fighter, 20 EF-18A Hornet, 54 EF-18A MLU Hornet, 12 EF-18B MLU Hornet, 2 P-3A Orion, 3 P-3M Orion, 8 CN-235 VIGMA, 2 CN-235 (TR-19A), 1 C-212 EW (TM-12D), 2 Falcon 20D, 2 Falcon 20E, 3 Cessna 550 Citation V

GUARDIA CIVIL

Combat capable

2 AS563N3 Dauphin, 18 Bo-105ATH

MARINES

equipment 16 M-60A3TTS MBT, 32 Piranha IIIC, 1 Piranha IIIC(amb), 1 Piranha IIIC EW APC, 16 AAV-7A1/AAVP-7A1, 2 AAVC-7A1 AAV, 4 Piranha IIIC AEV, 1 AAVR-7A1, 1 Piranha IIIC ARV, 12 M-56 105mm howitzers, 6 M-109A2 155mm SP howitzers, Spike-LR, 24 TOW-2, C-90C 90mm RL, 12 Mistral SAM
