Russia 01 January 2017
SUBMARINES
SSBN | pr. 667BDR | 3 | 972 | K-223 Podolsk | 1979 | 10600/13700t, 157.0x11.9x8.7m, 2nr,2gst, 40000hp, 14/24kts, 130p, 320m; 16 R-29R/RK SLBM(16), 1x1 Strela-2M SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM), 2-400TT; Kaskad radar, Rubikon sonar, Zaliv-P ECM, Korund-1 dl, Almaz-BDR CCS | |
934 | K-433 Sviatoy Georgiy Pobedonosets | 1980 | |||||
939 | K-44 Riazan' | 1982 | |||||
pr. 941UM | 1 | 824 | TK-208 Dmitriy Donskoy | 1981 | 23200/30460t, 170.0x23.3x11.5m, 2nr,2gst, 100000hp, 13/27kts, 163p, 380m; 18x1 R-39 SLBM(18), 2x1 Bulava SLBM(2), 1x1 Igla-1 SAM(48), 6-533TT(inc Vodopad-PL SSM/ASuM, Vyuga ASuM); Radian radar, Skat-2M, Arfa, Vint sonars, MRP-21A ECM, Korund-2 dl, Omnibus-U CCS | ||
pr. 667BDRM | 6 | 818 | K-51 Verkhoturye | 1984 | 11740/18200t, 166.3x11.7x10.5m, 2nr,2gst, 40000hp, 15.3/24kts, 135p, 320m; 16x1 R-29RMU2 SLBM(16), 1x1 Igla SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM); Kaskad radar, Skat-BDRM sonar, MRP-21A ECM, Korund-2 dl, Omnibus-BDRM CCS | ||
829 | K-84 Yekaterinburg | 1985 | |||||
805 | K-114 Tula | 1987 | |||||
820 | K-117 Briansk | 1988 | |||||
804 | K-18 Kareliya | 1989 | |||||
849 | K-407 Novomoskovsk | 1990 | |||||
pr. 955 | 3 | 838 | K-535 Yuriy Dolgorukiy | 2012 | 14950/19700t, 170.0x13.5x9.0m, 1nr,1gst, 49000hp, 15/20kts, 102p, 300m; 16 Bulava SLBM(16), 1x1 Igla SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM); R-43 radar, Irtysh-Amfora-B-055A sonar, ECM, 6x Shlagbaum dl, Omnibus-BDRM CCS | ||
819 | K-550 Aleksandr Nevskiy | 2013 | |||||
817 | K-551 Vladimir Monomakh | 2014 | |||||
SSGN | pr. 949A | 8 | 929 | K-132 Irkutsk | 1988 | 14820/19254t, 154.8x18.2x9.3m, 2nr,2gst, 100000hp, 14.6/33.4kts, 109p, 420m; 24x1 Granit SSM(24), 1x1 Igla SAM(16), 2-650TT(inc Veter SSM/ASuM), 4-533TT(inc Vodopad-PL SSM/ASuM); Radian-U radars, Skat-3, Arfa-M, Vint-M sonars, MRP-21A ECM, Omnibus-949 CCS | |
812 | K-119 Voronezh | 1989 | |||||
816 | K-410 Smolensk | 1990 | |||||
904 | K-442 Cheliabinsk | 1990 | |||||
920 | K-456 Tver' | 1992 | |||||
847 | K-266 Oriol | 1992 | |||||
947 | K-186 Omsk | 1993 | |||||
932 | K-150 Tomsk | 1996 | |||||
pr. 08850 | 1 | 840 | K-560 Severodvinsk | 2013 | 9500/11800t, 133.0x11.5x10.0m, 1nr,1gst, 43000hp, 16/28kts, 85p, 520m; 8x4 Oniks SSM/Kalibr CruM/SSM(VLS,32), 10-533TT(inc Granat CruM, Kalibr-PL CruM/SSM); Radian radar, Irtysh-Amfora-Yasen', Ayaks sonars, ECM, dl, CCS | ||
SSN | pr. 671RTMK | 4 | 671 | B-388 Petrozavodsk | 1988 | 4600/5890t, 107.1x10.8x7.8m, 1nr,1gst, 31000hp, 11.6/31kts, 92p, 320m; 1x1 Strela-3M SAM(6), 2-650TT, 4-533TT(inc Granat CruM, Vodopad-PL ASuM, Vyuga ASuM, mines)(exc618), 4-533TT(inc Kalibr-PL CruM/SSM, Granat CruM, Vodopad-PL ASuM, Vyuga ASuM, mines)(618); Kaskad radar, Skat-2M sonar suite, Arfa-M, Vint-M sonar, Zaliv-P ECM, Korund-2 dl, Omnibus-RTM CCS | |
618 | B-138 Obninsk | 1990 | |||||
684 | B-414 Daniil Moskovskiy | 1990 | |||||
648 | B-448 Tambov | 1992 | |||||
pr. 945 | 2 | 622 | B-239 Karp | 1984 | 6170/8200t, 107.2x12.3x9.6m, 1nr,1gst, 50000hp, 12.2/35kts, 61p, 480m; 11 Strela-3 SAM(12), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Vodopad-PL SSM/ASuM); Radian radar, Skat-KS, Arfa-M, Vint-M sonars, MRP-21 ECM, Korund-2 dl, Omnibus-5 CCS | ||
648 | B-276 Kostroma | 1987 | |||||
pr. 971 | 9 | 878 | K-317 Pantera | 1990 | 8167/10500t, 110.3x13.8x9.9m, 1nr,1gst, 50000hp, 11.2/33.3kts, 73p, 480m; 1x1 Strela-3 SAM(16), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM)(exc872,951), 4-533TT(inc Kalibr-PL CruM/SSM, Granat CruM, Vodopad-PL SSM/ASuM)(872,951); Radian(exc872,951), R-43-0971(872,951) radar, Skat-3(exc872,951), Kizhuch-971M(872,951), Arfa, Vint-M sonars, MRP-21A ECM, Korund-2(first 5), 6x Shlagbaum(last 4) dl, Omnibus CCS | ||
867 | K-461 Volk | 1991 | |||||
872 | K-328 Leopard | 1992 | |||||
853 | K-154 Tigr | 1993 | |||||
985 | K-322 Kashalot | 1988 | |||||
990 | K-391 Bratsk | 1989 | |||||
997 | K-331 Magadan | 1990 | |||||
951 | K-419 Kuzbass | 1992 | |||||
970 | K-295 Samara | 1995 | |||||
pr. 09711 | 2 | 885 | K-157 Vepr' | 1995 | 8167/10500t, 110.3x13.8x9.9m, 1nr,1gst, 50000hp, 11.2/33.3kts, 73p, 480m; 1x1 Strela-3 SAM(16), 4-650TT(inc Veter SSM/ASuM), 4-533TT(inc Kalibr-PL CruM/SSM, Granat CruM, Vodopad-PL SSM/ASuM); Radian-U radar, Skat-3, Arfa, Vint-M sonars, MRP-21A ECM, 6x Shlagbaum dl, Omnibus CCS | ||
895 | K-335 Gepard | 2001 | |||||
pr. 945A | 2 | 807 | B-534 Nizhniy Novgorod | 1990 | 6466/8500t, 110.6x12.3x9.5m, 1nr,1gst, 50000hp, 14/32.8kts, 65p, 480m; 1x1 Igla SAM(12), 6-533TT(inc Granat CruM, Vodopad-PL SSM/ASuM); Radian(3003), Radian-U(3004) radar, Skat-3, Arfa, Vint-M sonars, MRP-23 ECM, Korund-2 dl, Omnibus-5 CCS | ||
663 | B-336 Pskov | 1993 | |||||
SS | pr. 877 | 18 | 504 | B-260 Chita | 1981 | 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1), 2720/5500(B-260)-4080/5500(others), 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon-V1(B-187,800), Rubikon(others), Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel-EM(B-187,800), Uzel(others) CCS | |
469 | B-227 Vyborg | 1983 | |||||
531 | B-445 Sviatyitel' Nikolay Chudotvorets | 1988 | |||||
522 | B-394 Nulat | 1988 | |||||
547 | B-464 Ust'-Kamchatsk | 1990 | |||||
549 | B-494 Ust'-Bolsheretsk | 1990 | |||||
529 | B-187 Komsomolsk-na-Amure | 1991 | |||||
521 | B-190 Krasnokamensk | 1992 | |||||
507 | B-345 Mogocha | 1994 | |||||
440 | B-401 Novosibirsk | 1984 | |||||
405 | B-402 Vologda | 1984 | |||||
443 | B-808 Yaroslavl' | 1988 | |||||
468 | B-800 Kaluga | 1989 | |||||
431 | B-459 Vladikavkaz | 1990 | |||||
409 | B-471 Magnitogorsk | 1990 | |||||
429 | B-177 Lipetsk | 1991 | |||||
pr. 877V | 1 | 554 | B-871 Alrosa | 1990 | 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1wj), 4080/5500, 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel CCS | ||
pr. 877EKM | 1 | 487 | B-806 Dmitrov | 1986 | 2325/3075t, 72.6x9.9x6.6m, 2dg,1em(1), 4080/5500, 10.7/18kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT; Kaskad-E radar, Rubikon-E, Arfa-E, Vint, MG-53, Shkert sonars, MRP-25E ECM, Uzel CCS | ||
pr. 677 | 1 | 477 | B-585 Sankt-Peterburg | 2010 | 1450/2100t, 58.0x7.2x4.8m, 2dg,1em, 2700hp, 11/17kts, 34p, 200m; 6-533TT; Kaskad radar, Lira sonar, ECM, Litiy CCS | ||
pr. 06363 | 6 | 555 | B-261 Novorossiysk | 2014 | 2350/3100t, 73.8x9.9x6.6m, 2dg,1em, 4000/5800hp, 12/19.8kts, 60p, 240m; 1x8 Igla-1 SAM(8), 6-533TT(inc Kalibr-PL CruM/SSM); Kaskad radar, Rubikon, Arfa, Vint, MG-53, Shkert sonars, MRP-25 ECM, Uzel-EM CCS | ||
556 | B-237 Rostov-na-Donu | 2014 | |||||
481 | B-262 Staryy Oskol | 2015 | |||||
482 | Krasnodar | 2015 | |||||
480 | B-268 Velikiy Novgorod | 2016 | |||||
482 | B-271 Kolpino | 2016 | |||||
SSAN | pr. 09786 | 1 | 656 | BS-136 Orenburg | 1981 | 11600/15100t, 173.0x11.9x8.6m, 2nr,2gst, 40000hp, 14/24kts, 130p, 320m; 1x1 Igla SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM), 2-400TT; pr. 10831 or 18551 submarine; Kaskad radar, Gneys-09787 sonar, Zaliv-P ECM, Korund-1 dl, Almaz-BDR CCS | |
pr. 09787 | 1 | 858 | BS-64 Podmoskovye | 1986 | 11600/15100t, 173.0.3x11.7x10.5m, 2nr,2gst, 40000hp, 15.3/24kts, 135p, 320m; 1x1 Igla SAM(8), 4-533TT(inc Vodopad-PL SSM/ASuM); Kaskad radar, Gneys-09787 sonar, MRP-21A ECM, Korund-2 dl, Omnibus-BDRM CCS | ||
pr. 1910 | 3 | 238 | AS-13 | 1986 | 1390/2000t, 69.0x7.0x5.2m, 1nr,1gst, 10000hp, 10/30kts, 11p, 700m; heavy manipulators, USVs; radar, sonar | ||
643 | AS-15 | 1991 | |||||
- | AS-33 | 1994 | |||||
pr. 10831 | 1 | - | AS-31 | 2007 | 1390/2000t, 69.0x7.0x5.2m, 1nr,1gst, 15000hp, 10/30kts, 36p, 2500m; heavy manipulators, USVs; radar, Gneys-SPE sonar | ||
pr. 18511 | 2 | - | AS-21 | 1991 | No picture | 550/730t, 53.0x5.3x4.2m, 1reactor, 1steam turbine, 14/20kts, 6p, 750m; 2 heavy manipulators, recompression chamber; radar, sonar | |
- | AS-35 | 1995 | |||||
SSA | pr. 20120 | 1 | 442 | B-90 Sarov | 2008 | 2300/3950t, 98.5x12.5x7.0m, 1dg/AIP/1em(1), 10/17kts, 52p, 240m; 1 Status-6 USV, 2-533TT; Kaskad radar, sonars, CCS |
AIRCRAFT CARRIERS
CV | pr. 11435 | 1 | 063 | Admiral Flota Sovetskogo Soyuza Kuznetsov | 1990 | 59100t, 306.5x72.0x9.8m, 8b,4gst, 200000hp, 29kts, 2586p; 1x12 Granit SSM(VLS,12), 4x6 Kinzhal SAM(VLS,192), 8x(8 SAM+12-30/54) Kortik CADS(256), 6x6-30/54, 2x10 RBU-12000 ASWRL, 50ac(10 Su-33, 5 MiG-29K, 2 Ka-52K, 5 Ka-27, 2 Ka-29, 1 Ka-31); Mars-Passat, Fregat-MA, 2x Podkat, 2x Vaygach-U, Nayada-M, 4x 3R-95, 3x Vympel-A, Rezistor-K42, 2x Gazon radars, Polinom-T, Zvezda-M1, Amulet-1, Altyn sonars, Sozvezdie-BR, Start-2 ECM, 8x PK-2M, 4x PK-10 dl, Lesorub-4342 CCS |
PRINCIPAL SURFACE COMBATANTS
BBGN | pr. 11442 | 2 | 080 | Admiral Nakhimov | 1988 | 26396t, 250.1x28.5x7.8m, CONAS: 2nr,2b,2gst, 140000hp, 31kts, 760p; 100sides, 70deck; 1x20 Granit SSM(VLS, 20), 1x12 Fort SAM(VLS,96)(080), 1x6 Fort SAM(VLS,48)(099), 1x6 Fort-M SAM(VLS,48)(099), 2x8 Kinzhal SAM(VLS,128), 2x2 Osa-MA SAM(40), 6x(8 SAM+12-30/54) Kortik CADS(192), 10x1 Vodopad-NK ASuM(30), 1x2-130/70, 1x10 RBU-12000 ASWRL, 2x6 RBU-1000 ASWRL, 2x7-55gl, 2-3hel(2 Ka-27 or 3 Ka-25); Flag(Voskhod+Fregat-MA), 2x Podkat(099), 2x Volna, 2x 3R-95, 2x 4R-33A, Lev-218, 2x Vaygach-U, MR-231-3(099) radars, Polinom, 2x Braslet(080), Anapa(099) sonars, Kantata-M, Start-2 ECM, 2x PK-2M(080), 10x PK-10(080), 12x PK-10(099) dl, Lesorub-44 CCS | |
099 | Piotr Velikiy | 1998 | |||||
CG | pr. 1164 | 3 | 121 | Moskva | 1982 | 11280t, 186.0x20.8x6.3m, COGAG:2gt+2gt(2), 142000hp, 32.5kts, 485p; 8x2 Vulkan SSM(16), 1x8 Fort SAM(VLS,64), 2x2 Osa-M SAM(40), 1x2-130/70, 6x6-30/54, 2x5-533TT, 2x12 RBU-6000 ASWRL, 1hel(Ka-25Ts); Flag(Voskhod+Fregat-M)(121), Flag(Podberiozovik-ET2+Fregat-M2)(055), Flag(Voskhod+Fregat-MA)(011), Argon-1164, Volna, 2x 4R-33, Lev-218, 2x Vympel-A(055), Vympel-A(121), Bagira(121), 2x Bagira(011), 2x Vaygach, MR-231-3(121) radars, Platina(121,011), Zaria-SK(055) sonar, 2x Gurzuf-A, 2x Gurzuf-B, Ograda, Start, Start-2, Koltso ECM; 12x PK-10, 2x PK-2M dl, Lesorub-1164 CCS | |
055 | Marshal Ustinov | 1986 | |||||
011 | Variag | 1989 | |||||
DD | pr. 01090 | 1 | 870 | Smetlivyy | 1969 | 4510t, 144.0x15.8x4.5m, 4gt(2), 72000hp, 35.5kts, 266p; 2x4 Uran SSM(8), 2x2 Volna-M SAM(32), 1x2-76/59, 1x5-533TT, 2x12 RBU-6000 ASWRL, 22mines, helodeck; Kliver, Angara, 2x Don, 2x Yatagan II, 2x Turel', Vaygach radars, Titan, Vychegda, Braslet sonar, Kayra non-acoustic submarine detector, MI-110KM wake detector, Krab-11, Krab-12, Bizan'-4B, MRP-13-14 ECM, 4x PK-16, 4x PK-10 dl dl, Planshet-61 CCS | |
pr. 956 | 5 | 778 | Burnyy | 1988 | 7940t, 156.5x17.2x6.0m, 4b,2gst, 100000hp, 32.7kts, 296p; 2x4 Moskit SSM(8)(778,715,754), 2x4 Moskit-M SSM(8)(610,474), 2x1 Uragan SAM(48), 2x2-130/70, 4x6-30/54, 2x2-533TT, 2x6 RBU-1000 ASWRL, 2x7-55gl, 22mines, 1hel(Ka-27); Fregat-M2, Mineral, 2x 3R91, Lev-218, 2x Vympel-A, Vaygach-U, Volga radars, Platina-S, 2x Braslet sonars, Start, Start-2 ECM, 4x PK-10, 2x PK-2M dl, Sapfir-U CCS | ||
715 | Bystryy | 1989 | |||||
754 | Bezboyaznennyy | 1990 | |||||
610 | Nastoychivyy | 1992 | |||||
474 | Admiral Ushakov | 1993 | |||||
pr. 1155 | 7 | 543 | Marshal Shaposhnikov | 1985 | 7570t, 163.0x19.0x5.2m, COGAG:2gt+2gt(2), 62000hp, 29.5kts, 293p; 2x4 Rastrub-B SSM/ASuM(8)(619,572,548,605), 1x8 Kinzhal SAM(VLS,64)(619,572,548,564,605), 1x4 Kinzhal SAM(VLS,32)(543,626), 1x6 Igla SAM(24)(626), 2x4 Metel' ASuM(8)(543,626,564), 2x1-100/59, 4x6-30/54, 2x4-533TT, 2x12 RBU-6000 ASWRL, 26mines, 2hel(Ka-27); Fregat-MA(543,619,572,548,564,605), Fregat-N(626), Fregat-N2(626), 2x 3R-95(619,572,548,564,605), 3R-95(543,731), Podkat(619,572,548,564,605), Musson-U-1155(619,572,548,734), Lev-218-100(543,619,572,548,626,605), 2x Vympel-A(543,548,626,605), Vympel-A(619,572), Bagira(619,572), 2x Bagira(564), 2x Vaygach-U(543,619,572,548,605), Pal-N(626), MR-231-3(543,619,572,605), Bagira-M(564), 2x MR-231(564) radars, Spektr-F E/O detector(626), Polinom, 2x Braslet sonars, 2x Start, 2x Start-2 ECM, 2x PK-2M, 8x PK-10(619,572,605) dl, Lesorub-1155(543,619,572,548,626,605), Sigma(564) CCS | ||
619 | Severomorsk | 1987 | |||||
572 | Admiral Vinogradov | 1988 | |||||
548 | Admiral Panteleev | 1991 | |||||
626 | Vitse-admiral Kulakov | 1981 | |||||
564 | Admiral Tributs | 1985 | |||||
605 | Admiral Levchenko | 1988 | |||||
pr. 11551 | 1 | 650 | Admiral Chabanenko | 1999 | 8320t, 162.9x19.0x5.1m, COGAG:2gt+2gt(4), 72000hp, 30.1kts, 405p; 2x4 Moskit-M SSM(8), 1x8 Kinzhal SAM(VLS,64), 2x(8 SAM+12-30/54) Kortik CADS(64), 2x4 Vodopad-NK ASuM(18), 1x2-130/70, 2x10 RBU-12000 ASWRL, 26mines, 2hel(Ka-27); Fregat-MA, Fregat-N, Podkat, 2x 3R-95, Lev-218, 2x Vyagach-U radars, Zvezda-M2 sonar, 2x Start, 2x Start-2 ECM, 2x PK-2M, 10x PK-10 dl, Lesorub-11551 CCS | ||
FF | pr. 1135 | 1 | 861 | Ladnyy | 1980 | 3190t, 123.0x14.2x4.5m, COGAG:2gt+2gt(2), 46000hp, 32kts, 192p; 1x4 Rastrub-B SSM/ASuM(4), 2x2 Osa-MA SAM(40), 2x2-76/59, 2x4-533TT, 2x12 RBU-6000 ASWRL, 2x7-55gl, 18mines; Angara-A, Don, Musson-U, Turel', Lev-214, 4R-33A radars, Titan-2T, Vega, Sheksna, Braslet, MGS-400K sonars, MI-110R, MI-110K wake detector, Start-S ECM, 4x PK-16 dl | |
pr. 1135M | 1 | 868 | Pytlivyy | 1981 | 3305t, 123.0x14.2x4.5m, COGAG:2gt+2gt(2), 46000hp, 32kts, 196p; 1x4 Rastrub-B SSM(4), 2x2 Osa-MA SAM(40), 2x1-100/59, 2x4-533TT, 2x12 RBU-6000 ASWRL, 2x7-55gl, 18mines; Angara-A, Don, Musson-U, Lev-214, 4R-33A radars, Titan-2T, Vega, Sheksna, Braslet, MGS-400K sonars, MI-110T, MI-110K wake detectors, Start-S ECM, 4x PK-16 dl | ||
pr. 11540 | 2 | 712 | Neustrashimyy | 1990 | 4350t, 129.8x15.6x4.8m, COGAG:2gt+2gt(2), 57000hp, 29kts, 210p; 4x4 Uran SSM(16)(402), 1x4 Kinzhal SAM(VLS,32), 2x(8 SAM+12-30/54) Kortik CADS(64), 6x1 Vodopad-NK SSM/ASuM(6), 1x1-100/59, 2x1-12.7(402), 1x12 RBU-6000 ASWRL, 2x10-55gl, 20mines, 1hel(Ka-27); Fregat-M2, K-12-1, Lev-218-100, Vaygach radars, Zvezda-M1(777), Zaria-SK(712) sonar, MP-405-1(401), TK-25(402) ECM, 2x PK-16, 8x PK-10 dl, Tron-11540 CCS | ||
777 | Yaroslav Mudryy | 2009 | |||||
pr. 1161K | 2 | 691 | Tatarstan | 2003 | 1930(691)-1805(693)t, 102.2x13.8(691) -13.2(693)x3.7(691)-3.5(693)m, CODAG:1d+2gt(2), 38000hp, 28kts, 121p; 2x4 Uran SSM(8)(691), 1x8 Kalibr-NK CruM/SSM(693), 1x2 Osa-MA2 SAM(20)(691), 1x1-76/59, 2x6-30/54(691), 1x12-30/80(693), 20mines; Monolit(691), Mineral-M(693), Pozitiv(691), Pozitiv-M1(693), Vaygach, Baza(691), Vympel, Gals(691) radars, Shar e/o director(693), Zarnitsa, Anapa(691) sonars, TK-25 ECM, 4x PK-10 dl, Sigma CCS | ||
693 | Dagestan | 2012 | |||||
pr. 20380 | 5 | 550 | Steregushchiy | 2007 | 2100t, 111.6x14.0x3.7m, 4d(2), 23320hp, 27kts, 99p; 2x4 Uran SSM(8), 3x4 Redut SAM(VLS,12)(exc550), 1x(8 SAM+12-30/54) Kortik-M CADS(64)(550), 1x8 Igla SAM(32), 1x1-100/59, 2x6-30/54, 2x1-14.5, 2x4-330TT, 2x2-45gl, 1hel(Ka-27); Monument-A, Furke-2, 2x Sandal-V, MR-231, MR-231-3, Pal-N, Puma-02, MR-123-02 radars, Sfera-02, 2x MTK-201M e/o directors, Zaria-2, Minotavr-ISPN-M, Anapa-M sonars, TK-25-2 ECM, 4x PK-10 dl, Sigma-20380 CCS | ||
531 | Soobrazitelnyy | 2011 | |||||
532 | Boykiy | 2013 | |||||
545 | Stoykiy | 2014 | |||||
333 | Sovershennyy | 2016 | |||||
pr. 11356 | 3 | 494 | Admiral Grigorovich | 2016 | 4035t, 124.8x15.2x4.7m, COGAG:2gt+2gt(2), 46000hp, 32kts, 220p; 1x8 Kalibr-NK CruM/SSM/ASuM(VLS,8), 2x12 Shtil-1 SAM(VLS,24), 1x1-100/59, 2x6-30/54, 2x1-12.7, 2x2-533TT, 1x12 RBU-6000 ASWRL, 2x10-55gl, 1hel(Ka-31); Fregat-M, 3Ts-25EK, Vaygach-U, Nucleus-2-6000A, 4x Orekh, Puma radars, Platina-EM-03 sonar, TK-25 ECM, 4x PK-10 dl, Trebovaniye-M CCS | ||
751 | Admiral Essen | 2016 | |||||
799 | Admiral Makarov | 2016 | |||||
pr. 22350 | 1 | 417 | Admiral Flota Sovetskogo Soyuza Gorshkov | 2016 | 4550t, 135.0x16.4x4.5m, CODAG:2d+2gt(2), 65400hp, 29kts, 210p; 2x8 Kalibr-NK CruM/SSM/ASuM/Oniks SSM(VLS,16), 4x8 Redut SAM(VLS,32), 1x1-130/70, 2x12-30/80, 2x1-14.5, 2x4-330TT, 1hel(Ka-27); Monument/Poliment, Monolit, Furke-4, MR-231-2, Puma radars, MTK-201M e/o detector, Zaria-3.3, Minotavr-ISPN sonars, TK-28 ECM, Grach e/oCM, 10x Prosvet-M dl, Sigma-22350 CCS | ||
FSAC | pr. 1239 | 2 | 615 | Bora | 1989 | 1083t, 65.6x17.2x3.6m, 2gt+2d(4)=2d, 60000+9500hp, 52.7kts, 68p; 2x4 Moskit SSM(8), 1x2 Osa-MA2 SAM(20), 2x1 Strela-3 SAM(8), 1x1-76/59, 2x6-30/54; Monolit, Pozitiv, 4R-33AM, Vympel-A, MR-231-1 radars, Vympel-R2, MP-405-1 ECM, 2x PK-16, 4x PK-10 dl | |
616 | Samum | 1992 | |||||
FS | pr. 1124 | 2 | 059 | Aleksandrovets | 1982 | 990t, 71.1x10.2x3.5m, 1gt+2d(3), 38000hp, 32kts, 83p; 1x2 Osa-M SAM(20), 1x4 Igla-1 SAM(8), 1x2-57/50, 1x6-30/54, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr, 18mines; Rubka, 4R-33, Bars, Vympel-A, Don radars, Amgun'-T, Shelon'-T, MGS-407K sonars, MI-110K, MI-110R wake detectors, Bizan'-4B ECM | |
369 | Kholmsk | 1985 | |||||
pr. 1124M | 18 | 064 | Muromets | 1982 | 1055t, 71.1x10.2x3.7m, 1gt+2d(3), 38000hp, 31.6kts, 90p; 1x2 Osa-MA2 SAM(20), 1x4 Strela-3 SAM(8), 1x1-76/59, 1x6-30/54, 2x2-533TT, 1x12 RBU-6000 ASWRL, 2dcr, 18mines; Topaz-2V(064,071,055), Fregat-MA1(exc064,071,055), 4R-33A, Vympel-A, Vaygach radars, Platina(064,071,055), Platina-MS(exc064,071,055), Shelon'-T, MGS-407K sonars, MI-110KM, MI-110R wake detectors, Vympel-R2 ECM, 2x PK-16, 4x PK-10 dl | ||
071 | Suzdalets | 1983 | |||||
055 | Kasimov | 1986 | |||||
053 | Povorino | 1989 | |||||
054 | Eysk | 1989 | |||||
350 | Sovetskaya Gavan' | 1990 | |||||
375 | MPK-82 | 1991 | |||||
199 | Brest | 1988 | |||||
113 | Yunga | 1989 | |||||
138 | Naryan-Mar | 1990 | |||||
164 | Onega | 1990 | |||||
190 | Monchegorsk | 1993 | |||||
196 | Snezhnogorsk | 1994 | |||||
354 | MPK-221 | 1987 | |||||
390 | Koreets | 1989 | |||||
332 | MPK-107 | 1990 | |||||
323 | Metel' | 1990 | |||||
362 | Ust'-Ilimsk | 1991 | |||||
pr. 12341 | 12 | 620 | Shtil' | 1978 | 730t, 59.3x11.8x3.1m, 3d, 30000hp, 34kts, 64p; 2x3 Malakhit SSM(6), 1x2 Osa-MA SAM(20), 1x1-76/59, 1x6-30/54; Titanit, 2x Pechora, 4R-33A, Bagira(450), Vympel-A(exc450) radars, Zaliv ECM, 6x PK-10 dl | ||
535 | Aysberg | 1979 | |||||
617 | Mirazh | 1986 | |||||
520 | Rassvet | 1988 | |||||
560 | Zyb' | 1989 | |||||
555 | Geyzer | 1989 | |||||
570 | Passat | 1990 | |||||
551 | Liven' | 1991 | |||||
423 | Smerch | 1984 | |||||
418 | Iney | 1987 | |||||
409 | Moroz | 1989 | |||||
450 | Razliv | 1991 | |||||
pr. 1331M | 6 | 304 | Urengoy | 1986 | 935t, 75.2x9.8x2.7m, 3d, 14250hp, 24.5kts, 80p; 2x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 2x2-533TT, 2x12 RBU-6000 ASWRL, 2dcr; Pozitiv, Vympel radars, Platina-MS, Uzh sonars | ||
311 | Kazanets | 1986 | |||||
308 | Zelenodolsk | 1987 | |||||
318 | Aleksin | 1989 | |||||
322 | Kabardino-Balkariya | 1989 | |||||
232 | Kalmykiya | 1990 | |||||
pr. 21630 | 3 | 017 | Astrakhan' | 2006 | 520t, 61.8x10.3x3.0m, 2d(2wj), 16000hp, 26kts, 48p; 1x6 Igla-1M SAM(12), 1x1-100/59, 2x6-30/54, 2x1-14.5, 1x40-122 Frad-M rl; Pozitiv-M, MR-231, Laska radars, 2x PK-10 dl | ||
161 | Volgodonsk | 2011 | |||||
020 | Makhachkala | 2012 | |||||
pr. 21631 | 5 | 652 | Grad Sviyazhsk | 2013 | 949t, 74.1x11.0x2.6m, 2d(2wj), 14800hp, 25kts, 52p; 1x8 Kalibr-NK CruM/SSM(VLS,8), 2x6 Igla-1M SAM(24), 1x1-100/59, 1x12-30/54, 2x1-14.5; Pozitiv, MR-231, Laska radars, 2x PK-10 dl | ||
653 | Uglich | 2013 | |||||
651 | Velikiy Ustyug | 2014 | |||||
602 | Zelionyy Dol | 2015 | |||||
603 | Serpukhov | 2015 |
PATROL AND COASTAL COMBATANTS
PHM | pr. 206MR | 3 | 701 | Karachaevo-Cherkesiya | 1978 | 257t, 39.5x7.6x2.0m, 3d, 15000hp, 43kts, 29p; 2x1 Termit SSM(2), 1x4 Strela-3M SAM(16), 1x1-76/59, 1x6-30/54; Rangout, Vympel-A, Omega radars, 2x PK-16 dl | |
706 | Borovsk | 1983 | |||||
702 | Budyonovsk | 1983 | |||||
PM | pr. 12411T | 4 | 700 | Stupinets | 1985 | 469t, 56.1x10.2x2.3m, COGAG:2gt+2gt(2), 34000hp, 42kts, 41p; 2x2 Termit SSM(4), 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54; Garpun, Rangout, Vympel-A, MR-405, Don radars, Vympel-R2 ECM, 2x PK-16 dl | |
852 | Kuznetsk | 1985 | |||||
833 | R-257 | 1986 | |||||
996 | R-79 | 1984 | |||||
pr. 12417 | 1 | 962 | Shuya | 1985 | 495t, 56.1x10.2x2.3m, COGAG:2gt+2gt(2), 34000hp, 42kts, 41p; 2x2 Termit SSM(4), 1x1-76/59, 2x6-30/54; Monolit, Pozitiv, Don radars, 2x PK-16 dl | ||
pr. 12411 | 19 | 909 | R-47 | 1987 | 493t, 56.1x10.2x2.5m, CODAG:2d+2gt(2), 32000hp, 41kts, 40p; 2x2 Moskit-M SSM(4), 1x4 Strela-3M SAM(16), 1x1-76/59, 1x12-30/80(955), 2x6-30/54(exc955); Monolit, Vympel-A(exc946), Bagira(946), Don radars, Vympel-R2 ECM, 2x PK-16 dl | ||
955 | Buria | 1987 | |||||
855 | Zarechnyy | 1989 | |||||
953 | Groza | 1989 | |||||
954 | Ivanovets | 1989 | |||||
952 | R-109 | 1990 | |||||
825 | Dimitrovgrad | 1991 | |||||
824 | Morshansk | 1992 | |||||
820 | Chuvashiya | 2000 | |||||
991 | R-261 | 1988 | |||||
951 | R-297 | 1990 | |||||
971 | R-298 | 1990 | |||||
940 | R-11 | 1991 | |||||
924 | R-14 | 1991 | |||||
937 | R-18 | 1992 | |||||
978 | R-19 | 1992 | |||||
921 | R-20 | 1993 | |||||
946 | R-24 | 1994 | |||||
916 | R-29 | 2003 | |||||
PG | pr. 12411 | 1 | 054 | Gomel' | 1988 | 493t, 56.1x10.2x2.5m, CODAG:2d+2gt(2), 32000hp, 41kts, 40p; 1x4 Strela-3M SAM(16), 1x1-76/59, 2x6-30/54, 4x17-140 BM-14-17 rl; Vympel-A, Don radars, Vympel-R2 ECM, 2x PK-16, 4x PK-10 dl | |
PHC | pr. 11451 | 1 | 060 | Vladimirets | 1990 | 470t, 50.0x9.9(21.1)x2.2(7.3)m, 3gt(3)/2d(2ap), 48500/2200hp, 60.5kts, 39p; 1x8 Strela-3 SAM, 1x1-76/59, 1x6-30/54, 2x4-400TT; Vympel-A, Reyd, Zvezda-M1-01, MGS-407K sonars, 2x PK-16 dl | |
PB | pr. 21980 | 12 | 689 | Nakhimovets | 2009 | 140t, 31.0x7.4x1.9m, 2d, 4800hp, 23kts, 8p; 1x4 Igla SAM(12), 1x1-14.5, 1x10-55gl, 1x1-45gl, 1 UAV(Falkon); MR-231 radar, MTK-201M3 e/o detector, Kalmar, Anapa-M sonars, Filin E/OCM | |
840 | Kadet | 2011 | |||||
841 | Suvorovets | 2012 | |||||
850 | Kursant-Kirovets | 2013 | |||||
600 | Yunarmeets Kaspiya | 2013 | |||||
836 | Yunarmeets Kryma | 2014 | |||||
837 | P-424 | 2014 | |||||
996 | P-377 | 2013 | |||||
997 | Yunarmeets Primorya | 2014 | |||||
994 | Yunarmeets Kamchatki | 2014 | |||||
669 | P-340 | 2016 | |||||
699 | P-421 | 2016 | |||||
pr. IC16MII | 2 | 1, 2 | P-834, 835 | 2011 | 20t, 15.9x3.8x0.9m, 2d(2wj), 2200hp, 50kts, 4+8p; Furuno radar | ||
pr. 12150A | 2 | 931 | P-931 | 2013 | 27t, 21.5x4.4x1.2m, 2d(2wj), 3046hp, 52kts, 6p; 1x1-12.7; Furuno radar | ||
936 | P-936 | 2013 | |||||
pr. 03160 | 8 | 1 | P-274 | 2015 | 23t, 16.7x4.0x0.9m, 2d(2wj), 2300hp, 48kts, 3p; 1x1-14.5; 20troops; Nautilus radar | ||
2 | P-275 | 2015 | |||||
3 | P-276 | 2015 | |||||
4 | Yunarmeets Baltiki | 2015 | |||||
5 | P-281 | 2015 | |||||
6 | P-344 | 2015 | |||||
7 | P-838 | 2015 | |||||
8 | P-845 | 2015 | |||||
PBR | pr. 1204 | 6 | 1-6 | AK-209, 223, 224, 248, 582, 599 | 1971-1972 | 77t, 27.4x4.3x1.0m, 2d, 2400hp, 24kts, 14p; 8belt, 4deck, 15turret, 10CT; 1x1-76/48, 1x2-25/82, 1x17-140 BM-14-17 rl, 4x1-30gl, 10mines; Donets-2 radar |
AMPHIBIOUS
LST | pr. 1171 group 1 | 1 | 150 | Saratov | 1966 | 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75; 20tanks, 313troops; 2x Don, Pal radars | |
pr. 1171 group 2 | 1 | 142 | Orsk | 1968 | 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75; 20tanks, 313troops; 2x Don radars | ||
pr. 1171 group 4 | 2 | 081 | Nikolay Vilkov | 1974 | 4650t, 113.1x15.6x4.5m, 2d, 9000hp, 16.5kts, 69p; 3x2 Strela-3 SAM(24), 1x2-57/75, 2x2-25/82, 2x40-122 MS-73 Grad rl, 2x7-55gl(303); 20tanks, 440troops; 2x Don radars | ||
152 | Nikolay Filchenkov | 1975 | |||||
pr. 775 | 3 | 012 | Olenegorskiy Gornyak | 1976 | 4012t, 112.5x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 2x2-57/50; 10tanks, 340troops; Rubka, Don, Bars radars | ||
027 | Kondopoga | 1976 | |||||
031 | Aleksandr Otrakovskiy | 1978 | |||||
pr. 775/II | 9 | 066 | Osliabia | 1981 | 4012t, 112.5x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 2x4 Igla SAM(16), 2x2-57/50, 2x40-122 Grad-M rl, mine clearance line charges(775/14,775/23); 10tanks, 340troops; Rubka, Reyd, Bars(exc775/19), Bagira(775/19) radars | ||
055 | Admiral Nevelskoy | 1982 | |||||
127 | Minsk | 1983 | |||||
102 | Kaliningrad | 1984 | |||||
016 | Georgiy Pobedonosets | 1985 | |||||
110 | Aleksandr Shabalin | 1985 | |||||
158 | Tsezar' Kunikov | 1986 | |||||
142 | Novocherkassk | 1987 | |||||
156 | Yamal | 1988 | |||||
pr. 775/III | 3 | 151 | Azov | 1990 | 4012t, 112.6x15.0x4.3m, 2d, 19200hp, 17.6kts, 98p; 4x4 Igla SAM(16), 1x1-76/59, 2x6-30/54, 2x40-122 Grad-M rl; 10tanks, 340troops; Pozitiv-E, Don(26,27), Vaygach(28), Vympel-A radars, 2x PK-16 dl | ||
077 | Peresvet | 1991 | |||||
130 | Koroliov | 1991 | |||||
LSAC | pr. 12321 | 2 | 609 | MDK-88 | 1981 | 360t, 45.5x17.4x0m, 2gt(4ap), 32000hp, 49kts, 21p; 2x2-30/71; 2tanks or 80troops; Mius, Rys' radars | |
608 | MDK-18 | 1984 | |||||
pr. 12322 | 2 | 770 | Evgeniy Kocheshkov | 1990 | 550t, 57.3x25.6x1.6/0m, 3gt+2gt(3ap), 30000+20000hp, 63kts, 27p; 1x2 Igla-1M SAM(32), 2x6-30/54, 2x22-140 MS-227 Ogon' rl; 3tanks or 360troops or 78mines; Lazur', Vympel, Ekran-1 radars, MP-411 ECM | ||
782 | Mordoviya | 1991 | |||||
LC | pr. 1176 | 16 | 526 | D-236 | 1974 | 119t, 24.0x5.2x1.6m, 2d, 600hp, 11kts, 4p; 1tank or 20troops; Mius radar | |
527 | -237 | 1974 | |||||
530 | D-293 | 1978 | |||||
537 | D-305 | 1979 | |||||
677 | D-70 | 1981 | |||||
722 | D-288 | 1985 | |||||
590 | D-464 | 1985 | |||||
746 | D-465 | 1986 | |||||
542 | D-295 | 1989 | |||||
765 | D-325 | 1991 | |||||
578 | D-148 | 1993 | |||||
533 | D-182 | 1996 | |||||
642 | D-185 | 2000 | |||||
555 | Nikolay Rubtsov | 2005 | |||||
570 | D-106 | 2009 | |||||
675 | D-57 | 2007 | |||||
pr. 11770 | 11 | 747 | D-67 | 1994 | 100t, 25.7x5.7x1.5m, 2d, 6600(801-806,3001)-4000(807-811)hp, 30kts, 5p; 1tank or 92troops; Pal-N-3 radar | ||
630 | D-156 | 1999 | |||||
631 | D-131 | 2002 | |||||
645 | D-172 | 2005 | |||||
659 | D-144 | 2008 | |||||
634 | D-56 | 2008 | |||||
791 | Kontr-admiral Demidov | 2009 | |||||
792 | Kontr-admiral Olenin | 2009 | |||||
544 | D-199 | 2014 | |||||
650 | D-107 | 2010 | |||||
616 | D-... | 2015 | |||||
pr. 21280 | 5 | - | Ataman Platov | 2010 | 280t, 45.0x8.6x2.2m, 2d, 20000hp, 40kts, 6p; 2x1-14.5; 3tanks or (1tank+90troops); Pal-N-3 radar | ||
- | Ivan Kartsov | 2014 | |||||
758 | Denis Davydov | 2014 | |||||
754 | Leytenant Rimskiy-Korsakov | 2014 | |||||
757 | Michman Lermontov | 2014 |
MINE WARFARE
MSO | pr. 266M | 6 | 911 | Ivan Golubets | 1973 | 800t, 61.0x10.2x3.0m, 2d, 5000hp, 16.5kts, 68p; 2x4 Strela-2 SAM(16), 2x2-30/71, 2x2-25/82, 2x5 RBU-1200 ASWRL, 2dcr, KIU-1 USV, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Rubka, Rys', 2x Don-D radars, Lan', Mezen' sonars | |
808 | Komendor | 1974 | |||||
913 | Kovrovets | 1974 | |||||
912 | Turbinist | 1975 | |||||
855 | Kontr-admiral Vlasov | 1975 | |||||
909 | Vitse-admiral Zhukov | 1978 | |||||
pr. 266ME | 3 | 738 | Zariad | 1989 | 804t, 61.0x10.2x2.3m, 2d, 5000hp, 16kts, 69p; 2x1 Igla-1 SAM(20), 2x6-30/54, 2x2-25/82, 2x5 RBU-1200M ASWRL, 2dcr, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Vaygach radar, Lan', MG-89 sonars | ||
718 | MT-265 | 1989 | |||||
770 | Valentin Pikul' | 2001 | |||||
pr. 02668 | 1 | 908 | Vitse-admiral Zakharyin | 2008 | 852t, 61.0x10.2x3.0m, 2d, 5000hp, 17kts, 60p; 2x4 Strela-2 SAM(16), 1x6-30/54, 2x1-14.5, 2x5 RBU-1200M ASWRL, 2dcr, KIU-1, Livadiya USV, mechanical, magnetic, acoustic minesweeping gear, mine-clearing line charges; Rubka, 2x Don-D radars, Lan', Mezen', Anapa-P sonars | ||
pr. 12660 | 2 | 901 | Zheleznyakov | 1988 | 1150t, 67.8x11.0x3.1m, 2d, 5000hp, 15.7kts, 68p; 2x4 Strela-3 SAM, 1x1-76/59, 1x6-30/54, 16mines, 2x4-400 Giurza mine countermeasures system launchers, Ketmen', Paltus USVs, mechanical, acoustic, magnetic minesweeping gear, mine clearance line charges; Vympel-A, 2x Vaygach-U radars, Kabarga-A3, Braslet(901), Anapa(811) sonars, 2x PK-16 dl | ||
811 | Vladimir Gumanenko | 2000 | |||||
pr. 12700 | 1 | 507 | Aleksandr Obukhov | 2016 | 800t, 51.7x10.2x2.7m, 2d(2azipods), 5000hp, 44p; 2x1 Igla SAM(8), 1x6-30/54, 1x1-14.5, mines, Aleksandrit-IPSUM, Diamand USV, mechanical, magnetic, acoustic minesweeping gear; Pal-N radar, MTK-201M3.1, SP-520M-2 e/o detectors, Anapa sonar | ||
MSC | pr. 1265 | 23 | 443 | BT-22 | 1982 | 460t, 49.0x8.8x2.5m, 2d, 2200(109,901-904)-2000(others)hp, 14kts, 45p; 1x4 Strela-3 SAM(16), 1x2-30/71(443,438,607,603, 610,466,562,565, 586,542,525), 2x6-30/54(exc443,438,607,603, 610,466,562,565, 586,542,525), 1x2-25/82(443,438,607,603, 610,466,562,565, 586,542,525), 6mines, KIU-1 USV(443,438,607, 565,586), KIU-2M USV(exc443,438,607, 565,586), mechanical, acoustic, magnetic minesweeping gear, mine-clearing line charges; Mius, Vaygach-U radars, Lan'(exc577,522,515,561), Mezen'(exc577,522,515,561), MG-89(577,522,515,561), Braslet sonars | |
438 | Leytenant Ilyin | 1982 | |||||
607 | Poliarnyy | 1984 | |||||
603 | Elnya | 1986 | |||||
610 | Kotelnich | 1987 | |||||
466 | Solovetskiy Yunga | 1988 | |||||
562 | German Ugriumov | 1988 | |||||
505 | Aleksey Lebedev | 1989 | |||||
458 | Mineralnye Vody | 1989 | |||||
426 | Kolomna | 1990 | |||||
510 | Leonid Sobolev | 1990 | |||||
621 | Yadrin | 1991 | |||||
577 | BT-212 | 1991 | |||||
522 | Sergey Kolbasyev | 1992 | |||||
515 | BT-115 | 1993 | |||||
561 | Magomed Gadzhiev | 1997 | |||||
565 | BT-100 | 1984 | |||||
586 | BT-325 | 1985 | |||||
542 | BT-114 | 1987 | |||||
525 | BT-232 | 1988 | |||||
553 | BT-245 | 1989 | |||||
560 | BT-256 | 1990 | |||||
593 | BT-215 | 1991 | |||||
MSI | pr. 10750 | 8 | 316 | RT-57 | 1989 | 135t, 31.5x6.5x1.5m, 3d, 900hp, 12kts, 14p; 1x8 Igla-1 SAM(32), 1x6-30/54, 4mines, KIU-2M SUV or mechanical minesweeping gear, acoustic, magnetic minesweeping gear, mine clearance line charges; Pechora-1 radar, Kabarga-A1 sonar | |
348 | RT-248 | 1990 | |||||
340 | RT-249 | 1990 | |||||
339 | RT-252 | 1991 | |||||
310 | RT-273 | 1992 | |||||
319 | RT-231 | 1993 | |||||
219 | RT-233 | 1994 | |||||
363 | RT-234 | 1996 |
LOGISTICS AND SUPPORT
AEM | pr. 1791M | 1 | - | Vetluga | 1976 | 6100t, 109.6x17.7x4.5m, 2diesels, 9000hp, 16kts, 62p; 2x2-25/82; 16 R-29U SLBM (550t cargo), 1x 45t crane, 1x 3t crane; 2x Don radars | |
pr. 1791R | 1 | - | Daugava | 1980 | 6400t, 113.1x17.7x4.5m, 2diesels, 9000hp, 16kts, 62p; 2x2-25/82; 16 R-29U SLBM (520t cargo), 1x 50t crane, 1x 3t crane; 2x Don radars | ||
pr. 1798 | 1 | - | VTR-33 | 1965 | 4500t, 112.8x14.9x4.4m, 2d, 5000hp, 14kts, 154p; 2x2-25/82; torpedoes and others ammunition, 20t cranes; Rubka, Don radars | ||
pr. 323V | 1 | - | General Riabikov | 1978 | 4500t, 112.8x14.9x4.4m, 2d, 5000hp, 14kts, 154p;1x2-57/50; torpedoes, missiles and others ammunition, 20t cranes; Rubka, Bars, Don radars | ||
AR | pr. 2020 | 3 | 903 | PTB-5 | 1984 | 10500t, 137.0x21.0x5.6m, 4dg,1em, 2700hp, 12kts, 260p; 1x 16t crane, 2-7 reactor cores; Vaygach radar | |
886 | PTB-6 | 1985 | |||||
914 | PTB-7 | 1990 | |||||
pr. 304 | 10 | - | PM-138 | 1969 | 5500t, 121.7x17.0x5.2m, 1d, 3000hp, 12kts, 193p; 2x 3t cranes; 2x Don radars | ||
- | PM-140 | 1970 | |||||
- | PM-156 | 1972 | |||||
- | PM-56 | 1973 | |||||
- | PM-82 | 1978 | |||||
- | PM-30 | 1982 | |||||
- | PM-59 | 1986 | |||||
- | PM-69 | 1987 | |||||
- | PM-86 | 1987 | |||||
- | PM-97 | 1988 | |||||
AOR | pr. 1559V | 4 | - | Sergey Osipov | 1973 | 24460t, 162.3x21.4x9.3m, 1d, 9000hp, 16kts, 75p; 8250t fuel oil, 2050t diesel oil, 1000t aviation fuel, 900t fresh water, 250t lubrication oil, 220t dry cargo, 110t food, 3x2 underway replenishment stations (liquid and dry cargo), 3x 3t cranes, 2x 3t derricks; Rubka, Vaygach-U radars | |
- | Ivan Bubnov | 1975 | |||||
- | Genrikh Gasanov | 1976 | |||||
- | Boris Butoma | 1978 | |||||
Dubna | 3 | - | Dubna | 1974 | 12891t, 130.0x20.0x7.2m, 1d, 6000hp, 16kts, 62p; 2100t fuel oil, 2080t diesel oil, 900t fresh water, 120t lubrication oil, 50t dry cargo, 50t food, 2x2 underway replenishment stations (liquid and dry cargo), 1 2t crane, 2 1.5t derricks; Don, Vaygach-U radars | ||
- | Irkut | 1975 | |||||
- | Pechenga | 1979 | |||||
AORL | pr. 577 | 4 | - | Dunay | 1965 | 7130t, 122.1x15.8x6.2m, 2d, 9000hp, 17.6kts, 85p; 2000t fuel oil, 800t diesel oil, 500t fresh water, 100t lubrication oil, 100t dry cargo, 1x2 underway replenishment station (liquid and dry cargo), 2x 3t derricks; Rubka, Don radars | |
- | Koyda | 1966 | |||||
- | Lena | 1966 | |||||
- | Vishera | 1967 | |||||
pr. REF-675 | 2 | - | Viazma | 1982 | no picture | 8913t, 115.5x17.0x7.0m, 1d, 3500hp, 14.4kts, 52p; 1100t fuel oil, 4100t diesel oil, 60t lubrication oil, 15t dry cargo, 1x 3t derrick; 2x Don radars | |
- | Kama | 1982 | |||||
pr. 160 | 6 | - | Kola | 1967 | 7228t, 106.1x15.4x6.7m, 1d, 2900hp, 13.6kts, 39p; 1300t fuel oil, 2700t diesel oil, 200t fresh water, 100t dry cargo, 1x2 underway replenishment station, 1x 2t derrick; 2x Don radars | ||
- | Elnya | 1968 | |||||
- | Egorlyk | 1969 | |||||
- | Izhora | 1970 | |||||
- | Prut | 1971 | |||||
- | Ilim | 1972 | |||||
pr. 6404 | 1 | - | Iman | 1966 | 6480t, 105.4x14.8x6.2m, 1d, 2900hp, 14kts, 40p; 1500t fuel oil, 1500t diesel oil, 500t fresh water, 150t lubrication oil, 50t dry cargo, 1x2 underway replenishment station, 1x 2t derrick; 2x Donets-2 radars | ||
AOL | pr. 437M | 3 | - | Sosva | 1956 | 1520t, 63.2x10.0x3.6m, 2d, 1200hp, 12.7kts, 33p; 700t fuel oil or 550t petrol; Don radar | |
Orsha | 1956 | ||||||
Lovat' | 1957 | ||||||
Ufa | 1 | - | Yakhroma | 1955 | no picture | 2180t, 69.1x10.0x4.5m, 1d, 1100hp, 10kts, 26p; 1100t of fuel oil; Neptun, Donets radars | |
AWT | pr. 1549 | 2 | - | Manych | 1972 | 5700t, 115.8x15.8x5.7m, 2diesels, 9000hp, 18kts, 79p; 1820t fresh water, 180t food, 1x2 underway replenishment station (liquid and dry cargo); Rubka, Volga radars | |
- | Tagil | 1976 | |||||
pr. 561 | 10 | - | MVT-6 | 1954 | no picture | 2115t, 81.5x11.5x3.6m, 2d, 1600hp, 12kts, 28p; 1000t fresh water; Don radar | |
MVT-9 | 1955 | ||||||
MVT-10 | 1957 | ||||||
MVT-16 | 1958 | ||||||
MVT-17 | 1955 | ||||||
MVT-18 | 1957 | ||||||
MVT-24 | 1955 | ||||||
MVT-134 | 1955 | ||||||
MVT-136 | 1956 | ||||||
MVT-138 | 1954 | ||||||
AOSR | pr. 1541 | 1 | - | Don | 1966 | 1463t, 63.4x10.0x3.6m, 2d, 1600hp, 12.6kts, 40p; 510t of rocket fuel; Don radar | |
pr. 11510 | 2 | - | Amur | 1986 | 8030t, 130.0x17.3x6.5m, 2d, 9000hp, 15kts, 86p; 4000t of radio-active liquids; 2x Kivach radars | ||
- | Pinega | 1988 | |||||
Imandra | 1 | - | Imandra | 1980 | no picture | 6000t, 130.5x17.3x8.5m, 1d, 6100hp, 15kts; 3000t of radio-active liquids, 2x radars | |
AK | pr. 550M | 1 | - | Yauza | 1974 | no picture | 14165t, 133.1x18.8x8.9m, 4dg,1em, 3510hp, 15kts, 24p; 7000t cargo, 1x 60t crane, 1x 9t crane; 2x radars |
pr. 20360 | 1 | - | VTR-79 | 2010 | 1985t, 61.5x15.8x3.1m, 3dg,2em, 1200hp, 10.5kts, 23p; 1x 20t crane, cargo; 2x radars | ||
AG | pr. 20360OS | 1 | - | Viktor Cherokov | 2016 | 1985t, 61.5x15.8x3.1m, 3dg,2em, 1200hp, 10.5kts, 23p; 2-533 TT, 2-400 TT; 1x 20t crane; 2x radars | |
AKL | Rossita | 1 | - | Rossita | 2011 | no picture | 1620t, 84.0x14.0x4.1m, 2d, 3510hp, 12kts, 23p; 720t of radio-active materials; 2x radars |
pr. 740 | 2 | - | Pechora | 1976 | 3950t, 88.8x12.8x5.0m, 1d, 2080hp, 13kts, 25p; 1x 10t crane, 1900t cargo; 2x radars | ||
- | Ufa | 1977 | |||||
pr. 03180 | 4 | - | Umba | 2013 | no picture | 2290t, 49.8x14.0x4.8m, 2d, 2435hp, 12kts, 10p; 1x 2.5t crane, 1300t cargo; 2x radars | |
- | Pecha | 2014 | |||||
- | Luga | 2014 | |||||
- | VTN-74 | 2014 | |||||
pr. 572 | 2 | - | Irgiz | 1958 | 2100t, 74.7x11.3x4.4m, 2d, 1600hp, 12.2kts, 40p; 900t cargo; 2x radars | ||
- | Bira | 1959 | |||||
pr. 1823 | 2 | - | VTR-92 | 1971 | 680t, 51.0x8.5x2.7m, 1d, 600hp, 11kts, 20p; 180t cargo; Don radar | ||
- | VTR-94 | 1971 | |||||
AG | pr. 1824 | 1 | - | OS-114 | 1974 | 753t, 51.5x8.4x3.2m, 1d, 600hp, 11kts, 30p; 1x2-25/82, 1-533TT, 1-400TT; Don radar | |
pr. 1858 | 1 | - | Andrey Lezhin | 1980 | 749t, 51.5x8.4x3.2m, 1d, 600hp, 11kts, 30p; 1x2-25/82, 1-650TT, 1-533TT, 1-400TT; Don radar | ||
ASR | pr. 537 | 1 | - | Alagez | 1989 | 22500t, 175.5x24.5x8.5m, 4dg,2em, 25300hp, 17kts, 315p; 4x6-30/54, 2 hel(Ka-27PS); 1 pr.1832 and 2 pr.1855 deepwater manned submersibles, 2 decompression chambers, 400t bollard pull, 1x 8t crane; Rubka, 3x Don, 2x Vympel radars, Gamma, Kashalot sonars | |
pr. 21300 | 1 | - | Igor' Belousov | 2015 | 5300t, 107.3x17.2x8.1m, 4dg,2em, 6530hp, 15kts, 120p; 1x1 Igla SAM(12), 2x10-55gl, helodeck; 1 pr. 18271 deepwater manned submersible, 2 ARS-600 manned submersibles, Panther plus USV, decompression chambers, 2x 12.5t cranes; MR-231, Pal-N3 radars, Livadiya, Folklor, Anapa-M, Struktura-SVN sonars | ||
pr. 05275 | 1 | - | EPRON | 1959 | 3300t, 90.2x14.3x5.5m, 4dg,2em, 7000hp, 19kts, 120p; MT-60, Tiger, Panther plus USV, decompression chamber, 2 diver bells, 200t bollard pull, 1x 12t derrick; 2x Don radars, MGA-6 sonar | ||
MPSV07 | 4 | - | Spasatel' Karev | 2012 | no picture | 1170t, 73.0x16.6x4.5m, 1d, 5440hp, 15kts; 2x radars | |
- | Spasatel' Kavdeykin | 2013 | |||||
- | Spasatel' Zaborshchikov | 2013 | |||||
- | Spasatel' Demidov | 2014 | |||||
ARS | pr. 20180 | 1 | - | Zviozdochka | 2010 | 5500t, 96.0x17.8x9.3m, 4dg,2em, 8760hp, 14kts, 65p; helodeck; Tiger, Quantum USV, 2x 80t cranes; 2x radars | |
AE | pr. 20181 | 1 | - | Akademik Kovaliov | 2015 | 6300t, 107.6x17.8x9.3m, 4dg,2em, 8760hp, 14kts, 65p; helodeck; 8 Bulava SLBM, 2x 80t cranes; 2x radars | |
ARS | Volkhov | 1 | - | Kommuna | 1917 | no picture | 3100t, 96.0x18.6x3.7m, 2d, 1200hp, 10kts, 106p; 800t boom, 1 pr.1832 or pr.1839 or pr.1837 manned submersible, Panther plus USV; 2x radars, MGA-21 sonar |
pr. 05360 | 2 | - | Mikhail Rudnitskiy | 1978 | 7960t, 130.3x17.3x5.9m, 1d, 6100hp, 15.8kts, 136p+40; 1 pr.1839 and 1 pr. 1855 deepwater manned submersibles, decompression chamber, 2x 55t derricks, 1x 20t derrick; Okean-M radar, MGA-21 sonar | ||
- | Georgiy Kozmin | 1979 | |||||
pr. 05361 | 2 | - | German Titov | 1982 | 8130t, 132.0x17.3x6.1m, 1d, 6100hp, 15.8kts, 129p+40; 1 pr.18392 and 1 pr. 18270 (Titov) or pr. 1855 (Sayany) deepwater manned submersibles, decompression chamber, 2x 55t derricks, 1x 20t derrick; 2x Don radars, MGA-21, MG-89 sonars | ||
- | Sayany | 1983 | |||||
pr. 141S | 2 | - | Aleksandr Pushkin | 1988 | 4600t, 95.5x17.2x5.0m, 5dg,2em, 3000hp, 14kts, 54p; 100t gantry, 60t derrick, 12t crane, pr. 1837K, pr. 1839 midget submarines, Panther plus USV(Aleksandr Pushkin), decompression chamber; Mius, Don radars, Oredezh-M, Sheksna sonars | ||
- | SS-750 | 1990 | |||||
ATA | pr. 1452 | 4 | - | Pamir | 1974 | 4050t, 92.6x15.4x5.9m, 2d, 9000hp, 18.7kts, 71p; decompression chamber, USV, 94t bollard pull, 1x 12t derrick; 2x Don radars | |
- | Mashuk | 1975 | |||||
- | Alatau | 1983 | |||||
- | Altay | 1987 | |||||
pr. 02980 | 3 | - | SB-121 | 2016 | no picture | 1400t, 48.0x13.3x5.4m, 2d(azipods), 6800hp, 14.5kts, 8+35p; helodeck; 2x radars | |
- | SB-123 | 2016 | |||||
- | Poliarnyy konvoy | 2016 | |||||
pr. 02790 | 6 | - | MB-92 | 2013 | no picture | 862t, 34.4x12.7x4.4m, 2d(azipods), 5070hp, 12kts, 8p; 2x radars | |
- | MB-93 | 2013 | |||||
- | Anatoliy Tarasov | 2014 | |||||
- | Viktor Tikhonov | 2014 | |||||
- | MB-96 | 2015 | |||||
- | MB-97 | 2015 | |||||
pr. R-5757 | 2 | - | Nikolay Chiker | 1989 | 8000t, 98.0x19.5x7.1m, 4d(2), 24480hp, 18kts, 51+20p; helodeck; 1x 8t crane, 1x 3t crane, 2x 150t towing winches, 250t bollard pull, decompression chamber; 2x Vaygach-U radars | ||
- | Fotiy Krylov | 1989 | |||||
pr. 23470 | 1 | - | Sergey Balk | 2016 | no picture | 3200t, 69.8x15.0x5.2m, 3dg,2em, 11950hp, 14kts; helodeck | |
pr. B-92 | 2 | - | Evgeniy Gorigledzhan | 1983 | 4020t, 81.5x16.3x5.4m, 2d, 7200hp, 15kts, 33+12p; 600t cargo; 2x Nayada radars | ||
- | Kalar | 1990 | |||||
pr. 712 | 4 | - | SB-406 | 1984 | 2980t, 69.2x15.4x5.4m, 2d, 7800hp, 16kts, 43p+10; 90t bollard pull, decompression chamber, 1x 5t derrick, 60t towing winch; 2x Nayada radars | ||
- | SB-408 | 1984 | |||||
- | SB-921 | 1985 | |||||
- | Shakhtyor | 1985 | |||||
pr. 23120 | 1 | - | Elbrus | 2016 | 9700t, 94.9x22.0x8.5m, 4dg,2em(2azipods), 16320hp, 18kts, 27+50p; 2000t cargo, crane, towing winch; 2x radars | ||
pr. 22870 | 3 | - | SB-45 | 2014 | no picture | 1670t, 57.0x14.0x3.2m, 3dg,2em(2azipods), 5440hp, 14kts, 26+36p; Falcon-1000 USV, decompression chamber, towing winch; 2x Nayada radars | |
- | Professor Nikolay Muru | 2014 | |||||
- | SB-738 | 2016 | |||||
pr. 563 | 4 | - | MB-15 | 1977 | 2116t, 62.8x14.3x5.7m, 2d, 7000hp, 14kts, 43p; 45t bollard pull, decompression chamber; 2x Don radars | ||
- | SB-931 | 1977 | |||||
- | MB-105 | 1978 | |||||
- | MB-119 | 1978 | |||||
pr. 714 | 6 | - | Evgeniy Khorov | 1982 | 2600t, 63.5x14.3x5.1m, 2d, 7000hp, 15kts, 43p; 45t bollard pull, decompression chamber; 2x Don radars | ||
- | SB-36 | 1982 | |||||
- | MB-38 | 1982 | |||||
- | SB-521 | 1983 | |||||
- | SB-522 | 1983 | |||||
- | SB-523 | 1983 | |||||
pr. 745 | 14 | - | MB-58 | 1974 | 1656t, 58.3x12.6x4.6m, 2dg, 1em, 2000hp, 14kts, 35p; 22t bollard pull; 2x Don radars | ||
- | MB-31 | 1975 | |||||
- | MB-148 | 1976 | |||||
- | MB-304 | 1977 | |||||
- | MB-19 | 1978 | |||||
- | MB-4 | 1981 | |||||
- | MB-28 | 1982 | |||||
- | MB-100 | 1985 | |||||
- | MB-99 | 1985 | |||||
- | MB-76 | 1989 | |||||
- | MB-56 | 1989 | |||||
- | MB-61 | 1989 | |||||
- | MB-37 | 1990 | |||||
- | MB-110 | 1991 | |||||
pr. 745MB | 2 | - | MB-12 | 2011 | 1600t, 56.5x12.6x4.6m, 2dg,1em, 2720hp, 14kts, 22p; 18t bollard pull; 2x radars | ||
- | Viktor Konetskiy | 2013 | |||||
pr. 733 | 12 | - | MB-7 Sirius | 1960 | 961t, 47.3x10.3x4.2m, 2dg,1em, 1900hp, 13kts, 28p; 34t bollard pull; 2x Don radars | ||
- | MB-23 | 1960 | |||||
- | MB-52 | 1964 | |||||
- | MB-160 | 1959 | |||||
- | MB-165 Serdityy | 1962 | |||||
- | MB-166 | 1962 | |||||
- | MB-169 Pochiotnyy | 1963 | |||||
- | MB-171 Tyulen' | 1963 | |||||
- | MB-178 Saturn | 1965 | |||||
- | SB-4 Kodor | 1959 | |||||
- | SB-5 | 1965 | |||||
- | SB-6 Moshchnyy | 1965 | |||||
YTR | pr. 1893 | 4 | - | PZhS-98 | 1969 | no picture | 1200t, 62.6x10.2x3.5m, 2d, 5000hp, 17kts, 32p; Kivach radar |
- | PZhS-123 | 1970 | |||||
- | PZhS-279 | 1971 | |||||
- | PZhS-282 | 1975 | |||||
pr. 1993 | 3 | - | PZhS-64 | 1982 | no picture | 1255t, 65.4x10.2x3.7m, 2d, 5000hp, 17kts, 38p; Mius radar | |
- | PZhS-92 | 1983 | |||||
- | PZhS-95 | 1980 | |||||
pr. 14611 | 15 | - | PZhK-415 | 1984 | no picture | 320t, 36.5x7.8x2.2m, 2d, 1040hp, 12.5kts, 20p; radar | |
- | PZhK-417 | 1984 | |||||
- | PZhK-900 | 1984 | |||||
- | PZhK-1296 | 1984 | |||||
- | PZhK-1378 | 1984 | |||||
- | PZhK-1514 | 1984 | |||||
- | PZhK-1515 | 1985 | |||||
- | PZhK-1544 | 1986 | |||||
- | PZhK-1545 | 1986 | |||||
- | PZhK-1546 | 1987 | |||||
- | PZhK-1547 | 1987 | |||||
- | PZhK-1560 | 1987 | |||||
- | PZhK-1680 | 1987 | |||||
- | PZhK-1859 | 1988 | |||||
- | PZhK-2055 | 1993 | |||||
pr. 364 | 27 | - | PZhK-3 | 1962 | no picture | 180t, 34.9x6.1x1.8m, 2d, 2250hp, 16kts, 26p; radar | |
- | PZhK-5 | 1962 | |||||
- | PZhK-17 | 1961 | |||||
- | PZhK-30 | 1963 | |||||
- | PZhK-31 | 1963 | |||||
- | PZhK-32 | 1963 | |||||
- | PZhK-36 | 1963 | |||||
- | PZhK-37 | 1954 | |||||
- | PZhK-41 | 1955 | |||||
- | PZhK-42 | 1955 | |||||
- | PZhK-43 | 1955 | |||||
- | PZhK-44 | 1955 | |||||
- | PZhK-45 | 1956 | |||||
- | PZhK-46 | 1957 | |||||
- | PZhK-47 | 1956 | |||||
- | PZhK-49 | 1956 | |||||
- | PZhK-53 | 1956 | |||||
- | PZhK-54 | 1956 | |||||
- | PZhK-55 | 1959 | |||||
- | PZhK-59 | 1959 | |||||
- | PZhK-64 | 1960 | |||||
- | PZhK-66 | 1962 | |||||
- | PZhK-68 | 1954 | |||||
- | PZhK-79 | 1954 | |||||
- | PZhK-82 | 1961 | |||||
- | PZhK-84 | 1961 | |||||
- | PZhK-86 | 1960 | |||||
ARC | pr. 1274 | 1 | - | Inguri | 1978 | 6920t, 130.5x16.0x5.7m, 5dg,2em, 4400hp, 14kts, 110p; cable; 2x Donets radars | |
pr. 1172 | 2 | - | Nepriadva | 1981 | 2050t, 75.9x12.6x3.0m, 2dg,2em, 1360hp, 11kts, 38p; cable; 2x Mius radars | ||
- | Setun' | 1981 | |||||
pr. 1275 | 2 | - | Biriusa | 1986 | no picture | 2370t, 86.1x12.6x3.1m, 2dg,2em, 1700hp, 12kts, 48p; cable; 2x Mius radars | |
- | Kem' | 1986 | |||||
ABUD | pr. 419 | 6 | - | KIL-1 | 1965 | no picture | 3150t, 87.0x14.8x5.0m, 4dg,2em, 2240hp, 13kts, 40p; 65t gantry, 890t cargo; 2x Don radars |
- | KIL-2 | 1965 | |||||
- | KIL-22 | 1968 | |||||
- | KIL-25 | 1969 | |||||
- | KIL-27 | 1969 | |||||
- | KIL-31 | 1975 | |||||
pr. 141 | 6 | - | KIL-927 | 1988 | 4600t, 95.5x17.2x5.0m, 5dg,2em, 3000hp, 14kts, 54p; 100t gantry, 60t derrick, 12t crane, Bester midget submarine(SS-750); Mius, Don radars | ||
- | KIL-143 | 1989 | |||||
- | KIL-158 | 1989 | |||||
- | KIL-164 | 1989 | |||||
- | KIL-498 | 1990 | |||||
- | KIL-168 | 1990 | |||||
AGI | pr. 1826 | 2 | SSV-696 | Pribaltika | 1984 | 5400t, 105.5x15.5x5.8m, 2d, 18000hp, 20kts, 189p; 2x4 Strela-2 SAM(16), 1x6-30/54, 1x7-55gl; Volga radar, Ros'-K, Braslet sonars, Prokhlada, Buksir-N, Rotor-N, Oktava, Pamiat' ESM | |
SSV-463 | Belomorye | 1987 | |||||
pr. 864 | 7 | SSV-411 | Admiral Fiodor Golovin | 1985 | 3470t, 94.4x14.6x4.5m, 2d, 4400hp, 16kts, 146p; 2x4 Igla SAM(16), 2x6-30/54; Vaygach-U radar, Ros'-K, MGP-303 sonars, Profil'-M, Rotor-S, Prokhlada, Vizir, Konus ESM | ||
SSV-761 | Kareliya | 1986 | |||||
SSV-407 | Tavriya | 1987 | |||||
SSV-437 | Priazovye | 1987 | |||||
SSV-756 | Kurily | 1987 | |||||
SSV-402 | Vasiliy Tatishchev | 1988 | |||||
SSV-425 | Viktor Leonov | 1988 | |||||
pr. 18280 | 1 | - | Yuriy Ivanov | 2014 | no picture | 4160t, 95.0x16.0x4.0m, 2d, 5440hp, 120p; 1x1 Igla SAM(6), 2x1-14.5; MR-231-3 radar, ESM | |
pr. 08622 | 1 | SSV-700 | Temriuk | 1983 | 2500t, 82.5x13.5x4.0m, 2d, 3300hp, 15kts, 80p; 2x2-12.7; 2x Don-2 radars, Sheksna sonar, Vitok-AK, Vakhta-M, Vizir, Rotor-NK ESM | ||
pr. 861M | 3 | SSV-418 | Ekvator | 1968 | 1600t, 73.3x10.8x3.8m, 2d, 3300hp, 17kts, 80p; 2x4 Strela-2 SAM(16), 2x Don radars, Sheksna sonar, MI-110K wake detector, Bizan' ECM, Vitok-AK, MRR-1-7, VakhtaM, Vizit-M, Rotor-N, Uzel, Kayra ESM | ||
SSV-512 | Kildin | 1970 | |||||
SSV-824 | Liman | 1970 | |||||
pr. 503R | 2 | GS-39 | Syzran' | 1981 | 1250t, 53.7x10.5x4.3m, 1d, 1320hp, 13kts, 50p; 1x1 Strela-2M SAM(16); Vaygach-U, Nayada-1 radars, MRP-25 ECM, Vakhta-M, Vizir ESM | ||
GS-19 | Zhiguliovsk | 1982 | |||||
AGOR | pr. 852 | 1 | - | Admiral Vladimirskiy | 1975 | 9100t, 147.0x18.6x6.3m, 2d, 14500hp, 20kts, 148+36p; 1hel(Ka-25); 3x Don radars | |
pr. 865 | 2 | - | Sibiriakov | 1990 | 3420t, 85.8x15.0x5.0m, 1d, 6500hp, 14kts, 58+12p; 2 midget submarines; 2x Don, Vaygach radars | ||
- | Romuald Muklevich | 1991 | |||||
pr. 22010 | 1 | - | Yantar' | 2015 | 5700t, 108.1x17.2xm, 4dg,2em(azipods), 6800hp, 15kts, 60p; helodeck; 1 pr. 16810 midget submarine, 1 pr. 16811 midget submarine; 2x radars | ||
pr. 862 | 4 | - | Persey | 1978 | 2435t, 82.5x13.5x3.9m, 2d, 4400hp, 15kts, 65p; 2x Don radars | ||
- | Pegas | 1979 | |||||
- | Senezh | 1979 | |||||
- | Gidrolog | 1979 | |||||
pr. 862/II | 7 | - | Nikolay Matusevich | 1982 | 2500t, 82.5x13.5x3.9m, 2d, 4400hp, 15kts, 65p; 2x Don radars | ||
- | Vitse-admiral Vorontsov | 1982 | |||||
- | Vizir | 1983 | |||||
- | Stvor | 1983 | |||||
- | Gorizont | 1983 | |||||
- | Marshal Gelovani | 1983 | |||||
- | Donuzlav | 1983 | |||||
AGS | pr. 861 | 6 | - | Antarktida | 1970 | 1540t, 73.5x10.8x3.8m, 2d, 3600hp, 17kts, 56p; 2x Don or MR-231 radars | |
- | Cheleken | 1970 | |||||
- | Sever | 1971 | |||||
- | Andromeda | 1972 | |||||
- | Antares | 1973 | |||||
- | Mars | 1973 | |||||
pr. 19910 | 2 | - | Vaygach | 2008 | 1220t, 56.4x11.7x2.9m, 2dg,2em, 1500hp, 12kts, 20p; 2x MR-231 radars | ||
- | Viktor Faleev | 2013 | |||||
pr. 872 | 13 | - | GS-260 | 1978 | 1200t, 61.3x10.0x3.2m, 2d, 1920hp, 13kts, 28p; 1x 7t crane; 2x Mius radars | ||
- | GS-270 | 1978 | |||||
- | GS-272 | 1978 | |||||
- | GS-278 | 1978 | |||||
- | GS-392 | 1979 | |||||
- | GS-402 | 1979 | |||||
- | GS-403 | 1979 | |||||
- | GS-44 | 1980 | |||||
- | GS-47 | 1980 | |||||
- | GS-397 | 1980 | |||||
- | Piotr Gradov | 1980 | |||||
- | GS-399 | 1980 | |||||
- | GS-400 | 1980 | |||||
pr. 872/II | 9 | - | Nikolay Boshnyak | 1981 | 1200t, 61.3x10.0x3.2m, 2d, 1920hp, 13kts, 28p; 1x 7t crane; 2x Mius radars | ||
- | GS-405 | 1981 | |||||
- | GS-296 | 1982 | |||||
- | GS-297 | 1983 | |||||
- | Anatoliy Guzhvin | 1983 | |||||
- | GS-84 | 1983 | |||||
- | GS-86 | 1983 | |||||
- | GS-87 | 1983 | |||||
pr. 870 | 7 | - | GS-118 | 1968 | 760t, 53.5x9.1x2.6m, 2d, 1740hp, 14kts, 26p; 1x 5t crane; Don radar | ||
- | GS-66 | 1969 | |||||
- | GS-78 | 1969 | |||||
- | GS-82 | 1969 | |||||
- | GS-113 | 1969 | |||||
- | GS-211 | 1969 | |||||
- | GS-199 | 1970 | |||||
pr. 871 | 8 | - | GS-204 | 1970 | 750t, 55.0x9.8x2.6m, 2d, 1200hp, 13kts, 25p; Don radar | ||
- | GS-193 | 1971 | |||||
- | GS-269 | 1972 | |||||
- | GS-200 | 1973 | |||||
- | GS-202 | 1973 | |||||
- | GS-208 | 1973 | |||||
- | GS-210 | 1974 | |||||
- | GS-214 | 1974 | |||||
pr. 11982 | 2 | - | Seliger | 2012 | 1150t, 59.7x10.8x3.4m, 3dg,2em(2azipods), 1900hp, 13kts, 16+9p; ARS-600 midget submarine, decompression chamber, RT-2500 USV; 2x radars | ||
- | Ladoga | 2016 | |||||
pr. 19920 | 8 | - | BGK-2090 | 2008 | 320t, 36.4x7.9x2.0m, 2d, 630hp, 11kts, 11p; radar | ||
- | BGK-2148 | 2012 | |||||
- | BGK-2149 | 2015 | |||||
- | BGK-2150 | 2016 | |||||
- | BGK-797 | 2009 | |||||
- | BGK-2151 | 2014 | |||||
- | BGK-2152 | 2015 | |||||
- | BGK-2153 | 2015 | |||||
pr. REF-100 | 2 | - | GS-525 | 1985 | no picture | 500t, 32.3x9.6x2.6m, 2d, 600hp, 10kts, 20p; Mius radar | |
- | GS-526 | 1985 | |||||
pr. 1896 | 60 | - | BGK-482 | 1970 | no picture | 120t, 28.4x5.5x1.7m, 1d, 450hp, 12kts, 15p; 1x Donets-2 radar | |
- | BGK-483 | 1970 | |||||
- | BGK-486 | 1970 | |||||
- | BGK-487 | 1970 | |||||
- | BGK-498 | 1970 | |||||
- | BGK-551 | 1970 | |||||
- | BGK-574 | 1970 | |||||
- | BGK-585 | 1970 | |||||
- | BGK-586 | 1970 | |||||
- | BGK-596 | 1970 | |||||
- | BGK-597 | 1970 | |||||
- | BGK-613 | 1970 | |||||
- | BGK-625 | 1970 | |||||
- | BGK-627 | 1969 | |||||
- | BGK-628 | 1969 | |||||
- | BGK-629 | 1969 | |||||
- | BGK-632 | 1969 | |||||
- | BGK-636 | 1969 | |||||
- | BGK-637 | 1969 | |||||
- | BGK-652 | 1969 | |||||
- | BGK-663 | 1969 | |||||
- | BGK-682 | 1973 | |||||
- | BGK-683 | 1973 | |||||
- | BGK-685 | 1977 | |||||
- | BGK-686 | 1977 | |||||
- | BGK-690 | 1977 | |||||
- | BGK-697 | 1976 | |||||
- | BGK-705 | 1976 | |||||
- | BGK-715 | 1970 | |||||
- | BGK-716 | 1970 | |||||
- | BGK-745 | 1970 | |||||
- | BGK-752 | 1972 | |||||
- | BGK-753 | 1972 | |||||
- | BGK-754 | 1972 | |||||
- | BGK-767 | 1972 | |||||
- | BGK-769 | 1972 | |||||
- | BGK-772 | 1973 | |||||
- | BGK-774 | 1973 | |||||
- | BGK-777 | 1973 | |||||
- | BGK-785 | 1972 | |||||
- | BGK-786 | 1972 | |||||
- | BGK-789 | 1972 | |||||
- | BGK-792 | 1975 | |||||
- | BGK-793 | 1975 | |||||
- | BGK-794 | 1973 | |||||
- | BGK-795 | 1973 | |||||
- | BGK-796 | 1973 | |||||
- | BGK-835 | 1973 | |||||
- | BGK-866 | 1973 | |||||
- | BGK-885 | 1973 | |||||
- | BGK-886 | 1973 | |||||
- | BGK-887 | 1973 | |||||
- | BGK-889 | 1975 | |||||
- | BGK-890 | 1975 | |||||
- | BGK-1505 | 1975 | |||||
- | BGK-1525 | 1975 | |||||
- | BGK-1529 | 1975 | |||||
- | BGK-1550 | 1975 | |||||
- | BGK-1589 | 1975 | |||||
- | BGK-1659 | 1975 | |||||
ASVS | pr. 19141 | 1 | - | Marshal Krylov | 1989 | 24000t, 212.0x27.1x7.7m, 2d, 30000hp, 22kts, 339p; 6x6-30/54, 2hel(Ka-27PS); Fregat-MA, 2x Vaygach-U, Volga, 3x Vympel-A radars, Platina-S, Ros'-K, 2x Braslet sonars, Zefir-A, Zefir-T, Kunitsa, Dyatel, Zodiak space control systems | |
AGE | pr. 1236 | 1 | - | OS-138 | 1974 | no picture | 865t, 72.1x9.4x2.5m, 2d, 4000hp, 17kts, 30p; 3x1-533TT, 1x1-400TT, Don-2 radar |
pr. 07452 | 1 | - | Chusovoy | 1987 | 1656t, 59.1x12.6x4.6m, 2dg,2em(1), 2000hp, 14kts, 60p; 2x Don radars, Kentavr sonar | ||
pr. 206 | 1 | - | OK-443 | 1967 | 170t, 34.8x6.7x1.4m, 3d, 12000hp, 45kts, 22p; 2-533TT; radar | ||
AGH | pr. 1806 | 2 | - | Mikhail Lomonosov | 1979 | 2100t, 81.0x11.0x4.2m, 2d, 2800hp, 14kts, 45p; helodeck; radar, Arktika-M, MG-29, MG-33, Ros'-K sonars, Dnepr hydroacoustic system | |
- | Akademik Makeev | 1982 | |||||
pr. 18061 | 4 | - | SFP-295 | 1989 | 2100t, 81.0x11.0x4.2m, 2d, 2800hp, 14kts, 70p; radar, Arktika-M, MG-29, MG-33, Ros'-K sonars, Dnepr hydroacoustic system | ||
- | Akademik Semenikhin | 1992 | |||||
- | Akademik Isanin | 1994 | |||||
- | Viktor Subbotin | 2006 | |||||
pr. 18061K | 1 | - | Vladimir Peregudov | 1988 | 2100t, 81.0x11.0x4.2m, 2d, 2800hp, 14kts, 70p; radar, Arktika-M, MG-29, MG-33, Ros'-K sonars, Dnepr hydroacoustic system | ||
pr. 18061BD | 1 | - | SFP-173 | 1990 | 2100t, 81.0x11.0x4.2m, 2d, 2800hp, 14kts, 70p; radar, Arktika-M, MG-29, MG-33, Ros'-K sonars, Dnepr hydroacoustic system | ||
YDG | pr. 130 | 15 | - | SR-28 | 1984 | 2050t, 69.5x13.8x4.0m, 2d, 2940hp, 14kts, 48p; Kivach radar | |
- | PKZ-23 | 1985 | |||||
- | SR-479 | 1986 | |||||
- | SR-541 | 1986 | |||||
- | SR-74 | 1986 | |||||
- | SR-548 | 1987 | |||||
- | SR-569 | 1988 | |||||
- | SR-120 | 1988 | |||||
- | SR-570 | 1989 | |||||
- | SR-137 | 1989 | |||||
- | SR-933 | 1989 | |||||
- | SR-936 | 1990 | |||||
- | SR-939 | 1989 | |||||
- | SR-216 | 1990 | |||||
- | SR-245 | 1991 | |||||
pr. 1799 | 12 | - | SR-26 | 1983 | no picture | 1364t, 64.8x11.6x3.7m, 1dg,1em, 14kts, 14kts, 43p; radar | |
- | Vladimir Kotelnikov | 2007 | |||||
- | SR-111 | 1988 | |||||
- | SR-179 | 1981 | |||||
- | SR-180 | 1980 | |||||
- | SR-188 | 1990 | |||||
- | SR-203 | 1979 | |||||
- | SR-233 | 1982 | |||||
- | SR-261 | 1991 | |||||
- | SR-280 | 1977 | |||||
- | SR-344 | 1986 | |||||
- | SR-370 | 1989 | |||||
pr. 535 | 30 | - | VM-20 | 1980 | no picture | 295t, 40.9x8.0x2.1m, 2d, 600hp, 12kts, 30p; decompression chamber; Donets-2 radar | |
- | VM-72 | 1986 | |||||
- | VM-143 | 1973 | |||||
- | VM-146 | 1973 | |||||
- | VM-152 | 1975 | |||||
- | VM-154 | 1974 | |||||
- | VM-250 | 1973 | |||||
- | VM-263 | 1973 | |||||
- | VM-268 | 1978 | |||||
- | VM-270 | 1978 | |||||
- | VM-277 | 1978 | |||||
- | VM-409 | 1978 | |||||
- | VM-413 | 1970 | |||||
- | VM-414 | 1970 | |||||
- | VM-415 | 1970 | |||||
- | VM-420 | 1972 | |||||
- | VM-425 | 1972 | |||||
- | VM-429 | 1972 | |||||
- | VM-519 | 1972 | |||||
- | VM-725 | 1972 | |||||
- | VM-807 | 1972 | |||||
- | VM-809 | 1972 | |||||
- | VM-907 | 1976 | |||||
- | VM-908 | 1976 | |||||
- | VM-909 | 1976 | |||||
- | VM-910 | 1977 | |||||
- | VM-911 | 1972 | |||||
- | VM-915 | 1972 | |||||
- | VM-916 | 1972 | |||||
- | VM-919 | 1978 | |||||
pr. 11980 | 1 | - | VM-596 | 2004 | no picture | 315t, 37.4x7.7x2.0m, 2d, 525hp, 11kts, 29p; decompression chamber, Falcon USV; Liman-18M1 radar | |
pr. 23040 | 18 | - | RVK-762 | 2013 | no picture | 118t, 28.1x5.6x1.5m, 2d, 1200hp, 14kts, 3+5p; decompression chamber; radar | |
- | RVK-764 | 2013 | |||||
- | RVK-767 | 2013 | |||||
- | RVK-771 | 2013 | |||||
- | RVK-933 | 2014 | |||||
- | RVK-946 | 2014 | |||||
- | RVK-1045 | 2014 | |||||
- | RVK-1064 | 2014 | |||||
- | RVK-1102 | 2014 | |||||
- | RVK-1112 | 2014 | |||||
- | RVK-2162 | 2015 | |||||
- | RVK-2163 | 2015 | |||||
- | RVK-2166 | 2015 | |||||
- | RVK-2167 | 2015 | |||||
- | RVK-2164 | 2015 | |||||
- | RVK-2165 | 2015 | |||||
- | RVK-1229 | 2016 | |||||
- | RVK-1230 | 2016 | |||||
YPT | pr. 1388 | 18 | - | TL-180 | 1983 | 270t, 460x6.0x2.0m, 2d, 10000hp, 26kts, 20p; Mius radar; Oka sonar | |
- | TL-278 | 1990 | |||||
- | TL-287 | 1979 | |||||
- | TL-289 | 1980 | |||||
- | TL-701 | 1980 | |||||
- | TL-704 | 1980 | |||||
- | TL-826 | 1978 | |||||
- | TL-1127 | 1978 | |||||
- | TL-1128 | 1976 | |||||
- | TL-1302 | 1983 | |||||
- | TL-1476 | 1983 | |||||
- | TL-1539 | 1985 | |||||
- | TL-1596 | 1985 | |||||
- | TL-1603 | 1985 | |||||
- | TL-1666 | 1988 | |||||
- | TL-1717 | 1988 | |||||
- | TL-2021 | 1988 | |||||
- | TL-2023 | 1988 | |||||
YGE | pr. 1388R | 9 | - | KRKh-321 | 1981 | 270t, 460x6.0x2.0m, 2d, 10000hp, 26kts, 20p; Mius radar; Oka sonar | |
- | KRKh-528 | 1984 | |||||
- | KRKh-536 | 1984 | |||||
- | KRKh-579 | 1989 | |||||
- | KRKh-959 | 1989 | |||||
- | KRKh-1374 | 1989 | |||||
- | KRKh-1668 | 1988 | |||||
- | KRKh-1821 | 1989 | |||||
- | KRKh-1824 | 1989 | |||||
AGB | pr. 97K | 1 | - | Buran | 1966 | 3200t, 67.7x18.1x6.0m, 3dg,3em, 6600hp, 14kts, 39p; 2x Don radars | |
pr. 97B | 1 | - | Vladimir Kavrayskiy | 1969 | 3450t, 70.1x18.1x6.4m, 3dg,2em, 5000hp, 14kts, 39p; 2x Volga radars | ||
pr. 97AP | 2 | - | Sadko | 1968 | 3410t, 67.7x18.1x6.3m, 3dg,3em, 6600hp, 14kts, 39p; 2x Volga radars | ||
- | Peresvet | 1970 | |||||
ATA | pr. 02980 | 2 | - | MB-121 | 2016 | no picture | 1216t, 48.0x13.3x5.7m, 2d(2azipods), 7250hp, 14.5kts, 8+35p; helodeck; 2x radars |
- | MB-123 | 2016 | |||||
pr. 02790 | 6 | - | MB-92 | 2013 | no picture | 862t, 34.4x12.7x4.4m, 2d(2azipods), 5070hp, 12kts, 8p; 2x radars | |
- | MB-93 | 2013 | |||||
- | MB-96 | 2015 | |||||
- | Anatoliy Tarasov | 2014 | |||||
- | Viktor Tikhonov | 2014 | |||||
- | MB-97 | 2015 | |||||
YTL | pr. 192 | 5 | - | RB-139 | 1984 | no picture | 575t, 36.3x10.0x3.6m, 2d(1), 2520hp, 13kts, 3p; radar |
- | RB-136 | 1984 | |||||
- | RB-167 | 1985 | |||||
- | RB-325 | 1986 | |||||
- | RB-326 | 1986 | |||||
pr. 192A | 7 | - | RB-40 | 1988 | no picture | 598t, 36.3x10.0x3.6m, 2d(1), 2520hp, 13kts, 8p; radar | |
- | RB-280 | 1988 | |||||
- | RB-293 | 1989 | |||||
- | RB-22 | 1989 | |||||
- | RB-29 | 1989 | |||||
- | RB-108 | 1991 | |||||
- | RB-109 | 1991 | |||||
pr. 16609 | 13 | - | Delfin | 2012 | no picture | 504t, 29.4x10.1x4.0m, 2d(2azipods), 3550hp, 12kts, 8p; radar | |
- | Kasatka | 2012 | |||||
- | RB-402 | 2013 | |||||
- | RB-403 | 2013 | |||||
- | RB-404 | 2013 | |||||
- | RB-405 | 2013 | |||||
- | RB-406 | 2014 | |||||
- | RB-407 | 2014 | |||||
- | RB-367 | 2015 | |||||
- | Belukha | 2014 | |||||
- | Afalina | 2015 | |||||
- | RB-368 | 2015 | |||||
- | RB-2180 | 2016 | |||||
pr. 498 | 9 | - | RB-7 | 1977 | no picture | 303t, 29.3x8.3x3.1m, 2d, 1200hp, 11kts, 6p; radar | |
- | RB-98 | 1973 | |||||
- | RB-179 | 1973 | |||||
- | RB-201 | 1979 | |||||
- | RB-202 | 1979 | |||||
- | RB-262 | 1983 | |||||
- | RB-265 | 1973 | |||||
- | RB-288 | 1980 | |||||
- | RB-314 | 1975 | |||||
pr. 04983 | 9 | - | RB-1 | 1983 | no picture | 364t, 29.3x8.3x3.4m, 2d, 1600hp, 11.5kts, 6p; radar | |
- | RB-57 | 1983 | |||||
- | RB-158 | 1983 | |||||
- | RB-173 | 1984 | |||||
- | RB-217 | 1985 | |||||
- | RB-239 | 1986 | |||||
- | RB-327 | 1986 | |||||
- | RB-360 | 1986 | |||||
- | RB-362 | 1986 | |||||
pr. 737L | 11 | - | RB-2 | 1965 | no picture | 184t, 24.4x7.2x2.0m, 2d(2Voith-Schneider), 600hp, 9kts, 4p; radar | |
- | RB-5 | 1965 | |||||
- | RB-17 | 1965 | |||||
- | RB-23 | 1965 | |||||
- | RB-25 | 1965 | |||||
- | RB-26 | 1965 | |||||
- | RB-43 | 1965 | |||||
- | RB-44 | 1963 | |||||
- | RB-49 | 1963 | |||||
- | RB-50 | 1964 | |||||
- | RB-52 | 1965 | |||||
pr. 737K | 21 | - | RB-192 | 1970 | no picture | 192t, 24.4x7.2x2.1m, 2d(2Voith-Schneider), 600hp, 9kts, 4p; radar | |
- | RB-194 | 1970 | |||||
- | RB-197 | 1970 | |||||
- | RB-198 | 1971 | |||||
- | RB-199 | 1967 | |||||
- | RB-212 | 1967 | |||||
- | RB-225 | 1968 | |||||
- | RB-232 | 1969 | |||||
- | RB-233 | 1969 | |||||
- | RB-237 | 1972 | |||||
- | RB-240 | 1972 | |||||
- | RB-244 | 1968 | |||||
- | RB-246 | 1968 | |||||
- | RB-247 | 1968 | |||||
- | RB-248 | 1970 | |||||
- | RB-249 | 1968 | |||||
- | RB-250 | 1968 | |||||
- | RB-255 | 1968 | |||||
- | RB-256 | 1969 | |||||
- | RB-263 | 1969 | |||||
- | RB-289 | 1969 | |||||
pr. 737M | 4 | - | RB-295 | 1974 | no picture | 206t, 24.2x7.2x2.2m, 2d(2Voith-Schneider), 900hp, 10kts, 4p; radar | |
- | RB-297 | 1974 | |||||
- | RB-310 | 1970 | |||||
- | RB-311 | 1970 | |||||
pr. 705B | 4 | - | RB-39 | 2010 | no picture | 310t, 26.5x8.7x2.7m, 2d, 1600hp, 11.5kts, 8p; radar | |
- | RB-10 | 2011 | |||||
- | RB-396 | 2012 | |||||
- | RB-410 | 2016 | |||||
pr. 1496 | 12 | - | RB-10 | 1981 | no picture | 108t, 23.4x5.9x1.9m, 1d, 315hp, 10.5kts, 8p; radar | |
- | RB-14 | 1981 | |||||
- | RB-51 | 1981 | |||||
- | RB-63 | 1981 | |||||
- | RB-185 | 1981 | |||||
- | RB-254 | 1983 | |||||
- | RB-259 | 1985 | |||||
- | RB-270 | 1987 | |||||
- | RB-313 | 1987 | |||||
- | RB-399 | 1987 | |||||
- | RB-410 | 1987 | |||||
- | RB-1301 | 1976 | |||||
pr. 90600 | 24 | - | RB-34 | 2009 | no picture | 417t, 25.4x9.3x3.6m, 2d(2azipods), 2030hp, 12kts, 12p; radar | |
- | RB-47 | 2009 | |||||
- | RB-48 | 2009 | |||||
- | RB-386 | 2010 | |||||
- | Pomorye | 2011 | |||||
- | RB-389 | 2010 | |||||
- | RB-43 | 2011 | |||||
- | Krab | 2011 | |||||
- | RB-20 | 2011 | |||||
- | RB-27 | 2011 | |||||
- | RB-42 | 2011 | |||||
- | RB-391 | 2012 | |||||
- | RB-394 | 2012 | |||||
- | RB-395 | 2012 | |||||
- | RB-392 | 2013 | |||||
- | RB-398 | 2013 | |||||
- | RB-399 | 2013 | |||||
- | RB-400 | 2013 | |||||
- | RB-401 | 2013 | |||||
- | RB-412 | 2014 | |||||
- | RB-413 | 2014 | |||||
- | RB-365 | 2015 | |||||
- | RB-366 | 2015 | |||||
- | RB-397 | 2016 | |||||
YO | pr. 1844 | 30 | - | MNS-35500 | 1977 | no picture | 1180t, 54.3x7.4x3.1m, 1d, 600hp, 10kts, 24p; 500t cargo fuel; radar |
- | PUS-1 | 1977 | |||||
- | VTN-22 | 1986 | |||||
- | VTN-24 | 1986 | |||||
- | VTN-26 | 1986 | |||||
- | VTN-28 | 1986 | |||||
- | VTN-30 | 1988 | |||||
- | VTN-34 | 1990 | |||||
- | VTN-35 | 1990 | |||||
- | VTN-36 | 1987 | |||||
- | VTN-37 | 1987 | |||||
- | VTN-39 | 1981 | |||||
- | VTN-45 | 1977 | |||||
- | VTN-46 | 1977 | |||||
- | VTN-48 | 1977 | |||||
- | VTN-53 | 1977 | |||||
- | VTN-58 | 1977 | |||||
- | VTN-60 | 1980 | |||||
- | VTN-64 | 1980 | |||||
- | VTN-66 | 1980 | |||||
- | VTN-68 | 1980 | |||||
- | VTN-71 | 1980 | |||||
- | VTN-72 | 1980 | |||||
- | VTN-75 | 1980 | |||||
- | VTN-78 | 1980 | |||||
- | VTN-82 | 1984 | |||||
- | VTN-95 | 1973 | |||||
- | VTN-96 | 1982 | |||||
- | VTN-98 | 1982 | |||||
- | VTN-99 | 1975 | |||||
YW | pr. 18444 | 3 | - | MVT-17 | 1993 | no picture | 1300t, 56.4x9.7x3.6m, 1d, 600hp, 10kts, 20p; 500t fresh water; radar |
- | MVT-15 | 2006 | |||||
- | MVT-35 | 2015 | |||||
YSR | pr. 14630 | 10 | - | MUS-76 | 1976 | no picture | 209t, 24.6x8.6x1.7m, 2d, 10kts, 4p; 100t sludges; radar |
- | MUS-172 | 1976 | |||||
- | MUS-229 | 1976 | |||||
- | MUS-277 | 1976 | |||||
- | MUS-342 | 1976 | |||||
- | MUS-467 | 1976 | |||||
- | MUS-481 | 1982 | |||||
- | MUS-482 | 1983 | |||||
- | MUS-508 | 1983 | |||||
- | MUS-917 | 1983 | |||||
YFB | pr. 618M | 1 | - | RPR-3 | 1967 | no picture | 513t, 39.8x10.2x2.5m, 3dg,2em, 850hp, 9kts; 5trucks, 150troops; radar |
pr. 1388N | 1 | - | KSV-67 | 2003 | no picture | 400t, 49.0x9.1x2.4m, 2d, 10000hp, 22kts, 8p; 12passengers; radar | |
pr. 1388NZ | 2 | - | KSV-872 | 2011 | no picture | 419t, 48.8x9.1x2.9m, 2d, 3550hp, 16kts, 10p; 29passengers; radar | |
- | KSV-2155 | 2014 | |||||
pr. 21270 | 4 | - | Burevestnik | 2003 | no picture | 103t, 27.2x6.5x1.8m, 2d, 2450hp, 22kts, 6p; 12passengers; radar | |
- | Albatros | 2007 | |||||
- | KSV-57 | 2007 | |||||
- | Serafim Sarovskiy | 2009 | |||||
pr. 02065 | 1 | - | Uragan | 1989 | no picture | 266t, 41.0x7.6x2.0m, 3d, 14400hp, 36kts, 8p; 20passengers; radar | |

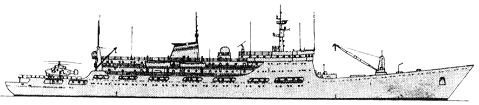

AX | pr. 887 | 2 | 300 | Smolnyy | 1976 | 7256t, 138.0x17.2x5.5m, 2d, 16000hp, 20kts, 137+330p; 2x2-76/59, 2x2-30/71, 2x16 RBU-2500 ASWRL; Angara, 2x Don, Turel', Rys' radars, MG-312I, MG-311 sonars | |
200 | Perekop | 1977 | |||||
pr. UK-3 | 8 | 230 | UK-162 | 1982 | no picture | 345t, 39.3x8.6x2.6m, 2d, 620hp, 12kts, 13+28p; radar | |
207 | UK-267 | 1984 | |||||
204 | UK-287 | 1984 | |||||
235 | UK-307 | 1989 | |||||
229 | UK-712 | 1983 | |||||
310 | UK-167 | 1985 | |||||
224 | UK-287 | 1984 | |||||
240 | UK-268 | 1984 | |||||
pr. 722 | 25 | 1 | UK-... | 1970 | no picture | 140t, 28.8x6.5x1.8m, 2d, 300hp, 11kts, 14+28p; radar | |
2 | UK-... | 1970 | |||||
3 | UK-... | 1970 | |||||
4 | UK-... | 1970 | |||||
5 | UK-... | 1970 | |||||
6 | UK-... | 1970 | |||||
7 | UK-... | 1970 | |||||
8 | UK-... | 1970 | |||||
9 | UK-... | 1970 | |||||
10 | UK-... | 1970 | |||||
11 | UK-... | 1970 | |||||
12 | UK-... | 1970 | |||||
13 | UK-... | 1970 | |||||
14 | UK-... | 1970 | |||||
15 | UK-... | 1970 | |||||
16 | UK-... | 1970 | |||||
17 | UK-... | 1970 | |||||
18 | UK-... | 1970 | |||||
19 | UK-... | 1970 | |||||
20 | UK-... | 1970 | |||||
21 | UK-... | 1970 | |||||
22 | UK-... | 1970 | |||||
23 | UK-... | 1970 | |||||
24 | UK-... | 1970 | |||||
25 | UK-... | 1970 | |||||

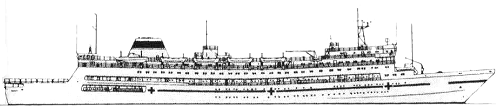

AH | pr. 320 | 3 | - | Enisey | 1981 | 11800t, 152.6x19.4x6.5m, 2d, 15600hp, 19kts, 124+83p; 1hel(Ka-27PS); Vaygach-U radar | |
- | Svir' | 1989 | |||||
- | Irtysh | 1990 | |||||
pr. SK620 | 9 | - | SN-109 | 1978 | no picture | 240t, 33.5x7.5x2.4m, 2d, 620hp, 12kts, 17p; 22passengers; radar | |
- | SN-126 | 1978 | |||||
- | SN-128 | 1978 | |||||
- | SN-401 | 1979 | |||||
- | SN-1303 | 1981 | |||||
- | SN-1318 | 1982 | |||||
- | MK-1407 | 1982 | |||||
- | MK-1409 | 1983 | |||||
- | SN-1520 | 1984 |
BORDER GUARD
PSO | pr. 97P | 3 | 145 | Dunay | 1977 | 3525t, 69.9x18.0x6.5m, 3dg,2em, 5000hp, 15kts, 126p; 2x4 Strela-2 SAM(16)(02654,02655), 1x2-76/59, 2x6-30/54, helodeck; Rubka, Turel', 2x Nayada-5, Furuno 1832(02654,02656), Furuno 1525(02655), Furuno 2125(02655,02656), Liman-18(02655), MR-231, Poisk(02655) radars | |
170 | Neva | 1978 | |||||
183 | Volga | 1980 | |||||
pr. 11351 | 3 | 158 | Dzerzhinskiy | 1984 | 3642t, 123.0x14.2x4.8m, COGAG:2gt+2gt(2), 46000hp, 31kts, 193p; 1x2 Osa-MA2 SAM(20), 1x1-100/59, 2x6-30/54, 2x4-533TT, 2x12 RBU-6000 ASWRL, 1hel(Ka-27PS); Angara-A(202), Fregat-M2(203-207), Lev-218-100, 4K-33, Reyd-M, 2x Vaygach-U radars, Platina-MS, Bronza, MGS-407 sonars, MI-110KM wake detector, Start-S ECM | ||
156 | Oriol | 1986 | |||||
160 | Vorovskiy | 1990 | |||||
pr. 850285 | 4 | 157 | Komandor | 1989 | 2553-2695t, 89.0x13.6x4.7m, 1d, 7000hp, 19.2kts, 42p; 2x1-12.7, 1hel(Ka-27PS); Nayada-5, Furuno 2030S, Furuno 810DS radars | ||
- | Shkiper Gek | 1989 | |||||
- | Kherluf Bidstrup | 1990 | |||||
- | Manchzhur | 1990 | |||||
pr. 22100 | 1 | 511 | Poliarnaya Zvezda | 2016 | 3000t, 91.8x14.8xm, 2d, 20kts, 41p; 1x1-76/59, 2x1-14.5, 1hel(Ka-27PS); 2RIB; radars | ||
PS | pr. 745P | 17 | 185 | Sakhalin | 1974 | 1620t, 56.5x12.6x4.6m, 2dg,1em, 3000hp, 13kts, 47p; 2x2-30/71(405-428), 2x6-30/54(431-441); radars | |
198 | Kamchatka | 1975 | |||||
106 | Brest | 1978 | |||||
155 | Ladoga | 1978 | |||||
172 | Primorye | 1978 | |||||
196 | Zabaykalye | 1981 | |||||
105 | Baykal | 1980 | |||||
011 | Chukotka | 1982 | |||||
038 | Zapoliarye | 1982 | |||||
045 | Kareliya | 1983 | |||||
142 | Bug | 1985 | |||||
016 | Ural | 1986 | |||||
022 | Tver' | 1987 | |||||
035 | Viktor Kingisepp | 1988 | |||||
101 | General armii Matrosov | 1992 | |||||
353 | Don | 1997 | |||||
044 | Magadanets | 2006 | |||||
pr. 502M | 1 | - | Diana | 1978 | 952t, 54.1x9.3x3.7m, 1d, 800hp, 11.7kts, 75p; Don radar | ||
pr. 502R | 1 | - | Antur | 1972 | 965t, 54.1x9.3x4.1m, 1d, 800hp, 11.7kts, 75p; Don radar | ||
pr. 503 | 3 | 277 | Askold Pynko | 1993 | 1137t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar | ||
281 | Skat | 1993 | |||||
282 | Pagella | 1994 | |||||
pr. 503N/ROS | 1 | 702 | Bars | 1996 | 1137t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar | ||
pr. 503M/RR | 4 | 395 | Antias | 1996 | 1238t, 53.7x10.7x4.3m, 1d, 1320hp, 12.6kts, 25p; Don radar | ||
704 | Argal | 1997 | |||||
818 | PPS-818 | 2003 | |||||
819 | PPS-819 | 2008 | |||||
pr. 22460 | 9 | 050 | Rubin | 2009 | 700t, 62.4x10.9x3.3m, 4d(2), 21000hp, 28kts, 20p; 1x6-30/54, 2x1-12.7, 1 UAV(Gorizont Air S-100); Nayada, Baltika-M radars, Sektor ECM | ||
141 | Brilliant | 2012 | |||||
052 | Zhemchug | 2012 | |||||
354 | Izumrud | 2014 | |||||
355 | Ametist | 2014 | |||||
406 | Provornyy | 2016 | |||||
508 | Nadyozhnyy | 2016 | |||||
144 | Sapfir | 2015 | |||||
095 | Korall | 2015 | |||||
pr. 6457S | 1 | 151 | Sprut | 2009 | 931t, 65.9x10.6x3.5m, 2d, 7070hp, 21.5kts, 14+10p; MR-231 radar | ||
pr. 20120 | 2 | 824 | PPS-824 | 2010 | 931t, 65.9x10.6x3.5m, 2d, 7070hp, 21.5kts, 14+10p; helodeck; MR-231 radars | ||
825 | PPS-825 | 2013 | |||||
PCH | pr. 133 | 2 | 136 | PSKR-109 | 1991 | 221t, 40.2x8.0(15.9)x1.6(4.9)m, 2gt, 20000hp, 61kts, 24p; 1x1-76/59, 1x6-30/54, 2-400TT, 1x7-55gl, 1dcr; Rangout, Vympel-A radars, Ros'-K sonar | |
135 | Tuapse | 1992 | |||||
PC | pr. 205P | 10 | 133 | PSKR-641 | 1975 | 245t, 40.0x7.9x2.0m, 3d, 15000hp, 36kts, 31p; 2x2-30/71, 4-400TT, 2dcr; 4Ts-30-125(134-143,601-623), Reyd(144-213), Ksenon radars, Sheksna sonars, MI-110K(151,183-213,606) wake detector | |
047 | PSKR-700 | 1980 | |||||
054 | PSKR-712 | 1984 | |||||
014 | PSKR-714 | 1985 | |||||
048 | PSKR-715 | 1985 | |||||
132 | PSKR-717 | 1986 | |||||
053 | PSKR-718 | 1986 | |||||
143 | PSKR-723 | 1988 | |||||
134 | PSKR-725 | 1989 | |||||
129 | PSKR-690 | 1974 | |||||
pr. 12412 | 5 | 063 | Sokol | 1986 | 455t, 56.4x10.2x2.1m, 2d, 20000hp, 32.9kts, 36p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 1x7-55gl, 4-400TT, 2x5 RBU-1200M ASWRL, 2dcr; Vympel-A, Reyd, Pechora radars, Bronza sonar, 2x PK-16 dl | ||
037 | Yastreb | 1987 | |||||
077 | Nikolay Kaplunov | 1986 | |||||
052 | Cheboksary | 1988 | |||||
065 | Minsk | 1988 | |||||
pr. 1241PE | 2 | 363 | Novorossiysk | 1991 | 495t, 56.1x10.2x2.1m, 2d, 18000hp, 30.5kts, 36p; 1x4 Igla-1M SAM(16), 1x1-76/59, 1x6-30/54, 1x7-55gl, 2x2-533TT, 2x5 RBU-1200M ASWRL, 2dcr; Vympel-A, Reyd, Pozitiv-E, Liman radars, Bronza sonar, 2x PK-16 dl | ||
449 | Kuban' | 1991 | |||||
pr. 10410 | 27 | 199 | Korsakov | 1988 | 375t, 49.5x9.2x2.6m, 3d, 16200hp, 32kts, 28p; 1x2 Igla-1M SAM(16), 1x1-76/59(401-409,301-306,308), 1x6-30/54(401-409,301-306,308), 2x6-30/54(307), 2x7-55gl, 2-400TT, 2dcr; Mius, Vaygach-U, Vympel-A radars, Uzh-M, Braslet sonars, Sliabing ECM, 2x PK-16 dl | ||
088 | Kholmsk | 1989 | |||||
132 | PSKR-904 | 1989 | |||||
104 | PSKR-907 | 1990 | |||||
012 | PSKR-908 | 1991 | |||||
023 | Nevelsk | 1992 | |||||
026 | Yuzhno-Sakhalinsk | 1994 | |||||
076 | PSKR-922 | 2000 | |||||
126 | Kondor | 2003 | |||||
069 | Voron | 2007 | |||||
100 | Stavropol | 1990 | |||||
109 | Rasul Gamzatov | 1991 | |||||
028 | Sochi | 1992 | |||||
065 | Briz | 1992 | |||||
157 | Podolsk | 1993 | |||||
017 | Vasiliy Griazev | 2007 | |||||
141 | Vyborg | 1992 | |||||
137 | Anatoliy Koroliov | 1992 | |||||
143 | Almaz | 1993 | |||||
077 | Neptun | 1994 | |||||
102 | Derbent | 1995 | |||||
178 | Syktyvkar | 1995 | |||||
177 | Kizliar | 1997 | |||||
557 | Valentin Pikul' | 2001 | |||||
414 | Yamalets | 2004 | |||||
pr. 10410B | 5 | 113 | Berkut | 2010 | 375t, 49.5x9.2x2.6m, 3d, 16200hp, 32kts, 28p; 1x2 Igla-1M SAM(16), 2x6-30/54, 2x7-55gl, 2-400TT, 2dcr; Mius, Vaygach-U, Baltika-M(310) radars, Amulet-3 sonar, Sliabing ECM, 2x PK-16 dl | ||
393 | Ust'-Labinsk | 2012 | |||||
383 | PSKR-927 | 2007 | |||||
436 | Krasnodarets | 2010 | |||||
312 | PSKR-932 | 2015 | |||||
pr. 02065 | 2 | 072 | PSKR-726 | 1990 | 266t, 41.0x7.6x2.0m, 3d, 14400hp, 36kts, 32p; 1x4 Strela-3 SAM(16), 1x1-76/59, 1x6-30/54, 2dcr; Rangout, Vympel-AME, Liman radars, Nakat, SPO-3 ECM | ||
075 | PSKR-727 | 1990 | |||||
pr. 1265E | 1 | 107 | Astrakhanets | 1991 | 427t, 49.1x8.8x2.4m, 2d, 2000hp, 14kts, 45p; 1x4 Strela-3 SAM(16), 1x2-30/71, 1x2-25/82; Mius, Vaygach-U radars, Braslet sonar | ||
PCR | pr. 12081 | 1 | 106 | Vyuga | 1984 | 450t, 55.1x9.1x1.4m, 3d, 11400hp, 23kts, 32p; 20belt, 35turrets, 35CT; 1x4 Strela-2 SAM(16), 2x1-100/54, 1x6-30/54, 2x2-12.7, 2x1-30gl, 1x2-140 Sneg rl, 1 Akvilon laser gun; Volna, Mius radars | |
pr. 1248 | 11 | 056 | Shtorm | 1983 | 214t, 38.9x6.1x1.2m, 3d, 3300hp, 17.5kts, 21p; 8side, 35turret; 1x1-100/54, 1x6-30/54, 1x2-12.7, 1x1-30gl, 1x2-140 Sneg rl; Mius radar | ||
057 | Groza | 1984 | |||||
180 | 60 let Pogranichnykh voysk | 1984 | |||||
064 | PSKR-311 | 1985 | |||||
138 | Shkval | 1985 | |||||
137 | Khabarovsk | 1986 | |||||
127 | Tayfun | 1986 | |||||
192 | PSKR-316 | 1987 | |||||
145 | Smerch | 1988 | |||||
167 | Uragan | 1989 | |||||
198 | Vasiliy Poyarkov | 1991 | |||||
pr. 1249 | 6 | 117 | PSKR-52 | 1979 | 225t, 42.9x6.1x1.3m, 3d, 3300hp, 17.4kts, 28+12p; 1x1 Strela-2M SAM(8), 1x6-30/54, 1x1-30gl; Mius radar | ||
065 | 80 let KDVRU | 1980 | |||||
146 | PSKR-54 | 1981 | |||||
093 | Kazak Ussuriyskiy | 1982 | |||||
123 | PSKR-58 | 1983 | |||||
189 | PSKR-59 | 1984 | |||||
PBAC | pr. 12061 | 2 | 659 | DK-43 | 1989 | 149t, 31.3x12.9x1.0/0m, 2gt(2ap), 20000hp, 55kts, 12p; 1x4 Igla-1 SAM(16), 2x6-30/54, 2x1-30gl; 1MBT or 130troops or 24 mines; Lazur', Ekran-1 radars | |
699 | DK-447 | 1992 | |||||
PB | pr. 1400M | 6 | 1-6 | PSKA-545-549, 551 | 1991-1992 | 40t, 23.8x5.2x1.0m, 2d, 2000hp, 29kts, 9p; 1x2-14.5, 1x2-12.7; Lotsiya radar | |
pr. 1400ME | 5 | 1-5 | PSKA-500, 501, 503, 571,572 | 1978-1983 | 40t, 23.8x5.2x1.0m, 2d, 2000hp, 29kts, 9p; 2x2-14.5; Lotsiya radar | ||
pr. 14081 | 28 | 1-28 | PSKA-400, 401, 403-421, 423, 425-430 | 1989-2002 | No picture | 13t, 14.1x3.5x0.7m, 1d(wj), 1000hp, 38kts, 2p; Liman radar | |
pr. 18623 | 3 | 1-3 | PSKA-816-818 | 1999-2005 | No picture | 36t, 20.0x4.5x1.1m, 2d, 3000hp, 45kts, 6+4p; 1x1-14.5, 1x1-30gl; Gals radar | |
pr. 12150 | 45 | 1-45 | PSKA-600-643 Aleksandr Ilyin | 2001-2016 | 27t, 19.5x4.4x1.2m, 2d(wj), 3000hp, 52kts, 6p; 1x1-14.5; MR-415.1 radar | ||
pr. 14230 | 2 | 138 | PSKR-500 | 2001 | No picture | 100t, 36.0x7.9x2.2m, 2d, 10000hp, 55kts, 16p; 1x6-30/54; Liman-18M1 radar | |
135 | PSKR-501 | 2005 | |||||
pr. 14310 | 1 | 016 | PSKR-400 | 2001 | 126t, 35.5x6.6x1.7m, 2d, 10800hp, 50kts, 12p; 2x3 Shturm ATM(6), 1x8 Igla-1M SAM(8), 1x6-30/54, 2x1-14.5; 2x radars | ||
pr. 14310M | 2 | 011 | Noyabrsk | 2003 | 126t, 35.5x6.6x1.7m, 2d, 10800hp, 50kts, 12p; 1x8 Igla-1M SAM(8), 1x6-30/54, 2x1-14.5; 2x radars | ||
012 | PSKR-402 | 2007 | |||||
pr. 12200 | 18 | 1-18 | PSKA-300-315, 317, 318 | 2009-2016 | 58t, 28.0x5.8x1.3m, 2d, 3600hp, 47kts, 6p; 1x1 Igla-1 SAM(2), 1x1-14.5, 1x1-30gl; Liman-18M1 radar | ||
pr. 1496 | 14 | 657 | PSKA-276 | 1986 | no picture | 109t, 23.4x5.9x1.9m, 1d, 315hp, 10.5kts, 9p; 1x1-12.7; Lotsiya or Liman radar | |
280 | PSKA-280 | 1988 | |||||
282 | PSKA-282 | 1988 | |||||
286 | PSKA-286 | 1992 | |||||
402 | PSKA-287 | 1990 | |||||
403 | PSKA-288 | 1991 | |||||
673 | PSKA-582 | 1974 | |||||
604 | PSKA-583 | 1974 | |||||
612 | PSKA-584 | 1976 | |||||
648 | PSKA-585 | 1977 | |||||
651 | PSKA-588 | 1980 | |||||
664 | PSKA-589 | 1980 | |||||
603 | PSKA-591 | 1973 | |||||
614 | PSKA-595 | 1981 | |||||
PBR | pr. 12130 | 4 | 067 | Admiral Kazakevich | 1998 | 98t, 33.4x4.2x0.8m, 2d, 2200hp, 25.2kts, 17p; 1x1 Igla-M SAM(4), 2x6-30/54(200,203), 1x6-30/54(201,202), 1x1-12.7(201,202); Liman radar | |
070 | Strelets | 2001 | |||||
030 | PSKR-202 | 2007 | |||||
071 | PSKR-203 | 2010 | |||||
AK | pr. 1595 | 8 | 115 | Ivan Lednyov | 1977 | 4010t, 96.3x14.5x5.1m, 2d, 7500hp, 18kts, 45p; 1x1 Strela-3 SAM(8), 2x6-30/54, 2x2-12.7; 1 LCM pr. 1733, 940t cargo; 2x radars | |
090 | Nikolay Sipiagin | 1979 | |||||
119 | Nikolay Starshinov | 1980 | |||||
184 | Mikhail Konovalov | 1981 | |||||
143 | Sergey Sudeyskiy | 1982 | |||||
105 | Ivan Evteev | 1983 | |||||
176 | Viacheslav Denisov | 1984 | |||||
199 | Dvina | 1987 | |||||
AKL | pr. 16900 | 2 | 581 | Yugra | 1995 | 920t, 45.5x8.8x2.5m, 2d, 600hp, 9.5kts, 19p; 360t cargo; radar | |
128 | Kanin | 1994 | |||||
pr. 16900A | 3 | 059 | Khanty-Mansiysk | 1997 | 920t, 45.5x8.8x2.5m, 2d, 600hp, 9.5kts, 19p; 360t cargo; radar | ||
070 | Urengoy | 1998 | |||||
080 | Elistinets | 2002 | |||||
pr. 18236 | 2 | 032 | PSKR-452 | 1986 | 680t, 51.5x8.4x3.2m, 1d, 600hp, 11kts, 23p; 180t cargo; radar | ||
193 | PSKR-453 | 1988 | |||||
AOL | pr. 15010 | 1 | 139 | Ishim | 2008 | 5750t, 94.7x12.0x6.1m, 2d, 5000hp, 14kts, 35p; cargo oil; MR-231, Baltika, Gorizont radars | |
pr. 1545 | 1 | 102 | Sovetskiy Pogranichnik | 1967 | no picture | 2940t, 83.6x120x4.9m, 1d, 2000hp, 13kts, 31p; 1530t cargo oil; radar | |
YOG | pr. 1481 | 6 | - | PSKR-483 | 1976 | no picture | 440t, 52.4x8.2x1.1m, 2d, 630hp, 10kts, 7p; 150t cargo oil; radar |
- | PSKR-484 | 1977 | |||||
- | PSKR-485 | 1977 | |||||
- | PSKR-486 | 1978 | |||||
- | RSO-37 | 1979 | |||||
- | RSO-40 | 1981 | |||||
AH | pr. SK620 | 11 | - | Belomorets | 1978 | no picture | 240t, 33.5x7.5x2.4m, 2d, 620hp, 12kts, 17p; 22passengers; radar |
- | PSK-382 | 1978 | |||||
- | PSK-391 | 1979 | |||||
- | PSK-405 | 1980 | |||||
- | PSK-673 | 1980 | |||||
- | PSK-1408 | 1982 | |||||
- | PSK-1411 | 1983 | |||||
- | PSK-1412 | 1983 | |||||
- | PSK-1518 | 1984 | |||||
- | PSK-1556 | 1985 | |||||
- | PSK-2017 | 1980 |
CUSTOMS
PB | pr. 14232 | 6 | - | TS-100 | 1997 | no picture | 100t, 35.4x8.3x2.0m, 2d, 10000hp, 52kts, 16p; 1x1-12.7; Liman-T radar |
- | Dmitriy Shishkov | 2003 | |||||
- | Port-Petrovsk | 2007 | |||||
- | Piotr Matveev | 1998 | |||||
- | Pavel Vereshchagin | 2000 | |||||
- | Vitaliy Kirsanov | 2001 |
CIVILIAN SERVICE
AGBN | pr. 10580 | 2 | - | Taymyr | 1989 | 23460t, 150.2x29.2x8.1m, 1nr,2stg,3em, 52000hp, 18.5kts, 142p; 3x Okean radars | |
- | Vaygach | 1990 | |||||
pr. 10521 | 1 | - | 50 let Pobedy | 2007 | 25800t, 159.6x30.0x11.0m, 2nr,2stg,3em, 75000hp, 21kts, 138p; 3x radars | ||
pr. 1052 | 3 | - | Rossiya | 1986 | 23460t, 148.0x30.0x11.0m, 2nr,2stg,3em, 75000hp, 21kts, 148p; 3x radars | ||
- | Sovetskiy Soyuz | 1990 | |||||
- | Yamal | 1993 | |||||
AGB | Ermak | 3 | - | Ermak | 1974 | 20240t, 135.8x26.0x11.0m, 9dg,3em, 36500hp, 19.5kts, 146p; radars | |
- | Admiral Makarov | 1975 | |||||
- | Krasin | 1976 | |||||
pr. 21900 | 5 | - | Moskva | 2008 | 15400t, 116.0x29.0x8.5m, 4dg,2em(2azipods), 24480hp, 17kts, 25p; radars | ||
- | Sankt-Peterburg | 2009 | |||||
- | Vladivostok | 2015 | |||||
- | Murmansk | 2015 | |||||
- | Novorossiysk | 2016 | |||||
Kapitan Sorokin | 4 | - | Kapitan Sorokin | 1977 | 14655(Dranitsyn, Khlebnikov)-17000(Sorokin, Nikolaev)t, 131.9(Dranitsyn, Khlebnikov)-141.0(Sorokin, Nikolaev)x26.5x8.5m, 6dg,3em, 24800hp, 76p; radars | ||
- | Kapitan Nikolaev | 1978 | |||||
- | Kapitan Dranitsyn | 1980 | |||||
- | Kapitan Khlebnikov | 1981 | |||||
Mudyug | 1 | - | Mudyug | 1982 | 7775t, 111.4x22.2x6.5m, 4dg,2em, 13050hp, 17kts, 43p; radars | ||
Magadan | 2 | - | Magadan | 1982 | 6210t, 92.0x21.2x6.5m, 4dg,2em, 13050hp, 17kts, 34p; radars | ||
- | Dikson | 1983 | |||||
pr. 70202 | 1 | - | Baltika | 2014 | 4350t, 76.4x20.5x7.0m, 3dg,3em(3azipods), 10200hp, 14kts, 24p; radars | ||
pr. 97A | 4 | - | Ivan Kruzenshtern | 1964 | 2940t, 67.7x18.3x6.1m, 3dg,3em, 5400hp, 14.5kts, 45p; radars | ||
- | Yuriy Lisianskiy | 1965 | |||||
- | Fiodor Litke | 1970 | |||||
- | Semion Dezhnev | 1971 | |||||
Kapitan M. Izmayolv | 2 | - | Kapitan M. Izmayolv | 1976 | no picture | 2048t, 56.3x16.3x4.2m, 4dg,2em, 3400hp, 14kts, 24p; radars | |
- | Kapitan Kosolapov | 1976 | |||||
Kaptan Evdokimov | 8 | - | Kapitan Evdokimov | 1983 | 2200t, 76.5x16.6x2.5m, 3dg,4em, 5170hp, 13.5kts, 25p; radars | ||
- | Kapitan Babichev | 1983 | |||||
- | Kapitan Borodkin | 1983 | |||||
- | Kapitan Chudinov | 1983 | |||||
- | Kapitan Metsayk | 1984 | |||||
- | Avraamiy Zavenyagin | 1984 | |||||
- | Kapitan Demidov | 1984 | |||||
- | Kapitan Moshkin | 1986 | |||||
Kapitan Chechkin | 6 | - | Kapitan Chechkin | 1977 | 2240t, 77.6x16.3x3.3m, 3dg,3em, 14kts, 28p; radars | ||
- | Kapitan Plakhin | 1977 | |||||
- | Kapitan Bukaev | 1978 | |||||
- | Kapitan Chadaev | 1978 | |||||
- | Kapitan Krutov | 1978 | |||||
- | Kapitan Zarubin | 1978 | |||||
Karhu | 1 | - | Karu | 1958 | 3540t, 74.2xx17.4x6.4m, dg,4em, 7500hp, 16kts | ||
Tor | 1 | - | Tor | 1964 | 5290t, 84.5x20.5x6.2m, dg,4em, 12000hp, 18kts |
AIRCRAFT
NAVY
Ship-based |
18 Su-33, 19 MiG-29KR, 4 MiG-29KUBR, 5 Su-25UTG, 63 Ka-27, 2 Ka-31R, 16 Ka-27PS, 28 Ka-29 |
Land-based combat capable |
12 MiG-31B/BS, 20 MiG-31BM, 18 Su-27/UB, 41 Su-24M, 9 Su-30SM, 12 Tu-142MK/MZ, 10 Tu-142MR, 3 Be-12PS, 1 Il-18D, 16 Il-38, 6 Il-38N, 12 Su-24MR, 2 Il-20RT, 2 Il-22, 8 Mi-24P, 20 Mi-14, 8 Mi-8PPA |
Naval Infantry land-based combat capable |
12 Tochka-U |
STRATEGIC MISSILE FORCES
Land-based combat capable |
90 RS-12M Topol, 60 RS-12M2 Topol-M (silo-based), 18 RS-12M2 Topol-M (road mobile), 30 RS-18, 54 RS-20, 67 RS-24 Yars (road mobiile), 5 RS-24 Yars (silo-based( |
ARMY
Land-based combat capable |
48 Tochka-U, 72 Iskander-M some Tu-143, some Tu-243, some Tu-300, some BLA-07, some Pchela-1, some Pchela-2 |
COASTAL DEFENCE TROOPS
Land-based combat capable |
36 Bal, 36 Bastion, some Redut, some Rubezh |
AIR FORCE
Land-based combat capable |
62 Tu-22M3, 1 Tu-22MR, 48 Tu-95MS, 12 Tu-95MSM, 11 Tu-160, 5 Tu-160M1, 70 MiG-29/UB, 20 MiG-31B/BS, 60 MiG-31BM, 50 Su-27, 10 Su-27UB, 36 MiG-29SMT, 6 MiG-29UBT, 100 Su-24M/M2, 47 Su-27SM, 14 Su-27SM3, 20 Su-30M2, 62 Su-30SM, 86 Su-34, 52 Su-35S, 40 Su-25, 140 Su-25SM/SM3, 15 Su-25UB, 4 An-30, 79 Su-24MR, 2 Tu-214ON, 2 Tu-214R, 3 Il-22PP, 15 Il-20M, 5 Il-22, 12 Il-22M, 15 A-50, 3 A-50U, 4 Il-80, 2 Il-82, 2 Tu-214SR, 150 L-39, 81 Yak-130, 90 Ka-52A, 100 Mi-24D/V/P, 90 Mi-28N, 60 Mi-35, 20 Mi-8PPA, 7 Mi-8MTRP-1, some Forpost |
BORDER GUARD
Ship-based |
200 Ka-27/Ka-28 |
Land-based combat capable |
some Mi-24 |
NAVAL INFANTRY
equipment | 50 T-72B, 200 T-72B3 MBT, 400 BMP-2, 600 BTR-82A AIFV, 100 BTR-80, 300 MT-LB APC, 60 9P148, some 9P149, 9P157-2 SP AT MSL, 9K111-1 Konkurs, 9K135 Kornet AT MSL, some T-12 100mm AT guns, 95 122mm 2S1, 18 122mm 2S19 SP howitzers, 50 152mm 2S3 SP howitzers, 50 2A36, 50 2A65 152mm towed howitzers, 12 2S23, 30 2S9 120mm SP gun-mortars, 24 2B16 120mm towed gun-mortars, 36 BM-21 122mm MRL, 20 9K33 Osa, 50 Strela-1/10, 32 S-400 SP SAM, some 9K338 Igla-S SAM, 60 ZSU-23-4 23mm SP AA guns, 12 9K79 Tochka SRBM |
coastal defence troops | 36 A-222 Bereg 130mm SP guns, 36 3K60 Bal, 36 K-300P Bastion, some 4K44 Redut, some 4K51 Rubezh SSM |
© Ivan Gogin, 2017
