World navies yesterday - Argentina 01.01.2017

Argentina 01 January 2017

SUBMARINES

SS	type 209	1	S31	Salta	1974	1140/1248t, 55.9x6.3x5.5m, 4dg,1em, 2400/4500hp, 11.5/22kts, 31p, 250m; 8-533TT; Calypso radar, CSU-3, DUUX-2CN, DUUG-1D sonars, DR-2000U ECM, M8 CCS
	TR-1700	2	S41	Santa Cruz	1984	2150/2356t, 65.9x7.3x6.5m, 4dg,1em, 6720/8980hp, 15/25kts, 30p, 300m; 6-533TT; Calypso IV radar, CSU-3/4, DUUX-5 sonars, Sea Sentry III ECM, SINBADS CCS
	TR-1700	2	S42	San Juan	1985

PRINCIPAL SURFACE COMBATANTS

DD	MEKO A360	4	D10	Almirante Brown	1983	3360t, 125.9x15.0x4.3m, COGOG:2gt/2gt(2), 51600/10200hp, 30.5kts, 200p; 2x4 MM40 Exocet SSM(8), 1x8 Albatros SAM(24), 1x1-127/54, 42-40/70, 2x3-324TT(18), 1dcr, 1helicopter (Sea King)(10,11,13), 1 helicopter (Fennec)(12); Decca 1226, ZW-06, DA-08A, WM-25, STIR, 2x LIROD radars, KAE80 sonar, Sphinx, Scimitar ECM, 2x SCLAR dl, G1738 td, SEWACO CCS
			D11	La Argentina	1983
			D12	Heroína	1983
			D13	Sarandí	1984
FS	A69	3	P31	Drummond	1978	1250t, 80.5x10.3x3.6m, 2d, 12000hp, 24kts, 95p; 4x1 MM38 Exocet SSM(4), 1x1-100/55, 1x2-40/70, 2x1-20/70, 2x1-12.7, 2x3-324TT; DRBV-51A, NavBat, DRBC-32E radars, Panda Mk 2, Naja Mk 2 e/o, Diodon sonar, DR-2000S3, Alligator 51 ECM, 2x Syllex dl, MINIACO C31 CCS
			P32	Guerrico	1978
			P33	Granville	1981
	A140	6	P41	Espora	1985	1790t, 91.2x11.1x3.3m, 2d, 20400hp, 27kts, 93p; 2x2 MM38 Exocet SSM(4), 1x1-76/62, 2x2-40/70, 2x1-12.7, 2x3-324TT, heldeck(41-43), 1 helicopter (Alouette III)(44-46); Decca 1226(41-44), NavBat(45,46), DA-05/2, WM-28, 2x LIROD radars, ASO-4 sonar, RQN-3B, TQN-2X ECM, 2x Dagaie dl, SEWACO CCS
			P42	Rosales	1986
			P43	Spiro	1987
			P44	Parker	1990
			P45	Robinson	2000
			P46	Gómez Roca	2004

PATROL AND COASTAL COMBATANTS

PSO	Neftegaz	4	A21	Puerto Argentino	1989	4028t, 81.4x16.3x5.4m, 2d, 7200hp, 15kts, 30p; 2x1-12.7; 2x Nayada radars
			A22	Estrecho de San Carlos	1986
			A23	Bahía Agradable	1990
			A24	Islas Malvinas	1987
PS	King	1	P21	King	1946	1032t, 76.8x8.8x2.3m, 2d, 2500hp, 18kts, 130p; 3x1-105/41, (1x2+2x1)-40/60, 3x1-12.7, 4dct; Decca 1226 radar
	Sotoyomo	1	A9	Alférez Sobral	1944	835t, 43.6x10.3x4.0m, 2dg,2em, 1500hp, 13kts, 49p; 1x1-40/60, 2x1-20/70; Decca 1226 radar
	Abnaki	2	A3	Francisco de Gurruchaga	1945	1731t, 62.5x11.7x5.2m, 4dg,1em, 3000hp, 16kts, 85p; 1x2-40/60(3), 1x1-40/60(6), 4x1-20/70; Decca 626, Decca 1230 radars
	Abnaki	2	A6	Suboficial Castillo	1944
	Marsea	1	A2	Teniente Olivieri	1981	1640t, 56.3x12.3x4.3m, 2d, 3230hp, 12kts, 16p; 2x1-12.7; 2x radars
PM	Intrépida	1	P85	Intrépida	1974	268t, 44.9x7.4x.2.3m, 4d, 14400hp, 37kts, 42p; 2x1 MM38 Exocet SSM(2), 1x1-76/62, 1x1-40/70, 2-533TT; Decca 626, WM-22, M-11 radars, Cutlass ECM
PC	Intrépida	1	P86	Indómita	1975	268t, 44.9x7.4x.2.3m, 4d, 6000hp, 22kts, 42p; 2x1-12.7; 2x nav. radars, Cutlass ECM
PB	Dabur	4	P61	Baradero	1979	39t, 19.8x5.5x1.8m, 2d, 840hp, 22kts, 8p; 2x1-20/70, 2x2-12.7; Decca 101 radar
			P62	Barranqueras	1978
			P63	Clorinda	1979
			P64	Concepción del Uruguay	1979
	Point	2	P65	Punta Mogotes	1970	69t, 25.3x5.2x1.8m, 2d, 1600hp, 22.6kts, 10p; 2x1-12.7; SPS-64(v)1 radar
	Point	2	P66	Río Santiago	1970

AMPHIBIOUS

LPA	type 42	1	B52	Hércules	1976	4100t, 125.0x14.3x4.2m, COGOG:2gt/2gt(2), 54400/8200hp, 28kts, 270p; 4x1 MM38 Exocet SSM(4), 1x1-114/55, 2x1-20/70, 2x1-12.7, 2x3-324TT, 1dcr, 1helicopter(Sea King); 100troops; type 1006, type 965P (AKE-2), type 992Q radars, type 184M, type 162M sonars, RDL-2, RCM-2 ECM, 2x Corvus dl, type 738 td, ADAWS-4 CCS
LPA	Canal Beagle	1	B4	Bahía San Blas	1978	10894t, 119.9x17.5x7.5m, 2d, 6400hp, 16kts, 40p; 8 LCVP(4), 6300t cargo,130 troops(4); 2x nav. radars
LCVP	LCM(6)	4	EDM1-4		1943-1945	56t, 17.1x4.3x1.2m, 2d, 450hp, 9kts, 5p; 2x1-12.7; 1tank
LCVP	EDVP30	8	EDVP30-37		1971-1975	13t, 10.9x3.2x1.0m, 1d, 200hp, 9kts, 2p; 36troops

AUXILIARY

AP	Canal Beagle	2	B3	Canal Beagle	1978		10894t, 119.9x17.5x7.5m, 2d, 6400hp, 16kts, 40p; 8 LCVP(4), 6300t cargo,130 troops(4); 2x nav. radars
AP	Canal Beagle	2	B5	Cabo de Hornos	1979

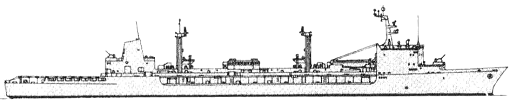

AOR	Durance	1	B1	Patagonia	1977		17800t, 157.2x21.2x8.7m, 2d, 20000hp, 19kts, 164p; 2x1-40/60, 4x1-12.7, 1 helicopter (Sea King); 8500t fuel oil, 140t water, 170t refrigerated cargo, 150t munition, 50t spares, 2x2 and 1x1 underway replenishment stations (dry and liquid cargoes), 1 37t crane, 2x DRBN-34 radars

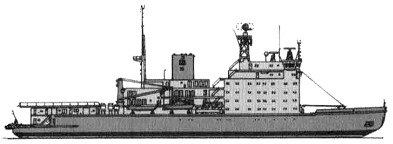

AGB	Almirante Irízar	1	Q5	Almirante Irízar	1978		14900t, 121.3x25.2x9.5m, 4dg,2em, 16250hp, 17kts, 135+45p; 2x1-12.7, 2 helicopters (UH-3H); 2 LCVP; 2 16t cranes; 2x Decca, AWS-2 radars
AGOR	Sonne	1	Q21	Austral	1969	no picture	4735t, 97.6x14.2x6.8m, 3dg,2em, 3085hp, 12.5kts, 30+25p; 15t crane; radar
AGOR	Puerto Deseado	1	Q20	Puerto Deseado	1979		2400t, 76.8x15.8x3.5m, 2d, 2450hp, 14kts, 61+20p; Decca 1629 radar
AGS	Comodoro Rivadavia	1	Q11	Comodoro Rivadavia	1974	no picture	830t, 52.2x8.8x2.9m, 2d, 1200hp, 12kts, 36p; 2x radars
AGS	Cormoran	1	Q15	Cormoran	1964	no picture	102t, 25.3x5.0x1.8m, 2d, 440hp, 11kts, 21p; Decca 1226 radar
YTL	Huarpe	3	R7	Ona	1964	no picture	208t, 30.3x8.4x3.2m, 2d, 830hp, 12kts, 10p; radar
			R8	Toba	1964
			R12	Mataco	1971
	Tehuelche	2	R2	Querandi	1978	no picture	270t, 33.6x8.4x3.0m, 2d, 2640hp, 12kts, 30p; radar
	Tehuelche	2	R3	Tehuelche	1978	no picture	270t, 33.6x8.4x3.0m, 2d, 2640hp, 12kts, 30p; radar
ABU	Red	3	Q61	Ciudad de Zárate	1970		525t, 47.9x10.1x1.9m, 2d, 1800hp, 13kts, 31p, 2x1-12.7; 1x 10t, 1x 5t derricks; SPS-64 radar
			Q62	Ciudad de Rosario	1964
			Q63	Punta Alta	1965
AXS	Libertad	1	Q2	Libertad	1963	no picture	3765t, 91.7x13.8x6.8m, 2d, 2400hp+2700m²sails; 10kts, 220+110p; 4x1-47/40; 3x radars

PREFECTURA NAVAL

WPS	R1	1	GC13	Delfín	1957	no picture	1280t, 56.9x9.4x4.3m, 2d(1), 2965hp, 15kts, 27p; 1x1-20/70, 2x1-12.7; 2x Decca radars
	Mantilla	5	GC24	Doctor Manuel Mantilla	1982		900t, 67.0x10.5x3.3m, 2d, 9000hp, 21kts, 37p; 1x1-40/70, 2x1-12.7, 1 helicopter (Esquilo); 2x Decca 1226 radars
			GC25	Azopardo	1983
			GC26	Thompson	1983
			GC27	Prefecto Pique	1983
			GC28	Prefecto Derbes	1983
	Sun Hae	1	GC185	Correa Falcón	1974	no picture	510t, 55.7x9.0x3.4m, 1d, 1500hp, 12kts, 40p; radar
WPC	Mandubi	1	GC43	Mandubi	1940	no picture	270t, 33.2x4.0x1.9m, 2d, 880hp, 11kts, 12p; 2x1-12.7; radar
WPC	Explorer	1	GC186	Mariano Moreno	1977	no picture	251t, 35.9x7.5x2.0m, 1d, 760hp, 12kts; radar
WPB	Dorado	1	GC101	Dorado	1939	no picture	43t, 21.2x4.3x1.5m, 2d, 360hp, 12kts, 7p
	Lynch	2	GC21	Lynch	1964		117t, 27.4x5.8x1.9m, 2d, 2700hp, 22kts, 16p; 1x1-20/70; Decca radar
	Lynch	2	GC22	Toll	1966
	Tonina	1	GC47	Tonina	1977	no picture	153t, 25.5x5.3x2.1m, 2d, 1500hp, 11kts, 11p; 1x1-20/70, 2x1-12.7; Decca 1226 radar
	Estrellamar	22	GC48	Estrellamar	1977	no picture	15t, 12.5x3.6x1.1m, 2d, 560hp, 20kts, 3p; 1x1-12.7; radar
			GC49	Remora	1977
			GC50	Congrio	1977
			GC51	Mero	1977
			GC52	Marsopa	1977
			GC53	Petrel	1977
			GC54	Salmón	1977
			GC55	Biguá	1977
			GC56	Foca	1981
			GC57	Tiburón	1979
			GC58	Melba	1979
			GC59	Lenguado	1979
			GC60	Orca	1979
			GC61	Pinguino	1979
			GC88	El Chalten	1981
			GC89	Perca	1981
			GC90	Calamar	1981
			GC91	Hipocampo	1981
			GC92	Robalo	1981
			GC93	Camarón	1981
			GC94	Gaviota	1981
			GC95	Trucha	1981
	Mar del Plata	18	GC64	Mar del Plata	1979		81t, 27.7x5.3x1.7m, 2d, 2100hp, 22kts, 15p; 1x1-20/90, 2x1-12.7; Decca 1226 radar
			GC65	Martin García	1979
			GC66	Río Luján	1979
			GC67	Río Uruguay	1979
			GC68	Río Paraguay	1979
			GC69	Río Paraná	1979
			GC70	Río de la Plata	1979
			GC71	La Plata	1979
			GC72	Buenos Aires	1979
			GC73	Cabo Corrientes	1980
			GC74	Quequén	1980
			GC75	Bahía Blanca	1980
			GC76	Ingeniero White	1980
			GC77	Golfo San Matías	1980
			GC78	Madryn	1980
			GC79	Río Deseado	1980
			GC80	Ushuaia	1980
			GC81	Canal Beagle	1980
	Surel	1	GC142	Surel	1997	no picture	15t, 11.9x3.8x0.7m, 2d(2wj), 1360hp, 38kts, 4p; 1x1-12.7; Furuno radar

AIRCRAFT

NAVY

Ship-based	2 ASH-3H Sea King, 4 AS-555 Fennec, 4 UH-3H Sea King
Land-based combat capable	11 Super Étendard, 1 AU-23 Turbo Porter, 3 S-2T Tracker, 4 P-3B Orion, 10 T-34C Turbo Mentor

ARMY

Combat capable

4 SA-315B Lama, 1 Z-11, 6 UH-1H Iroquois

AIR FORCE

Combat capable

20 A-4AR Skyhawk, 2 OA-4AR Skyhawk, 21 IA-58 Pucará, 9 IA-58M Pucará, 1 Cessna 210, 20 AT-63 Pampa, 2 Bell 412EP, 15 Hughes 369, 3 Hughes MD-500, 4 Hughes MD-500D, 3 SA-315B Lama

GENDARMERIE

Combat capable

2 Hughes MD-500C

PREFECTURA NAVAL

Ship-based	3 AS-565MA Panther, 1 AS-365 Dauphin 2, 1 H225 Puma, 2 AS-330L Puma, 2 AS-355 Ecureuil II
Land-based combat capable	1 Beech 350ER King Air

MARINES

equipment

12 ERC-90F Sagaie, 11 LVTP-7, 13 LARC-5, 31 Panhard VCR, 6 M114 155mm howitzers, 13 model 56 105mm howitzers, 58 81mm, 12 120mm mortars, 30 1974F Mk 1 105mm RCL, 6 RBS-70 SAM, 4 Bofors 40L 40mm AA guns, AAVR7 ARV
