Bell / Boeing HV-22 / MV-22 Osprey VSTOL utility plane
MV-22A Osprey
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| HV-22B | cargo-rescue VSTOL plane | 2001 - | 48 (ordered) | --- | APQ-174D radar |
| MV-22B | cargo-utility VSTOL plane | 2001 - | 360 (ordered) | --- | --- |
| Modification | MV-22A |
|
Wing span, m |
15.52 |
|
Length, m |
17.47 / 19.20 |
|
Height, m |
6.73 / 5.61 |
|
Wings area, m2 |
35.59 |
|
Empty mass, kg |
15032 |
|
Full flying-off mass, kg |
25855 |
| Engine | 2 Allison T406-AD-400 |
|
Power, h. p. |
2 õ 4586 |
| Maximal speed, km/h | 565 |
| Cruise speed, km/h | 510 |
| Flying range, km | 3892 |
| Vertical speed, m/s | |
| Maximal altitude, m | 7925 |
| Complement | 2 - 3 |
| Armament | 1 triple 12.7-mm MG, 24 passengers or 9072 kg of cargo or 6804 kg of external cargo, later will can carry AA missiles |

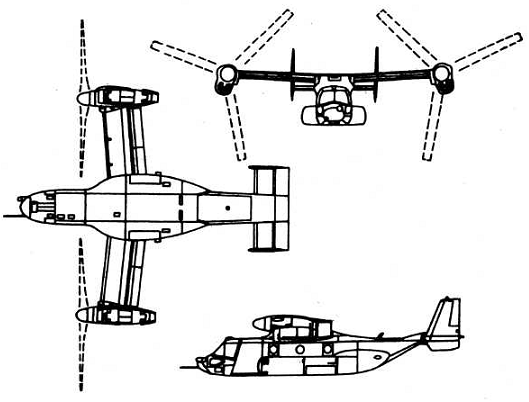

MV-22A Osprey
