USA - Naval aviation and armament
Chance Vought / Consolidated TBY Sea Wolf torpedo bomber
TBY-2 Sea Wolf
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| TBY-2 | torpedo bomber | 11/1944 - 9/1945 | 180 | 3/1945 | --- |
| Modification | TBY-2 |
|
Wing span, m |
17.35 |
|
Length, m |
12.47 |
|
Height, m |
4.72 |
|
Wings area, m2 |
|
|
Empty mass, kg |
|
|
Full flying-off mass, kg |
8386 |
| Engine | 1 Pratt & Whitney R-2800-20 |
| Power, h. p. | 2000 |
| Maximal speed, km/h | 492 |
| Cruise speed, km/h | 346 |
| Flying range, km | 2414 |
| Vertical speed, m/s | |
| Maximal altitude, m | 8290 |
| Complement | 3 |
| Armament | 4 õ 12.7 MG, 1 õ 7.6 MG, 1 908-kg torpedo or 908 kg of bombs or 8 127-mm rockets |

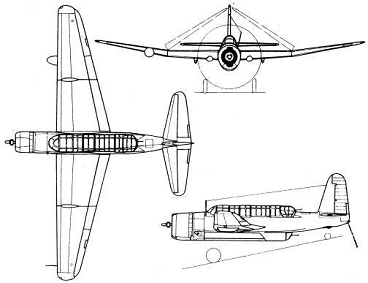

TBY-2 Sea Wolf
