Douglas TBD Devastator torpedo bomber

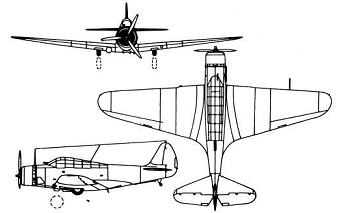

TBD-1 Devastator
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| TBD-1 | torpedo bomber | 5/1937 - 11/1939 | 130 | 8/1942 | --- |
| Modification | TBD-1 |
|
Wing span, m |
15.24 |
|
Length, m |
10.67 |
|
Height, m |
4.60 |
|
Wings area, m2 |
39.20 |
|
Empty mass, kg |
2539 |
|
Full flying-off mass, kg |
4623 |
| Engine | 1 Pratt & Whitney R-1830-64 |
| Power, h. p. | 900 |
| Maximal speed, km/h | 331 |
| Cruise speed, km/h | 206 |
| Flying range, km | 1152 |
| Vertical speed, m/s | 3.7 |
| Maximal altitude, m | 5945 |
| Complement | 2 |
| Armament | 2 x 7.6 MG or (1 õ 12.7 MG, 1 õ 7.6 MG), 1 908-kg torpedo or 545 kg of bombs |

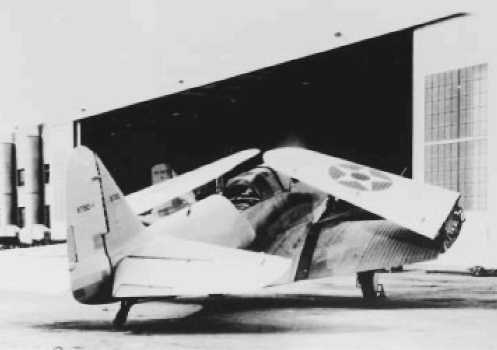

XTBD-1 Devastator
