USA - Naval aviation and armament
Sikorsky SH-60 / HH-60 Sea Hawk / Ocean Hawk / Jayhawk ASW / rescue helicopters
SH-60B Sea Hawk
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| HH-60H Sea Hawk | rescue | 1990 - 1999 | 42 | --- | 2 seats, 2 General Electric T700-GE-700 engines (2 x 1640 hp), 14 passenger or 1197 kg of cargo, rescue equipment, 2 7.6-mm MG, rockets |
| HH-60J Jay Hawk | 1989 - 1999 | 42 | radar, 6 passenger, unarmed | ||
| SH-60B Sea Hawk | ASW | 9/1983 - 1999 | 255 | 3 seats, 2 T700-GE-401 engines (2 x 1690 hp), 907 kg of combat load on 2 points (2 Mk46 or Mk50 torpedoes or 2 Harpoon ASM or 2 Penguin ASM), 25 acoustic buoys, APS-143 radar | |
| SH-60F Ocean Hawk | 1986 - 1995 | 145 | 2 T700-GE-401C engines (2 x 1700 hp), sonar, radar, 1361 kg of combat load on 3 points (3 Mk46 or Mk50 torpedoes or 3 Harpoon ASM or 3 Penguin ASM) | ||
| MH-60R Sea Hawk | 2006 - | rebuilt from SH-60B and F | |||
| MH-60S Sea Hawk | 1999 - | 271 |
| Modification | SH-60B |
|
Rotor diameter, m |
16.36 |
|
Length, m |
15.26 |
|
Height, m |
5.18 |
|
Rotating area, m2 |
210.10 |
|
Empty mass, kg |
5118 |
|
Full flying-off mass, kg |
9185 |
| Engine | 2 General Electric T700-GE-401 |
| Power, h. p. | 2 x 1690 |
| Maximal speed, km/h | 234 |
| Cruise speed, km/h | 220 |
| Flying range, km | 2224 |
| Vertical speed, m/s | 3.6 |
| Maximal altitude, m | 5790 |
| Complement | 3 |
| Armament | 907 kg of combat load on 2 points (2 Mk46 or Mk50 torpedoes or 2 Harpoon ASM or 2 Penguin ASM), 25 acoustic buoys |

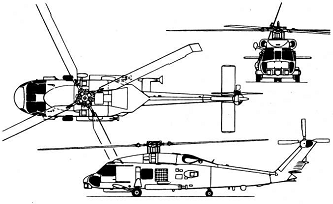

SH-60B Sea Hawk
© Ivan Gogin, 2008
