USA - Naval aviation and armament
Curtiss SC Seahawk reconnaissance seaplane
SC-1 Seahawk
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| SC-1 | recon | 10/1944 - 10/1946 | 561 | 10/1949 | 1 seat, Wright R-1820-62 engine (1350 hp) |
| SC-2 | 10 | 2 seats, R-1820-68 engine (1350 hp) |
| Modification | SC-1 |
|
Wing span, m |
12.50 |
|
Length, m |
11.09 |
|
Height, m |
5.49 |
|
Wings area, m2 |
25.00 |
|
Empty mass, kg |
2867 |
|
Full flying-off mass, kg |
4082 |
| Engine | 1 Wright R-1820-62 |
|
Power, h. p. |
1350 |
| Maximal speed, km/h | 500 |
| Cruise speed, km/h | 201 |
| Flying range, km | 1000 |
| Vertical speed, m/s | 12.7 |
| Maximal altitude, m | 9000 |
| Complement | 1 |
| Armament | 2 x 12.7 MG, 320 kg of bombs |

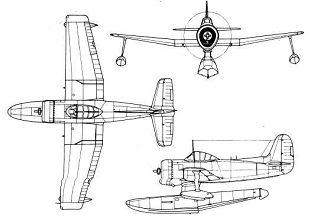

SC-1 Seahawk
