USA - Naval aviation and armament

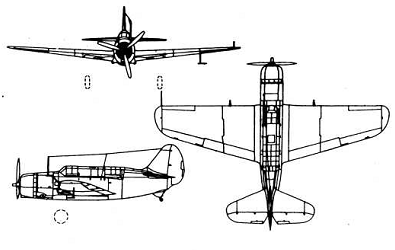

SB2C-4 Helldiver
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| SB2C-1 | diving bomber | 12/1942 - 1943 | 200 | 6/1949 | Wright R-2600-8 engine (1700 h. p.), 4 12.7-mm and 2 7.6-mm MG, 725 kg of bombs |
| SB2C-1C | 1943 - 1944 | 778 | 2 20-mm guns, 2 7.6-mm MG, 725 kg of bombs | ||
| SBF-1 | 50 | --- | |||
| SBW-1 | 40 | --- | |||
| SB2C-3 | early1944 - 1944 | 1112 | R-2600-20 engine (1900 h. p.) | ||
| SB2C-3E | APS-4 radar | ||||
| SBF-3 | 150 | without radar | |||
| SBW-3 | 413 | --- | |||
| SB2C-4 | mid-1944 - 1945 | 2045 | 2 20-mm guns, 2 7.6-mm MG, 725 kg of bombs or 454-kg bomb and 4 127-mm rockets | ||
| SB2C-4E | APS-4 radar | ||||
| SBF-4E | 100 | --- | |||
| SBW-4E | 270 | --- | |||
| SB2C-5 | 2/1945 - 10/1945 | 970 | without radar, fuel stowage increased | ||
| SBW-5 | 86 | --- |
| Modification |
SB2C-4 |
|
Wing span, m |
15.16 |
|
Length, m |
11.18 |
|
Height, m |
4.01 |
|
Wings area, m2 |
39.20 |
|
Empty mass, kg |
4784 |
|
Full flying-off mass, kg |
7537 |
| Engine | 1 Wright R-2600-20 |
| Power, h. p. | 1900 |
| Maximal speed, km/h | 457 |
| Cruise speed, km/h | 254 |
| Flying range, km | 1876 |
| Vertical speed, m/s | |
| Maximal altitude, m | 8870 |
| Complement | 2 |
| Armament | 2 õ 20 guns, 2 õ 7.6 MG, 725 kg of bombs or 454-kg bomb and 4 127-mm rockets |

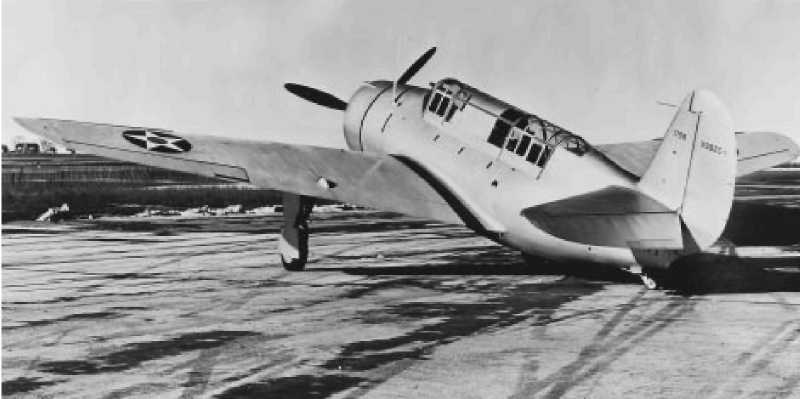

XSB2C-1 Helldiver
SB2C-3 Helldiver
