USA - Naval aviation and armament
SB2A-3 Buccaneer
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| SB2A-3 | recon - diving bomber | 1/1943 - 1943 | 60 | 11/1943 | --- |
| Modification |
SB2A-3 |
|
Wing span, m |
14.33 |
|
Length, m |
11.94 |
|
Height, m |
4.70 |
|
Wings area, m2 |
35.21 |
|
Empty mass, kg |
4501 |
|
Full flying-off mass, kg |
6481 |
| Engine | 1 Wright R-2600-8 |
| Power, h. p. | 1700 |
| Maximal speed, km/h | 441 |
| Cruise speed, km/h | 259 |
| Flying range, km | 2696 |
| Vertical speed, m/s | |
| Maximal altitude, m | 7590 |
| Complement | 2 |
| Armament | 2 õ 12.7 MG, 4 õ 7.6 MG, 454 kg of bombs |

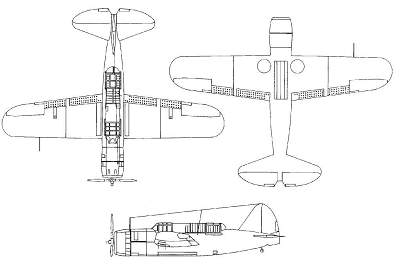

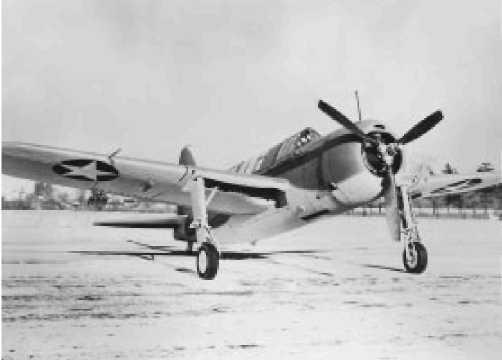

SB2A-3 Buccaneer
SB2A-4 Buccaneer
