USA - Naval aviation and armament
Cessna OE (O-1) Bird Dog observation plane
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| OE-1, 1962 - O-1B | observer | 11/1951 - 1959 | 60 | 3/1970 | --- |
| O-1C | 1965 - 1/1967 | 25 | minor alterations |
| Modification | O-1C |
|
Wing span, m |
10.97 |
|
Length, m |
7.85 |
|
Height, m |
2.22 |
|
Wings area, m2 |
16.16 |
|
Empty mass, kg |
732 |
|
Full flying-off mass, kg |
1102 |
| Engine |
1 Continental O-470-11 |
|
Power, h. p. |
213 |
| Maximal speed, km/h | 243 |
| Cruise speed, km/h | 167 |
| Flying range, km | 853 |
| Vertical speed, m/s | |
| Maximal altitude, m | 5640 |
| Complement | 2 |
| Armament | 1 passenger |
O-1A Bird Dog

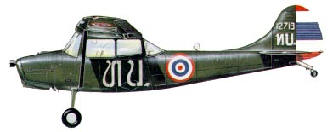

O-1A Bird Dog, Thailand
