USA - Naval aviation and armament

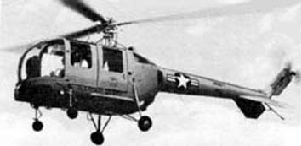

Sikorsky HO5S utility helicopter
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| HO5S-1 | utility | 7/1952 - 2/1953 | 79 | 6/1957 | --- |
| HO5S-1G | few | rescue equipment |
| Modification |
HO5S-1 |
|
Rotor diameter, m |
10.06 |
|
Length, m |
8.78 |
|
Height, m |
4.69 |
|
Rotating area, m2 |
79.44 |
|
Empty mass, kg |
800 |
|
Full flying-off mass, kg |
1225 |
| Engine | 1 Franklin O-435-1 |
| Power, h. p. | 245 |
| Maximal speed, km/h | 130 |
| Cruise speed, km/h | 117 |
| Flying range, km | |
| Vertical speed, m/s | |
| Maximal altitude, m | |
| Complement | 1 - 2 |
| Armament | 3 - 4 passenger |
HO5S-1G
