Great Lakes BG diving torpedo bomber
BG-1
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| BG-1 | diving torpedo bomber | 10/1934 - 11/1935 | 61 | 6/1941 | --- |
| Modification | BG-1 |
|
Wing span, m |
10.97 |
|
Length, m |
8.76 |
|
Height, m |
3.35 |
|
Wings area, m2 |
35.67 |
|
Empty mass, kg |
1770 |
|
Full flying-off mass, kg |
2880 |
| Engine | 1 Pratt & Whitney R-1535-82 |
| Power, h. p. | 750 |
| Maximal speed, km/h | 303 |
| Cruise speed, km/h | 278 |
| Flying range, km | 870 |
| Vertical speed, m/s | |
| Maximal altitude, m | 6125 |
| Complement | 2 |
| Armament | 2 x 7.6 MG, 1 torpedo or 454 kg of bombs |

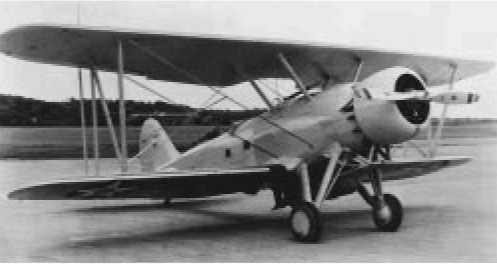

XBG-1

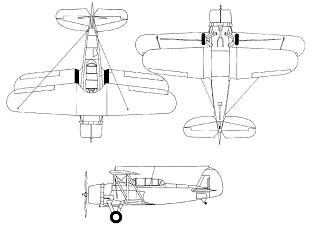

BG-1
