Martin AM Mauler attacker

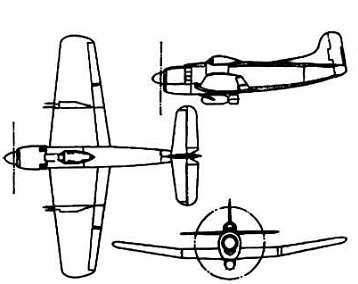

AM-1 Mauler
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| AM-1 | attacker | 3/1948 - 10/1949 | 121 | 1953 | 1 seat, Pratt & Whitney R-4360-4W engine (3000 h. p.), APS-4 radar |
| AM-1Q | ECM plane | 1948 - 1949 | 18 | 1953 | 2 seats, ECM equipment, without armament and radar |
| Modification | AM-1 |
|
Wing span, m |
15.27 |
|
Length, m |
12.57 |
|
Height, m |
3.61 |
|
Wings area, m2 |
46.08 |
|
Empty mass, kg |
6855 |
|
Full flying-off mass, kg |
11350 |
| Engine | Pratt & Whitney R-4360-4W |
|
Power, h. p. |
3000 |
| Maximal speed, km/h | 557 |
| Cruise speed, km/h | 304 |
| Flying range, km | 2452 with external tanks |
| Vertical speed, m/s | 9.4 |
| Maximal altitude, m | 7812 |
| Complement | 1 |
| Armament | 4 20-mm guns, up to 4086 kg of combat load on 14 wing points: 3 907-kg bomb and/or 3 227-kg bombs and/or 12 114-kg bombs and/or 2 298-mm Tiny Tim rockets and/or 12 127-mm HVAR rockets and/or 3 Mk13 torpedoes and/or 3 454-kg mines and/or 3 907-kg mines and/or 3 159-kg depth charges |

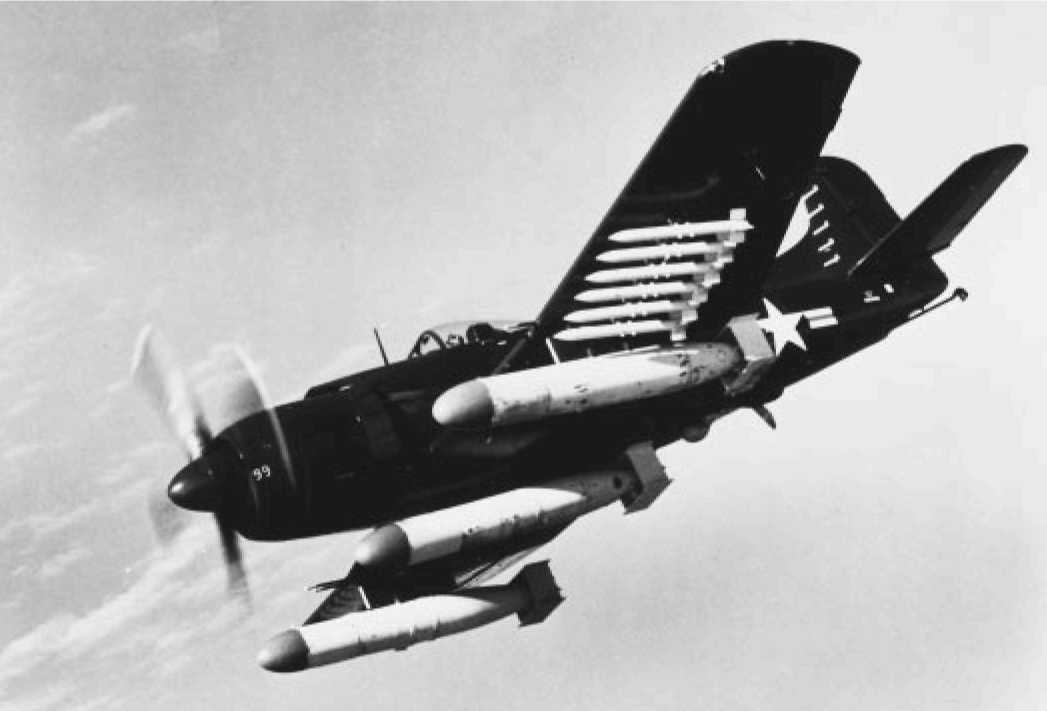

AM-1 Mauler
XBTM-1 Mauler
