USA - Naval aviation and armament
North American AJ (A-2) Savage attacker
AJ-2 (A-2B) Savage
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| AJ-1, 1962 - A-2A | attacker | 9/1949 - 1952 | 40 | 1/1960 | 2 Pratt & Whitney R-2800-44W piston engines (2 x 2400 h. p.) and 1 Allison J33-A-10 jet motor (1814 kgf), 4550 kg of bombs or 1 nuke bomb, radar |
| AJ-2, 1962 - A-2B | 2/1952 - 6/1954 | 70 | 2 R-2800-48W piston engines (2 õ 2500 h. p.) and 1 J33-A-10 jet motor (1814 kgf) | ||
| AJ-2P | recon | 1952 - 1954 | 30 | unarmed |
| Modification | AJ-1 (A-2A) |
|
Wing span, m |
22.87 |
|
Length, m |
19.21 |
|
Height, m |
6.18 |
|
Wings area, m2 |
77.53 |
|
Empty mass, kg |
12510 |
|
Full flying-off mass, kg |
25000 |
| Engines |
2 Pratt & Whitney R-2800-48W 1 Allison J33-A-10 |
|
Power, h. p. Force, kgf |
2 õ 2400 1814 |
| Maximal speed, km/h | 758 |
| Cruise speed, km/h | 410 |
| Flying range, km | 4800 |
| Vertical speed, m/s | 15 |
| Maximal altitude, m | 12800 |
| Complement | 3 |
| Armament | 4550 kg of bombs or 1 nuke bomb |
AJ-1 (A-2A) Savage

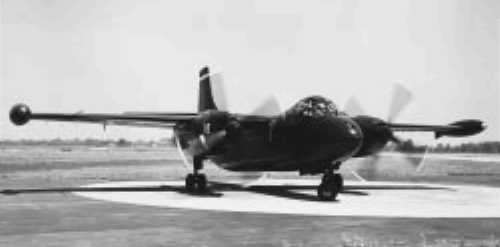

AJ-2 (A-2B) Savage
