United Kingdom - naval aviation and armament
United Kingdom - naval aviation

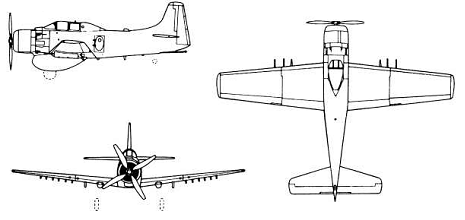

AD-5W Skyraider
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Skyraider AEW.1 | early warning | 7/1952 - 1953 | 50 | 12/1960 | USN AD-4W |
| Modification |
Skyraider AEW.1 |
|
Wing span, m |
15.47 |
|
Length, m |
11.76 |
|
Height, m |
4.78 |
|
Wings area, m2 |
37.19 |
|
Empty mass, kg |
5312 |
|
Full flying-off mass, kg |
11340 |
| Engine | 1 Wright R-3350-26WA |
| Power, h. p. | 3020 |
| Maximal speed, km/h | 583 |
| Cruise speed, km/h | 328 |
| Flying range, km | 2165 |
| Vertical speed, m/s | |
| Maximal altitude, m | 11125 |
| Complement | 3 |
| Armament | early warning radar |

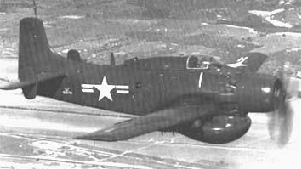

AD-5W Skyraider
© Ivan Gogin, 2007
