United Kingdom - naval aviation and armament
United Kingdom - naval aviation

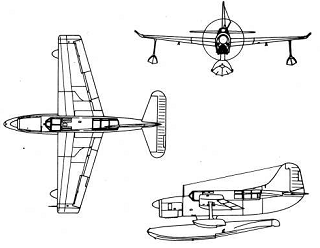

SO3C-1 Seamew
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Seamew I | reconnaissance | 1943 - 1/1944 | 250 from USA | 3/1944 |
USN SO3C-2C with another engine and equipment |
| Modification |
Seamew I |
|
Wing span, m |
11.58 |
|
Length, m |
10.57 |
|
Height, m |
4.57 |
|
Wings area, m2 |
26.94 |
|
Empty mass, kg |
1943 |
|
Full flying-off mass, kg |
3175 |
| Engine | 1 Ranger V-770-8 |
| Power, h. p. | 600 |
| Maximal speed, km/h | 241 |
| Cruise speed, km/h | 201 |
| Flying range, km | 1030 |
| Vertical speed, m/s | |
| Maximal altitude, m | 5000 |
| Complement | 2 |
| Armament | 2 õ 7.6 Browning MG, 90 kg bombs (2 õ 45 kg), if wheeled - up to 230 kg bombs (2 õ 115 kg) |
SO3C Seamew
