United Kingdom - naval aviation and armament
United Kingdom - naval aviation
Sea Venom FAW.22
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Sea Venom FAW.20 | all-weather fighter | 3/1954 - 1955 | 50 | 1961 | De Havilland Ghost 103 (2202 kgf), AI Mk10 radar |
| Sea Venom FAW.21 | all-weather fighter | 1955 - 1956 | 128 | 1961 | Ghost 104 (2202 kgf), more minor alterations, AN/APS-57 radar |
| Sea Venom FAW.22 | all-weather fighter | 2/1956 - 1/1958 | 39 | 1961 | Ghost 105 (2402 kgf), Firestreak air-to-air missiles |
| Sea Venom EMC.21 | electronic warfare | 1961 | several rebuilt from Sea Venom FAW.21 | 5/1966 | unarmed, Ghost 104 (2202 kgs) |
| Modification |
Sea Venom FAW.22 |
|
Wing span, m |
13.00 |
|
Length, m |
11.18 |
|
Height, m |
2.59 |
|
Wings area, m2 |
26.00 |
|
Empty mass, kg |
4000 |
|
Full flying-off mass, kg |
7173 |
| Engine | 1 De Havilland Ghost 105 |
| Force, kgf | 2402 |
| Maximal speed, km/h | 929 |
| Cruise speed, km/h | |
| Flying range, km | 1130 |
| Vertical speed, m/s | 30.0 |
| Maximal altitude, m | 12000 |
| Complement | 2 |
| Armament | 4 x 20 Hispano Mk5 guns, 454 kg of combat load on 2 wing points (2 227-kg bombs or 2 bomb containers or 2 455-l napalm tanks or 8 27-kg rockets or 2 Firestreak air-to-air missiles) |

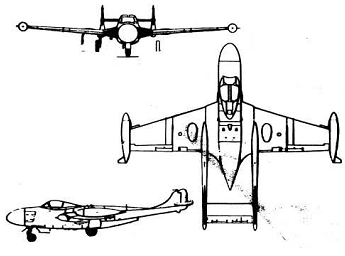

Sea Venom FAW.22
