F-4J Phantom
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Phantom FG.1 | fighter-bomber | 4/1968 - 1970 | 52 | 12/1978 | USN F-4K Phantom II (specially for export) |
| Modification |
Phantom FG.1 |
|
Wing span, m |
11.71 |
|
Length, m |
17.70 |
|
Height, m |
4.96 |
|
Wings area, m2 |
49.24 |
|
Empty mass, kg |
14060 |
|
Full flying-off mass, kg |
26300 |
| Engine | 2 Rolls-Royce Spey 202/203 |
| Force, kgf | 2 õ 9305 |
| Maximal speed, km/h | 2230 |
| Cruise speed, km/h | |
| Flying range, km | 3865 |
| Vertical speed, m/s | 142 |
| Maximal altitude, m | 18300 |
| Complement | 2 |
| Armament | Up to 7250 kg of combat load on 5 hull and 4 wing points (6 Sky Flash air-to-air missiles (2 on wings and 4 on hull), 4 Sidewinder air-to-air missiles (on wings), 2 - 4 Bullpup air-to-surface missiles, 4 Shrike anti-radar missiles, 1 Walleye guided bomb, 6 Maverick air-to-surface missiles, 1 - 2 454-kg Mk13/18 guided bombs, 3 - 18 245- or 454-kg bombs, 76 68-mm rockets, 3 - 15 mines, 1 - 3 4-barrel 30-mm guns in containers, 2 - 3 6-barrel 20-mm guns in containers, 3 2-barrel 20-mm guns in containers in various combinations), AN/AWG-11 radar |

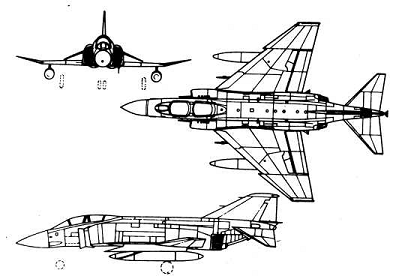

Phantom FG.1
