Russia / USSR - naval aviation

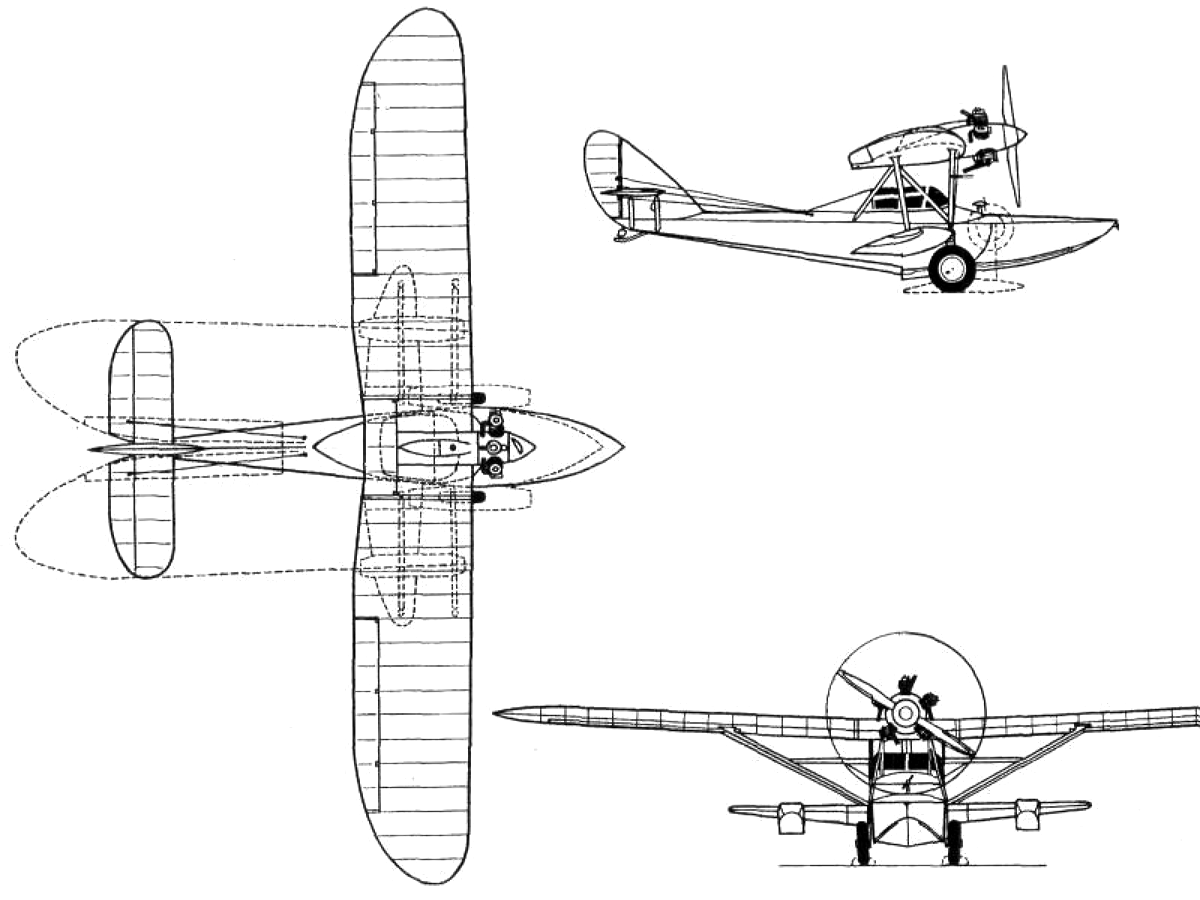

Sh-2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Ø-2 <Sh-2> | utility | 1933 - 1934 | 270 | 1941 | --- |
| Modification |
Sh-2 |
|
Wing span, m |
13.00 |
|
Length, m |
8.20 |
|
Height, m |
|
|
Wings area, m2 |
24.60 |
|
Empty mass, kg |
|
|
Full flying-off mass, kg |
937 |
| Engine | 1 M-11 |
| Power, h. p. | 100 |
| Maximal speed, km/h | 139 |
| Cruise speed, km/h | |
| Flying range, km | 1300 |
| Vertical speed, m/s | |
| Maximal altitude, m | 3850 |
| Complement | 1 |
| Armament | 3 passengers |
Sh-2 was mostly used in merchant aviation and never used from catapults of warships. Merchant aircraft of this type was produced till 1952 (700 units with military planes) and based on almost all icebreakers and ice-breaking vessels till 1964.

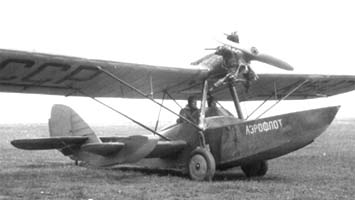

Sh-2
