Russia / USSR - naval aviation and armaments
Russia / USSR - naval aviation

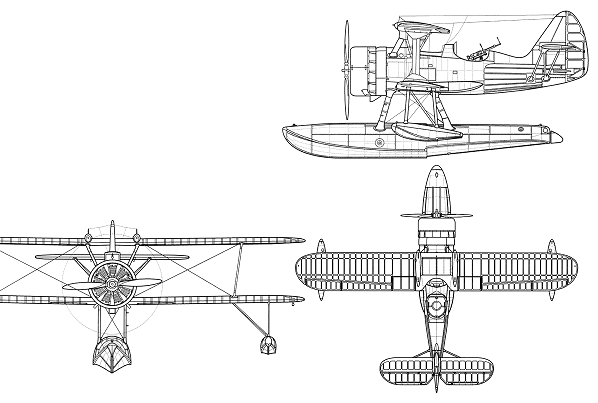

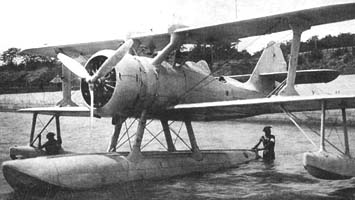

KOR-1 / Be-2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| ÊÎÐ-1 <KOR-1>, 12/1940 - Áå-2 <Be-2> | recon | 1937 - 1940 | 13 | 1945 | --- |
| Modification |
KOR-1 / Be-2 |
|
Wing span, m |
11.00 |
|
Length, m |
8.88 |
|
Height, m |
4.42 |
|
Wings area, m2 |
29.32 |
|
Empty mass, kg |
1800 |
|
Full flying-off mass, kg |
2626 |
| Engine | 1 M-25 |
| Power, h. p. | 700 |
| Maximal speed, km/h | 277 |
| Cruise speed, km/h | 252 |
| Flying range, km | 530 |
| Vertical speed, m/s | 4.1 |
| Maximal altitude, m | 6600 |
| Complement | 2 |
| Armament | 3 x 7.6 ShKAS MG, 200 kg bombs |
KOR-1 / Be-2
© Ivan Gogin, 2009
